Model Electrolux MEX731CFS2 LAUNDRY CENTER – Common Parts & Diagrams
01 - COVER
03 - UPPER CABINET/DRUM HEATER

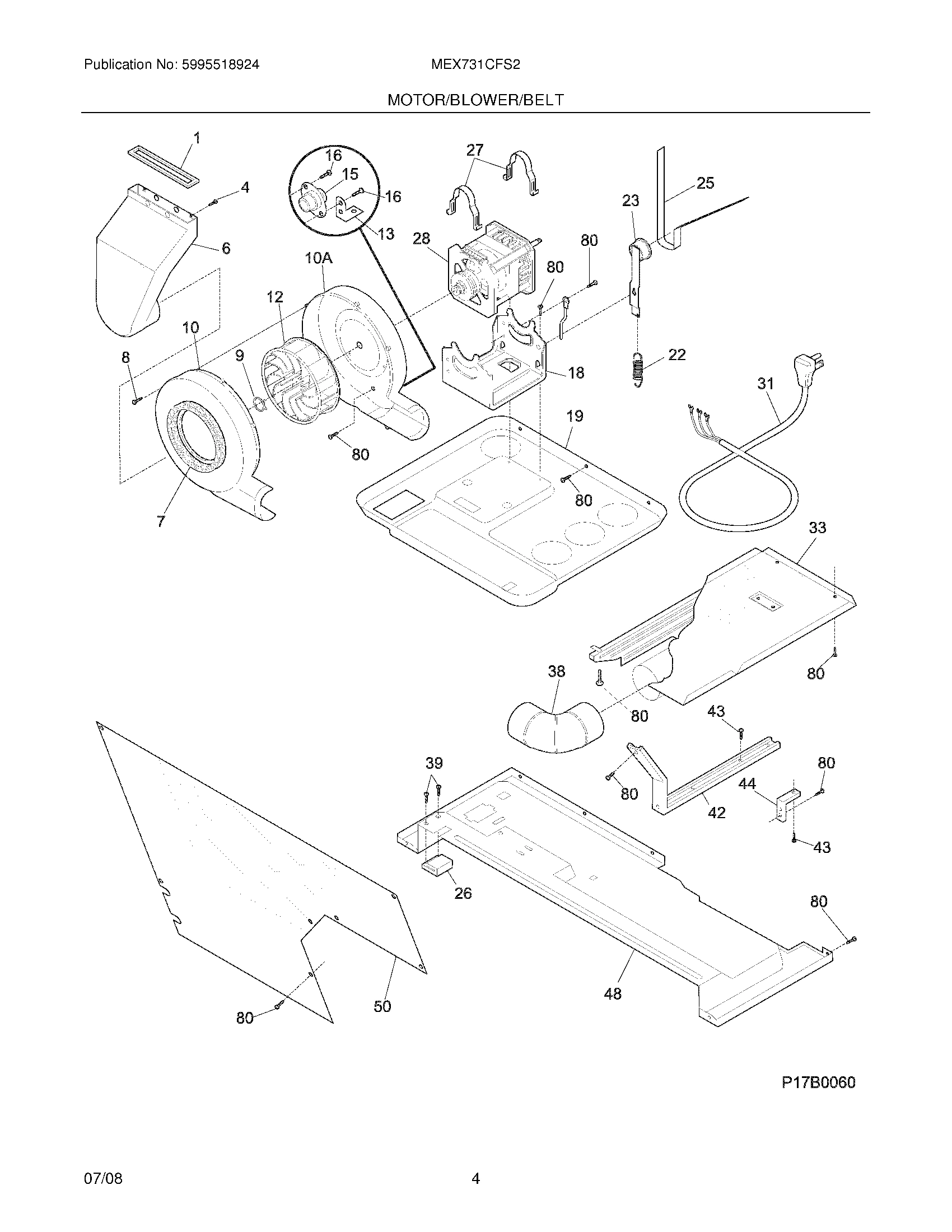

05 - MOTOR/BLOWER/BELT

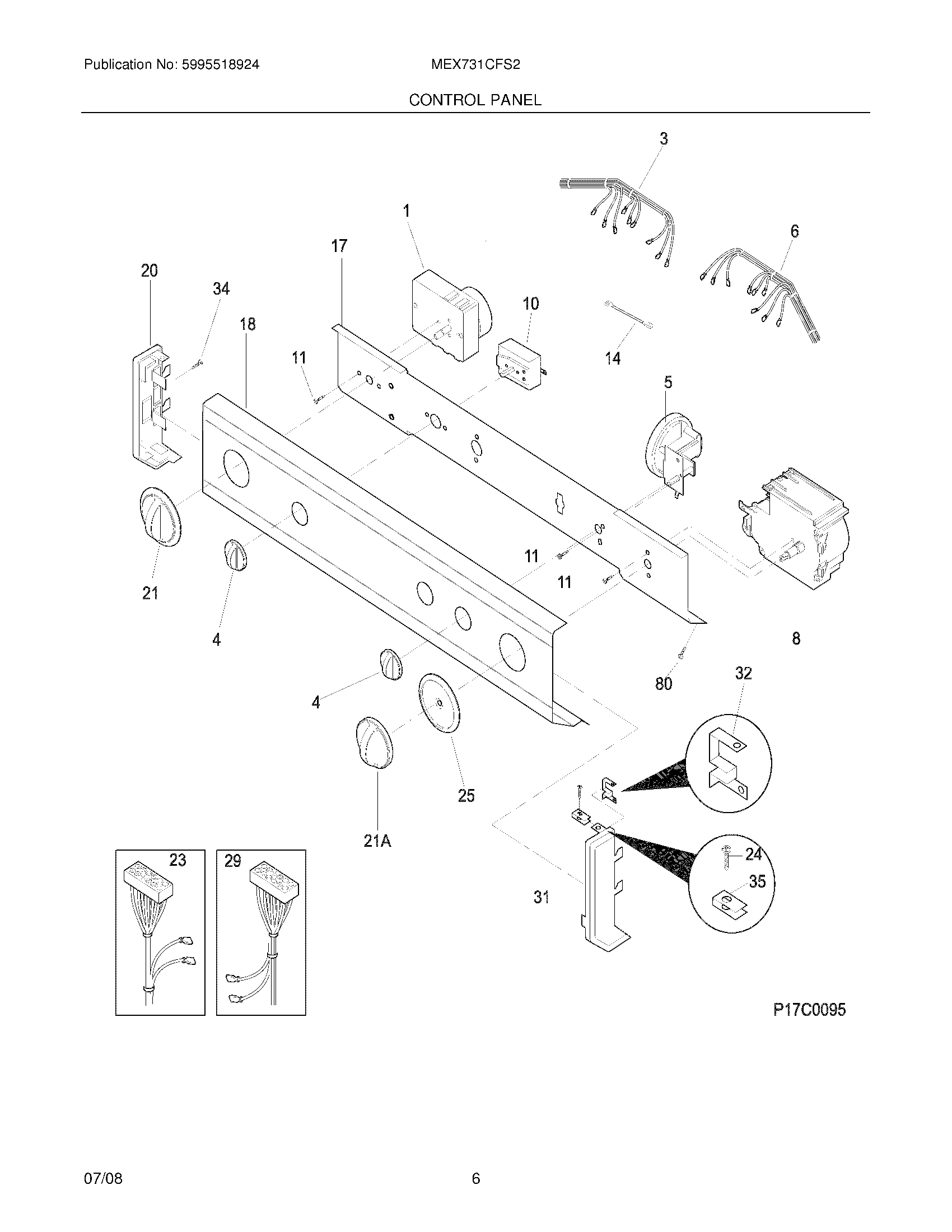

07 - CONTROL PANEL

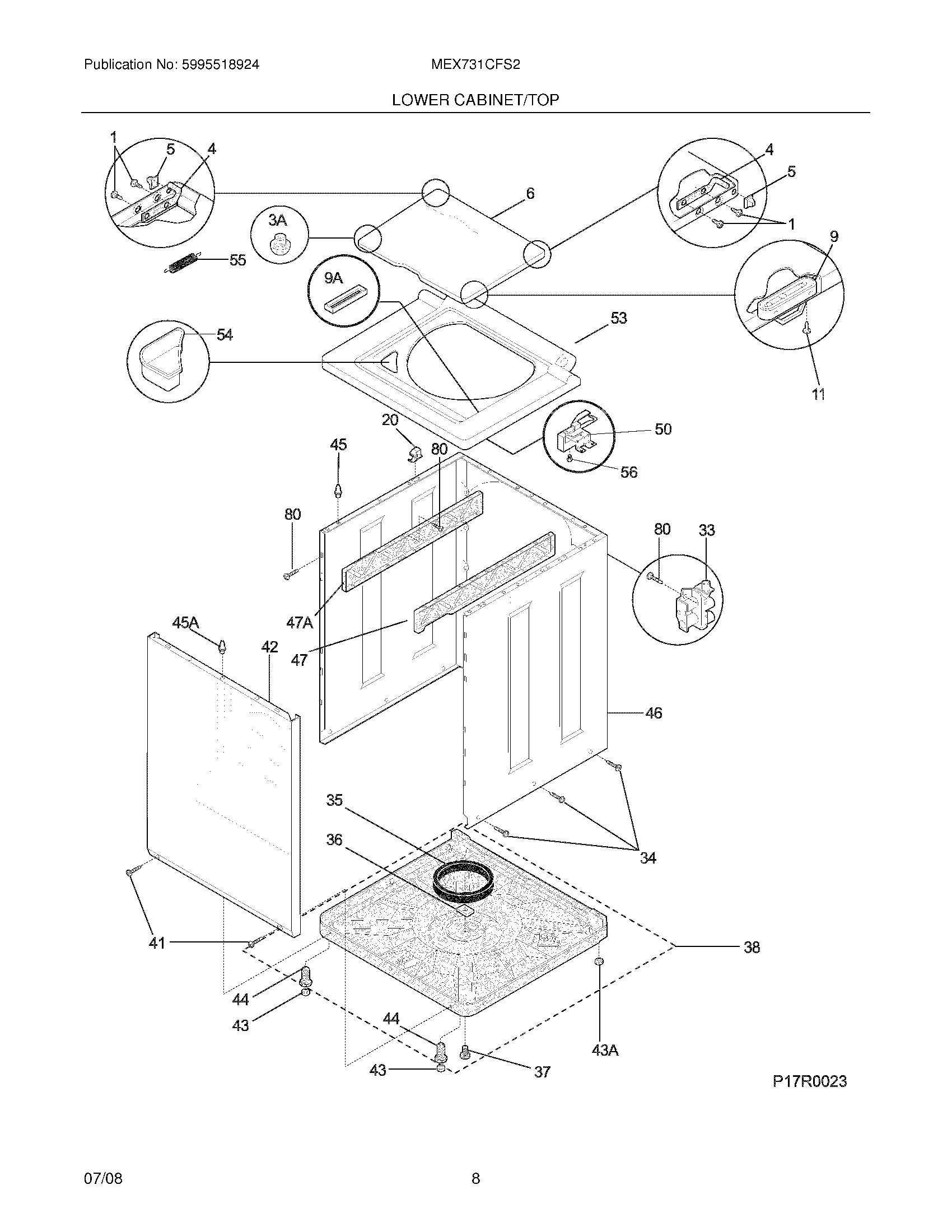

09 - LOWER CABINET/TOP

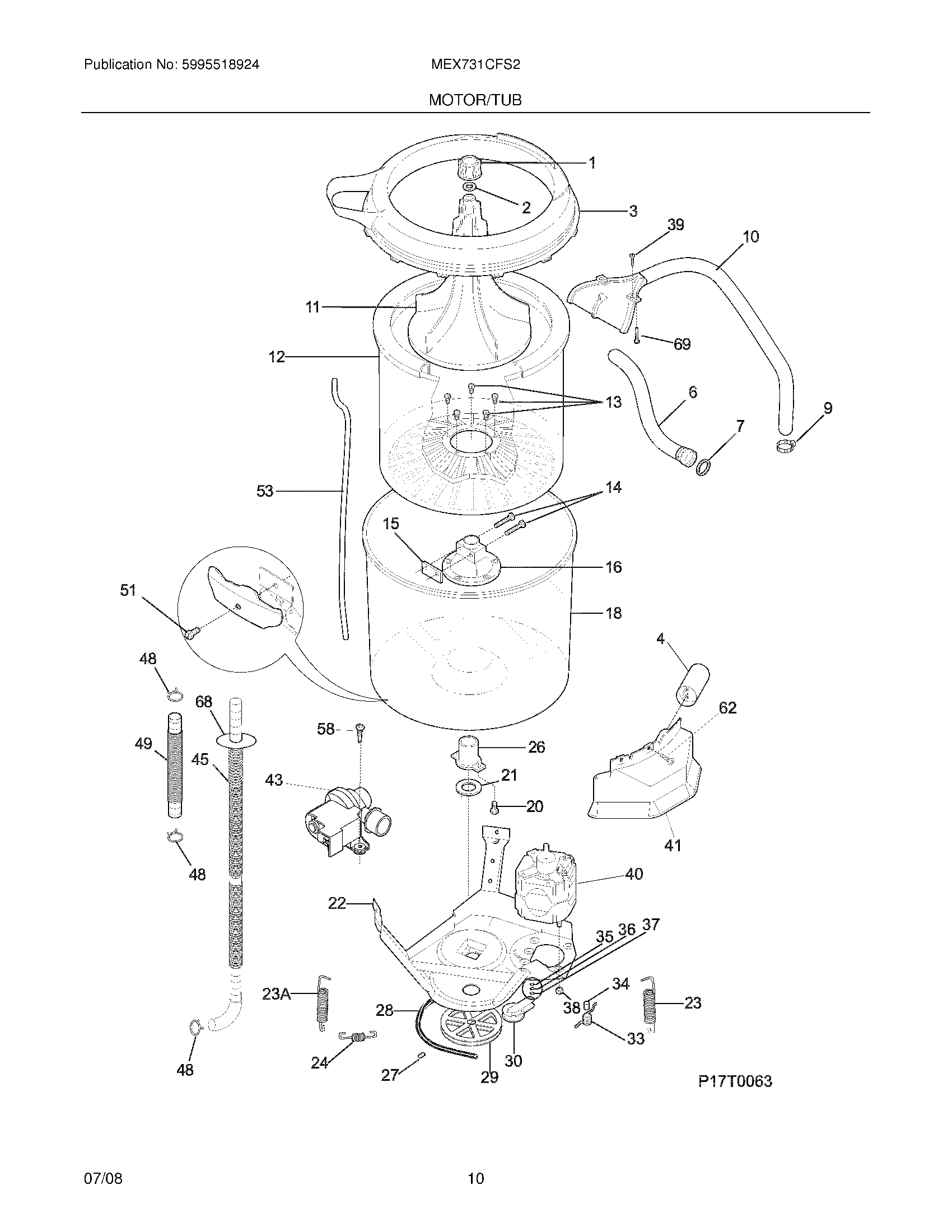

11 - MOTOR/TUB

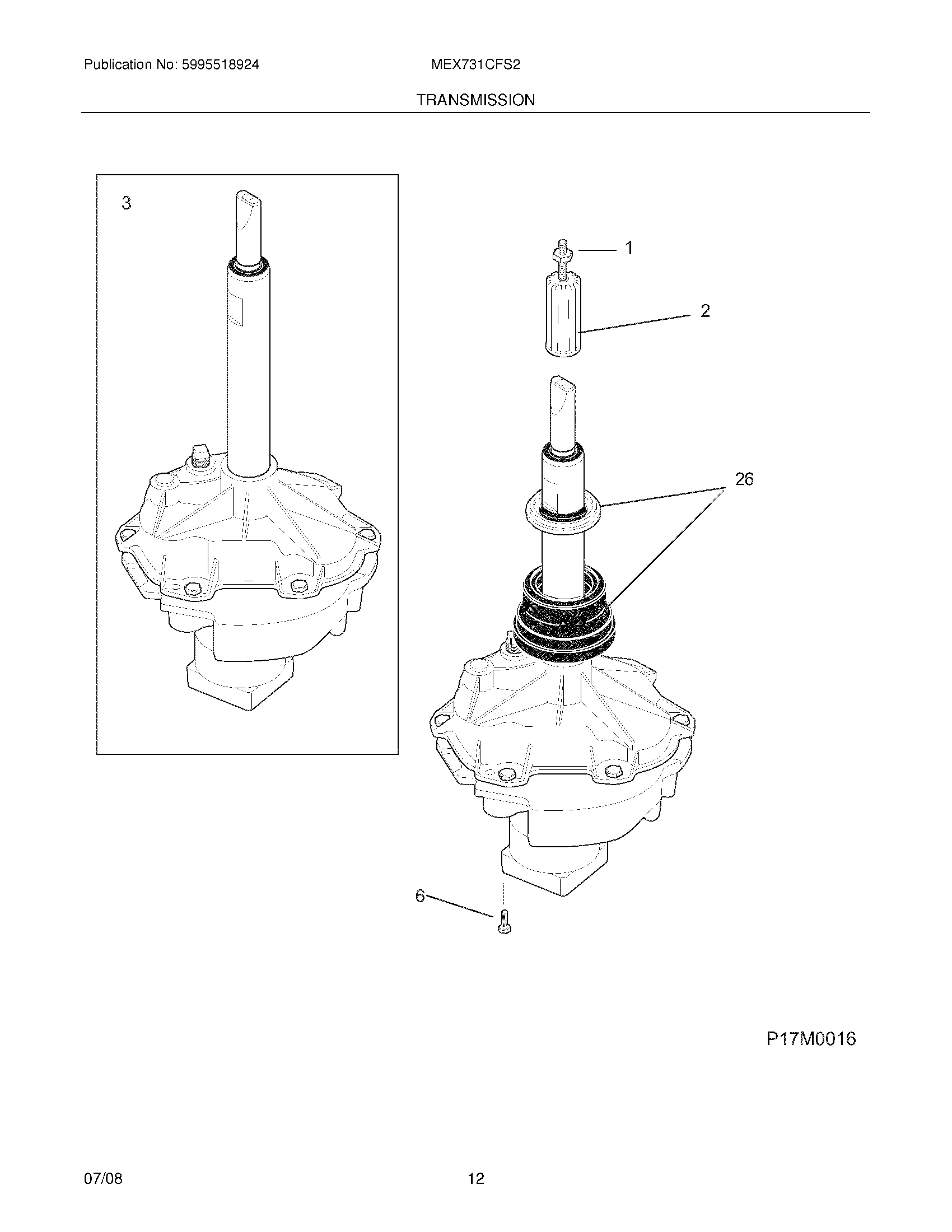

13 - TRANSMISSION

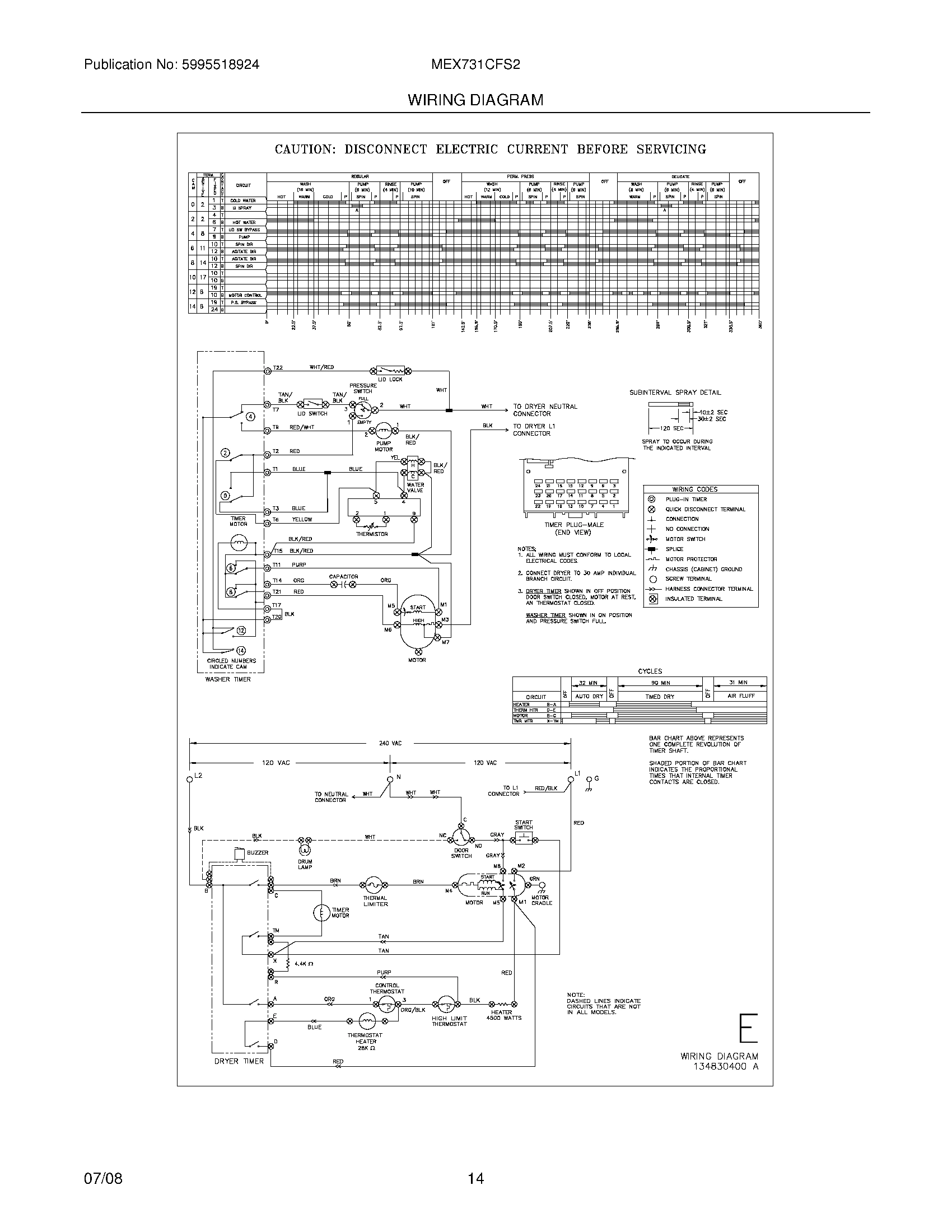

14 - WIRING DIAGRAM

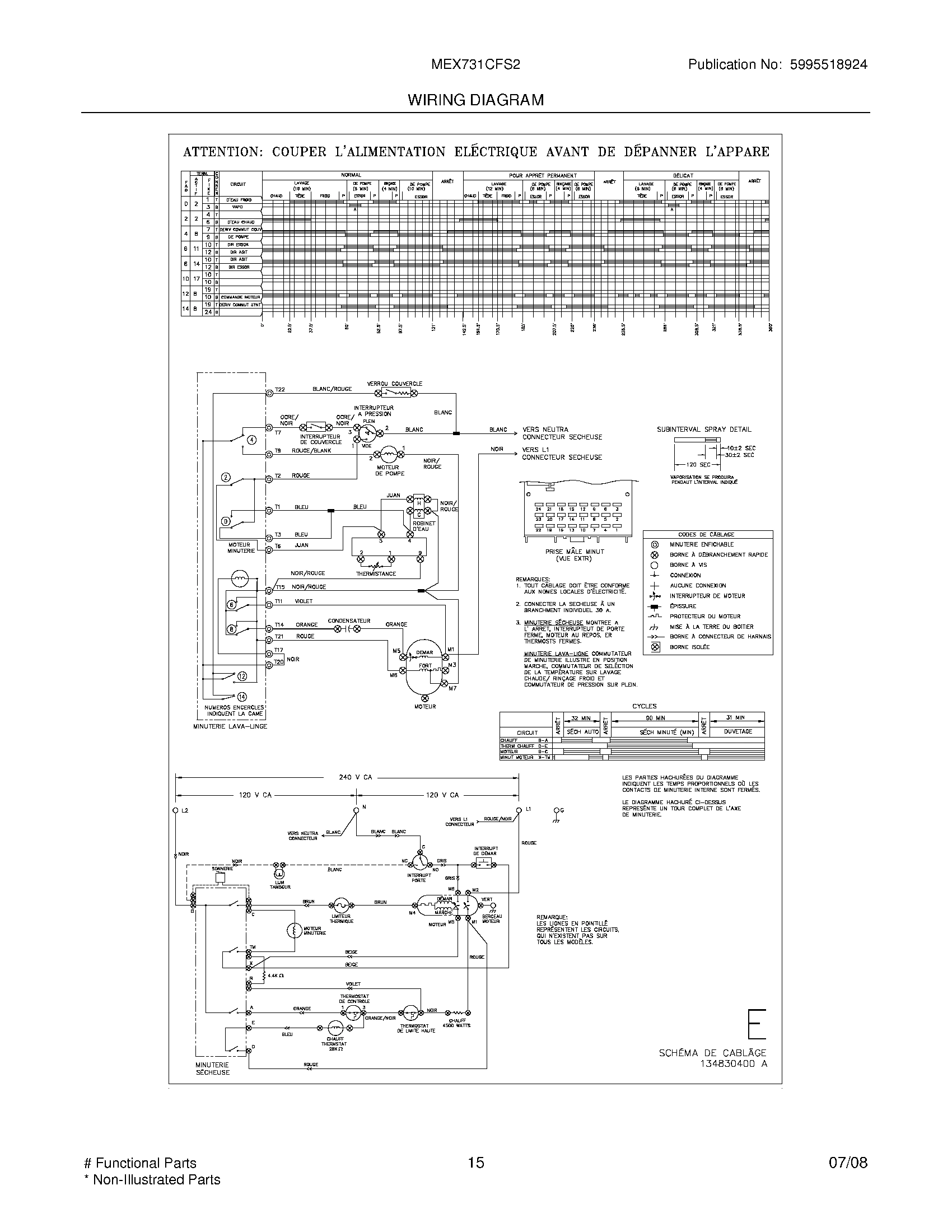

15 - WIRING DIAGRAM
Common parts from model Electrolux MEX731CFS2 LAUNDRY CENTER
1
Cap,agitator ,standard,slim WCI 3204395 No Longer Available
1
WCI 131206800 WCI 131206800 Contact Us For Availability
1
SEAL-AIR DUCT WCI 131295200 Contact Us For Availability
1
Timer,3-off WCI 131225300 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
3
WCI 134735700 WCI 134735700 Contact Us For Availability
3
WCI 131398303 WCI 131398303 Contact Us For Availability
3
Panel,top WCI 131883301 Contact Us For Availability
3
WCI 131484100 WCI 131484100 Contact Us For Availability
3A
Bumper,lid ,front WCI 134075500 Contact Us For Availability
4
Knob,rotary ,white/dark gray WCI 131858004 Contact Us For Availability
4
Fastener,push-in WCI 131362400 Contact Us For Availability
5
Grommet,hinge WCI 5303208743 Contact Us For Availability
6
Clip,ball ,steel ,flat nut WCI 5303281020 Contact Us For Availability
6
WCI 134197900 WCI 134197900 Contact Us For Availability
7
WASHER-INLET HOSE WCI 5303161296 Contact Us For Availability
8
Timer,washer WCI 131964100 Contact Us For Availability
8
WCI 3205245 WCI 3205245 Contact Us For Availability
9A
WCI 134768500 WCI 134768500 Contact Us For Availability
11
Screw,lid strike mtg ,6-20B X 0.375 WCI 3204368 Contact Us For Availability
14
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri WCI 131205400 Contact Us For Availability
14
WCI 134446800 WCI 134446800 Contact Us For Availability
16
WCI 131545101 WCI 131545101 Contact Us For Availability
18
WCI 131557201 WCI 131557201 Contact Us For Availability
18
WCI 131413600 WCI 131413600 Contact Us For Availability
20
WCI 131288101 WCI 131288101 Contact Us For Availability
20
Screw,tub bearing ,8-12B x 0.750 WCI 3205150 Contact Us For Availability
21
Knob,dryer timer ,white/dark gray WCI 131859104 Contact Us For Availability
21
WCI 134122532 WCI 134122532 Contact Us For Availability
21A
Knob,washer timer ,white/dark gray WCI 131977001 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
23
WCI 134605500 WCI 134605500 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
25
Pointer,timer ,white ,gray indicator WCI 131976702 Contact Us For Availability
26
Seal Assy,tub ,transmission WCI 5303279394 Contact Us For Availability
29
WCI 134769600 No Longer Available
29
WCI 131498301 WCI 131498301 Contact Us For Availability
29
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s WCI 131382300 Contact Us For Availability
30
WCI 131862900 WCI 131862900 Contact Us For Availability
31
WCI 131288211 WCI 131288211 Contact Us For Availability
32
WCI 131777700 WCI 131777700 Contact Us For Availability
33
Spring,torsional WCI 3204425 Contact Us For Availability
34
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi WCI 131243800 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
35
WCI 131892100 WCI 131892100 Contact Us For Availability
36
WCI 134120900 WCI 134120900 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
Washer,spring type WCI 5303161306 Contact Us For Availability
38
WCI 5303318708 WCI 5303318708 Contact Us For Availability
38
WCI 5303311213 WCI 5303311213 Contact Us For Availability
39
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr WCI 131205100 Contact Us For Availability
40
WCI 134156400 WCI 134156400 Contact Us For Availability
42
WCI 131104303 WCI 131104303 Contact Us For Availability
43
WCI 131422100 WCI 131422100 Contact Us For Availability
45
Pin,panel locator WCI 131346400 Contact Us For Availability
46
HANDLE-DOOR, WHITE WCI 131789400 Contact Us For Availability
48
WCI 131789303 WCI 131789303 Contact Us For Availability
50
WCI 134101800 WCI 134101800 Contact Us For Availability
51
WCI 134164400 No Longer Available
53
WCI 5304401845 WCI 5304401845 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
54
WCI 134846300 WCI 134846300 Contact Us For Availability
55
WCI 137046100 WCI 137046100 Contact Us For Availability
64
WCI 131891010 WCI 131891010 Contact Us For Availability
NI
WCI 134101400 WCI 134101400 Contact Us For Availability
NI
Insert,spring adjuster ,vertical WCI 5303212877 Contact Us For Availability
NI
Cushion,drain hose ,base WCI 131663500 Contact Us For Availability
NI
WCI 134805600 WCI 134805600 Contact Us For Availability
× ![]()
