Model Maytag MEW9630DS01 ELECTRIC OVEN – Common Parts & Diagrams

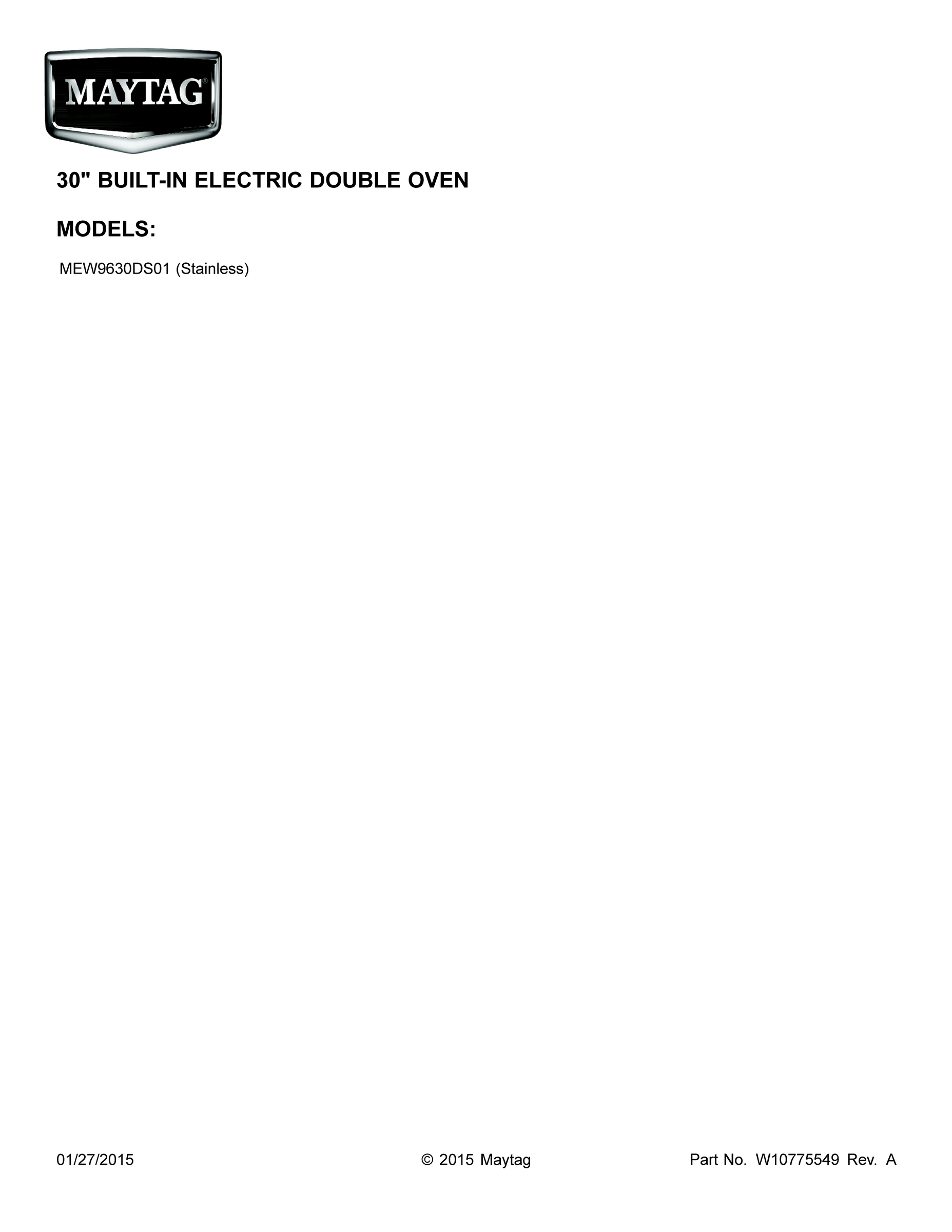

01 - COVER SHEET

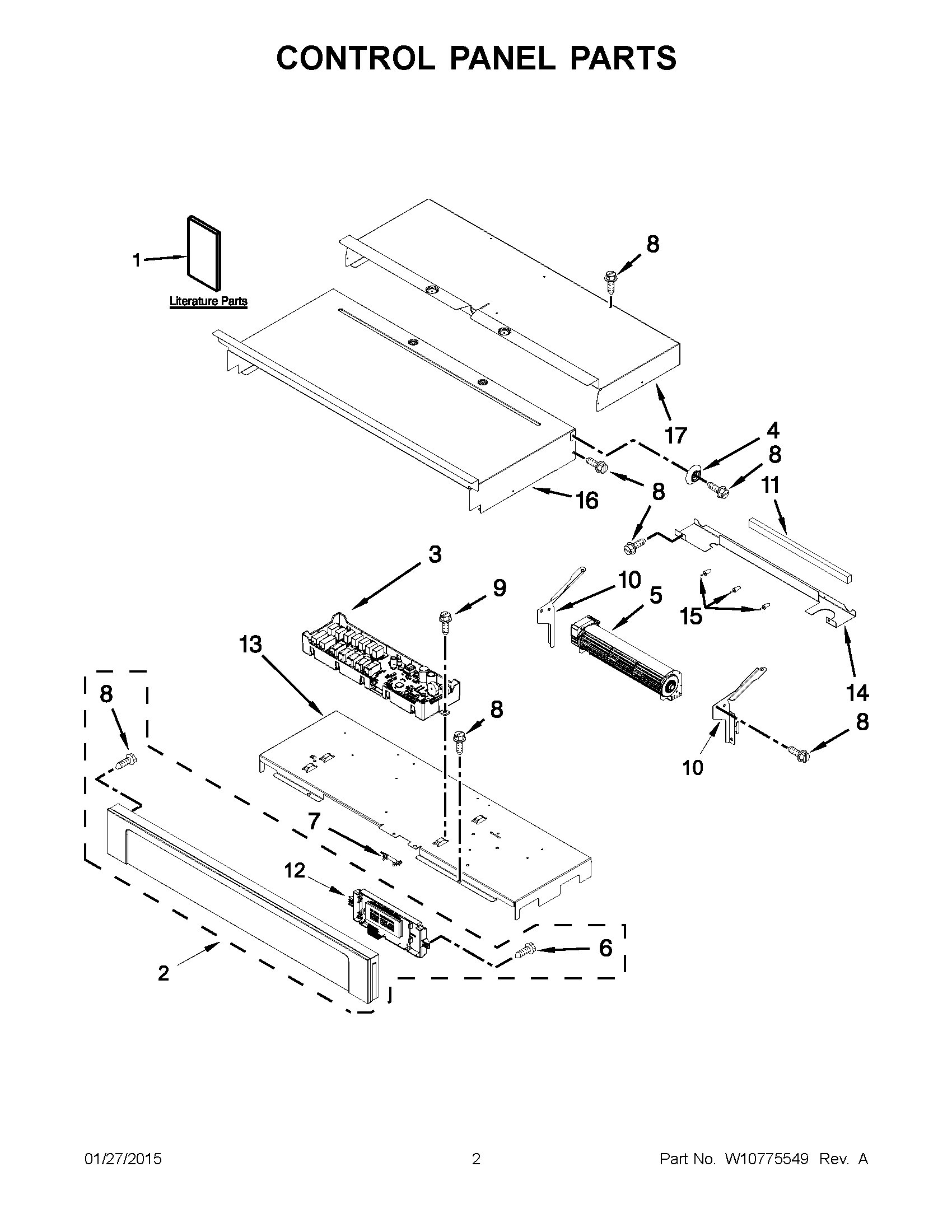

02 - CONTROL PANEL PARTS

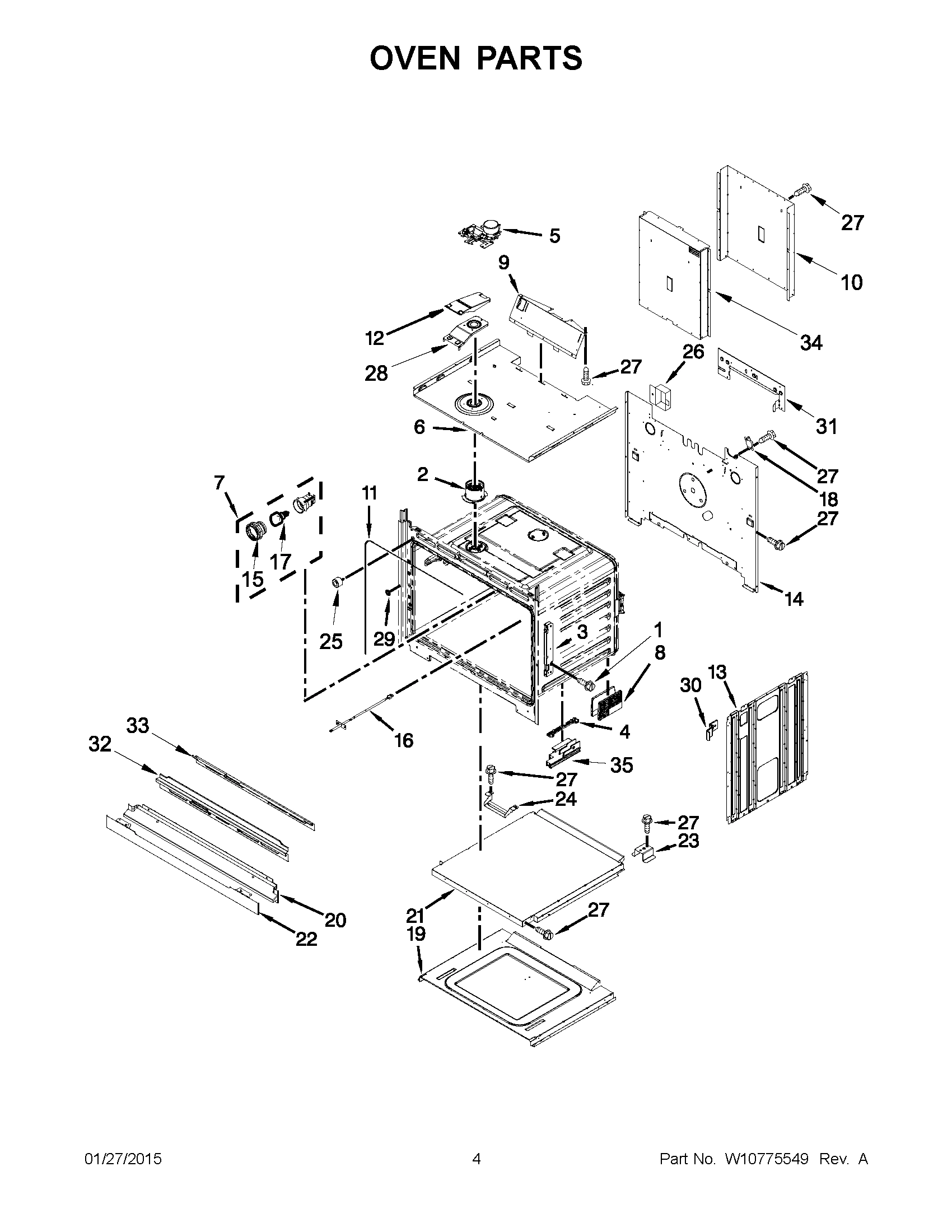

03 - OVEN PARTS

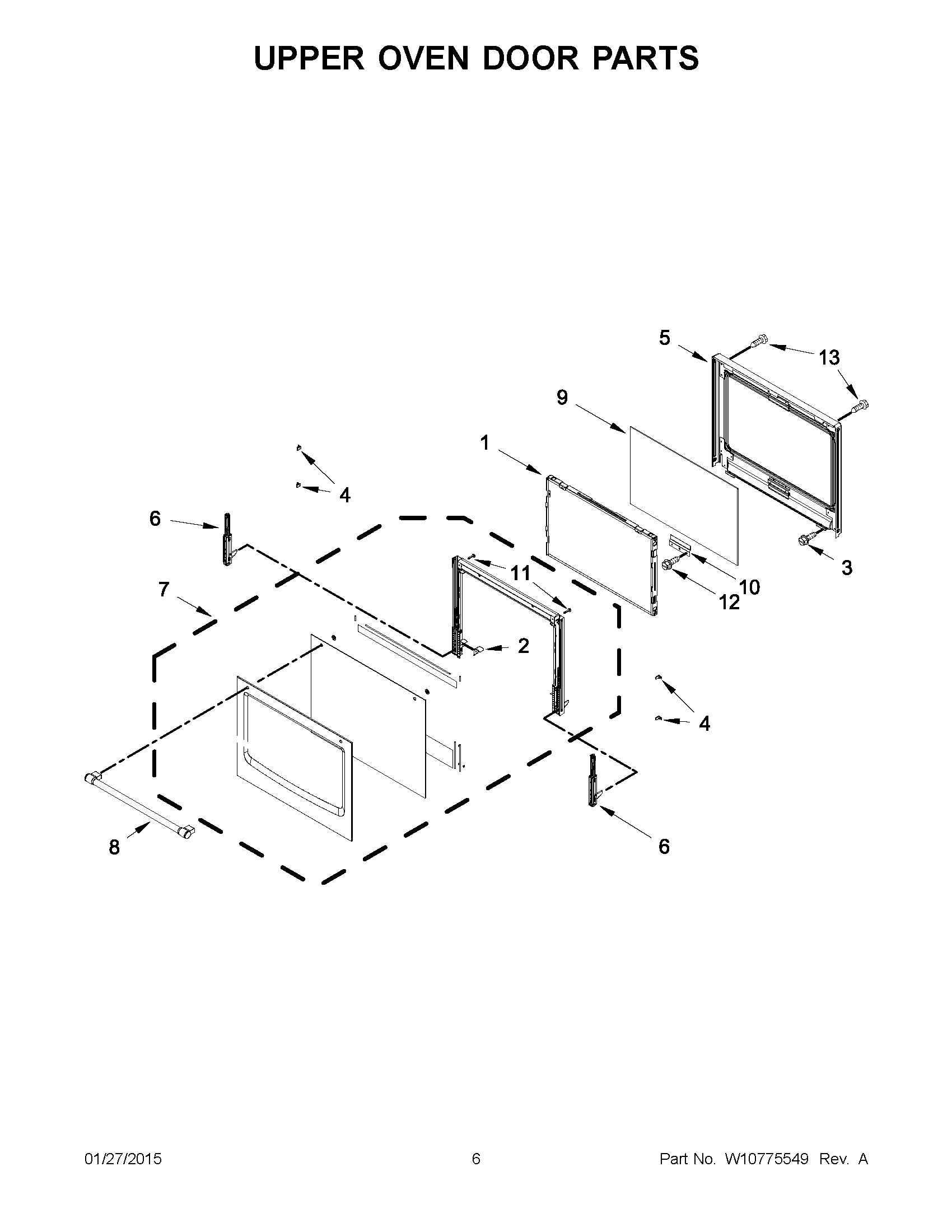

04 - UPPER OVEN DOOR PARTS

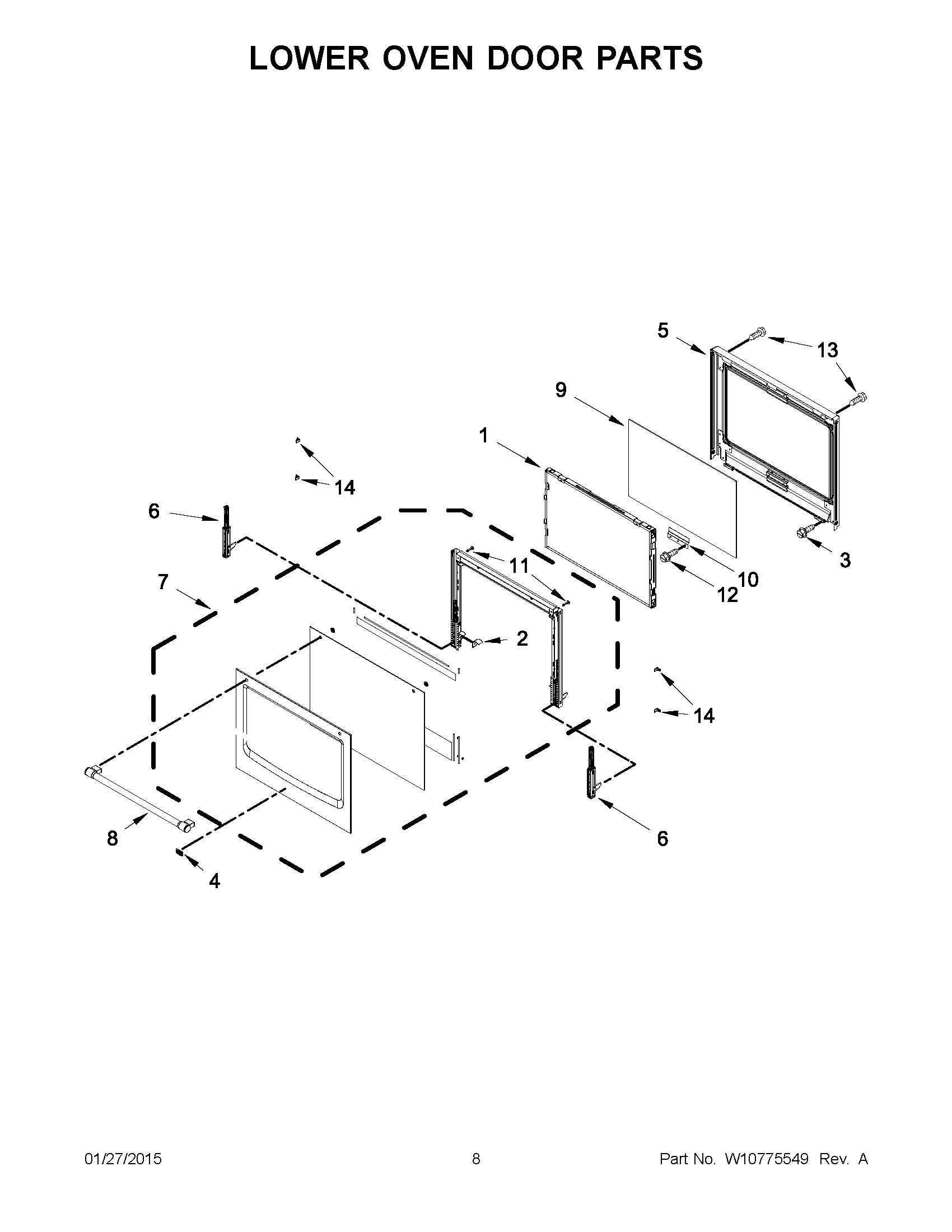

05 - LOWER OVEN DOOR PARTS

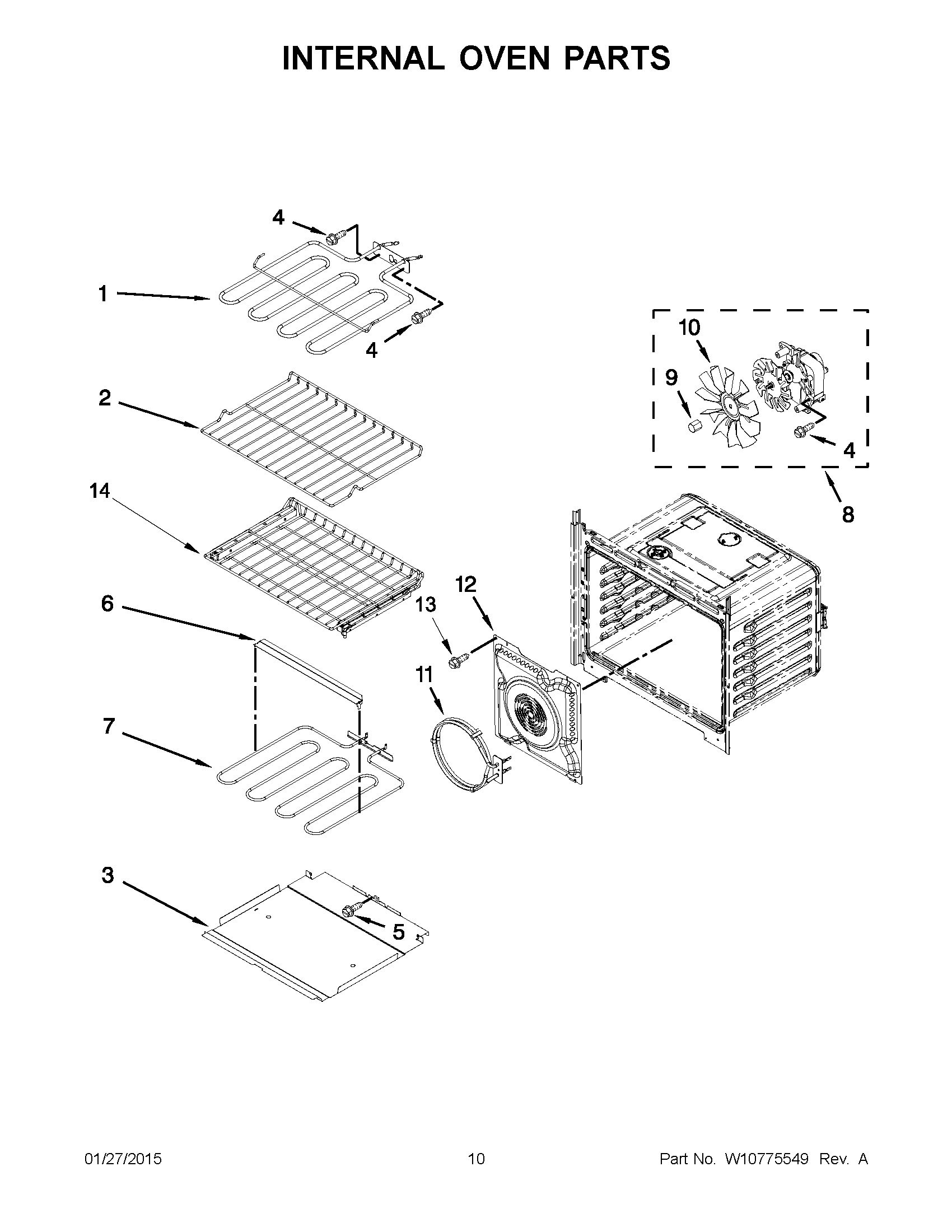

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag MEW9630DS01 ELECTRIC OVEN
1
INSTRUCTIONS, INSTALLATION MAY W10351242 Contact Us For Availability
1
MAY W10254050 MAY W10254050 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10669241 Contact Us For Availability
1B
MAY W10733500 MAY W10733500 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S MAY W10660585 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282967 MAY W10282967 Contact Us For Availability
3
MAY W10734525 MAY W10734525 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10363824 MAY W10363824 Contact Us For Availability
4
MAY W10318220 MAY W10318220 Contact Us For Availability
4
MAY W10612925 MAY W10612925 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
MAY W10661038 MAY W10661038 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY W10320791 MAY W10320791 Contact Us For Availability
5A
MAY W10641253 MAY W10641253 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
MAY W10730172 MAY W10730172 Contact Us For Availability
6
MAY W10639069 MAY W10639069 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
7
MAY W10545291 MAY W10545291 Contact Us For Availability
7
MAY W10734063 MAY W10734063 Contact Us For Availability
7
MAY W10587560 MAY W10587560 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
8
MAY W10618101 MAY W10618101 Contact Us For Availability
8
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10665843 Contact Us For Availability
8
MAY W10722667 MAY W10722667 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
GLASS, INNER MAY W10618107 Contact Us For Availability
9
MAY W10631504 MAY W10631504 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10
DUCT, CHASSIS BACK (LOWER) MAY W10542857 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10631503 MAY W10631503 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10282960 MAY W10282960 Contact Us For Availability
11
MAY 3196183 MAY 3196183 Contact Us For Availability
11
MAY W10260248 MAY W10260248 Contact Us For Availability
12
MAY W10532438 MAY W10532438 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10359278 MAY W10359278 Contact Us For Availability
13
MAY W10347650 MAY W10347650 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
14
MAY W10655465 MAY W10655465 Contact Us For Availability
14
MAY W10696134 MAY W10696134 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
MAY W10282973 MAY W10282973 Contact Us For Availability
15
MAY W10351295 MAY W10351295 Contact Us For Availability
15
MAY W10412722 MAY W10412722 Contact Us For Availability
16
MAY W10318192 MAY W10318192 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
17
CHASSIS, COVER TOP BACK 30" MAY W10694465 Contact Us For Availability
17
MAY W10412711 MAY W10412711 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10282900 MAY W10282900 Contact Us For Availability
20
MAY W10351279 MAY W10351279 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10327377 MAY W10327377 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY 8285593 MAY 8285593 Contact Us For Availability
28
MAY W10616809 MAY W10616809 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
31
MAY W10588736 MAY W10588736 Contact Us For Availability
32
MAY W10283040 MAY W10283040 Contact Us For Availability
33
MAY W10283036 MAY W10283036 Contact Us For Availability
34
DUCT, CHASSIS BACK (UPPER) MAY W10318196 Contact Us For Availability
35
MAY W10618103 MAY W10618103 Contact Us For Availability
35A
MAY W10618104 MAY W10618104 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SIGNAL MAY W10284931 Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W10573327 Contact Us For Availability
NI
MAY W10655464 MAY W10655464 Contact Us For Availability
NI
MAY W10679413 MAY W10679413 Contact Us For Availability
NI
MAY W10730963 MAY W10730963 Contact Us For Availability
NI
MAY W10282944 MAY W10282944 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
