Model Maytag MEW9627FZ04 WALL OVEN, ELECTRIC, DOUBLE, 27 INCH – Common Parts & Diagrams

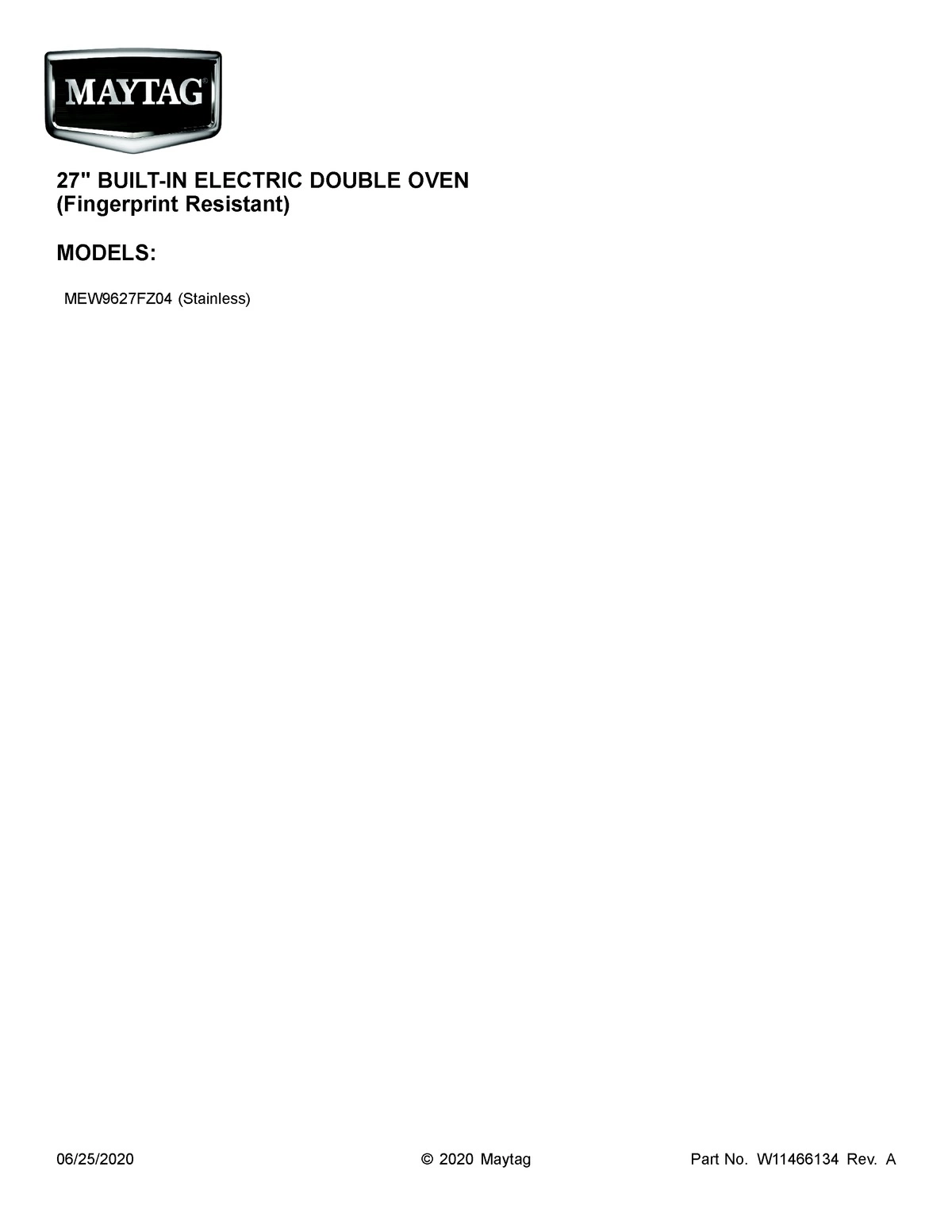

01 - COVER SHEET

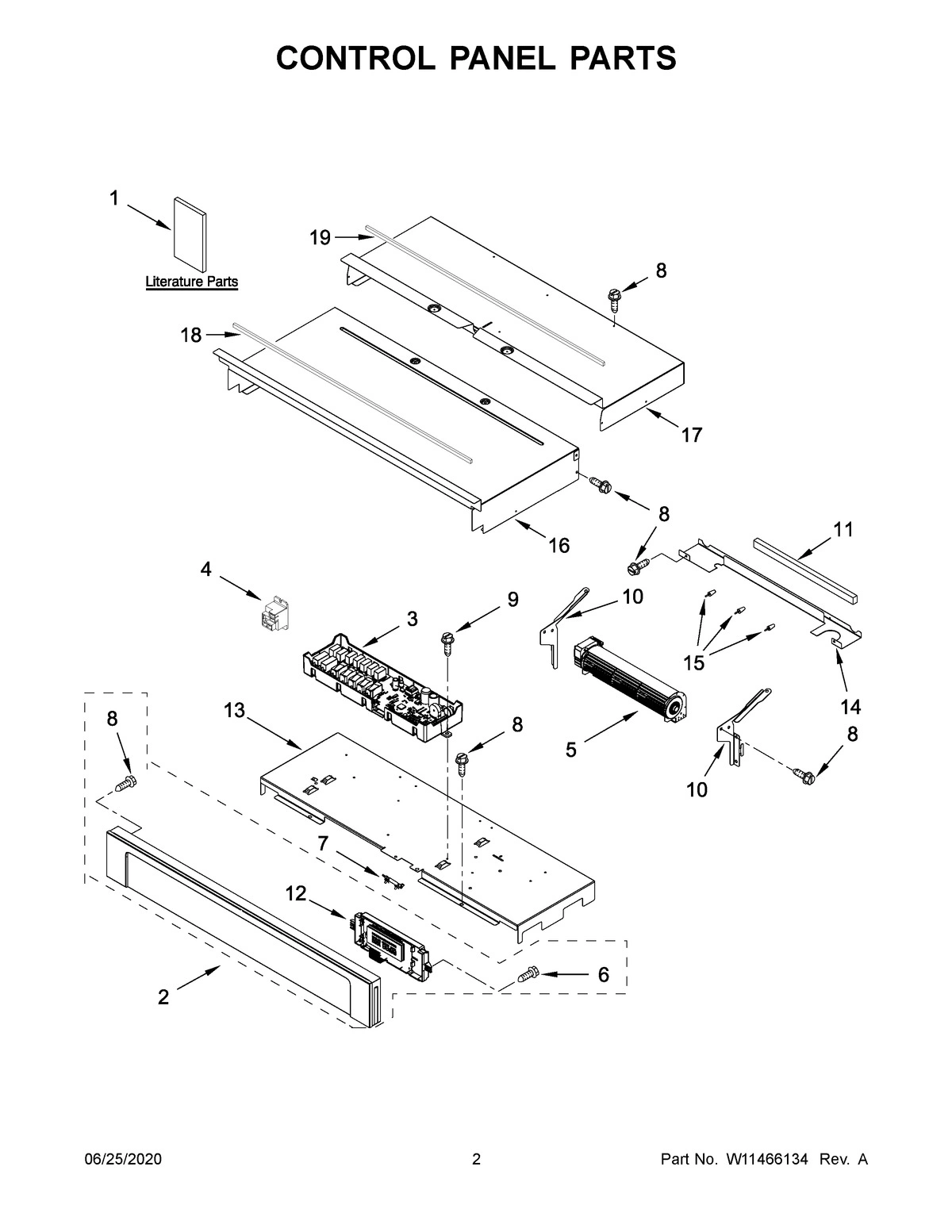

02 - CONTROL PANEL PARTS
03 - OVEN PARTS
04 - UPPER OVEN DOOR PARTS
05 - LOWER OVEN DOOR PARTS
06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEW9627FZ04 WALL OVEN, ELECTRIC, DOUBLE, 27 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10674133 Contact Us For Availability
1
SCREW MAY W10254050 Contact Us For Availability
1
MAY W11383650 MAY W11383650 Contact Us For Availability
1
ELEMENT, BROIL MAY W10260252 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10875901 Contact Us For Availability
1B
SHEET, TECH MAY W10886885 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S MAY W10877217 Contact Us For Availability
2
TUBE, VENT MAY W11085298 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10282968 Contact Us For Availability
3
ASSEMBLY, MAXWELL CONTROL MAY W10878988 Contact Us For Availability
3
RECEIVER, HINGE MAY W11044775 Contact Us For Availability
3
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
4
RELAY, POWER (12V DC COIL) MAY W10874478 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
BADGE MAY W10612925 Contact Us For Availability
5
BLOWER, DUAL SPEED MAY W11200130 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10320793 Contact Us For Availability
6
SCREW MAY 7101P403-60 Contact Us For Availability
6
CHASSIS, TOP MAY W10904159 Contact Us For Availability
6
HINGE, DOOR MAY W10639071 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
7
FUSE, THERMAL MAY W10545291 Contact Us For Availability
7
ASSEMBLY, LIGHT MAY W11246615 Contact Us For Availability
7
MAY W11318330 MAY W11318330 Contact Us For Availability
7
ELEMENT, BAKE MAY W11292248 Contact Us For Availability
8
FOOT, BASE MAY W10618101 Contact Us For Availability
8
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10834519 Contact Us For Availability
8
FAN, CONVECTION MAY W10722667 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
MAY W11368483 MAY W11368483 Contact Us For Availability
9
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
DUCT, CHASSIS BACK (LOWER) MAY W10542857 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
BLADE, FAN MAY W10631503 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
GASKET MAY W10282961 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
11
RING, ELEMENT MAY W10260248 Contact Us For Availability
12
INTERFACE (MAXWELL), USER BOARD MAY W10752316 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
SCREW MAY 7101P427-60 Contact Us For Availability
12
BAFFLE, CONVECTION MAY W10359278 Contact Us For Availability
13
TRAY, ELECTRONIC MAY W10283005 Contact Us For Availability
13
SIDE, CHASSIS MAY W10318190 Contact Us For Availability
13
SCREW MAY W10906658 Contact Us For Availability
14
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
14
BACK, CHASSIS MAY W10904162 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
RACK, SLIDING MAY W10282974 Contact Us For Availability
15
BUMPER MAY W10351295 Contact Us For Availability
15
LENS, LIGHT MAY W11297361 Contact Us For Availability
15
SCREW MAY 3196183 Contact Us For Availability
15
SCREW MAY W10720084 Contact Us For Availability
16
CHASSIS, COVER TOP FRONT 27" MAY W10318193 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
16
WASHER, DOOR MAY W10319024 Contact Us For Availability
17
CHASSIS, COVER TOP BACK 27" MAY W10694466 Contact Us For Availability
17
BULB, LIGHT MAY W11297362 Contact Us For Availability
17
RAIL, DOOR SIDE (LEFT) MAY W11355410 Contact Us For Availability
18
GASKET, RUBBER (652MM) MAY W11162062 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
RAIL, DOOR SIDE (RIGHT) MAY W11355411 Contact Us For Availability
19
GASKET, RUBBER MAY W10728475 Contact Us For Availability
19
BASE, CHASSIS MAY W10282901 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10351280 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
22
TRIM, BOTTOM VENT (STAINLESS) MAY W10327378 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
25
BUMPER & SCREW MAY W10351278 Contact Us For Availability
26
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
28
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
29
FOOT, FRONT (LEFT) MAY W10618103 Contact Us For Availability
29A
FOOT, FRONT (RIGHT) MAY W10618104 Contact Us For Availability
30
SPACERS, FRONT MAY W10347649 Contact Us For Availability
31
BRACKET, U-SHAPE MAY W10588736 Contact Us For Availability
32
VENT, CENTER 27" MAY W10730176 Contact Us For Availability
33
VENT, TOP 27" MAY W10283037 Contact Us For Availability
34
DUCT, CHASSIS BACK (UPPER) MAY W10318196 Contact Us For Availability
35
SCREW MAY W11249635 Contact Us For Availability
36
GROMMET, FRONT FRAME MAY W10283016 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
HARDWARE, MISCELLANEOUS MAY W10436188 Contact Us For Availability
NI
BRACKET, HARNESS MAY W10655464 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY W11132988 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W11132989 Contact Us For Availability
NI
HARNESS, MAIN MAY W11136113 Contact Us For Availability
NI
HARNESS, SIGNAL MAY W11157177 Contact Us For Availability
NI
HARNESS, TOD JUMPER MAY W11177679 Contact Us For Availability
NI
INSULATION, BACK MAY W10282945 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520716 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, RACK, SLIDING MAY W10745649 Contact Us For Availability
× ![]()
