Model Maytag MEW9530DS01 ELECTRIC OVEN – Common Parts & Diagrams

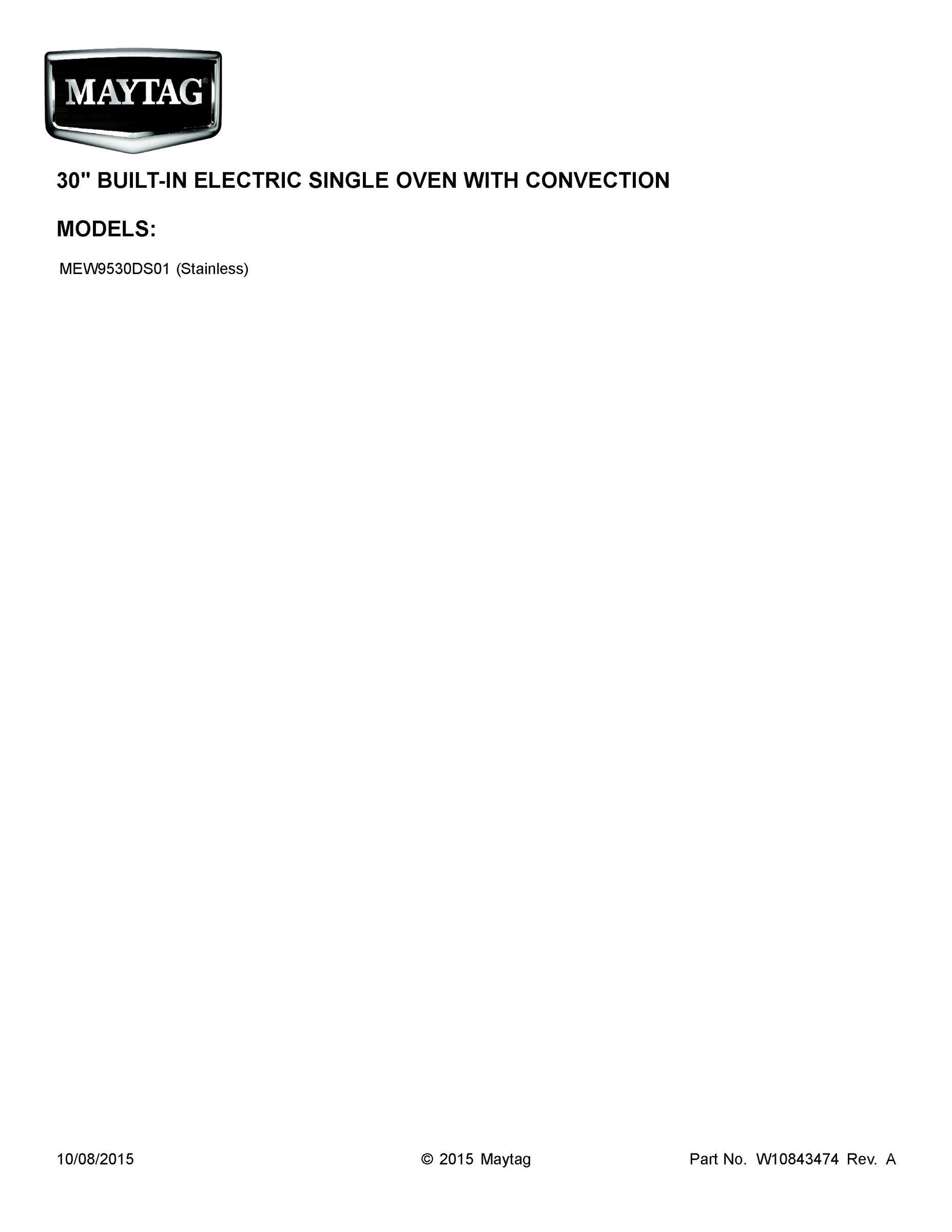

01 - COVER SHEET

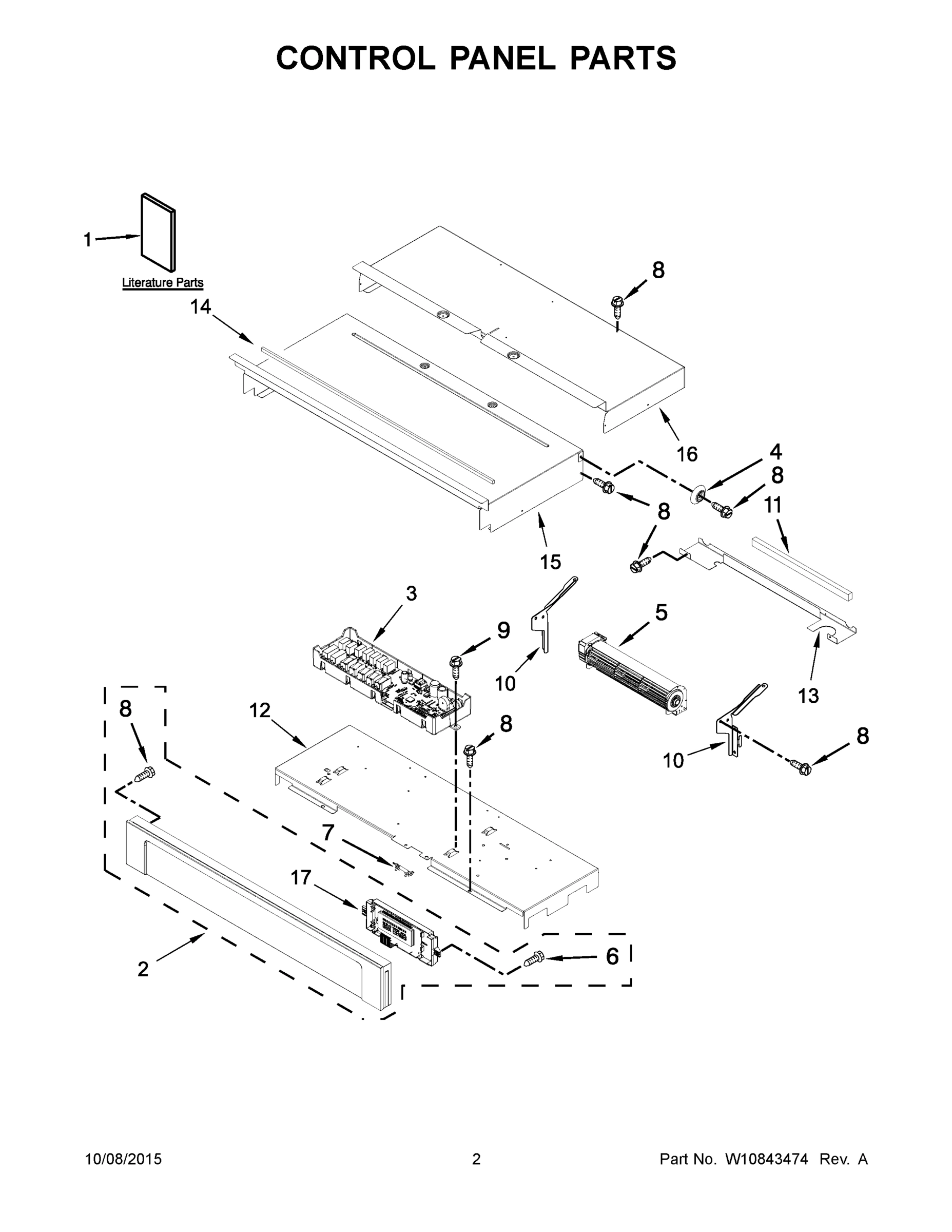

02 - CONTROL PANEL PARTS

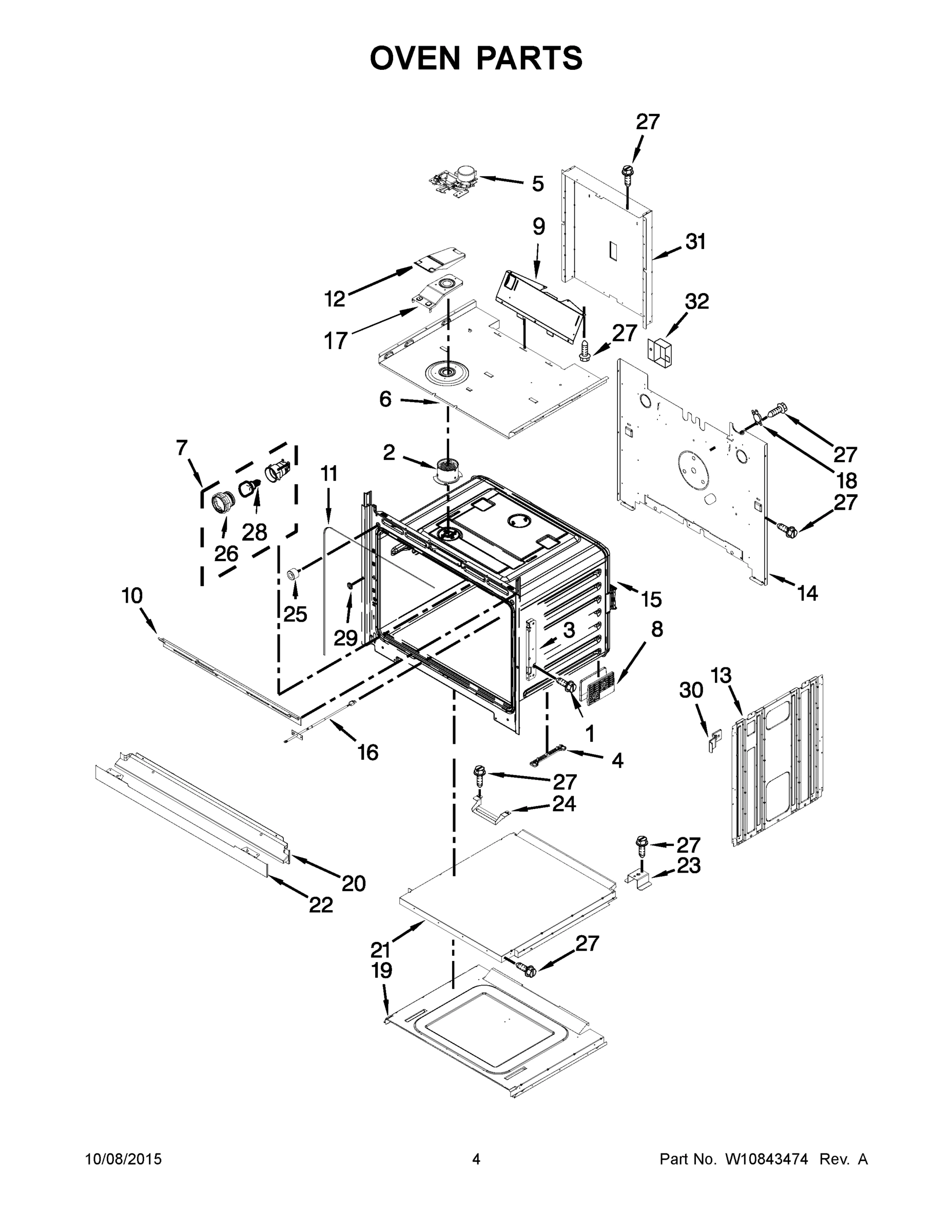

03 - OVEN PARTS

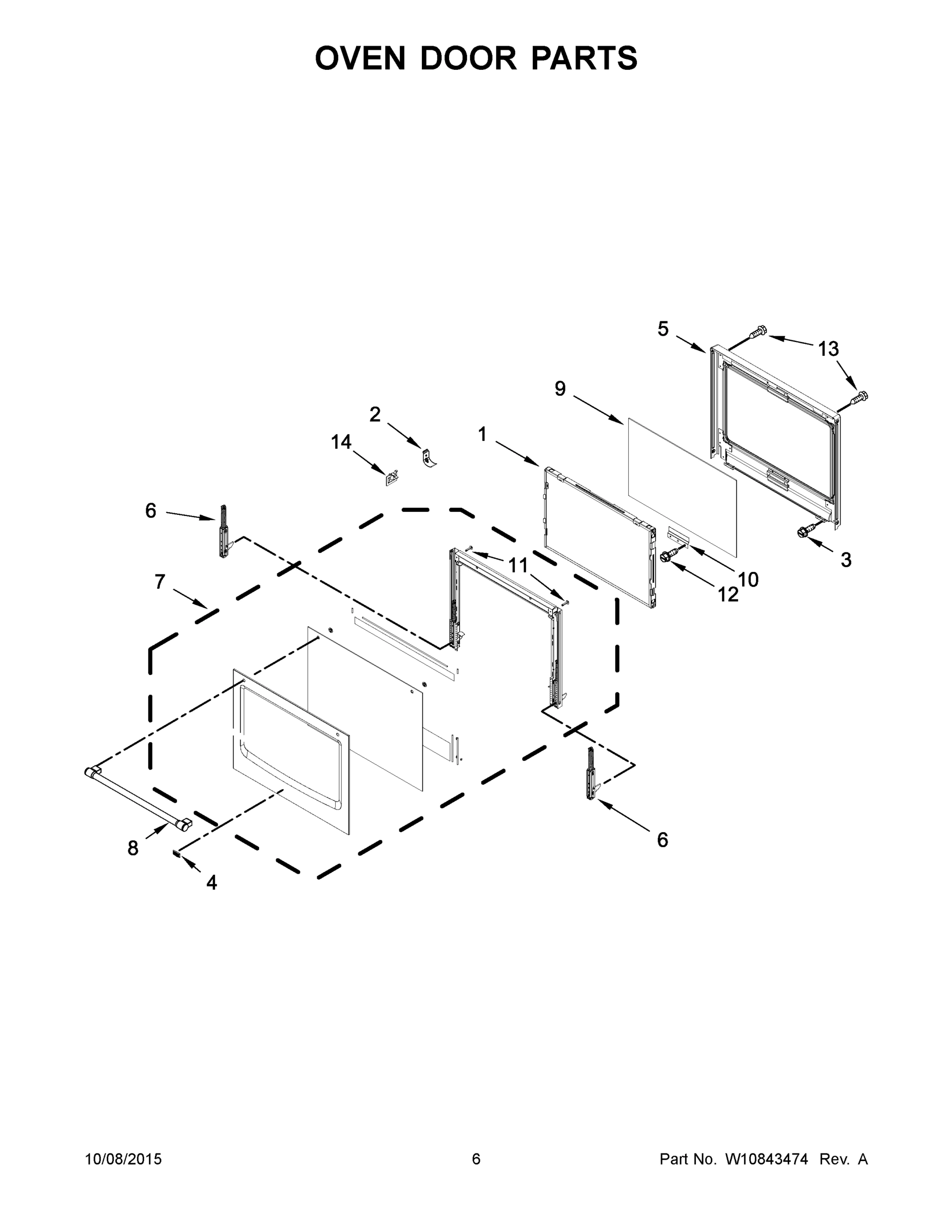

04 - OVEN DOOR PARTS

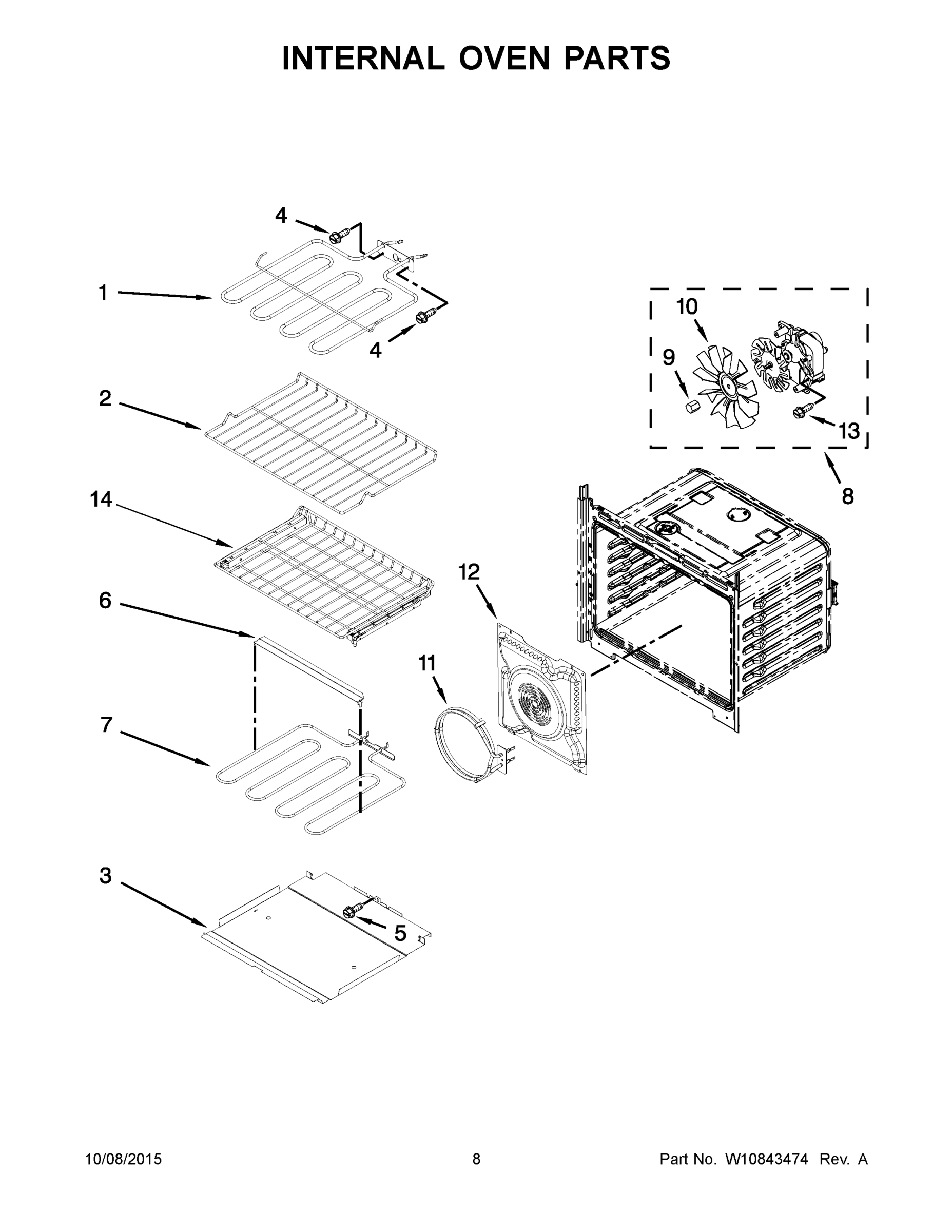

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MEW9530DS01 ELECTRIC OVEN
1
MAY W10674133 MAY W10674133 Contact Us For Availability
1
MAY W10254050 MAY W10254050 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
1A
MAY W10351318 MAY W10351318 Contact Us For Availability
1B
MAY W10795607 MAY W10795607 Contact Us For Availability
1C
MAY W10796080 MAY W10796080 Contact Us For Availability
2
MAY W10812321 MAY W10812321 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282967 MAY W10282967 Contact Us For Availability
3
MAY W10759199 MAY W10759199 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10618105 MAY W10618105 Contact Us For Availability
4
MAY W10618102 MAY W10618102 Contact Us For Availability
4
MAY W10612925 MAY W10612925 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
BLOWER MAY W10641253 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY W10709147 MAY W10709147 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
MAY W10813743 MAY W10813743 Contact Us For Availability
6
MAY W10639069 MAY W10639069 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
7
MAY W10545255 MAY W10545255 Contact Us For Availability
7
MAY W10734063 MAY W10734063 Contact Us For Availability
7
MAY W10587560 MAY W10587560 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
8
MAY W10618101 MAY W10618101 Contact Us For Availability
8
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10665843 Contact Us For Availability
8
MAY W10722667 MAY W10722667 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
GLASS, INNER MAY W10618107 Contact Us For Availability
9
MAY W10631504 MAY W10631504 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10
MAY W10283036 MAY W10283036 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10631503 MAY W10631503 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10282960 MAY W10282960 Contact Us For Availability
11
SCREW (BLACK) MAY 3400832 Contact Us For Availability
11
MAY W10260248 MAY W10260248 Contact Us For Availability
12
MAY W10347650 MAY W10347650 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10359278 MAY W10359278 Contact Us For Availability
13
MAY W10509164 MAY W10509164 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
13
MAY W10720084 MAY W10720084 Contact Us For Availability
14
MAY W10657548 MAY W10657548 Contact Us For Availability
14
MAY W10813703 MAY W10813703 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
MAY W10282973 MAY W10282973 Contact Us For Availability
15
MAY W10318192 MAY W10318192 Contact Us For Availability
16
MAY W10318194 MAY W10318194 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
17
MAY W10752315 MAY W10752315 Contact Us For Availability
17
MAY W10616809 MAY W10616809 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10282900 MAY W10282900 Contact Us For Availability
20
MAY W10351279 MAY W10351279 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10327377 MAY W10327377 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
28
MAY W10412711 MAY W10412711 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10618106 MAY W10618106 Contact Us For Availability
31
MAY W10318196 MAY W10318196 Contact Us For Availability
32
MAY 8285593 MAY 8285593 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
CONDUIT, SINGLE MAY 4450952 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
MAY W10487999 MAY W10487999 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W10573327 Contact Us For Availability
NI
MAY W10655464 MAY W10655464 Contact Us For Availability
NI
MAY W10775305 MAY W10775305 Contact Us For Availability
NI
MAY W10282944 MAY W10282944 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
