Model Maytag MEW9530AB01 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - CONTROL PANEL PARTS
02 - OVEN PARTS

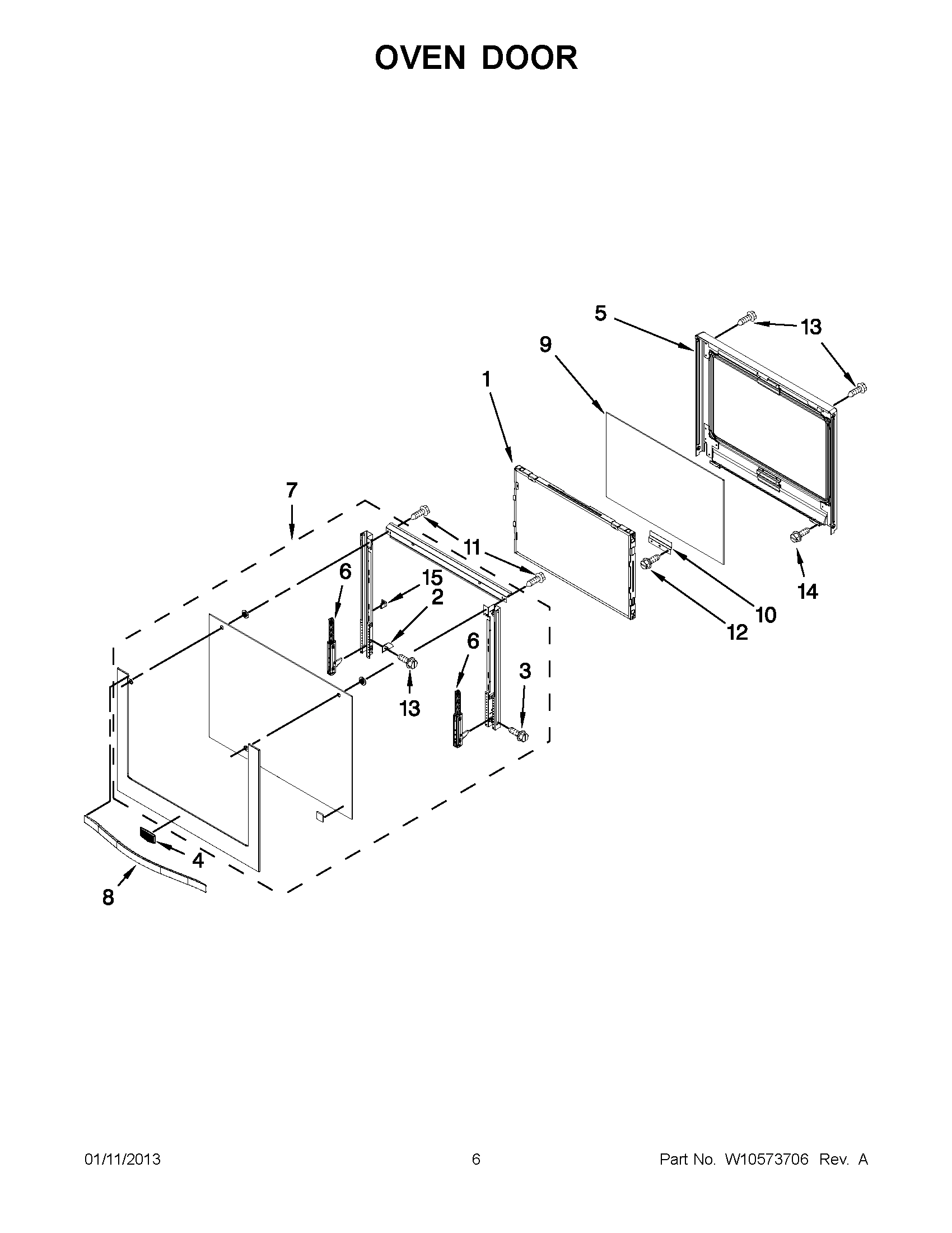

03 - OVEN DOOR

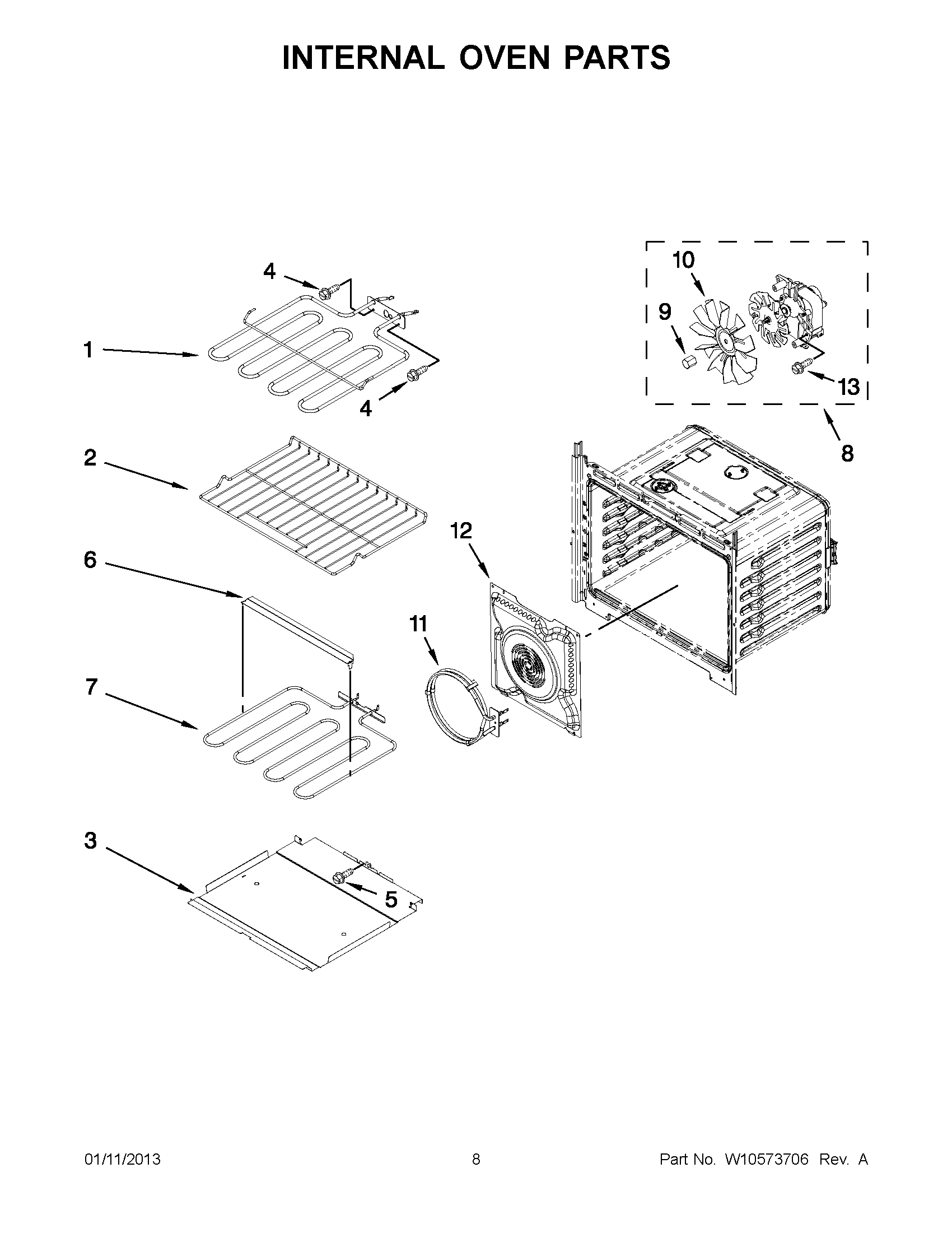

04 - INTERNAL OVEN PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag MEW9530AB01 ELECTRIC WALL OVEN
1
INSTRUCTIONS, INSTALLATION (ENGLISH) MAY W10351242 Contact Us For Availability
1
UNDERCOUNTER, INSTALL INSTRUCTIONS MAY W10351318 Contact Us For Availability
1
MAY W10354189 MAY W10354189 Contact Us For Availability
1
TECH SHEET (ENGLISH/FRENCH) MAY W10425197 Contact Us For Availability
1
MAY W10254050 MAY W10254050 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
2
MAY W10540083 MAY W10540083 Contact Us For Availability
2
MAY W10540084 MAY W10540084 Contact Us For Availability
2
MAY W10540085 MAY W10540085 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282967 MAY W10282967 Contact Us For Availability
2
MAY W10282973 MAY W10282973 Contact Us For Availability
3
MAY W10496830 MAY W10496830 Contact Us For Availability
3
MAY W10282975 MAY W10282975 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10363824 MAY W10363824 Contact Us For Availability
4
MAY W10318220 MAY W10318220 Contact Us For Availability
4
BADGE (BLACK) MAY W10288004 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
MAY W10260254 MAY W10260254 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
ASSEMBLY, LINER WELDED 30`` MAY W10320791 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
MAY W10282980 MAY W10282980 Contact Us For Availability
6
HINGE-DOOR MAY W10419876 Contact Us For Availability
6
TRAY, HIDDEN BAKE CROSSBAR MAY W10282957 Contact Us For Availability
7
MAY W10545255 MAY W10545255 Contact Us For Availability
7
LIGHT, INDICATOR MAY W10260262 Contact Us For Availability
7
ASSEMBLY, GLASS OUTER (STAINLESS) MAY W10354532 Contact Us For Availability
7
ASSEMBLY, GLASS OUTER (BLACK) MAY W10354533 Contact Us For Availability
7
ASSEMBLY, GLASS OUTER (WHITE) MAY W10354534 Contact Us For Availability
7
MAY W10282948 MAY W10282948 Contact Us For Availability
8
MAY W10318219 MAY W10318219 Contact Us For Availability
8
MAY W10284921 MAY W10284921 Contact Us For Availability
8
MAY W10284922 MAY W10284922 Contact Us For Availability
8
MAY W10284923 MAY W10284923 Contact Us For Availability
8
MOTOR, CONVECTION FAN MAY W10196895 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10351258 MAY W10351258 Contact Us For Availability
9
MAY W10284901 MAY W10284901 Contact Us For Availability
9
NUT, ACORN MAY W10116349 Contact Us For Availability
10
MAY W10283078 MAY W10283078 Contact Us For Availability
10
MAY W10351257 MAY W10351257 Contact Us For Availability
10
VENT, TOP 30`` MAY W10283036 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10116351 MAY W10116351 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10282960 MAY W10282960 Contact Us For Availability
11
Screw MAY 3400832 Contact Us For Availability
11
MAY W10260248 MAY W10260248 Contact Us For Availability
12
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
12
MAY W10282985 MAY W10282985 Contact Us For Availability
12
MAY W10359278 MAY W10359278 Contact Us For Availability
13
MAY W10347650 MAY W10347650 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
MAY 7101P653-60 MAY 7101P653-60 Contact Us For Availability
13
MAY 4449154 MAY 4449154 Contact Us For Availability
14
MAY W10509164 MAY W10509164 Contact Us For Availability
14
MAY W10282990 MAY W10282990 Contact Us For Availability
14
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
15
MAY W10351292 MAY W10351292 Contact Us For Availability
15
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
15
MAY W10392683 MAY W10392683 Contact Us For Availability
16
CHASSIS, COVER TOP FRONT 30`` MAY W10318192 Contact Us For Availability
16
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
17
CHASSIS, COVER TOP BACK 30`` MAY W10318194 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
19
MAY W10282900 MAY W10282900 Contact Us For Availability
20
MAY W10496841 MAY W10496841 Contact Us For Availability
20
MAY W10327373 MAY W10327373 Contact Us For Availability
20
MAY W10351279 MAY W10351279 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10327377 MAY W10327377 Contact Us For Availability
22
MAY W10351236 MAY W10351236 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
CHASSIS, BOTTOM DUCT SPACER MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
28
MAY 4450038 MAY 4450038 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
31
CHASSIS, BACK DUCT UPPER MAY W10318196 Contact Us For Availability
32
CONNECTOR COVER MAY 8285593 Contact Us For Availability
33
MAY W10282984 MAY W10282984 Contact Us For Availability
34
MAY W10282944 MAY W10282944 Contact Us For Availability
34
MAY W10412711 MAY W10412711 Contact Us For Availability
34
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
PAINT, SPRAY, (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP. CONDUIT MAY 4448664 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, CONDUIT MAY 4450952 Contact Us For Availability
NI
WIRING HARNESS PARTS, LEAD, GROUND STRAP MAY 4452400 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR LATCH MAY W10284933 Contact Us For Availability
NI
MAY W10286227 MAY W10286227 Contact Us For Availability
NI
MAY W10318214 MAY W10318214 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, EOL MAY W10409836 Contact Us For Availability
NI
MAY W10474883 MAY W10474883 Contact Us For Availability
× ![]()
