Model Maytag MEW9527AB02 ELECTRIC OVEN – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

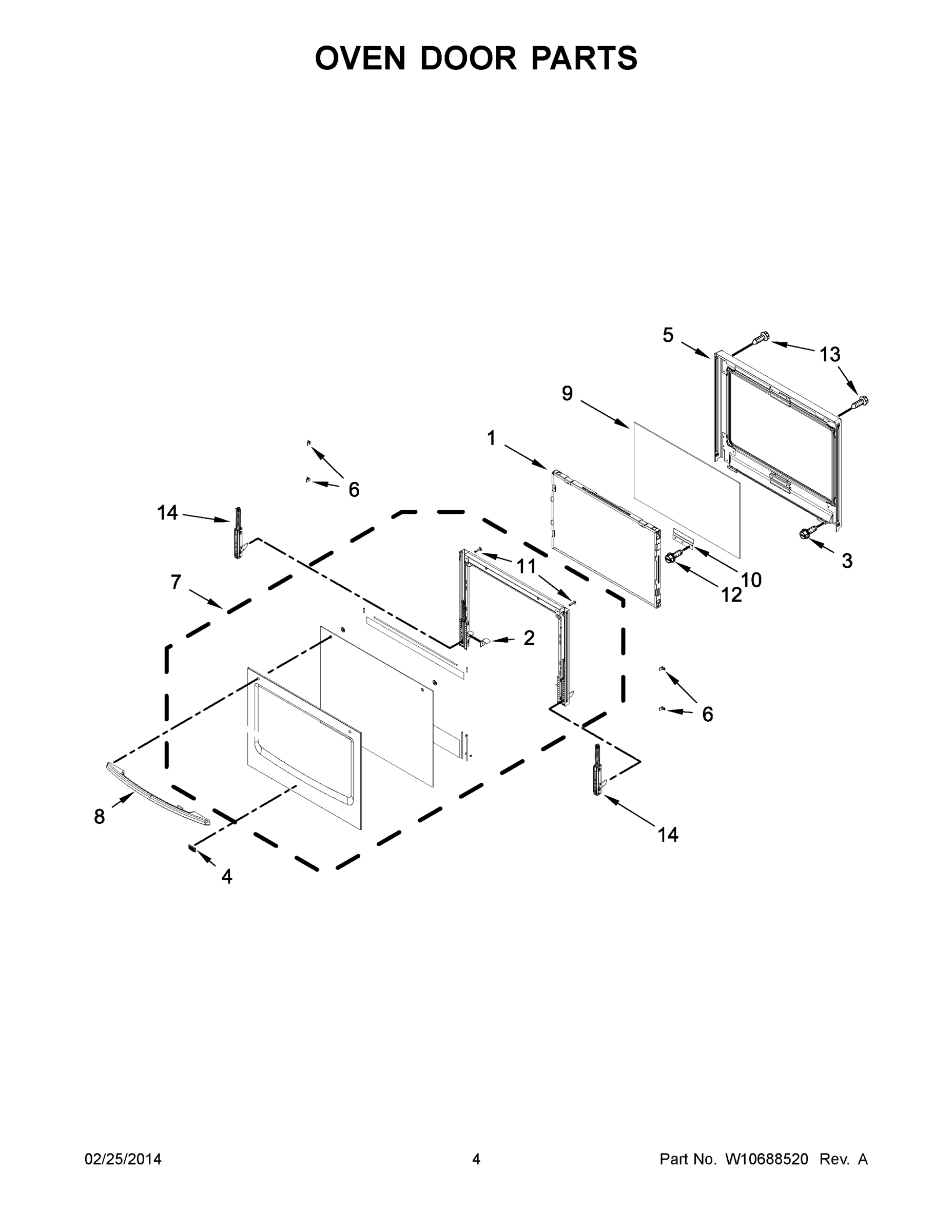

03 - OVEN DOOR PARTS

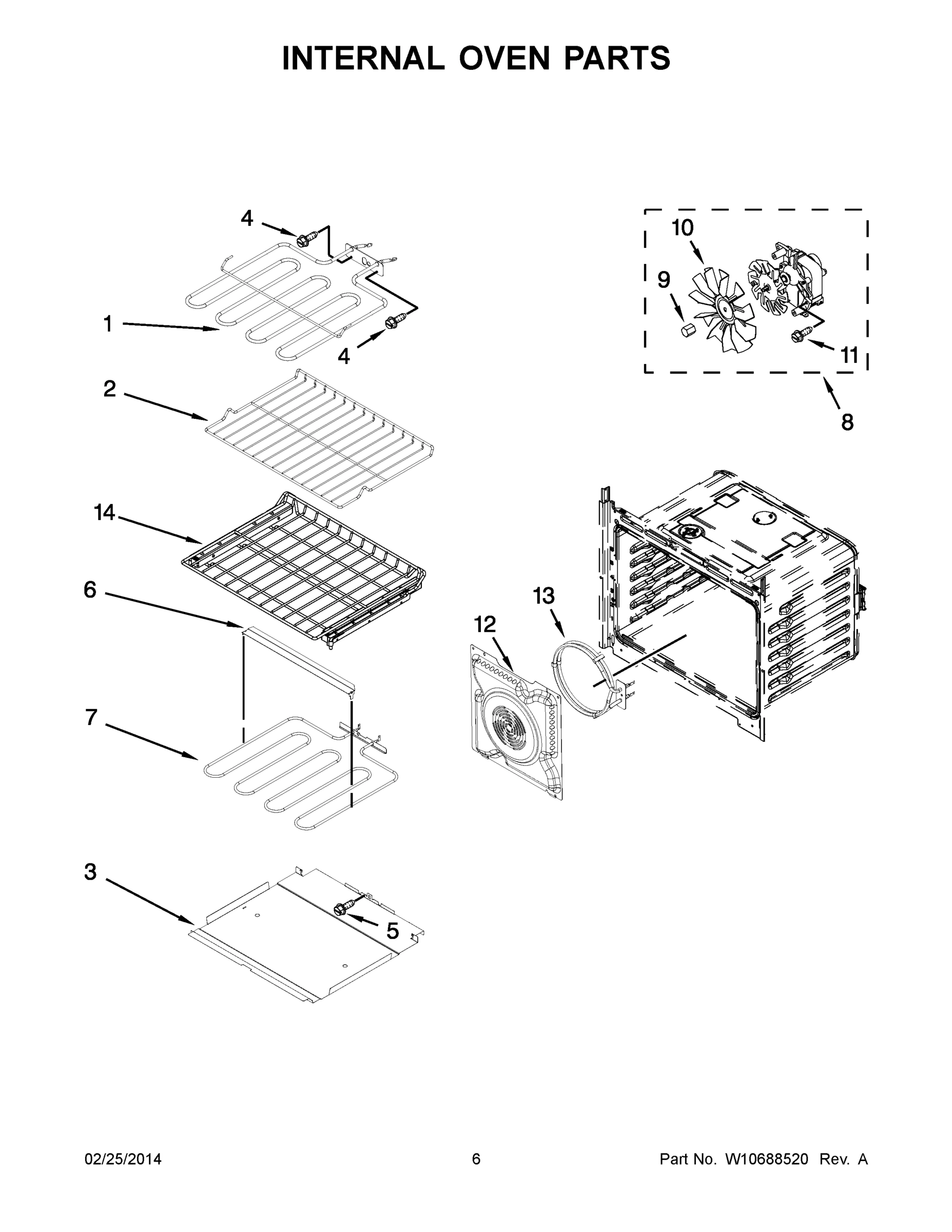

04 - INTERNAL OVEN PARTS

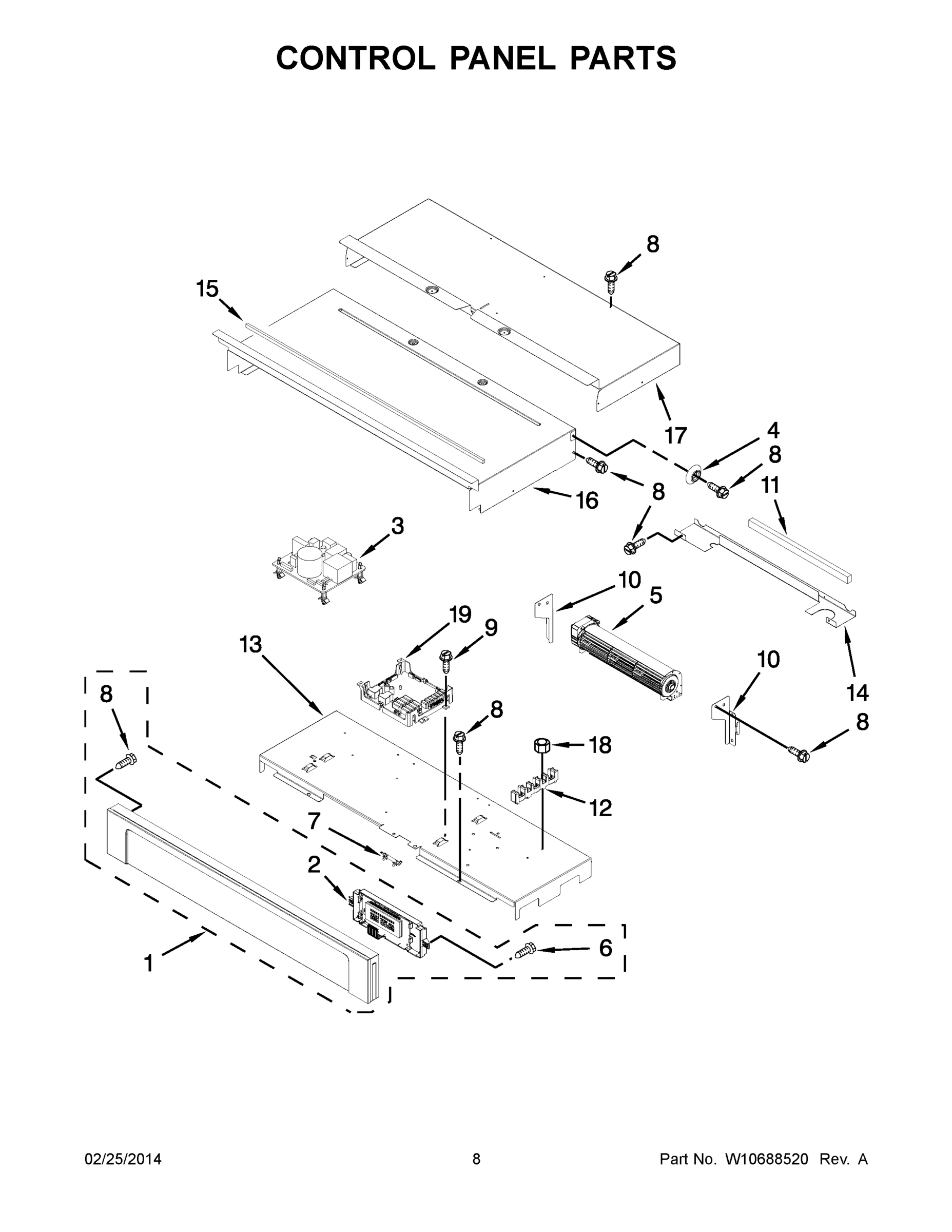

05 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MEW9527AB02 ELECTRIC OVEN
1
MAY W10351318 MAY W10351318 Contact Us For Availability
1
MAY W10354189 MAY W10354189 Contact Us For Availability
1
MAY W10507056 MAY W10507056 Contact Us For Availability
1
MAY W10347597 MAY W10347597 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
1
MAY W10540092 MAY W10540092 Contact Us For Availability
1
MAY W10540093 MAY W10540093 Contact Us For Availability
1
MAY W10540094 MAY W10540094 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282968 MAY W10282968 Contact Us For Availability
2
MAY W10496841 MAY W10496841 Contact Us For Availability
3
MAY W10282975 MAY W10282975 Contact Us For Availability
3
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
3
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
4
MAY W10318220 MAY W10318220 Contact Us For Availability
4
MAY W10288004 MAY W10288004 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
4
MAY W10363824 MAY W10363824 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY W10320793 MAY W10320793 Contact Us For Availability
5
BLOWER MAY W10641253 Contact Us For Availability
6
MAY W10641574 MAY W10641574 Contact Us For Availability
6
MAY W10392683 MAY W10392683 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
7
MAY W10260262 MAY W10260262 Contact Us For Availability
7
MAY W10587557 MAY W10587557 Contact Us For Availability
7
MAY W10587558 MAY W10587558 Contact Us For Availability
7
MAY W10587559 MAY W10587559 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
7
MAY W10436434 MAY W10436434 Contact Us For Availability
8
MAY W10318219 MAY W10318219 Contact Us For Availability
8
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10284924 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10284925 Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY W10284926 Contact Us For Availability
8
MAY W10588277 MAY W10588277 Contact Us For Availability
9
MAY W10671661 MAY W10671661 Contact Us For Availability
9
MAY W10618123 MAY W10618123 Contact Us For Availability
9
NUT, ACORN MAY W10116349 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
10
MAY W10283037 MAY W10283037 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10116351 MAY W10116351 Contact Us For Availability
10
MAY W10283078 MAY W10283078 Contact Us For Availability
10
MAY W10351257 MAY W10351257 Contact Us For Availability
11
MAY W10282961 MAY W10282961 Contact Us For Availability
11
MAY W10491021 MAY W10491021 Contact Us For Availability
11
MAY 4449154 MAY 4449154 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10359278 MAY W10359278 Contact Us For Availability
12
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
Screw (Black) MAY 7101P633-60 Contact Us For Availability
13
MAY W10260248 MAY W10260248 Contact Us For Availability
13
MAY W10283005 MAY W10283005 Contact Us For Availability
14
MAY W10282991 MAY W10282991 Contact Us For Availability
14
MAY W10282976 MAY W10282976 Contact Us For Availability
14
MAY W10282974 MAY W10282974 Contact Us For Availability
14
MAY W10509164 MAY W10509164 Contact Us For Availability
15
MAY W10657548 MAY W10657548 Contact Us For Availability
16
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
16
MAY W10318193 MAY W10318193 Contact Us For Availability
17
MAY W10412711 MAY W10412711 Contact Us For Availability
17
MAY W10318195 MAY W10318195 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10282901 MAY W10282901 Contact Us For Availability
19
MAY W10496830 MAY W10496830 Contact Us For Availability
20
MAY W10327375 MAY W10327375 Contact Us For Availability
20
MAY W10351280 MAY W10351280 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10327378 MAY W10327378 Contact Us For Availability
22
MAY W10351237 MAY W10351237 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
28
MAY W10254050 MAY W10254050 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
31
DUCT, CHASSIS BACK UPPER MAY W10318196 Contact Us For Availability
32
MAY 8285593 MAY 8285593 Contact Us For Availability
33
MAY W10616809 MAY W10616809 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
INSULATION, BACK MAY W10282945 Contact Us For Availability
NI
MAY W10520716 MAY W10520716 Contact Us For Availability
NI
PAINT, SPRAY, (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP. CONDUIT MAY 4448664 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, SINGLE MAY 4450952 Contact Us For Availability
NI
WIRING HARNESS PARTS, LEAD, GROUND STRAP MAY 4452400 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
MAY W10286227 MAY W10286227 Contact Us For Availability
NI
MAY W10318214 MAY W10318214 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, EOL MAY W10409836 Contact Us For Availability
NI
MAY W10573327 MAY W10573327 Contact Us For Availability
NI
MAY W10601513 MAY W10601513 Contact Us For Availability
× ![]()
