Model Maytag MEW7630WDW01 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - LOWER OVEN PARTS
02 - UPPER OVEN PARTS

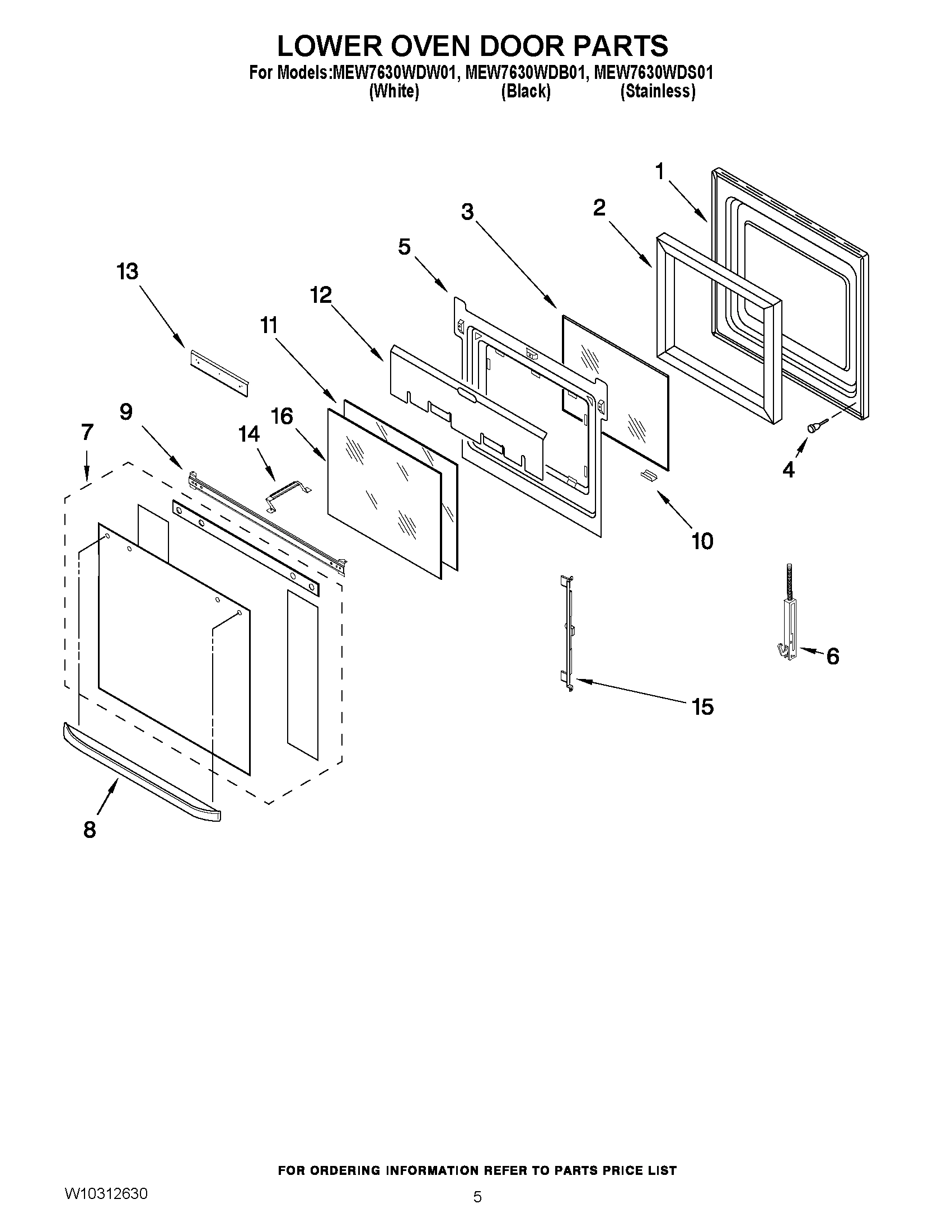

03 - LOWER OVEN DOOR PARTS

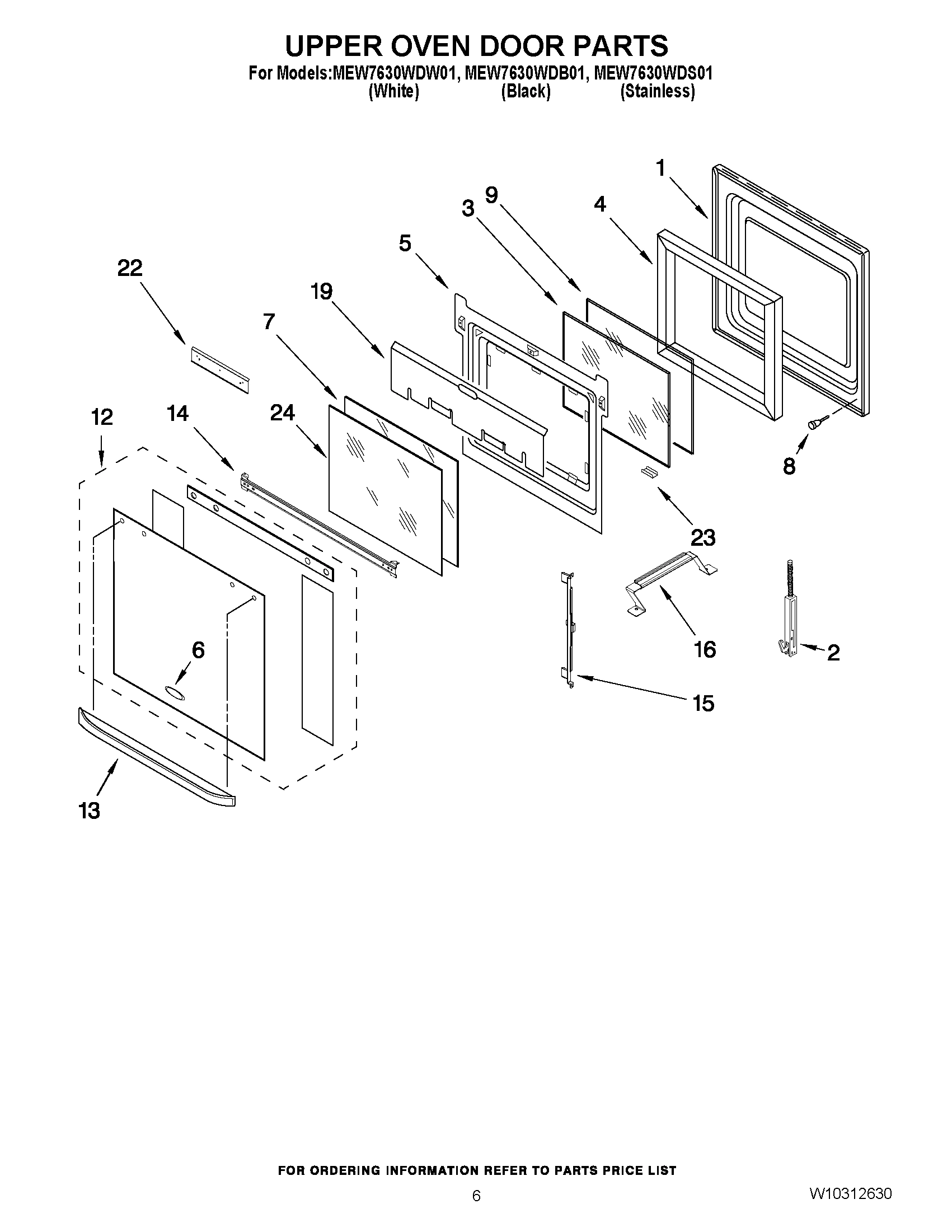

04 - UPPER OVEN DOOR PARTS

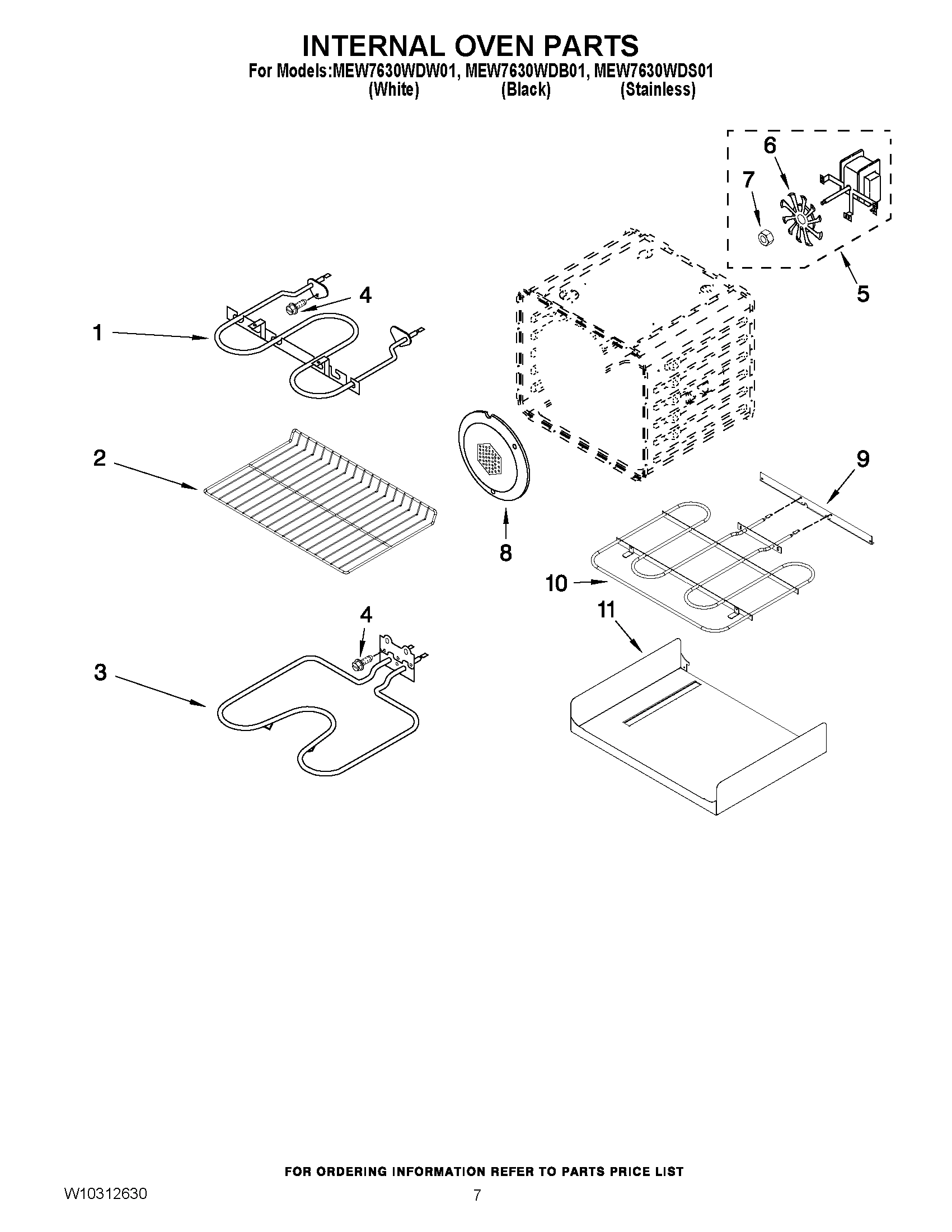

05 - INTERNAL OVEN PARTS

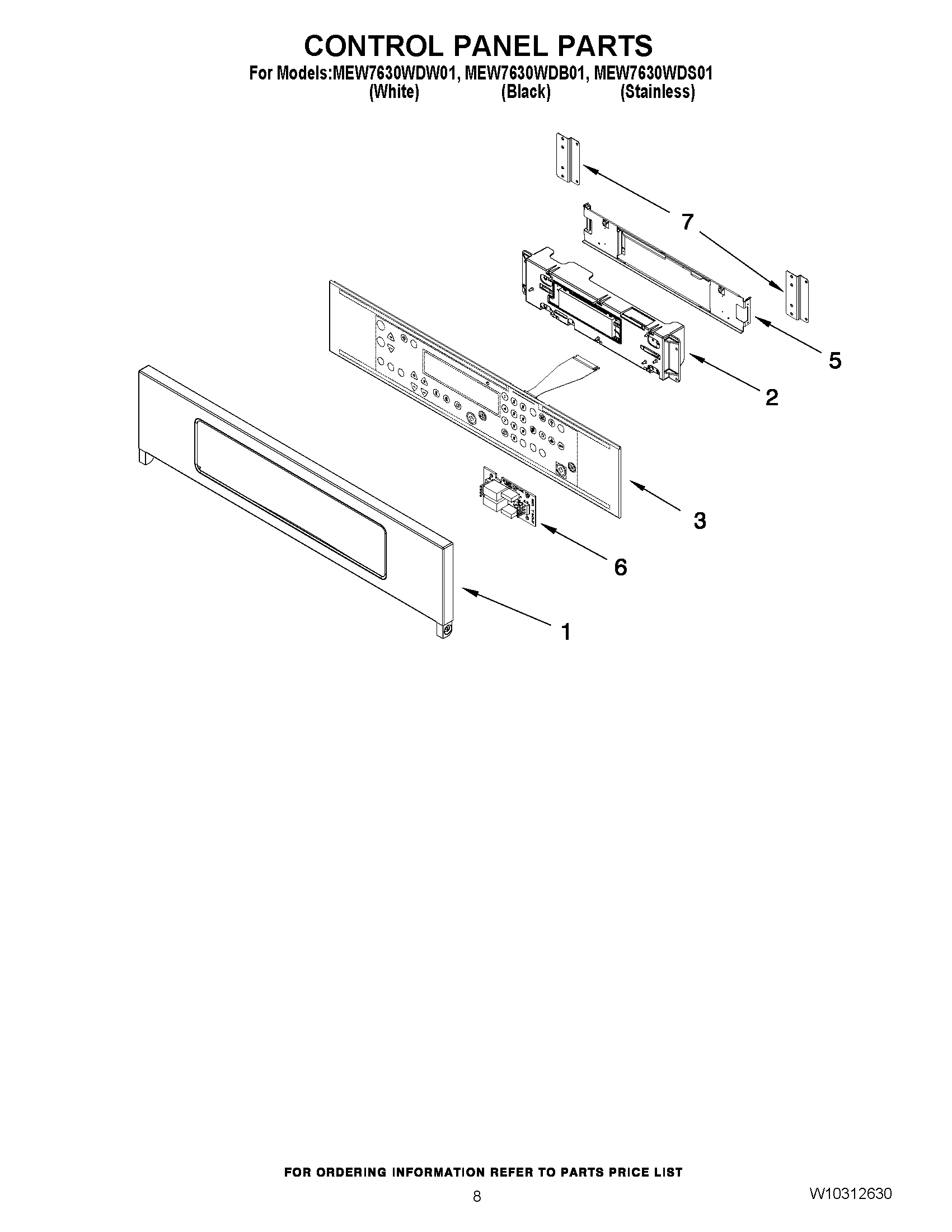

06 - CONTROL PANEL PARTS

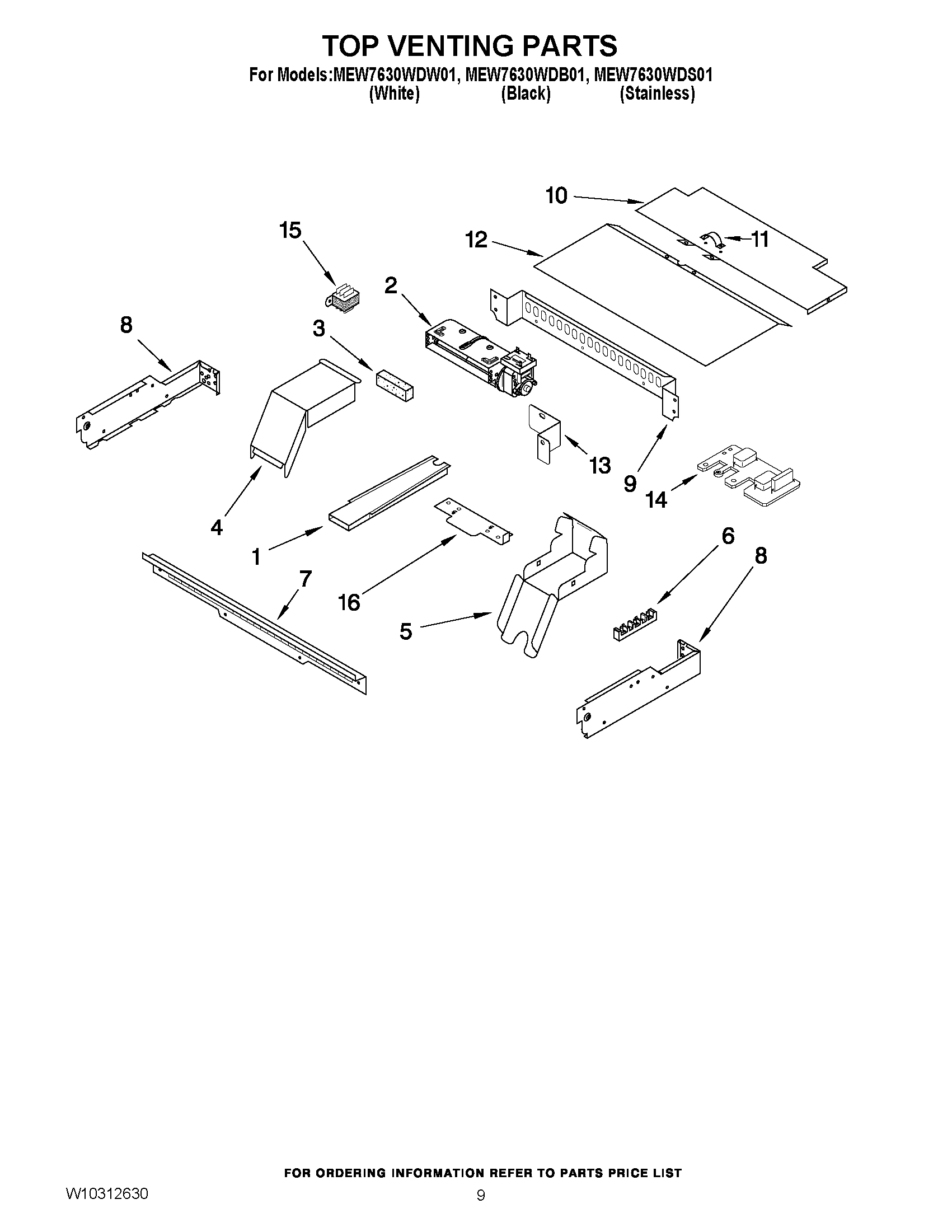

07 - TOP VENTING PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag MEW7630WDW01 ELECTRIC WALL OVEN
1
BI-LINGUAL TIPS, SAFE COOK (ENGLISH) MAY 9762761 Contact Us For Availability
1
BI-LINGUAL TIPS, SAFE COOK (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTR, INSTALLER MAY W10075750 Contact Us For Availability
1
MAY W10185219 MAY W10185219 Contact Us For Availability
1
MAY W10192049 MAY W10192049 Contact Us For Availability
1
USE & CARE GUIDE MAY W10276986 Contact Us For Availability
1
RECIEVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
1
RECIEVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
1
MAY 4449040 MAY 4449040 Contact Us For Availability
1
MAY 9759413 MAY 9759413 Contact Us For Availability
1
MAY 9760772 MAY 9760772 Contact Us For Availability
1
PANEL, CONTROL (BLACK) MAY W10278521 Contact Us For Availability
1
PANEL, CONTROL (WHITE) MAY W10278522 Contact Us For Availability
1
PANEL, CONTROL (STAINLESS) MAY W10284427 Contact Us For Availability
1
MAY 4451759 MAY 4451759 Contact Us For Availability
2
MAY W10144985 MAY W10144985 Contact Us For Availability
2
MAY W10144986 MAY W10144986 Contact Us For Availability
2
MAY W10278487 MAY W10278487 Contact Us For Availability
2
MAY W10278488 MAY W10278488 Contact Us For Availability
2
MAY W10278489 MAY W10278489 Contact Us For Availability
2
MAY W10278490 MAY W10278490 Contact Us For Availability
2
CHASSIS, TOP MAY 8303099 Contact Us For Availability
2
HINGE, DOOR (SS ONLY) (SCREW) MAY 4449743 Contact Us For Availability
2
HINGE, DOOR (SS ONLY) (RIGHT) MAY 9760573 Contact Us For Availability
2
HINGE, DOOR (SS ONLY) (LEFT) MAY 9760574 Contact Us For Availability
2
HINGE, DOOR (RIGHT) MAY 9760575 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY 9760576 Contact Us For Availability
2
MAY W10179152 MAY W10179152 Contact Us For Availability
2
MAY 8303018 MAY 8303018 Contact Us For Availability
2
BLOWER (45 MM) MAY W10016550 Contact Us For Availability
2
BLOWER (65 MM) MAY W10176670 Contact Us For Availability
3
PLUG, BUTTON MAY 4448982 Contact Us For Availability
3
MAY 4449259 MAY 4449259 Contact Us For Availability
3
ELEMENT, CONVENTION BAKE MAY 9760769 Contact Us For Availability
3
MAY W10270503 MAY W10270503 Contact Us For Availability
3
MAY W10270504 MAY W10270504 Contact Us For Availability
3
FOAM, BLOCK MAY 4451758 Contact Us For Availability
4
MAY W10105790 MAY W10105790 Contact Us For Availability
4
MAY 4449154 MAY 4449154 Contact Us For Availability
4
MAY 4451722 MAY 4451722 Contact Us For Availability
4
MAY 4455178 MAY 4455178 Contact Us For Availability
5
Grommet, Mounting Rail MAY 4448444 Contact Us For Availability
5
MAY 4457132 MAY 4457132 Contact Us For Availability
5
MOTOR CONVENTION FAN MAY W10116228 Contact Us For Availability
5
MAY W10270500 MAY W10270500 Contact Us For Availability
5
MAY W10270501 MAY W10270501 Contact Us For Availability
5
MAY 4455177 MAY 4455177 Contact Us For Availability
6
MAY 4451605 MAY 4451605 Contact Us For Availability
6
MAY W10288004 MAY W10288004 Contact Us For Availability
6
BLADE, CONVENTION FAN MAY W10116351 Contact Us For Availability
6
CONTROL PANEL (MOTORIZED LATCH SISTER BOARD) MAY 8301848 Contact Us For Availability
6
MAY 3400080 MAY 3400080 Contact Us For Availability
6
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
7
MAY 9759225 MAY 9759225 Contact Us For Availability
7
MAY W10116349 MAY W10116349 Contact Us For Availability
7
MAY 8302112 MAY 8302112 Contact Us For Availability
7
VENT, CONTROL PANEL MAY 8303497 Contact Us For Availability
8
MAY 4448520 MAY 4448520 Contact Us For Availability
8
MAY W10160821 MAY W10160821 Contact Us For Availability
8
MAY 4451597 MAY 4451597 Contact Us For Availability
8
MAY 4451598 MAY 4451598 Contact Us For Availability
9
MAY 4452158 MAY 4452158 Contact Us For Availability
9
MAY 4450039 MAY 4450039 Contact Us For Availability
9
MAY 9759135 MAY 9759135 Contact Us For Availability
10
MAY W10169756 MAY W10169756 Contact Us For Availability
10
MAY 4450118 MAY 4450118 Contact Us For Availability
10
ELEMENT, HIDDEN BAKE MAY 9760768 Contact Us For Availability
10
MAY 4450551 MAY 4450551 Contact Us For Availability
11
MAY W10009940 MAY W10009940 Contact Us For Availability
11
MAY 4455037 MAY 4455037 Contact Us For Availability
12
MAY W10169757 MAY W10169757 Contact Us For Availability
12
MAY W10270347 MAY W10270347 Contact Us For Availability
12
MAY W10270349 MAY W10270349 Contact Us For Availability
12
MAY W10270350 MAY W10270350 Contact Us For Availability
12
MAY 4452367 MAY 4452367 Contact Us For Availability
13
DOOR HANDLE (STAINLESS) MAY W10161708 Contact Us For Availability
13
MAY W10269407 MAY W10269407 Contact Us For Availability
13
MAY W10269408 MAY W10269408 Contact Us For Availability
13
PROFILE, AIR STOP MAY 8302390 Contact Us For Availability
14
MAY W10115831 MAY W10115831 Contact Us For Availability
14
MAY W10256645 MAY W10256645 Contact Us For Availability
14
MAY 4451985 MAY 4451985 Contact Us For Availability
15
MAY 4455382 MAY 4455382 Contact Us For Availability
15
MAY 9759229 MAY 9759229 Contact Us For Availability
15
MAY 9760587 MAY 9760587 Contact Us For Availability
16
MAY 4451478 MAY 4451478 Contact Us For Availability
16
MAY 9759230 MAY 9759230 Contact Us For Availability
16
SERVICE PLATE MAY 4455191 Contact Us For Availability
17
DEFLECTOR, VENT MAY 9760677 Contact Us For Availability
17
MAY 4450581 MAY 4450581 Contact Us For Availability
17
MAY 4450582 MAY 4450582 Contact Us For Availability
18
MAY W10195934 MAY W10195934 Contact Us For Availability
19
SHIELD, TOP HEAT MAY 4457104 Contact Us For Availability
20
Side, Chassis MAY 4455641 Contact Us For Availability
21
MAY W10161110 MAY W10161110 Contact Us For Availability
22
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
22
TRIM, BOTTOM VENT (STAINLESS) MAY W10166934 Contact Us For Availability
22
TRIM, BOTTOM VENT (BLACK) MAY W10278493 Contact Us For Availability
22
TRIM, BOTTOM VENT (WHITE) MAY W10278494 Contact Us For Availability
22
SHIELD, BOTTOM HEAT MAY 4457114 Contact Us For Availability
23
MAY W10131825 MAY W10131825 Contact Us For Availability
23
RETAINER, CLIP (BLACK) MAY 4450863 Contact Us For Availability
23
RETAINER, CLIP (STAINLESS) MAY W10158497 Contact Us For Availability
24
DIVIDER, CENTER VENT MAY 8302349 Contact Us For Availability
24
TRIM, CENTER VENT MAY 4452267 Contact Us For Availability
24
MAY 9759228 MAY 9759228 Contact Us For Availability
25
THERMOSTAT MAY 9759242 Contact Us For Availability
25
BRACKET, MOUNTING BOTTOM VENT TRIM MAY 4452152 Contact Us For Availability
26
MAY 9759713 MAY 9759713 Contact Us For Availability
26
DEFLECTOR, VENT BOX MAY 4452489 Contact Us For Availability
27
MAY 4448933 MAY 4448933 Contact Us For Availability
27
SCREWV (SS ONLY) MAY 3400805 Contact Us For Availability
27
Screw MAY 3400832 Contact Us For Availability
28
MAY 4451747 MAY 4451747 Contact Us For Availability
29
SUPPORT, BRACKET MAY 4449845 Contact Us For Availability
NI
MAY 4449809 MAY 4449809 Contact Us For Availability
NI
MAY 4449316 MAY 4449316 Contact Us For Availability
NI
MAY 4450365 MAY 4450365 Contact Us For Availability
NI
MAY 4448664 MAY 4448664 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 350939 Contact Us For Availability
NI
SCREW, INSTALL MAY 4448950 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
MAY 4450953 MAY 4450953 Contact Us For Availability
NI
MAY 4451761 MAY 4451761 Contact Us For Availability
NI
LEAD, GROUND STRAP MAY 4452400 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
HARNESS, LOWER LATCH MAY 8301909 Contact Us For Availability
NI
Clip MAY 98997 Contact Us For Availability
NI
MAY W10179652 MAY W10179652 Contact Us For Availability
× ![]()
