Model Maytag MEW7530AB02 ELECTRIC OVEN – Common Parts & Diagrams

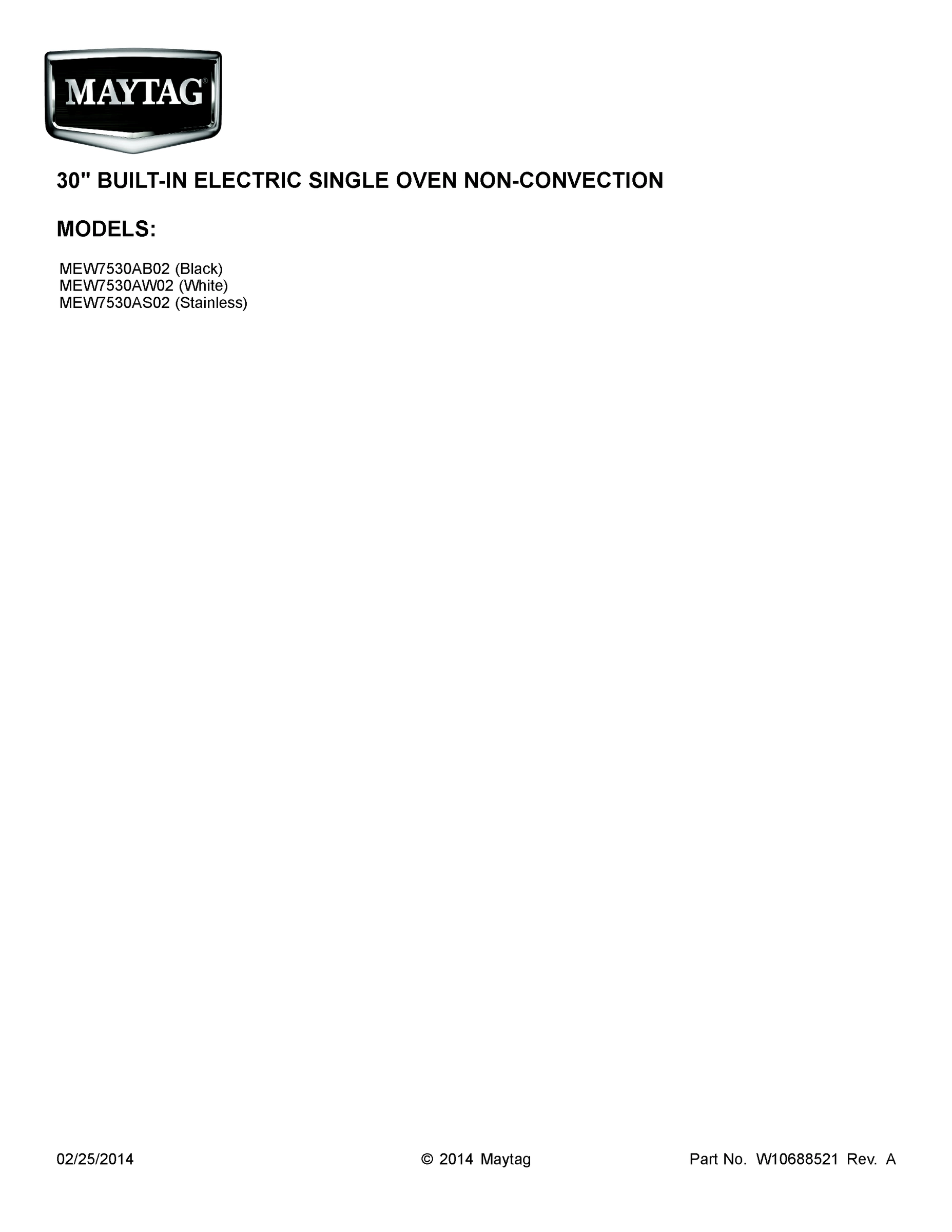

01 - COVER SHEET

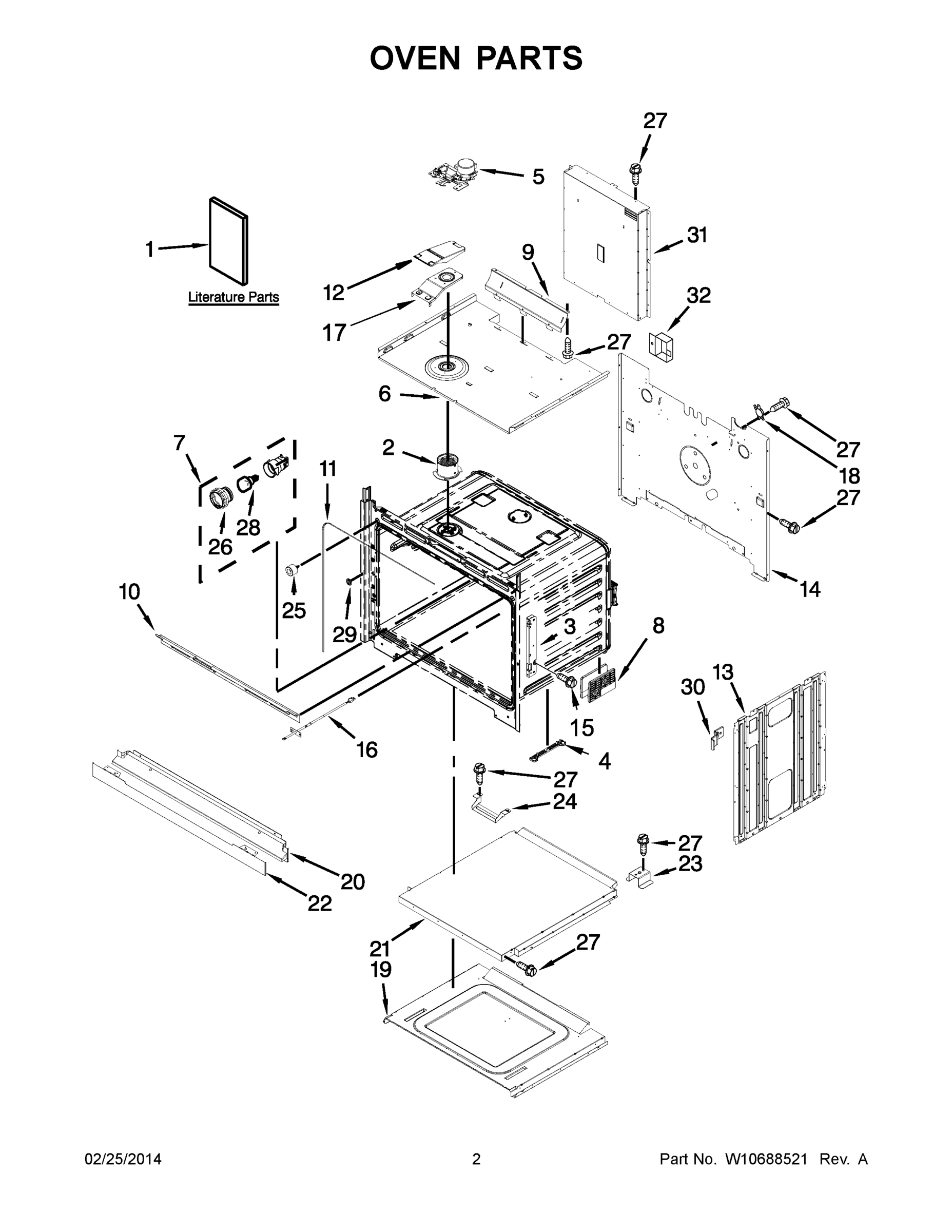

02 - OVEN PARTS

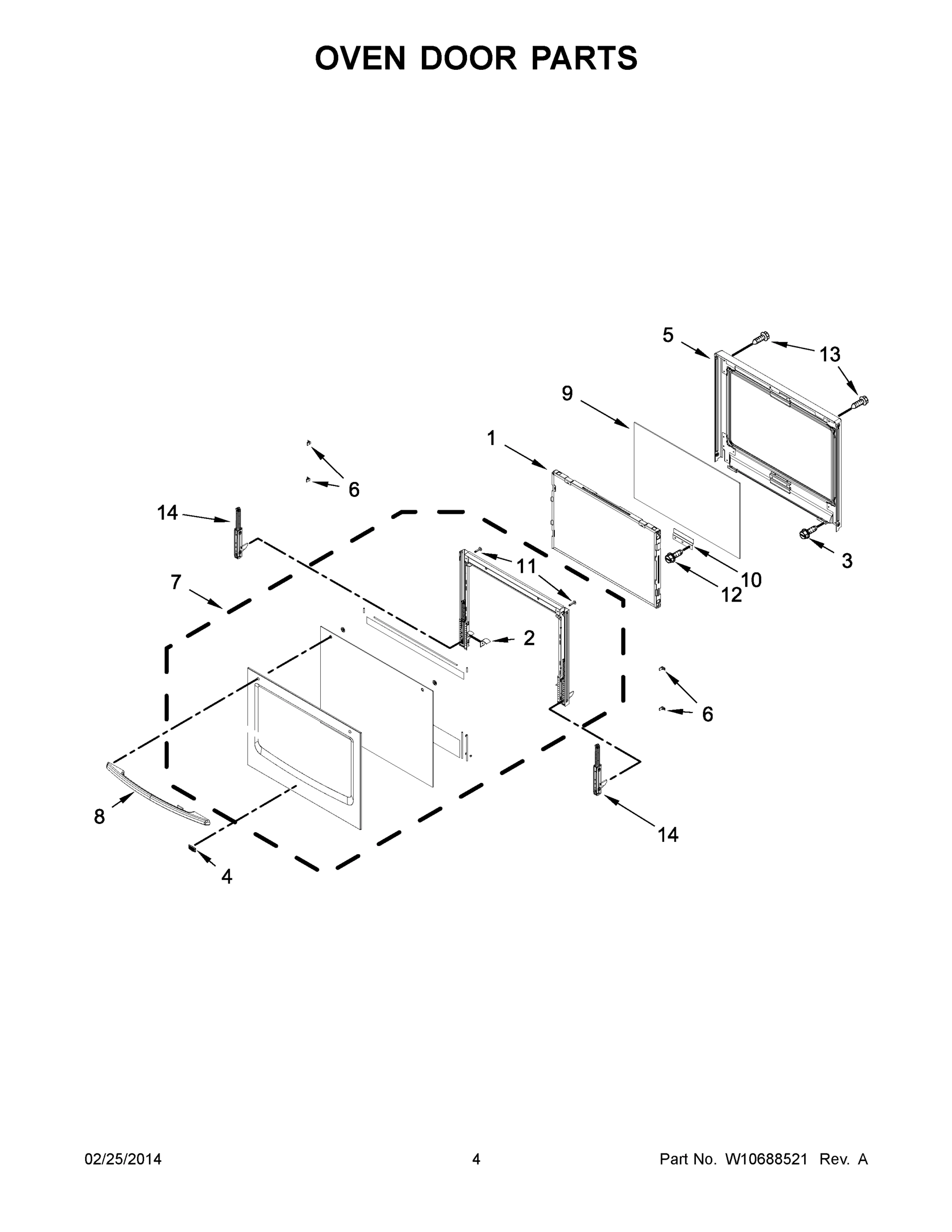

03 - OVEN DOOR PARTS

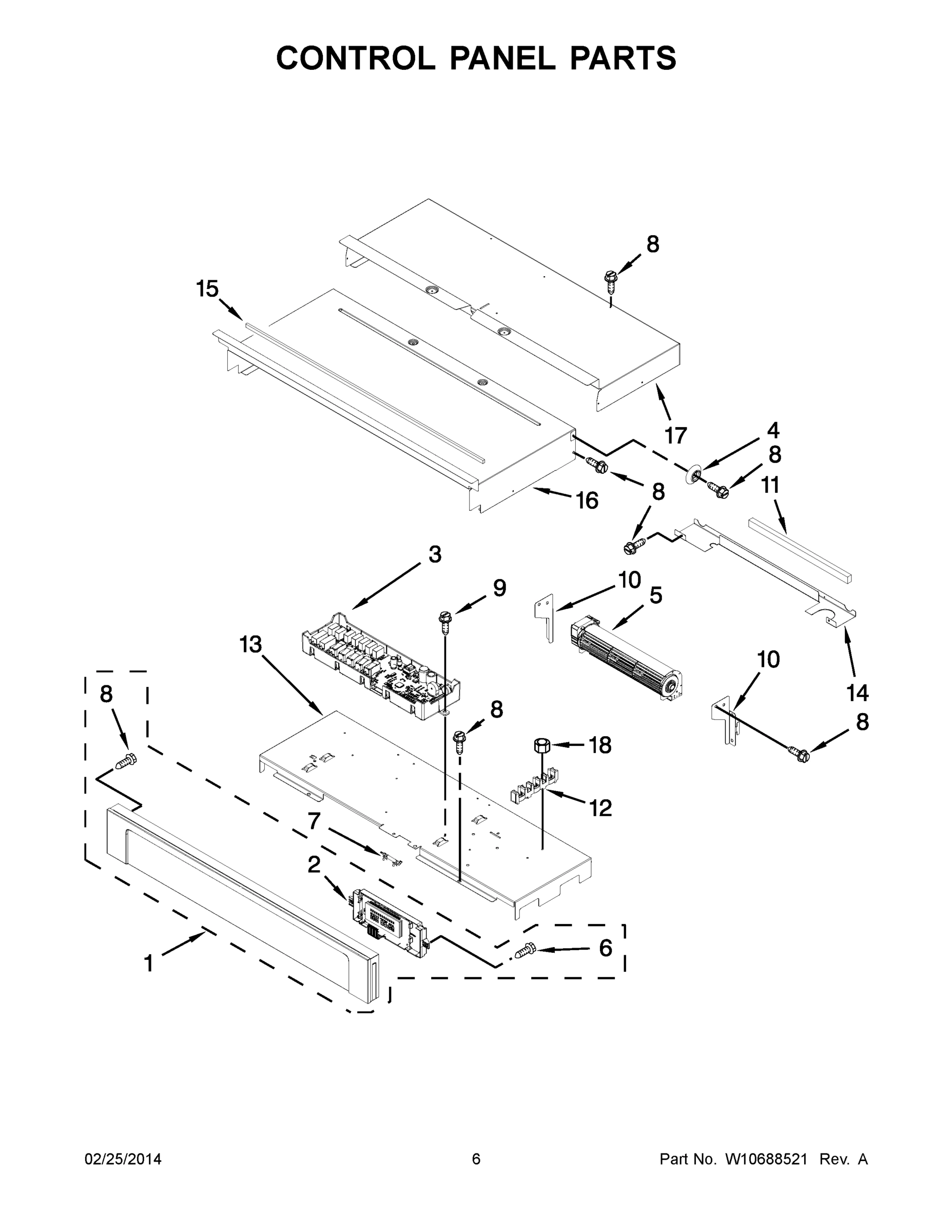

04 - CONTROL PANEL PARTS

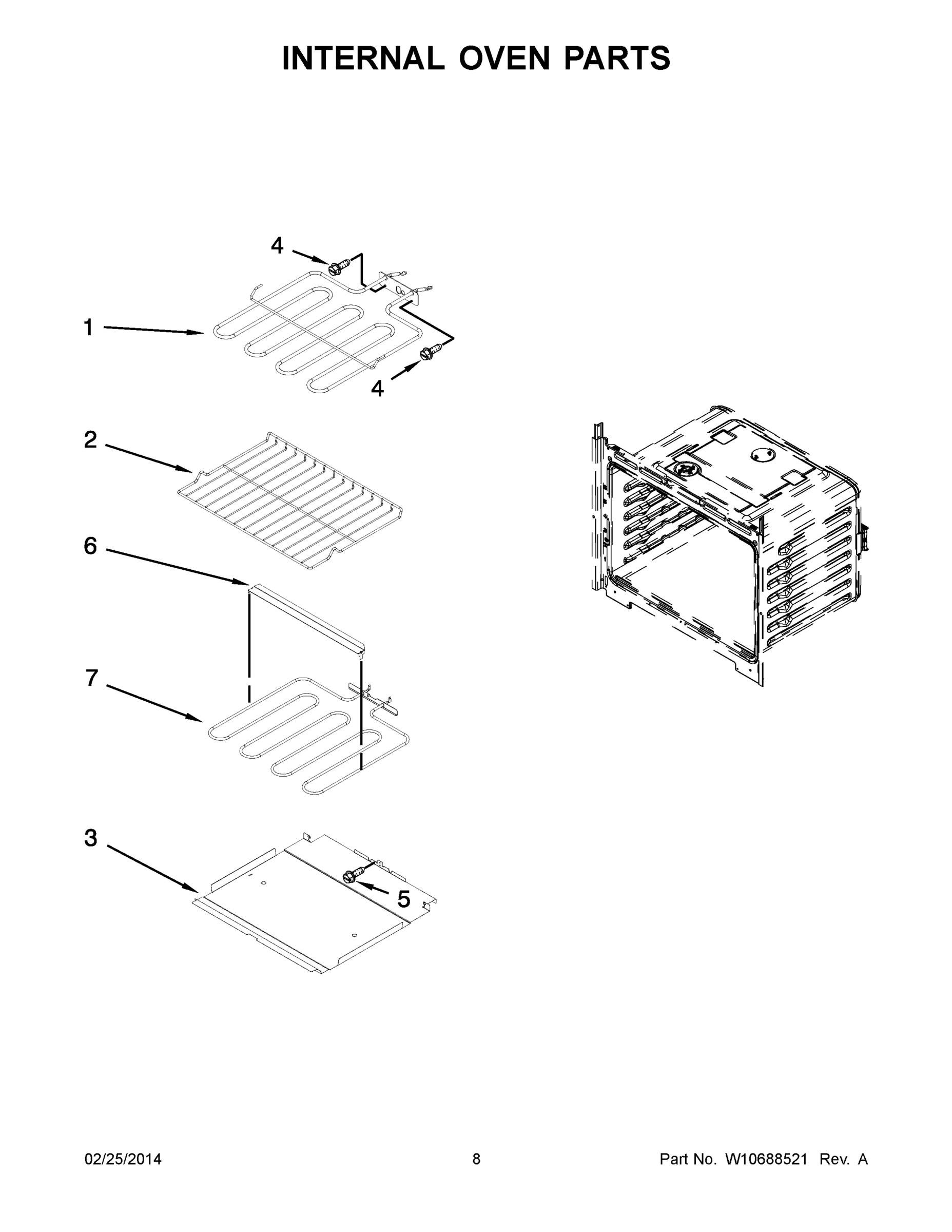

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MEW7530AB02 ELECTRIC OVEN
1
MAY W10351318 MAY W10351318 Contact Us For Availability
1
MAY W10354192 MAY W10354192 Contact Us For Availability
1
MAY W10507057 MAY W10507057 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10540056 MAY W10540056 Contact Us For Availability
1
MAY W10540057 MAY W10540057 Contact Us For Availability
1
MAY W10540058 MAY W10540058 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
BOARD, MRC2 DISPLAY MAY W10532437 Contact Us For Availability
2
MAY W10282967 MAY W10282967 Contact Us For Availability
3
MAY W10282975 MAY W10282975 Contact Us For Availability
3
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
3
MAY W10496288 MAY W10496288 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10318220 MAY W10318220 Contact Us For Availability
4
MAY W10288004 MAY W10288004 Contact Us For Availability
4
MAY W10363824 MAY W10363824 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
ASSEMBLY, LINER WELDED 30`` MAY W10320791 Contact Us For Availability
5
BLOWER MAY W10641253 Contact Us For Availability
6
MAY W10641573 MAY W10641573 Contact Us For Availability
6
MAY W10392683 MAY W10392683 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
7
MAY W10260262 MAY W10260262 Contact Us For Availability
7
MAY W10587560 MAY W10587560 Contact Us For Availability
7
MAY W10587561 MAY W10587561 Contact Us For Availability
7
MAY W10587562 MAY W10587562 Contact Us For Availability
7
MAY W10436434 MAY W10436434 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
8
MAY W10318219 MAY W10318219 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10284921 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10284922 Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY W10284923 Contact Us For Availability
9
MAY W10671661 MAY W10671661 Contact Us For Availability
9
MAY W10284901 MAY W10284901 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
10
VENT, TOP 30`` MAY W10283036 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10283078 MAY W10283078 Contact Us For Availability
10
MAY W10351257 MAY W10351257 Contact Us For Availability
11
MAY W10282960 MAY W10282960 Contact Us For Availability
11
MAY W10491021 MAY W10491021 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
Screw (Black) MAY 7101P633-60 Contact Us For Availability
13
MAY W10347650 MAY W10347650 Contact Us For Availability
14
MAY W10282990 MAY W10282990 Contact Us For Availability
14
HINGE-DOOR MAY W10419876 Contact Us For Availability
14
MAY W10509164 MAY W10509164 Contact Us For Availability
15
MAY W10254050 MAY W10254050 Contact Us For Availability
15
MAY W10657548 MAY W10657548 Contact Us For Availability
16
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
16
CHASSIS, COVER TOP FRONT 30`` MAY W10318192 Contact Us For Availability
17
MAY W10616809 MAY W10616809 Contact Us For Availability
17
CHASSIS, COVER TOP BACK 30`` MAY W10318194 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10282900 MAY W10282900 Contact Us For Availability
20
MAY W10327373 MAY W10327373 Contact Us For Availability
20
MAY W10351279 MAY W10351279 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10327377 MAY W10327377 Contact Us For Availability
22
MAY W10351236 MAY W10351236 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
28
MAY W10412711 MAY W10412711 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
31
DUCT, CHASSIS BACK UPPER MAY W10318196 Contact Us For Availability
32
MAY 8285593 MAY 8285593 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10282944 MAY W10282944 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP. CONDUIT MAY 4448664 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, SINGLE MAY 4450952 Contact Us For Availability
NI
WIRING HARNESS PARTS, LEAD, GROUND STRAP MAY 4452400 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN AND ROASTING MAY W10123240 Contact Us For Availability
NI
MAY W10318214 MAY W10318214 Contact Us For Availability
NI
ACCESSORIES, KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, EOL MAY W10409840 Contact Us For Availability
NI
MAY W10573327 MAY W10573327 Contact Us For Availability
NI
MAY W10601499 MAY W10601499 Contact Us For Availability
× ![]()
