Model Maytag MEW7527AS01 ELECTRIC OVEN – Common Parts & Diagrams
01 - COVER SHEET
02 - OVEN PARTS

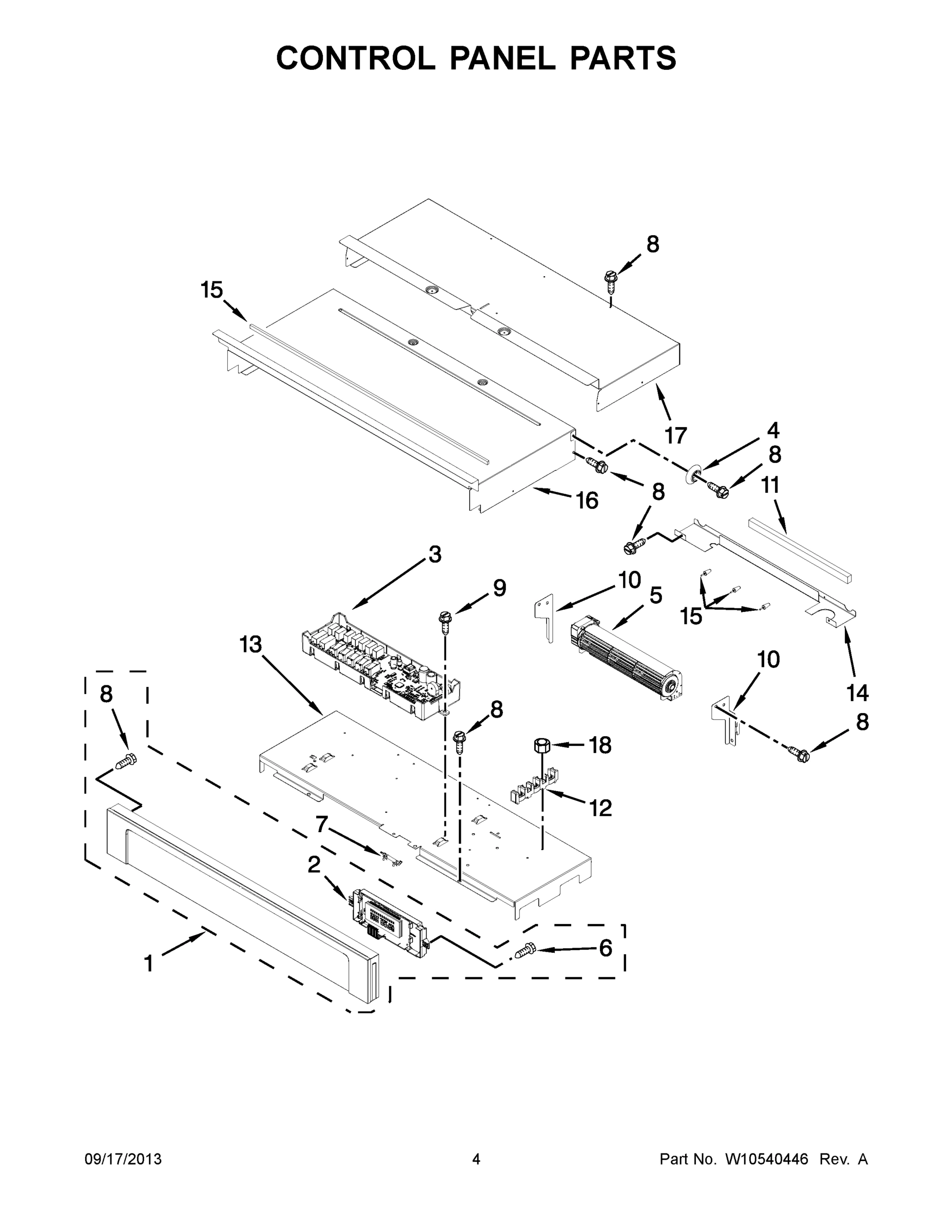

03 - CONTROL PANEL PARTS

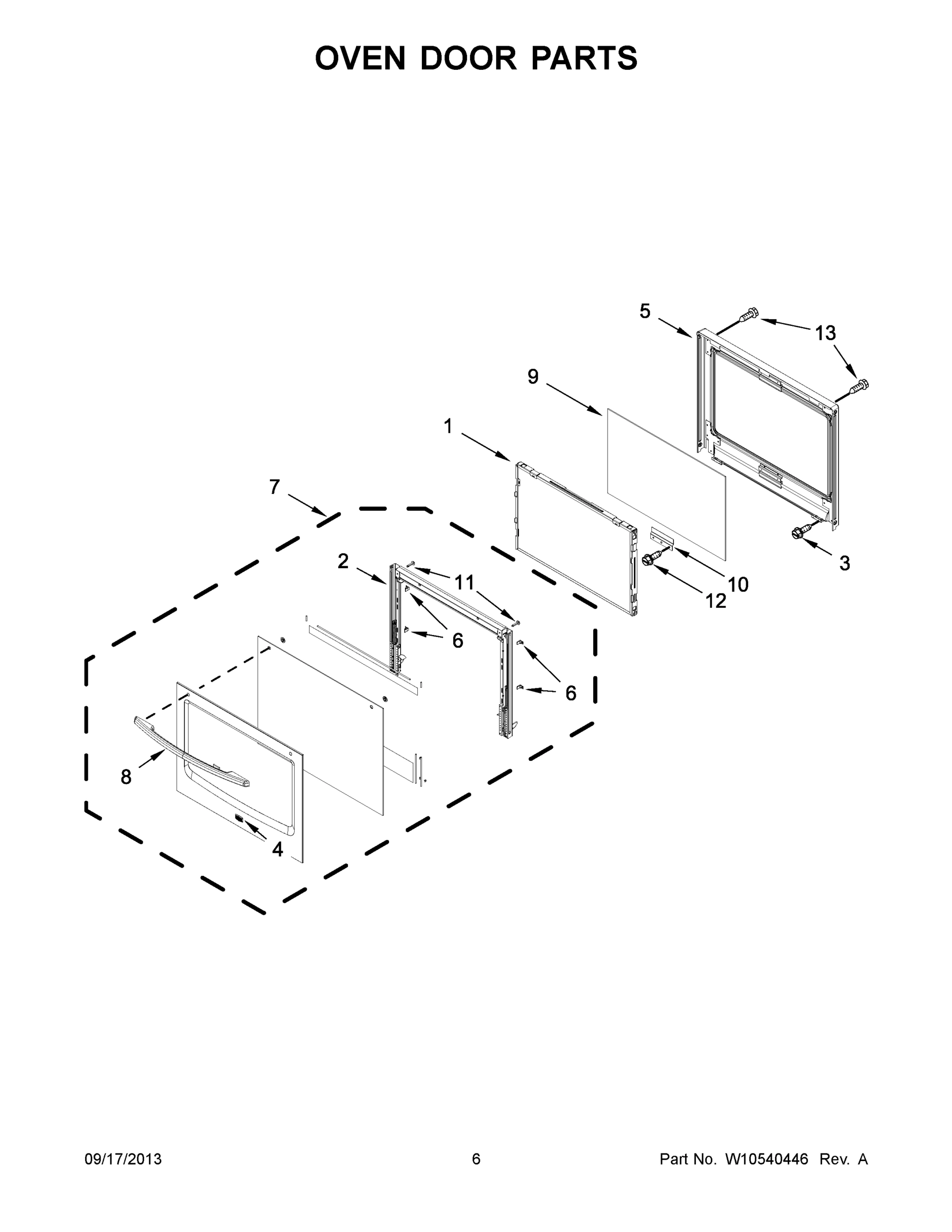

04 - OVEN DOOR PARTS

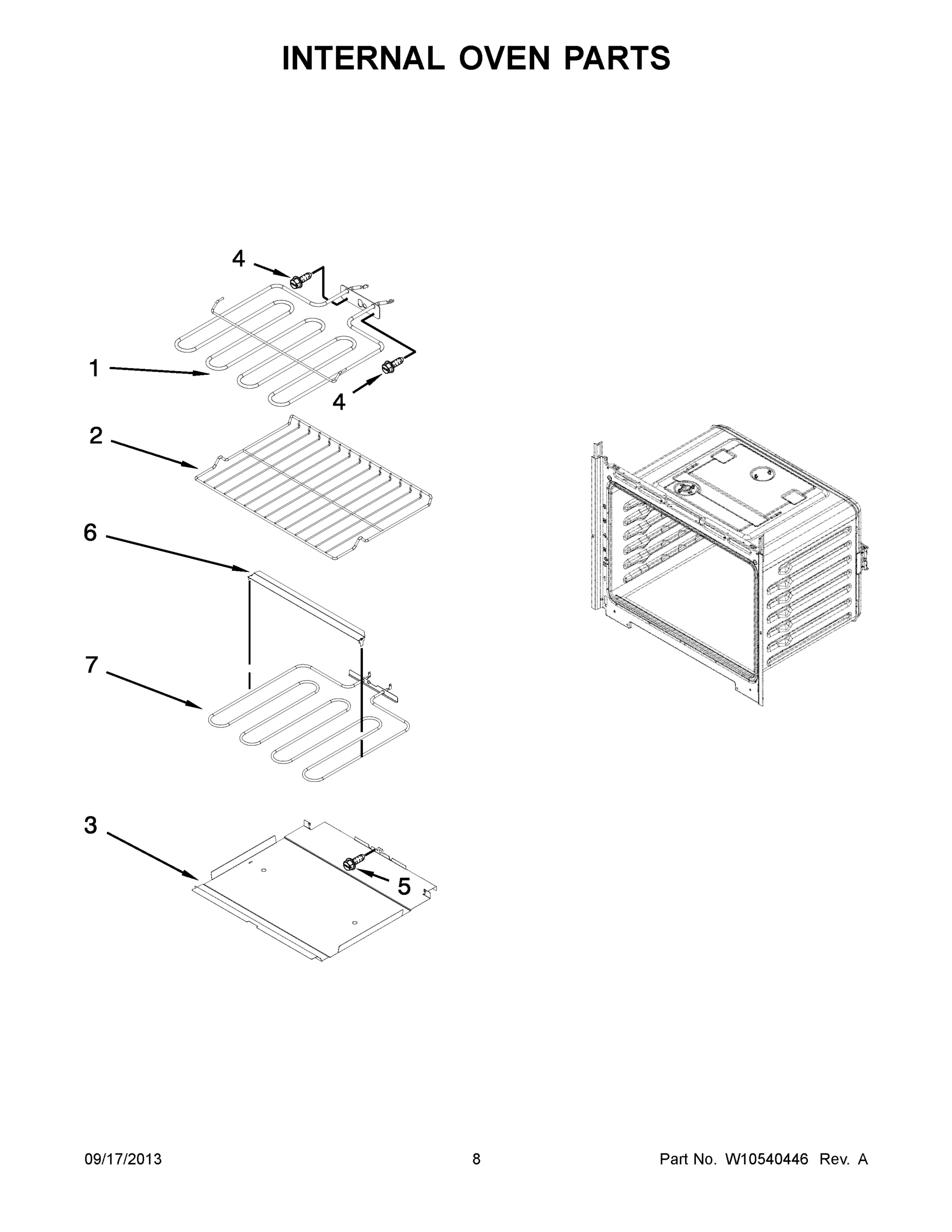

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MEW7527AS01 ELECTRIC OVEN
1
MAY W10354192 MAY W10354192 Contact Us For Availability
1
MAY W10507057 MAY W10507057 Contact Us For Availability
1
MAY W10540071 MAY W10540071 Contact Us For Availability
1
MAY W10540072 MAY W10540072 Contact Us For Availability
1
MAY W10540073 MAY W10540073 Contact Us For Availability
1
MAY W10347597 MAY W10347597 Contact Us For Availability
1
MAY W10260252 MAY W10260252 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
BOARD, MRC2 DISPLAY MAY W10532437 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10282968 MAY W10282968 Contact Us For Availability
3
MAY W10282975 MAY W10282975 Contact Us For Availability
3
MAY W10496288 MAY W10496288 Contact Us For Availability
3
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10318220 MAY W10318220 Contact Us For Availability
4
MAY W10363824 MAY W10363824 Contact Us For Availability
4
MAY W10288004 MAY W10288004 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10260254 MAY W10260254 Contact Us For Availability
5
ASSEMBLY, LINER WELDED MAY W10320793 Contact Us For Availability
6
CHASSIS, TOP MAY W10282981 Contact Us For Availability
6
MAY W10392683 MAY W10392683 Contact Us For Availability
6
MAY 7101P403-60 MAY 7101P403-60 Contact Us For Availability
6
TRAY, HIDDEN BAKE CROSSBAR MAY W10282957 Contact Us For Availability
7
LIGHT, INDICATOR MAY W10260262 Contact Us For Availability
7
MAY W10436434 MAY W10436434 Contact Us For Availability
7
MAY W10364111 MAY W10364111 Contact Us For Availability
7
MAY W10364112 MAY W10364112 Contact Us For Availability
7
MAY W10364113 MAY W10364113 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
8
MAY W10318219 MAY W10318219 Contact Us For Availability
8
HANDLE, DOOR (STAINLESS) MAY W10284924 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10284925 Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY W10284926 Contact Us For Availability
9
MAY W10351258 MAY W10351258 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
LINER, INNER GLASS MAY W10284902 Contact Us For Availability
10
MAY W10283037 MAY W10283037 Contact Us For Availability
10
MAY W10283078 MAY W10283078 Contact Us For Availability
10
MAY W10351257 MAY W10351257 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
11
MAY W10282961 MAY W10282961 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10491021 MAY W10491021 Contact Us For Availability
12
MAY W10282985 MAY W10282985 Contact Us For Availability
12
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
MAY W10283005 MAY W10283005 Contact Us For Availability
13
MAY 7101P653-60 MAY 7101P653-60 Contact Us For Availability
14
MAY W10282991 MAY W10282991 Contact Us For Availability
14
MAY W10509164 MAY W10509164 Contact Us For Availability
15
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
15
MAY W10351292 MAY W10351292 Contact Us For Availability
16
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
16
MAY W10318193 MAY W10318193 Contact Us For Availability
17
MAY W10318195 MAY W10318195 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10282901 MAY W10282901 Contact Us For Availability
20
MAY W10327375 MAY W10327375 Contact Us For Availability
20
MAY W10351280 MAY W10351280 Contact Us For Availability
22
MAY W10327378 MAY W10327378 Contact Us For Availability
22
MAY W10351237 MAY W10351237 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
CHASSIS, BOTTOM DUCT SPACER MAY W10351308 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
26
MAY W10412722 MAY W10412722 Contact Us For Availability
28
MAY 4450038 MAY 4450038 Contact Us For Availability
29
MAY W10283016 MAY W10283016 Contact Us For Availability
30
MAY W10347649 MAY W10347649 Contact Us For Availability
31
DUCT, CHASSIS BACK UPPER MAY W10318196 Contact Us For Availability
32
MAY W10283008 MAY W10283008 Contact Us For Availability
33
MAY W10282984 MAY W10282984 Contact Us For Availability
34
MAY W10412711 MAY W10412711 Contact Us For Availability
NI
INSULATION, BACK MAY W10282945 Contact Us For Availability
NI
MAY W10520716 MAY W10520716 Contact Us For Availability
NI
PAINT, SPRAY, (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP. CONDUIT MAY 4448664 Contact Us For Availability
NI
MISCELLANEOUS, SCREW, DOOR INSTALLATION MAY 4448950 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, SINGLE MAY 4450952 Contact Us For Availability
NI
WIRING HARNESS PARTS, LEAD, GROUND STRAP MAY 4452400 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
WIRING HARNESS PARTS, COVER, CONNECTOR MAY 8285593 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
MAY W10318214 MAY W10318214 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, EOL MAY W10409840 Contact Us For Availability
NI
MAY W10474881 MAY W10474881 Contact Us For Availability
NI
MAY W10573327 MAY W10573327 Contact Us For Availability
× ![]()
