Model Maytag MEW6627DDB19 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - OVEN PARTS
02 - UPPER OVEN DOOR PARTS

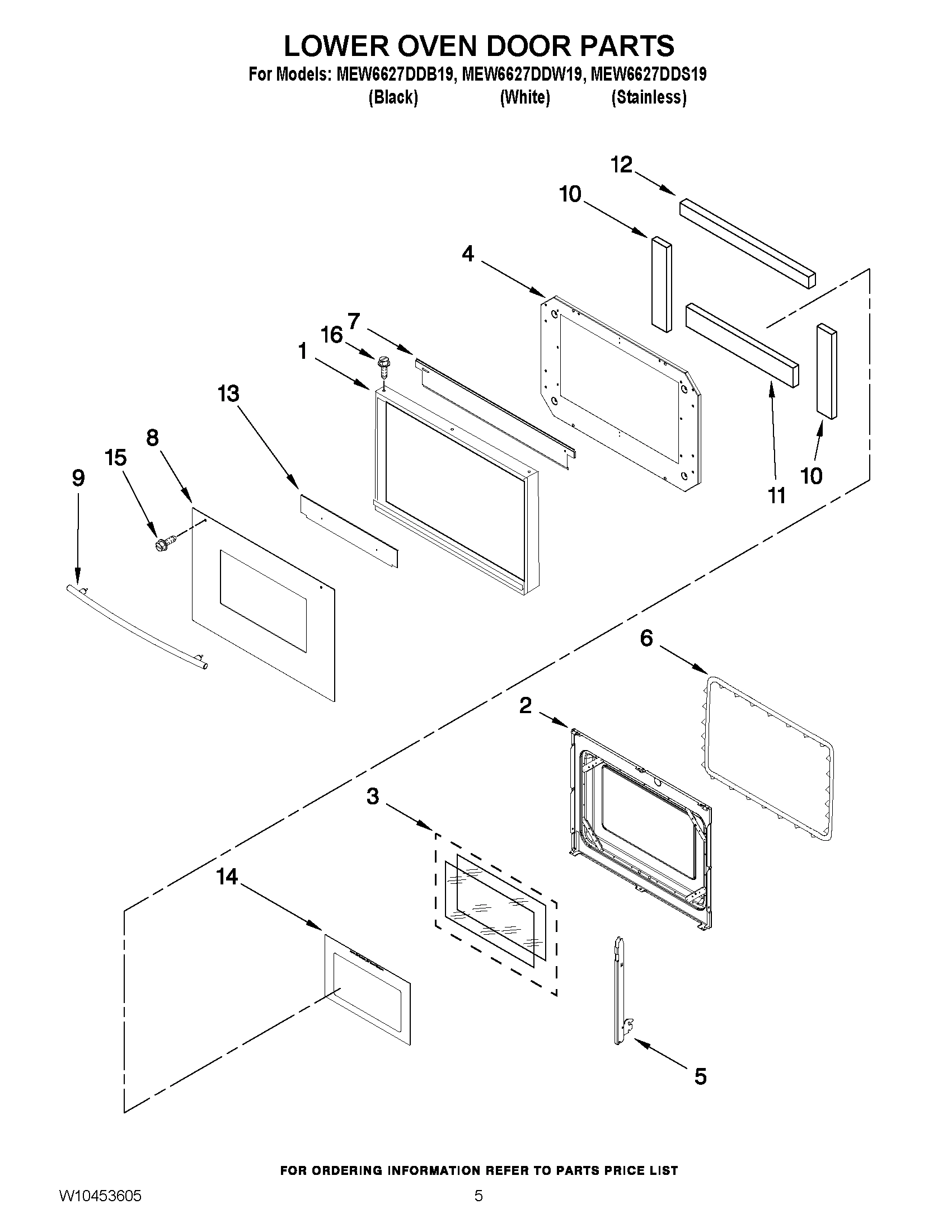

03 - LOWER OVEN DOOR PARTS

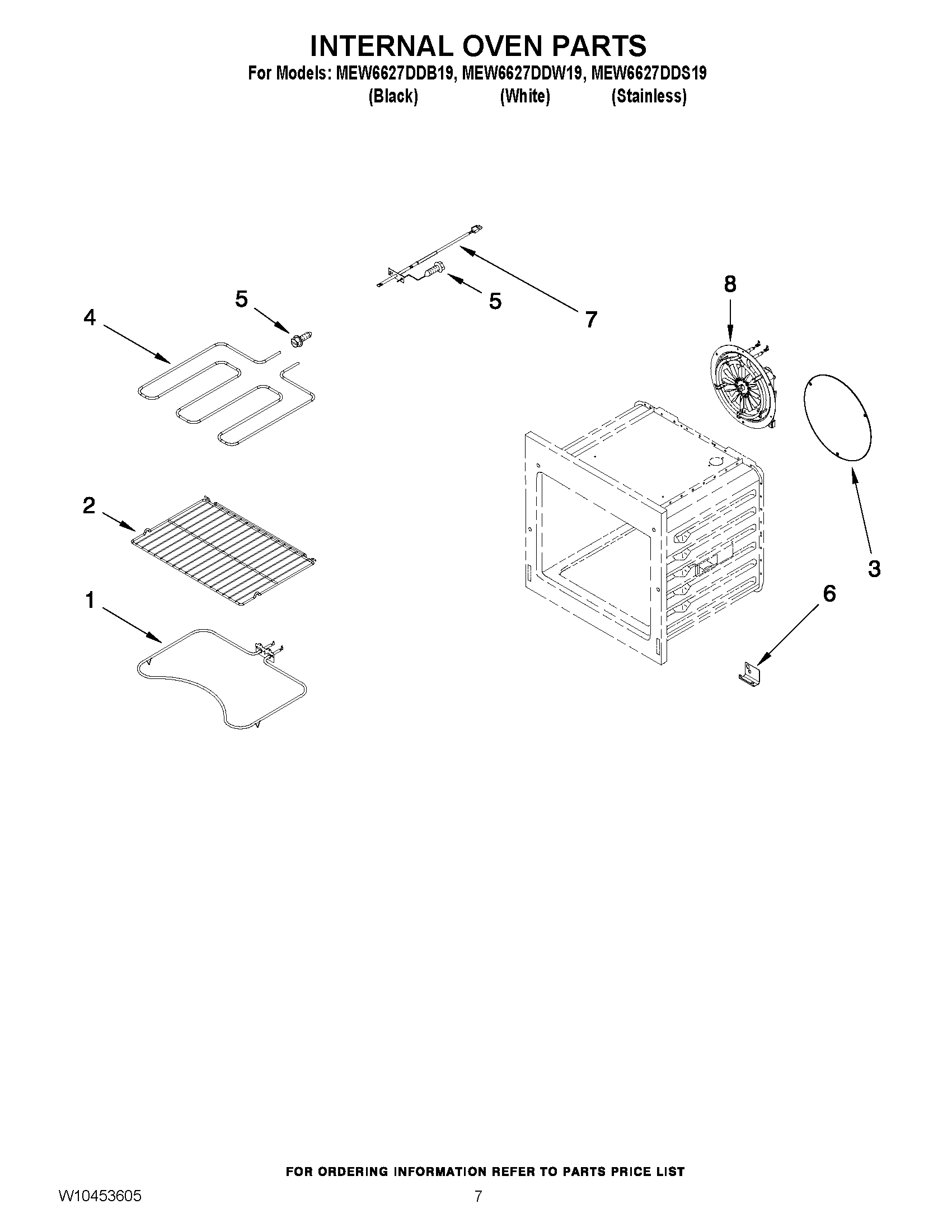

04 - INTERNAL OVEN PARTS

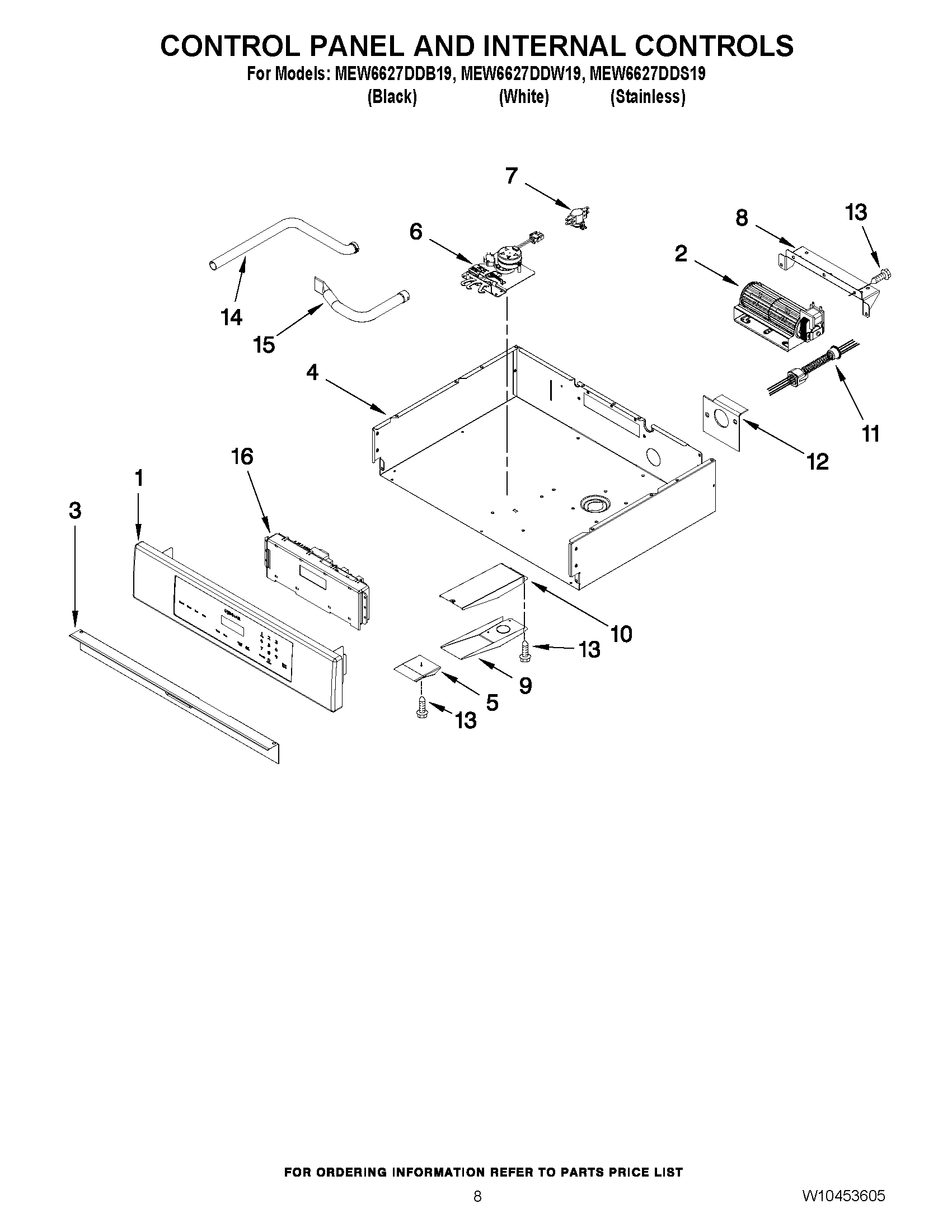

05 - CONTROL PANEL AND INTERNAL CONTROLS
06 - OPTIONAL PARTS
Common parts from model Maytag MEW6627DDB19 ELECTRIC WALL OVEN
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10169640 MAY W10169640 Contact Us For Availability
1
MAY W10176681 MAY W10176681 Contact Us For Availability
1
MAY W10192630 MAY W10192630 Contact Us For Availability
1
MAY W10192631 MAY W10192631 Contact Us For Availability
1
ASSEMBLY, DOOR FRAME TRIM MAY 7706P561-60 Contact Us For Availability
1
MAY W10314692 MAY W10314692 Contact Us For Availability
1
MAY 5765M445-60 MAY 5765M445-60 Contact Us For Availability
1
MAY 5765M481-60 MAY 5765M481-60 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (WHITE) MAY 5765M486-60 Contact Us For Availability
2
MAY 2624F075-51 MAY 2624F075-51 Contact Us For Availability
2
MAY 2402W264-19 MAY 2402W264-19 Contact Us For Availability
2
RACK, STRAIGHT MAY 7801P156-60 Contact Us For Availability
2
RACK, OVEN OFFSET MAY W10275562 Contact Us For Availability
2
ASSEMBLY, FAN MOTOR MAY W10315816 Contact Us For Availability
3
MAY 4002F282-51 MAY 4002F282-51 Contact Us For Availability
3
ASSEMBLY, WINDOW MAY 5700M868-60 Contact Us For Availability
3
MAY 3605F211-19 MAY 3605F211-19 Contact Us For Availability
3
TRIM, CONTROL PANEL MAY 3608F104-70 Contact Us For Availability
4
TRIM, SIDE (BLACK) MAY 7744P445-60 Contact Us For Availability
4
MAY 7744P447-60 MAY 7744P447-60 Contact Us For Availability
4
RETAINER, INSULATION MAY 3804F200-51 Contact Us For Availability
4
MAY W10310260 MAY W10310260 Contact Us For Availability
4
MAY W10368641 MAY W10368641 Contact Us For Availability
5
TRIM, OVEN (BLACK) MAY 3608F084-70 Contact Us For Availability
5
MAY 3608F084-71 MAY 3608F084-71 Contact Us For Availability
5
MAY 7106P115-60 MAY 7106P115-60 Contact Us For Availability
5
MAY 8312P232-60 MAY 8312P232-60 Contact Us For Availability
6
MAY 2615F221-51 MAY 2615F221-51 Contact Us For Availability
6
MAY 7212P060-60 MAY 7212P060-60 Contact Us For Availability
6
MAY 7112P126-60 MAY 7112P126-60 Contact Us For Availability
6
SWITCH, DOOR LOCK MAY W10186996 Contact Us For Availability
7
BUMPER, RUBBER MAY 7109P085-60 Contact Us For Availability
7
MAY W10205610 MAY W10205610 Contact Us For Availability
7
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT (LOWER) MAY 7403P855-60 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT (UPPER) MAY 7403P856-60 Contact Us For Availability
8
MAY 8014P031-60 MAY 8014P031-60 Contact Us For Availability
8
GLASS, DOOR (BLACK) MAY 7902P660-60 Contact Us For Availability
8
MAY 7902P661-60 MAY 7902P661-60 Contact Us For Availability
8
UPPER OVEN ASSEMBLY, CONVECTION MAY W10210594 Contact Us For Availability
8
BRACKET, COOLING FAN MAY 3801F936-51 Contact Us For Availability
9
RETAINER, INSULATION MAY 2624F055-51 Contact Us For Availability
9
MAY 7701P519-60 MAY 7701P519-60 Contact Us For Availability
9
MAY 7701P520-60 MAY 7701P520-60 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY 7701P525-60 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY 7701P526-60 Contact Us For Availability
9
MAY 4011F438-45 MAY 4011F438-45 Contact Us For Availability
10
MAY 7002P357-60 MAY 7002P357-60 Contact Us For Availability
10
MAY 7002P380-60 MAY 7002P380-60 Contact Us For Availability
10
MAY 4006F169-45 MAY 4006F169-45 Contact Us For Availability
11
MAY 3605F236-50 MAY 3605F236-50 Contact Us For Availability
11
INSULATION, BOTTOM MAY 7002P381-60 Contact Us For Availability
11
ASSEMBLY, WIRE CABLE MAY 5700P821-60 Contact Us For Availability
12
MAY 3802F116-51 MAY 3802F116-51 Contact Us For Availability
12
MAY 7002P382-60 MAY 7002P382-60 Contact Us For Availability
12
MAY 8020P048-60 MAY 8020P048-60 Contact Us For Availability
13
ASSEMBLY, LIGHT MAY 7407P181-60 Contact Us For Availability
13
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
13
MAY 3604F369-45 MAY 3604F369-45 Contact Us For Availability
14
MAY 7101P635-60 MAY 7101P635-60 Contact Us For Availability
14
GLASS, DOOR INNER MAY 7902P712-60 Contact Us For Availability
14
MAY 7506P404-60 MAY 7506P404-60 Contact Us For Availability
15
TUBE, VENT UPPER MAY 7506P405-60 Contact Us For Availability
16
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
16
MAY 8507P322-60 MAY 8507P322-60 Contact Us For Availability
17
MAY 2624F064-51 MAY 2624F064-51 Contact Us For Availability
18
MAY 7756P196-60 MAY 7756P196-60 Contact Us For Availability
19
MAY 2624F062-51 MAY 2624F062-51 Contact Us For Availability
20
ASSEMBLY, LIGHT SWITCH MAY 7450P108-60 Contact Us For Availability
21
SMOKE ELIMINATOR MAY 7505P322-60 Contact Us For Availability
NI
INSULATION, BACK MAY 7002P263-60 Contact Us For Availability
NI
MAY 7002P367-60 MAY 7002P367-60 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
MAY 5171P936-60 MAY 5171P936-60 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK MAY W10348627 Contact Us For Availability
× ![]()
