Model Maytag MEW6530ACB ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

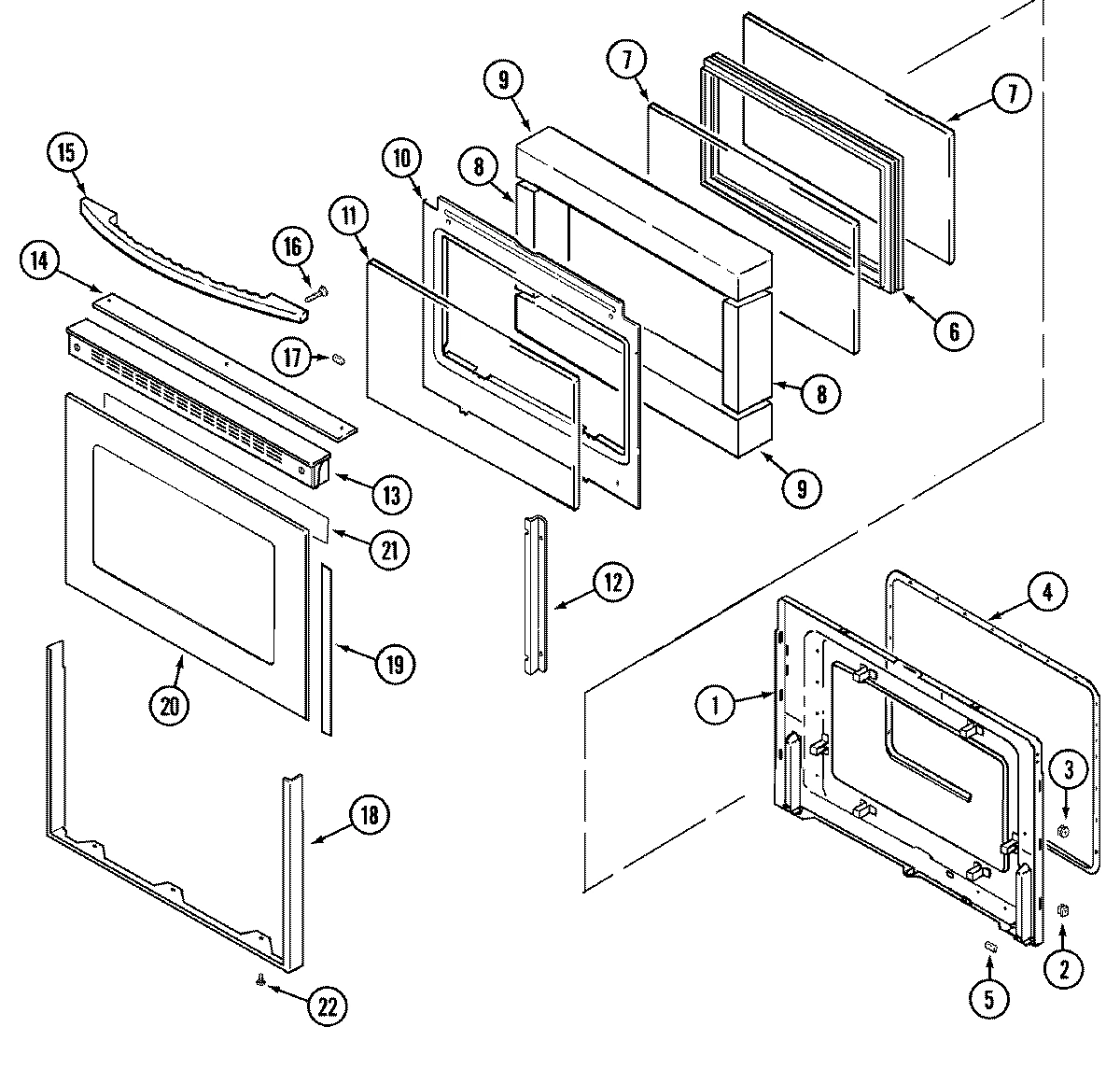

03 - DOOR

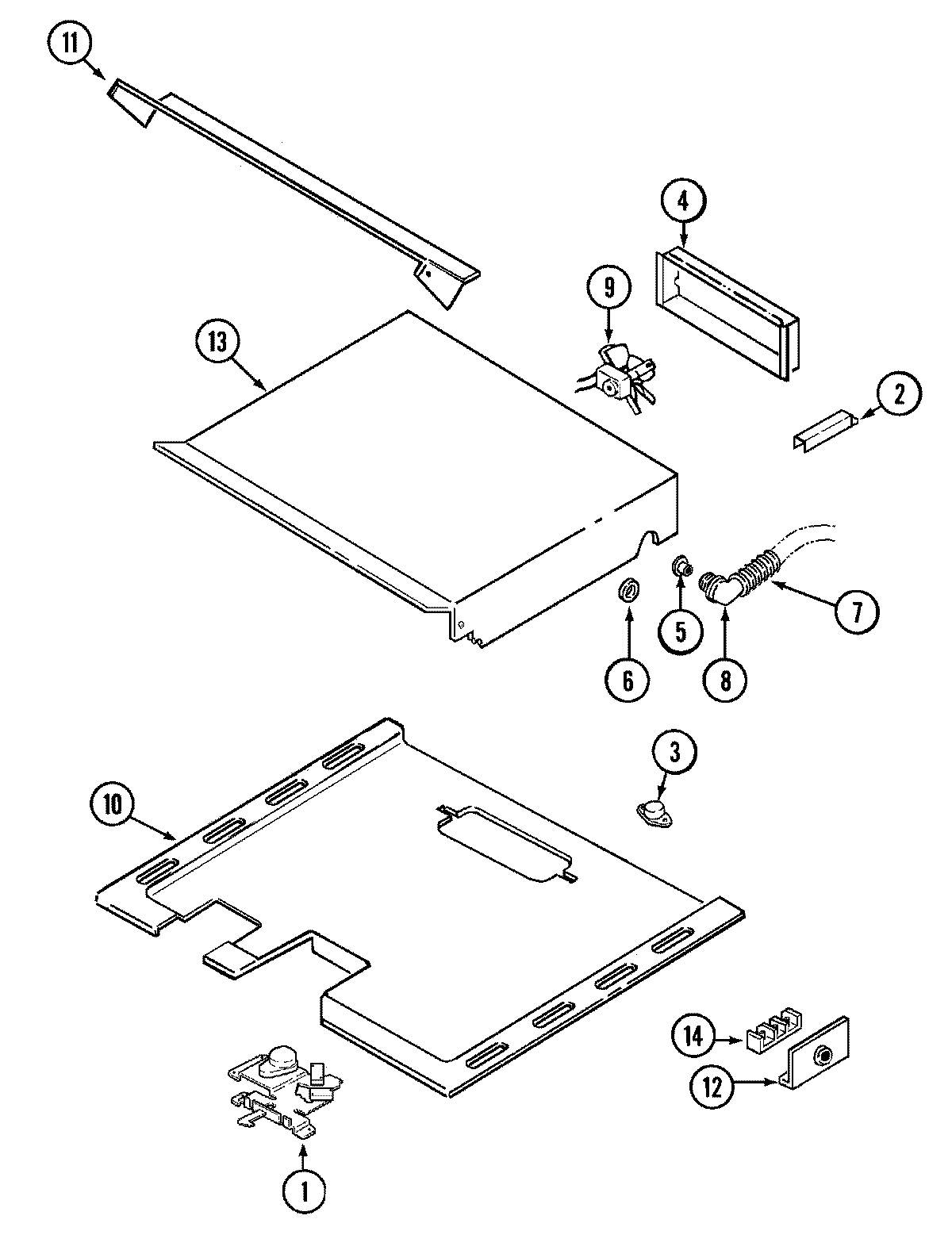

04 - INTERNAL CONTROLS

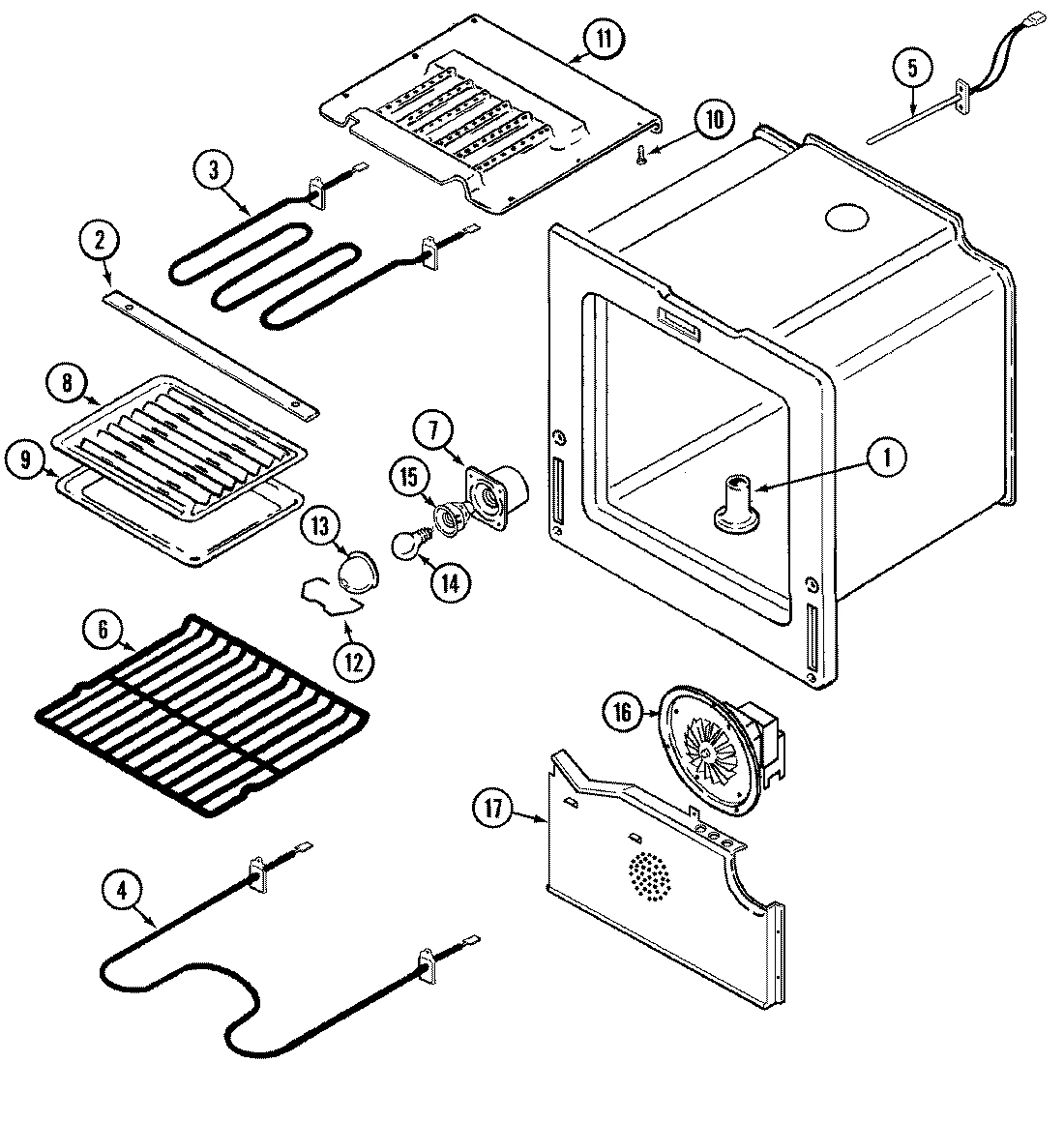

05 - OVEN/BASE

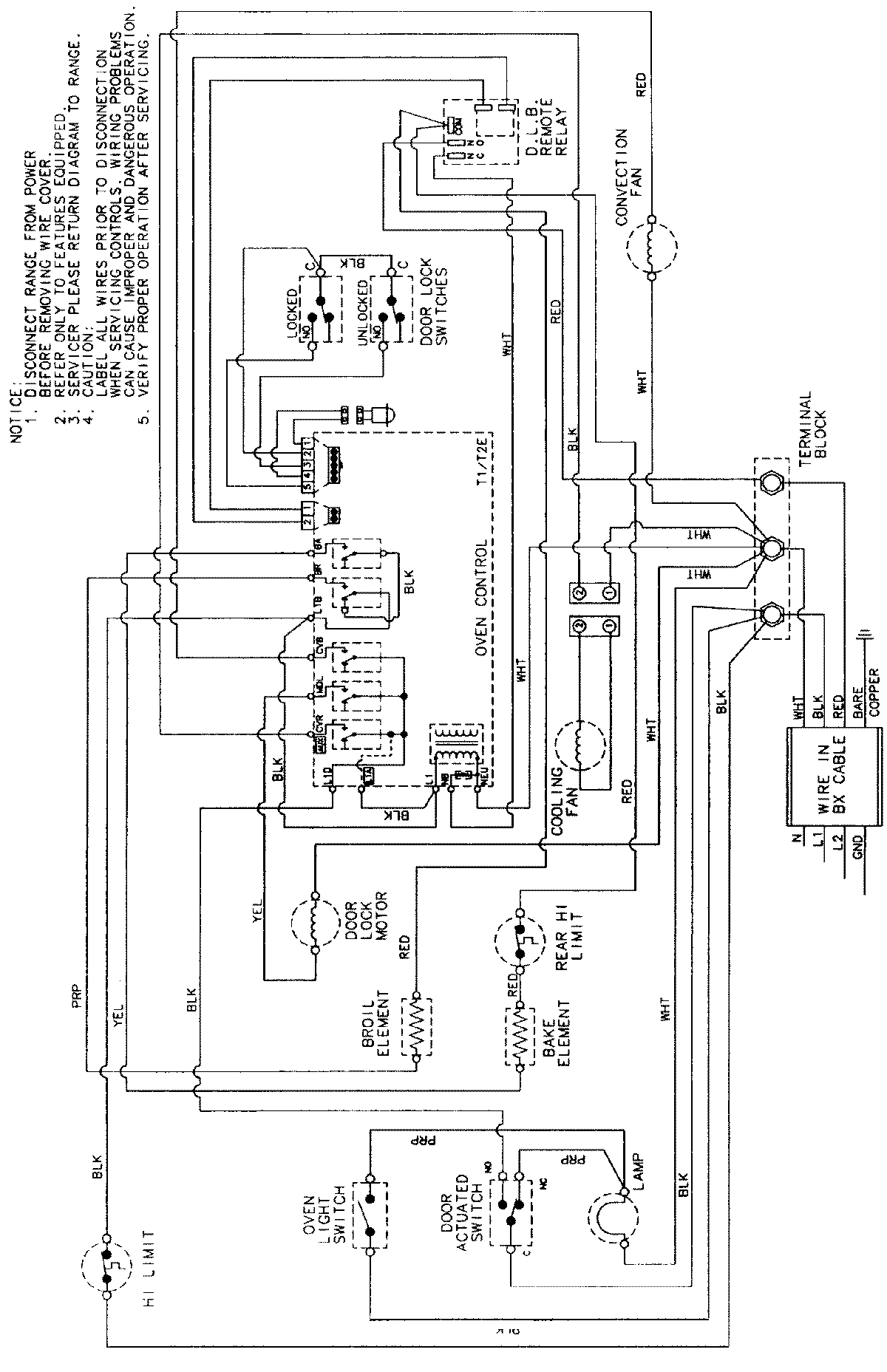

06 - WIRING INFORMATION (MEW6530ACx)
Common parts from model Maytag MEW6530ACB ELECTRIC WALL OVEN
1
MAY 71003299 MAY 71003299 Contact Us For Availability
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
1
MAY 74003559 MAY 74003559 Contact Us For Availability
1
MAY 74003560 MAY 74003560 Contact Us For Availability
1
MAY 74003561 MAY 74003561 Contact Us For Availability
1
MAY 74004097 MAY 74004097 Contact Us For Availability
2
MAY 71003305 MAY 71003305 Contact Us For Availability
2
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
2
MAY 74003643 MAY 74003643 Contact Us For Availability
2
MAY 3830F008-51 MAY 3830F008-51 Contact Us For Availability
2
MAY 74003563 MAY 74003563 Contact Us For Availability
3
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
3
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
3
MAY 7403P313-60 MAY 7403P313-60 Contact Us For Availability
3
MAY 74004041 MAY 74004041 Contact Us For Availability
4
MAY 74004039 MAY 74004039 Contact Us For Availability
4
MAY 71003304 MAY 71003304 Contact Us For Availability
4
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
5
MAY 71003301 MAY 71003301 Contact Us For Availability
5
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
5
MAY 8008P017-60 MAY 8008P017-60 Contact Us For Availability
5
MAY 74003390 MAY 74003390 Contact Us For Availability
6
MAY 74004112 MAY 74004112 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
6
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
7
MAY 74004115 MAY 74004115 Contact Us For Availability
7
MAY 74004117 MAY 74004117 Contact Us For Availability
7
MAY 74003953 MAY 74003953 Contact Us For Availability
7
MAY 74003388 MAY 74003388 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
MAY 74003646 MAY 74003646 Contact Us For Availability
8
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
MAY 74003036 MAY 74003036 Contact Us For Availability
9
MAY 74003480 MAY 74003480 Contact Us For Availability
9
MAY 74004121 MAY 74004121 Contact Us For Availability
9
MAY 74004122 MAY 74004122 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
9
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
9
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
10
MAY 74004096 MAY 74004096 Contact Us For Availability
10
MAY 74001387 MAY 74001387 Contact Us For Availability
10
MAY 74001394 MAY 74001394 Contact Us For Availability
10
MAY 74003648 MAY 74003648 Contact Us For Availability
10
MAY 74004094 MAY 74004094 Contact Us For Availability
11
MAY 74001436 MAY 74001436 Contact Us For Availability
11
MAY 71002938 MAY 71002938 Contact Us For Availability
11
MAY 71003319 MAY 71003319 Contact Us For Availability
11
GLASS, DOOR MAY 74003649 Contact Us For Availability
11
MAY 4005F431-51 MAY 4005F431-51 Contact Us For Availability
11
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
12
MAY 74001801 MAY 74001801 Contact Us For Availability
12
MAY 16000327 MAY 16000327 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
12
MAY 74003391 MAY 74003391 Contact Us For Availability
13
MAY 74001742 MAY 74001742 Contact Us For Availability
13
MAY 4001F092-51 MAY 4001F092-51 Contact Us For Availability
13
MAY 74003389 MAY 74003389 Contact Us For Availability
14
MAY 71003308 MAY 71003308 Contact Us For Availability
14
MAY 71003309 MAY 71003309 Contact Us For Availability
14
MAY 74004958 MAY 74004958 Contact Us For Availability
14
MAY 74004959 MAY 74004959 Contact Us For Availability
14
MAY 74002230 MAY 74002230 Contact Us For Availability
14
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
15
MAY 74003387 MAY 74003387 Contact Us For Availability
15
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
15
MAY 74003617 MAY 74003617 Contact Us For Availability
16
MAY 74001802 MAY 74001802 Contact Us For Availability
16
MAY 74001805 MAY 74001805 Contact Us For Availability
17
MAY 74001626 MAY 74001626 Contact Us For Availability
17
MAY 71002092 MAY 71002092 Contact Us For Availability
17
MAY 74001161 MAY 74001161 Contact Us For Availability
17
MAY 74003697 MAY 74003697 Contact Us For Availability
18
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
18
MAY 74003658 MAY 74003658 Contact Us For Availability
19
MAY 74003660 MAY 74003660 Contact Us For Availability
20
MAY 74001627 MAY 74001627 Contact Us For Availability
20
MAY 74003662 MAY 74003662 Contact Us For Availability
21
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
22
MAY 74001631 MAY 74001631 Contact Us For Availability
23
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
NI
MAY 15002479 MAY 15002479 Contact Us For Availability
× ![]()
