Model Maytag MEW5627BAW ELECTRIC WALL OVEN – Common Parts & Diagrams

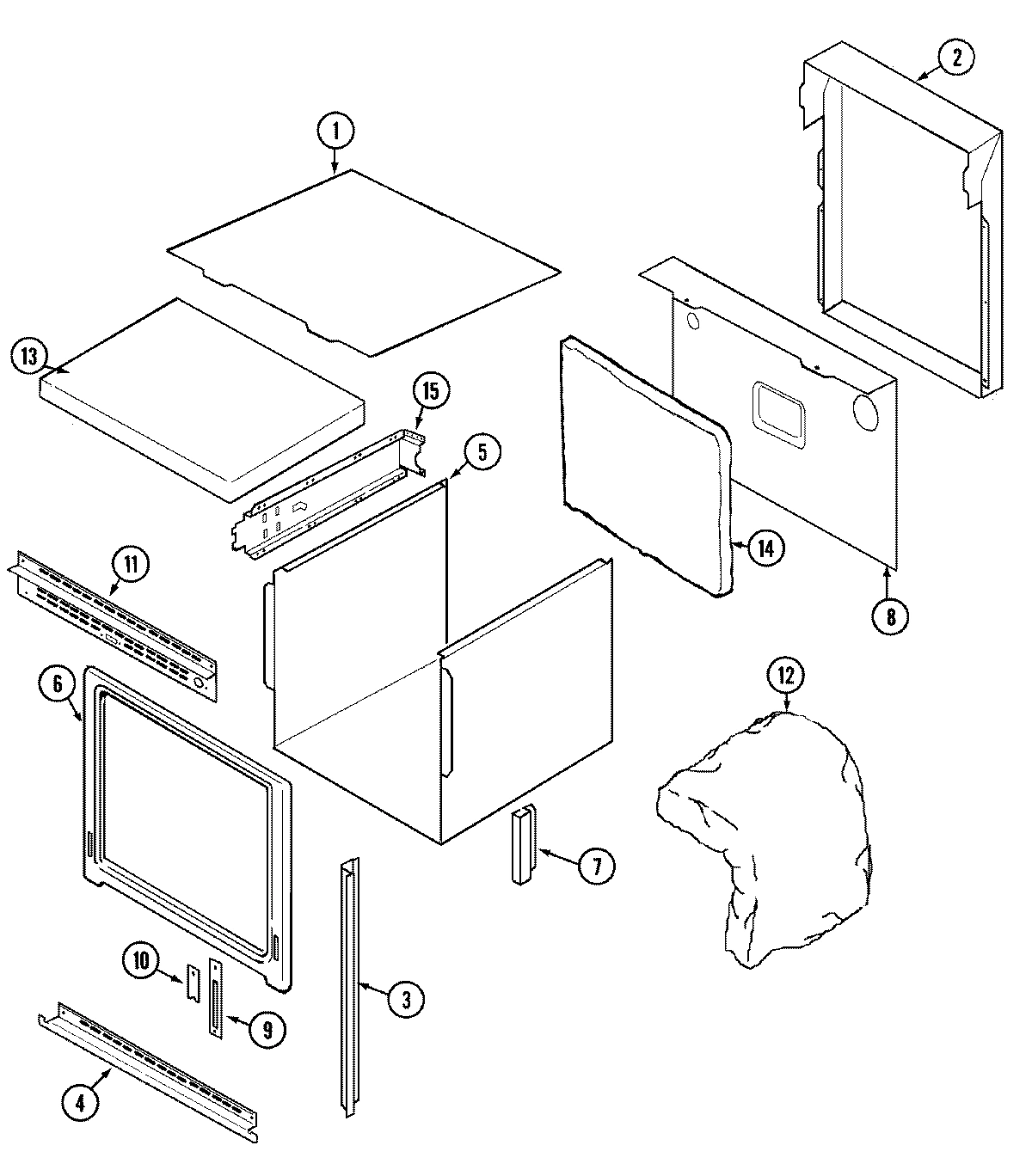

01 - BODY

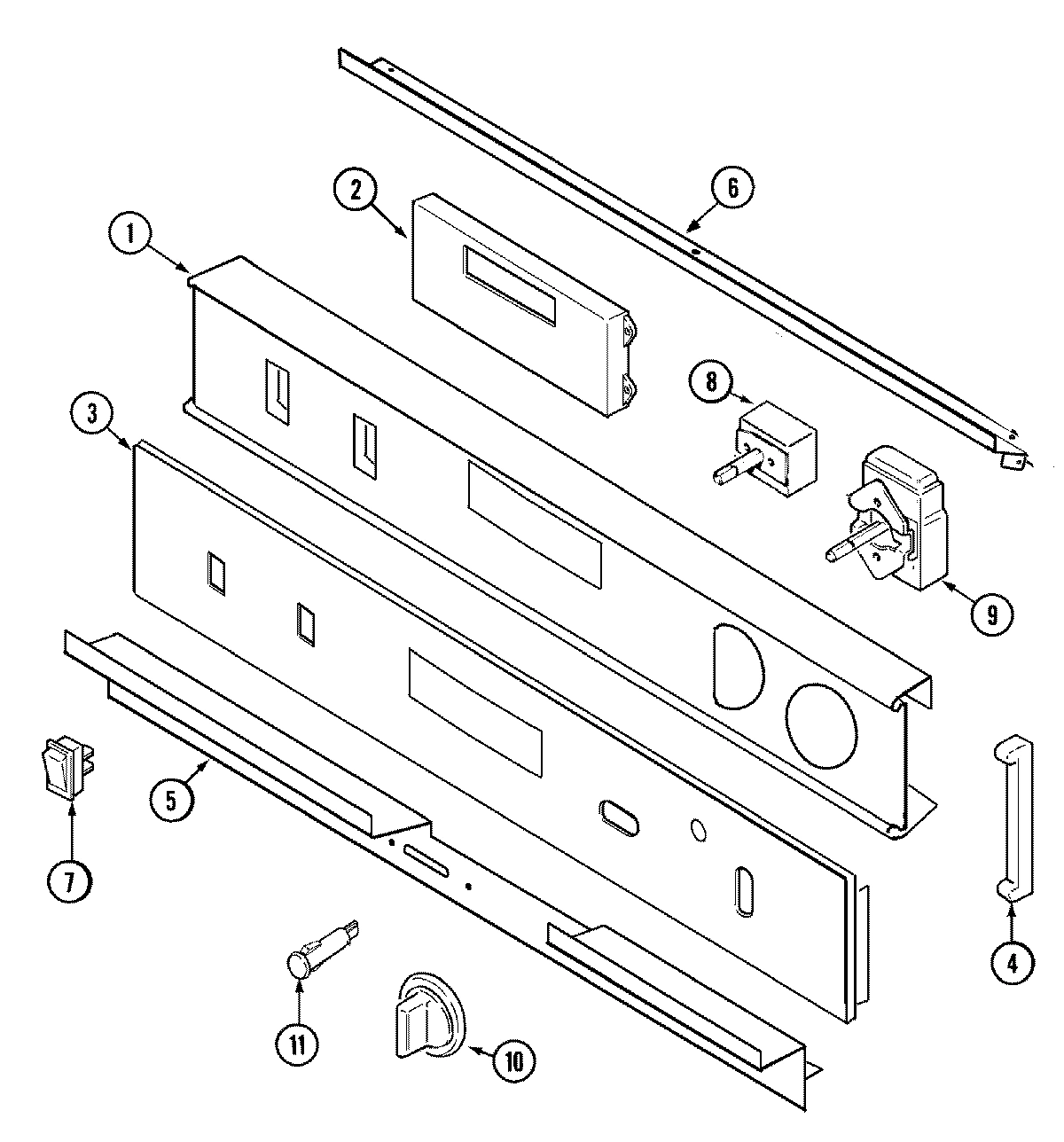

02 - CONTROL PANEL

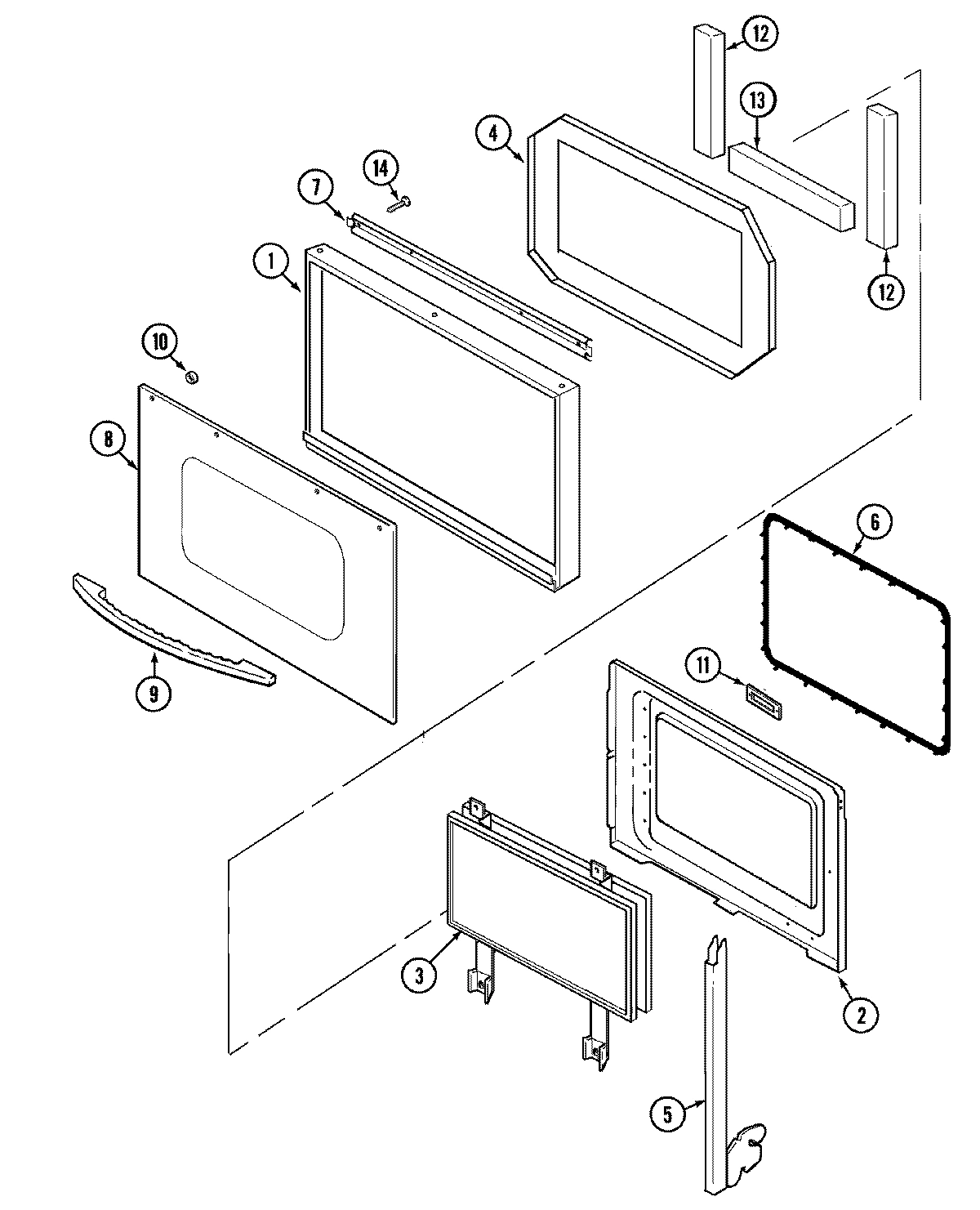

03 - DOOR (UPPER & LOWER)

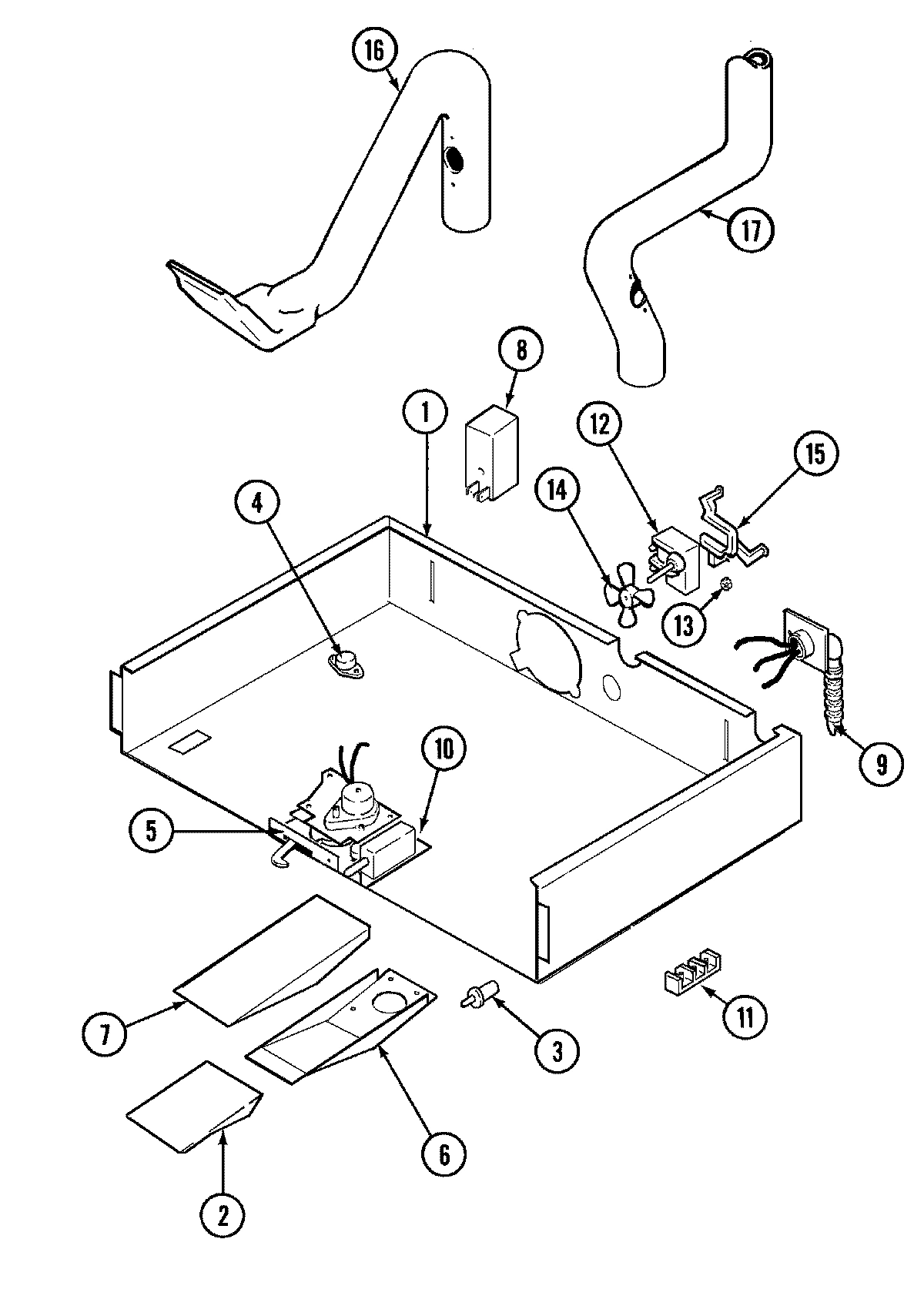

04 - INTERNAL CONTROLS
05 - OVEN

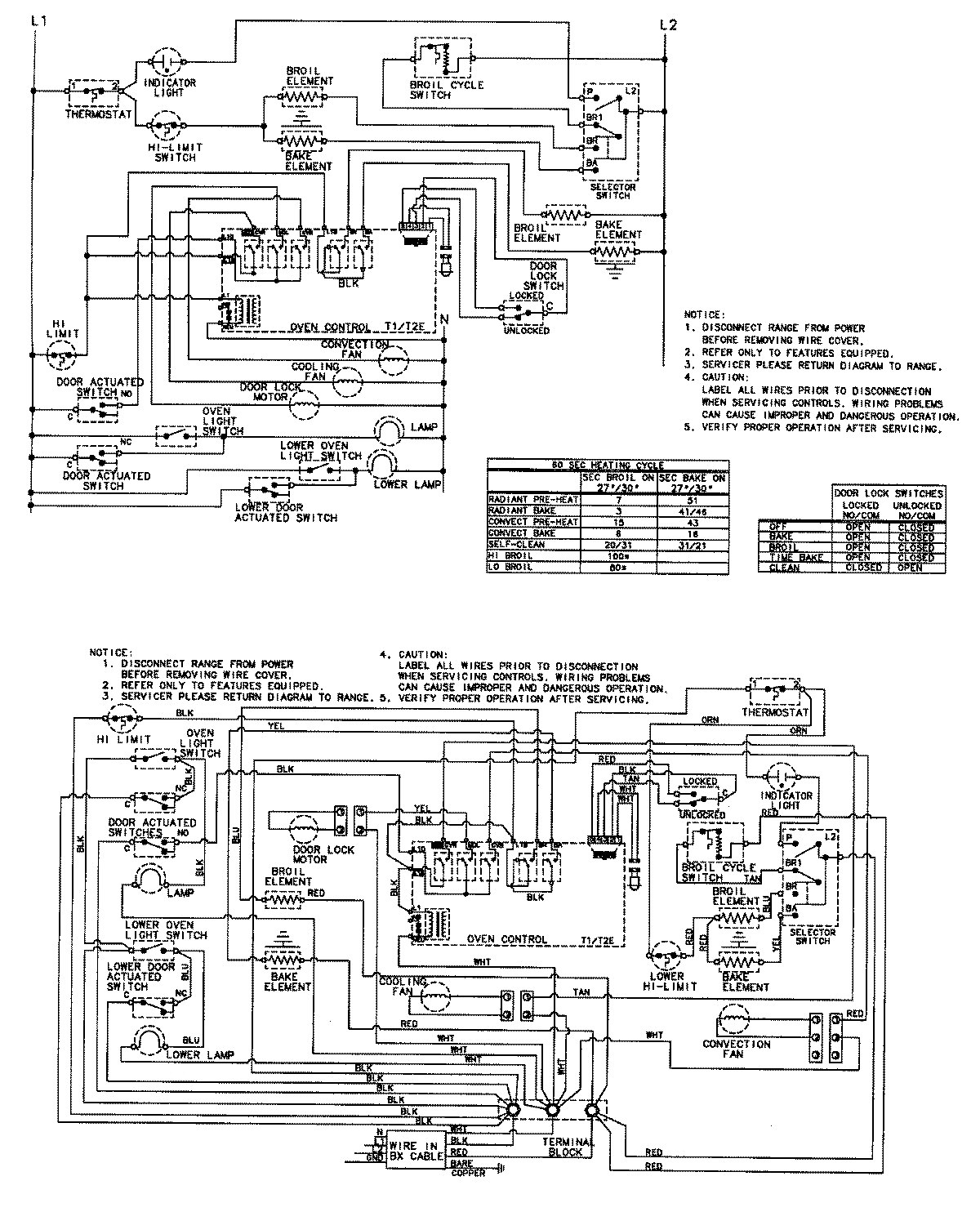

06 - WIRING INFORMATION
Common parts from model Maytag MEW5627BAW ELECTRIC WALL OVEN
1
MAY 71001827 MAY 71001827 Contact Us For Availability
1
MAY 74004707 MAY 74004707 Contact Us For Availability
1
MAY 71001965 MAY 71001965 Contact Us For Availability
1
MAY 74004615 MAY 74004615 Contact Us For Availability
2
MAY 702731 MAY 702731 Contact Us For Availability
2
MAY 74004708 MAY 74004708 Contact Us For Availability
2
MAY Y705143 MAY Y705143 Contact Us For Availability
2
MAY 71002968 MAY 71002968 Contact Us For Availability
2
MAY 715634 MAY 715634 Contact Us For Availability
2
MAY 74005615 MAY 74005615 Contact Us For Availability
2
MAY 71001843 MAY 71001843 Contact Us For Availability
2
MAY Y704660 MAY Y704660 Contact Us For Availability
3
MAY 71001987 MAY 71001987 Contact Us For Availability
3
MAY 71001988 MAY 71001988 Contact Us For Availability
3
MAY 74005664 MAY 74005664 Contact Us For Availability
3
MAY 12001405 MAY 12001405 Contact Us For Availability
3
MAY 74004724 MAY 74004724 Contact Us For Availability
3
MAY 74004927 MAY 74004927 Contact Us For Availability
3
MAY 74006715 MAY 74006715 Contact Us For Availability
3
MAY 71001967 MAY 71001967 Contact Us For Availability
3
MAY 74005639 MAY 74005639 Contact Us For Availability
3
MAY 71001129 MAY 71001129 Contact Us For Availability
3
MAY 71002903 MAY 71002903 Contact Us For Availability
4
MAY 71001955 MAY 71001955 Contact Us For Availability
4
MAY 74005625 MAY 74005625 Contact Us For Availability
4
MAY 71001795 MAY 71001795 Contact Us For Availability
4
MAY 71002864 MAY 71002864 Contact Us For Availability
4
MAY 71002118 MAY 71002118 Contact Us For Availability
4
MAY Y708310 MAY Y708310 Contact Us For Availability
4
MAY 702592 MAY 702592 Contact Us For Availability
5
MAY 71003294 MAY 71003294 Contact Us For Availability
5
MAY 71001957 MAY 71001957 Contact Us For Availability
5
MAY 71001946 MAY 71001946 Contact Us For Availability
5
MAY 71003352 MAY 71003352 Contact Us For Availability
5
MAY 71001867 MAY 71001867 Contact Us For Availability
6
MAY 71003185 MAY 71003185 Contact Us For Availability
6
MAY 71003449 MAY 71003449 Contact Us For Availability
6
MAY 71001846 MAY 71001846 Contact Us For Availability
7
MAY 71002137 MAY 71002137 Contact Us For Availability
7
MAY 74004455 MAY 74004455 Contact Us For Availability
7
MAY 71001847 MAY 71001847 Contact Us For Availability
7
MAY 71001170 MAY 71001170 Contact Us For Availability
7
MAY 71001403 MAY 71001403 Contact Us For Availability
7
MAY 71003006 MAY 71003006 Contact Us For Availability
8
MAY 74004616 MAY 74004616 Contact Us For Availability
8
MAY 71001127 MAY 71001127 Contact Us For Availability
8
MAY 74004512 MAY 74004512 Contact Us For Availability
8
MAY 74005571 MAY 74005571 Contact Us For Availability
8
MAY 74006717 MAY 74006717 Contact Us For Availability
8
MAY 71002145 MAY 71002145 Contact Us For Availability
8
MAY Y704662 MAY Y704662 Contact Us For Availability
9
MAY 71001815 MAY 71001815 Contact Us For Availability
9
MAY 71002138 MAY 71002138 Contact Us For Availability
9
MAY 74004514 MAY 74004514 Contact Us For Availability
9
MAY 74004726 MAY 74004726 Contact Us For Availability
9
MAY 71001866 MAY 71001866 Contact Us For Availability
10
MAY 71002904 MAY 71002904 Contact Us For Availability
10
MAY 71001812 MAY 71001812 Contact Us For Availability
10
MAY 71002412 MAY 71002412 Contact Us For Availability
10
MAY 8010P073-60 MAY 8010P073-60 Contact Us For Availability
10
MAY 71002419 MAY 71002419 Contact Us For Availability
11
MAY 71002142 MAY 71002142 Contact Us For Availability
11
MAY 71002360 MAY 71002360 Contact Us For Availability
11
MAY 71001831 MAY 71001831 Contact Us For Availability
11
MAY Y700725 MAY Y700725 Contact Us For Availability
11
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
11
MAY Y701541 MAY Y701541 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY 71001960 MAY 71001960 Contact Us For Availability
12
MAY 74004701 MAY 74004701 Contact Us For Availability
12
MAY 74004702 MAY 74004702 Contact Us For Availability
12
MAY 74004725 MAY 74004725 Contact Us For Availability
12
MAY 71001839 MAY 71001839 Contact Us For Availability
12
MAY 71001851 MAY 71001851 Contact Us For Availability
12
MAY 71001394 MAY 71001394 Contact Us For Availability
12
MAY 71003083 MAY 71003083 Contact Us For Availability
12
MAY Y705342 MAY Y705342 Contact Us For Availability
13
MAY 71001963 MAY 71001963 Contact Us For Availability
13
MAY 71002782 MAY 71002782 Contact Us For Availability
13
MAY 74004704 MAY 74004704 Contact Us For Availability
13
MAY 71001969 MAY 71001969 Contact Us For Availability
13
MAY 702929 MAY 702929 Contact Us For Availability
14
MAY 71002227 MAY 71002227 Contact Us For Availability
14
MAY 16000327 MAY 16000327 Contact Us For Availability
14
MAY Y707402 MAY Y707402 Contact Us For Availability
14
MAY 71001852 MAY 71001852 Contact Us For Availability
14
MAY 3401F014-19 MAY 3401F014-19 Contact Us For Availability
14
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
15
MAY Y04100669 MAY Y04100669 Contact Us For Availability
15
MAY 71001853 MAY 71001853 Contact Us For Availability
15
MAY 703165 MAY 703165 Contact Us For Availability
15
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
16
MAY 71002417 MAY 71002417 Contact Us For Availability
17
MAY 71002418 MAY 71002418 Contact Us For Availability
NI
MAY 15002629 MAY 15002629 Contact Us For Availability
× ![]()
