Model Maytag MET8800FZ01 RANGE/OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

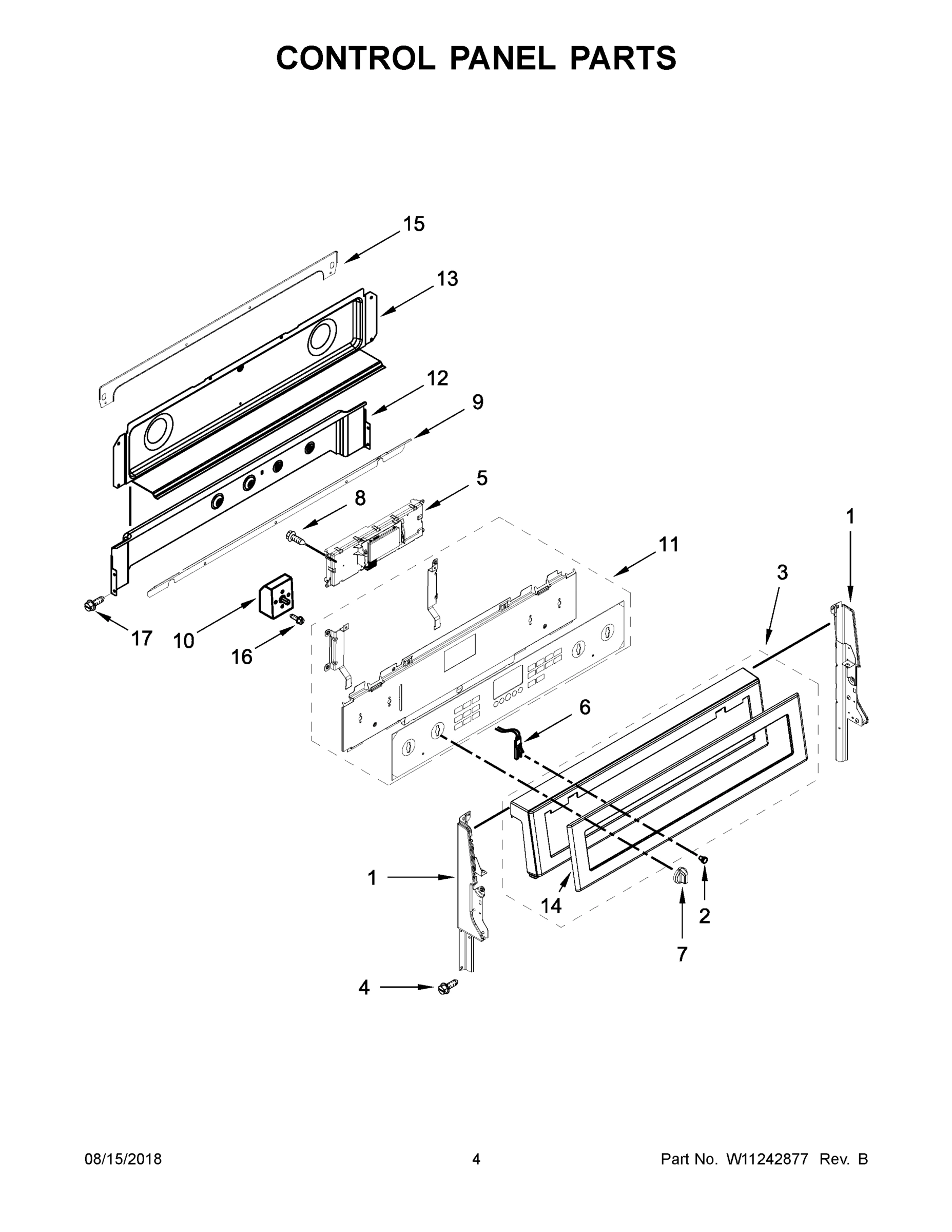

03 - CONTROL PANEL PARTS

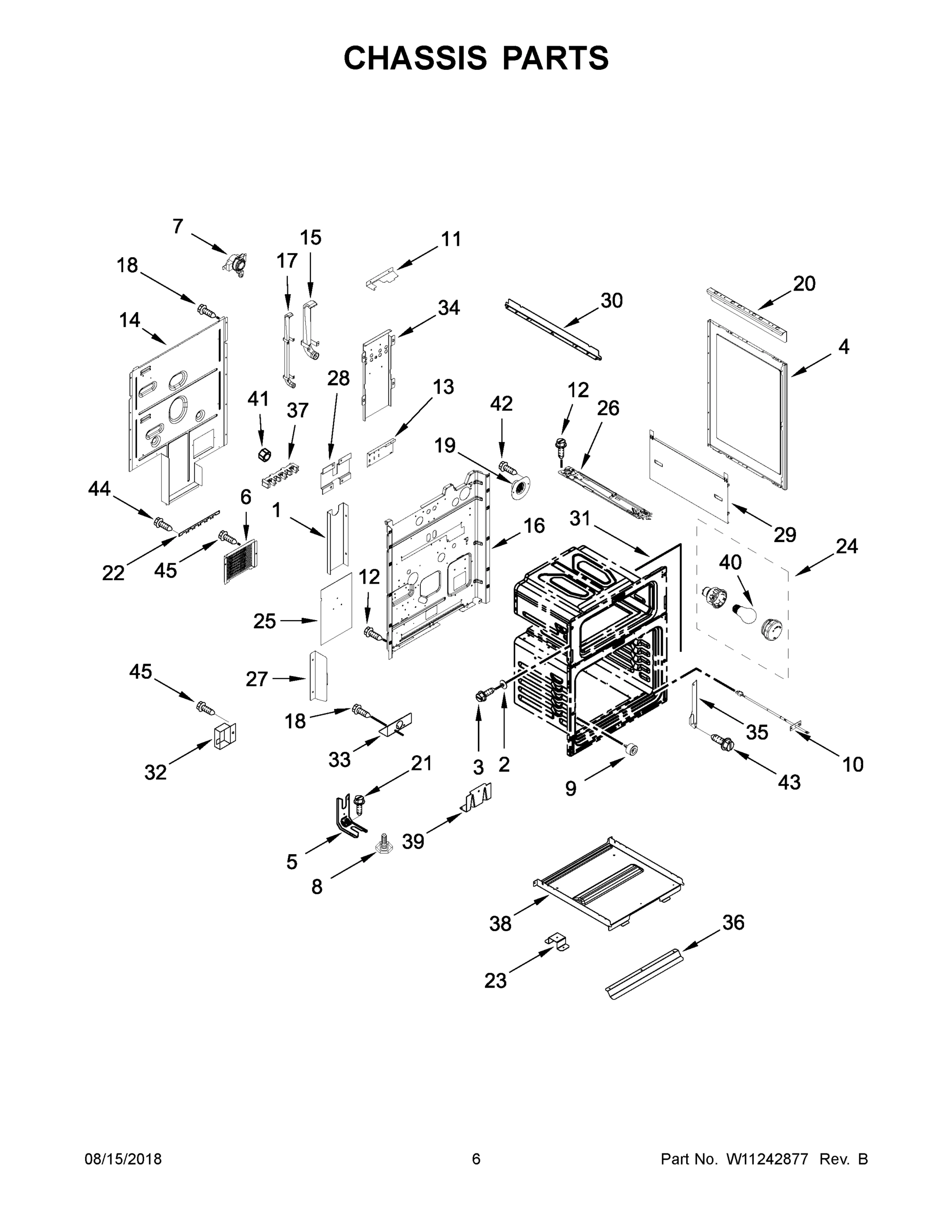

04 - CHASSIS PARTS

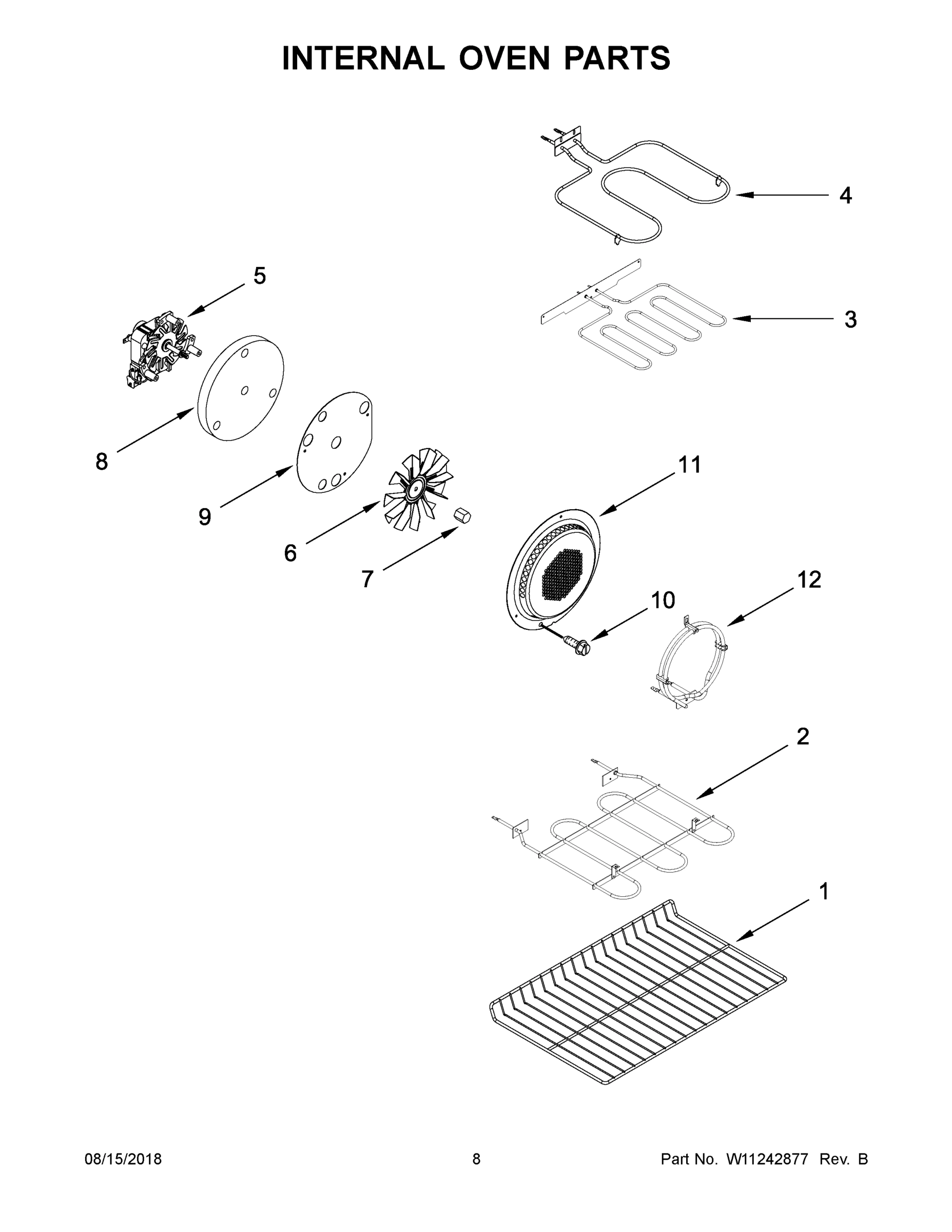

05 - INTERNAL OVEN PARTS

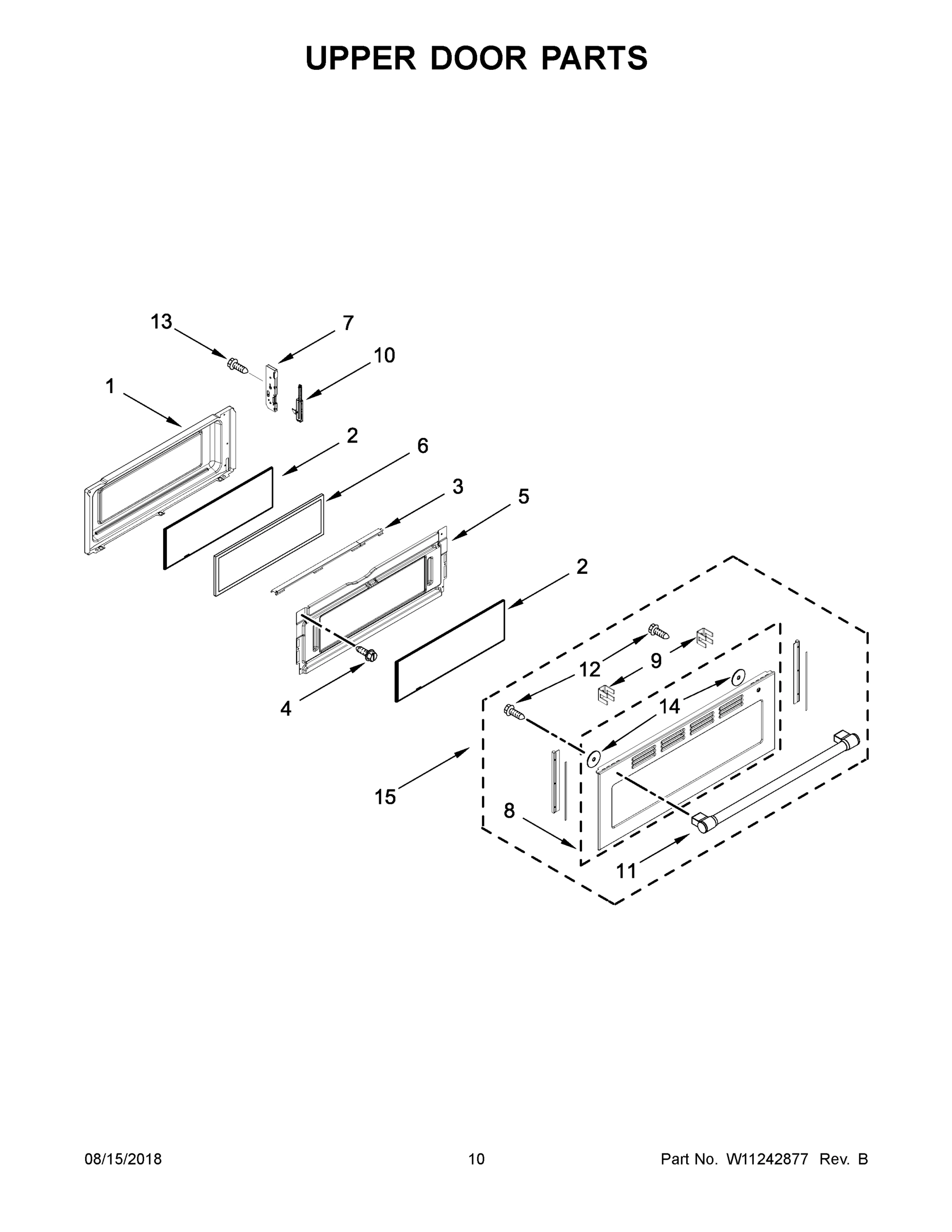

06 - UPPER DOOR PARTS

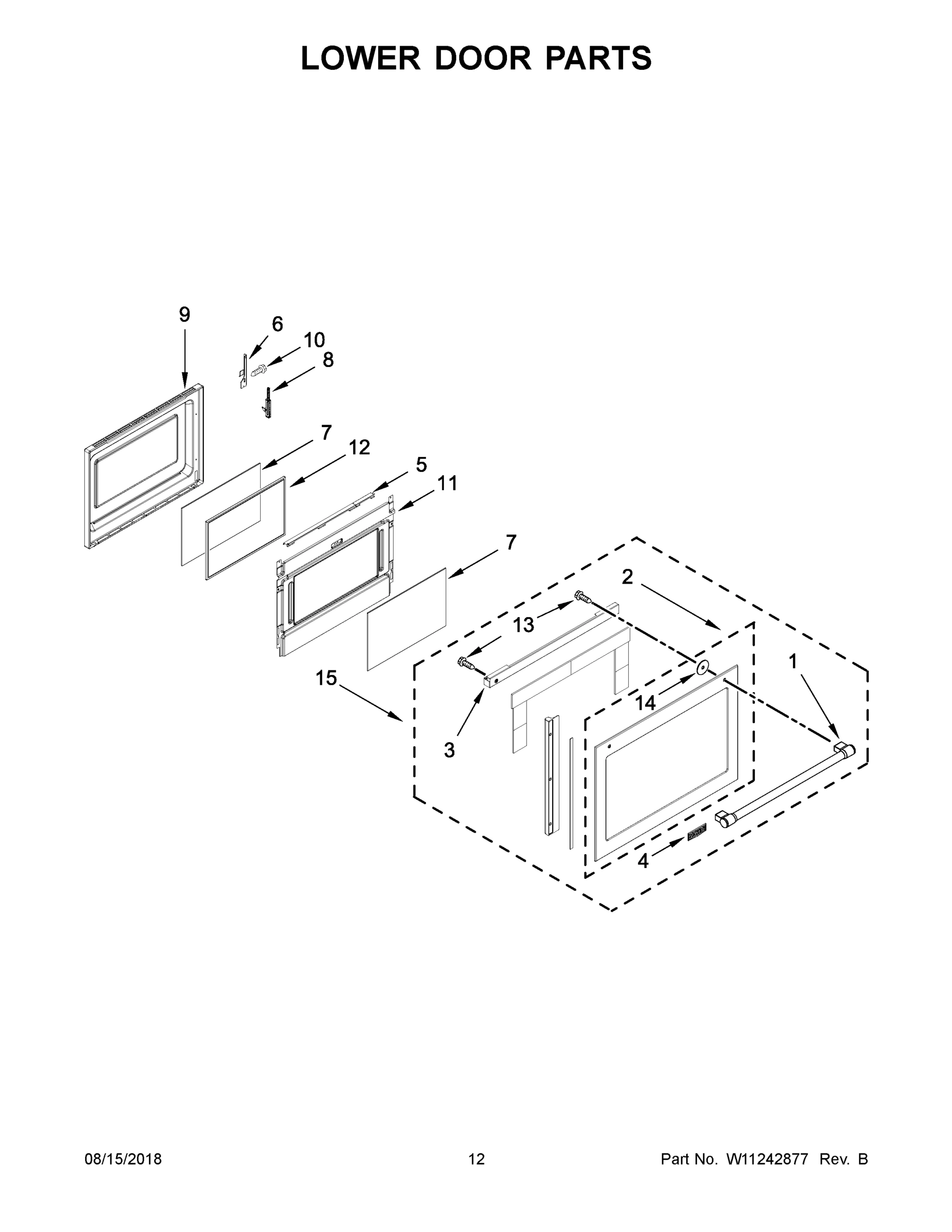

07 - LOWER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MET8800FZ01 RANGE/OVEN, ELECTRIC, DOUBLE, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10430958 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK (LEFT)) MAY W10319109 Contact Us For Availability
1
SHIELD, HEAT MAY W10332459 Contact Us For Availability
1
RACK, OVEN MAY W10179152 Contact Us For Availability
1
LINING, DOOR MAY W11051040 Contact Us For Availability
1
ASSEMBLY, DOOR HANDLE (STAINLESS) MAY W10904974 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10912994 Contact Us For Availability
1A
SUPPORT, BACKGUARD (BLACK (RIGHT)) MAY W10319111 Contact Us For Availability
1B
SHEET, TECH MAY W10647745 Contact Us For Availability
1C
DIAGRAM, ELECTRIC WIRE MAY W10912999 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10902186 Contact Us For Availability
2
LENS, INDICATOR MAY 3196068 Contact Us For Availability
2
SPACER, SIDE PANEL MAY W10237689 Contact Us For Availability
2
ELEMENT, BROIL (LOWER) MAY W10249979 Contact Us For Availability
2
GLASS, INNER MAY W11099272 Contact Us For Availability
2
PANEL, OUTER DOOR (STAINLESS) MAY W10888810 Contact Us For Availability
3
ELEMENT, BRIDGE (LEFT FRONT & LEFT REAR) MAY W10248259 Contact Us For Availability
3
ASSEMBLY, CONSOLE (STAINLESS) MAY W11024861 Contact Us For Availability
3
SCREW, SHOULDER MAY W10267456 Contact Us For Availability
3
ELEMENT, BAKE (UPPER & LOWER) MAY W10249981 Contact Us For Availability
3
FRAME, GLASS MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10575689 Contact Us For Availability
4
ELEMENT, WARM ZONE (CENTER REAR) MAY W10799048 Contact Us For Availability
4
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10668723 Contact Us For Availability
4
ELEMENT, BROIL (UPPER) MAY W10249977 Contact Us For Availability
4
SCREW MAY W10292297 Contact Us For Availability
4
BADGE MAY W10612925 Contact Us For Availability
5
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
5
CONTROL, ELECTRIC MAY W11090052 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MOTOR, CONVECTION MAY W11190725 Contact Us For Availability
5
RETAINER, INSULATION MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
6
LIGHT, INDICATOR MAY 7407P136-60 Contact Us For Availability
6
COVER, ACCESS (TERMINAL BLOCK) MAY W10312612 Contact Us For Availability
6
BLADE, FAN MAY W10631503 Contact Us For Availability
6
INSULATION, DOOR MAY W10321271 Contact Us For Availability
6
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
6A
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
7
PANEL, ELEMENT SUPPORT MAY W10260946 Contact Us For Availability
7
KNOB (STAINLESS) MAY W10886657 Contact Us For Availability
7
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
7
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
7
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
8
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
INSULATION, CONVECTION MOTOR MAY W10274268 Contact Us For Availability
8
PANEL, OUTER DOOR (STAINLESS) MAY W10888651 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
8A
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
9
SHIELD, WIRE COVER MAY W10299338 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
PLATE, INSULATION MAY W10339476 Contact Us For Availability
9
SPACER, VENT TRIM MAY W10575917 Contact Us For Availability
9
LINING, DOOR MAY W10272698 Contact Us For Availability
10
SWITCH, INFINITE (LEFT FRONT) MAY W10312185 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
SCREW MAY W10720084 Contact Us For Availability
10
HINGE, DOOR (LEFT) MAY W10485733 Contact Us For Availability
10
SCREW MAY 4449040 Contact Us For Availability
10A
SWITCH, INFINITE (LEFT REAR) MAY W10843843 Contact Us For Availability
10A
HINGE, DOOR (RIGHT) MAY W10485732 Contact Us For Availability
10B
SWITCH, INFINITE (RIGHT FRONT) MAY W10437094 Contact Us For Availability
10C
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCLUDES BRACKET) (STAINL MAY W10903065 Contact Us For Availability
11
COVER, LOWER WIRE MAY W10268559 Contact Us For Availability
11
COVER, FAN MAY 4448988 Contact Us For Availability
11
RETAINER, INSULATION MAY W10340464 Contact Us For Availability
12
SHIELD, VENT MAY W10278697 Contact Us For Availability
12
SCREW MAY 7101P426-60 Contact Us For Availability
12
ELEMENT, CONVECTION (240VAC) MAY W10271639 Contact Us For Availability
12
INSULATION, DOOR MAY W10321285 Contact Us For Availability
13
COVER, BACKGUARD MAY W10776098 Contact Us For Availability
13
SHIELD, CORD MAY W10332449 Contact Us For Availability
13
SCREW MAY W10480830 Contact Us For Availability
13
SCREW MAY W10031780 Contact Us For Availability
14
SKIN, CONSOLE (NOT SERVICED) MAY N/P Contact Us For Availability
14
COVER, MAIN WIRE MAY W10261386 Contact Us For Availability
14
WASHER, FIBER MAY 7109P084-60 Contact Us For Availability
15
COVER, WIRE FILLER MAY W10292689 Contact Us For Availability
15
TUBE, VENT (UPPER) MAY W10337391 Contact Us For Availability
15
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10888652 Contact Us For Availability
15
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10888811 Contact Us For Availability
16
BACK, MAIN MAY W10668730 Contact Us For Availability
17
SCREW MAY 9780274 Contact Us For Availability
17
TUBE, VENT (LOWER) MAY W10323793 Contact Us For Availability
18
SCREW MAY 7101P434-60 Contact Us For Availability
19
ADAPTER, VENT TUBE MAY W10322408 Contact Us For Availability
20
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
21
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
22
SHIELD, POWER CORD MAY 8036P012-60 Contact Us For Availability
23
CLIP, RETAINING MAY W10260545 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
SHIELD, CORD (RIGHT) MAY W10311987 Contact Us For Availability
26
LOCK, REAR MOUNT MAY W10683517 Contact Us For Availability
27
COVER, WIRE LOWER MAY W10268560 Contact Us For Availability
28
INSULATOR, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
29
SHIELD, SIDE INSULATION MAY W10538516 Contact Us For Availability
30
BRACKET, SIDE PANEL MAY W10357697 Contact Us For Availability
31
GASKET, OVEN DOOR (UPPER) MAY W10337392 Contact Us For Availability
31A
GASKET, OVEN DOOR (LOWER) MAY W10269069 Contact Us For Availability
32
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
33
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
34
BRACKET, TERMINAL MAY W10261388 Contact Us For Availability
35
COVER, HINGE (LEFT) MAY W10410463 Contact Us For Availability
35A
COVER, HINGE (RIGHT) MAY W10410461 Contact Us For Availability
36
BRACKET, RETAINING MAY W10253470 Contact Us For Availability
37
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
38
PAN, ELEMENT MAY W10548601 Contact Us For Availability
39
SUPPORT, LOWER OVEN MAY W10863342 Contact Us For Availability
41
NUT MAY 3400029 Contact Us For Availability
43
SCREW MAY 4449743 Contact Us For Availability
44
SCREW MAY 489290 Contact Us For Availability
45
SCREW MAY 7101P338-60 Contact Us For Availability
NI
SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
BLOCK, BARE WIRE ADAPTER MAY 7401P157-60 Contact Us For Availability
NI
CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
HARNESS, EOL (DOFSR) MAY W11172428 Contact Us For Availability
NI
HARNESS, SENSOR & LOCKS MAY W11172531 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W11190467 Contact Us For Availability
NI
HARNESS, MAIN MAY W11190468 Contact Us For Availability
NI
HARNESS, INFINITE SWITCH (LEFT) MAY W11217845 Contact Us For Availability
NI
HARNESS, INFINITE SWITCH (RIGHT) MAY W11217848 Contact Us For Availability
NI
INSULATION, MIDDLE MAY W10204079 Contact Us For Availability
NI
INSULATION, MAIN FRONT STRIP MAY W10204085 Contact Us For Availability
NI
INSULATION, FLOOR MAY W10271637 Contact Us For Availability
NI
INSULATION, HIDDEN BAKE POUCH MAY W10272326 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10308393 Contact Us For Availability
NI
INSULATION, BACK MAY W10322111 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
