Model Maytag MET8775XB01 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

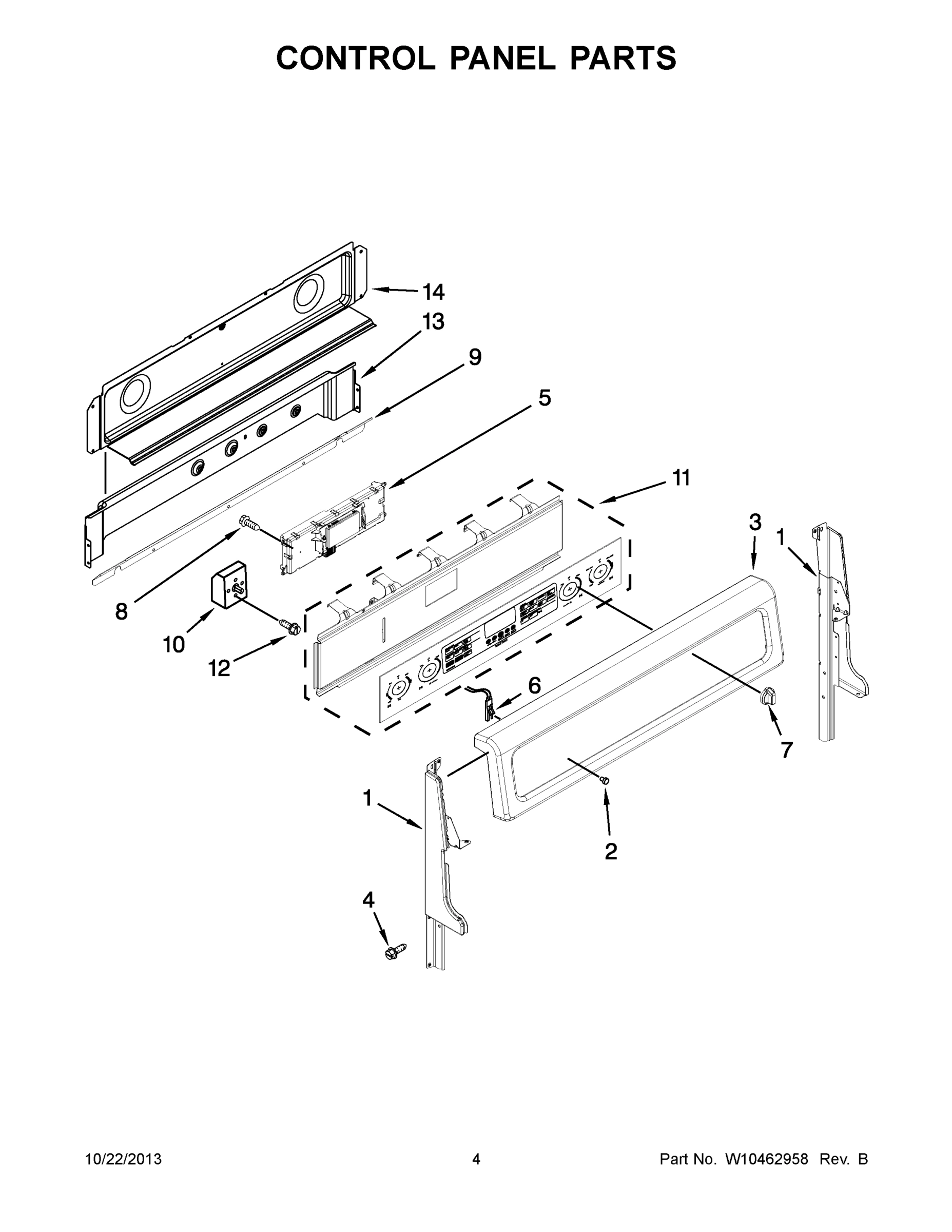

03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS

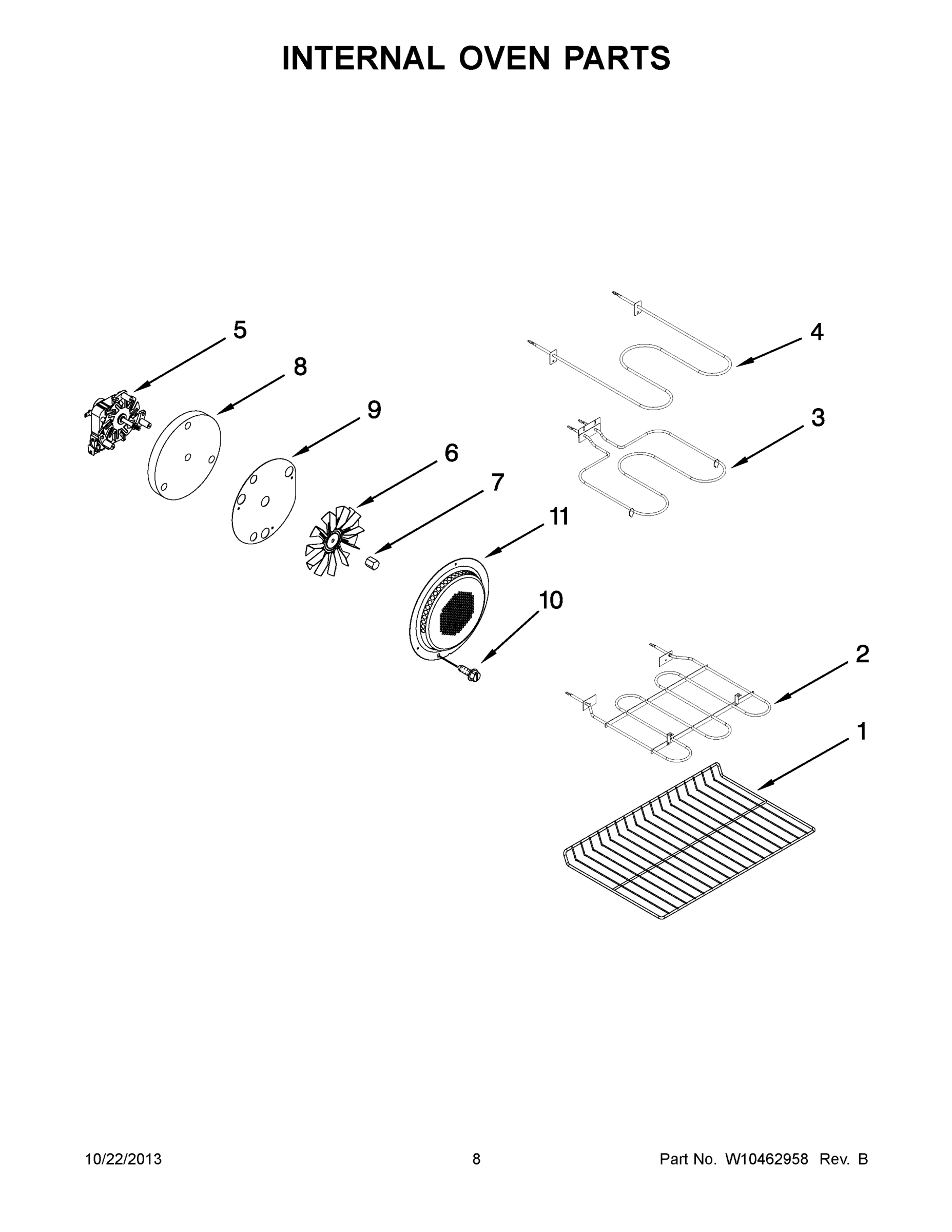

05 - INTERNAL OVEN PARTS

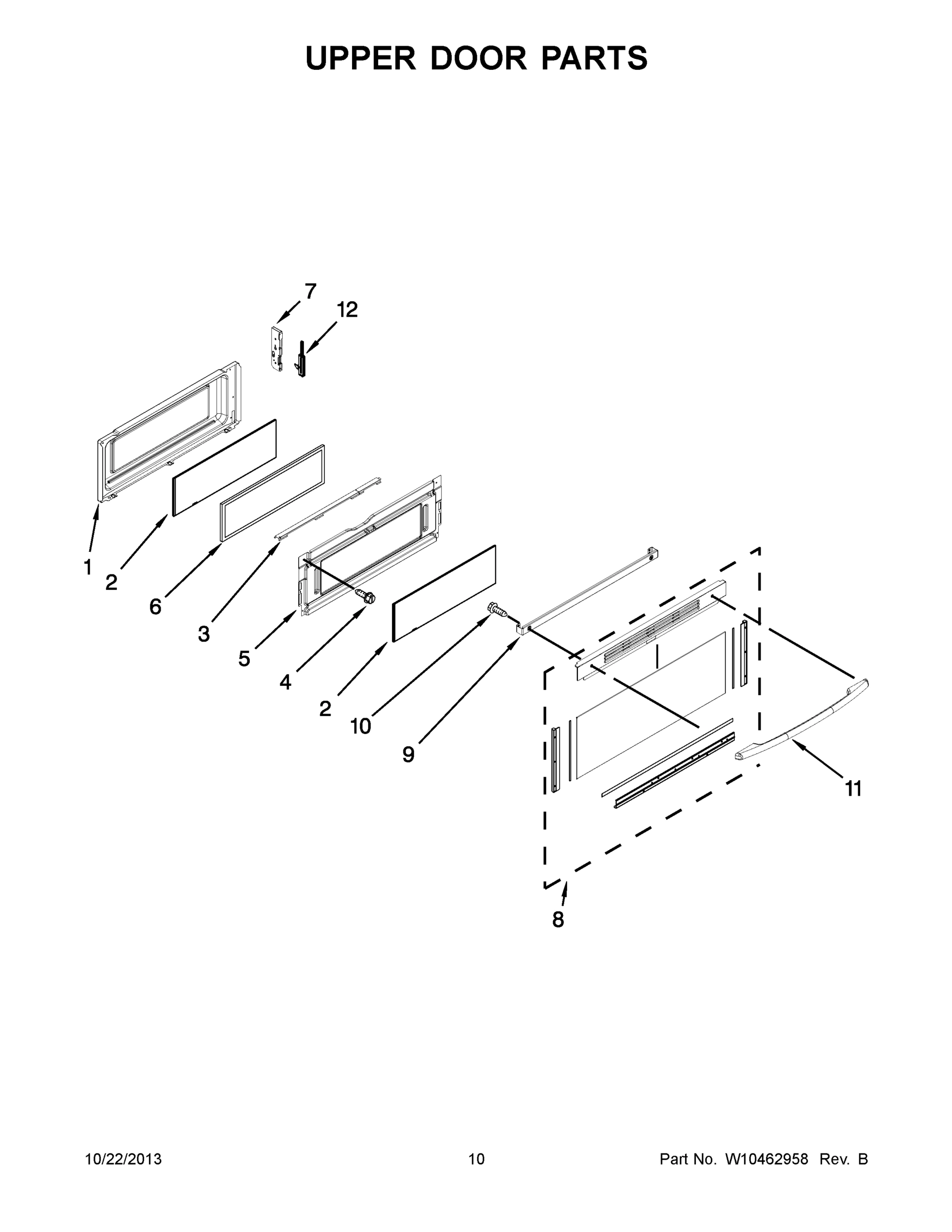

06 - UPPER DOOR PARTS

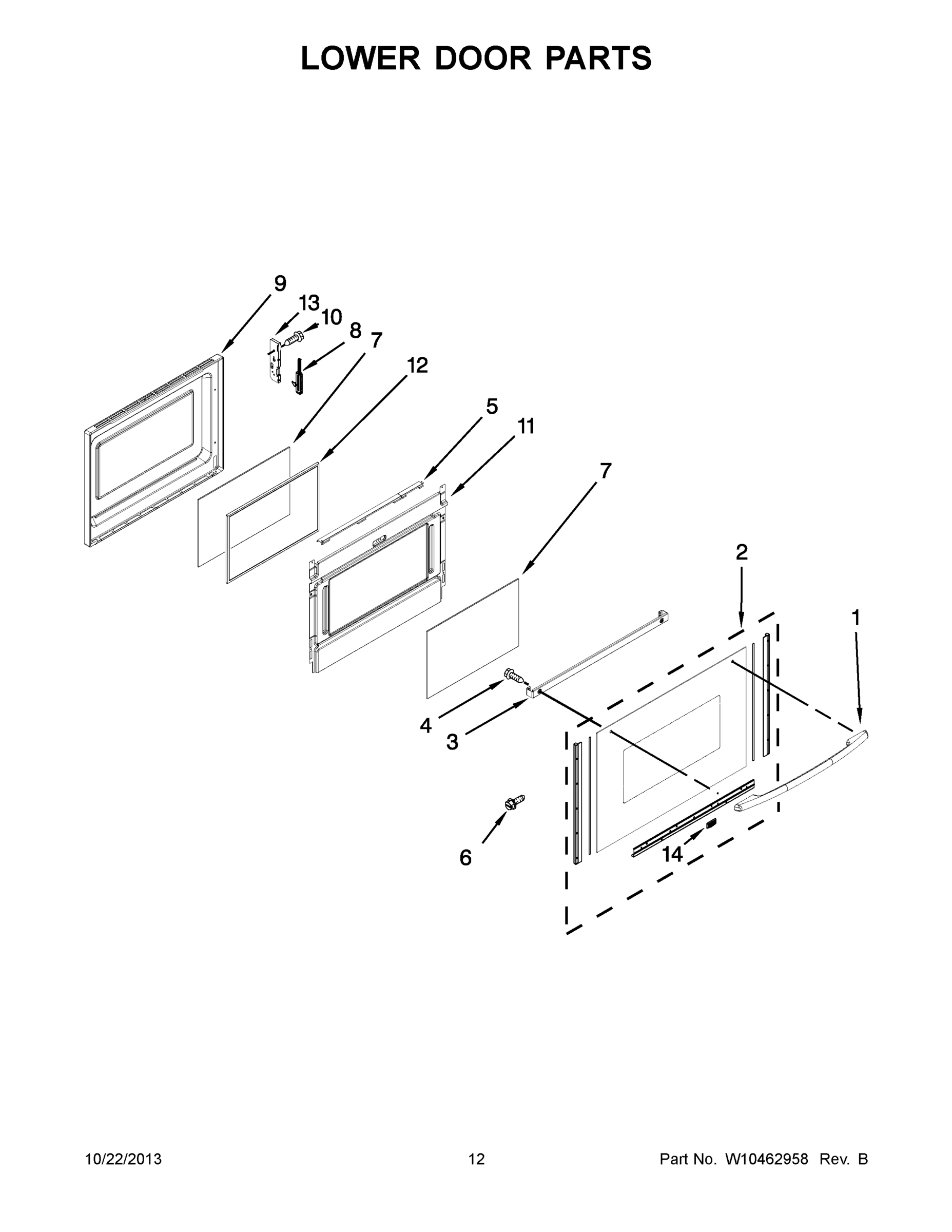

07 - LOWER DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MET8775XB01 ELECTRIC RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY W10430934 MAY W10430934 Contact Us For Availability
1
MAY W10430958 MAY W10430958 Contact Us For Availability
1
MAY W10457104 MAY W10457104 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10319109 Contact Us For Availability
1
ENDCAP (WHITE (LEFT HAND)) MAY W10319110 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10319111 Contact Us For Availability
1
ENDCAP (WHITE (RIGHT HAND)) MAY W10319112 Contact Us For Availability
1
MAY W10332459 MAY W10332459 Contact Us For Availability
1
MAY W10179152 MAY W10179152 Contact Us For Availability
1
MAY W10206315 MAY W10206315 Contact Us For Availability
1
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
1
MAY W10323581 MAY W10323581 Contact Us For Availability
1
MAY W10323584 MAY W10323584 Contact Us For Availability
2
ELEMENT, BRIDGE (LEFT FRONT, LEFT REAR) MAY W10248259 Contact Us For Availability
2
MAY 3196068 MAY 3196068 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
MAY W10249979 MAY W10249979 Contact Us For Availability
2
GLASS, INNER MAY W10272707 Contact Us For Availability
2
ASSEMBLY, GLASS DOOR (STAINLESS) MAY W10272573 Contact Us For Availability
2
MAY W10324124 MAY W10324124 Contact Us For Availability
2
MAY W10324547 MAY W10324547 Contact Us For Availability
3
ELEMENT, WARM ZONE (120V) (CENTER REAR) MAY 9762851 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10097270 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10097280 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10249981 MAY W10249981 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10294695 Contact Us For Availability
4
ELEMENT (3200W) (RIGHT FRONT) MAY W10251107 Contact Us For Availability
4
Screw (Black) MAY 7101P633-60 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10260942 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY W10260943 Contact Us For Availability
4
MAY W10249977 MAY W10249977 Contact Us For Availability
4
MAY 7109P084-60 MAY 7109P084-60 Contact Us For Availability
5
MAY W10299104 MAY W10299104 Contact Us For Availability
5
MAY W10299105 MAY W10299105 Contact Us For Availability
5
MAY W10365414 MAY W10365414 Contact Us For Availability
5
MAY W10260703 MAY W10260703 Contact Us For Availability
5
MAY W10272341 MAY W10272341 Contact Us For Availability
5
MAY W10340589 MAY W10340589 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY W10312612 MAY W10312612 Contact Us For Availability
6
MAY W10116351 MAY W10116351 Contact Us For Availability
6
MAY W10292297 MAY W10292297 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
7
MAY W10260946 MAY W10260946 Contact Us For Availability
7
WHITE (STAINLESS) MAY W10294791 Contact Us For Availability
7
MAY W10294794 MAY W10294794 Contact Us For Availability
7
MAY W10294796 MAY W10294796 Contact Us For Availability
7
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
7
NUT, ACORN MAY W10116349 Contact Us For Availability
7
MAY W10289077 MAY W10289077 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
8
ELEMENT (700W) (RIGHT REAR) MAY W10270604 Contact Us For Availability
8
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY W10274268 MAY W10274268 Contact Us For Availability
8
ASSEMBLY, GLASS DOOR (STAINLESS) MAY W10273126 Contact Us For Availability
8
MAY W10322718 MAY W10322718 Contact Us For Availability
8
MAY W10322720 MAY W10322720 Contact Us For Availability
8
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
9
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
9
SHIELD, WIRE COVER MAY W10299338 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
PLATE, INSULATION MAY W10339476 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
10
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
10
SWITCH, INFINITE (RIGHT FRONT) MAY 7403P373-60 Contact Us For Availability
10
SWITCH, INFINITE (RIGHT REAR) MAY W10295048 Contact Us For Availability
10
SWITCH, INFINITE (LEFT FRONT, LEFT REAR) MAY W10441696 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
MAY 4449040 MAY 4449040 Contact Us For Availability
10
MAY 4449154 MAY 4449154 Contact Us For Availability
10
SCREW MAY W10317886 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCLUDING BRACKET) (STAIN MAY W10321784 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCLUDING BRACKET) (BLACK MAY W10321785 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCLUDING BRACKET) (WHITE MAY W10321786 Contact Us For Availability
11
MAY W10268559 MAY W10268559 Contact Us For Availability
11
MAY 4448988 MAY 4448988 Contact Us For Availability
11
MAY W10340464 MAY W10340464 Contact Us For Availability
12
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
12
MAY W10274501 MAY W10274501 Contact Us For Availability
12
MAY W10274503 MAY W10274503 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
MAY W10278697 MAY W10278697 Contact Us For Availability
13
MAY W10332449 MAY W10332449 Contact Us For Availability
13
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
14
COVER, BACKGUARD MAY W10296773 Contact Us For Availability
14
MAY W10261386 MAY W10261386 Contact Us For Availability
14
MAY W10288004 MAY W10288004 Contact Us For Availability
15
MAY W10337391 MAY W10337391 Contact Us For Availability
16
MAY W10260583 MAY W10260583 Contact Us For Availability
17
MAY W10323793 MAY W10323793 Contact Us For Availability
18
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
MAY W10322408 MAY W10322408 Contact Us For Availability
20
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
21
BRACKET, RETAINING MAY W10253470 Contact Us For Availability
22
SHIELD, POWER CORD MAY 8036P012-60 Contact Us For Availability
24
MAY W10565174 MAY W10565174 Contact Us For Availability
25
SHIELD, CORD RIGHT MAY W10311987 Contact Us For Availability
26
MAY W10471348 MAY W10471348 Contact Us For Availability
27
COVER, WIRE LOWER MAY W10268560 Contact Us For Availability
28
INSULATOR, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
29
MAY W10538516 MAY W10538516 Contact Us For Availability
30
CLIP, RETAINING MAY W10260545 Contact Us For Availability
31
MAY W10269069 MAY W10269069 Contact Us For Availability
31
MAY W10337392 MAY W10337392 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
34
MAY W10261388 MAY W10261388 Contact Us For Availability
35
MAY W10410461 MAY W10410461 Contact Us For Availability
35
MAY W10410463 MAY W10410463 Contact Us For Availability
37
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
NI
INSULATION, MIDDLE MAY W10204079 Contact Us For Availability
NI
INSULATION, MAIN FRONT STRIP MAY W10204085 Contact Us For Availability
NI
MAY W10271637 MAY W10271637 Contact Us For Availability
NI
MAY W10272326 MAY W10272326 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10308393 Contact Us For Availability
NI
INSULATION, BACK MAY W10322111 Contact Us For Availability
NI
INSULATION, PAN, ELEMENT MAY W10548601 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
ACCESSORY PARTS, COOKTOP CLEANER MAY 31464 Contact Us For Availability
NI
MAY 31682 MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
MAY 4396923 MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTE MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10225701 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY W10270318 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, INFINITE SWITC MAY W10406501 Contact Us For Availability
NI
MAY W10406511 MAY W10406511 Contact Us For Availability
NI
MAY W10457081 MAY W10457081 Contact Us For Availability
× ![]()
