Model Maytag MES5775BAF19 ELECTRIC RANGE – Common Parts & Diagrams

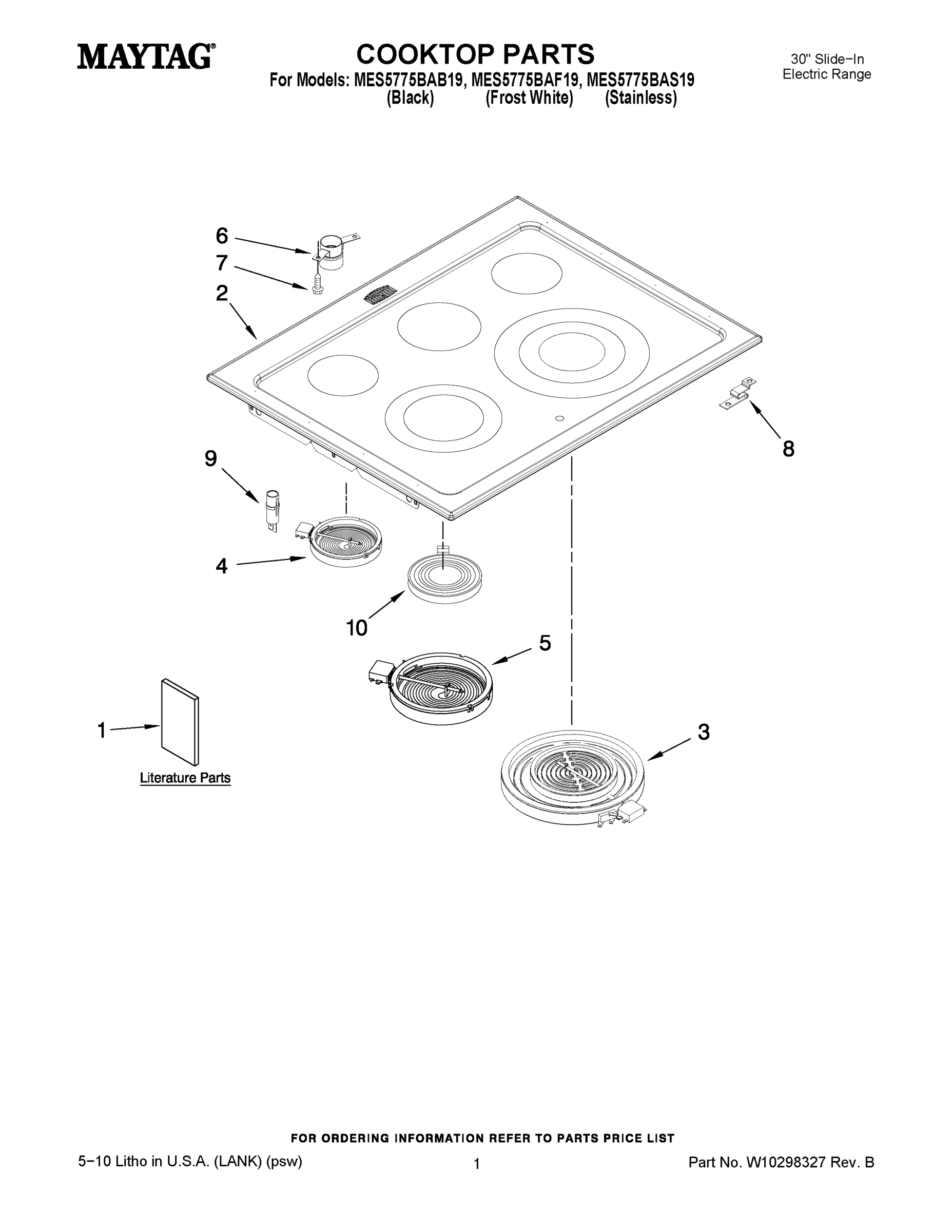

01 - COOKTOP PARTS

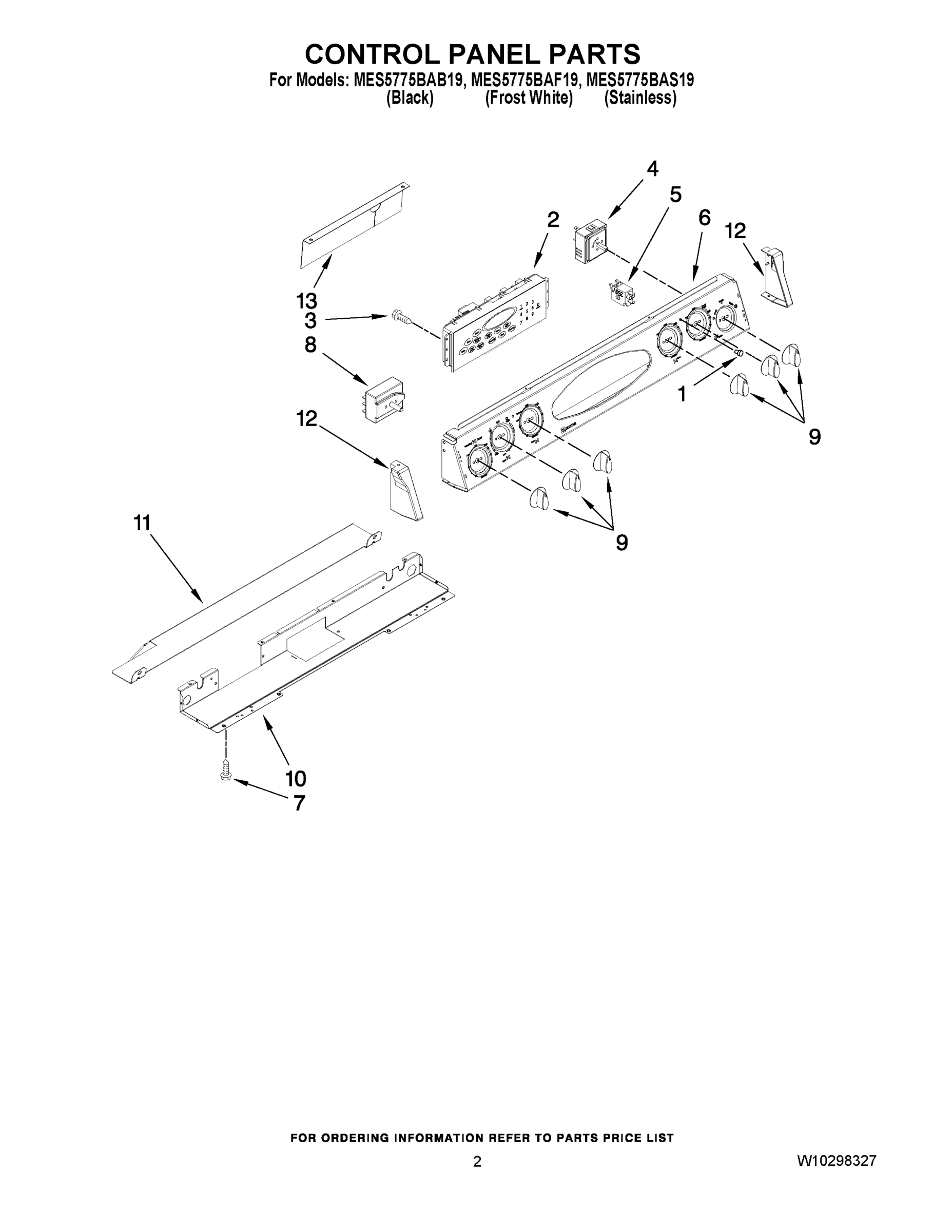

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - DOOR PARTS
05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MES5775BAF19 ELECTRIC RANGE
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 3608F141-70 MAY 3608F141-70 Contact Us For Availability
1
MAY 3608F141-71 MAY 3608F141-71 Contact Us For Availability
1
RACK, OVEN (2) MAY 7801P173-60 Contact Us For Availability
2
MAY 5706M538-09 MAY 5706M538-09 Contact Us For Availability
2
MAY 5706M538-50 MAY 5706M538-50 Contact Us For Availability
2
MAY 5706M538-81 MAY 5706M538-81 Contact Us For Availability
2
MAY 5701M881-60 MAY 5701M881-60 Contact Us For Availability
2
MAY 5701M882-60 MAY 5701M882-60 Contact Us For Availability
2
MAY 8002P089-60 MAY 8002P089-60 Contact Us For Availability
2
MAY 7101P681-60 MAY 7101P681-60 Contact Us For Availability
2
DRAWER, STORAGE MAY 3405F033-80 Contact Us For Availability
3
MAY 7406P410-60 MAY 7406P410-60 Contact Us For Availability
3
MAIN, BACK MAY 3804F313-51 Contact Us For Availability
3
BAFFLE, RETAINER MAY 3601F373-51 Contact Us For Availability
4
ELEMENT (LF) MAY 7406P403-60 Contact Us For Availability
4
SWITCH, INFINTE (LR) MAY 7403P373-60 Contact Us For Availability
4
SWITCH, INFINTE (RR) MAY 7403P877-60 Contact Us For Availability
4
MAY 7403P992-60 MAY 7403P992-60 Contact Us For Availability
4
SWITCH, INFINTE (LF) MAY 7450P011-60 Contact Us For Availability
4
MAY 7450P024-60 MAY 7450P024-60 Contact Us For Availability
4
COVER, MAIN WIRE MAY 4005F810-51 Contact Us For Availability
4
SEAL, DOOR MAY W10162384 Contact Us For Availability
4
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
5
ELEMENT (LR/RR) MAY 8523698 Contact Us For Availability
5
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
5
MAY 3826F066-51 MAY 3826F066-51 Contact Us For Availability
5
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
5
PANEL, DRAWER (BLACK) MAY 2416F059-70 Contact Us For Availability
5
PANEL, DRAWER (WHITE) MAY 2416F059-71 Contact Us For Availability
5
PANEL, DRAWER (STAINLESS) MAY W10253205 Contact Us For Availability
6
MAY W10233479 MAY W10233479 Contact Us For Availability
6
MAY 2614D131-09 MAY 2614D131-09 Contact Us For Availability
6
MAY 2614D131-81 MAY 2614D131-81 Contact Us For Availability
6
MAY 2614N147-50 MAY 2614N147-50 Contact Us For Availability
7
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
7
NUT, SNAP (4) MAY 7103P141-60 Contact Us For Availability
8
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
8
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
8
MAY 2404F030-51 MAY 2404F030-51 Contact Us For Availability
9
MAY 7407P193-60 MAY 7407P193-60 Contact Us For Availability
9
MAY 7737P235-60 MAY 7737P235-60 Contact Us For Availability
9
MAY 7737P238-60 MAY 7737P238-60 Contact Us For Availability
9
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
9
Bracket, Glass (2) MAY 3801F886-51 Contact Us For Availability
10
ELEMENT, WARM ZONE MAY 9762851 Contact Us For Availability
10
MAY 3807F729-51 MAY 3807F729-51 Contact Us For Availability
10
MAY 7406P218-60 MAY 7406P218-60 Contact Us For Availability
10
ROLLER, DRAWER (2) MAY W10272883 Contact Us For Availability
10
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11
MAY 3604F421-51 MAY 3604F421-51 Contact Us For Availability
11
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
11
SHAFT, ROLLER (2) MAY 7118P032-60 Contact Us For Availability
12
TRIM, END CAP (WHITE, RIGHT) MAY 7726P332-60 Contact Us For Availability
12
TRIM, END CAP (WHITE, LEFT) MAY 7726P333-60 Contact Us For Availability
12
TRIM, END CAP (BLACK, RIGHT) MAY 7726P400-60 Contact Us For Availability
12
TRIM, END CAP (BLACK, LEFT) MAY 7726P401-60 Contact Us For Availability
12
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
12
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
12
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
13
MAY 7003P150-60 MAY 7003P150-60 Contact Us For Availability
13
TUBE, VENT MIDDLE MAY 8026P084-60 Contact Us For Availability
13
SPACER, RUBBER MAY 8010P152-60 Contact Us For Availability
13
MAY W10273862 MAY W10273862 Contact Us For Availability
14
TRIM, DOOR SIDE (BLACK, RIGHT) MAY 3608F116-70 Contact Us For Availability
14
TRIM, DOOR SIDE (WHITE, RIGHT) MAY 3608F116-71 Contact Us For Availability
14
TRIM, DOOR SIDE (BLACK, LEFT) MAY 3608F117-70 Contact Us For Availability
14
TRIM, DOOR SIDE (WHITE, LEFT) MAY 3608F117-71 Contact Us For Availability
14
RACK, OVEN HALF (INSERT) MAY W10275560 Contact Us For Availability
15
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
15
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
15
MAY 7701P517-60 MAY 7701P517-60 Contact Us For Availability
15
HANDLE, DOOR (STAINLESS) MAY 7701P526-60 Contact Us For Availability
15
HANDLE, DRAWER (STAINLESS MODEL) MAY W10180296 Contact Us For Availability
16
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
16
TRIM, DOOR BOTTOM (BLACK) MAY 3807F708-70 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) MAY 3807F708-71 Contact Us For Availability
17
MAY 3605F354-45 MAY 3605F354-45 Contact Us For Availability
17
SCREW, TRIM MAY 7101P633-60 Contact Us For Availability
18
MAY 7407P182-60 MAY 7407P182-60 Contact Us For Availability
18
PANEL, OUTER DOOR (WHITE) MAY 7902P736-60 Contact Us For Availability
18
PANEL, OUTER DOOR (BLACK) MAY 7902P797-60 Contact Us For Availability
19
BRACKET,PWR SUPPLY MAY W10190166 Contact Us For Availability
19
PANEL, DOOR (STAINLESS ONLY) MAY 7760P186-60 Contact Us For Availability
20
GLASS, DOOR INNER (STAINLESS ONLY) MAY 7902P768-60 Contact Us For Availability
21
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
21
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
21
GLASS, OUTER (STAINLESS ONLY) MAY 7902P752-60 Contact Us For Availability
23
MAY 7406P411-60 MAY 7406P411-60 Contact Us For Availability
24
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
25
HINGE (2) MAY 7106P141-60 Contact Us For Availability
26
SCREW, HINGE (4) MAY 7101P336-60 Contact Us For Availability
27
SWITCH, HI-LIMIT MAY 7450P034-60 Contact Us For Availability
28
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
29
MAY 3826F064-51 MAY 3826F064-51 Contact Us For Availability
30
SUPPORT, ELEMENT MAY 3807F494-45 Contact Us For Availability
31
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
32
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
33
PEDESTAL, FRONT MAY W10271711 Contact Us For Availability
34
SUPPORT MAY 3807F640-51 Contact Us For Availability
35
RUNNER, DRAWER (2) MAY W10182835 Contact Us For Availability
38
NUT, LOCK (2) MAY 7103P190-60 Contact Us For Availability
39
MAY 3804F231-51 MAY 3804F231-51 Contact Us For Availability
40
COVER, TERMINAL MAY 4005F612-51 Contact Us For Availability
41
COVER, DOOR LATCH MAY 4005F750-51 Contact Us For Availability
42
MAY 2205F060-19 MAY 2205F060-19 Contact Us For Availability
43
SUPPORT, OVEN BTM. MAY 3807F727-45 Contact Us For Availability
44
MAY 4005F749-45 MAY 4005F749-45 Contact Us For Availability
45
PAN, BAKE MAY 3401F092-45 Contact Us For Availability
46
NUT, LEVELING LEG MAY 7103P212-60 Contact Us For Availability
47
SHIELD, WARM. DWR. MAY 3604F326-45 Contact Us For Availability
48
ASSEMBLY, LIGHT SWITCH MAY 7450P109-60 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM MAY 7002P443-60 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
INSULATION, HIDDEN BAKE COVER MAY 7002P448-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P508-60 MAY 5171P508-60 Contact Us For Availability
NI
MAY 5171P555-60 MAY 5171P555-60 Contact Us For Availability
NI
MAY 5171P560-60 MAY 5171P560-60 Contact Us For Availability
NI
MAY 5171P564-60 MAY 5171P564-60 Contact Us For Availability
NI
MAY 5171P845-60 MAY 5171P845-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
