Model Maytag MES5770ACW ELECTRIC RANGE – Common Parts & Diagrams

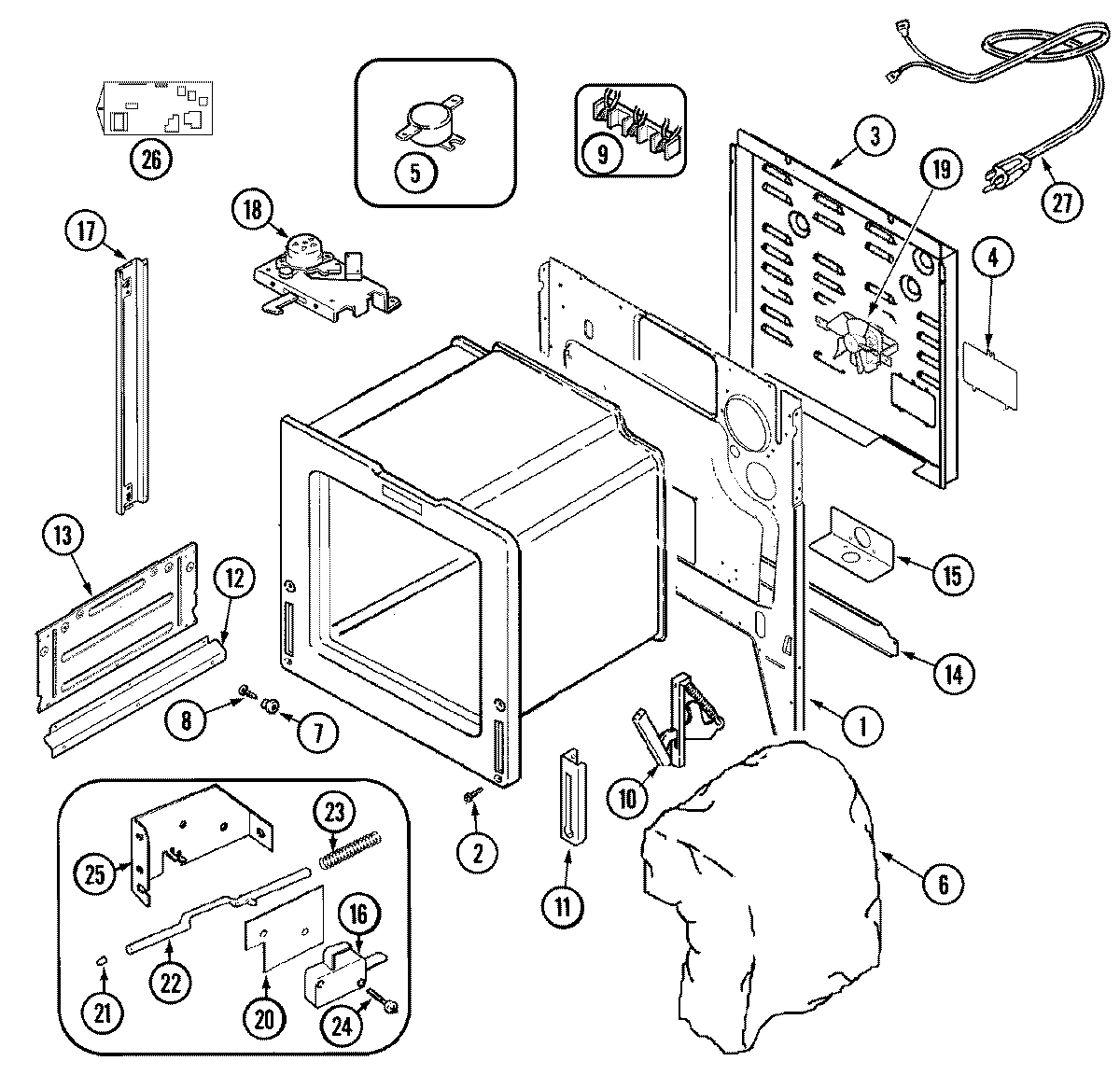

01 - BODY

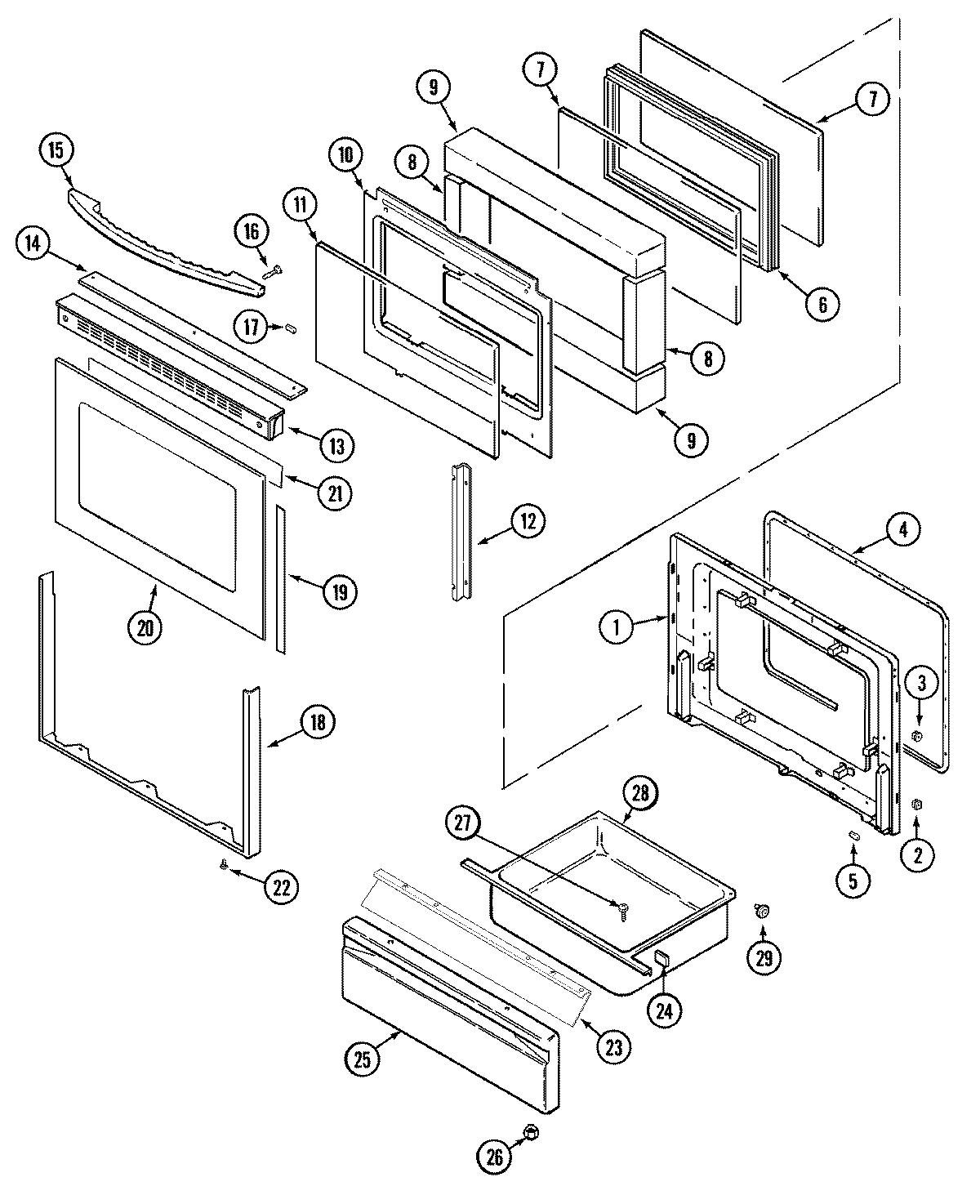

02 - DOOR/DRAWER

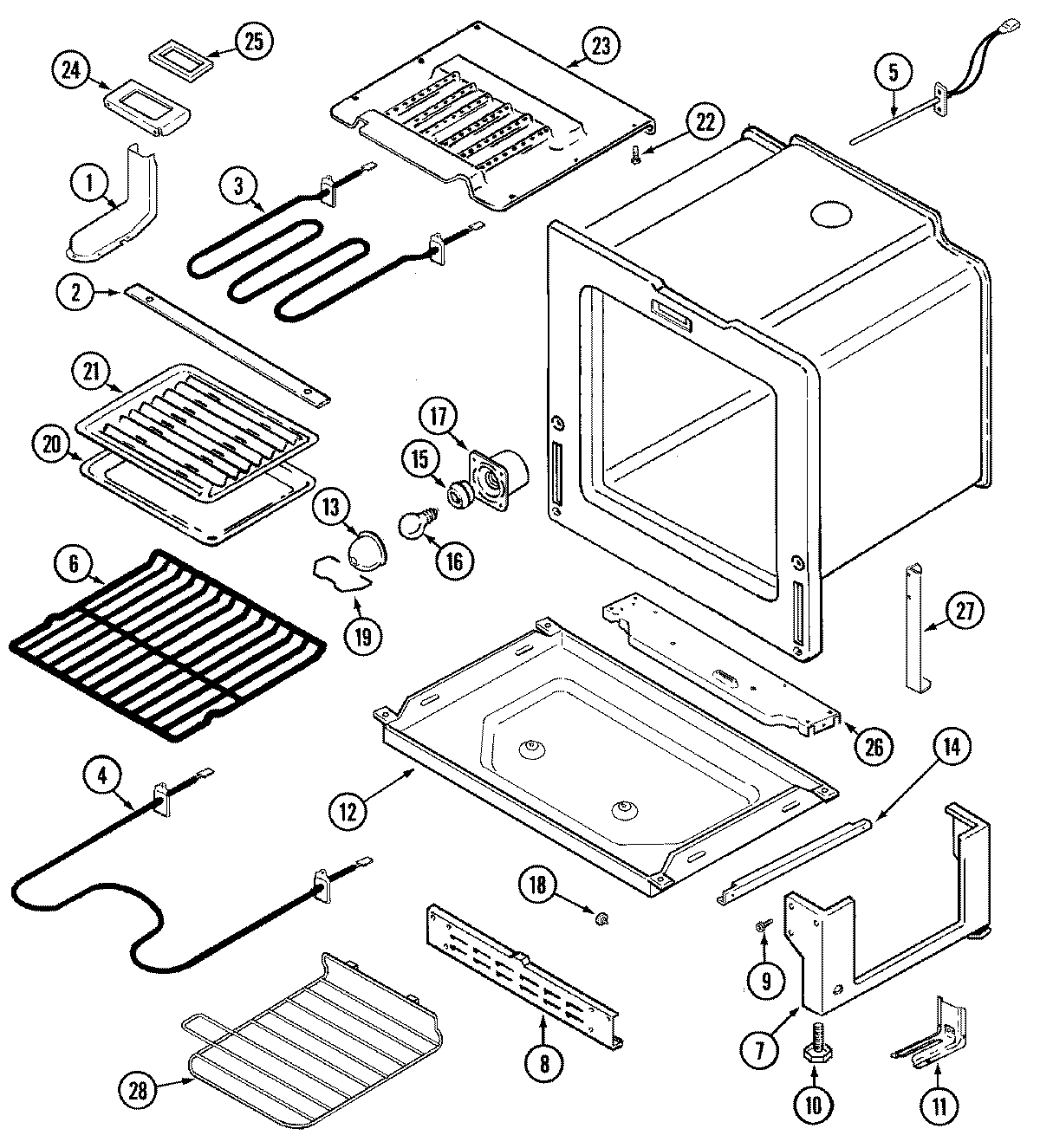

03 - OVEN/BASE

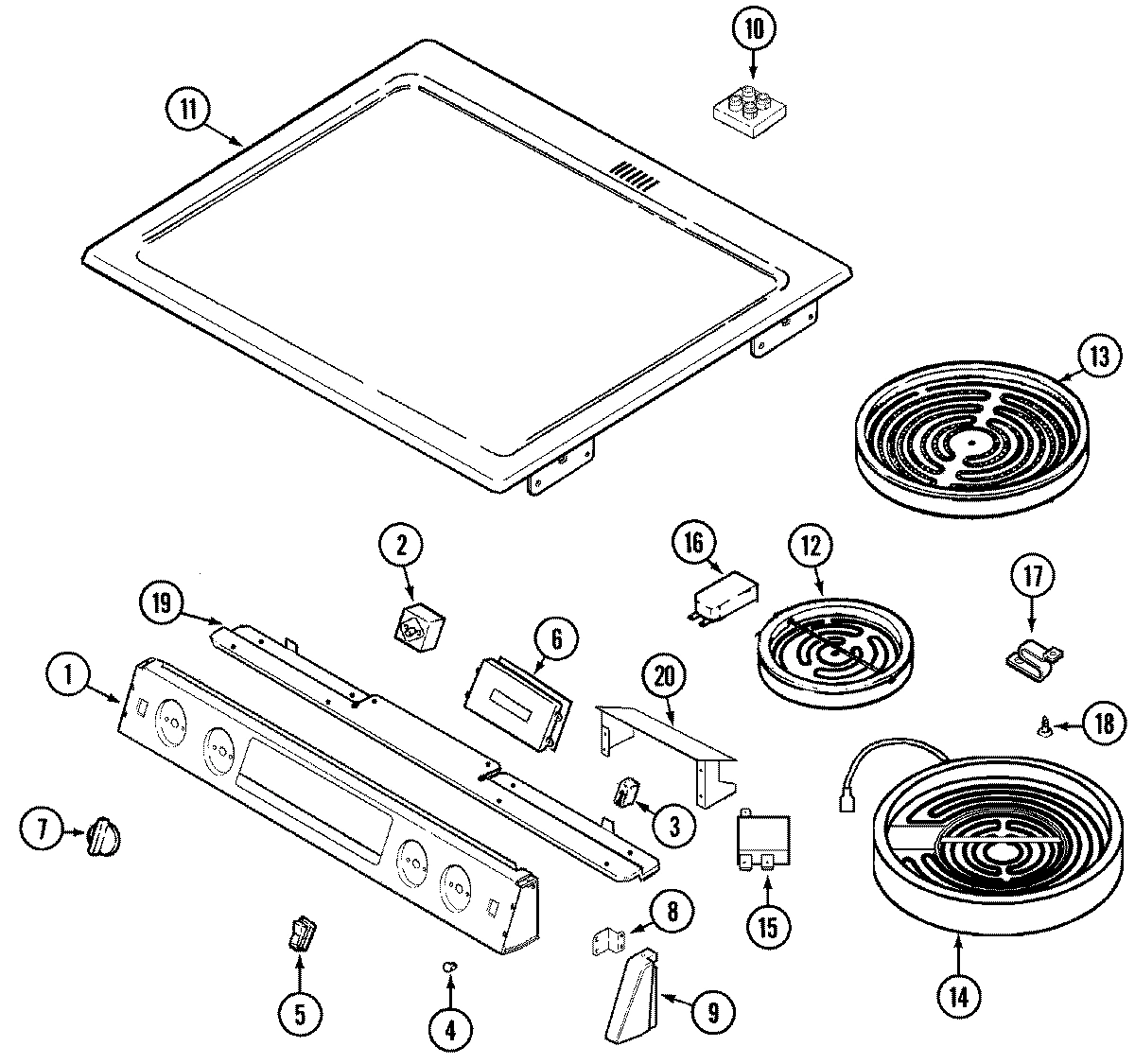

04 - TOP ASSEMBLY

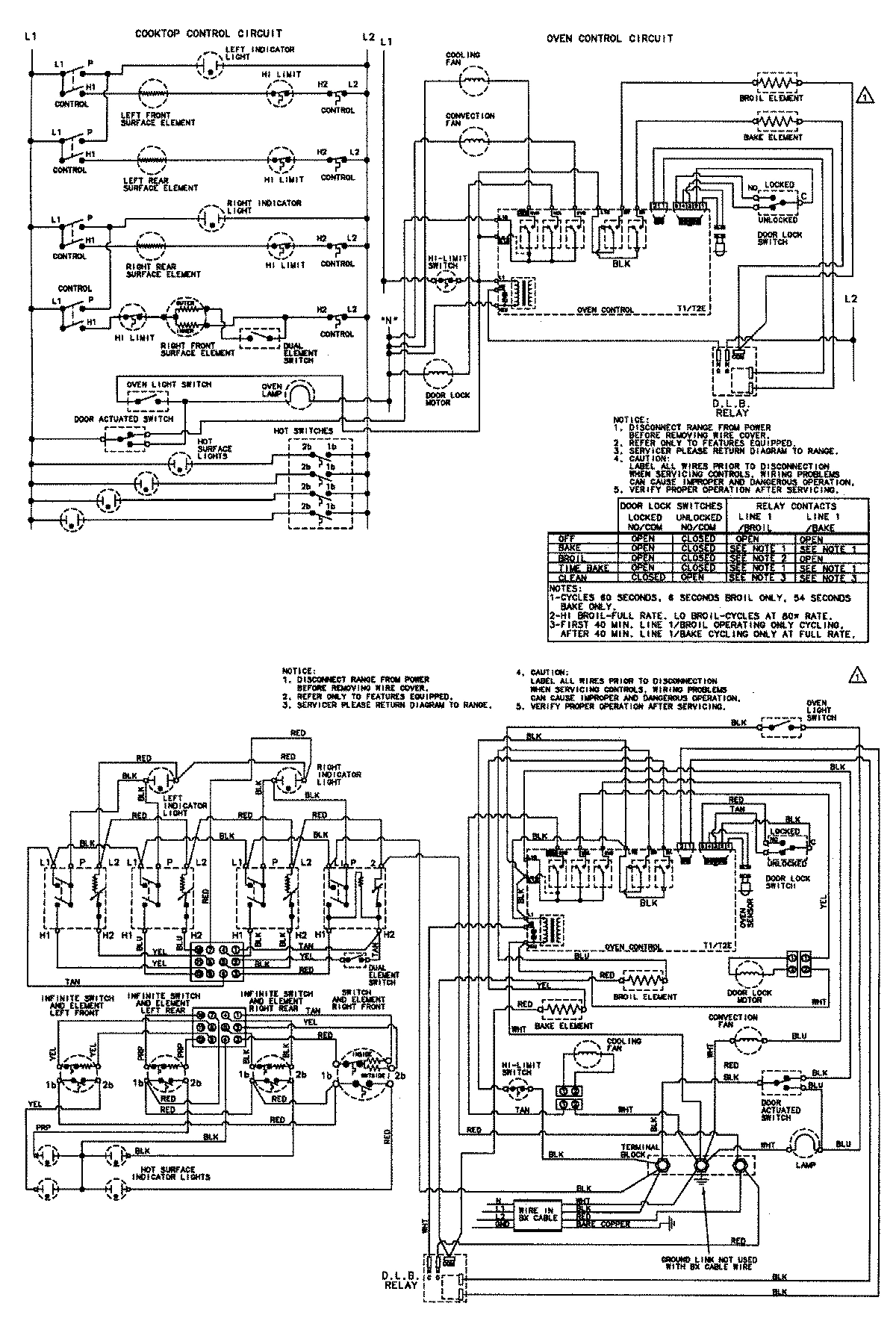

05 - WIRING INFORMATION
Common parts from model Maytag MES5770ACW ELECTRIC RANGE
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
MAY 74004170 MAY 74004170 Contact Us For Availability
1
MAY 74004328 MAY 74004328 Contact Us For Availability
2
MAY 74003643 MAY 74003643 Contact Us For Availability
2
MAY 74003563 MAY 74003563 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
3
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
5
MAY 74004471 MAY 74004471 Contact Us For Availability
5
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
6
MAY 74004782 MAY 74004782 Contact Us For Availability
6
MAY 74007369 MAY 74007369 Contact Us For Availability
7
MAY 74003405 MAY 74003405 Contact Us For Availability
8
MAY 74003646 MAY 74003646 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 74004186 MAY 74004186 Contact Us For Availability
8
MAY 74005671 MAY 74005671 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
9
MAY 74004597 MAY 74004597 Contact Us For Availability
9
MAY 74004598 MAY 74004598 Contact Us For Availability
9
MAY 74004816 MAY 74004816 Contact Us For Availability
9
MAY 74004817 MAY 74004817 Contact Us For Availability
10
MAY 74003648 MAY 74003648 Contact Us For Availability
10
MAY 74004181 MAY 74004181 Contact Us For Availability
10
MAY 74009458 MAY 74009458 Contact Us For Availability
11
GLASS, DOOR MAY 74003649 Contact Us For Availability
11
MAY 74002311 MAY 74002311 Contact Us For Availability
11
MAY 20000001 MAY 20000001 Contact Us For Availability
11
MAY 74004343 MAY 74004343 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 74004169 MAY 74004169 Contact Us For Availability
13
MAY 74003389 MAY 74003389 Contact Us For Availability
13
MAY 74008569 MAY 74008569 Contact Us For Availability
14
MAY 74001278 MAY 74001278 Contact Us For Availability
14
MAY 7728P094-60 MAY 7728P094-60 Contact Us For Availability
14
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
15
MAY 74003620 MAY 74003620 Contact Us For Availability
15
MAY 74003387 MAY 74003387 Contact Us For Availability
15
MAY 74002667 MAY 74002667 Contact Us For Availability
16
MAY 74002652 MAY 74002652 Contact Us For Availability
16
MAY 74004494 MAY 74004494 Contact Us For Availability
17
MAY 74004182 MAY 74004182 Contact Us For Availability
17
MAY 71002092 MAY 71002092 Contact Us For Availability
17
MAY 74003388 MAY 74003388 Contact Us For Availability
17
SUPPORT, CERAMIC ELEMENT MAY 74003072 Contact Us For Availability
18
MAY 74005675 MAY 74005675 Contact Us For Availability
18
MAY 74004327 MAY 74004327 Contact Us For Availability
18
MAY 74004325 MAY 74004325 Contact Us For Availability
18
MAY 74004079 MAY 74004079 Contact Us For Availability
18
SCREW (6ABX.25-ZN) MAY 74003357 Contact Us For Availability
19
MAY 74004947 MAY 74004947 Contact Us For Availability
19
MAY 71001851 MAY 71001851 Contact Us For Availability
19
MAY 74003660 MAY 74003660 Contact Us For Availability
19
MAY 74003391 MAY 74003391 Contact Us For Availability
19
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
19
SUPPORT, MANIFOLD PANEL MAY 74004785 Contact Us For Availability
20
MAY 74001872 MAY 74001872 Contact Us For Availability
20
MAY 74003671 MAY 74003671 Contact Us For Availability
20
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
20
MAY 74004316 MAY 74004316 Contact Us For Availability
21
MAY 74001631 MAY 74001631 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
21
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
21
MAY 12001323 MAY 12001323 Contact Us For Availability
21
MAY 74004335 MAY 74004335 Contact Us For Availability
21
MAY 74004786 MAY 74004786 Contact Us For Availability
21
MAY 74005674 MAY 74005674 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
22
MAY 15002766 MAY 15002766 Contact Us For Availability
22
MAY 71002782 MAY 71002782 Contact Us For Availability
22
MAY 74004346 MAY 74004346 Contact Us For Availability
22
MAY 74004787 MAY 74004787 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 No Longer Available
23
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
23
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
24
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
24
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
24
MAY 74004178 MAY 74004178 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
25
PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability
25
MAY 74004179 MAY 74004179 Contact Us For Availability
26
MAY 74004167 MAY 74004167 Contact Us For Availability
27
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
27
MAY 74004171 MAY 74004171 Contact Us For Availability
28
MAY 71003042 MAY 71003042 Contact Us For Availability
28
MAY 74003590 MAY 74003590 Contact Us For Availability
NI
MAY 15002650 MAY 15002650 Contact Us For Availability
× ![]()
