Model Maytag MES5752BAW16 ELECTRIC RANGE – Common Parts & Diagrams

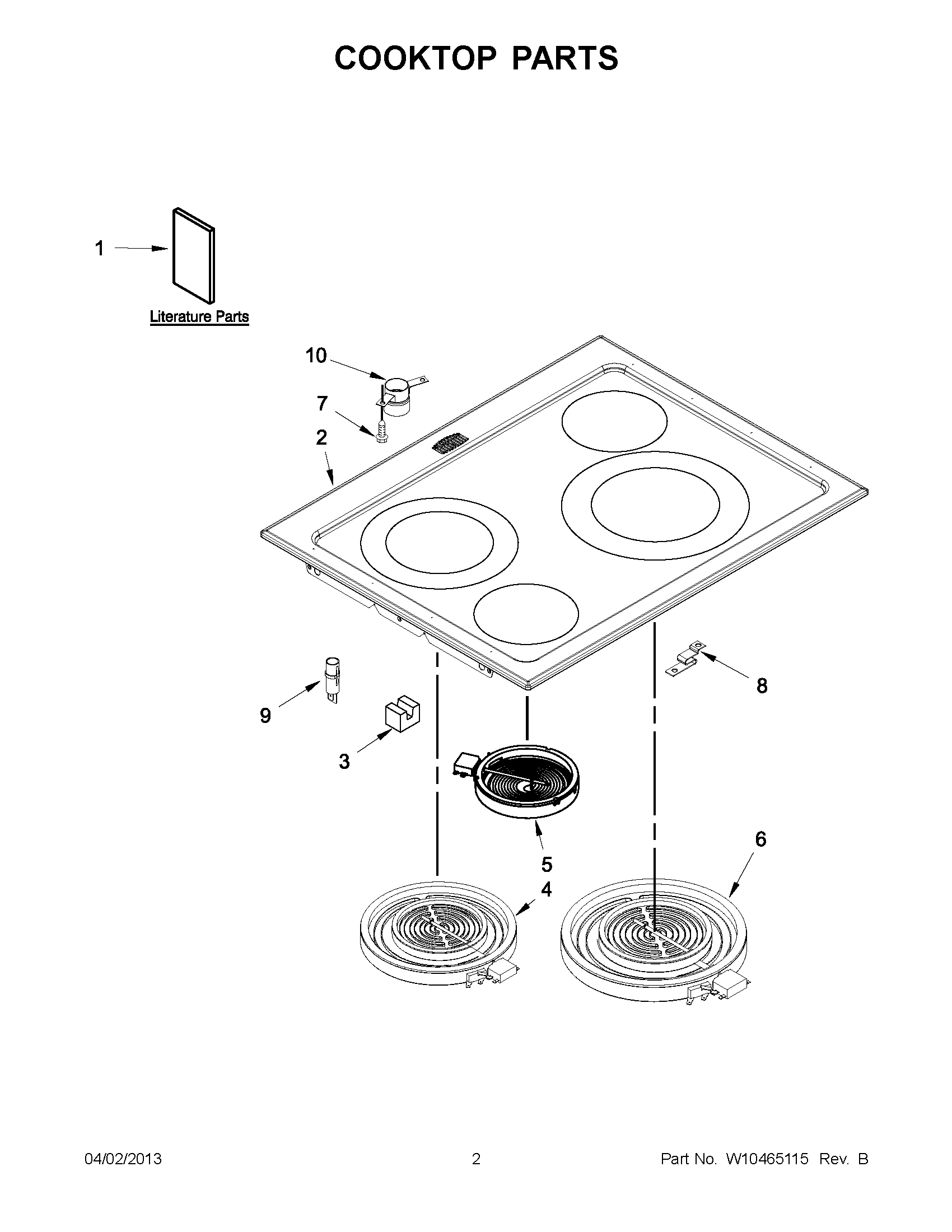

01 - COOKTOP PARTS

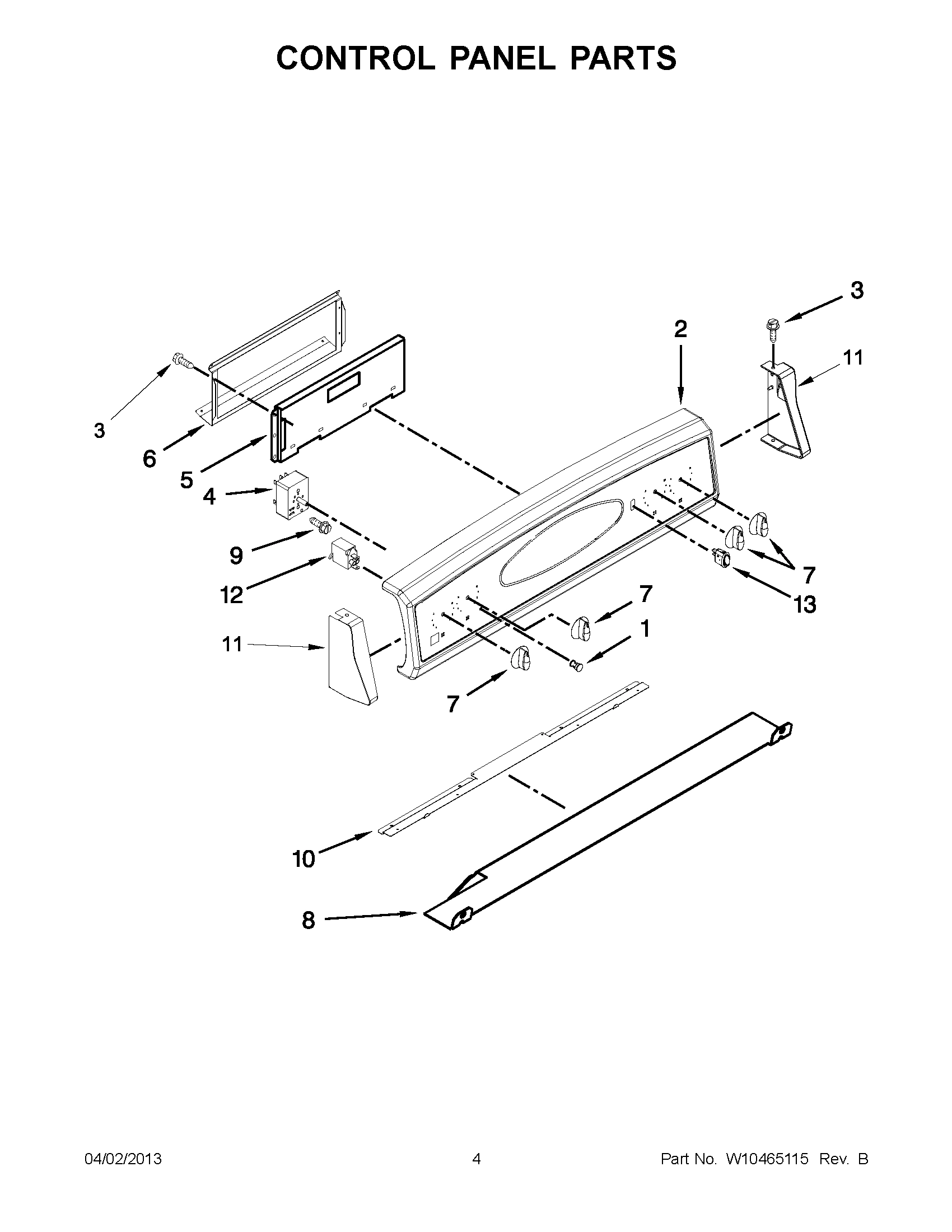

02 - CONTROL PANEL PARTS

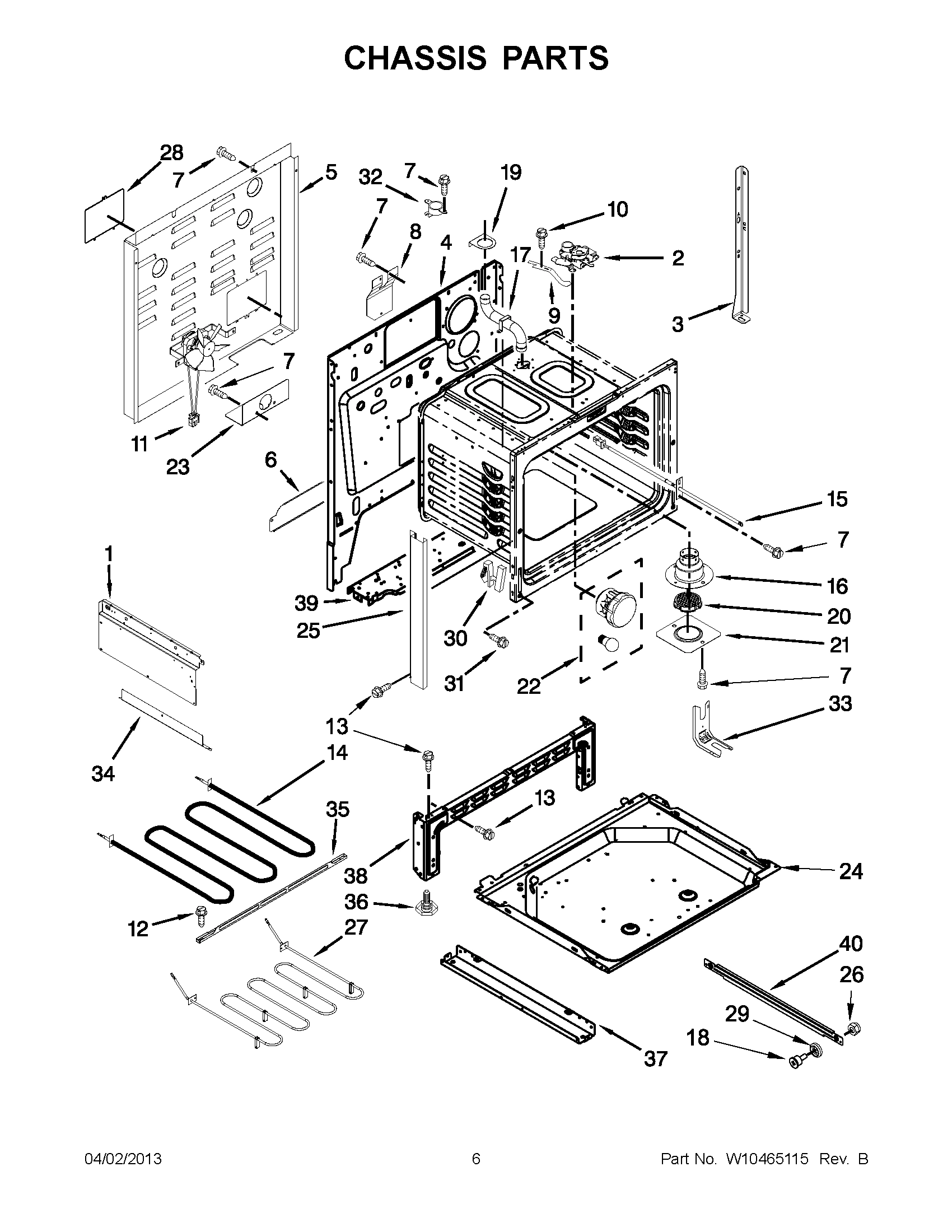

03 - CHASSIS PARTS

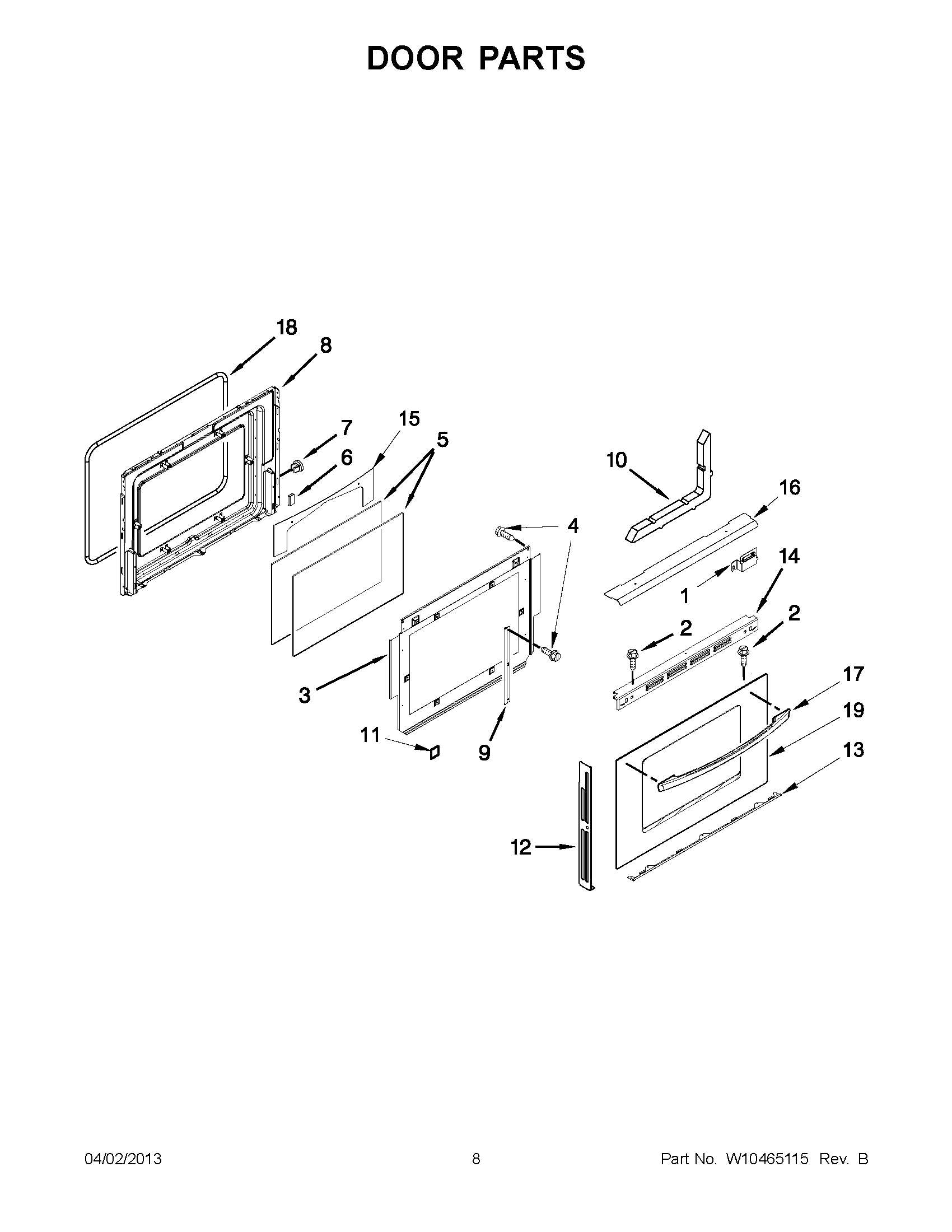

04 - DOOR PARTS

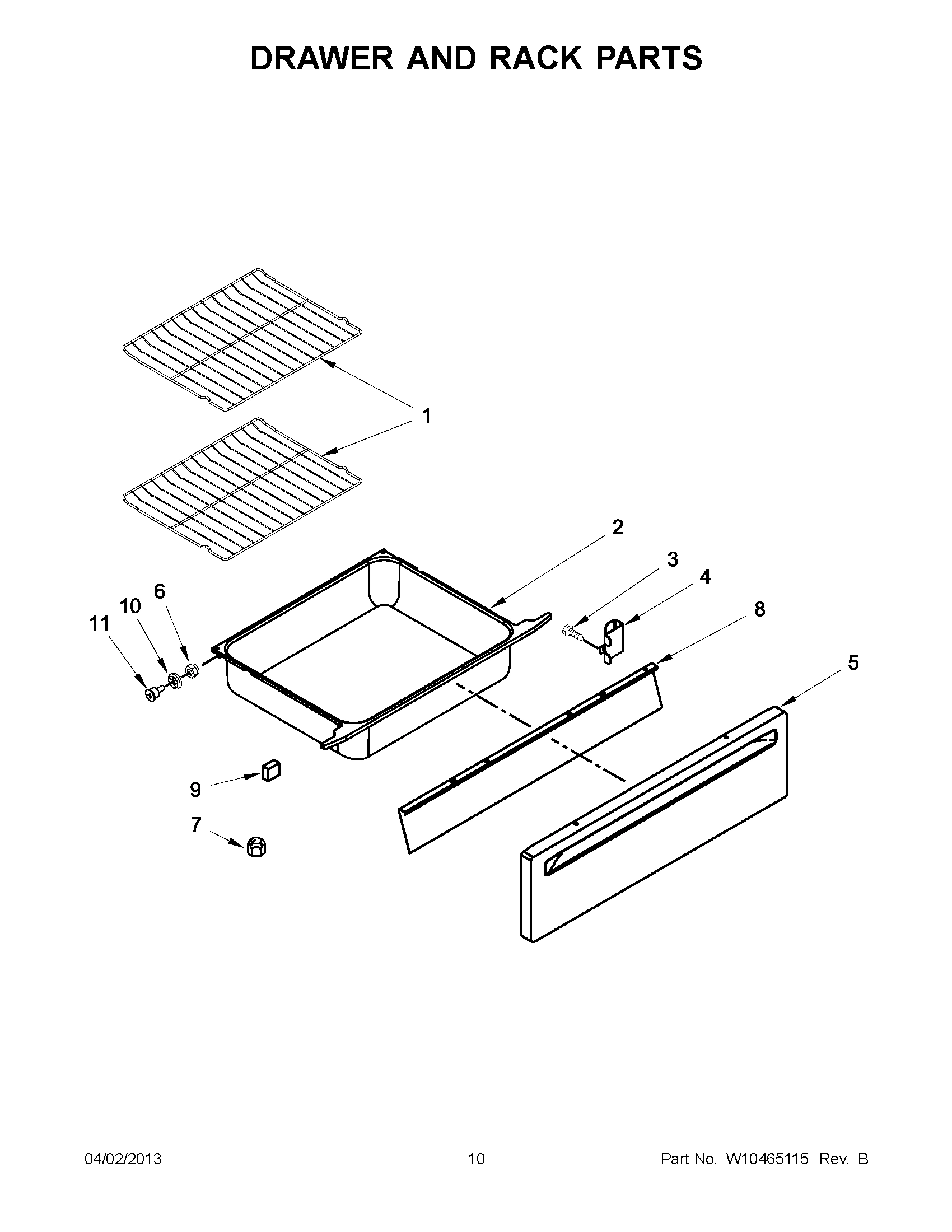

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MES5752BAW16 ELECTRIC RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
1
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
1
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
2
MAY W10202560 MAY W10202560 Contact Us For Availability
2
MAY W10204452 MAY W10204452 Contact Us For Availability
2
MAY 2614D149-09 MAY 2614D149-09 Contact Us For Availability
2
MAY 2614D149-81 MAY 2614D149-81 Contact Us For Availability
2
ASSEMBLY, LATCH MAY 8002P093-60 Contact Us For Availability
2
SCREW MAY 7101P681-60 Contact Us For Availability
2
DRAWER, STORAGE MAY 3405F033-80 Contact Us For Availability
3
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
3
SUPPORT, OVEN REAR MAY 3807F732-51 Contact Us For Availability
3
BAFFLE, OVEN DOOR WINDOW MAY 3601F373-51 Contact Us For Availability
4
ELEMENT (2500W) (LEFT REAR) MAY 8273992 Contact Us For Availability
4
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) MAY 7403P373-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
5
ELEMENT (1200W) (LEFT FRONT & RIGHT REAR) MAY 8273994 Contact Us For Availability
5
CONTROL (INCLUDES OVERLAY) (BLACK) MAY 5701M877-60 Contact Us For Availability
5
CONTROL (INCLUDES OVERLAY) (WHITE) MAY 5701M878-60 Contact Us For Availability
5
COVER, BOTTOM WIRE MAY 4005F810-51 Contact Us For Availability
5
Glass, Inner MAY 7902P436-60 Contact Us For Availability
5
PANEL, DRAWER (BLACK) MAY 2416F059-70 Contact Us For Availability
5
PANEL, DRAWER (WHITE) MAY 2416F059-71 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT FRONT) MAY W10204679 Contact Us For Availability
6
MAY 3801F895-51 MAY 3801F895-51 Contact Us For Availability
6
EXTENSION, MAIN BACK MAY 3826F066-51 Contact Us For Availability
7
KNOB, CONTROL (BLACK) MAY 7737P232-60 Contact Us For Availability
7
KNOB, CONTROL (WHITE) MAY 7737P234-60 Contact Us For Availability
7
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
8
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
8
LINING, DOOR MAY 2404F030-51 Contact Us For Availability
9
MAY 7407P193-60 MAY 7407P193-60 Contact Us For Availability
9
LEVER LATCH (BLACK) MAY 8009P031-60 Contact Us For Availability
9
LEVER LATCH (GRAY) MAY 8009P035-60 Contact Us For Availability
9
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
9
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
MAY W10233479 MAY W10233479 Contact Us For Availability
10
MAY 3807F601-51 MAY 3807F601-51 Contact Us For Availability
10
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
10
MAY W10272883 MAY W10272883 Contact Us For Availability
11
ENDCAP (WHITE (RIGHT HAND)) MAY 7726P332-60 Contact Us For Availability
11
ENDCAP (WHITE (LEFT HAND)) MAY 7726P333-60 Contact Us For Availability
11
ENDCAP (BLACK (RIGHT HAND)) MAY 7726P400-60 Contact Us For Availability
11
ENDCAP (BLACK (LEFT HAND)) MAY 7726P401-60 Contact Us For Availability
11
MAY W10317679 MAY W10317679 Contact Us For Availability
11
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
11
MAY 8010P152-60 MAY 8010P152-60 Contact Us For Availability
12
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
12
MAY 7101P626-60 MAY 7101P626-60 Contact Us For Availability
12
TRIM, SIDE (BLACK (RIGHT HAND)) MAY 3608F116-70 Contact Us For Availability
12
TRIM, SIDE (WHITE (RIGHT HAND)) MAY 3608F116-71 Contact Us For Availability
12
TRIM, SIDE (BLACK (LEFT HAND)) MAY 3608F117-70 Contact Us For Availability
12
TRIM, SIDE (WHITE (LEFT HAND)) MAY 3608F117-71 Contact Us For Availability
13
SWITCH, ROCKER (WHITE) MAY 7403P926-60 Contact Us For Availability
13
SWITCH, ROCKER (BLACK) MAY 7403P985-60 Contact Us For Availability
13
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
13
TRIM, DOOR BOTTOM (BLACK) MAY 3807F708-70 Contact Us For Availability
13
TRIM, DOOR BOTTOM (WHITE) MAY 3807F708-71 Contact Us For Availability
14
ELEMENT, BROIL (3600W) MAY W10314687 Contact Us For Availability
14
TRIM, TOP (BLACK) MAY 3608F141-70 Contact Us For Availability
14
TRIM, TOP (WHITE) MAY 3608F141-71 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
16
MAY 3604F421-51 MAY 3604F421-51 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
17
VENT TUBE MAY 8026P085-60 Contact Us For Availability
17
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
17
MAY 7701P517-60 MAY 7701P517-60 Contact Us For Availability
18
MAY W10162384 MAY W10162384 Contact Us For Availability
19
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
19
GLASS, OUTER DOOR (WHITE) MAY 7902P736-60 Contact Us For Availability
19
GLASS, OUTER DOOR (BLACK) MAY 7902P797-60 Contact Us For Availability
20
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
21
PLATE, SMOKE ELIMINATOR MAY 3605F344-45 Contact Us For Availability
22
ASSEMBLY, LIGHT MAY 7407P182-60 Contact Us For Availability
23
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
24
RETAINER, INSULATION MAY 3804F231-51 Contact Us For Availability
25
MAY 3608F138-70 MAY 3608F138-70 Contact Us For Availability
25
MAY 3608F138-71 MAY 3608F138-71 Contact Us For Availability
26
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
27
MAY W10310274 MAY W10310274 Contact Us For Availability
28
PANEL, ACCESS MAY 4005F612-51 Contact Us For Availability
30
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
31
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7450P034-60 Contact Us For Availability
33
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
34
EXTENSION, HEAT SHIELD MAY 3826F064-51 Contact Us For Availability
35
MAY 3807F494-45 MAY 3807F494-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
MAY W10271711 MAY W10271711 Contact Us For Availability
39
SUPPORT, REGULATOR VALVE MAY 3807F640-51 Contact Us For Availability
40
MAY W10182835 MAY W10182835 Contact Us For Availability
NI
RETAINER, U-WRAP MAY 3804F292-51 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P456-60 MAY 7002P456-60 Contact Us For Availability
NI
INSULATION, OVEN WRAP MAY 7002P471-60 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY 5171P540-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (RIGHT) MAY 5171P553-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SWITCH (LEFT) MAY 5171P562-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY 5171P933-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, ANTI-TIP MAY 7101P485-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
MAY W10298904 MAY W10298904 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
