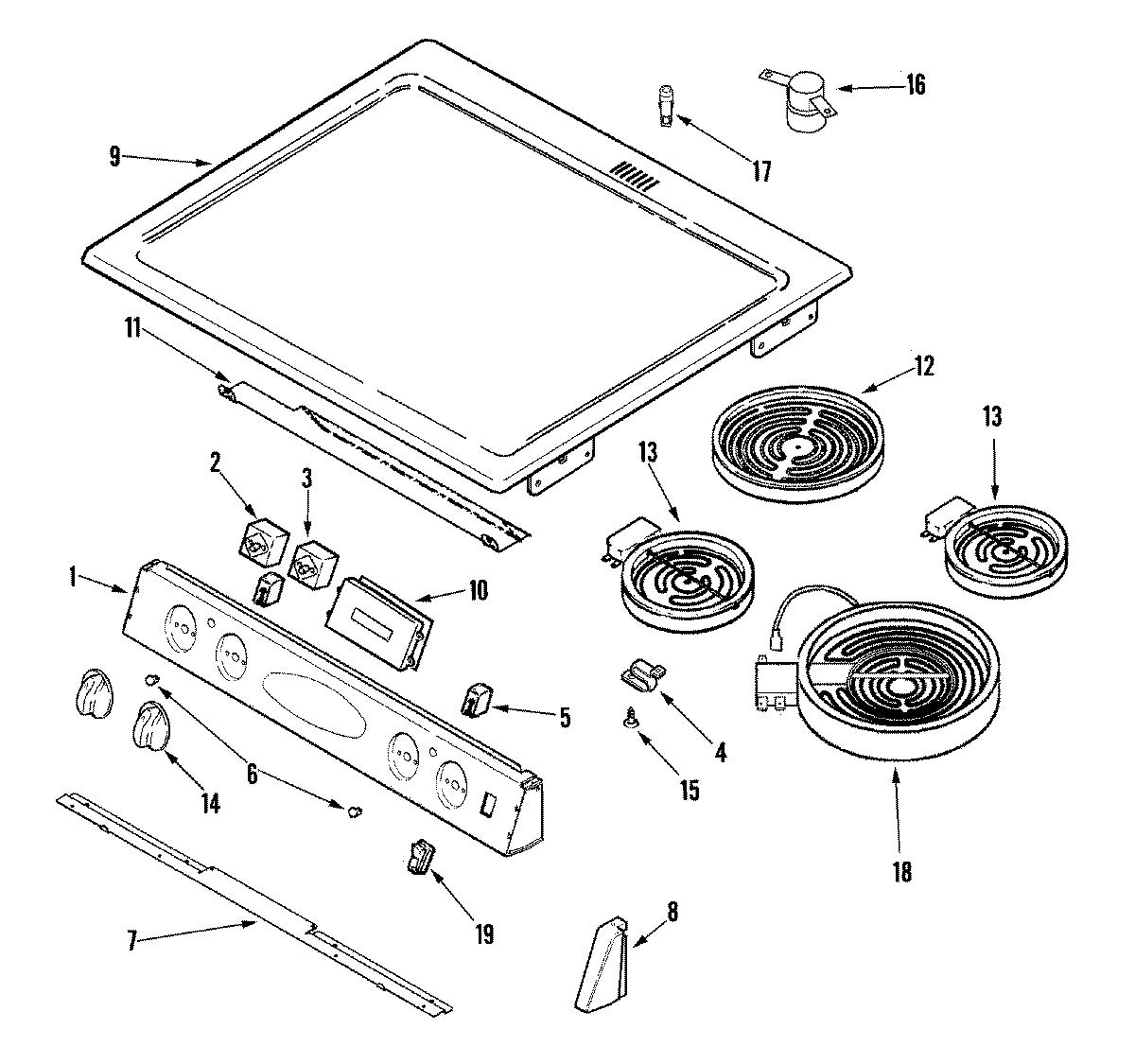

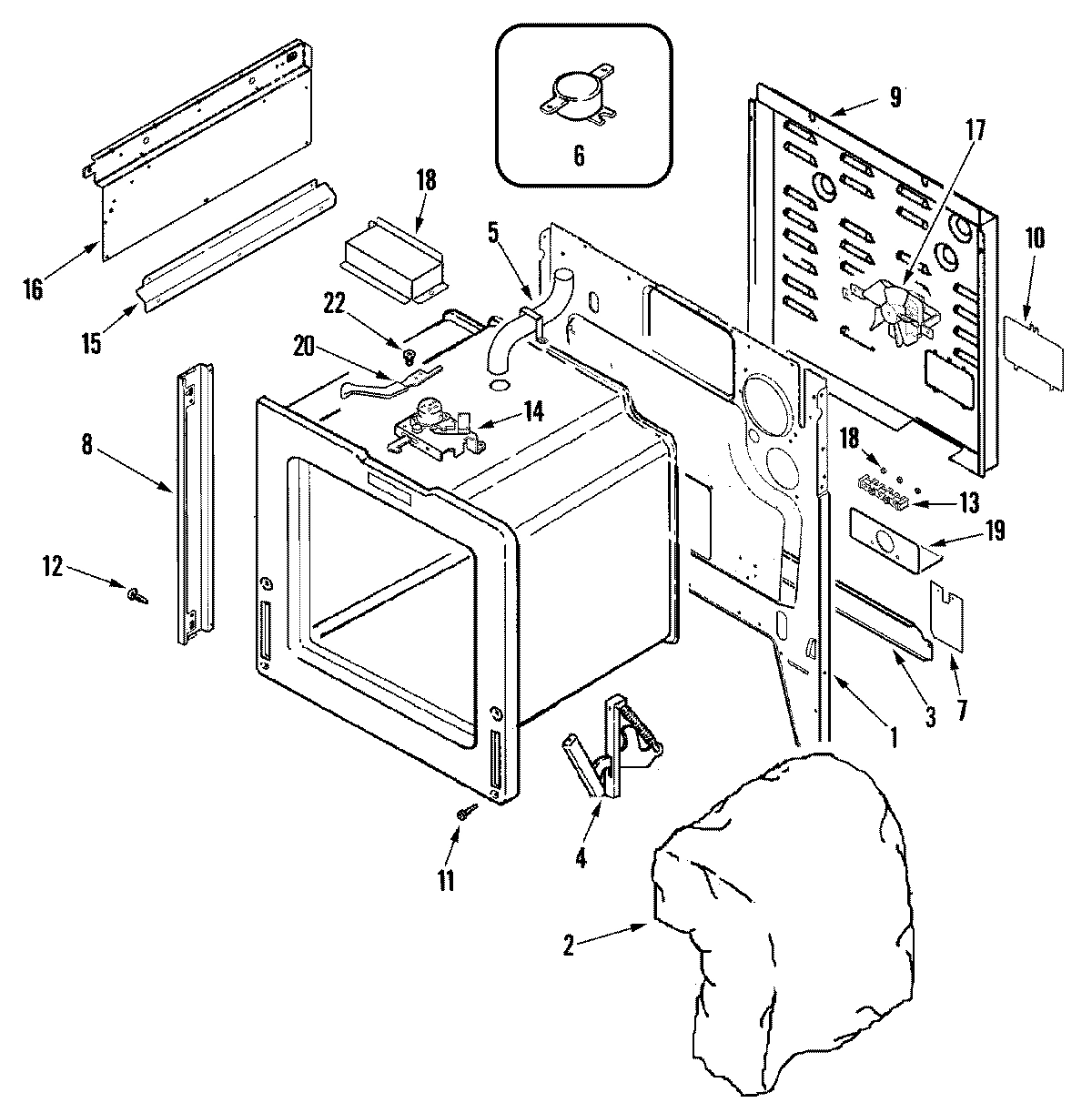

Model Maytag MES5752BAS ELECTRIC RANGE – Common Parts &amp; Diagrams

1

MAY 74011081 MAY 74011081 Contact Us For Availability

1

MAY 74003642 MAY 74003642 Contact Us For Availability

1

MAY 8113P501-60 MAY 8113P501-60 Contact Us For Availability

1

MAY 8113P573-60 MAY 8113P573-60 Contact Us For Availability

1

MAY 8113P768-60 MAY 8113P768-60 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

2

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $3.82

2

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $24.38

2

MAY 74011087 MAY 74011087 Contact Us For Availability

3

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 $2.51

3

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $20.40

3

NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability

3

PEDESTAL, FRONT MAY 74010882 Contact Us For Availability

3

MAY 74011088 MAY 74011088 Contact Us For Availability

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $69.65

4

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $54.35

4

MAY 74007845 MAY 74007845 Contact Us For Availability

4

RETAINER, INSULATION (BOTTOM) MAY 74006522 Contact Us For Availability

4

MAY 74011089 MAY 74011089 Contact Us For Availability

5

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

5

INSULATION, FOIL MAY 74011048 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability

5

MAY 74011091 MAY 74011091 Contact Us For Availability

6

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

6

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

6

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.85

6

FRAME, GLASS MAY 74003644 Contact Us For Availability

6

RUNNER, DRAWER MAY 74003565 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $86.34

7

MK71FILLS Whirlpool Filler Kit Backorder WPL MK71FILLS $43.48

7

SUPPORT, MANIFOLD PANEL MAY 74004785 Contact Us For Availability

8

CAP, END (BLK-RT) MAY 74010834 Contact Us For Availability

8

CAP, END (BLK-LT) MAY 74010835 Contact Us For Availability

8

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

8

MAY UXA1100AAP MAY UXA1100AAP Contact Us For Availability

9

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

9

MAY 74010670 MAY 74010670 Contact Us For Availability

9

MAY 74009502 MAY 74009502 Contact Us For Availability

9

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE MAY W10124350 Contact Us For Availability

9

MAY 74011434 MAY 74011434 Contact Us For Availability

10

GLASS, DOOR (INNER/COATED) MAY 74010231 Contact Us For Availability

10

MAY 74010806 MAY 74010806 Contact Us For Availability

11

MAY 74010042 MAY 74010042 Contact Us For Availability

11

SHIELD, CONTROL MAY 74010846 Contact Us For Availability

11

MAY 74010807 MAY 74010807 Contact Us For Availability

12

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $94.12

12

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

12

MAY 74011049 MAY 74011049 Contact Us For Availability

13

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

13

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $68.38

13

RETAINER, GLASS SUPPORT MAY 74011050 Contact Us For Availability

MAY 74008945 MAY 74008945 Contact Us For Availability

MAY 74011051 MAY 74011051 Contact Us For Availability

MAY 74011052 MAY 74011052 Contact Us For Availability

SUPPORT, BROIL ELEMENT MAY 74003386 Contact Us For Availability

15

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $69.76

15

SCREW (6ABX.25-ZN) MAY 74003357 Contact Us For Availability

15

MAY 74007215 MAY 74007215 Contact Us For Availability

16

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

16

TUBE, VENT (UPR) MAY 74005759 Contact Us For Availability

16

MAY 74010232 MAY 74010232 Contact Us For Availability

7407P193-60 Whirlpool Light Indicator Backorder WPL 7407P193-60 $31.11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP7701P526-60 Whirlpool Door Handle Backorder WPL WP7701P526-60 $130.12

LAMP ASSEMBLY MAY 74010885 Contact Us For Availability

18

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $2.51

18

MAY 74009082 MAY 74009082 Contact Us For Availability

19

7403P985-60 Whirlpool Rocker Switch (Black) Backorder WPL 7403P985-60 $34.86

19

WP74009029 Whirlpool Door Gasket Backorder WPL WP74009029 $56.33

19

MAY 74010812 MAY 74010812 Contact Us For Availability

20

LEVER, LATCH (BLK) MAY 74001075 Contact Us For Availability

20

MAY 74010853 MAY 74010853 Contact Us For Availability

21

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $2.51

21

WPW10282492 Whirlpool Oven Rack In Stock WPL WPW10282492 $39.71

21

CLIP, DOOR MAY 7112P034-60 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.59

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.62

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

23

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

25

LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability

26

MAY 74009840 MAY 74009840 Contact Us For Availability

26

PANEL, DRAWER GAS (STL) MAY W10160943 Contact Us For Availability

27

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

28

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

29

DRAWER, STORAGE MAY 74008333 Contact Us For Availability

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

31

HANDLE, DRAWER (STL) MAY 74009841 Contact Us For Availability

31

HANDLE, DRAWER (STL) MAY W10180296 Contact Us For Availability

33

MAY 74010896 MAY 74010896 Contact Us For Availability

34

MAY 74008859 MAY 74008859 Contact Us For Availability

NI

MAY 15003733 MAY 15003733 Contact Us For Availability
