Model Maytag MERS755RAB ELECTRIC RANGE – Common Parts & Diagrams

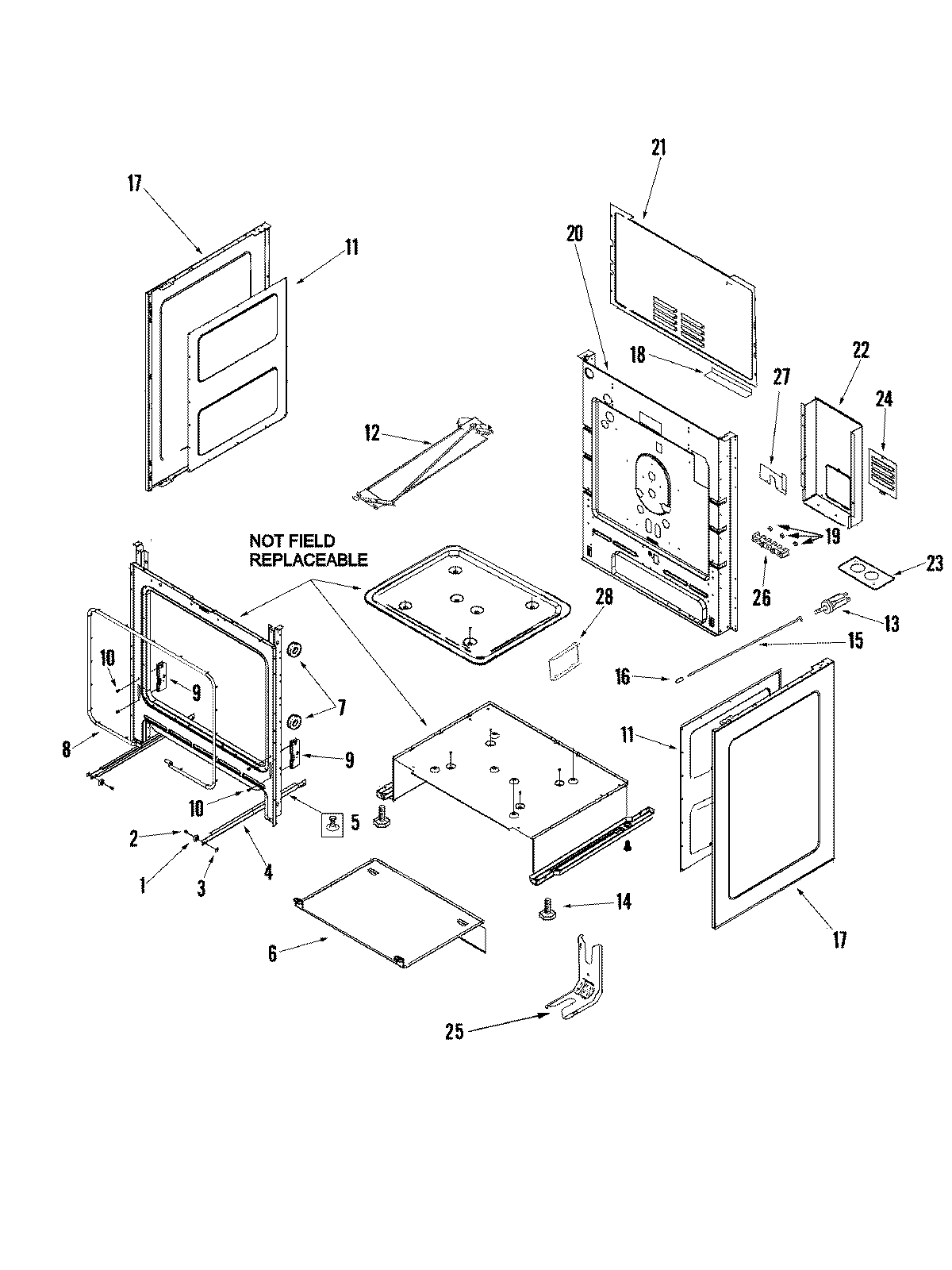

01 - CABINET

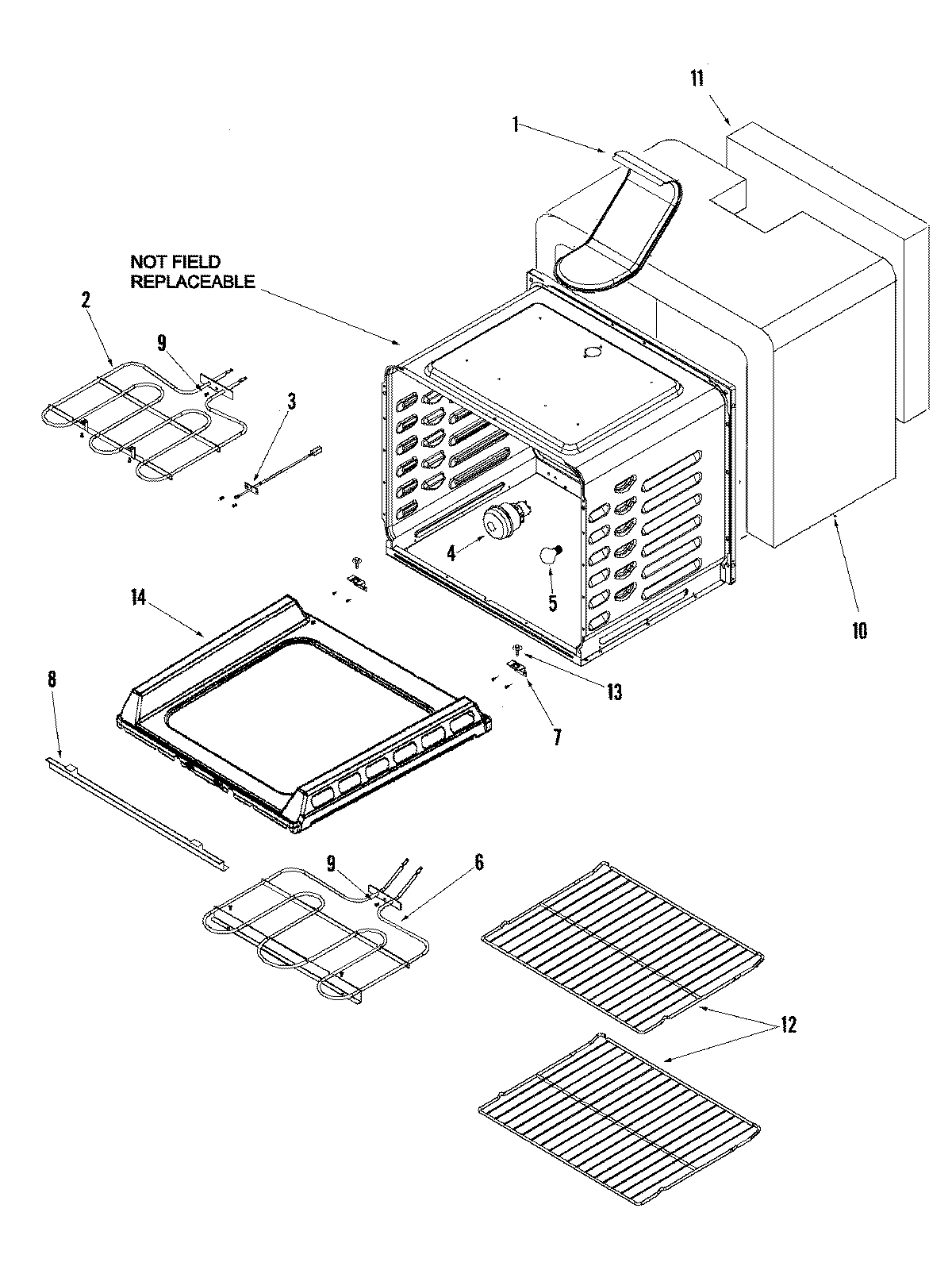

02 - CAVITY

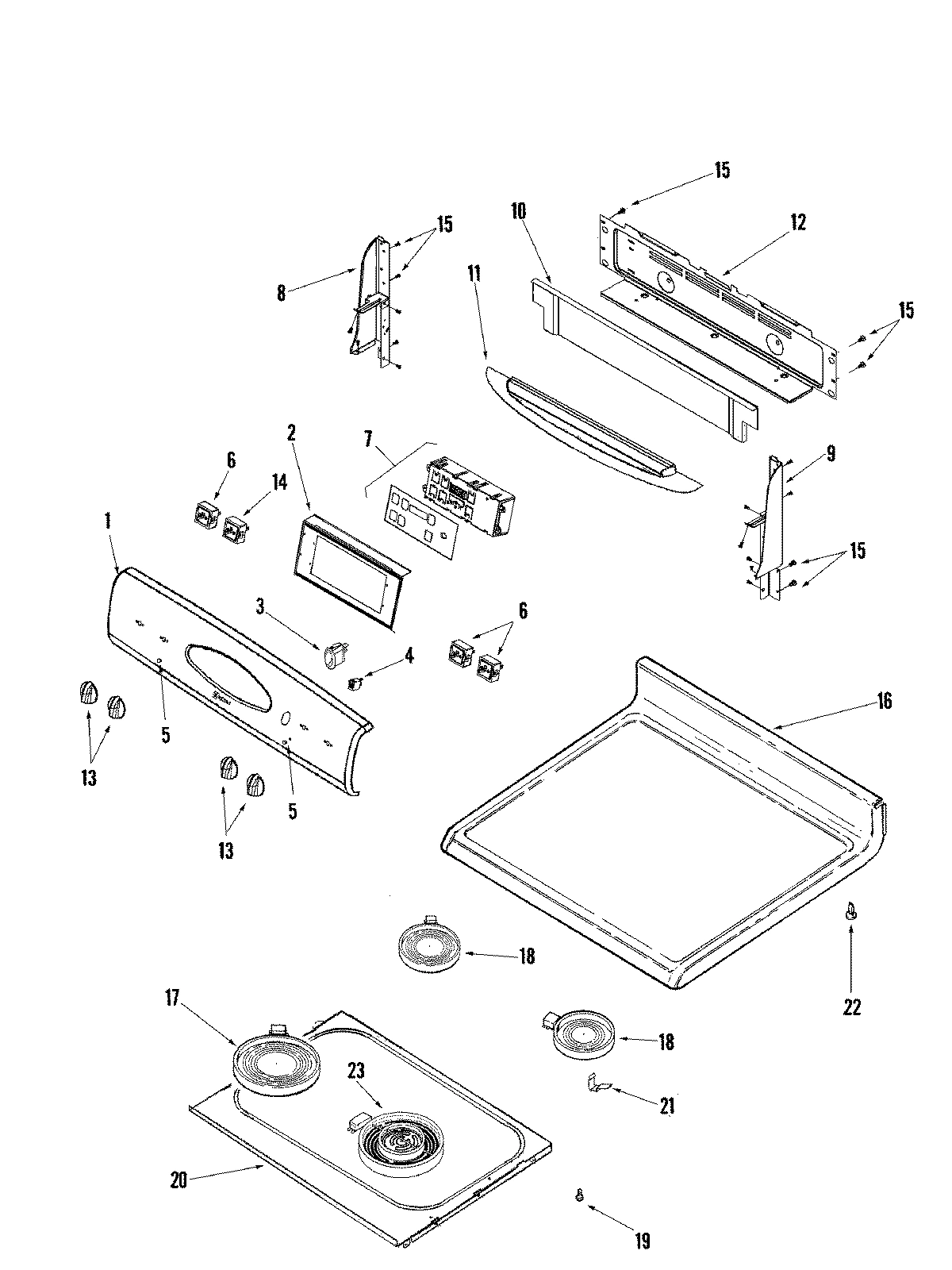

03 - CONTROL PANEL/TOP ASSEMBLY

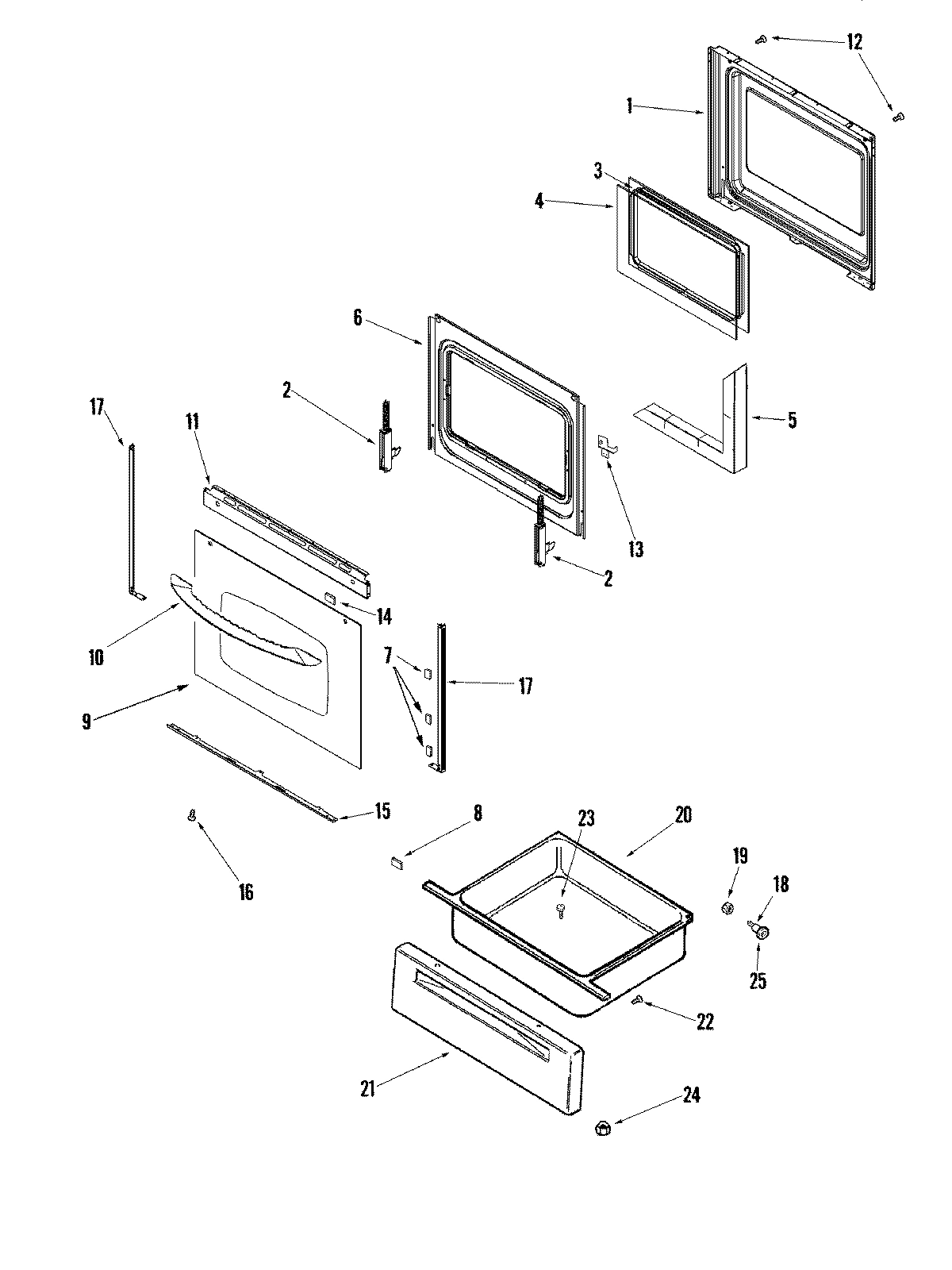

04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION

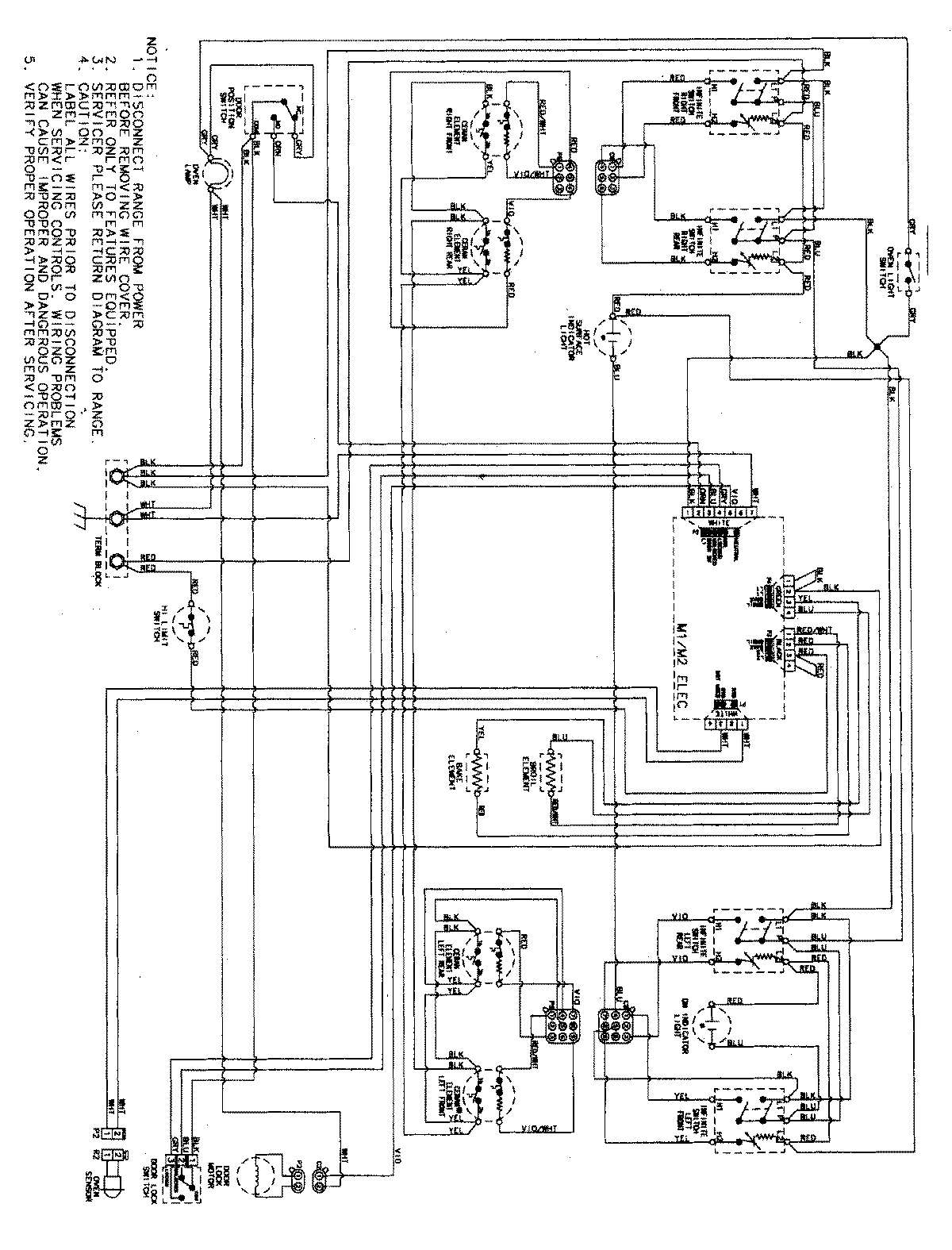

06 - WIRING INFORMATION
Common parts from model Maytag MERS755RAB ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74011066 MAY 74011066 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P492-60 MAY 8113P492-60 Contact Us For Availability
1
MAY 8113P566-60 MAY 8113P566-60 Contact Us For Availability
1
MAY 8113P692-60 MAY 8113P692-60 Contact Us For Availability
1
MAY 8113P694-60 MAY 8113P694-60 Contact Us For Availability
2
BRACKET, CLOCK MAY 74009052 Contact Us For Availability
2
MAY 74009031 MAY 74009031 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 74009030 MAY 74009030 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 74011196 MAY 74011196 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74011195 MAY 74011195 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
MAY 74009330 MAY 74009330 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-BLK) MAY 74009022 Contact Us For Availability
8
MAY 20001080 MAY 20001080 Contact Us For Availability
9
END CAP (LT-BLK) MAY 74009023 Contact Us For Availability
9
GLASS, DOOR (BLK) MAY 74009018 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009444 MAY 74009444 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability
11
TRIM, TOP (BLK) MAY 74008931 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74010983 MAY 74010983 Contact Us For Availability
13
MAY 74008945 MAY 74008945 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) MAY 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) MAY 74009413 Contact Us For Availability
15
TRIM, BOTTOM (BLK) MAY 74008889 Contact Us For Availability
16
MAY 74011164 MAY 74011164 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
TRIM, SIDE (BLK) MAY 74010560 Contact Us For Availability
18
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
20
DRAWER, STORAGE MAY 74008333 Contact Us For Availability
21
BRACKET, MOUNTING MAY 3605P337-51 Contact Us For Availability
21
MAY 74008885 MAY 74008885 Contact Us For Availability
21
PANEL, DRAWER (BLK) MAY W10163038 Contact Us For Availability
23
MAY 74009082 MAY 74009082 Contact Us For Availability
27
INSULATOR, POWER CORD MAY 74008759 Contact Us For Availability
28
BRACKET, OVEN SUPPORT MAY 74011187 Contact Us For Availability
NI
MAY 15003740 MAY 15003740 Contact Us For Availability
× ![]()
