Model Maytag MERH865RAS16 ELECTRIC RANGE – Common Parts & Diagrams

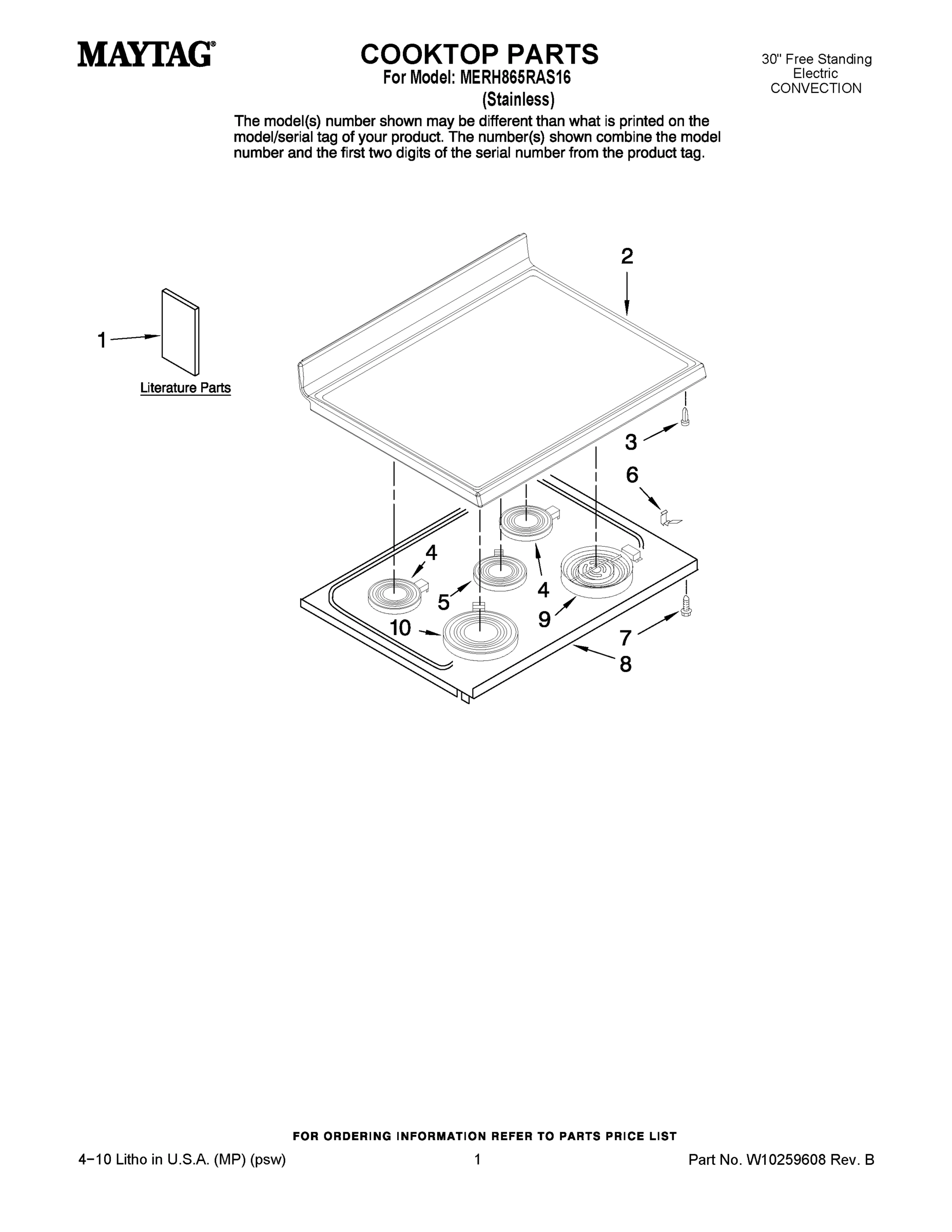

01 - COOKTOP PARTS

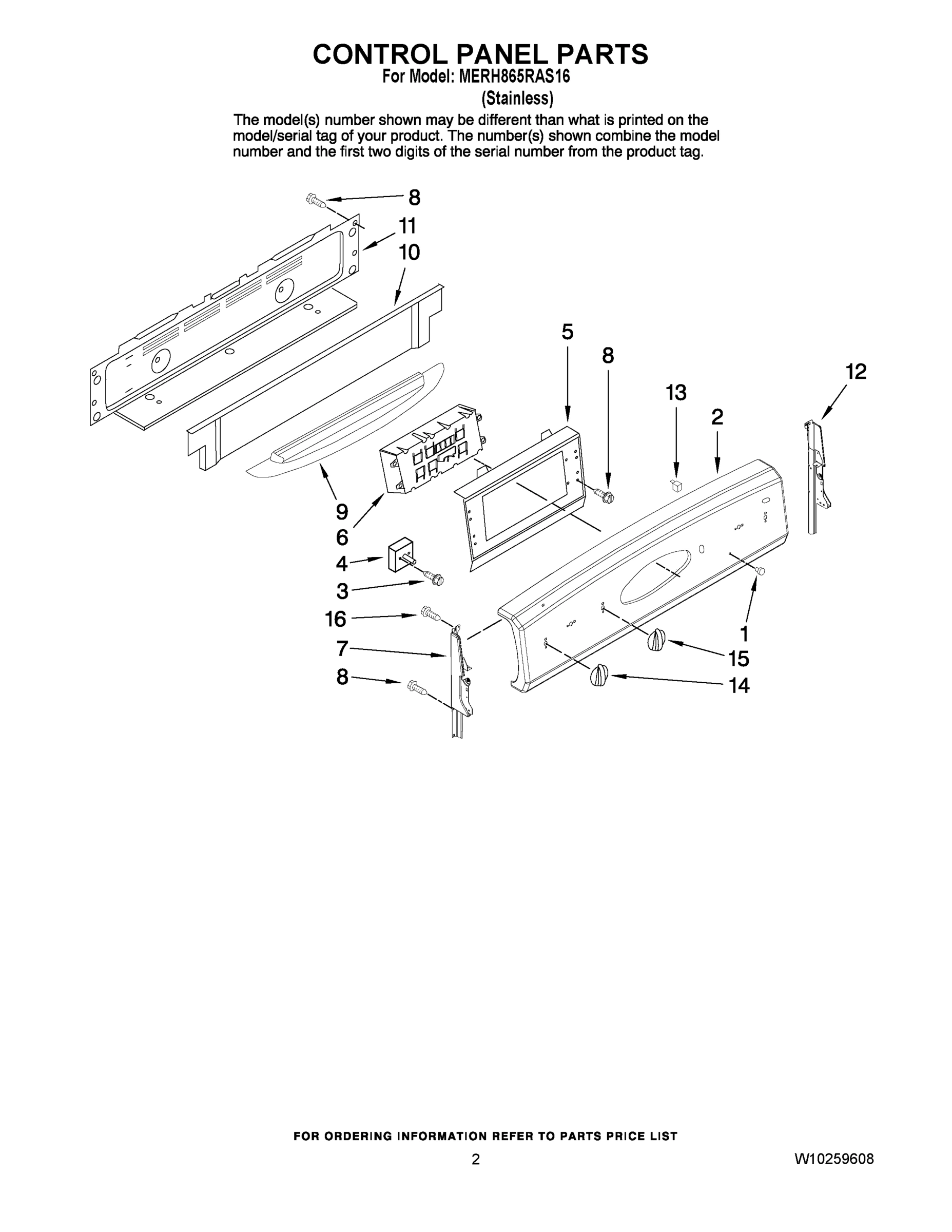

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - DOOR PARTS
05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MERH865RAS16 ELECTRIC RANGE
1
PANEL, SIDE MAY 2618F172-69 Contact Us For Availability
1
MAY 7760P232-60 MAY 7760P232-60 Contact Us For Availability
1
MAY 7801P175-60 MAY 7801P175-60 Contact Us For Availability
2
MAY 7704P139-60 MAY 7704P139-60 Contact Us For Availability
2
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
RETAINER, SIDE MAY 3804F316-51 Contact Us For Availability
3
Handle, Door MAY 7701P526-60 Contact Us For Availability
3
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
4
ELEMENT LR/RR MAY 7406P365-60 Contact Us For Availability
4
MAY 7403P877-60 MAY 7403P877-60 Contact Us For Availability
4
SWITCH, INFINTE (DUAL (RF)) MAY 7450P094-60 Contact Us For Availability
4
MAY 8002P104-60 MAY 8002P104-60 Contact Us For Availability
4
Baffle, Retainer MAY 3601F380-51 Contact Us For Availability
5
ELEMENT, WARM MAY 7406P457-60 Contact Us For Availability
5
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
5
MAY 4002F347-51 MAY 4002F347-51 Contact Us For Availability
5
SCREW, HANDLE MAY 7101P681-60 Contact Us For Availability
5
Panel, Inner MAY 3605P337-51 Contact Us For Availability
6
MAY 7803P087-60 MAY 7803P087-60 Contact Us For Availability
6
MAY 5702M025-60 MAY 5702M025-60 Contact Us For Availability
6
MAY 4005F754-51 MAY 4005F754-51 Contact Us For Availability
6
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
PANEL, DRAWER MAY W10165339 Contact Us For Availability
7
END CAP, LEFT MAY 3807F703-70 Contact Us For Availability
7
MAY 4005F712-51 MAY 4005F712-51 Contact Us For Availability
7
Liner, Door MAY 2402W297-19 Contact Us For Availability
7
MAY 8038P037-60 MAY 8038P037-60 Contact Us For Availability
8
MAY 4011F497-51 MAY 4011F497-51 Contact Us For Availability
8
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
8
TAPE, FOIL MAY 7002P482-60 Contact Us For Availability
9
Element 2700W (RF) MAY 7406P357-60 Contact Us For Availability
9
SHIELD, HEAT VISOR MAY 3604F382-09 Contact Us For Availability
9
MAY 7003P145-60 MAY 7003P145-60 Contact Us For Availability
9
MAY 3406P034-51 MAY 3406P034-51 Contact Us For Availability
10
Element 2500W (LF) MAY 7406P366-60 Contact Us For Availability
10
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
10
COVER, WIRE (LWR) MAY 4005F703-51 Contact Us For Availability
10
Hinge, Door MAY 7106P124-60 Contact Us For Availability
10
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
11
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
11
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
11
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 8014P022-60 MAY 8014P022-60 Contact Us For Availability
12
END CAP, RIGHT MAY 3807F702-70 Contact Us For Availability
12
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
13
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
13
MAY 3196165 MAY 3196165 Contact Us For Availability
13
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
14
KNOB MAY 7737P350-60 Contact Us For Availability
14
MAY 3605F146-51 MAY 3605F146-51 Contact Us For Availability
14
Gasket, Door MAY 7201P141-60 Contact Us For Availability
14
HANDLE, DRAWER MAY 7701P547-60 Contact Us For Availability
15
KNOB, WARM MAY 7737P390-60 Contact Us For Availability
15
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
15
MAY 3801P918-51 MAY 3801P918-51 Contact Us For Availability
16
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
16
Switch, Thermal MAY 7403P857-60 Contact Us For Availability
16
Screw MAY 7101P282-60 Contact Us For Availability
17
Fan Assy, Convect MAY 7427P099-60 Contact Us For Availability
17
MAY 7902P803-60 MAY 7902P803-60 Contact Us For Availability
18
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
19
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
20
Leg, Leveling MAY 7101P507-60 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
23
MAY 3604F371-51 MAY 3604F371-51 Contact Us For Availability
25
MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability
26
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
27
MAY 8026P081-60 MAY 8026P081-60 Contact Us For Availability
28
MAY 74011299 MAY 74011299 Contact Us For Availability
30
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
31
Gasket MAY W10162385 Contact Us For Availability
32
MAY 8010P148-60 MAY 8010P148-60 Contact Us For Availability
33
MAY 7106P125-60 MAY 7106P125-60 Contact Us For Availability
34
Light Assembly MAY 7407P181-60 Contact Us For Availability
35
MAY 3801F798-51 MAY 3801F798-51 Contact Us For Availability
36
SCREW (BLACK) MAY 7101P375-60 Contact Us For Availability
37
MAY 7002P494-60 MAY 7002P494-60 Contact Us For Availability
39
SCREW, SHOULDER MAY 7101P434-60 Contact Us For Availability
40
MAY 3801P822-45 MAY 3801P822-45 Contact Us For Availability
41
MAY 7406P451-60 MAY 7406P451-60 Contact Us For Availability
42
MAY 3807F680-45 MAY 3807F680-45 Contact Us For Availability
43
MAY 2205F053-19 MAY 2205F053-19 Contact Us For Availability
NI
MAY 7002P362-60 MAY 7002P362-60 Contact Us For Availability
NI
MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
Cleaner, Glass MAY 31464 Contact Us For Availability
NI
MAY 5171P861-60 MAY 5171P861-60 Contact Us For Availability
NI
Harness, Wire (Cooktop Left) MAY 5171P864-60 Contact Us For Availability
NI
MAY 5171P927-60 MAY 5171P927-60 Contact Us For Availability
NI
MAY 5171P928-60 MAY 5171P928-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
MAY 8019P022-60 MAY 8019P022-60 Contact Us For Availability
× ![]()
