Model Maytag MER8800DH1 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET

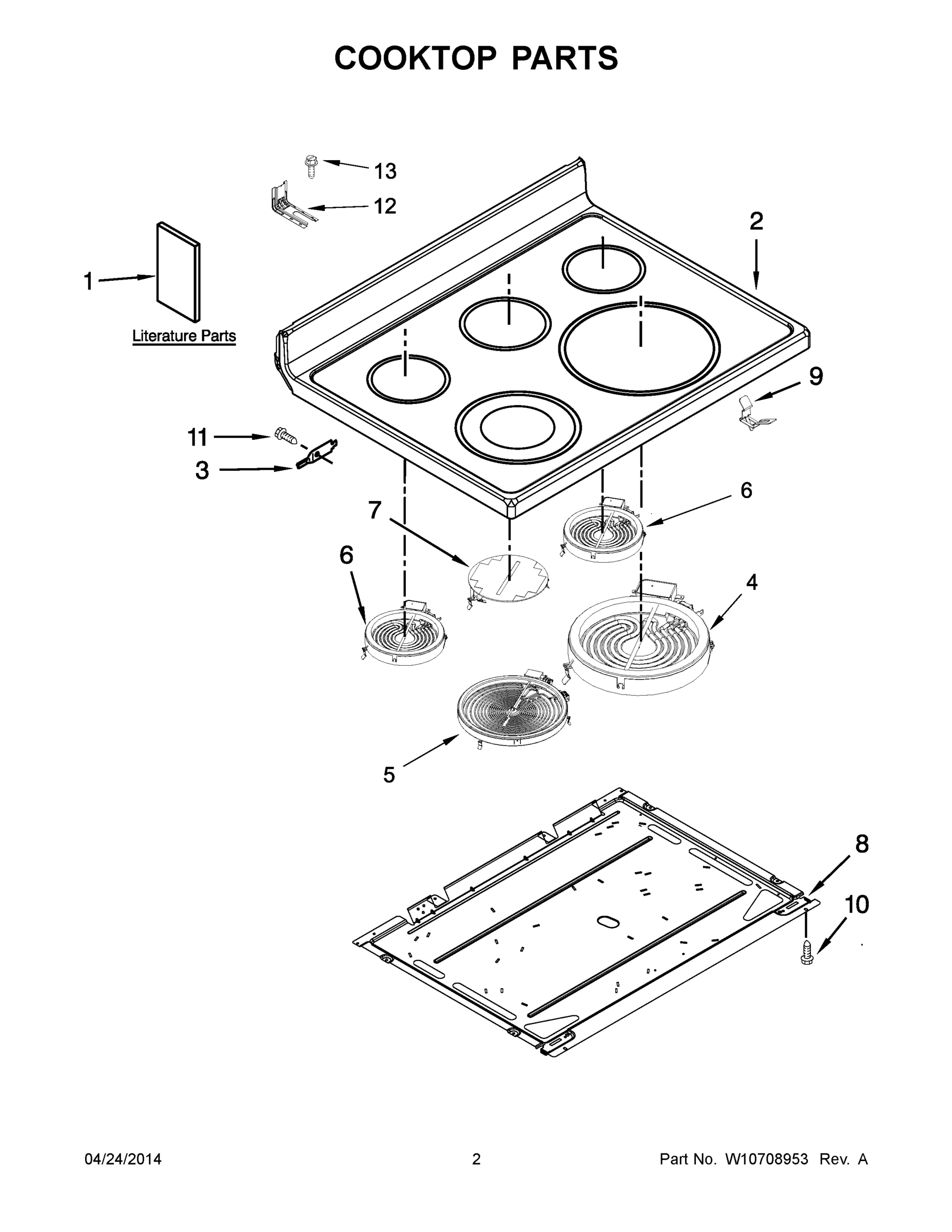

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS
05 - DOOR PARTS
06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER8800DH1 ELECTRIC RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY W10400064 MAY W10400064 Contact Us For Availability
1
MAY W10403811 MAY W10403811 Contact Us For Availability
1
MAY W10667166 MAY W10667166 Contact Us For Availability
1
MAY W10667169 MAY W10667169 Contact Us For Availability
1
MAY W10097270 MAY W10097270 Contact Us For Availability
1
MAY W10097280 MAY W10097280 Contact Us For Availability
1
MAY W10097310 MAY W10097310 Contact Us For Availability
1
MAY W10162245 MAY W10162245 Contact Us For Availability
1
MAY W10575396 MAY W10575396 Contact Us For Availability
1
MAY W10330075 MAY W10330075 Contact Us For Availability
1
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1
MAY W10655908 MAY W10655908 Contact Us For Availability
1
PANEL, DRAWER, (WHITE) MAY W10667934 Contact Us For Availability
1
PANEL, DRAWER, (BLACK) MAY W10667935 Contact Us For Availability
2
MAY W10655914 MAY W10655914 Contact Us For Availability
2
MAY W10655916 MAY W10655916 Contact Us For Availability
2
MAY 3196165 MAY 3196165 Contact Us For Availability
2
MAY 3196178 MAY 3196178 Contact Us For Availability
2
MAY W10134247 MAY W10134247 Contact Us For Availability
2
MAY W10615599 MAY W10615599 Contact Us For Availability
3
MAY 3195060 MAY 3195060 Contact Us For Availability
3
MAY 3400882 MAY 3400882 Contact Us For Availability
3
RACK, OVEN (GULL WING) MAY W10289145 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
3
DRAWER. STORAGE MAY W10663433 Contact Us For Availability
4
ELEMENT, 3200 W (RIGHT FRONT) MAY W10251108 Contact Us For Availability
4
MAY 3148951 MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT) MAY W10411934 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT) MAY W10434452 Contact Us For Availability
4
MAY W10531060 MAY W10531060 Contact Us For Availability
4
MAY W10031790 MAY W10031790 Contact Us For Availability
4
SLIDE, DRAWER LEFT MAY W10441804 Contact Us For Availability
4
SLIDE, DRAWER RIGHT MAY W10441805 Contact Us For Availability
5
MAY W10535150 MAY W10535150 Contact Us For Availability
5
MAY W10273169 MAY W10273169 Contact Us For Availability
5
MAY W10318027 MAY W10318027 Contact Us For Availability
6
MAY 8273994 MAY 8273994 Contact Us For Availability
6
MAY W10340323 MAY W10340323 Contact Us For Availability
6
MAY 3186034 MAY 3186034 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
HANDLE, ASSEMBLY (STAINLESS) MAY W10665831 Contact Us For Availability
7
ELEMENT, WARM ZONE (CENTER REAR) MAY W10388247 Contact Us For Availability
7
MAY W10184433 MAY W10184433 Contact Us For Availability
7
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
7
MAY 3196548 MAY 3196548 Contact Us For Availability
7
MAY W10137382 MAY W10137382 Contact Us For Availability
7
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10106409 Contact Us For Availability
8
MAY W10294851 MAY W10294851 Contact Us For Availability
8
MAY 8533988 MAY 8533988 Contact Us For Availability
9
MAY W10225448 MAY W10225448 Contact Us For Availability
9
MAY W10655846 MAY W10655846 Contact Us For Availability
9
MAY W10655849 MAY W10655849 Contact Us For Availability
9
MAY W10655851 MAY W10655851 Contact Us For Availability
9
MAY W10326122 MAY W10326122 Contact Us For Availability
9
MAY W10241367 MAY W10241367 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY W10245259 MAY W10245259 Contact Us For Availability
10
MAY W10297318 MAY W10297318 Contact Us For Availability
11
MAY W10184434 MAY W10184434 Contact Us For Availability
11
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
11
MAY 311255 MAY 311255 Contact Us For Availability
11
MAY W10294852 MAY W10294852 Contact Us For Availability
12
MAY W10306542 MAY W10306542 Contact Us For Availability
12
MAY W10666901 MAY W10666901 Contact Us For Availability
12
MAY W10346154 MAY W10346154 Contact Us For Availability
12
MAY W10294853 MAY W10294853 Contact Us For Availability
13
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
13
MAY W10525121 MAY W10525121 Contact Us For Availability
13
MAY W10273002 MAY W10273002 Contact Us For Availability
13
MAY W10655831 MAY W10655831 Contact Us For Availability
13
MAY W10655834 MAY W10655834 Contact Us For Availability
13
MAY W10655838 MAY W10655838 Contact Us For Availability
14
MAY 8523265 MAY 8523265 Contact Us For Availability
14
MAY W10289097 MAY W10289097 Contact Us For Availability
15
MAY W10346147 MAY W10346147 Contact Us For Availability
15
MAY W10162385 MAY W10162385 Contact Us For Availability
16
MAY W10565174 MAY W10565174 Contact Us For Availability
16
MAY W10636267 MAY W10636267 Contact Us For Availability
17
MAY W10031780 MAY W10031780 Contact Us For Availability
18
MAY W10627802 MAY W10627802 Contact Us For Availability
19
MAY W10273192 MAY W10273192 Contact Us For Availability
20
MAY W10341186 MAY W10341186 Contact Us For Availability
21
MAY W10058460 MAY W10058460 Contact Us For Availability
22
MAY 3196172 MAY 3196172 Contact Us For Availability
23
SHIELD, HEAT MAY W10289099 Contact Us For Availability
24
Spacer, Door MAY 9758701 Contact Us For Availability
25
ELEMENT, BROIL MAY W10544951 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
MAY W10134285 MAY W10134285 Contact Us For Availability
28
MAY W10289077 MAY W10289077 Contact Us For Availability
29
MAY W10289079 MAY W10289079 Contact Us For Availability
30
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
30
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
31
MAY W10035900 MAY W10035900 Contact Us For Availability
33
MAY W10617484 MAY W10617484 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW MAY W10362924 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY W10194393 MAY W10194393 Contact Us For Availability
NI
MAY W10225523 MAY W10225523 Contact Us For Availability
NI
MAY W10225524 MAY W10225524 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, COOKTOP PROTECTANT MAY 31463 Contact Us For Availability
NI
ACCESSORIES, COOKTOP CARE KIT MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE AND DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN AND ROASTING MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WARM ZONE MAY W10174460 Contact Us For Availability
NI
MAY W10205524 MAY W10205524 Contact Us For Availability
NI
ACCESSORIES, GRANITE CLEANER MAY W10275756 Contact Us For Availability
NI
MAY W10349640 MAY W10349640 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP RIGHT MAY W10349654 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE COOKTOP L MAY W10349661 Contact Us For Availability
NI
ACCESSORIES, KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, SS CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
MAY W10688248 MAY W10688248 Contact Us For Availability
NI
ACCESSORIES, COOKTOP SCRAPER MAY WA906B Contact Us For Availability
× ![]()
