Model Maytag MER8770WQ1 ELECTRIC RANGE – Common Parts & Diagrams

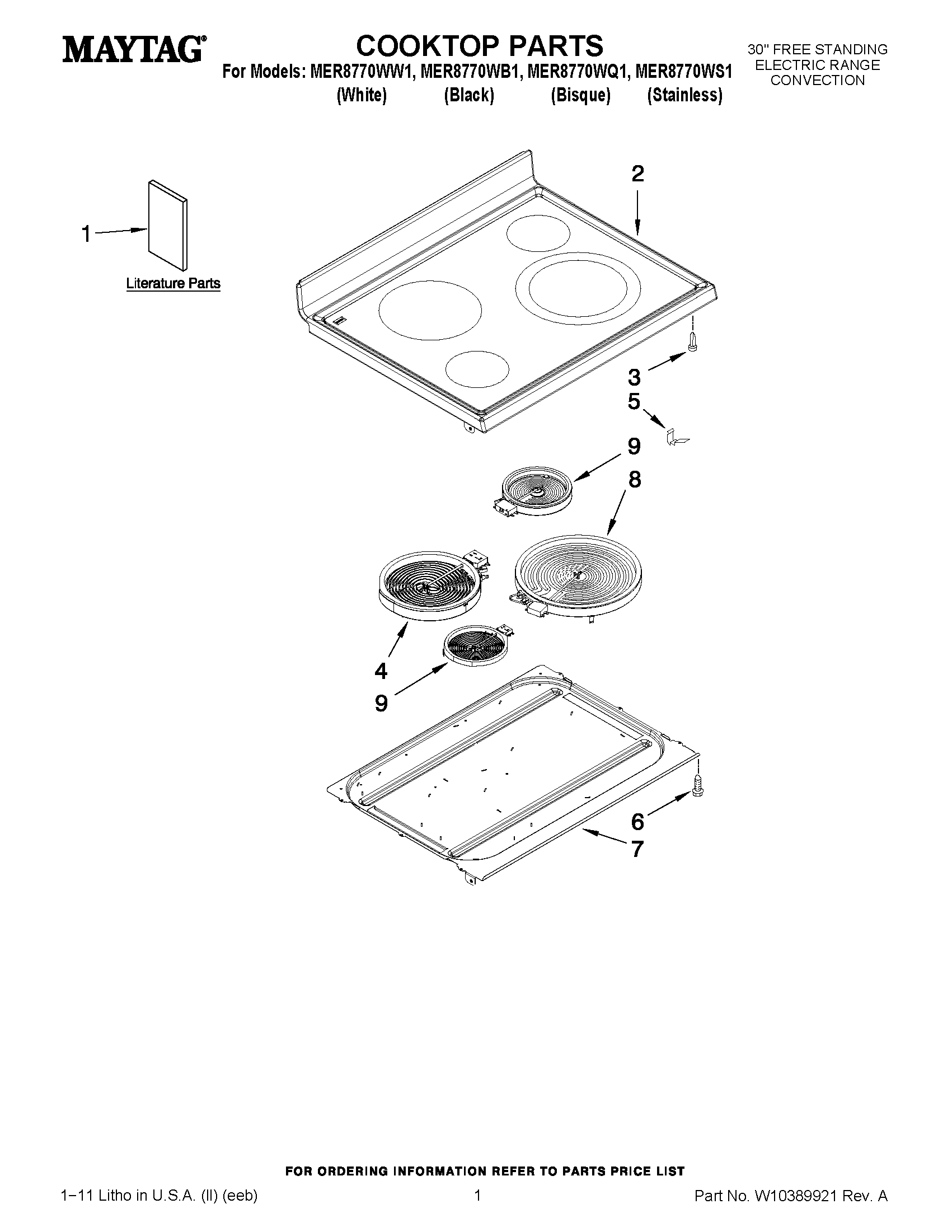

01 - COOKTOP PARTS

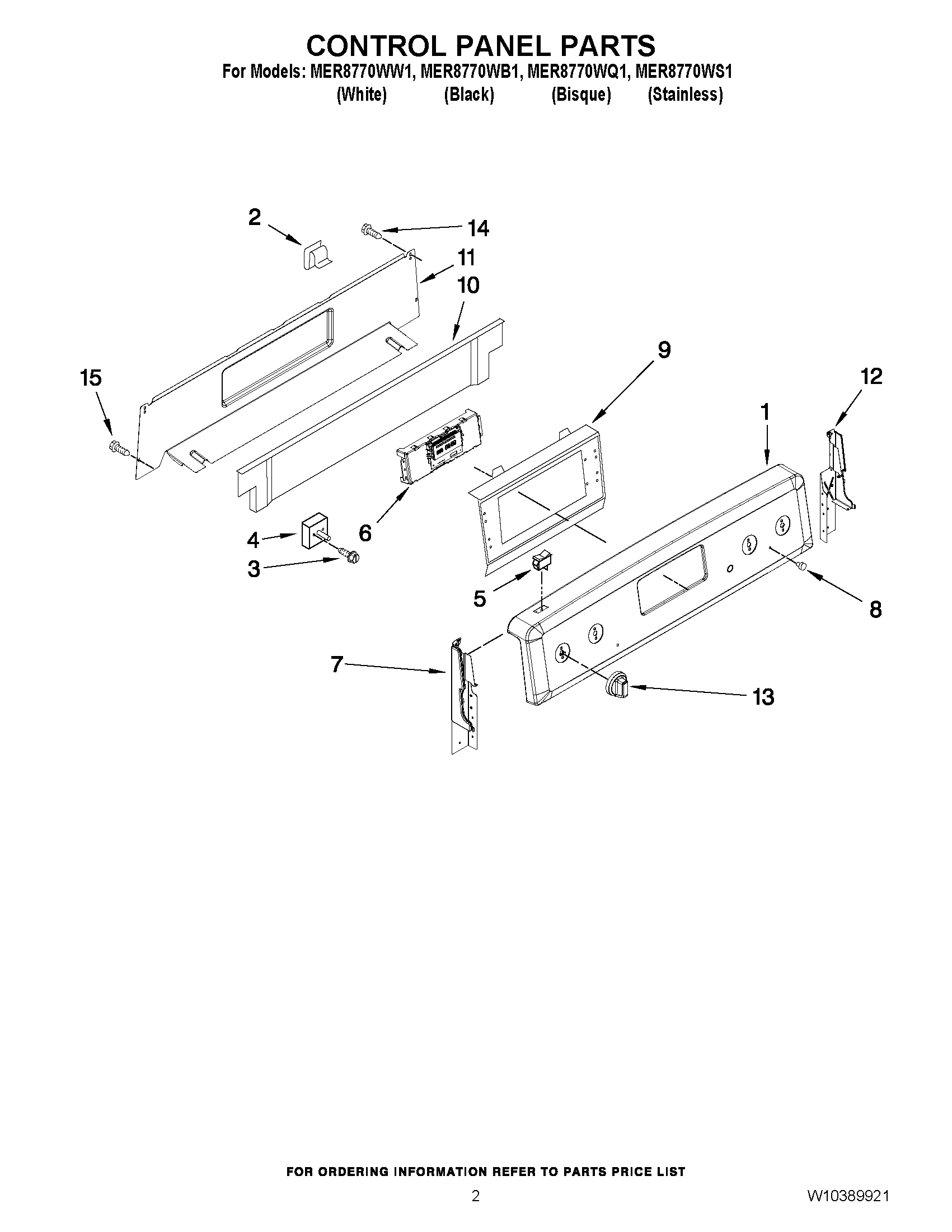

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - DOOR PARTS
05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER8770WQ1 ELECTRIC RANGE
1
Brochure, Safe Tip MAY 9762761 Contact Us For Availability
1
MAY W10239458 MAY W10239458 Contact Us For Availability
1
MAY W10249695 MAY W10249695 Contact Us For Availability
1
MAY W10258095 MAY W10258095 Contact Us For Availability
1
MAY W10225486 MAY W10225486 Contact Us For Availability
1
MAY W10225487 MAY W10225487 Contact Us For Availability
1
MAY W10225488 MAY W10225488 Contact Us For Availability
1
MAY W10225489 MAY W10225489 Contact Us For Availability
1
Panel, Side (Bisque) MAY 2618F172-57 Contact Us For Availability
1
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
1
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
1
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
1
PLATE, PANEL MTG. MAY 3605P337-51 Contact Us For Availability
2
MAY W10225472 MAY W10225472 Contact Us For Availability
2
MAY W10225473 MAY W10225473 Contact Us For Availability
2
MAY W10225474 MAY W10225474 Contact Us For Availability
2
CLIP, REAR COVER MAY 8273564 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
MAY W10181725 MAY W10181725 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
SCREW, SWITCH MAY 3400882 Contact Us For Availability
3
Hinge, Door MAY 7106P124-60 Contact Us For Availability
3
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
4
ELEMENT, (LF) MAY W10251108 Contact Us For Availability
4
SWITCH, INFINTE ((LR & RR) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINTE (ELEMENT (LF & RF)) MAY W10149355 Contact Us For Availability
4
MAY 3601F380-51 MAY 3601F380-51 Contact Us For Availability
4
MAY 8002P104-60 MAY 8002P104-60 Contact Us For Availability
5
MAY 7803P087-60 MAY 7803P087-60 Contact Us For Availability
5
SWITCH, ROCKER (BLACK) MAY 3148564 Contact Us For Availability
5
SWITCH, ROCKER (WHITE) MAY 3149360 Contact Us For Availability
5
SWITCH, ROCKER (BISQUE) MAY 8273501 Contact Us For Availability
5
MAY W10205618 MAY W10205618 Contact Us For Availability
5
MAY W10268578 MAY W10268578 Contact Us For Availability
6
MAY W10236258 MAY W10236258 Contact Us For Availability
6
MAY W10236259 MAY W10236259 Contact Us For Availability
6
MAY W10236260 MAY W10236260 Contact Us For Availability
6
MAY W10236261 MAY W10236261 Contact Us For Availability
6
MAY W10243046 MAY W10243046 Contact Us For Availability
6
Glass, Inner MAY 7902P436-60 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY W10170717 MAY W10170717 Contact Us For Availability
7
MAY W10163967 MAY W10163967 Contact Us For Availability
7
MAY W10163969 MAY W10163969 Contact Us For Availability
7
MAY W10171416 MAY W10171416 Contact Us For Availability
7
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
8
ELEMENT (RF) MAY W10162040 Contact Us For Availability
8
LENS, RED MAY 3196068 Contact Us For Availability
8
MAY 3801P918-51 MAY 3801P918-51 Contact Us For Availability
9
ELEMENT (LR & RR) MAY 8273994 Contact Us For Availability
9
BRACKET, CONTROL MAY W10138683 Contact Us For Availability
9
MAY 7003P145-60 MAY 7003P145-60 Contact Us For Availability
9
SCREW, MOUNTING MAY W10241367 Contact Us For Availability
9
MAY W10181695 MAY W10181695 Contact Us For Availability
9
MAY W10181696 MAY W10181696 Contact Us For Availability
9
MAY W10181697 MAY W10181697 Contact Us For Availability
9
MAY W10181698 MAY W10181698 Contact Us For Availability
10
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
10
MAY W10243045 MAY W10243045 Contact Us For Availability
10
MAY 2402W297-19 MAY 2402W297-19 Contact Us For Availability
10
MAY 3406P034-51 MAY 3406P034-51 Contact Us For Availability
11
MAY W10243038 MAY W10243038 Contact Us For Availability
11
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
11
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
12
MAY W10163968 MAY W10163968 Contact Us For Availability
12
MAY W10163970 MAY W10163970 Contact Us For Availability
12
MAY W10171417 MAY W10171417 Contact Us For Availability
12
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
12
MAY W10272883 MAY W10272883 Contact Us For Availability
13
KNOB (WHITE/CHROME) MAY W10211371 Contact Us For Availability
13
KNOB (BLACK/CHROME) MAY W10211372 Contact Us For Availability
13
KNOB (BISQUE) MAY W10211373 Contact Us For Availability
13
MAY W10291145 MAY W10291145 Contact Us For Availability
13
MAY 3196178 MAY 3196178 Contact Us For Availability
13
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
14
Screw (Black) MAY 3196168 Contact Us For Availability
14
MAY 3605P146-51 MAY 3605P146-51 Contact Us For Availability
14
MAY W10097300 MAY W10097300 Contact Us For Availability
14
MAY W10172590 MAY W10172590 Contact Us For Availability
14
MAY W10172591 MAY W10172591 Contact Us For Availability
14
MAY W10214541 MAY W10214541 Contact Us For Availability
14
MAY 8038P037-60 MAY 8038P037-60 Contact Us For Availability
15
PAN, BAKE MAY 3401F084-45 Contact Us For Availability
15
MAY W10161708 MAY W10161708 Contact Us For Availability
15
MAY W10171747 MAY W10171747 Contact Us For Availability
15
MAY W10171748 MAY W10171748 Contact Us For Availability
15
MAY W10171749 MAY W10171749 Contact Us For Availability
16
MAY 3196160 MAY 3196160 Contact Us For Availability
16
MAY W10290904 MAY W10290904 Contact Us For Availability
17
MAY W10260573 MAY W10260573 Contact Us For Availability
18
MAY 9758161 MAY 9758161 Contact Us For Availability
19
MAY W10106438 MAY W10106438 Contact Us For Availability
20
Leg, Leveling MAY 7101P507-60 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
22
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
23
MAY 3604F371-51 MAY 3604F371-51 Contact Us For Availability
24
SCREW, 8AB 1/2 MAY 3196173 Contact Us For Availability
25
MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
MAY 8026P081-60 MAY 8026P081-60 Contact Us For Availability
29
Screw MAY 7101P282-60 Contact Us For Availability
31
Gasket MAY W10162385 Contact Us For Availability
32
MAY 8010P148-60 MAY 8010P148-60 Contact Us For Availability
33
MAY 7106P125-60 MAY 7106P125-60 Contact Us For Availability
34
LIGHT ASSEMBLY MAY 3196701 Contact Us For Availability
35
MAY 3801P798-51 MAY 3801P798-51 Contact Us For Availability
36
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
37
MAY 7403P857-60 MAY 7403P857-60 Contact Us For Availability
38
BULB, OVEN MAY 311255 Contact Us For Availability
39
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
40
MAY 3801P822-45 MAY 3801P822-45 Contact Us For Availability
41
MAY 7406P451-60 MAY 7406P451-60 Contact Us For Availability
42
MAY 3807P680-45 MAY 3807P680-45 Contact Us For Availability
43
MAY W10211367 MAY W10211367 Contact Us For Availability
44
Fan Assy, Convect MAY 7427P099-60 Contact Us For Availability
NI
Screw, Ground MAY 3196154 Contact Us For Availability
NI
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
NI
MAY 4820F014-59 MAY 4820F014-59 Contact Us For Availability
NI
MAY 7002P361-60 MAY 7002P361-60 Contact Us For Availability
NI
MAY 7002P362-60 MAY 7002P362-60 Contact Us For Availability
NI
Insulation, Side MAY W10182346 Contact Us For Availability
NI
MAY W10243056 MAY W10243056 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (BISCUIT (2 OZ.)) MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
BLOCK, WIRE ADAPTER MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10237598 MAY W10237598 Contact Us For Availability
NI
MAY W10237599 MAY W10237599 Contact Us For Availability
NI
MAY W10237623 MAY W10237623 Contact Us For Availability
NI
MAY W10237626 MAY W10237626 Contact Us For Availability
× ![]()
