Model Maytag MER8700DB0 ELECTRIC RANGE – Common Parts & Diagrams

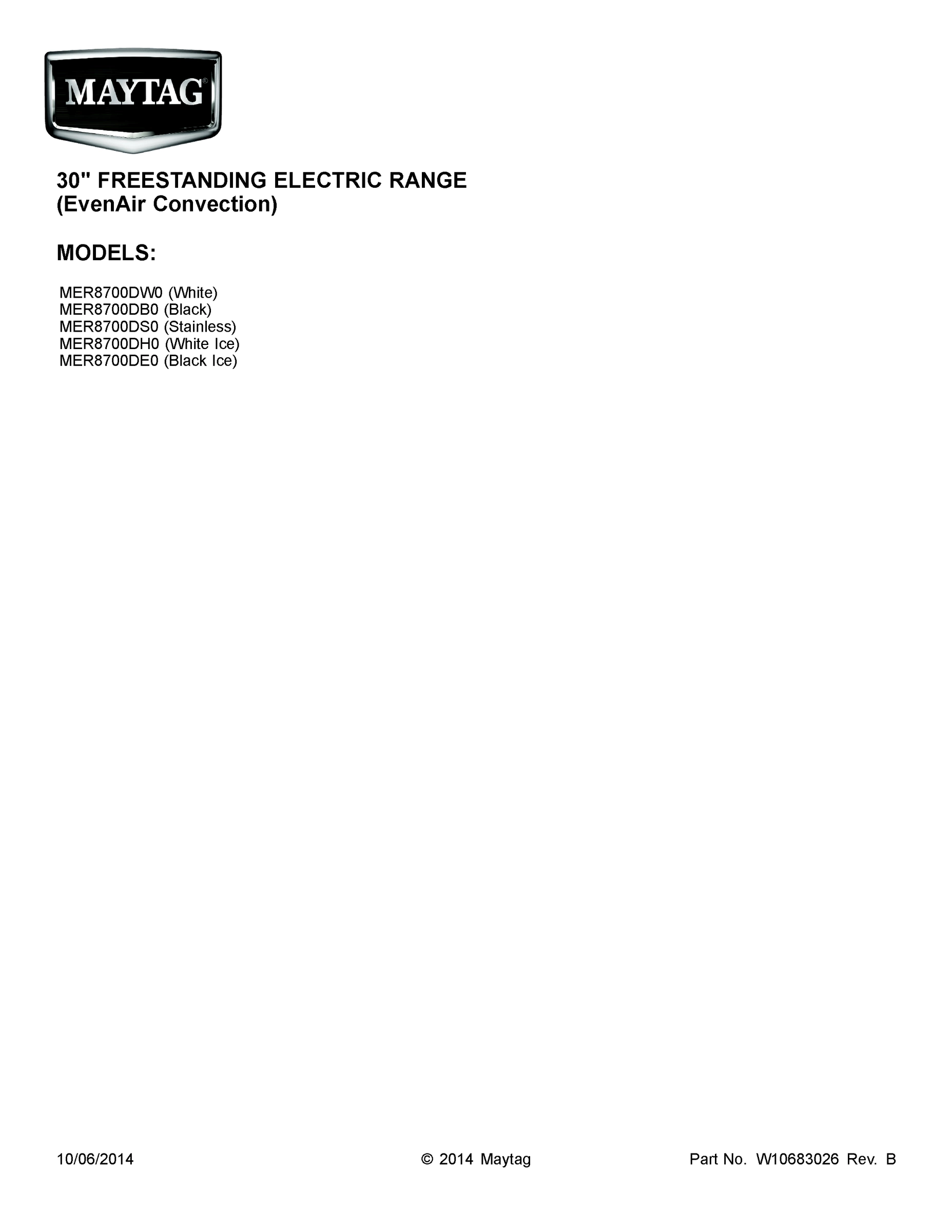

01 - COVER SHEET

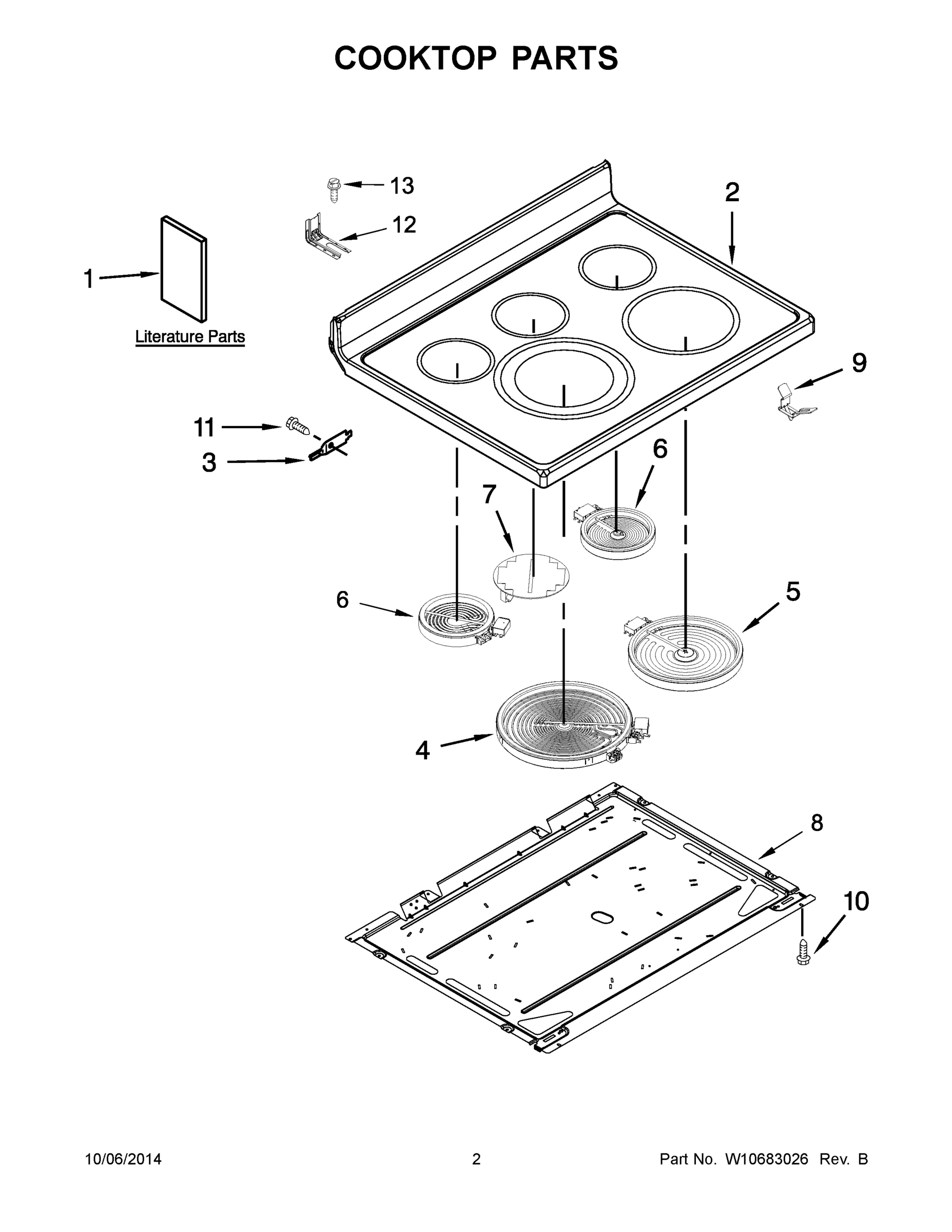

02 - COOKTOP PARTS

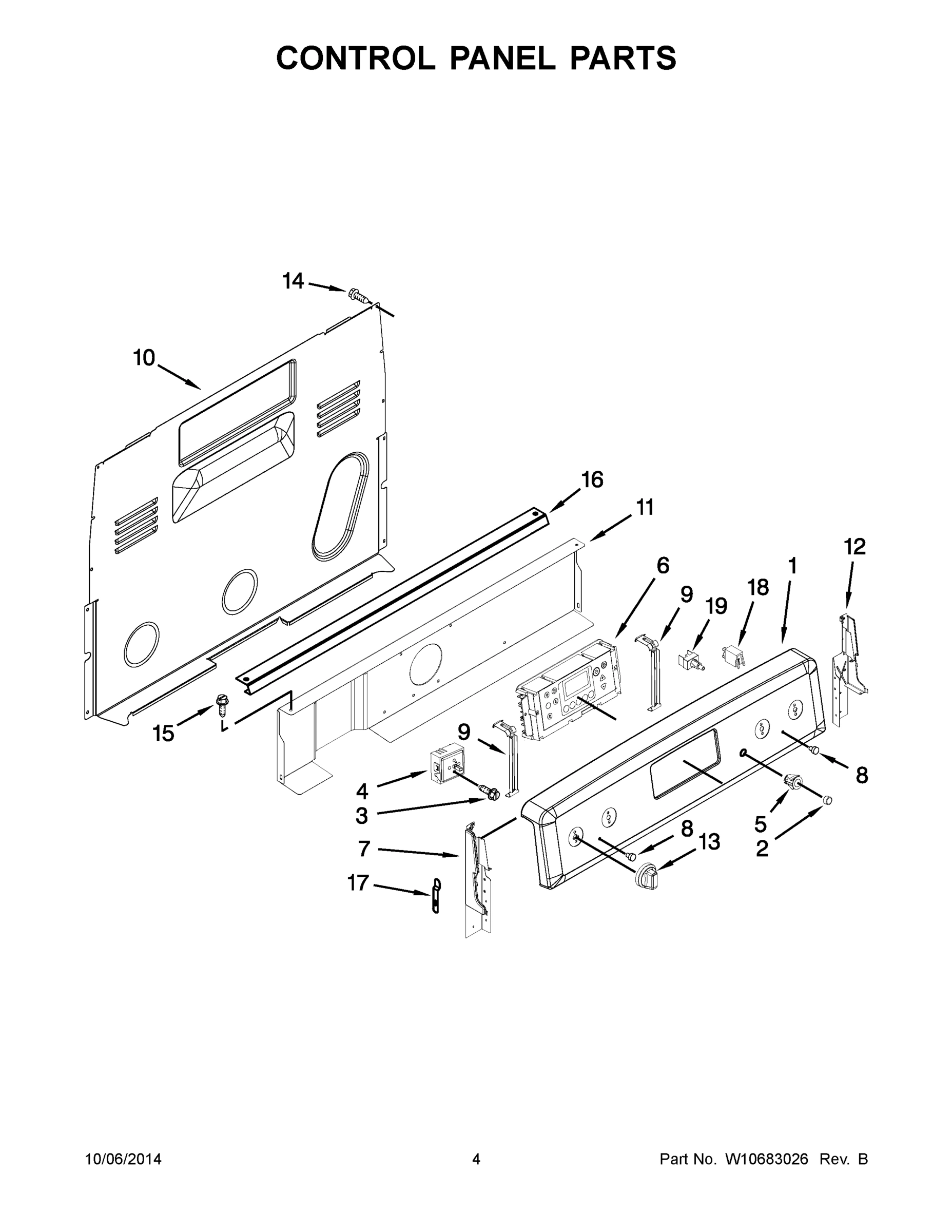

03 - CONTROL PANEL PARTS

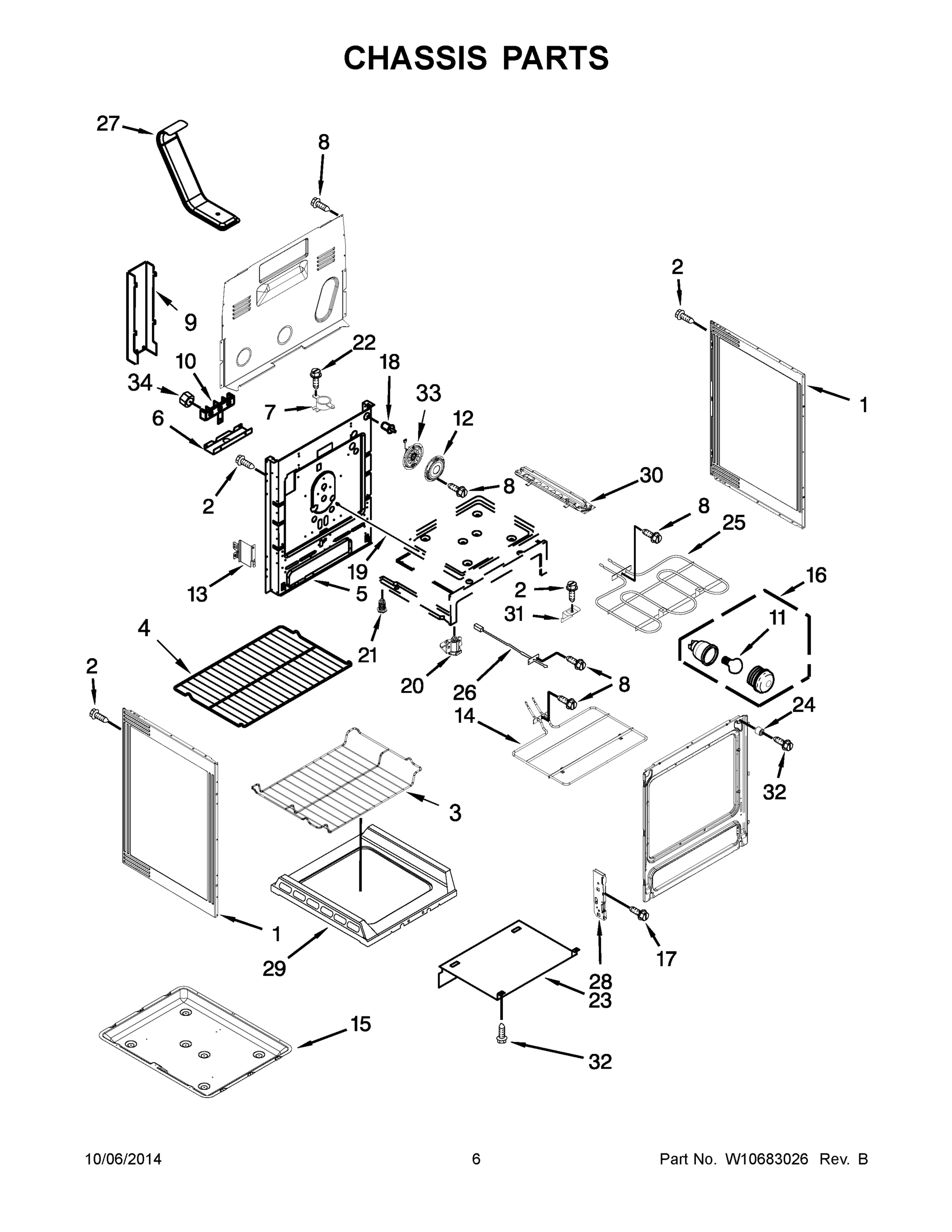

04 - CHASSIS PARTS

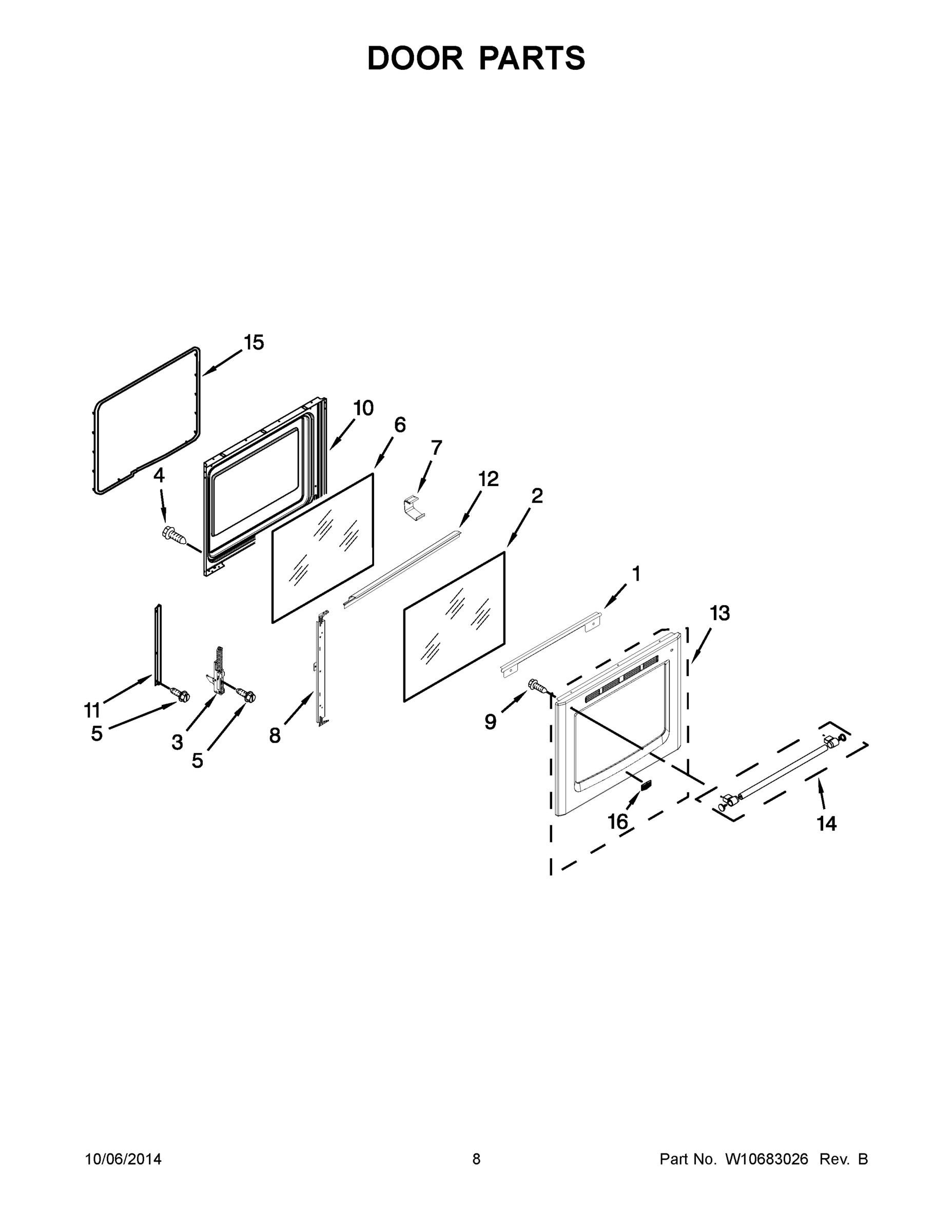

05 - DOOR PARTS

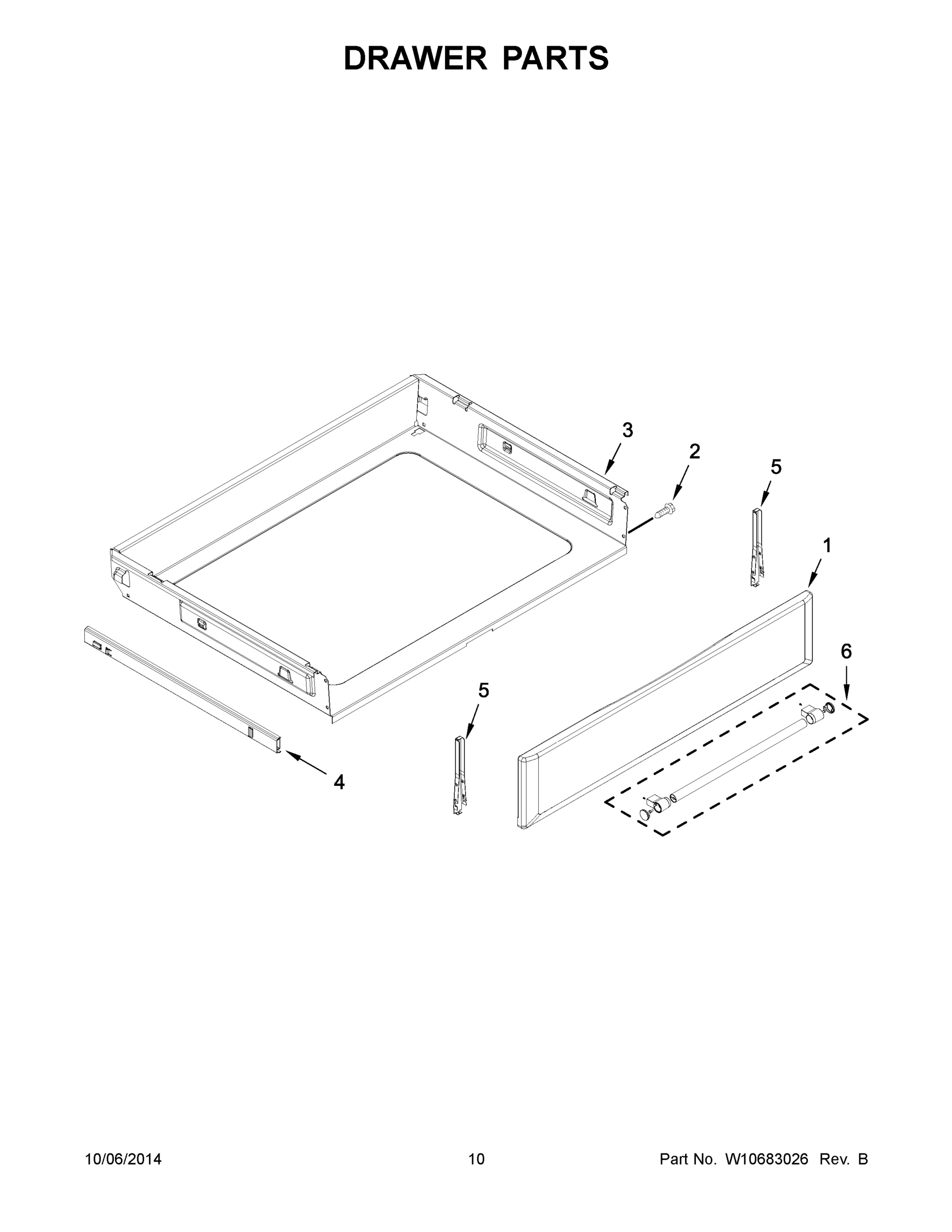

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER8700DB0 ELECTRIC RANGE
1
MAY W10403811 MAY W10403811 Contact Us For Availability
1
MAY W10655839 MAY W10655839 Contact Us For Availability
1
MAY W10322769 MAY W10322769 Contact Us For Availability
1
MAY W10330075 MAY W10330075 Contact Us For Availability
1
MAY W10667934 MAY W10667934 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10667165 Contact Us For Availability
1A
MAY W10655842 MAY W10655842 Contact Us For Availability
1A
MAY W10322770 MAY W10322770 Contact Us For Availability
1A
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1A
MAY W10667935 MAY W10667935 Contact Us For Availability
1B
MAY W10400064 MAY W10400064 Contact Us For Availability
1B
MAY W10655844 MAY W10655844 Contact Us For Availability
1B
MAY W10432480 MAY W10432480 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TECH SHEET, ENGLISH MAY W10667168 Contact Us For Availability
2
MAY W10655902 MAY W10655902 Contact Us For Availability
2
MAY 3196165 MAY 3196165 Contact Us For Availability
2
MAY 9757492 MAY 9757492 Contact Us For Availability
2
MAY W10615599 MAY W10615599 Contact Us For Availability
2A
MAY W10655905 MAY W10655905 Contact Us For Availability
2A
BUTTON, KEEP WARM (BLACK) MAY 9758491 Contact Us For Availability
2B
BUTTON, KEEP WARM (STAINLESS) MAY W10315961 Contact Us For Availability
3
MAY 3195060 MAY 3195060 Contact Us For Availability
3
MAY 3400882 MAY 3400882 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
3
MAY W10300032 MAY W10300032 Contact Us For Availability
4
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
4
MAY 3148951 MAY 3148951 Contact Us For Availability
4
MAY W10531060 MAY W10531060 Contact Us For Availability
4
MAY W10031790 MAY W10031790 Contact Us For Availability
4
MAY W10441804 MAY W10441804 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT FRONT) MAY W10434452 Contact Us For Availability
4A
MAY W10441805 MAY W10441805 Contact Us For Availability
4B
SWITCH, INFINITE (RIGHT FRONT) MAY W10411934 Contact Us For Availability
5
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
5
BEZEL, KEEP WARM (WHITE) MAY W10217760 Contact Us For Availability
5
MAY W10362924 MAY W10362924 Contact Us For Availability
5
MAY W10273169 MAY W10273169 Contact Us For Availability
5
MAY W10318027 MAY W10318027 Contact Us For Availability
5A
MAY W10217758 MAY W10217758 Contact Us For Availability
5B
BEZEL, KEEP WARM (STAINLESS) MAY W10315960 Contact Us For Availability
6
MAY 8273994 MAY 8273994 Contact Us For Availability
6
MAY W10655840 MAY W10655840 Contact Us For Availability
6
MAY 3186034 MAY 3186034 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
ASSEMBLY, HANDLE (WHITE) MAY W10665830 Contact Us For Availability
6A
MAY W10655843 MAY W10655843 Contact Us For Availability
6A
ASSEMBLY, HANDLE (BLACK) MAY W10665829 Contact Us For Availability
6B
CONTROL (STAINLESS) MAY W10655845 Contact Us For Availability
6B
ASSEMBLY, HANDLE (STAINLESS) MAY W10665831 Contact Us For Availability
7
MAY W10388271 MAY W10388271 Contact Us For Availability
7
MAY W10184433 MAY W10184433 Contact Us For Availability
7
MAY 3196548 MAY 3196548 Contact Us For Availability
7
MAY W10137382 MAY W10137382 Contact Us For Availability
7A
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
8
MAY W10691223 MAY W10691223 Contact Us For Availability
8
MAY 3196068 MAY 3196068 Contact Us For Availability
8
MAY W10294851 MAY W10294851 Contact Us For Availability
9
MAY W10225448 MAY W10225448 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
MAY W10326122 MAY W10326122 Contact Us For Availability
9
MAY 8533988 MAY 8533988 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY W10245259 MAY W10245259 Contact Us For Availability
10
MAY W10297318 MAY W10297318 Contact Us For Availability
11
MAY W10134247 MAY W10134247 Contact Us For Availability
11
MAY 311255 MAY 311255 Contact Us For Availability
11
MAY W10294852 MAY W10294852 Contact Us For Availability
12
MAY W10306542 MAY W10306542 Contact Us For Availability
12
MAY W10184434 MAY W10184434 Contact Us For Availability
12
MAY W10346154 MAY W10346154 Contact Us For Availability
12
MAY W10294853 MAY W10294853 Contact Us For Availability
12A
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
13
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
13
MAY W10666901 MAY W10666901 Contact Us For Availability
13
MAY W10273002 MAY W10273002 Contact Us For Availability
13
MAY W10655831 MAY W10655831 Contact Us For Availability
13A
MAY W10655834 MAY W10655834 Contact Us For Availability
13B
MAY W10655838 MAY W10655838 Contact Us For Availability
14
MAY W10289097 MAY W10289097 Contact Us For Availability
15
MAY W10346147 MAY W10346147 Contact Us For Availability
15
MAY W10162385 MAY W10162385 Contact Us For Availability
16
MAY W10525121 MAY W10525121 Contact Us For Availability
16
MAY W10454648 MAY W10454648 Contact Us For Availability
16
MAY W10636267 MAY W10636267 Contact Us For Availability
17
MAY 3196200 MAY 3196200 Contact Us For Availability
17
MAY W10031780 MAY W10031780 Contact Us For Availability
18
MAY 8523265 MAY 8523265 Contact Us For Availability
18
MAY W10627802 MAY W10627802 Contact Us For Availability
19
MAY 8272820 MAY 8272820 Contact Us For Availability
19
MAY W10273192 MAY W10273192 Contact Us For Availability
20
MAY W10341186 MAY W10341186 Contact Us For Availability
21
MAY W10058460 MAY W10058460 Contact Us For Availability
22
MAY 3196172 MAY 3196172 Contact Us For Availability
23
SHIELD, HEAT MAY W10289099 Contact Us For Availability
24
SPACER, DOOR MAY 9758701 Contact Us For Availability
25
ELEMENT, BROIL MAY W10544951 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
MAY W10134285 MAY W10134285 Contact Us For Availability
28
MAY W10289077 MAY W10289077 Contact Us For Availability
29
MAY W10289079 MAY W10289079 Contact Us For Availability
30
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
30A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
31
MAY W10035900 MAY W10035900 Contact Us For Availability
33
MAY W10389555 MAY W10389555 Contact Us For Availability
34
MAY 3400029 MAY 3400029 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SENSOR MAY W10083650 Contact Us For Availability
NI
MAY W10278580 MAY W10278580 Contact Us For Availability
NI
HARNESS, COOKTOP (RIGHT) MAY W10349654 Contact Us For Availability
NI
HARNESS, COOKTOP (LEFT) MAY W10349708 Contact Us For Availability
NI
MAY W10349714 MAY W10349714 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY W10194393 MAY W10194393 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10225523 Contact Us For Availability
NI
MAY W10225524 MAY W10225524 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, COOKTOP PROTECTANT MAY 31463 Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN MAY 4396923 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
MAY W10205524 MAY W10205524 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
