Model Maytag MER7775WW2 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

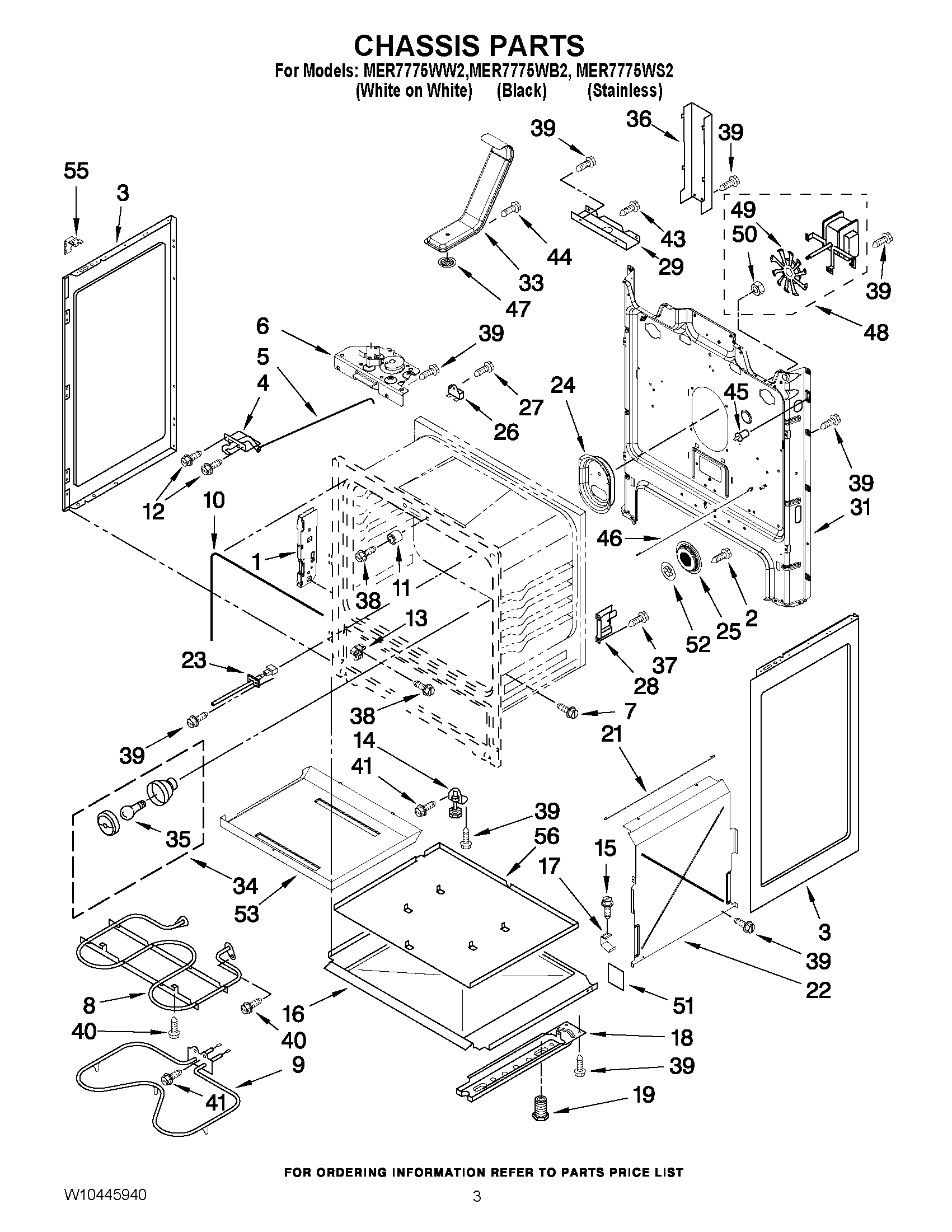

03 - CHASSIS PARTS

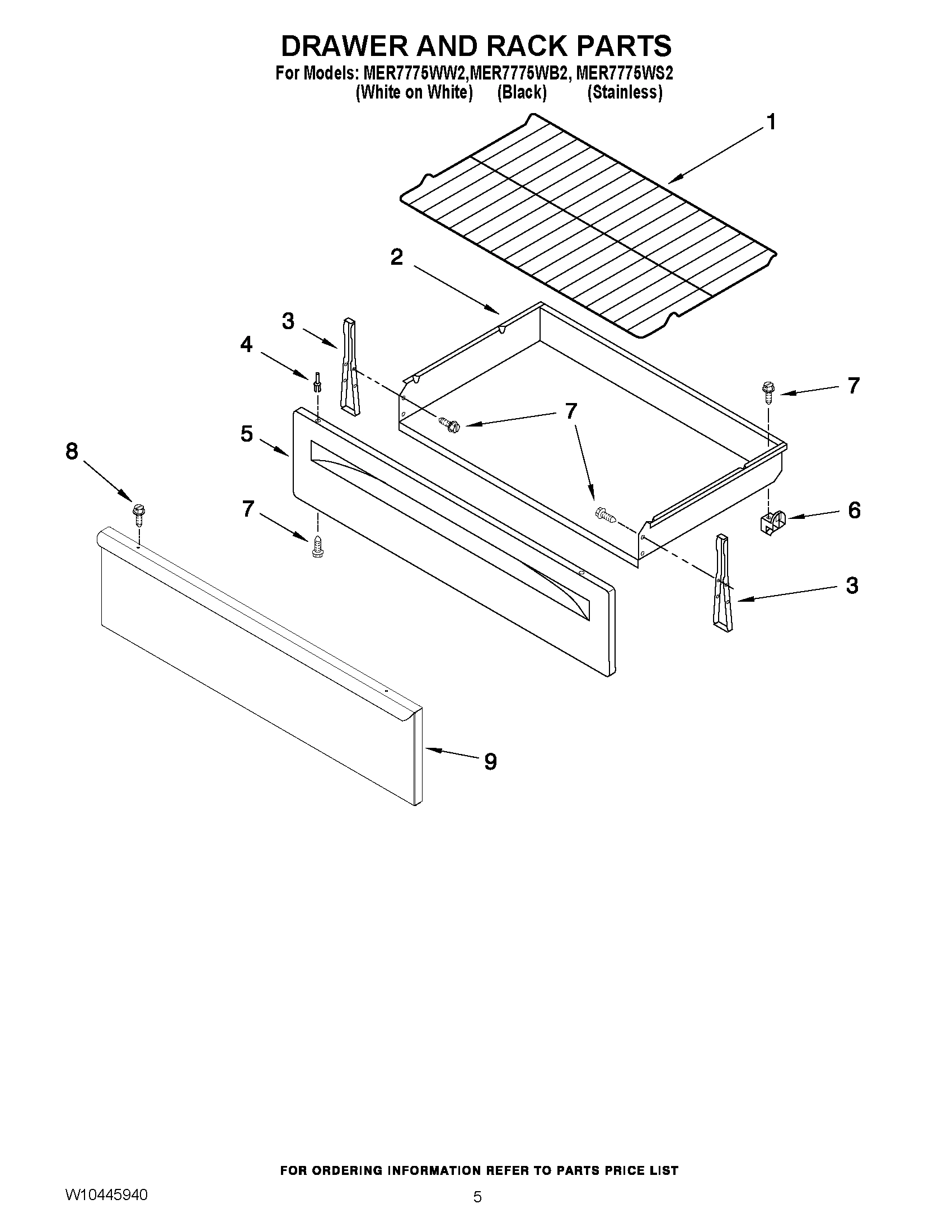

04 - DRAWER AND RACK PARTS

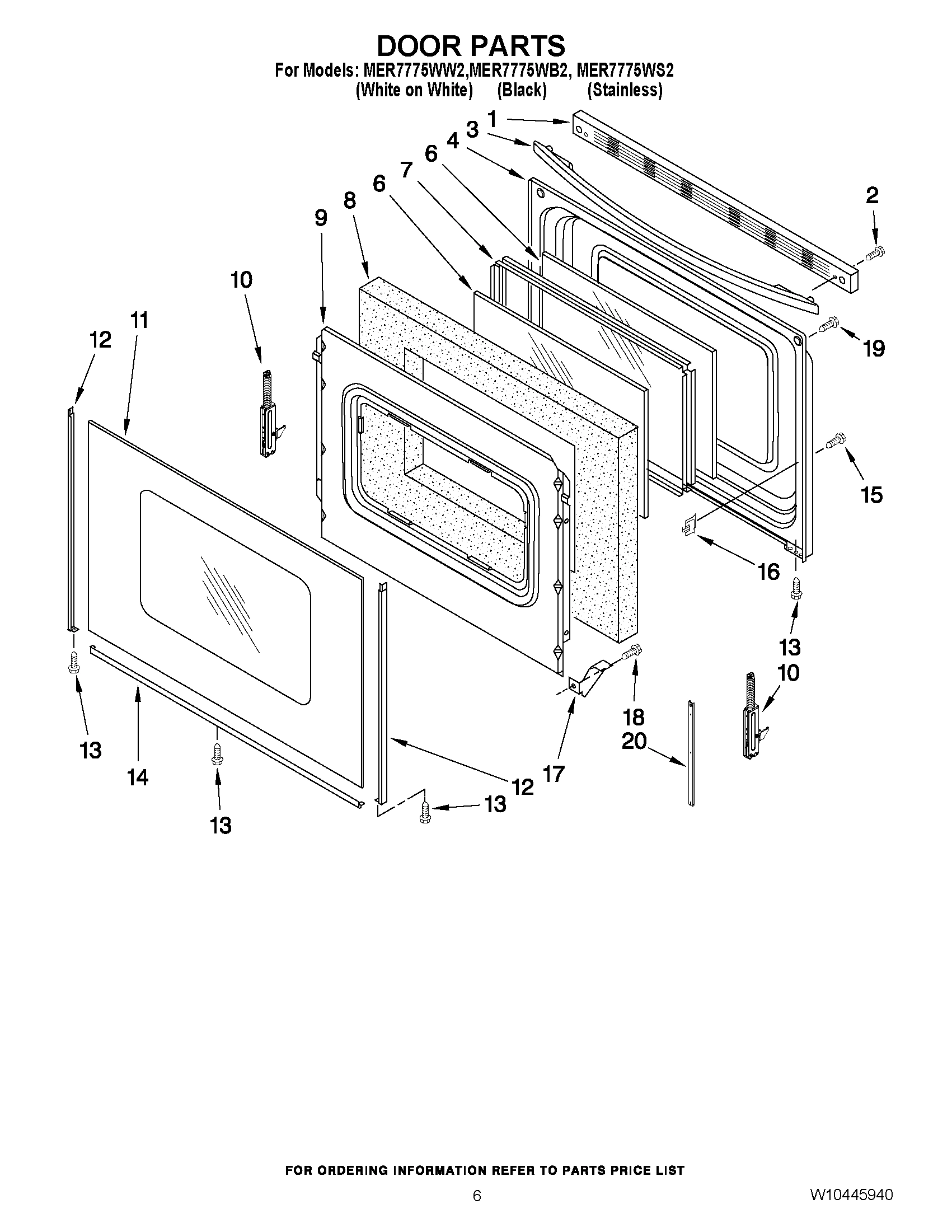

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag MER7775WW2 ELECTRIC RANGE
1
MAY 9757142 MAY 9757142 Contact Us For Availability
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips MAY 9762761 Contact Us For Availability
1
MAY W10252706 MAY W10252706 Contact Us For Availability
1
MAY W10269526 MAY W10269526 Contact Us For Availability
1
TECH SHEET MAY W10434982 Contact Us For Availability
1
ENDCAP (WHITE LH) MAY W10184433 Contact Us For Availability
1
ENDCAP (WHITE RH) MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK LH) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK RH) MAY W10184438 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
Clip MAY 8273564 Contact Us For Availability
2
MAY 4449809 MAY 4449809 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10200660 MAY W10200660 Contact Us For Availability
3
Screw MAY 3196170 Contact Us For Availability
3
MAY W10292013 MAY W10292013 Contact Us For Availability
3
MAY W10292015 MAY W10292015 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY W10292016 Contact Us For Availability
3
PANEL, SIDE (WHITE-TEXTURED) MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRACKET, DRAWER MAY W10174396 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
4
MAY W10211392 MAY W10211392 Contact Us For Availability
4
MAY W10211393 MAY W10211393 Contact Us For Availability
4
SWITCH, INFINITE (LF,RF) MAY W10295576 Contact Us For Availability
4
SWITCH, INFINITE (LR,RR) MAY W10434452 Contact Us For Availability
4
Latch, Door MAY 9761013 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
Element, Surface (1200 W - LR & RR) MAY 8273994 Contact Us For Availability
5
ELEMENT, SURFACE (3000/1900W (LF)) MAY W10162040 Contact Us For Availability
5
ELEMENT, SURFACE (3000/1400W - RF) MAY W10275048 Contact Us For Availability
5
MAY W10078380 MAY W10078380 Contact Us For Availability
5
Drawer Front (White) MAY 8053339 Contact Us For Availability
5
Drawer Front (Black) MAY 8053341 Contact Us For Availability
6
Hinge, Pin/Cooktop MAY 3195060 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
Latch Asy, Rear MAY W10107830 Contact Us For Availability
6
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
MAY 3196169 MAY 3196169 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
Screw MAY 3196168 Contact Us For Availability
7
MAY W10067840 MAY W10067840 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY W10170526 MAY W10170526 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY W10308476 MAY W10308476 Contact Us For Availability
8
MAY 8272618 MAY 8272618 Contact Us For Availability
9
Screw (White) MAY 3196166 Contact Us For Availability
9
MAY W10308474 MAY W10308474 Contact Us For Availability
9
CLIP(STLS.MODEL) MAY 9781235 Contact Us For Availability
9
Retainer, Insltn MAY 9761357 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Seal, Oven Door MAY 8522416 Contact Us For Availability
10
PANEL(STLS. MODEL) MAY W10237657 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
MAY W10182322 MAY W10182322 Contact Us For Availability
11
Spacer, Door MAY 9758701 Contact Us For Availability
11
GLASS, OUTER DOOR (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER DOOR (WHITE) MAY W10106404 Contact Us For Availability
11
GLASS, OUTER DOOR (BLACK) MAY W10106405 Contact Us For Availability
12
MAY W10271836 MAY W10271836 Contact Us For Availability
12
MAY W10271837 MAY W10271837 Contact Us For Availability
12
MAY 3196560 MAY 3196560 Contact Us For Availability
12
TRIM, SIDE (BLACK RH) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE RH) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK LH) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE LH) MAY 8523172 Contact Us For Availability
13
Glide, Drawer MAY W10114344 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
SWITCH, ROCKER (BLACK) MAY 3148564 Contact Us For Availability
14
SWITCH, ROCKER (WHITE) MAY 3149360 Contact Us For Availability
14
FOOT, FRONT MAY W10341186 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
MAY W10134121 MAY W10134121 Contact Us For Availability
17
MAY 3196200 MAY 3196200 Contact Us For Availability
17
MAY W10137382 MAY W10137382 Contact Us For Availability
18
RAIL, BASE MAY 9760314 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
19
FOOT, REAR MAY W10058460 Contact Us For Availability
19
MAY W10031780 MAY W10031780 Contact Us For Availability
20
STRAP, DOOR MAY W10113759 Contact Us For Availability
21
MAY W10196451 MAY W10196451 Contact Us For Availability
22
RETAINER, SIDE MAY 9758238 Contact Us For Availability
23
MAY W10181986 MAY W10181986 Contact Us For Availability
24
MAY W10134126 MAY W10134126 Contact Us For Availability
25
MAY W10134124 MAY W10134124 Contact Us For Availability
26
MAY 3196548 MAY 3196548 Contact Us For Availability
27
MAY 3196172 MAY 3196172 Contact Us For Availability
28
SUPPORT, OVEN MAY W10289077 Contact Us For Availability
29
MAY 3186034 MAY 3186034 Contact Us For Availability
31
MAY 9757029 MAY 9757029 Contact Us For Availability
33
Vent Tube Asm MAY W10134285 Contact Us For Availability
34
MAY 3196701 MAY 3196701 Contact Us For Availability
35
MAY 311255 MAY 311255 Contact Us For Availability
36
COVER, BOX MAY W10326122 Contact Us For Availability
39
MAY 3196178 MAY 3196178 Contact Us For Availability
40
Screw MAY 3196174 Contact Us For Availability
41
Screw MAY 3196179 Contact Us For Availability
43
MAY 3400016 MAY 3400016 Contact Us For Availability
44
MAY 3196566 MAY 3196566 Contact Us For Availability
45
Switch, Door MAY 9757238 Contact Us For Availability
46
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
47
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
48
Fan, Motor Cnvctn MAY W10167917 Contact Us For Availability
49
MAY W10116351 MAY W10116351 Contact Us For Availability
50
MAY W10213748 MAY W10213748 Contact Us For Availability
51
MAY 9759689 MAY 9759689 Contact Us For Availability
52
MAY 3400968 MAY 3400968 Contact Us For Availability
53
TRAY-BAKE, HIDDEN MAY W10183712 Contact Us For Availability
55
CLIP, SPRING MAY W10183541 Contact Us For Availability
56
MAY W10134125 MAY W10134125 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10326347 MAY W10326347 Contact Us For Availability
NI
INSULATION, VENT MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
Screw, Ground MAY 3196154 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Harness, Wire (Bake, Hidden) MAY 9757339 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10174428 Contact Us For Availability
NI
KIT, BARE WIRE MAY W10281322 Contact Us For Availability
NI
MAY W10349654 MAY W10349654 Contact Us For Availability
NI
MAY W10349661 MAY W10349661 Contact Us For Availability
NI
MAY W10349663 MAY W10349663 Contact Us For Availability
× ![]()
