Model Maytag MER6875BCB17 ELECTRIC RANGE – Common Parts & Diagrams

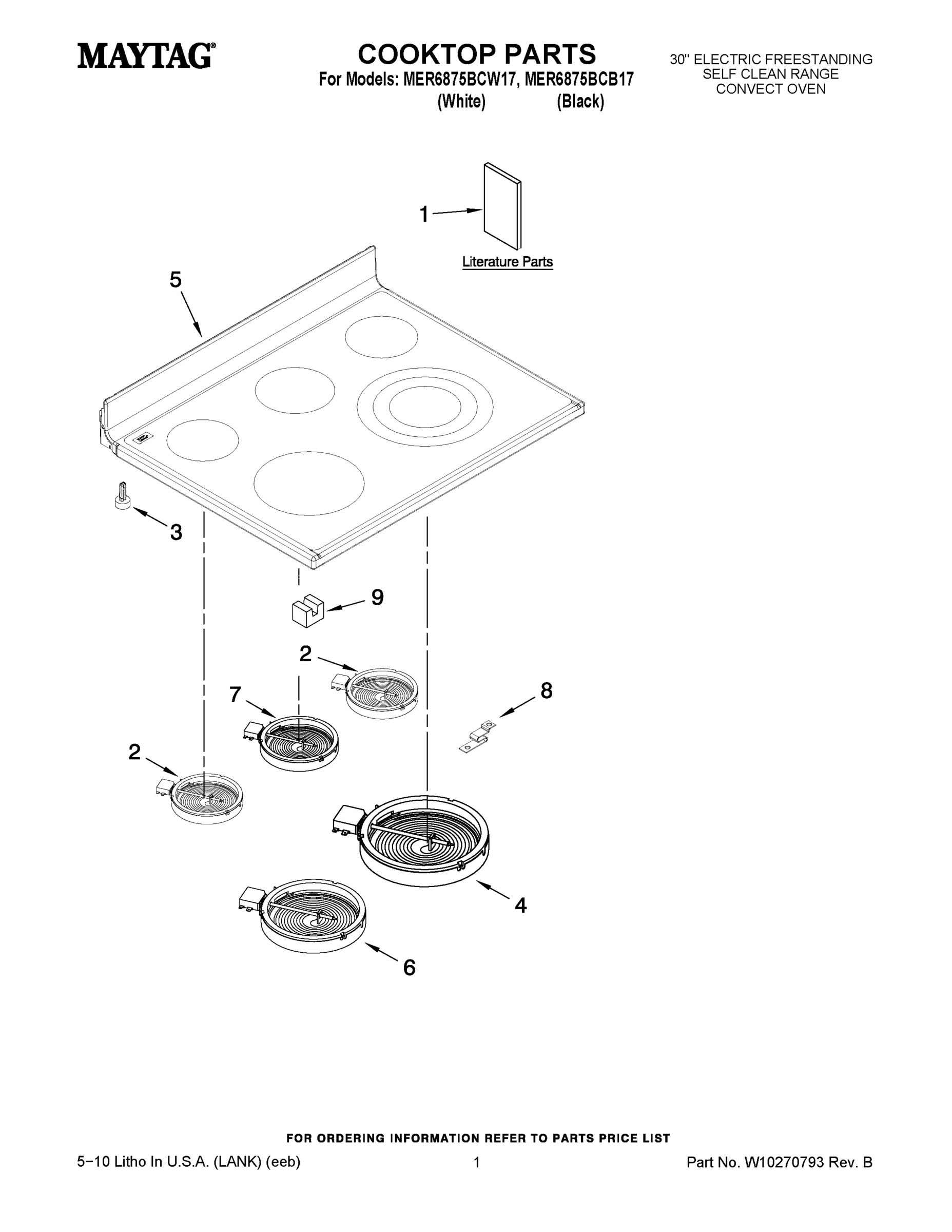

01 - COOKTOP PARTS

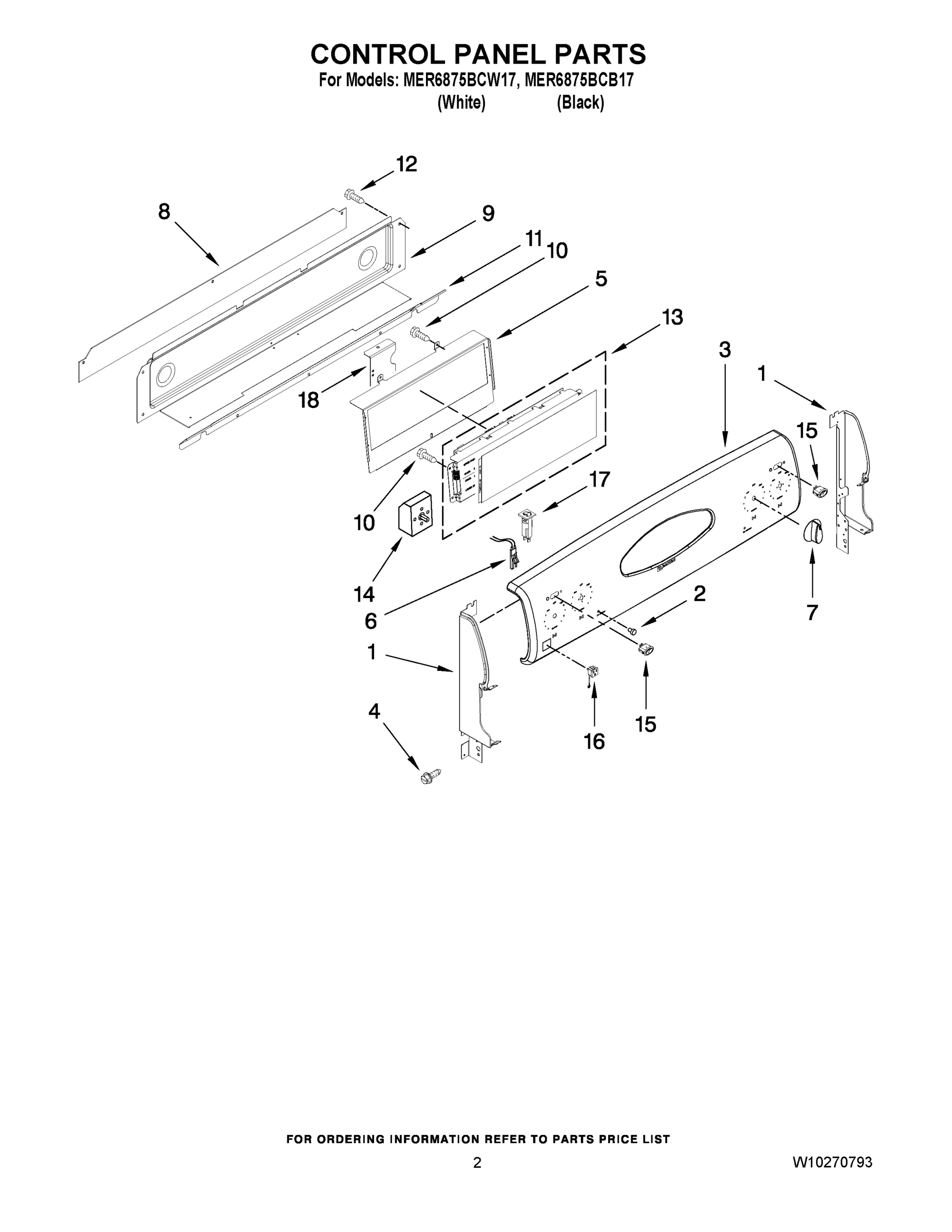

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - UPPER DOOR PARTS
05 - LOWER DOOR PARTS
06 - RACK AND ELEMENT PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER6875BCB17 ELECTRIC RANGE
1
OWNERS MANUAL TIPS, BROCHURE MAY 8113P710-60 Contact Us For Availability
1
MAY 8119P437-60 MAY 8119P437-60 Contact Us For Availability
1
MAY 8119P438-60 MAY 8119P438-60 Contact Us For Availability
1
SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
1
MAY 7701P517-60 MAY 7701P517-60 Contact Us For Availability
1
RACK, OVEN (2) MAY 7801P173-60 Contact Us For Availability
2
Element (RR,LR) MAY 8273994 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
GLASS, DOOR (INCL. FOIL TAPE) (WHITE) MAY 7902P736-60 Contact Us For Availability
2
GLASS, DOOR (INCL. FOIL TAPE) (BLACK) MAY 7902P797-60 Contact Us For Availability
2
MAY 7406P427-60 MAY 7406P427-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
MAY 2602D356-09 MAY 2602D356-09 Contact Us For Availability
3
MAY 2602D356-81 MAY 2602D356-81 Contact Us For Availability
3
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
4
ELEMENT (RF) MAY W10259005 Contact Us For Availability
4
Panel, Side (Black) (2) MAY 2618F194-70 Contact Us For Availability
4
Panel, Side (White) (2) MAY 2618F194-71 Contact Us For Availability
4
MAY 7902P521-60 MAY 7902P521-60 Contact Us For Availability
4
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
4
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
4
MAY W10310271 MAY W10310271 Contact Us For Availability
5
MAY 5706X616-09 MAY 5706X616-09 Contact Us For Availability
5
MAY 5706X625-81 MAY 5706X625-81 Contact Us For Availability
5
MAY 3801F851-51 MAY 3801F851-51 Contact Us For Availability
5
MAY 3801F656-51 MAY 3801F656-51 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
5
MAY 3807F494-45 MAY 3807F494-45 Contact Us For Availability
6
MAY W10187837 MAY W10187837 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY 4005F747-51 MAY 4005F747-51 Contact Us For Availability
6
Screw (10ABx1/4P) MAY 7101P208-60 Contact Us For Availability
6
MAY W10310249 MAY W10310249 Contact Us For Availability
7
ELEMENT (CTR) MAY 7406P497-60 Contact Us For Availability
7
KNOBS (BLACK (4)) MAY 7737P232-60 Contact Us For Availability
7
KNOBS (WHITE (4)) MAY 7737P234-60 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
Baffle, Door MAY 3601F354-45 Contact Us For Availability
7
SCREW, HANDLE MAY 7101P681-60 Contact Us For Availability
7
MAY 3807F749-45 MAY 3807F749-45 Contact Us For Availability
8
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
MAY 3807F708-70 MAY 3807F708-70 Contact Us For Availability
8
MAY 3807F708-71 MAY 3807F708-71 Contact Us For Availability
8
MAY 7406P474-60 MAY 7406P474-60 Contact Us For Availability
9
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
9
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
9
MAY 3604F440-51 MAY 3604F440-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
MAY W10251904 MAY W10251904 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7430P042-60 MAY 7430P042-60 Contact Us For Availability
10
MAY 7430P044-60 MAY 7430P044-60 Contact Us For Availability
10
MAY 3804F179-45 MAY 3804F179-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
10
Rack, Oven (Upper) MAY W10273816 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
SPACER, TOP (RIGHT) MAY 8010P087-60 Contact Us For Availability
11
MAY 8010P088-60 MAY 8010P088-60 Contact Us For Availability
11
GLASS, DOOR (INCL. FOIL TAPE) (WHITE) MAY 7902P733-60 Contact Us For Availability
11
GLASS, DOOR (INCL. FOIL TAPE) (BLACK) MAY 7902P799-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY 5701M797-60 MAY 5701M797-60 Contact Us For Availability
13
MAY 5701M799-60 MAY 5701M799-60 Contact Us For Availability
13
MAY 4005F592-51 MAY 4005F592-51 Contact Us For Availability
14
SWITCH, INFINITE (LR,RR (2)) MAY 7403P877-60 Contact Us For Availability
14
Switch, Infinite (RF MAY 7450P011-60 Contact Us For Availability
14
SWITCH, INFINITE (LF) MAY 7450P095-60 Contact Us For Availability
14
MAY W10167412 MAY W10167412 Contact Us For Availability
14
Screw MAY 7101P282-60 Contact Us For Availability
14
MAY 3608F116-70 MAY 3608F116-70 Contact Us For Availability
14
MAY 3608F116-71 MAY 3608F116-71 Contact Us For Availability
15
SWITCH, ROCKER (WHITE) MAY 7403P926-60 Contact Us For Availability
15
SWITCH, ROCKER (BLACK) MAY 7403P985-60 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
MAY 3608F117-70 MAY 3608F117-70 Contact Us For Availability
15
MAY 3608F117-71 MAY 3608F117-71 Contact Us For Availability
16
RECEPTACLE, OUTLET MAY 7408P056-60 Contact Us For Availability
16
MAY 4002F332-51 MAY 4002F332-51 Contact Us For Availability
16
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
17
MAY 7429P007-60 MAY 7429P007-60 Contact Us For Availability
17
MAY 3608F141-70 MAY 3608F141-70 Contact Us For Availability
17
MAY 3608F141-71 MAY 3608F141-71 Contact Us For Availability
18
MAY 3801F930-51 MAY 3801F930-51 Contact Us For Availability
18
MAY 3608F118-70 MAY 3608F118-70 Contact Us For Availability
18
MAY 3608F118-71 MAY 3608F118-71 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 8034P008-60 MAY 8034P008-60 Contact Us For Availability
19
MAY 3608F119-70 MAY 3608F119-70 Contact Us For Availability
19
MAY 3608F119-71 MAY 3608F119-71 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
MAY 7407P181-60 MAY 7407P181-60 Contact Us For Availability
20
MAY 7103P039-60 MAY 7103P039-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
20
MAY 7902P520-60 MAY 7902P520-60 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
MAY 8036P012-60 MAY 8036P012-60 Contact Us For Availability
23
SUPPORT, LWR OVEN MAY W10260703 Contact Us For Availability
23
HINGE, DOOR MAY 7106P148-60 Contact Us For Availability
24
SWITCH, HI-LIMIT (176 F/216 F) MAY 7403P993-60 Contact Us For Availability
25
RELAY, AUXILARY MAY 7428P082-60 Contact Us For Availability
26
MAY 8002P078-60 MAY 8002P078-60 Contact Us For Availability
27
BOTTOM, BURNER BOX (RIGHT) MAY W10283688 Contact Us For Availability
27
BOTTOM, BURNER BOX (LEFT) MAY W10283722 Contact Us For Availability
28
MAY 7201P089-60 MAY 7201P089-60 Contact Us For Availability
29
MAY 3604F335-51 MAY 3604F335-51 Contact Us For Availability
30
MAY 4022W017-45 MAY 4022W017-45 Contact Us For Availability
31
MAY 4006W129-45 MAY 4006W129-45 Contact Us For Availability
31
MAY 4006W139-45 MAY 4006W139-45 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
MAY W10190166 MAY W10190166 Contact Us For Availability
34
MAY 7212P066-60 MAY 7212P066-60 Contact Us For Availability
36
MAY 7450P108-60 MAY 7450P108-60 Contact Us For Availability
37
MAY 7718P030-60 MAY 7718P030-60 Contact Us For Availability
38
MAY 3608F091-70 MAY 3608F091-70 Contact Us For Availability
39
MAY W10206588 MAY W10206588 Contact Us For Availability
40
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
41
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
42
INSULATOR, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
NI
INSULATION, BOTTOM LOWER MAY 7002P233-60 Contact Us For Availability
NI
MAY 7002P276-60 MAY 7002P276-60 Contact Us For Availability
NI
INSULATION, BACK (LOWER) MAY 7002P434-60 Contact Us For Availability
NI
INSULATION, OVEN WRAP MAY 7002P475-60 Contact Us For Availability
NI
INSULATION, FRONT MAY 7002P490-60 Contact Us For Availability
NI
INSULATION, WRAP (UPPER) MAY W10215032 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
MAY 5171P496-60 MAY 5171P496-60 Contact Us For Availability
NI
HARNESS, DOOR LOCK UPPER MAY 5171P498-60 Contact Us For Availability
NI
HARNESS, UPPER LIGHT MAY 5171P715-60 Contact Us For Availability
NI
HARNESS, INF.SW. (RIGHT) MAY 5171P859-60 Contact Us For Availability
NI
MAY 5171P921-60 MAY 5171P921-60 Contact Us For Availability
NI
HARNESS, INF.SW. (LEFT) MAY 5171P922-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY W10196184 MAY W10196184 Contact Us For Availability
NI
MAY W10221102 MAY W10221102 Contact Us For Availability
× ![]()
