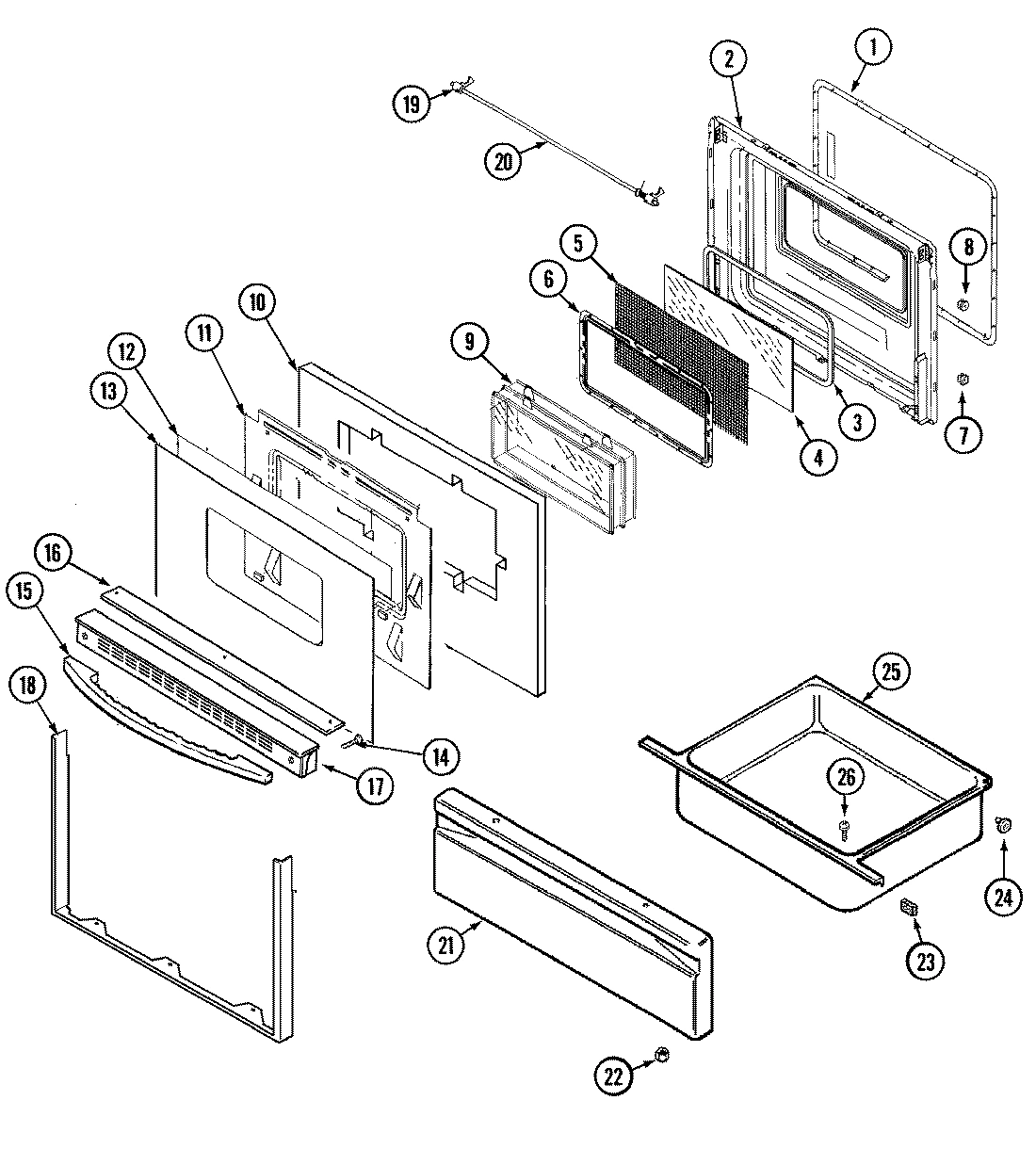

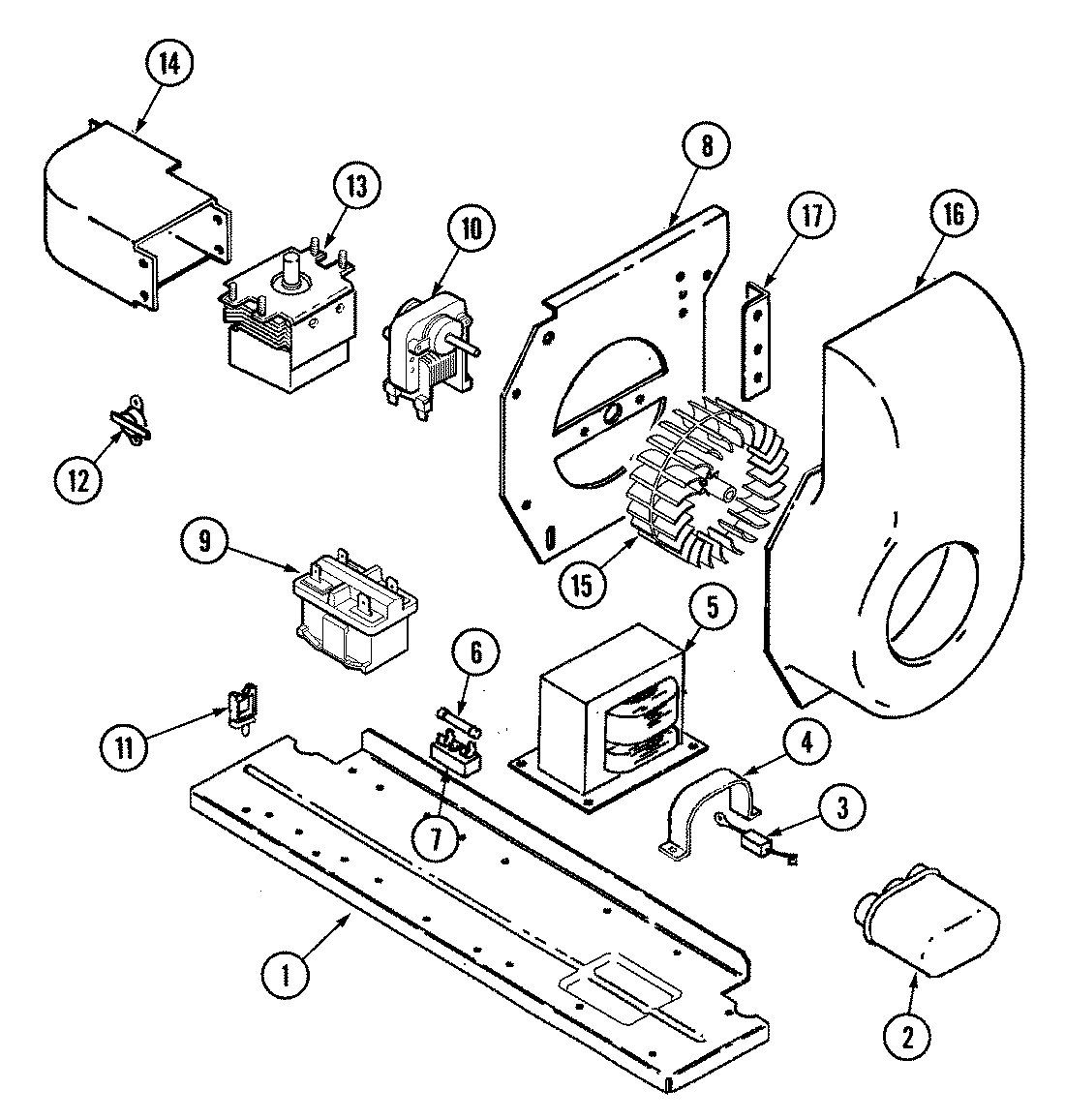

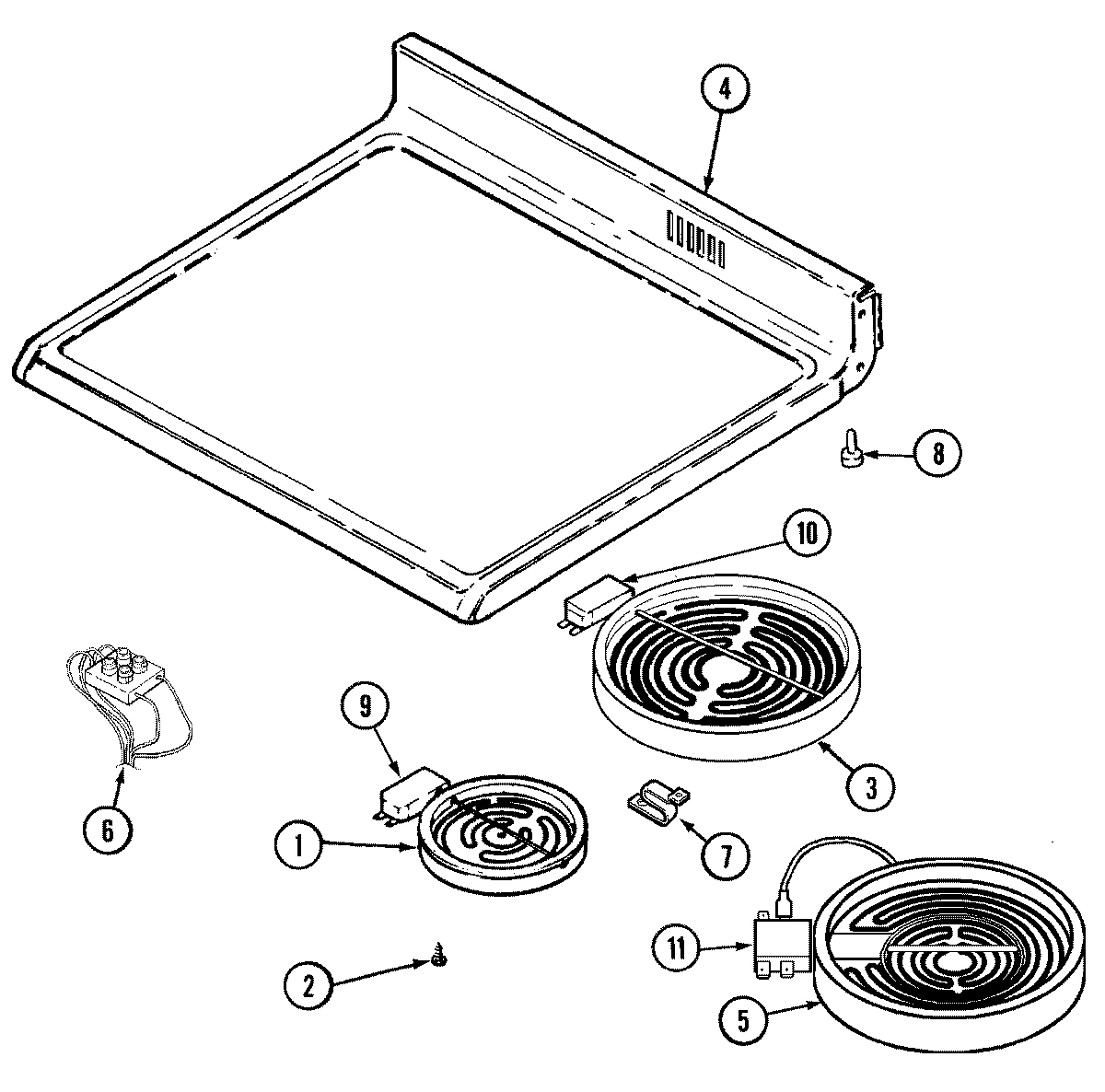

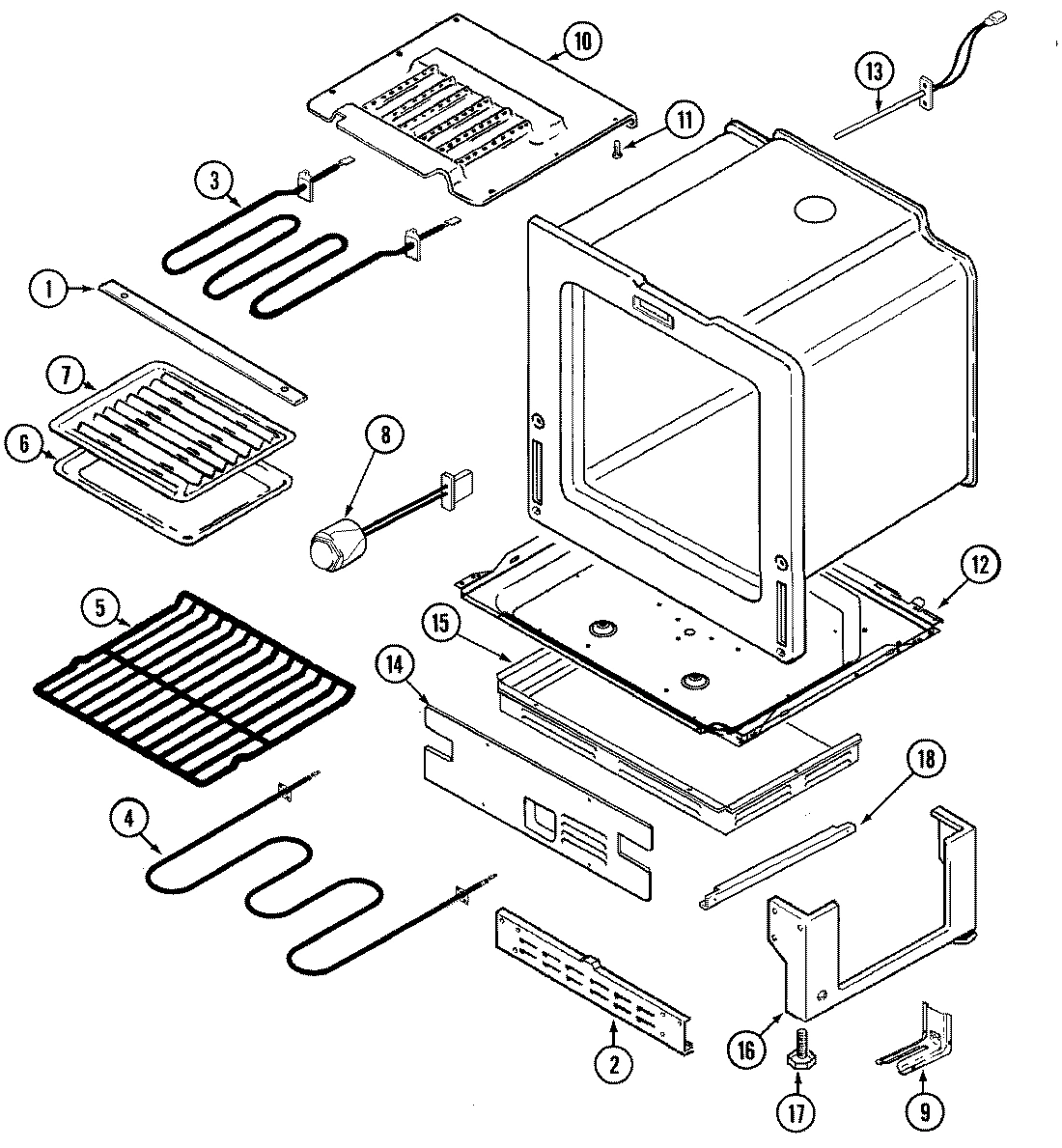

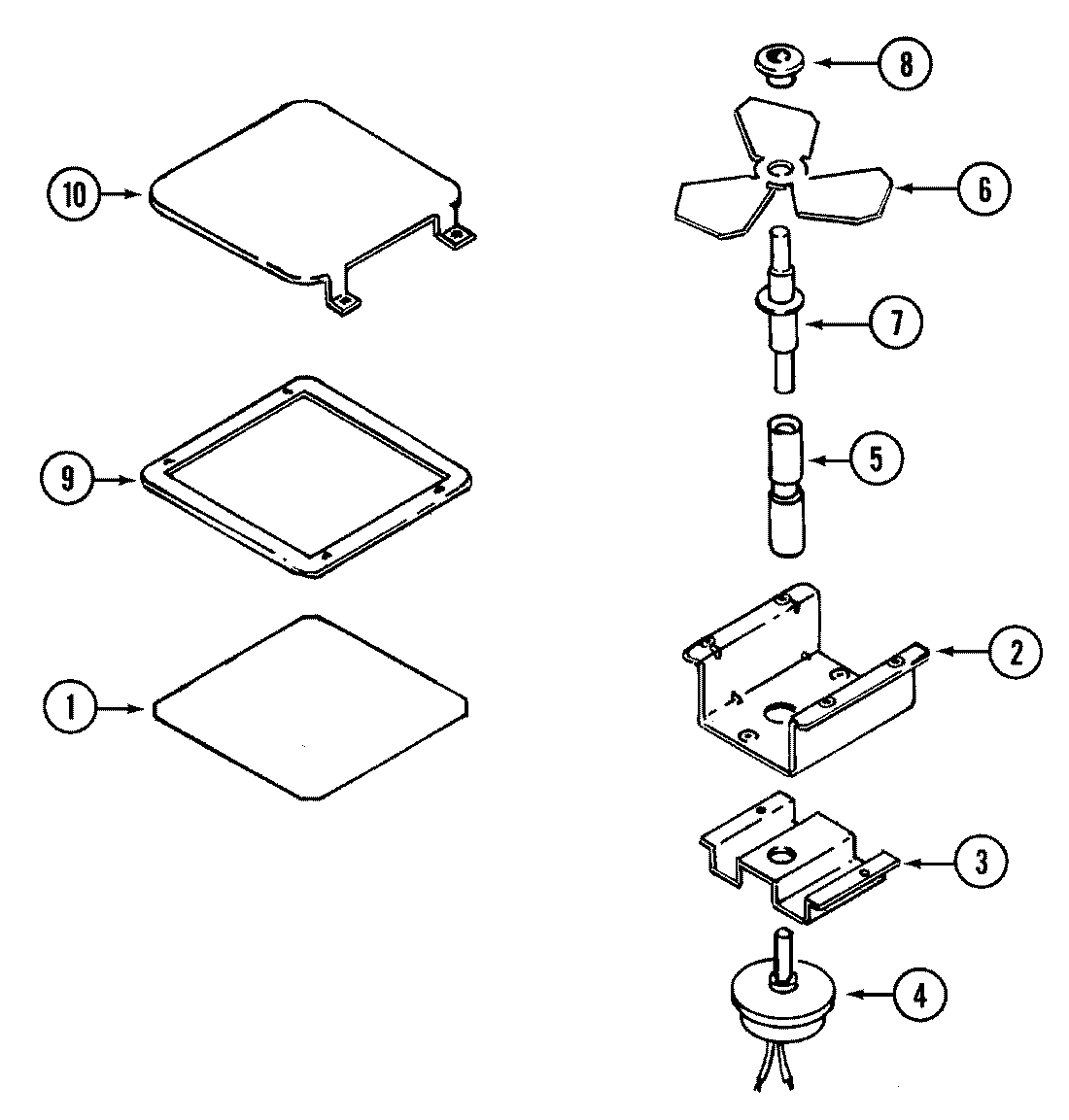

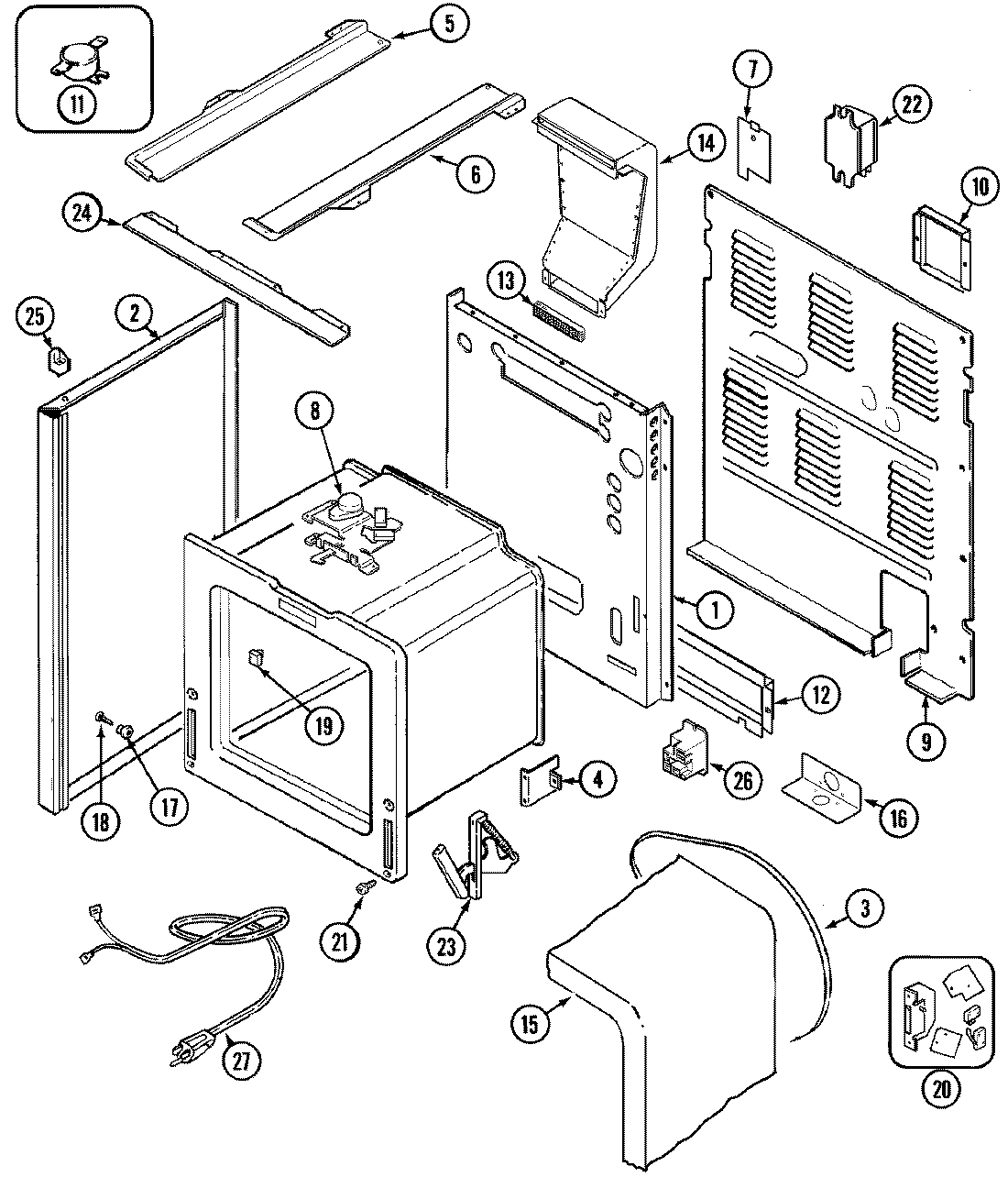

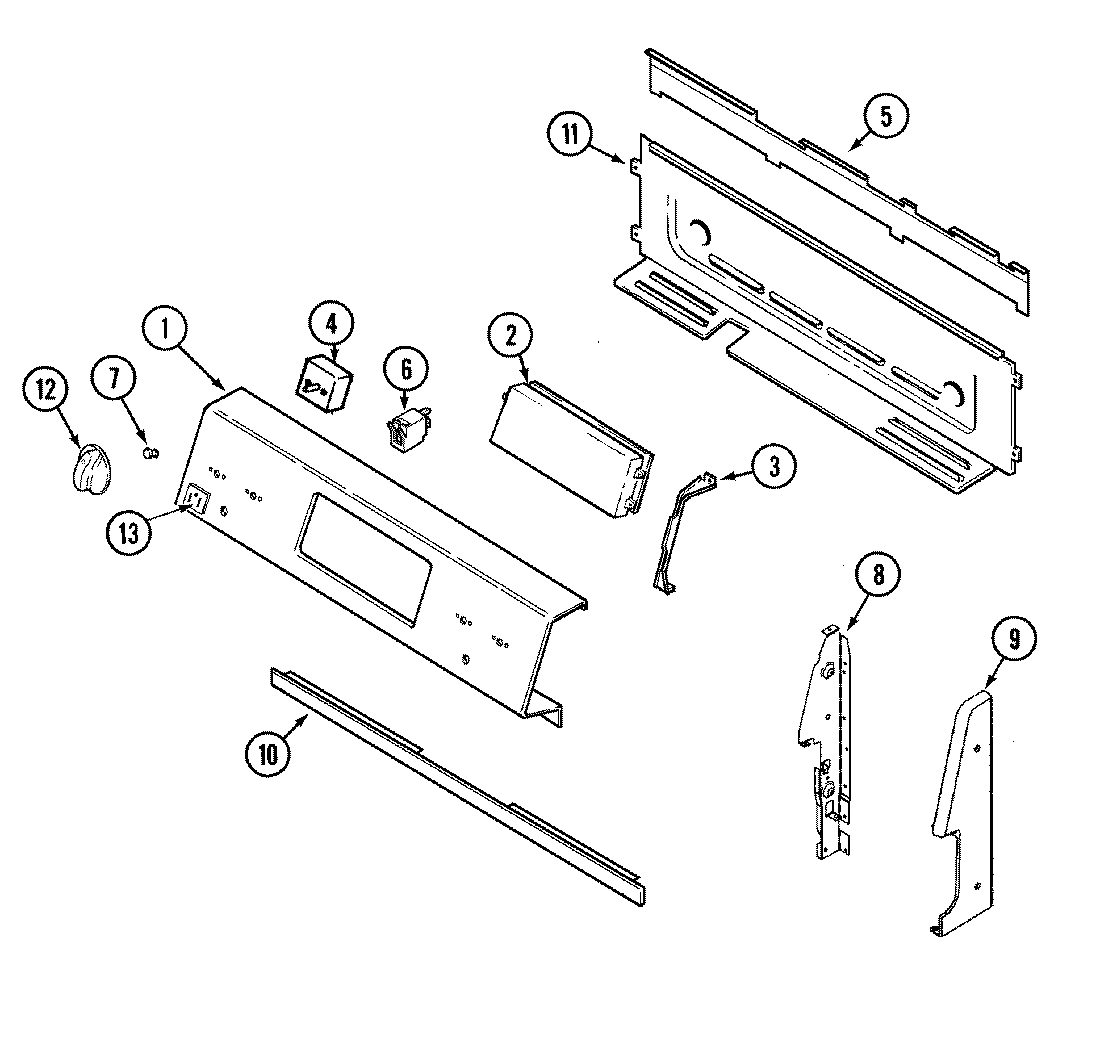

Model Whirlpool MER6750ACQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BACK, MAIN WPL 74005545 Contact Us For Availability

1

GASKET, OVEN DOOR WPL 7201P05960 Contact Us For Availability

1

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

1

SEAL WPL 74001167 Contact Us For Availability

1

PANEL, CONTROL (BSQ)----NA WPL 74005537 Contact Us For Availability

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.55

2

CAPACITOR, DUAL WPL 74001038 Contact Us For Availability

2

INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

LINING, DOOR WPL 74005406 Contact Us For Availability

2

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

2

SPACER, STIRRER WPL 74001115 Contact Us For Availability

2

SCREW WPL 7101P34960 Contact Us For Availability

2

CLOCK W/OVERLAY (BSQ) WPL 74005422 Contact Us For Availability

2

OVERLAY, CLOCK (BSQ) WPL 74005429 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $130.67

3

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

3

DIODE ASSY WPL 7436P00160 Contact Us For Availability

3

STRAP, INSULATION WPL 74003385 Contact Us For Availability

3

GASKET, WINDOW WPL 74001106 Contact Us For Availability

3

ELEMENT, BROIL----NA WPL 7406P08660 Contact Us For Availability

3

BRACKET, STIRRER WPL 74001116 Contact Us For Availability

3

SCREW (8ABX3/8) BSQ WPL 74004985 Contact Us For Availability

3

BRACKET, CLOCK WPL 74005388 Contact Us For Availability

4

BRACKET, CAPACITOR WPL 74001039 Contact Us For Availability

4

TOP, MAIN (BSQ FRM/BSQ GLASS) WPL 74005543 Contact Us For Availability

4

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

GLASS, INNER WPL 7902P39260 Contact Us For Availability

4

ELEMENT, BAKE WPL 74005463 Contact Us For Availability

4

SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability

4

MOTOR, STIRRER WPL 7409P00660 Contact Us For Availability

4

SWITCH, DUAL ELEMENT WPL 74002144 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 $108.99

5

TRANSFORMER WPL 74001040 Contact Us For Availability

5

TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability

5

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

5

SCREEN, INNER GLASS WPL 74001107 Contact Us For Availability

5

RACK WPL 74001164 Contact Us For Availability

5

RACK, OVEN WPL 74001808 Contact Us For Availability

5

SHAFT, STIRRER WPL 74001118 Contact Us For Availability

5

INSULATION, STIRRER MOTOR WPL 74001119 Contact Us For Availability

5

EXTENSION, CONTROL PANEL WPL 74004551 Contact Us For Availability

5

EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.76

6

FUSE, 125/250V 15A WPL 74001041 Contact Us For Availability

6

LIGHT, INDICATOR WPL 74005395 Contact Us For Availability

6

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

6

RETAINER, SCREEN----NA WPL 74001108 Contact Us For Availability

6

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

6

BLADE, STIRRER WPL 74005411 Contact Us For Availability

7

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.75

7

CLIP, FUSE HOLDER WPL 74001042 Contact Us For Availability

7

RETAINER, INSUL. DOOR LOCK WPL 74005496 Contact Us For Availability

7

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

7

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

7

BUSHING WPL 8007P02760 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

8

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.03

8

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $6.90

8

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

8

SUPPORT, BLOWER WPL 3807F47551 Contact Us For Availability

8

SCREW, HINGE WPL 7101P01760 Contact Us For Availability

8

LATCH, DOOR WPL 74005478 Contact Us For Availability

8

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

8

LIGHT ASSY, OVEN WPL 74005405 Contact Us For Availability

8

SPACER WPL 74001124 Contact Us For Availability

8

BRACKET, CONTROL PANEL (RT) WPL 74005392 Contact Us For Availability

8

BRACKET, CONTROL PANEL (LT) WPL 74005393 Contact Us For Availability

9

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

9

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

9

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $2.55

9

RELAY, POWER WPL 74005386 Contact Us For Availability

9

COVER, WIRE WPL 74005397 Contact Us For Availability

9

WINDOW ASSY. WPL 74001109 Contact Us For Availability

9

SUPPORT ASSY, WINDOW WPL 74005410 Contact Us For Availability

9

SEAL, GASKET WPL 74001125 Contact Us For Availability

9

SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability

9

CAP, END (RT-BSQ) WPL 74005236 Contact Us For Availability

9

CAP, END (LT-BSQ) WPL 74005237 Contact Us For Availability

MOTOR WPL 7409P00560 Contact Us For Availability

LIMITER WPL 74004494 Contact Us For Availability

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

INSULATION, DOOR WPL 74005412 Contact Us For Availability

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

SCREW WPL 74005401 Contact Us For Availability

PLATE WPL 3605F16719 Contact Us For Availability

SEAL, STIRRER TUBE WPL 74001716 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

CLIP WIRE WPL 790278 Contact Us For Availability

LIMITER (DUAL) WPL 74004880 Contact Us For Availability

SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

BAFFLE, DOOR WPL 74005408 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

SWITCH, MAGNETRON WPL 74001043 Contact Us For Availability

BOX, VENT (MAGNETRON BLOWER) WPL 74001137 Contact Us For Availability

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

INSULATION, BOTTOM WPL 74001131 Contact Us For Availability

RETAINER, INSULATION WPL 74005403 Contact Us For Availability

KNOB, SWITCH (BSQ) WPL 74005143 Contact Us For Availability

MAGNETRON WPL 74001045 Contact Us For Availability

ELIMINATOR, SMOKE WPL 74001138 Contact Us For Availability

GLASS, DOOR (OUTER-BSQ) WPL 74005424 Contact Us For Availability

WASHER (STNLSS MESH) WPL 74001165 Contact Us For Availability

SENSOR, OVEN (W/WASHER) WPL 74005402 Contact Us For Availability

BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability

RECEPTACLE, OUTLET (BSQ) WPL 74005144 Contact Us For Availability

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

DUCT, MAGNETRON WPL 74001046 Contact Us For Availability

VENT BOX ASSY. WPL 4006W12345 Contact Us For Availability

SHIELD, MICROWAVE COMPONENTS WPL 74001126 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

FAN WPL 7427P01560 Contact Us For Availability

INSULATION, WRAP----NA WPL 74005400 Contact Us For Availability

HANDLE, DOOR (BSQ) WPL 74004974 Contact Us For Availability

COVER, STIRRER MOTOR WPL 74001120 Contact Us For Availability

HARNESS, PEDESTAL WPL 74005390 Contact Us For Availability

HARNESS, SENSOR/LATCH WPL 74005391 Contact Us For Availability

HARNESS, PANEL/TOP WPL 74005418 Contact Us For Availability

HARNESS, DOOR LOCK WPL 74005515 Contact Us For Availability

HARNESS, MAIN WPL 74005538 Contact Us For Availability

HARNESS, ELEMENT WPL 74005539 Contact Us For Availability

HARNESS, SECONDARY (LT) WPL 74005540 Contact Us For Availability

HARNESS, PRIMARY (RT) WPL 74005541 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.80

SCREW WPL 7101P34360 Contact Us For Availability

COVER WPL 7724P06560 Contact Us For Availability

INSERT, DOOR TRIM (BSQ) WPL 74004978 Contact Us For Availability

SCREW (BSQ) WPL 74005245 Contact Us For Availability

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

MANUAL, USE & CARE (TRILINGUAL WPL 74005247 Contact Us For Availability

COOKBOOK (ENGLISH) WPL 74005248 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

COOKBOOK (FRCH) WPL 74005501 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

BRACKET, BLOWER SUPPORT WPL 74001047 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

TRIM, DOOR TOP (BSQ) WPL 74005241 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.24

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

FRAME, DOOR (BSQ) WPL 74005162 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

BUMPER, DOOR WPL 74001139 Contact Us For Availability

SPRING WPL 74001112 Contact Us For Availability

WASHER WPL 74001168 Contact Us For Availability

LEVER, SWITCH ACTIVATOR (RT) WPL 74005547 Contact Us For Availability

LEVER, SWITCH ACTIVATOR (LT) WPL 74005548 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.75

SWITCH ASSY, INTERLOCK (RT) WPL 74001140 Contact Us For Availability

SWITCH ASSY, INTERLOCK (LT) WPL 74005398 Contact Us For Availability

SHAFT, LEVER WPL 74001113 Contact Us For Availability

21

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

21

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

22

RELAY, AUXILIARY WPL 74004690 Contact Us For Availability

22

NUT, LOCK WPL 7103P13960 Contact Us For Availability

23

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.28

23

HINGE, DOOR WPL 74005399 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

26

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.55

26

RELAY, AUXILLARY WPL 74005554 Contact Us For Availability

27

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.40

27

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

27

CORD, POWER WPL 7402P05060 Contact Us For Availability

NI

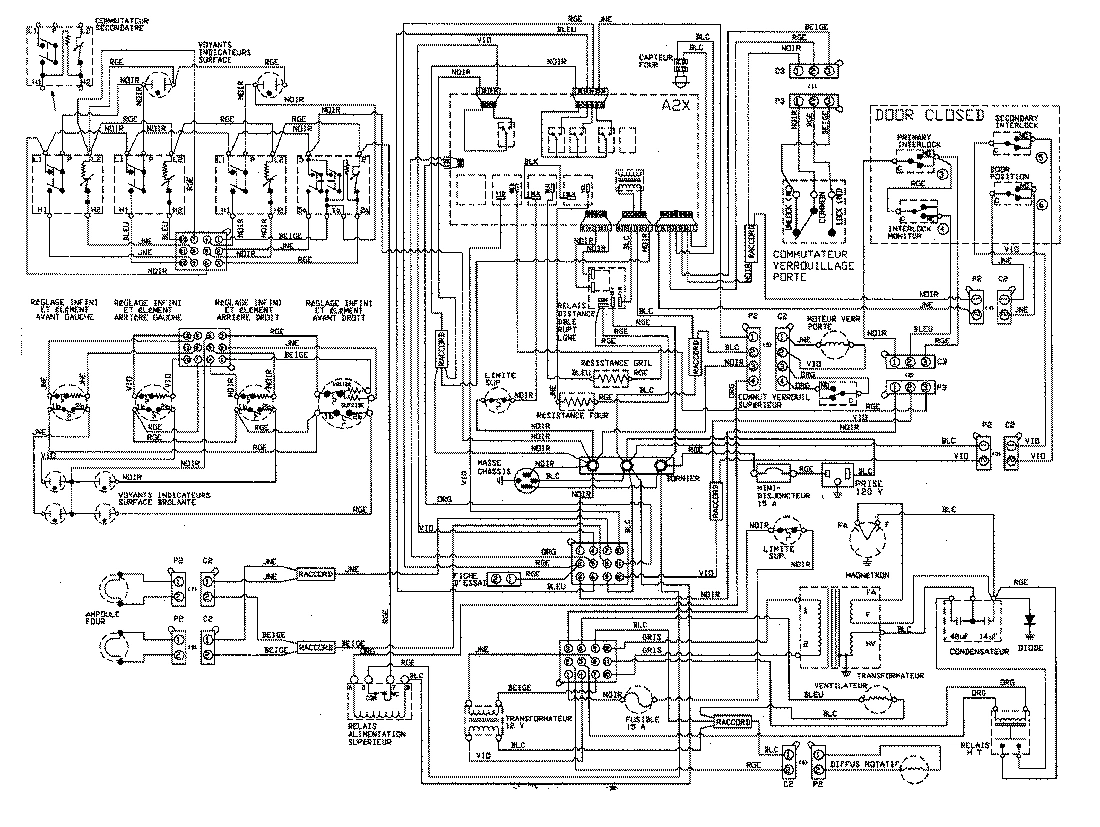

WIRING INFORMATION WPL 15002780 Contact Us For Availability
