Model Maytag MER6741BAS17 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

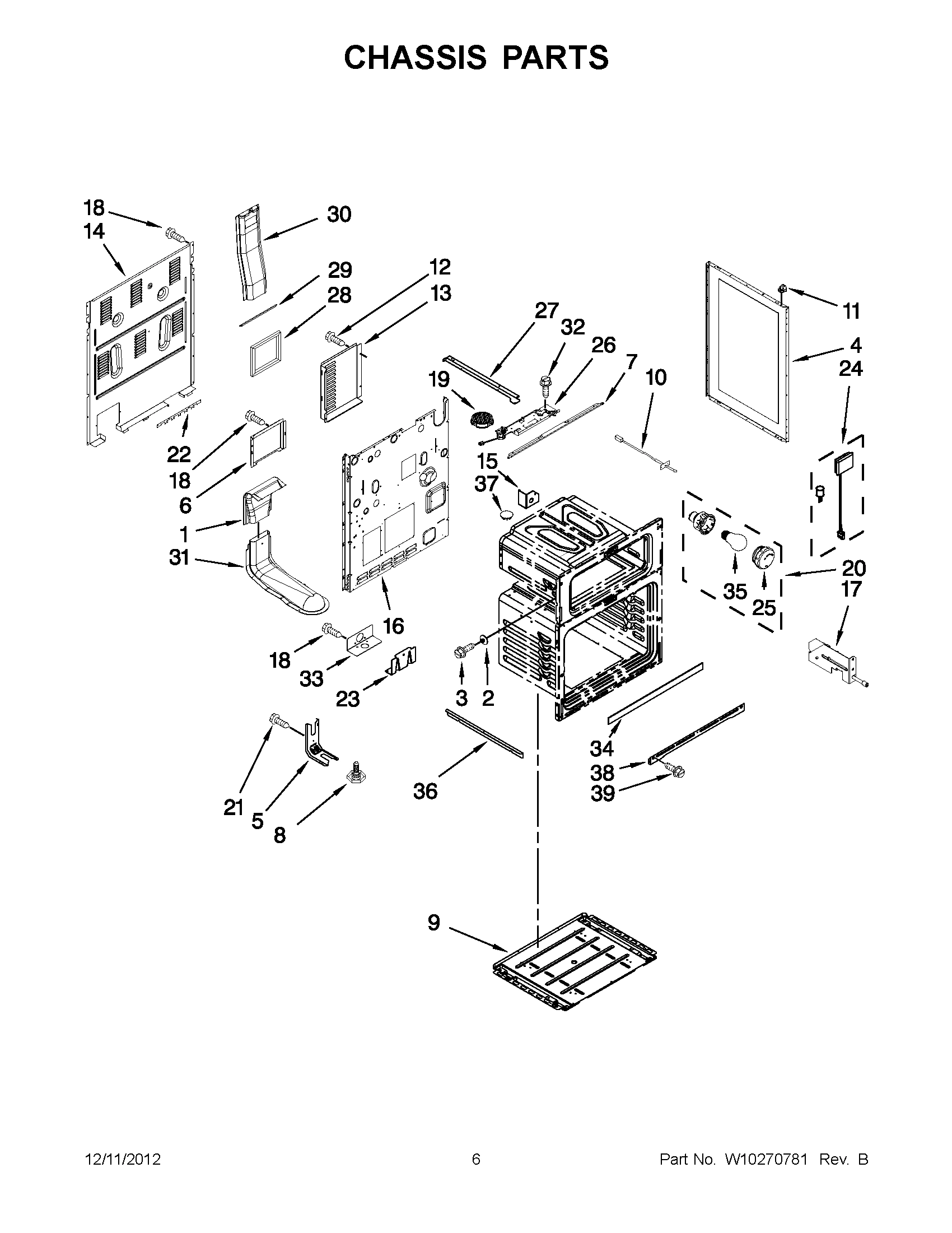

03 - CHASSIS PARTS

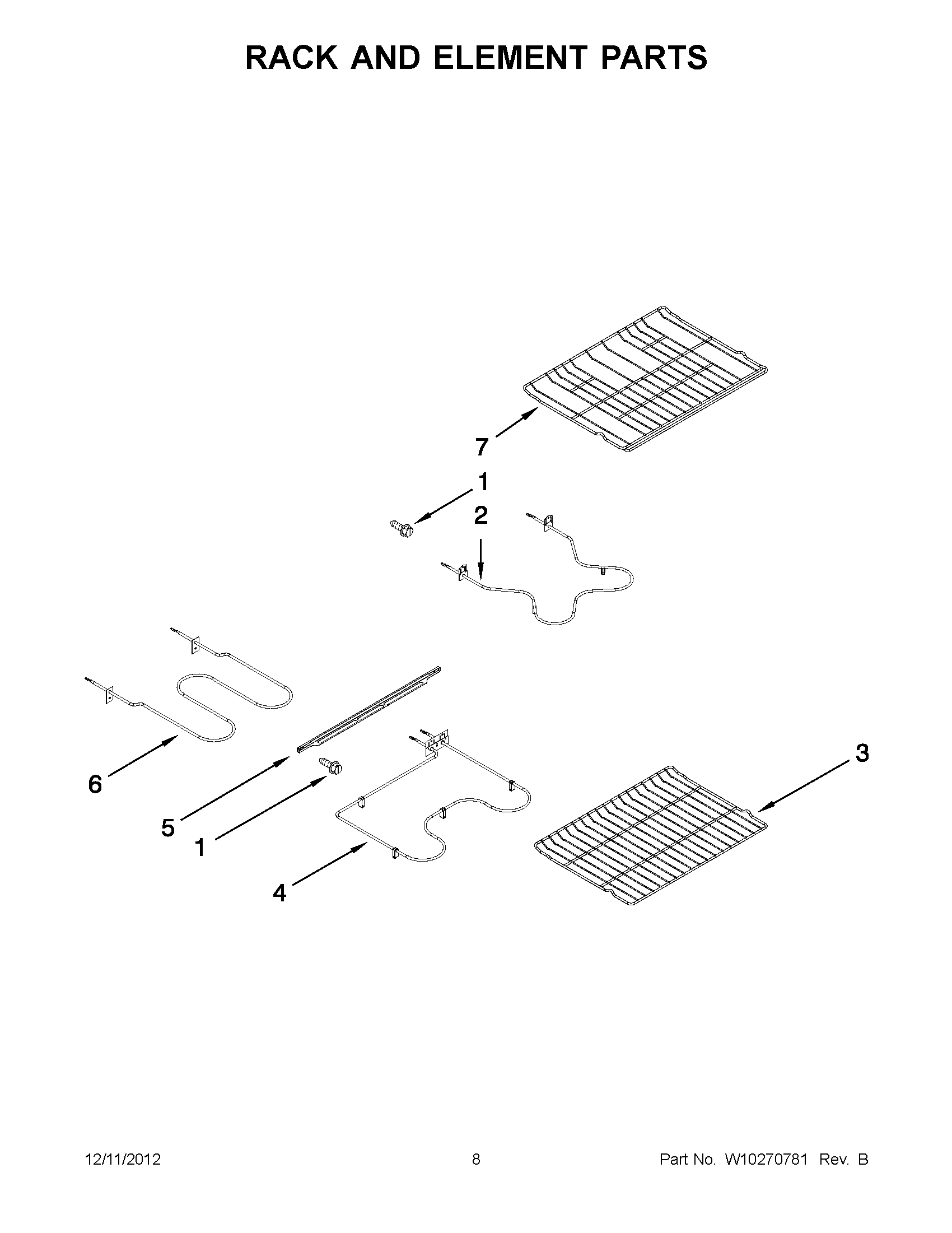

04 - RACK AND ELEMENT PARTS

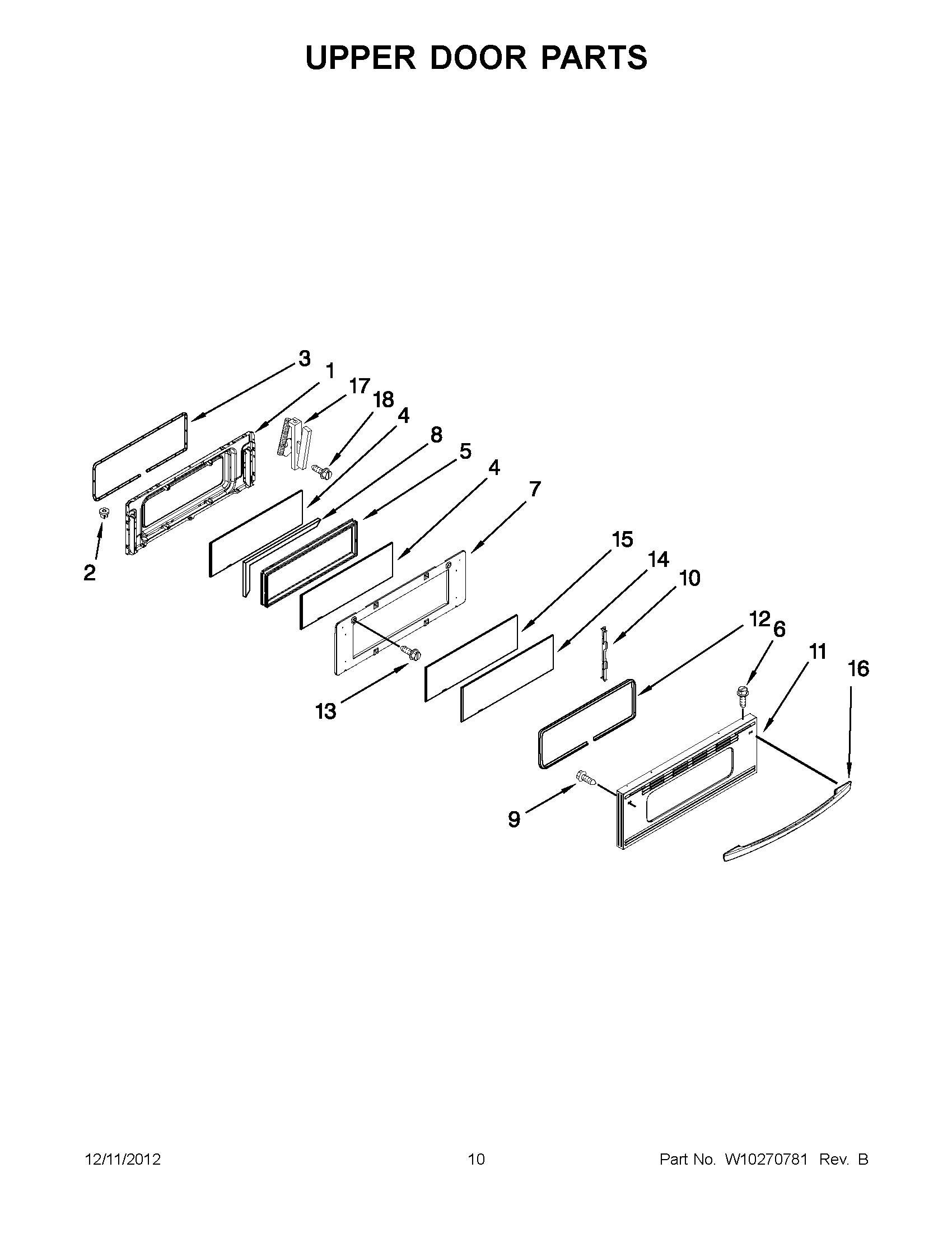

05 - UPPER DOOR PARTS
06 - LOWER DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER6741BAS17 ELECTRIC RANGE
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
HANDLE, DOOR MAY 7701P524-60 Contact Us For Availability
2
ELEMENT 1200W (LEFT REAR & RIGHT REAR) MAY 8273994 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
MAY 7406P427-60 MAY 7406P427-60 Contact Us For Availability
2
MAY 7201P138-60 MAY 7201P138-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
PANEL, CONTROL MAY 2602D323-09 Contact Us For Availability
3
Screw MAY 7101P618-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7801P173-60 MAY 7801P173-60 Contact Us For Availability
3
MAY 7212P087-60 MAY 7212P087-60 Contact Us For Availability
4
Panel, Side MAY 2618F194-70 Contact Us For Availability
4
MAY 7406P428-60 MAY 7406P428-60 Contact Us For Availability
4
GLASS, INNER MAY 7902P521-60 Contact Us For Availability
4
MAY 7760P145-60 MAY 7760P145-60 Contact Us For Availability
5
COOKTOP MAY 5706X570-09 Contact Us For Availability
5
SWITCH, ROCKER MAY 7403P756-60 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY 3807F494-45 MAY 3807F494-45 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
MAY 7002P435-60 MAY 7002P435-60 Contact Us For Availability
6
ELEMENT 2500W (LEFT FRONT) MAY W10187838 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
COVER, TERMINAL BLOCK MAY 4005F747-51 Contact Us For Availability
6
MAY 7406P205-60 MAY 7406P205-60 Contact Us For Availability
6
MAY 3804F184-45 MAY 3804F184-45 Contact Us For Availability
7
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
7
KNOBS MAY 7737P232-60 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
RACK, OVEN (UPPER) MAY 7801P159-60 Contact Us For Availability
7
Baffle, Door MAY 3601F354-45 Contact Us For Availability
7
MAY 3604F440-51 MAY 3604F440-51 Contact Us For Availability
8
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
MAY 7902P767-60 MAY 7902P767-60 Contact Us For Availability
9
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
9
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
9
BASE, GAS GEMINI MAY 4003F070-51 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
10
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
MAY 8010P087-60 MAY 8010P087-60 Contact Us For Availability
11
MAY 8010P088-60 MAY 8010P088-60 Contact Us For Availability
11
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
11
MAY 7760P153-60 MAY 7760P153-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
GLASS, INNER MAY 7902P472-60 Contact Us For Availability
13
ASSEMBLY, CONTROL MAY 5777M223-60 Contact Us For Availability
13
MAY 4005F592-51 MAY 4005F592-51 Contact Us For Availability
13
MAY 7902P377-60 MAY 7902P377-60 Contact Us For Availability
14
MAY W10167412 MAY W10167412 Contact Us For Availability
14
MAY 7902P755-60 MAY 7902P755-60 Contact Us For Availability
14
Screw MAY 7101P282-60 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
MAY 7902P542-60 MAY 7902P542-60 Contact Us For Availability
15
BAFFLE, OVEN DOOR MAY 3601F353-45 Contact Us For Availability
16
MAY 4002F332-51 MAY 4002F332-51 Contact Us For Availability
16
MAY 7002P221-60 MAY 7002P221-60 Contact Us For Availability
17
ASSEMBLY, SWITCH MAY 7450P108-60 Contact Us For Availability
17
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
17
HINGE, DOOR MAY 7106P148-60 Contact Us For Availability
18
MAY 2402W271-19 MAY 2402W271-19 Contact Us For Availability
19
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
ASSEMBLY, OVEN LIGHT MAY 7407P168-60 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
22
SHIELD, POWER CORD MAY 8036P012-60 Contact Us For Availability
23
SUPPORT, LOWER OVEN MAY 3807F580-51 Contact Us For Availability
24
ASSEMBLY, LIGHT UPPER MAY 7407P179-60 Contact Us For Availability
25
MAY 209429 MAY 209429 Contact Us For Availability
26
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
27
MAY 4011F524-51 MAY 4011F524-51 Contact Us For Availability
27
MAY 4011F525-51 MAY 4011F525-51 Contact Us For Availability
28
MAY 7201P089-60 MAY 7201P089-60 Contact Us For Availability
29
Shield, Door Lock MAY 3604F335-51 Contact Us For Availability
30
MAY 4022W017-45 MAY 4022W017-45 Contact Us For Availability
31
MAY 4006W129-45 MAY 4006W129-45 Contact Us For Availability
31
MAY 4006W139-45 MAY 4006W139-45 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
34
MAY 7212P066-60 MAY 7212P066-60 Contact Us For Availability
35
MAY 7407P114-60 MAY 7407P114-60 Contact Us For Availability
36
SPACER, SIDE PANEL MAY 3823F015-51 Contact Us For Availability
37
MAY 7718P030-60 MAY 7718P030-60 Contact Us For Availability
38
MAY 3608F091-70 MAY 3608F091-70 Contact Us For Availability
NI
INSULATION, WRAP LOWER MAY 7002P233-60 Contact Us For Availability
NI
INSULATION, BACK UPPER MAY 7002P434-60 Contact Us For Availability
NI
INSULATION, WRAP UPPER MAY 7002P490-60 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) MAY 241430 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIDE MOUNT LOC MAY 5171P467-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY 5171P713-60 Contact Us For Availability
NI
MAY 5171P715-60 MAY 5171P715-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, INFINITE SWITC MAY 5171P911-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY 5171P913-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, INFINITE SWITC MAY 5171P914-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR POSITION MAY 5175P365-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, CERAN MAY W10196180 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
× ![]()
