Model Whirlpool MER5765RAQ ELECTRIC RANGE – Common Parts & Diagrams

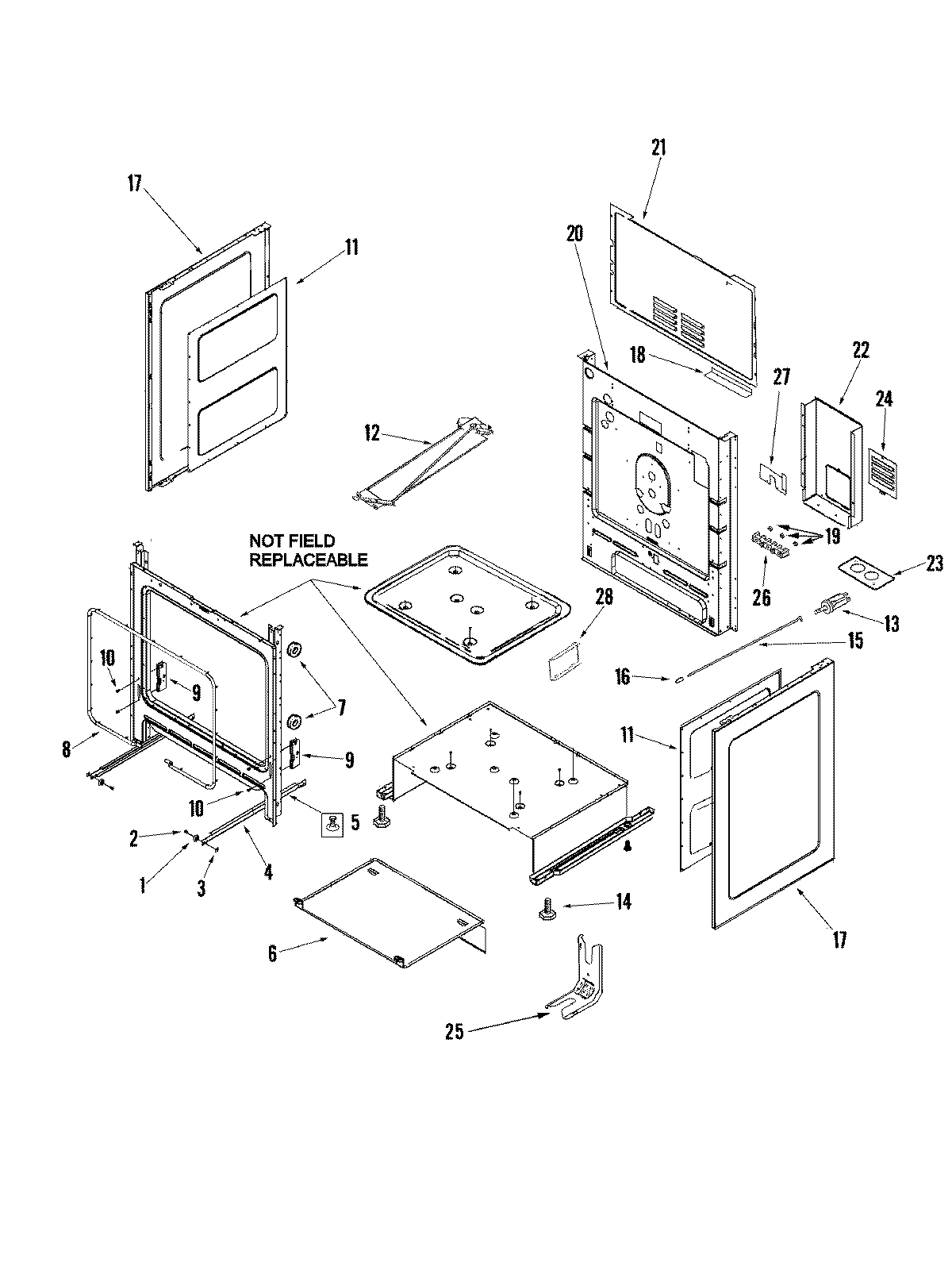

01 - CABINET

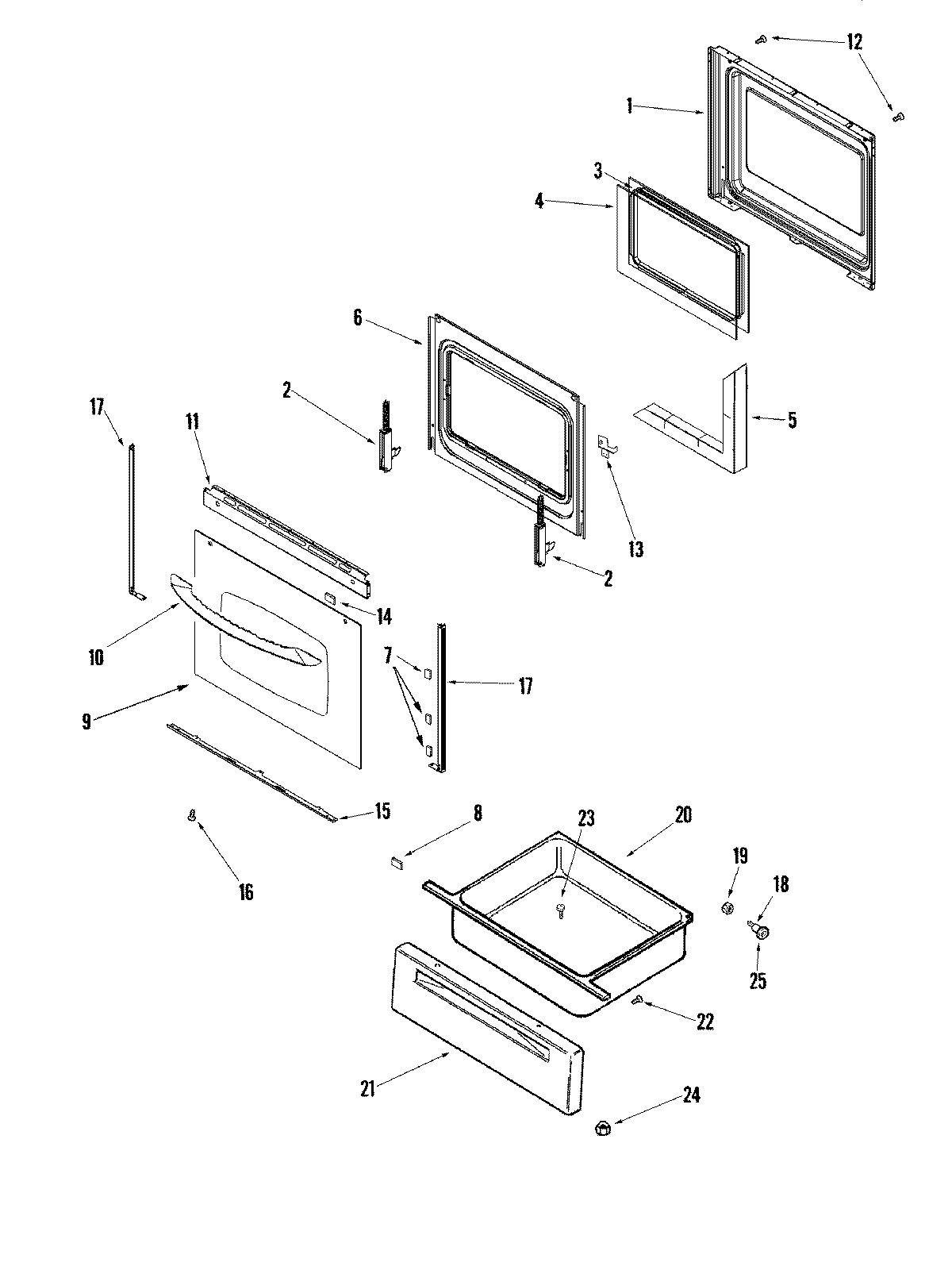

04 - DOOR/DRAWER

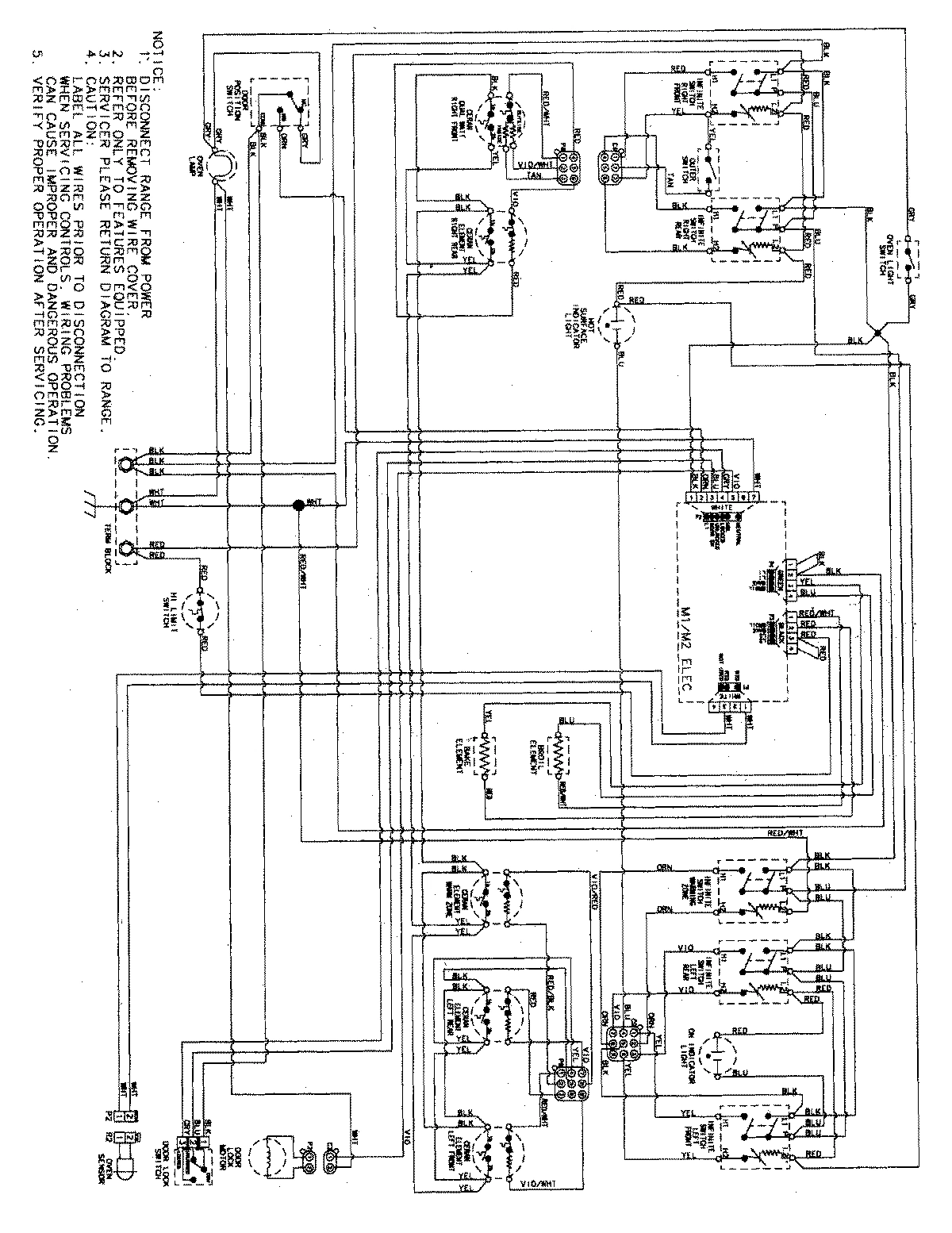

06 - WIRING INFORMATION

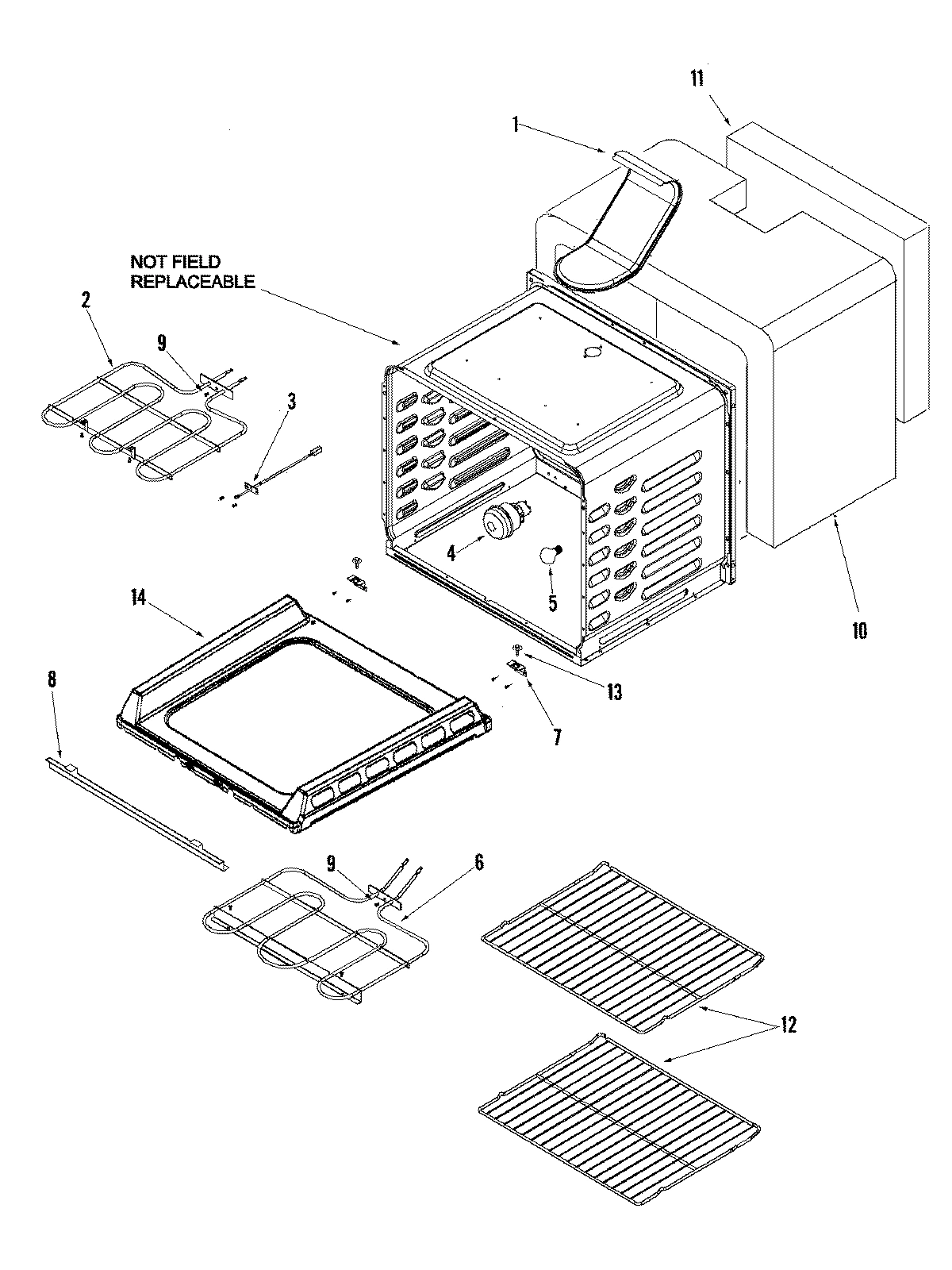

02 - CAVITY
05 - SUPPLEMENTAL INFORMATION

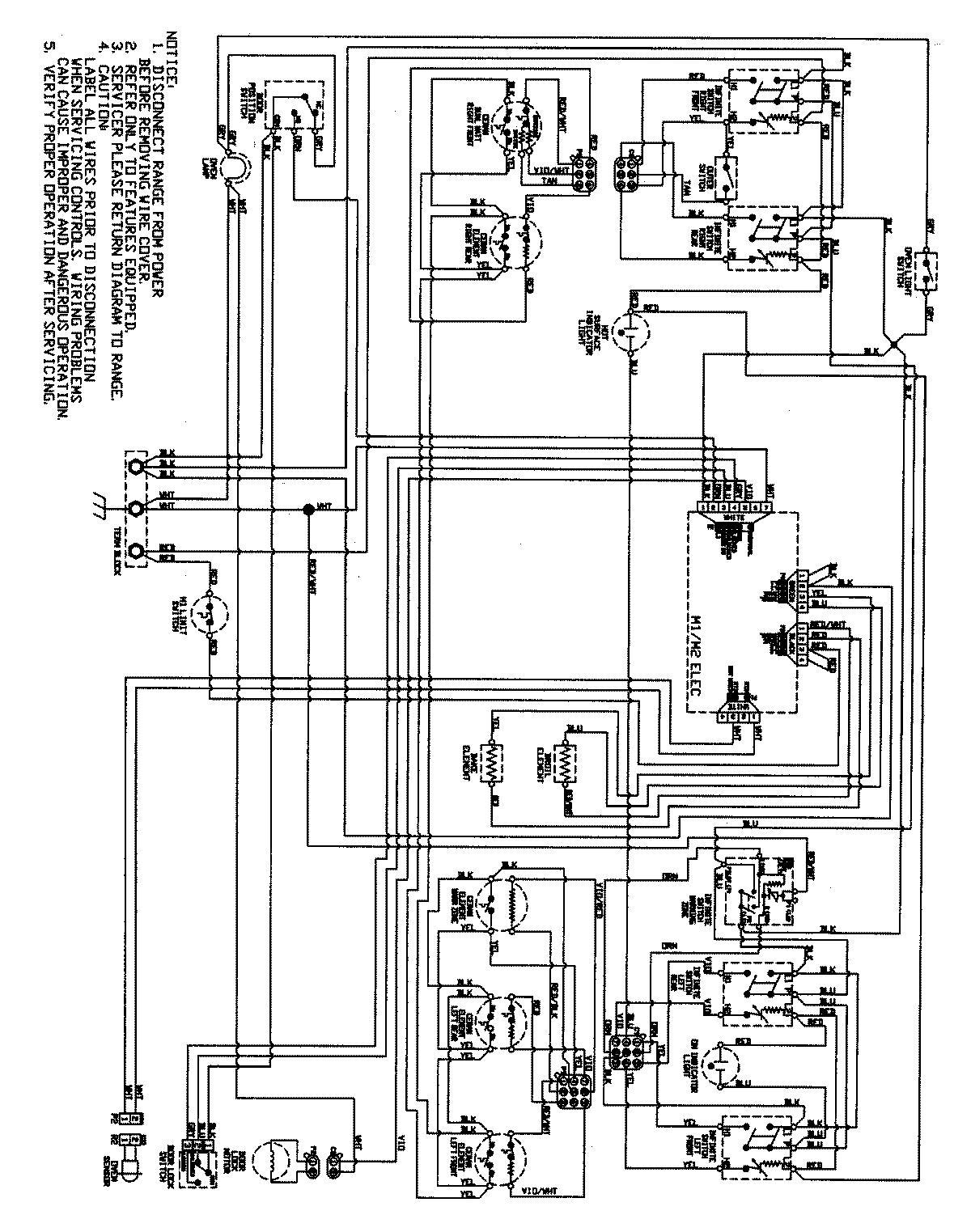

07 - WIRING INFORMATION (AT SERIES 12)

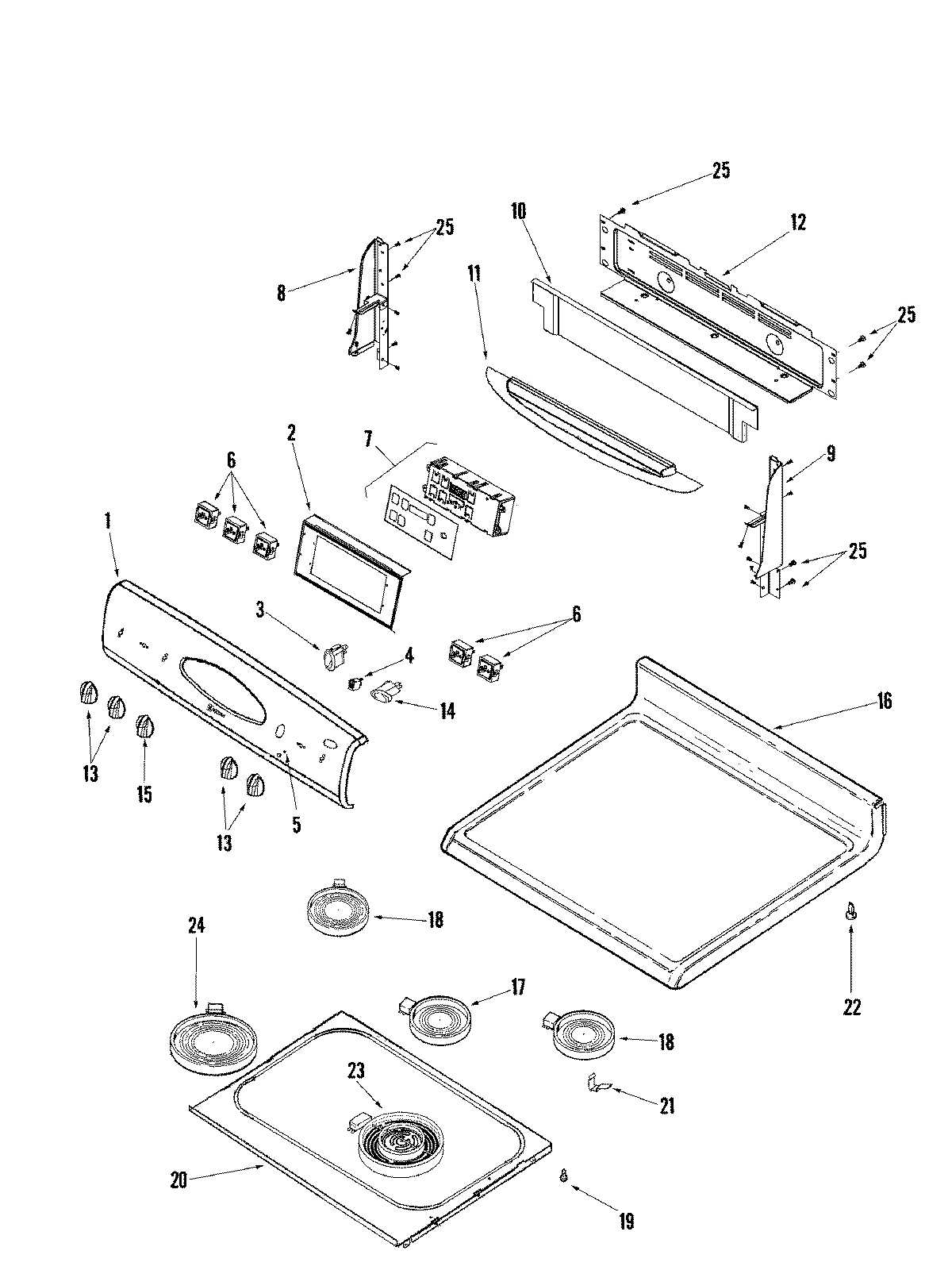

03 - CONTROL PANEL/TOP ASSEMBLY
Common parts from model Whirlpool MER5765RAQ ELECTRIC RANGE
1
LINING, DOOR WPL 74008926 Contact Us For Availability
1
VENT, OVEN WPL 74008691 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P49260 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P56660 Contact Us For Availability
1
MANUAL, USE & CARE (ENG) WPL 8113P69260 Contact Us For Availability
1
MANUAL, USE & CARE (SPAN) WPL 8113P69460 Contact Us For Availability
1
PANEL, BACKGUARD (BSQ) WPL 74011182 Contact Us For Availability
2
HARNESS, INF. SWITCH (RT) WPL 5171P86560 Contact Us For Availability
2
HARNESS, SWITCH/TOP (RT) WPL 74008935 Contact Us For Availability
2
BRACKET, CLOCK WPL 74009052 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
3
HARNESS, INF SWITCH (LT) WPL 5171P86460 Contact Us For Availability
3
HARNESS, INF. SWITCH (LT) WPL 74011186 Contact Us For Availability
4
HARNESS, MAIN WIRE WPL 5171P88460 Contact Us For Availability
4
HARNESS, MAIN WIRE WPL 74011185 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
5
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74011184 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74011679 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
6
SWITCH, INFINITE (DUAL) WPL W10177711 Contact Us For Availability
6
SWITCH, INFINITE (WARMING) WPL W10129627 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
7
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
7
CLOCK/OVERLAY (BSQ) WPL 74009212 Contact Us For Availability
8
GLASS, DOOR WPL 74003649 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
8
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
8
END CAP (RT-BSQ) WPL 74009078 Contact Us For Availability
9
GLASS, DOOR (BSQ) WPL 74008682 Contact Us For Availability
9
END CAP (LT-BSQ) WPL 74009080 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
10
SHIELD, VENT WPL 74009444 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
TRIM, TOP (BSQ) WPL 74008933 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (BSQ) WPL 74009204 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
Latch Assembly WPL 8002P10460 Contact Us For Availability
12
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
12
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability
14
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
15
TRIM, BOTTOM (BSQ) WPL 74008758 Contact Us For Availability
15
KNOB (BSQ/CHR) WPL 74008949 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
TOP, MAIN ASY. (BSQ) WPL 74011151 Contact Us For Availability
17
ELEMENT, WARMING WPL 74011676 Contact Us For Availability
17
INSULATION, SIDE PANEL WPL 7002P49460 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (BSQ) WPL 74008708 Contact Us For Availability
17
ELEMENT, WARMING WPL 74008898 Contact Us For Availability
17
ELEMENT, WARM ZONE WPL 74011678 Contact Us For Availability
18
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
19
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
19
SCREW WPL 74009538 Contact Us For Availability
20
BACK, MAIN WPL 74008699 Contact Us For Availability
20
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
BRACKET, MOUNTING WPL 3605P33751 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
INSULATOR, POWER CORD WPL 74008759 Contact Us For Availability
28
BRACKET, OVEN SUPPORT WPL 74011187 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003737 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003876 Contact Us For Availability
× ![]()
