Model Whirlpool MER5765RAB1 ELECTRIC RANGE – Common Parts & Diagrams

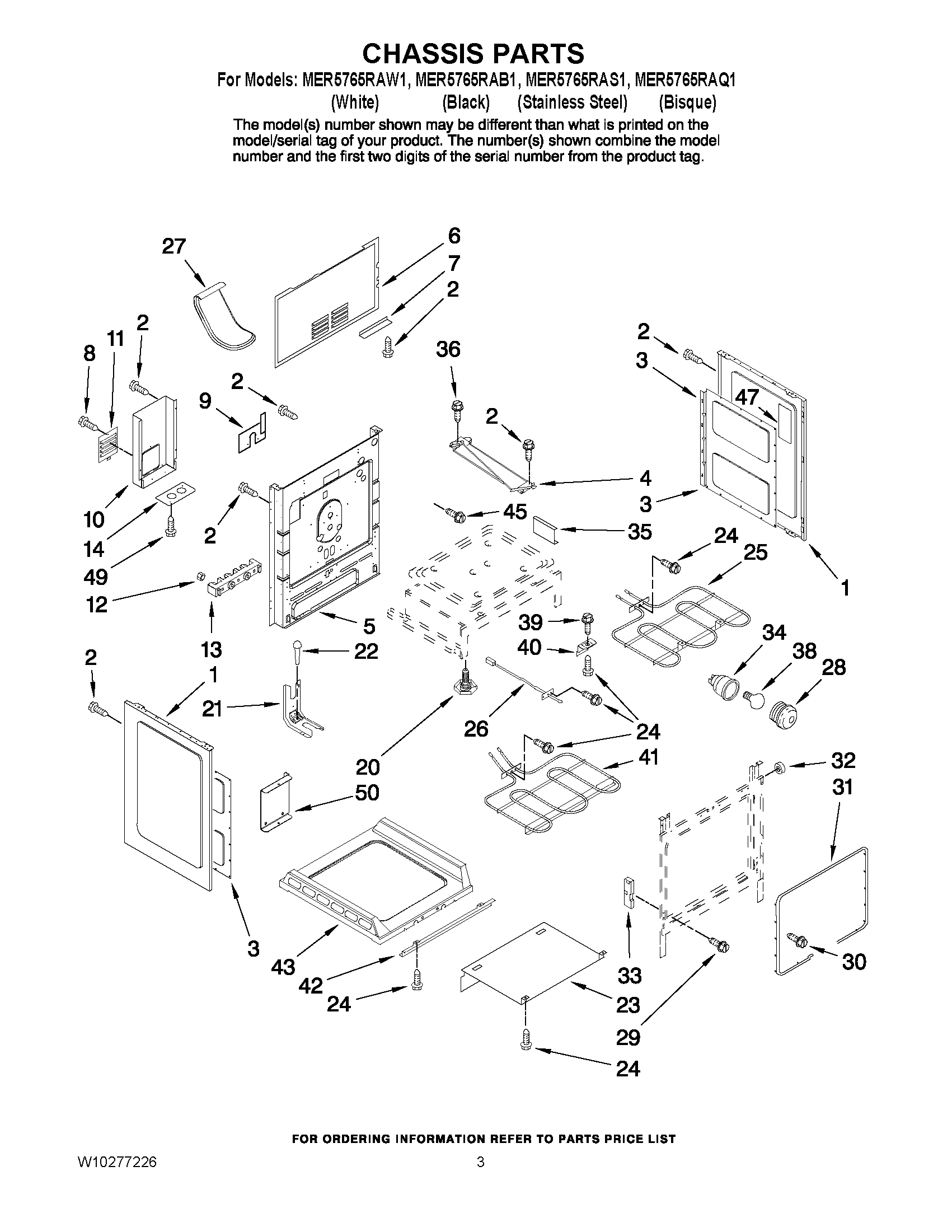

03 - CHASSIS PARTS

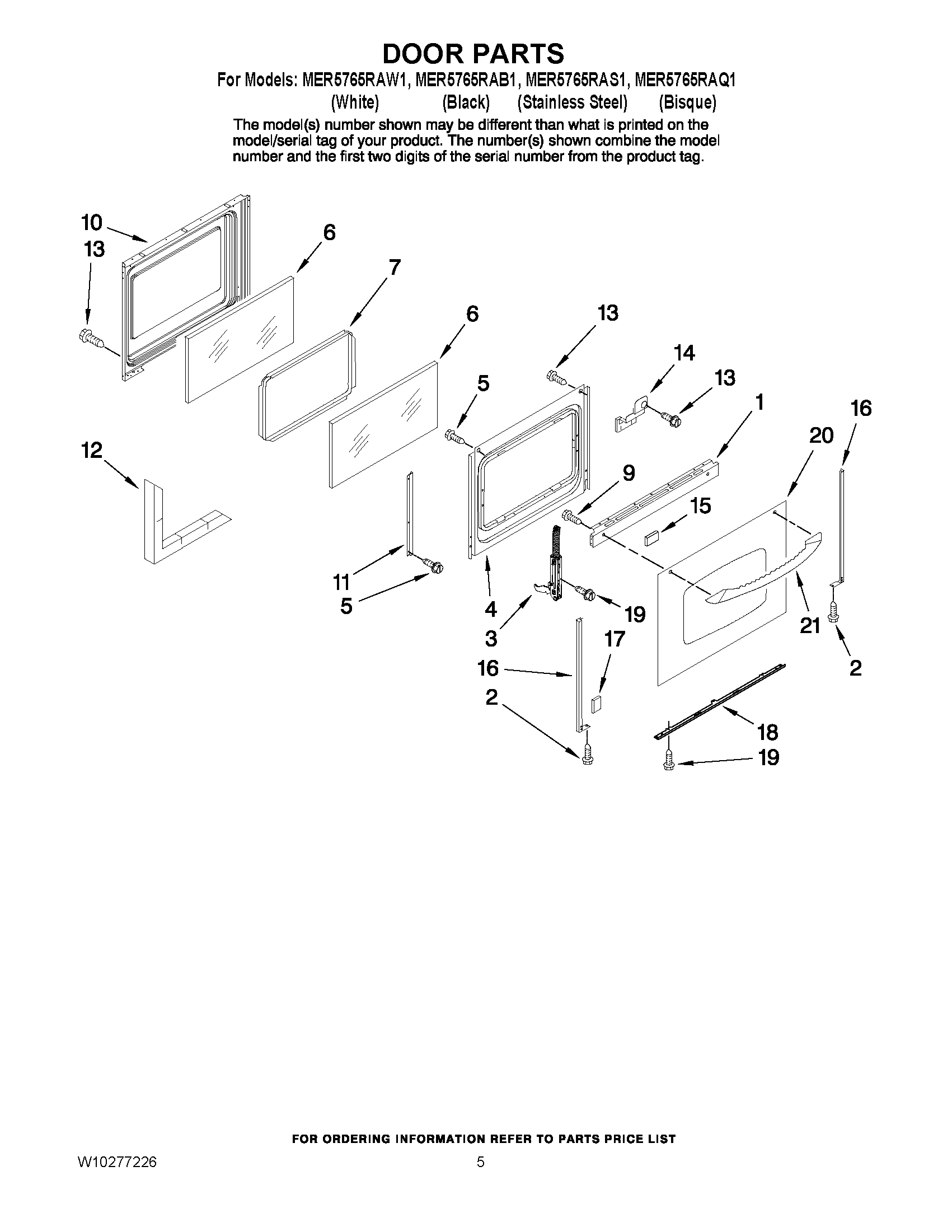

04 - DOOR PARTS
01 - COOKTOP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
02 - CONTROL PANEL PARTS

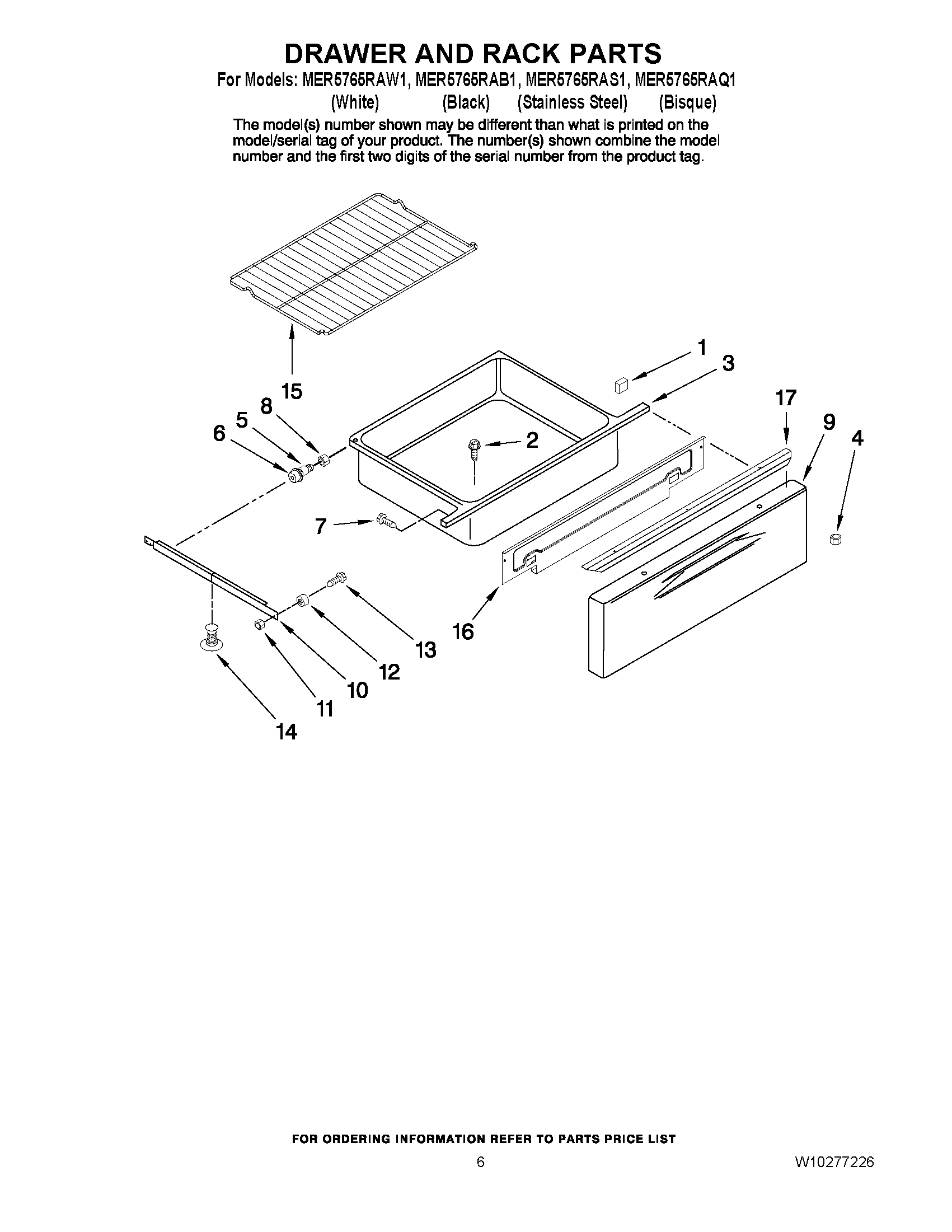

05 - DRAWER AND RACK PARTS
Common parts from model Whirlpool MER5765RAB1 ELECTRIC RANGE
1
Trim, Door Top (Black) WPL 3608F14070 Contact Us For Availability
1
Trim, Door Top (White) WPL 3608F14071 Contact Us For Availability
1
Trim, Door Top (Bisque) WPL 3608F14078 Contact Us For Availability
1
Tape, Double Sided WPL W10208308 Contact Us For Availability
1
Installation Instructions WPL 8101P50660 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P69460 Contact Us For Availability
1
WIRING DIAGRAM WPL 8119P40260 Contact Us For Availability
1
Brochure, Safe Tip WPL 9762761 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10217619 Contact Us For Availability
2
COOKTOP (WHITE) WPL W10217627 Contact Us For Availability
2
COOKTOP (BISQUE) WPL W10217634 Contact Us For Availability
2
PANEL, BACKGUARD (BLACK) WPL 2602D28809 Contact Us For Availability
2
PANEL, BACKGUARD (WHITE) WPL 2602D28881 Contact Us For Availability
2
PANEL, BACKGUARD (BISQUE) WPL 2602D28888 Contact Us For Availability
2
PANEL, BACKGUARD (STAINLESS STEEL) WPL 7704P04960 Contact Us For Availability
3
Hinge, Door (2) WPL 7106P12460 Contact Us For Availability
3
Spacer Snap-In (4) WPL 8010P14960 Contact Us For Availability
3
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
4
Baffel, Retainer WPL 3601F38051 Contact Us For Availability
4
SWITCH, INFINTE (LOW HEAT) WPL 7403P09560 Contact Us For Availability
4
Switch, Infinte (6`` (RR/LR)(2)) WPL 7403P37260 Contact Us For Availability
4
Switch, Infinte (8`` (LF) (1)) WPL 7403P37360 Contact Us For Availability
4
Switch, Infinte (Dual (RF) (1)) WPL 7450P09460 Contact Us For Availability
5
Bracket, Control WPL 3801F84451 Contact Us For Availability
5
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
6
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
6
Spring, Element WPL 7803P08760 Contact Us For Availability
6
CONTROL W/OVERLAY (WHITE) WPL 5701M64960 Contact Us For Availability
6
CONTROL W/OVERLAY (BISQUE) WPL 5701M65060 Contact Us For Availability
6
CONTROL W/OVERLAY (BLACK) WPL 5701M65160 Contact Us For Availability
7
END CAP, LEFT (BLACK) WPL 3807F70370 Contact Us For Availability
7
End Cap, Left (White) WPL 3807F70371 Contact Us For Availability
8
Bottom, Burner Box WPL 4011F49751 Contact Us For Availability
8
NUT WPL 7103P08260 Contact Us For Availability
9
Panel, Drawer (White) WPL W10163040 Contact Us For Availability
9
Screw, Mounting WPL 7101P68160 Contact Us For Availability
9
ELEMENT 2700W (RF) WPL 7406P36860 Contact Us For Availability
9
SHIELD, HEAT VISOR (BLACK) WPL 3604F38209 Contact Us For Availability
9
Shield, Heat Visor (White) WPL 3604F38281 Contact Us For Availability
9
Shield, Heat Visor (Bisque) WPL 3604F38288 Contact Us For Availability
9
Panel, Drawer (Black) WPL W10163038 Contact Us For Availability
9
Panel, Drawer (Bisque) WPL W10163041 Contact Us For Availability
9
PANEL, DRAWER (STAINLESS STEEL) WPL W10165339 Contact Us For Availability
10
Lining, Door WPL 2402W29719 Contact Us For Availability
10
Shield, Vent WPL 3604F38119 Contact Us For Availability
10
Runner, Drawer WPL 3406P03451 Contact Us For Availability
11
Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability
11
Nut, Lock WPL 7103P19060 Contact Us For Availability
12
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
12
Insulation, Door WPL 7002P24660 Contact Us For Availability
12
Cover, Rear Wire WPL 4005F80351 Contact Us For Availability
13
End Cap, Right (Bisque) WPL 3807F70278 Contact Us For Availability
13
End Cap, Right (Black) WPL 3807F70270 Contact Us For Availability
13
End Cap, Right (White) WPL 3807F70271 Contact Us For Availability
13
Shaft, Roller WPL 7118P03260 Contact Us For Availability
14
Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability
14
Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability
14
Stop, Drawer WPL 8038P03760 Contact Us For Availability
15
Tape (White) WPL W10208309 Contact Us For Availability
15
Switch, Rocker (Black) WPL 7403P75660 Contact Us For Availability
15
Switch, Rocker (White) WPL 7403P75760 Contact Us For Availability
15
Switch, Rocker (Bisque) WPL 7403P75860 Contact Us For Availability
16
Trim, Door Side (White) WPL 3608F12661 Contact Us For Availability
16
Trim, Door Side (Black) WPL 3608F12670 Contact Us For Availability
16
Trim, Door Side (Bisque) WPL 3608F12678 Contact Us For Availability
16
Light, Indicator WPL 7407P13660 Contact Us For Availability
16
PLATE, DRAWER PNL WPL 3605P33751 Contact Us For Availability
17
Tape, Double Sided (Black) WPL W10208307 Contact Us For Availability
17
Switch, Dual (White) WPL 7403P92660 Contact Us For Availability
17
Switch, Dual (Bisque) WPL 7403P98460 Contact Us For Availability
17
Switch, Dual (Black) WPL 7403P98560 Contact Us For Availability
17
HANDLE, SS MODEL WPL 7701P54760 Contact Us For Availability
18
TRIM, DOOR BOTTOM (BISQUE) WPL 3608F09260 Contact Us For Availability
18
TRIM, DOOR BOTTOM (BLACK) WPL 3608F09270 Contact Us For Availability
18
TRIM, DOOR BOTTOM (WHITE) WPL 3608F09271 Contact Us For Availability
18
KNOB (4) (BLACK/CHROME) WPL 7737P23260 Contact Us For Availability
18
KNOB (4) (BISQUE/CHROME) WPL 7737P23360 Contact Us For Availability
18
KNOB (4) (WHITE/CHROME) WPL 7737P23460 Contact Us For Availability
19
SCREW,(10-24X5/16) WPL 7101P28260 Contact Us For Availability
19
KNOB, WARM (1) (BLACK/CHROME) WPL 7737P23560 Contact Us For Availability
19
KNOB, WARM (1) (BISQUE/CHROME) WPL 7737P23760 Contact Us For Availability
19
KNOB, WARM (1) (WHITE/CHROME) WPL 7737P23860 Contact Us For Availability
20
GLASS, DOOR (WHITE) WPL 7902P78160 Contact Us For Availability
20
GLASS, DOOR (BISQUE) WPL 7902P78260 Contact Us For Availability
20
GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN RE WPL 7902P79160 Contact Us For Availability
21
Handle, Door (Black) WPL 7701P51660 Contact Us For Availability
21
Handle, Door (White) WPL 7701P51760 Contact Us For Availability
21
Handle, Door (Bisque) WPL 7701P51860 Contact Us For Availability
21
HANDLE, DOOR (STAINLESS STEEL) WPL 7701P52660 Contact Us For Availability
36
Screw (Black) (2) WPL 7101P37560 Contact Us For Availability
38
Bulb, Oven WPL 7407P18160 Contact Us For Availability
39
Screw, Shoulder WPL 7101P61860 Contact Us For Availability
40
Support, Ov BTM WPL 3801P82245 Contact Us For Availability
41
Element, Bake WPL 7406P45160 Contact Us For Availability
42
Support, Oven WPL 3807P68045 Contact Us For Availability
43
Bottom, Oven WPL 2205F05319 Contact Us For Availability
47
Insulation WPL 7002P49460 Contact Us For Availability
50
SUPPORT, OVEN WPL 3801P79851 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
NI
INSULATION, BACK WPL 7022P49260 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
HARNESS, WIRE BURNER BOX) WPL 5171P49751 Contact Us For Availability
NI
Harness, Wire (Cooktop Left) WPL 5171P86460 Contact Us For Availability
NI
HARNESS, WIRE COOKTOP RIGHT) WPL 5171P86560 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL 5171P88460 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
× ![]()
