Model Maytag MER5752BAS17 ELECTRIC RANGE – Common Parts & Diagrams

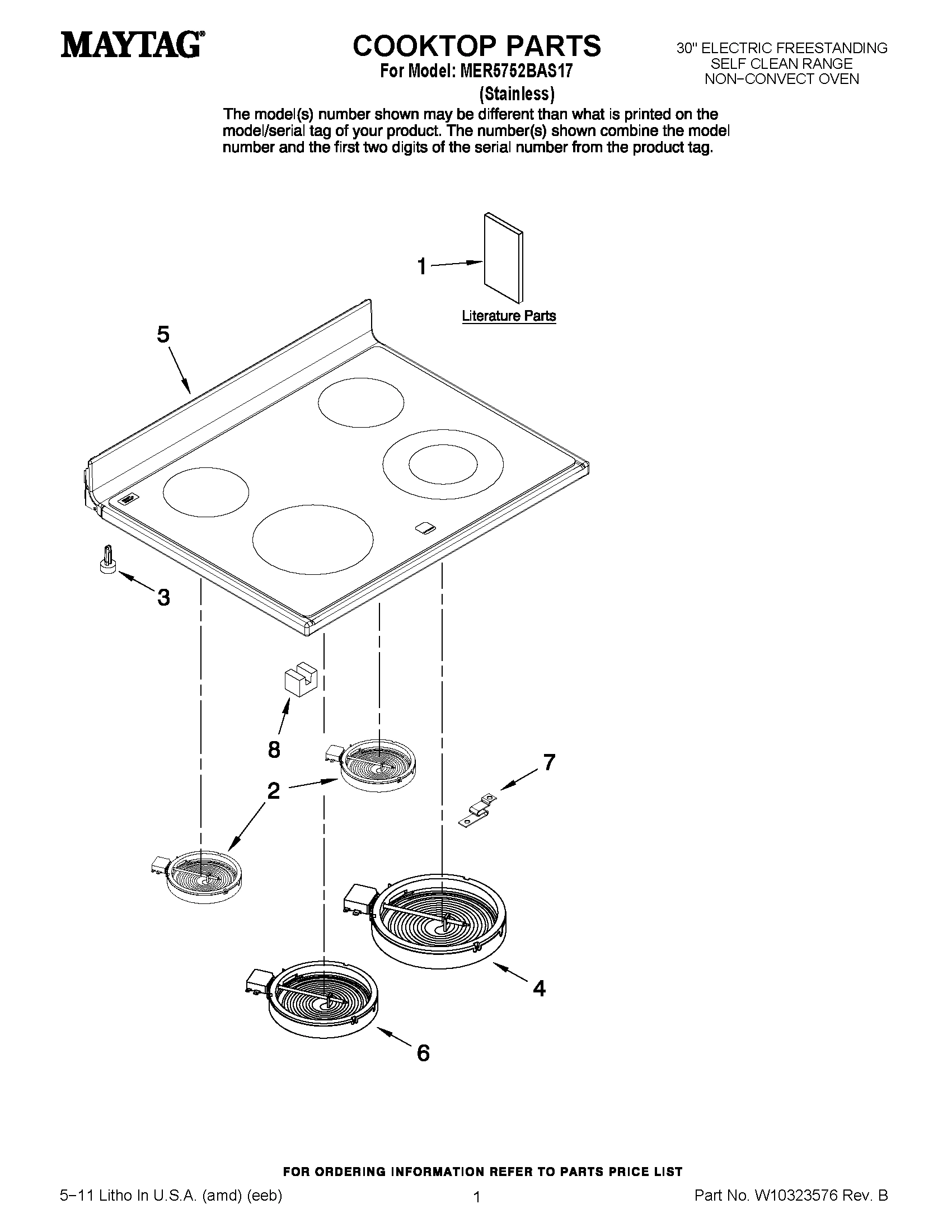

01 - COOKTOP PARTS

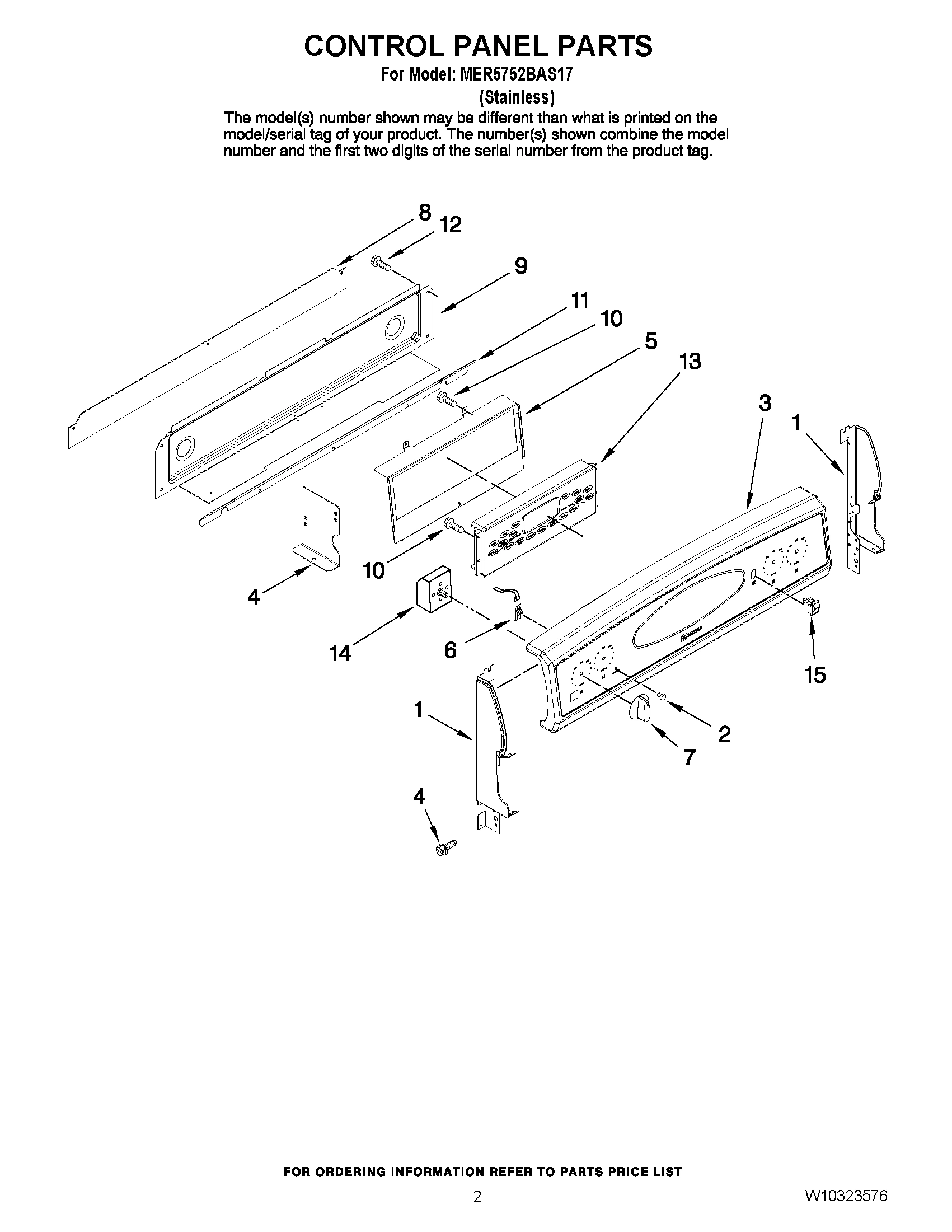

02 - CONTROL PANEL PARTS

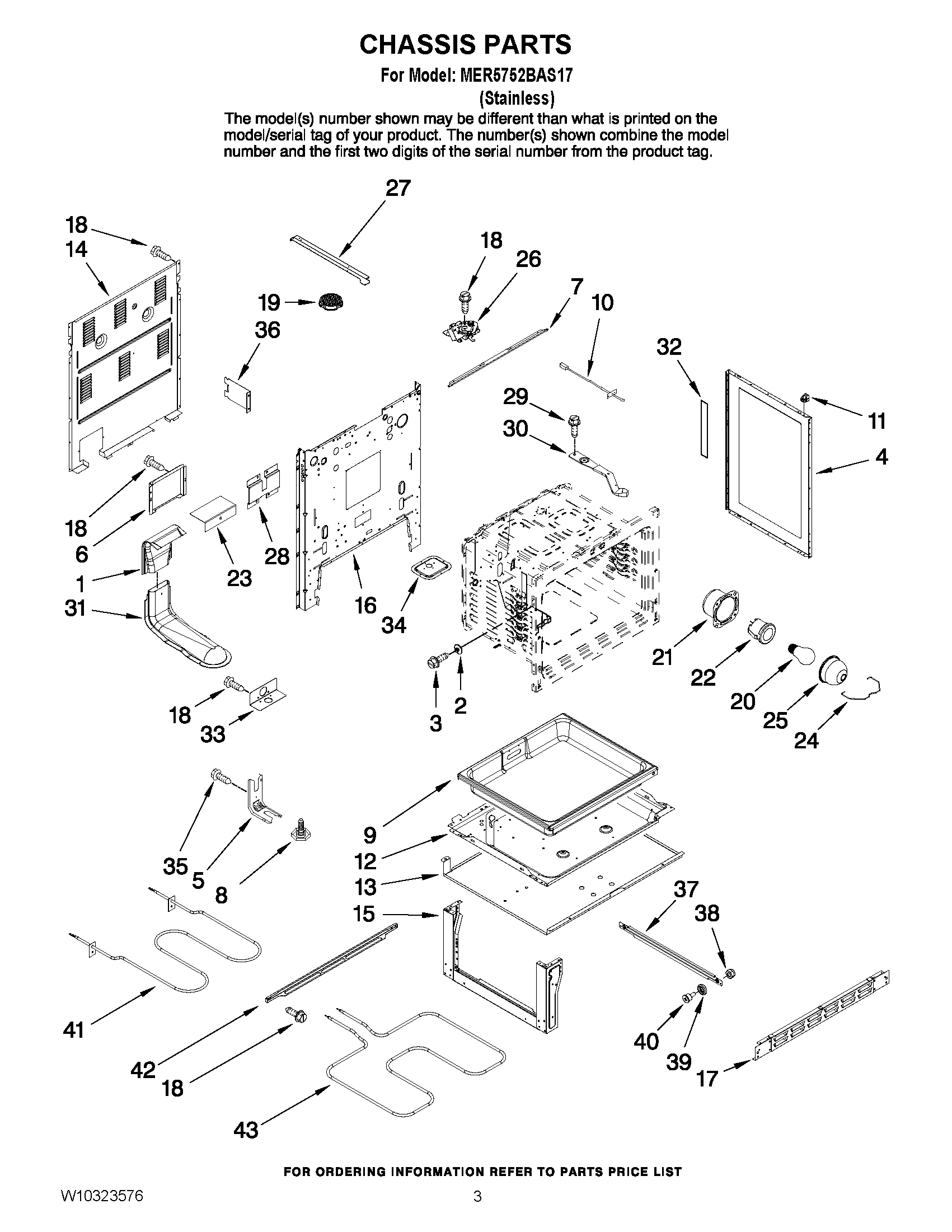

03 - CHASSIS PARTS

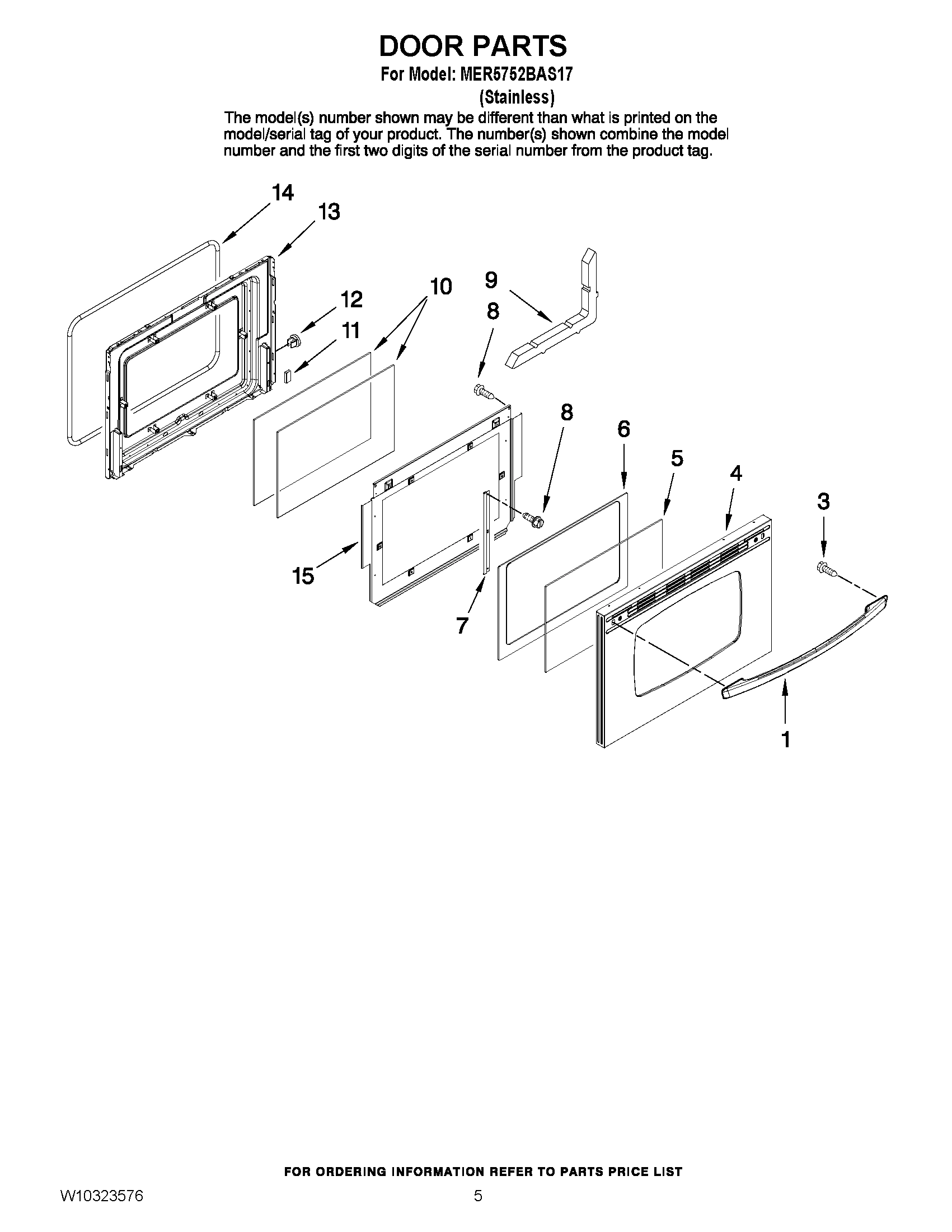

04 - DOOR PARTS

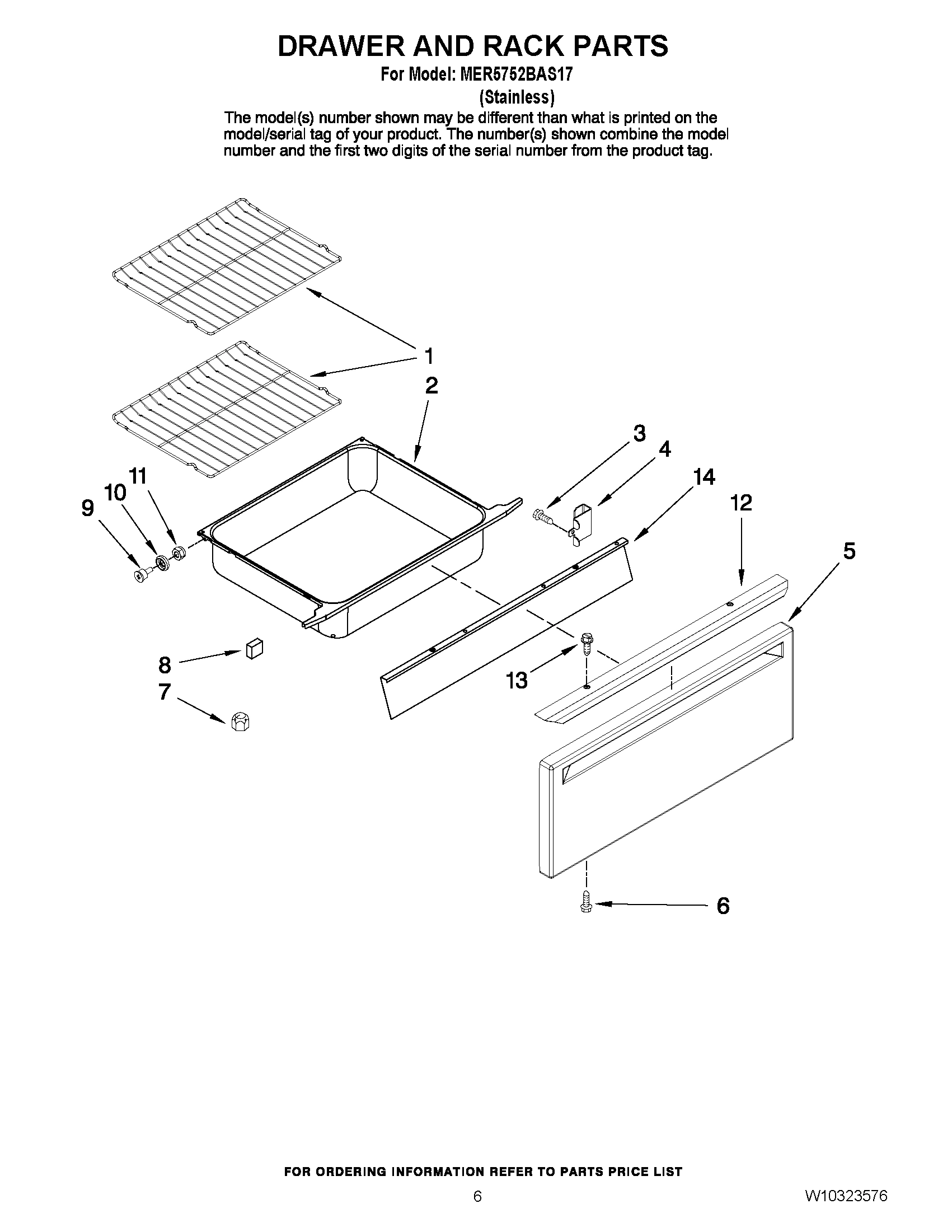

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER5752BAS17 ELECTRIC RANGE
1
MAY 8119P051-60 MAY 8119P051-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING MAY 9762761 Contact Us For Availability
1
MAY 3807F733-70 MAY 3807F733-70 Contact Us For Availability
1
MAY 3807F734-70 MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
HANDLE, DOOR MAY 7701P524-60 Contact Us For Availability
1
Rack, Oven MAY 7801P054-60 Contact Us For Availability
2
Element (RR,LR) MAY 7406P365-60 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
DRAWER, STORAGE MAY 3405F033-80 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
PANEL, BACKGUARD MAY 2602D280-09 Contact Us For Availability
3
SCREW, SHOULDER MAY 7101P604-60 Contact Us For Availability
3
MAY 7101P675-60 MAY 7101P675-60 Contact Us For Availability
4
ELEMENT, (RF) MAY 7406P357-60 Contact Us For Availability
4
BRACKET, VENT EXT. MAY 3801F930-51 Contact Us For Availability
4
Panel, Side MAY 2618F194-70 Contact Us For Availability
4
MAY 7760P186-60 MAY 7760P186-60 Contact Us For Availability
4
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
5
MAY 2002W212-09 MAY 2002W212-09 Contact Us For Availability
5
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
GLASS, DOOR INNER MAY 7902P768-60 Contact Us For Availability
5
MAY W10174859 MAY W10174859 Contact Us For Availability
6
MAY 7406P387-60 MAY 7406P387-60 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
SCREW, PANEL MAY 7101P633-60 Contact Us For Availability
6
MAY 4005F747-51 MAY 4005F747-51 Contact Us For Availability
6
GLASS, DOOR OUTER MAY 7902P752-60 Contact Us For Availability
7
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
7
KNOBS MAY 7737P350-60 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
8
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
8
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
9
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
9
MAY 2205F061-19 MAY 2205F061-19 Contact Us For Availability
9
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
10
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
10
ROLLER, DRAWER MAY 7118P032-60 Contact Us For Availability
10
Glass, Inner MAY 7902P436-60 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
MAY 8010P087-60 MAY 8010P087-60 Contact Us For Availability
11
MAY 8010P088-60 MAY 8010P088-60 Contact Us For Availability
12
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
12
RETAINER,INS BTM MAY 3804F231-51 Contact Us For Availability
12
NUT, SNAP MAY 7103P141-60 Contact Us For Availability
12
HANDLE, DRAWER MAY W10180296 Contact Us For Availability
13
CONTROL W/OVERLAY MAY 5701M760-60 Contact Us For Availability
13
SHIELD,WARMNG DWR MAY 3604F326-45 Contact Us For Availability
13
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
13
SCREW MAY 7101P638-60 Contact Us For Availability
14
MAY 7403P372-60 MAY 7403P372-60 Contact Us For Availability
14
SWITCH, INFINITE (RR) MAY 7403P373-60 Contact Us For Availability
14
SWITCH, INFINITE (LR) MAY 7403P877-60 Contact Us For Availability
14
SWITCH, INFINITE (LF) MAY 7450P017-60 Contact Us For Availability
14
MAY W10177234 MAY W10177234 Contact Us For Availability
14
SEAL, DOOR MAY W10162384 Contact Us For Availability
14
MAY 2404F030-51 MAY 2404F030-51 Contact Us For Availability
15
SWITCH, ROCKER MAY 7403P756-60 Contact Us For Availability
15
MAY 4020L026-80 MAY 4020L026-80 Contact Us For Availability
15
RETAINER MAY 3601F373-51 Contact Us For Availability
16
MAY W10177185 MAY W10177185 Contact Us For Availability
17
MAY 4020F021-80 MAY 4020F021-80 Contact Us For Availability
19
MAY 8034P008-60 MAY 8034P008-60 Contact Us For Availability
21
MAY 4001F109-45 MAY 4001F109-45 Contact Us For Availability
22
RECEPTICLE, BULB MAY 7408P044-60 Contact Us For Availability
23
MAY 8036P026-60 MAY 8036P026-60 Contact Us For Availability
24
RETAINER,OVEN LAMP MAY 7804P001-60 Contact Us For Availability
25
LENS, BULB MAY 7724P102-60 Contact Us For Availability
26
MAY 8002P086-60 MAY 8002P086-60 Contact Us For Availability
27
MAY 4011F458-51 MAY 4011F458-51 Contact Us For Availability
27
MAY 4011F459-51 MAY 4011F459-51 Contact Us For Availability
28
INSUL, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
29
SCREW MAY 7101P230-60 Contact Us For Availability
30
LEVER,LOCK ARM MAY 8009P065-60 Contact Us For Availability
31
VENT, BOX MAY 4006W129-45 Contact Us For Availability
32
MAY W10250527 MAY W10250527 Contact Us For Availability
33
MAY W10190166 MAY W10190166 Contact Us For Availability
34
PLATE,VENT COVER MAY 3605F354-45 Contact Us For Availability
35
Screw MAY 7101P485-60 Contact Us For Availability
36
SUPPORT,OVEN REAR MAY 3807F400-51 Contact Us For Availability
37
MAY W10182835 MAY W10182835 Contact Us For Availability
38
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
39
MAY W10272883 MAY W10272883 Contact Us For Availability
41
MAY W10310249 MAY W10310249 Contact Us For Availability
42
SUPPORT,BROIL ELEM MAY 3807F494-45 Contact Us For Availability
43
MAY 7406P438-60 MAY 7406P438-60 Contact Us For Availability
NI
MAY 7002P398-60 MAY 7002P398-60 Contact Us For Availability
NI
INSULATION, BACK MAY 7002P460-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P344-60 MAY 5171P344-60 Contact Us For Availability
NI
MAY 5171P356-60 MAY 5171P356-60 Contact Us For Availability
NI
MAY 5171P357-60 MAY 5171P357-60 Contact Us For Availability
NI
MAY 5171P622-60 MAY 5171P622-60 Contact Us For Availability
NI
MAY 5195P082-60 MAY 5195P082-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
× ![]()
