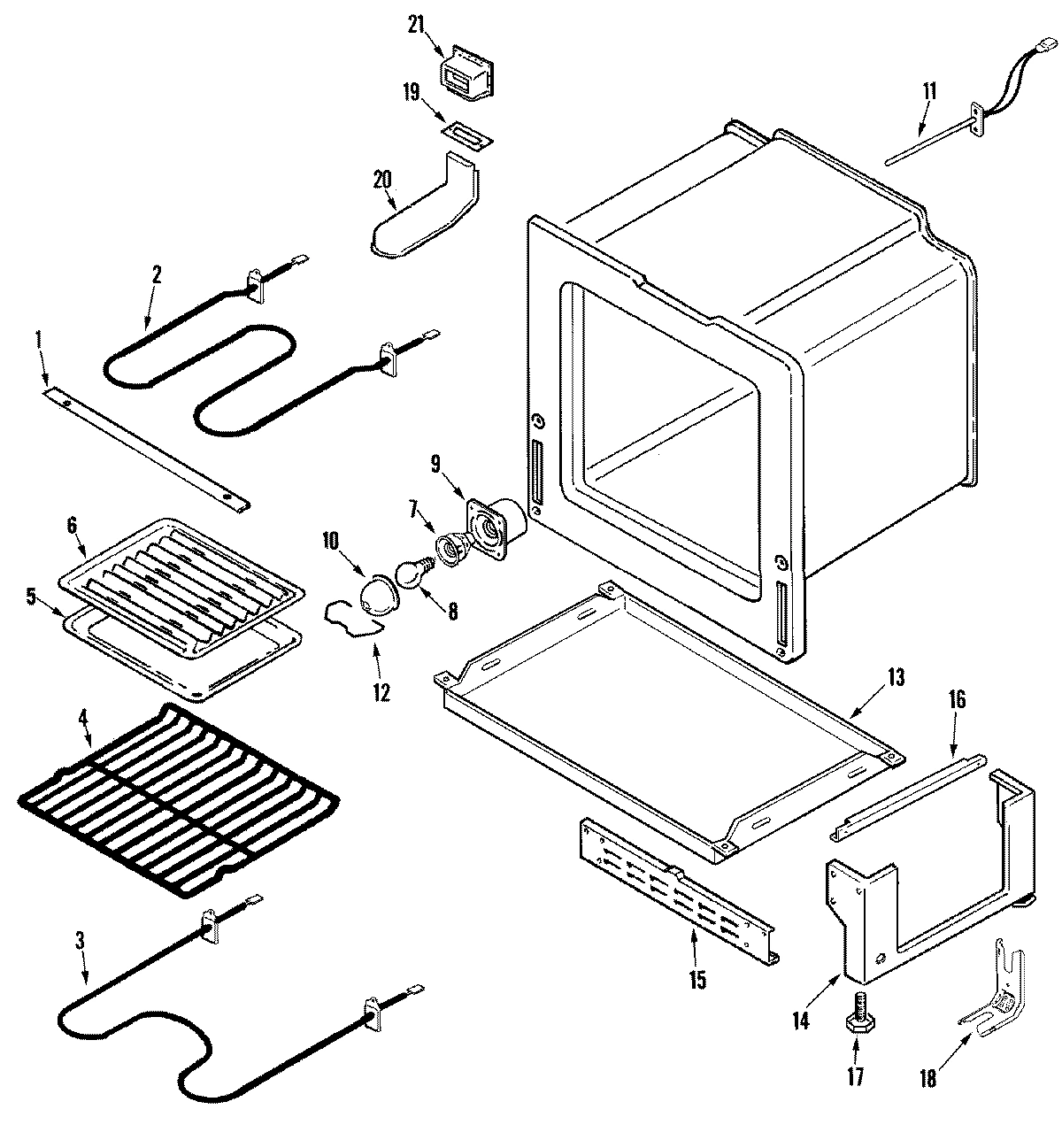

  • Whirlpool MER5752AAS Parts List

Model Whirlpool MER5752AAS ELECTRIC RANGE – Common Parts & Diagrams

1
HARNESS, TOP
HARNESS, TOP WPL 74009739 Contact Us For Availability
View on Model
1
BACK, MAIN (ELEC)
BACK, MAIN (ELEC) WPL 74009677 Contact Us For Availability
View on Model
1
SUPPORT, BROIL ELEMENT
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
View on Model
2
HARNESS, MAIN
HARNESS, MAIN WPL 74009740 Contact Us For Availability
View on Model
2
INSULATION, FOIL
INSULATION, FOIL WPL 74010233 Contact Us For Availability
View on Model
2
PANEL, SIDE (BLK)
PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability
View on Model
2
TAPE, FOIL (3`` WIDE)
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
View on Model
2
SCREW
SCREW WPL 7101P34560 Contact Us For Availability
View on Model
3
HARNESS, INFINITE (LT)
HARNESS, INFINITE (LT) WPL 74009741 Contact Us For Availability
View on Model
3
GLASS, OVEN DOOR (STL)
GLASS, OVEN DOOR (STL) WPL 74010042 Contact Us For Availability
View on Model
3
BOX, BURNER (RT)
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
View on Model
4
HARNESS, INFINITE (RT)
HARNESS, INFINITE (RT) WPL 74009742 Contact Us For Availability
View on Model
4
BOX, BURNER (LT)
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
View on Model
5
HARNESS, DOOR LOCK
HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability
View on Model
5
SPACER, MAIN TOP (LT)
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
View on Model
5
SPACER, MAIN TOP (RT)
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
View on Model
5
PAN, BROIL
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
View on Model
6
RETAINER, DOOR GLASS
RETAINER, DOOR GLASS WPL 74010041 Contact Us For Availability
View on Model
6
COOKTOP CLEANING CREME 4 OZ
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
View on Model
6
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability
View on Model
6
INSERT, BROIL PAN
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
View on Model
7
GLASS, DOOR (INNER/COATED)
GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability
View on Model
7
COVER, MAIN BACK WIRE
COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability
View on Model
7
HOUSING, BULB
HOUSING, BULB WPL 74003388 Contact Us For Availability
View on Model
8
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8113P42360 Contact Us For Availability
View on Model
8
COVER, ACCESS
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
View on Model
8
BULB-OVEN
BULB-OVEN WPL 7407P10360 Contact Us For Availability
View on Model
9
FRAME, GLASS
FRAME, GLASS WPL 74003644 Contact Us For Availability
View on Model
9
SVC MAN, RANGE, ELECT
SVC MAN, RANGE, ELECT WPL 16023528 Contact Us For Availability
View on Model
9
SUPPORT,OVEN REAR
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
View on Model
9
RECEPTACLE, BULB
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
View on Model
10
SHIELD, DOOR (STL)
SHIELD, DOOR (STL) WPL 74010040 Contact Us For Availability
View on Model
10
LEVER, LATCH (BLK)
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
View on Model
10
COVER, BULB
COVER, BULB WPL 74003389 Contact Us For Availability
View on Model
11
BAFFLE, OVEN DOOR
BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability
View on Model
11
LATCH, DOOR LOCK
LATCH, DOOR LOCK WPL 74009710 Contact Us For Availability
View on Model
12
INSULATION, OVEN DOOR
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
View on Model
12
INSULATION, OVEN WRAP
INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability
View on Model
12
RETAINER, BULB COVER
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
View on Model
13
LINING, DOOR
LINING, DOOR WPL 74003642 Contact Us For Availability
View on Model
14
GASKET, DOOR
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
View on Model
14
SPACER, SIDE PANEL
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
View on Model
14
PEDESTAL, SIDE
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
View on Model
15
SCREW (8ABX13/16-ZN)
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
View on Model
15
PEDESTAL, FRONT/REAR
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
View on Model
16
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
View on Model
16
RUNNER, DRAWER
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
View on Model
17
SCREW, LEVER
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
View on Model
18
HANDLE, DRAWER (STL)
HANDLE, DRAWER (STL) WPL 74009841 Contact Us For Availability
View on Model
18
SCREW (10-24X5/16-NI)
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL 7101P35260 Contact Us For Availability
View on Model
19
DRAWER, STORAGE
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
View on Model
19
GASKET, VENT
GASKET, VENT WPL 74003285 Contact Us For Availability
View on Model
20
PANEL, DRAWER ELECT (STL)
PANEL, DRAWER ELECT (STL) WPL 74009842 Contact Us For Availability
View on Model
20
SWITCH, DOOR LATCH
SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability
View on Model
20
VENT BOX ASSEMBLY
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
View on Model
21
SCREW (8BX3/8-NI)
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
View on Model
21
SCREW, SWITCH
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
View on Model
21
EXTENSION, VENT ASSEMBLY
EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability
View on Model
22
SHAFT, STORAGE DRAWER ROLLER
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
View on Model
22
BRACKET, MAIN TOP
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
View on Model
23
NUT
NUT WPL 7103P08260 Contact Us For Availability
View on Model
23
STRAP, INSULATION
STRAP, INSULATION WPL 74003385 Contact Us For Availability
View on Model
24
NUT, LOCK
NUT, LOCK WPL 7103P13960 Contact Us For Availability
View on Model

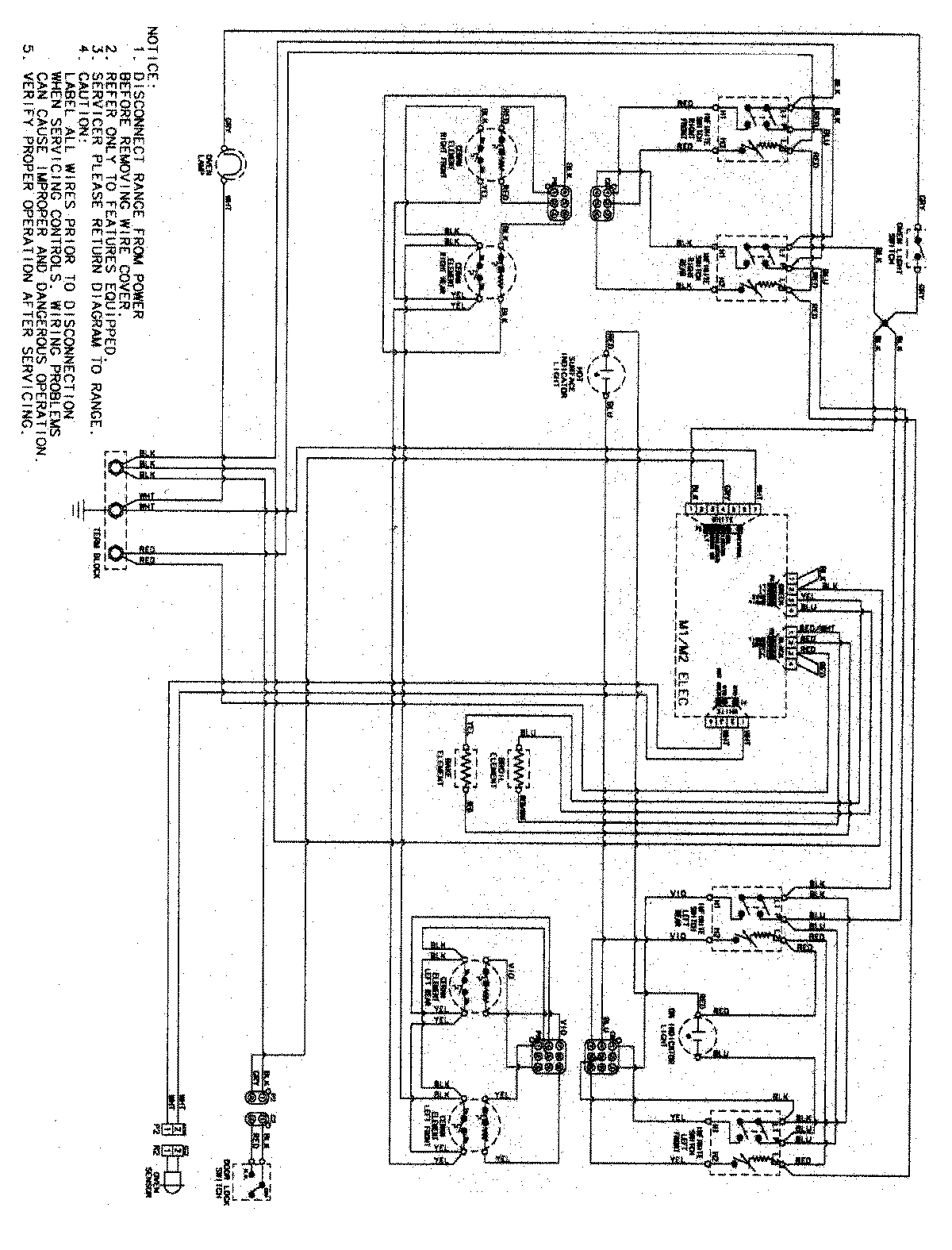

NI
WIRING INFORMATION
WIRING INFORMATION WPL 15003512 Contact Us For Availability
View on Model
