Model Frigidaire MEF331BHWA RANGE – Common Parts & Diagrams

*
Screw,cup pt ,8-18 x 0.375,ind lght brkt,mani
Screw,cup pt ,8-18 x 0.375,ind lght brkt,mani WCI 316021108 Contact Us For Availability
View on Model
*
Screw, waf hd sdr , 10-32 x 5/16 , (2)
Screw, waf hd sdr , 10-32 x 5/16 , (2) WCI 5303280311 Contact Us For Availability
View on Model
*
Screw,cr pan hd sems ,8-32BP x 1.00
Screw,cr pan hd sems ,8-32BP x 1.00 WCI 5303212671 Contact Us For Availability
View on Model
*
Screw-switch/handle,8-32 x 5/32
Screw-switch/handle,8-32 x 5/32 WCI 5303292005 Contact Us For Availability
View on Model
*
Spacer-sponge pad
Spacer-sponge pad WCI 316132100 Contact Us For Availability
View on Model
2B
Bracket-drawer panel,LH
Bracket-drawer panel,LH WCI 316105701 Contact Us For Availability
View on Model
3

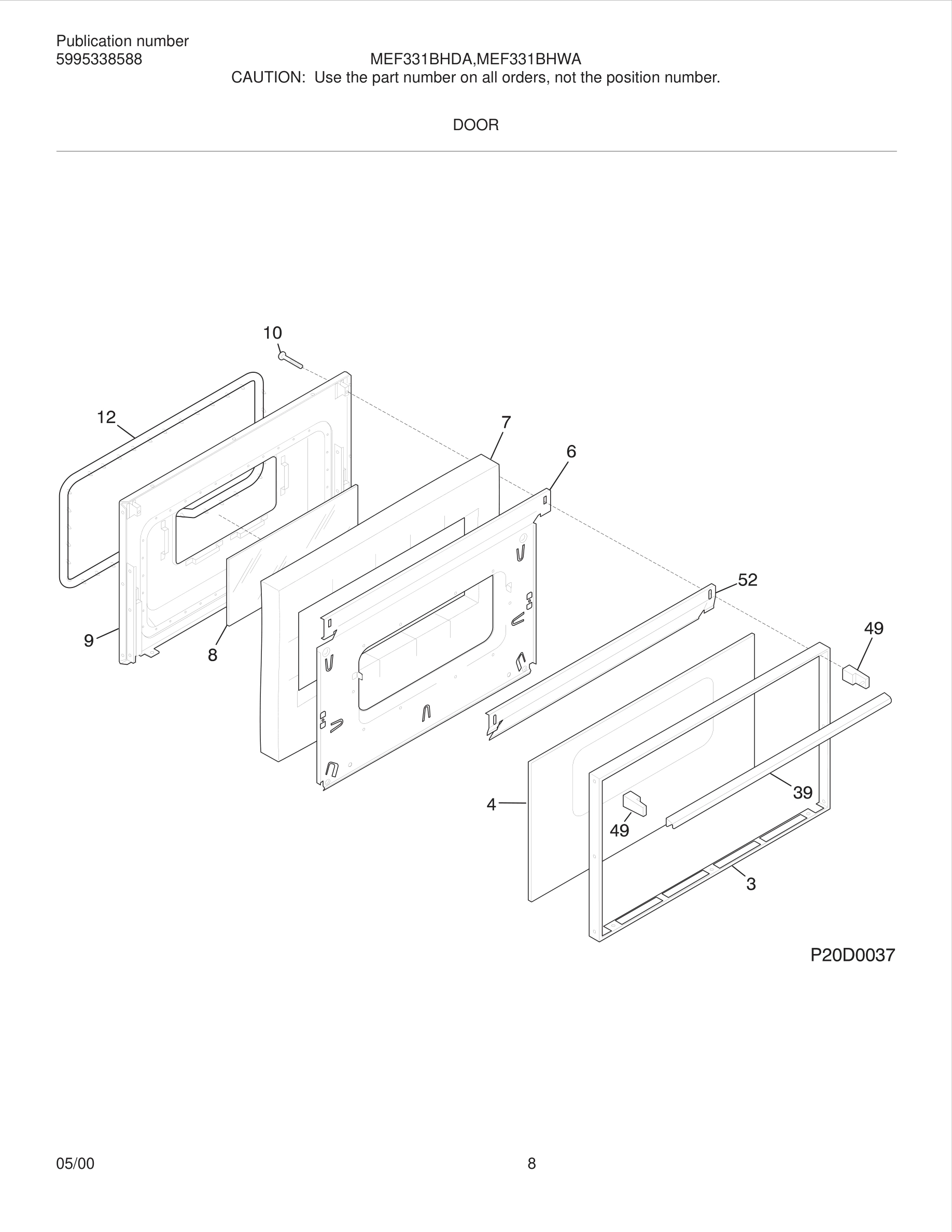

Trim-oven door,black
Trim-oven door,black WCI 316067802 Contact Us For Availability
View on Model
4
Panel-dummy,white
Panel-dummy,white WCI 3051201 Contact Us For Availability
View on Model
4
Glass-oven door,black ,outer
Glass-oven door,black ,outer WCI 316089000 Contact Us For Availability
View on Model
5
Leg-leveling (plastic) w/stop
Leg-leveling (plastic) w/stop WCI 316129200 Contact Us For Availability
View on Model
6
Shield-wool
Shield-wool WCI 316088403 Contact Us For Availability
View on Model
7
Hinge-oven door,(2)
Hinge-oven door,(2) WCI 316007001 Contact Us For Availability
View on Model
7
Insulation,oven door
Insulation,oven door WCI 316076401 Contact Us For Availability
View on Model
8
Glass-oven door,inner
Glass-oven door,inner WCI 316088600 Contact Us For Availability
View on Model
9
Pan-broiler
Pan-broiler WCI 316081900 Contact Us For Availability
View on Model
9
Liner-oven door
Liner-oven door WCI 316066610 Contact Us For Availability
View on Model
10
Screw-handle mtg,wafer head ,10-24F x 3
Screw-handle mtg,wafer head ,10-24F x 3 WCI 5303281378 Contact Us For Availability
View on Model
16

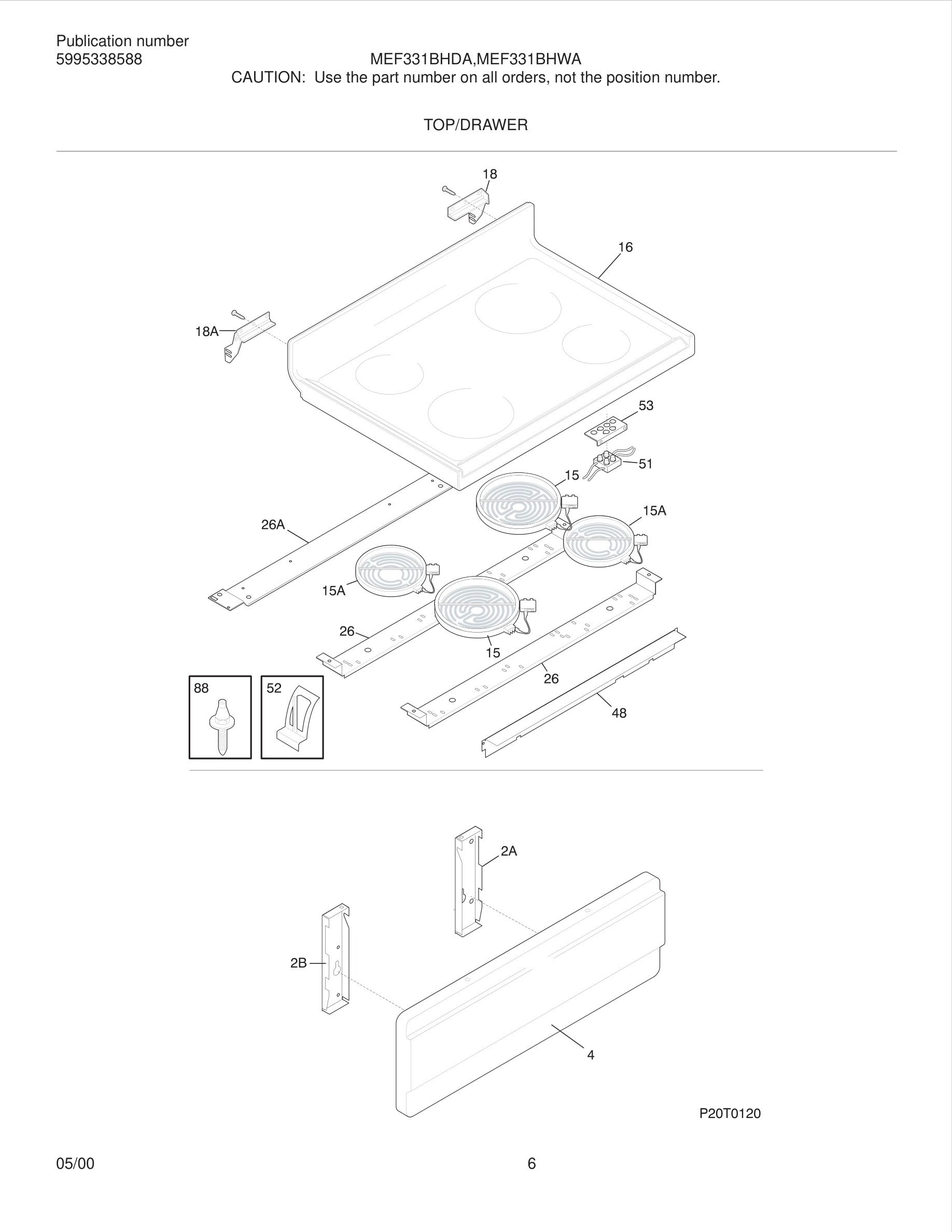

Main Top,white
Main Top,white WCI 316098103 Contact Us For Availability
View on Model
18
Hinge-main top,RH
Hinge-main top,RH WCI 5303273062 Contact Us For Availability
View on Model
18A
Hinge-main top,LH
Hinge-main top,LH WCI 5303273063 Contact Us For Availability
View on Model
20#
Clock-timer
Clock-timer WCI 316113200 Contact Us For Availability
View on Model
21
Spacer-bodyside, (8)
Spacer-bodyside, (8) WCI 3014099 Contact Us For Availability
View on Model
26
Channel-support, element , (2)
Channel-support, element , (2) WCI 316099101 Contact Us For Availability
View on Model
26A
Bracket-support, chassis
Bracket-support, chassis WCI 316099200 Contact Us For Availability
View on Model
29
Button-selector,clock/timer ,black
Button-selector,clock/timer ,black WCI 5303272305 Contact Us For Availability
View on Model
32
Knob-thermostat
Knob-thermostat WCI 316109600 Contact Us For Availability
View on Model
39
Handle-door,black ,oven
Handle-door,black ,oven WCI 316020204 No Longer Available
View on Model
41
Cover-hinge cutout
Cover-hinge cutout WCI 3131570 Contact Us For Availability
View on Model
48
Shield-wire,main top
Shield-wire,main top WCI 316100200 Contact Us For Availability
View on Model
51
Indicator light
Indicator light WCI 80142193 Contact Us For Availability
View on Model
52
Clip-spring, element mtg,(8)
Clip-spring, element mtg,(8) WCI 316099400 Contact Us For Availability
View on Model
52
Shield-oven door,black ,top
Shield-oven door,black ,top WCI 316081303 Contact Us For Availability
View on Model
53
Bracket-indicator light,hot surface ,4 hole
Bracket-indicator light,hot surface ,4 hole WCI 316099300 Contact Us For Availability
View on Model
