Model Electrolux MEF303PGDA RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

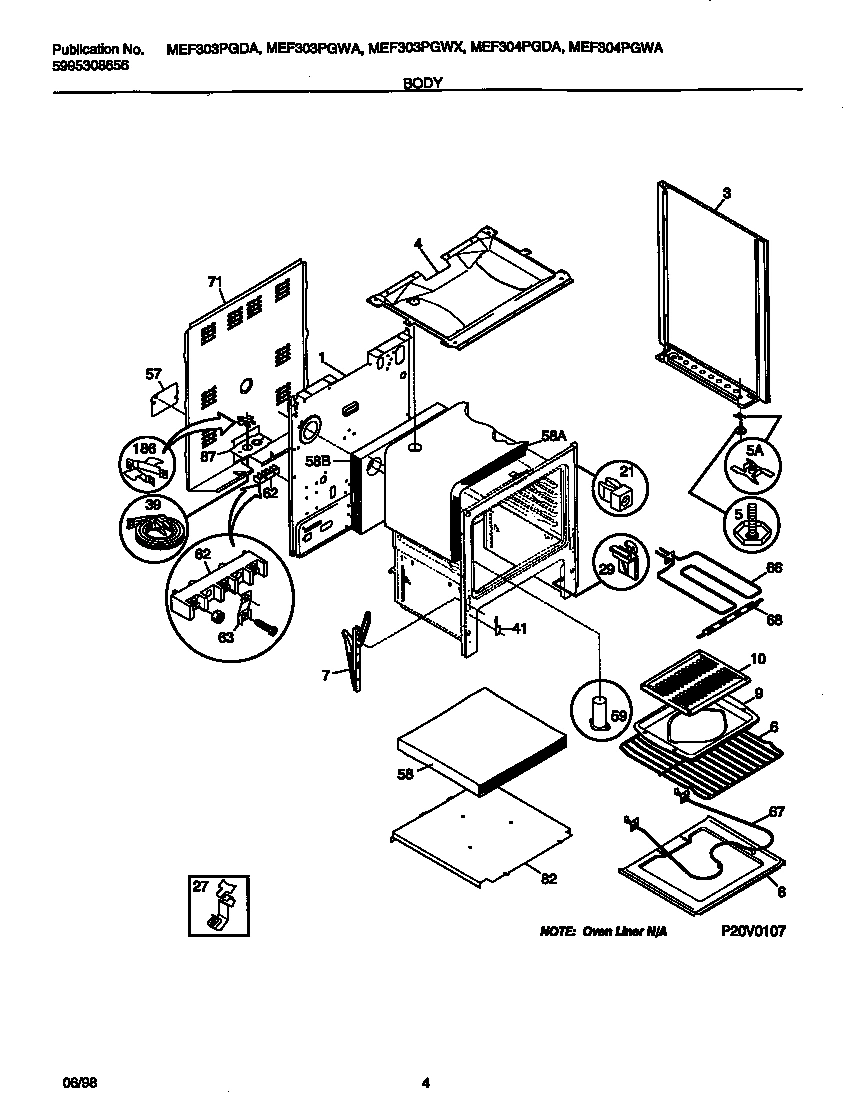

03 - BODY

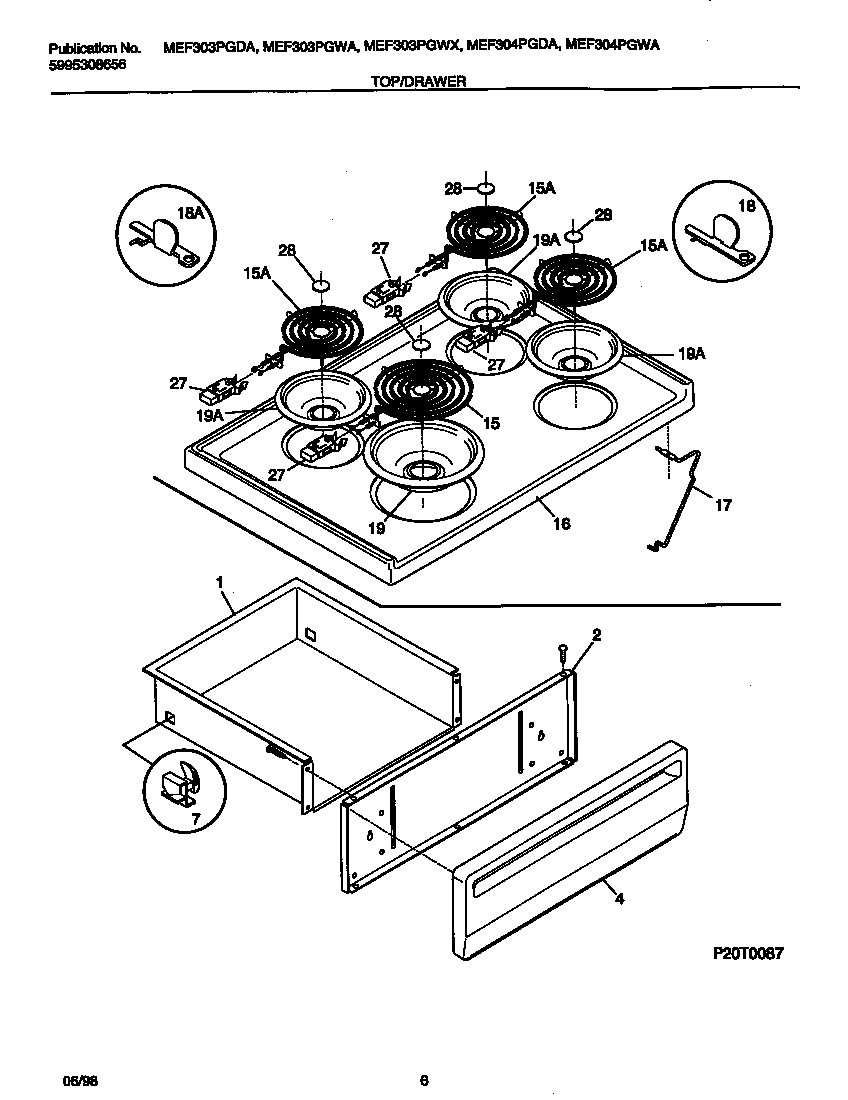

04 - TOP/DRAWER

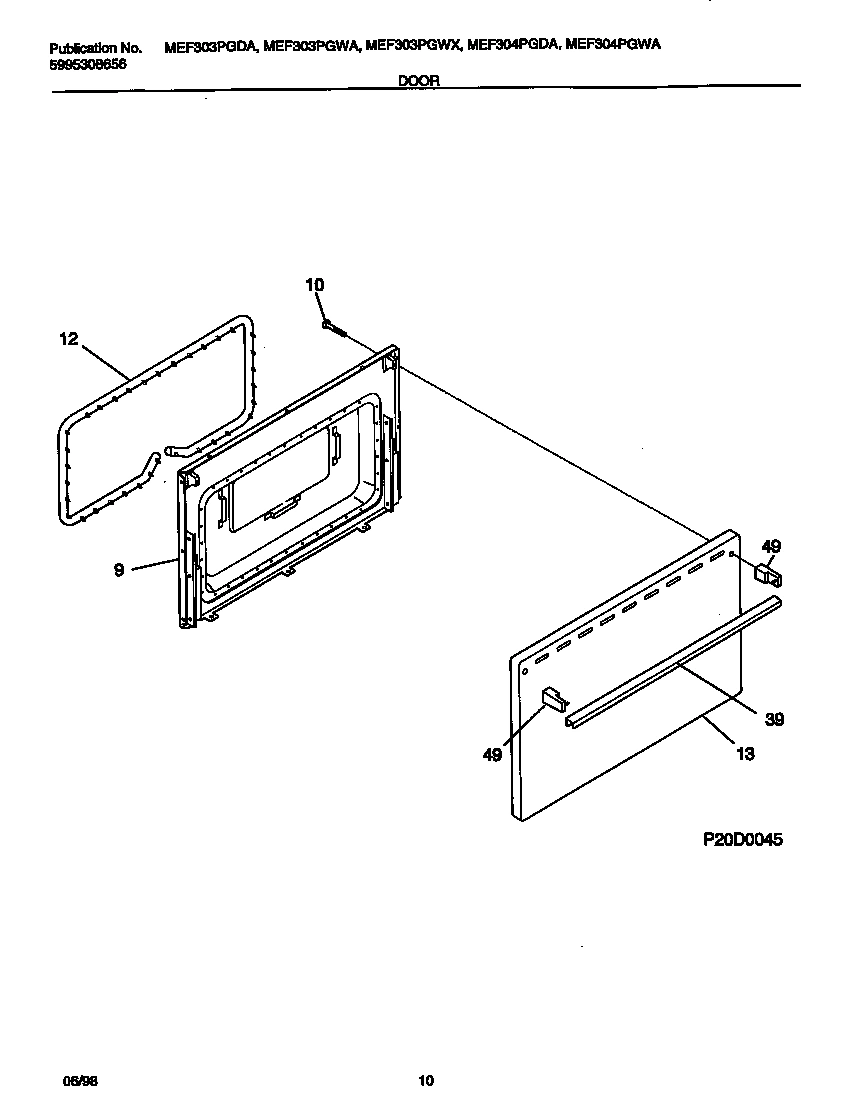

05 - DOOR

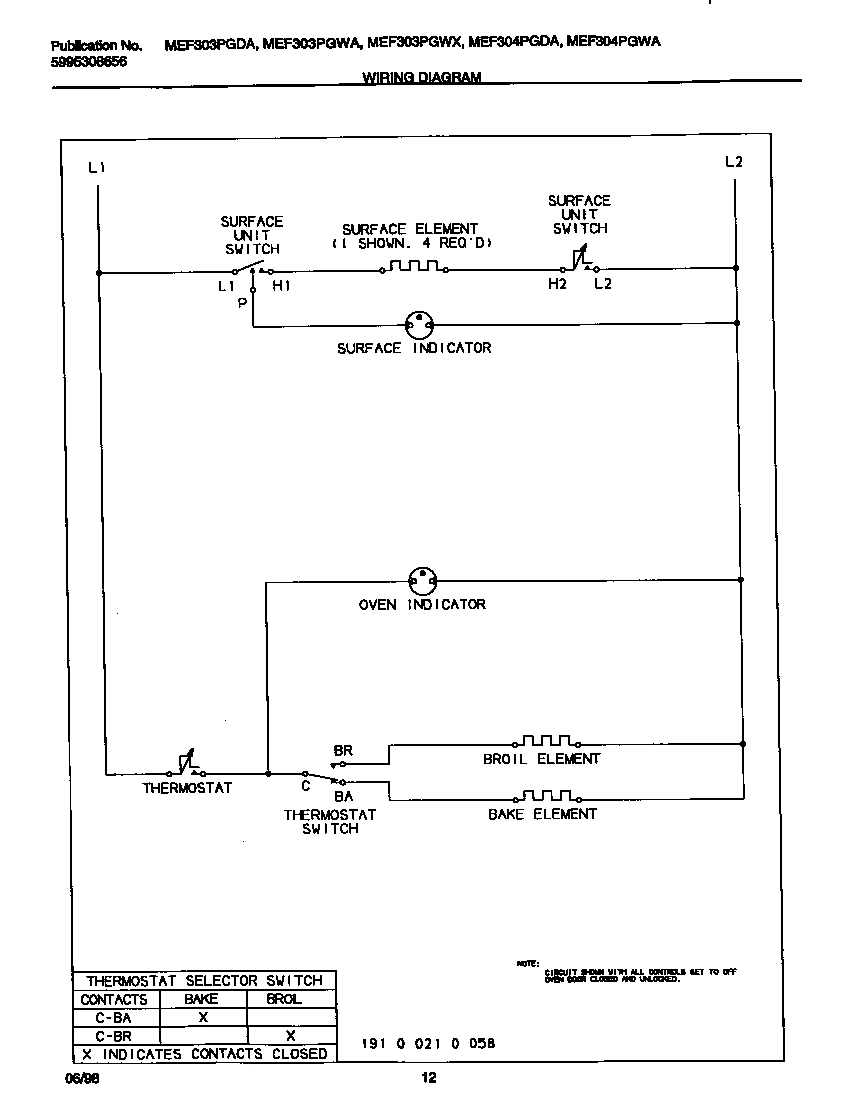

06 - WIRING DIAGRAM
Common parts from model Electrolux MEF303PGDA RANGE
*41883
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*41894
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*41902
WCI 316105700 WCI 316105700 Contact Us For Availability
*41903
WCI 316105701 WCI 316105701 Contact Us For Availability
*41904
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*41907
WCI 316102200 WCI 316102200 Contact Us For Availability
4
PANEL-DUMMY, ALMOND WCI 3051202 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
7
WCI 316007007 WCI 316007007 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
13
Panel,oven door ,almond WCI 3202316 Contact Us For Availability
16
WCI 3051380 WCI 3051380 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
End Cap,black ,LH WCI 3202801 Contact Us For Availability
18
End Cap,black ,RH WCI 3202802 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
39
WCI 316020204 WCI 316020204 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
× ![]()
