Model Electrolux MEF301PBWK RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

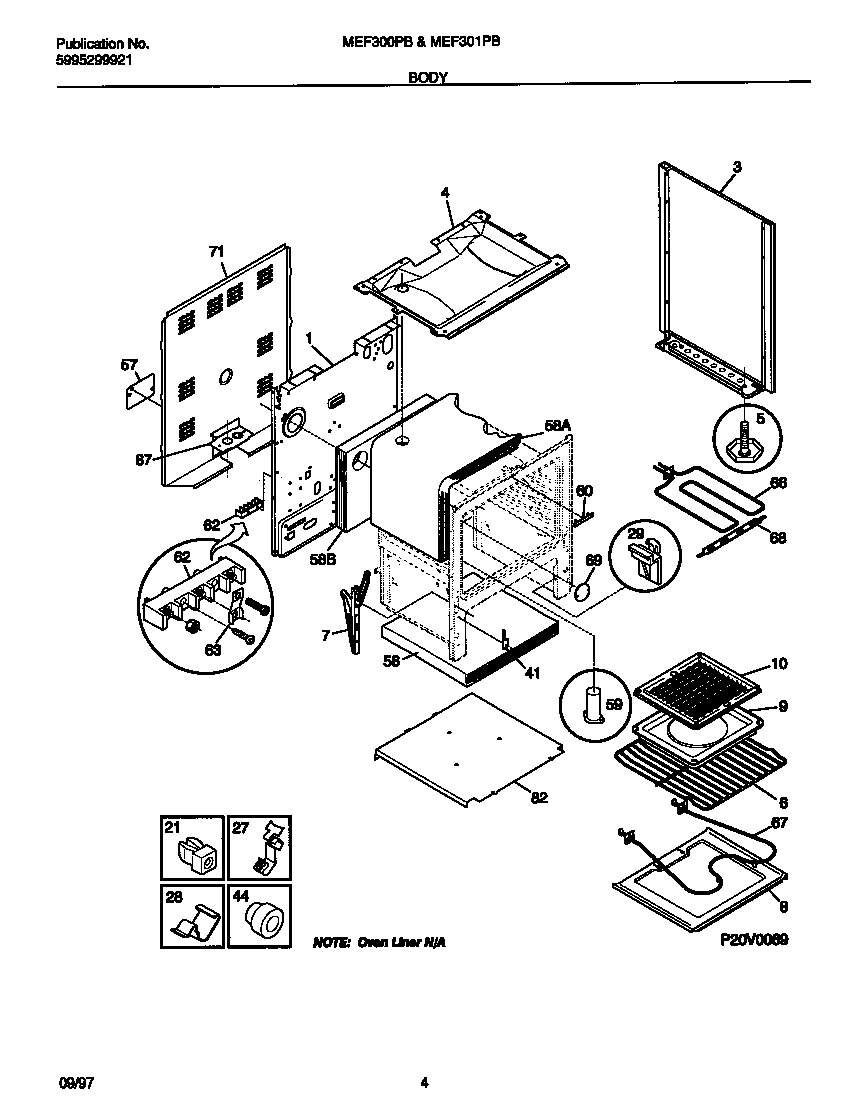

03 - BODY

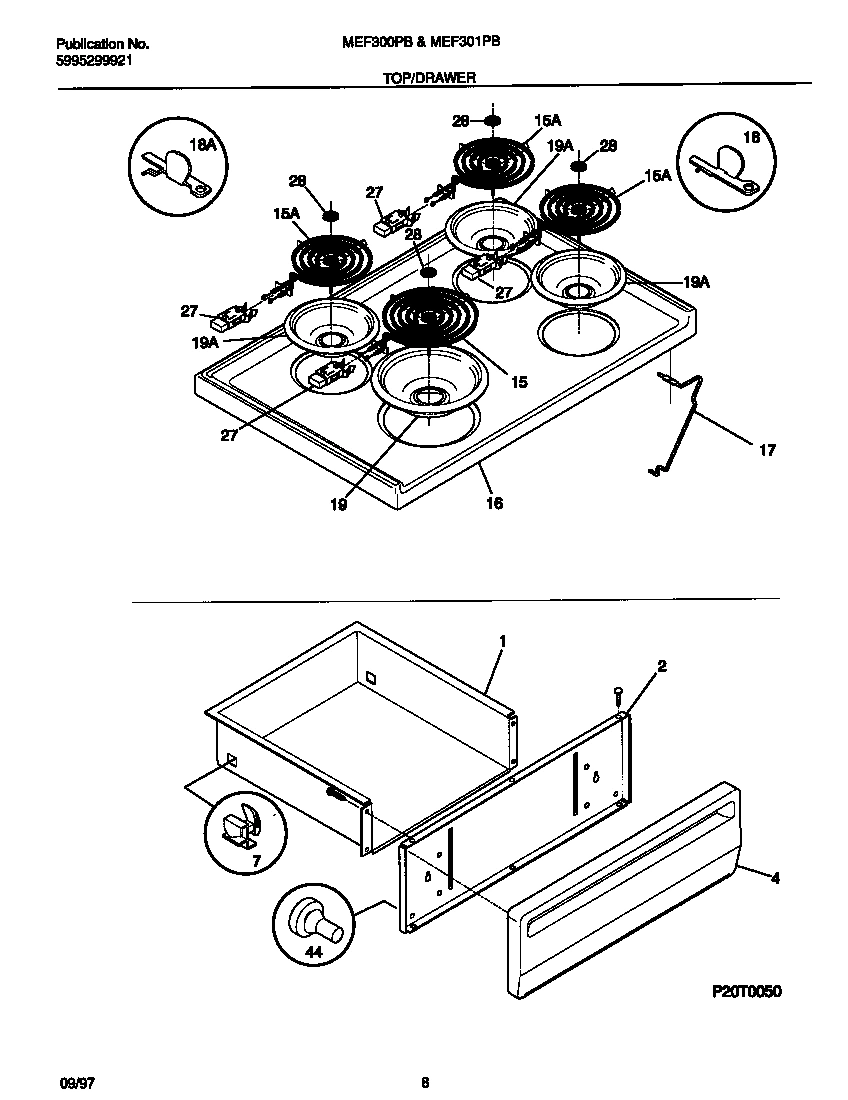

05 - TOP/DRAWER

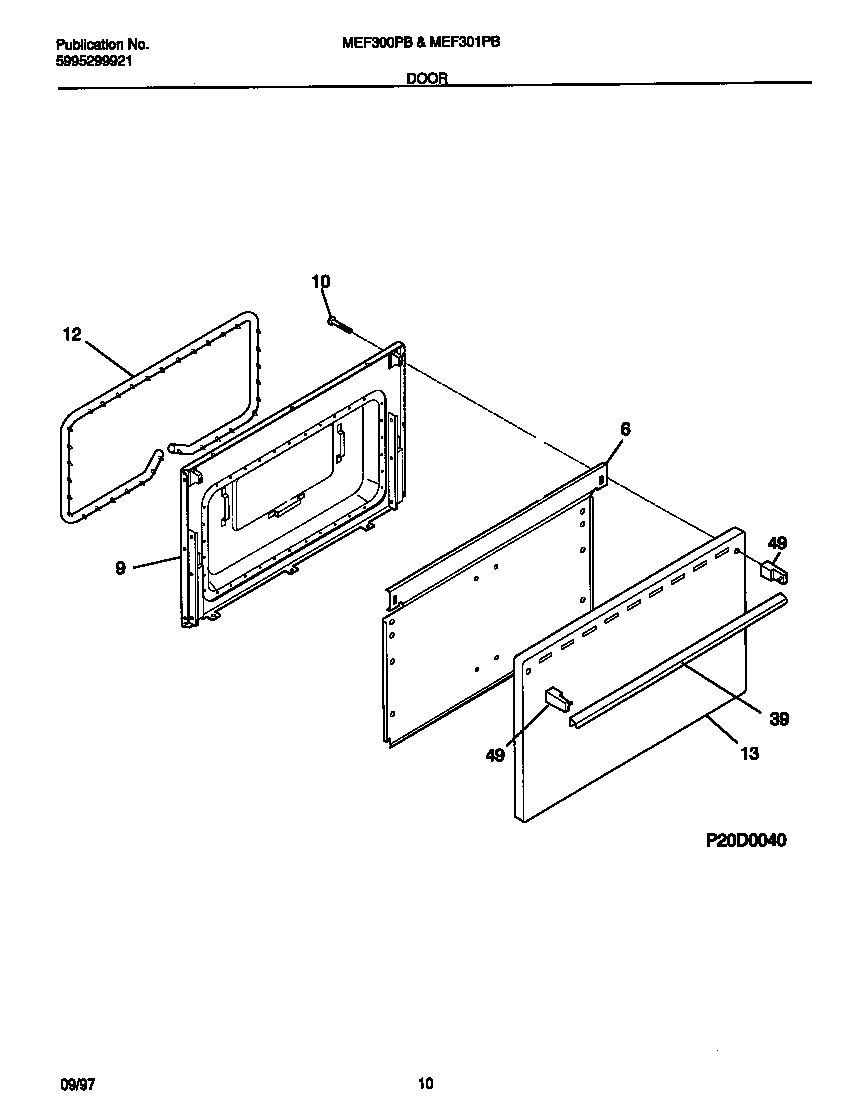

06 - DOOR

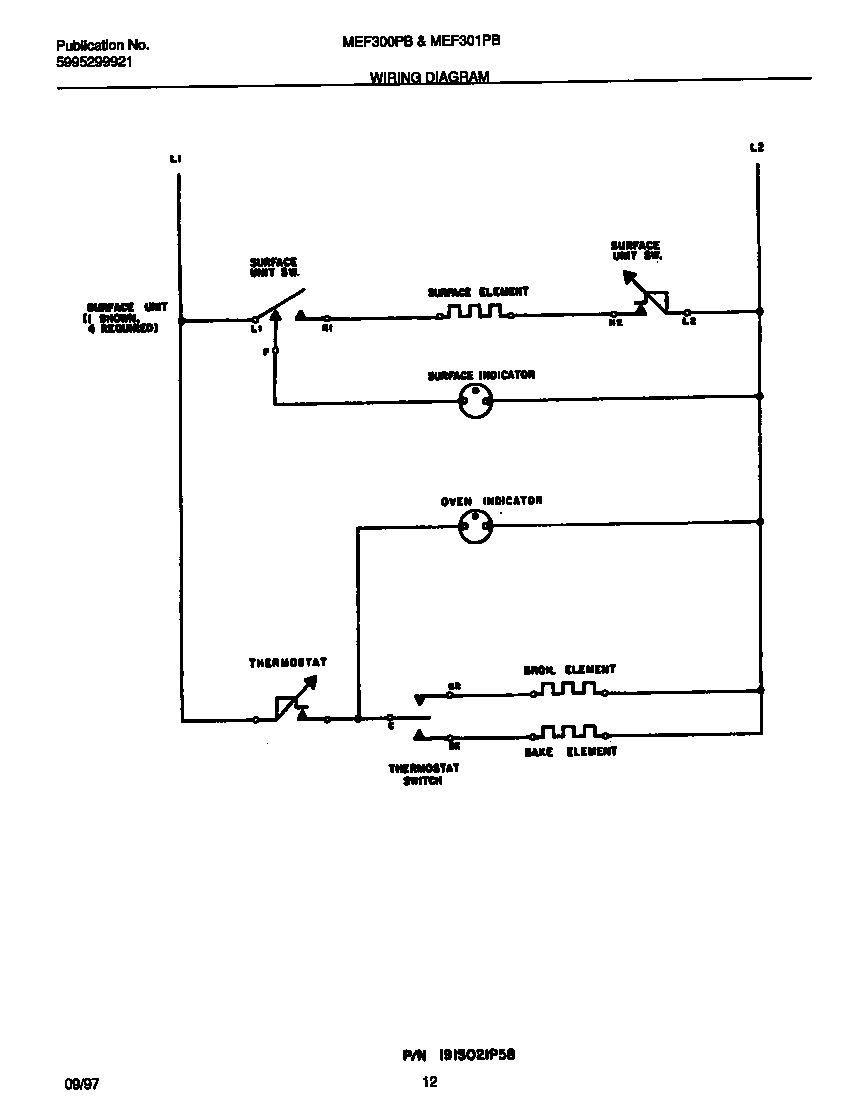

07 - WIRING DIAGRAM
Common parts from model Electrolux MEF301PBWK RANGE
*51054
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*51056
WCI 316105700 WCI 316105700 Contact Us For Availability
*51057
WCI 316105701 WCI 316105701 Contact Us For Availability
*51061
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
7
WCI 316007007 WCI 316007007 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3202315 Contact Us For Availability
16
WCI 3051379 WCI 3051379 Contact Us For Availability
17A
WCI 316066900 WCI 316066900 Contact Us For Availability
18
End Cap,black ,LH WCI 3202801 Contact Us For Availability
18
End Cap,black ,RH WCI 3202802 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
39A
WCI 316020204 WCI 316020204 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
× ![]()
