Model Maytag MEDX700XW0 ELECTRIC DRYER – Common Parts & Diagrams

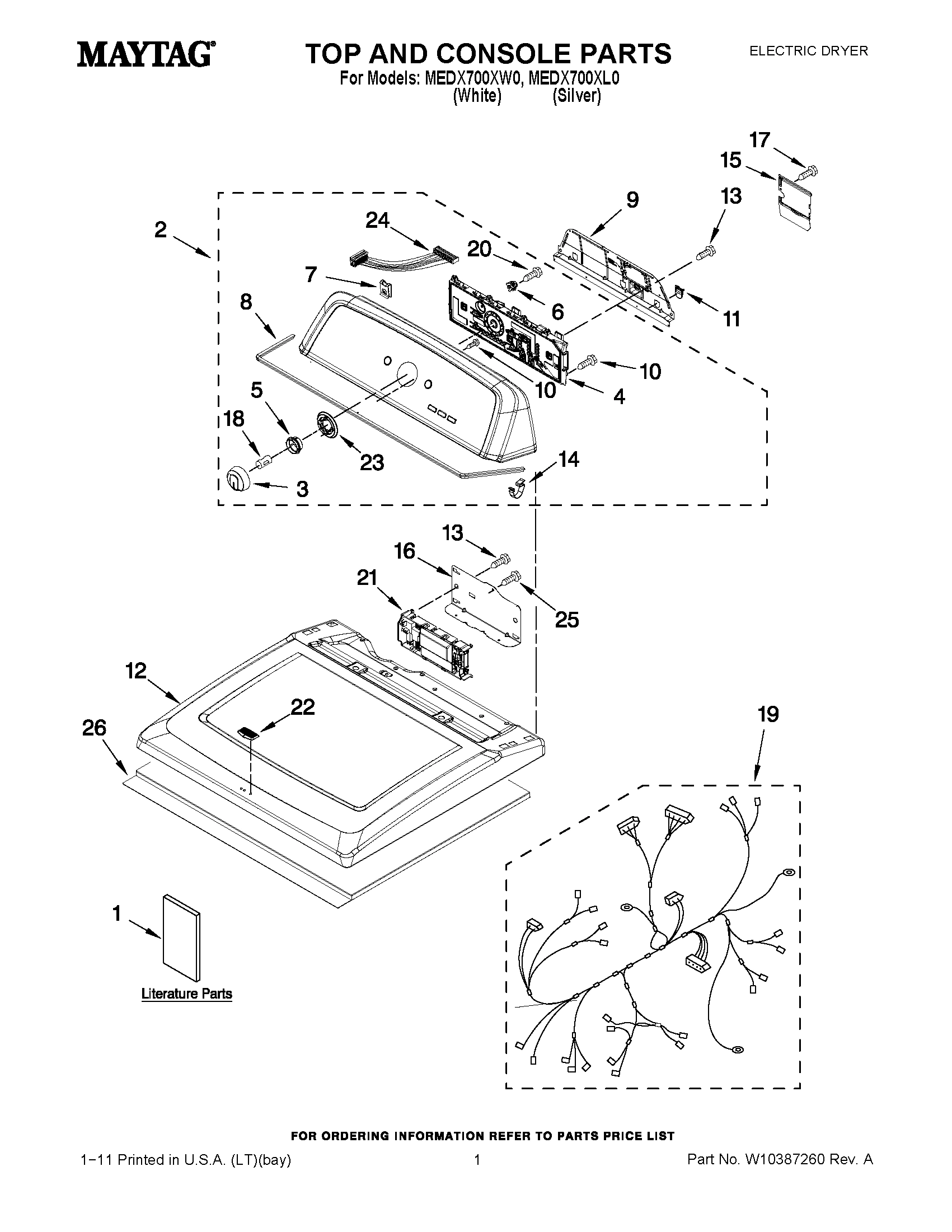

01 - TOP AND CONSOLE PARTS

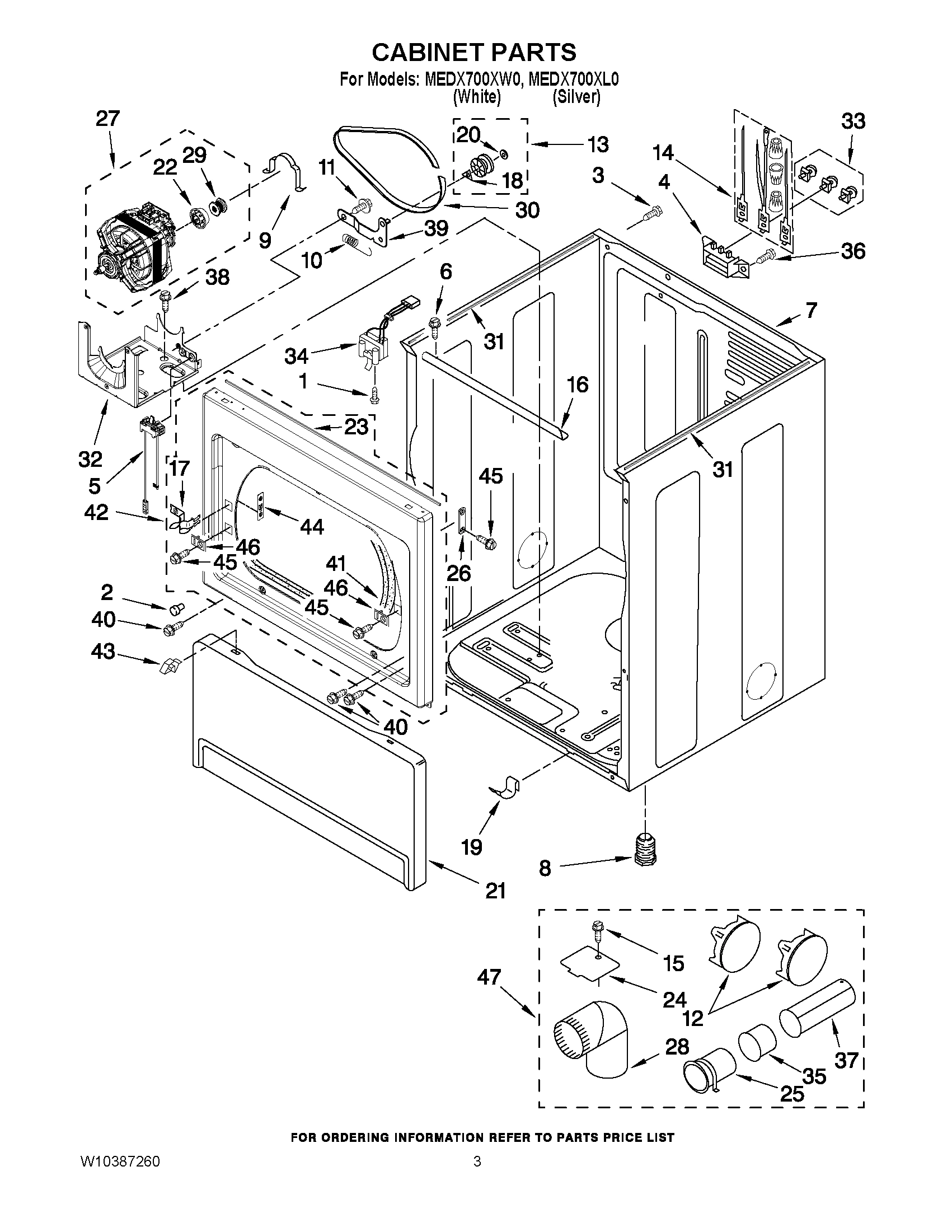

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDX700XW0 ELECTRIC DRYER
1
MAY W10096989 MAY W10096989 Contact Us For Availability
1
MAY W10097019 MAY W10097019 Contact Us For Availability
1
MAY W10115226 MAY W10115226 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
1
MAY W10284127 MAY W10284127 Contact Us For Availability
1
OUTER DOOR ASSEMBLY (SILVER) MAY W10284144 Contact Us For Availability
2
MAY W10293248 MAY W10293248 Contact Us For Availability
2
MAY W10293249 MAY W10293249 Contact Us For Availability
2
MAY 693152 MAY 693152 Contact Us For Availability
2
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
2
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
KNOB ASSEMBLY (INCLUDE NO. 18) (WHITE) MAY W10251381 Contact Us For Availability
3
KNOB ASSEMBLY (INCLUDE NO. 18) (SILVER) MAY W10251384 Contact Us For Availability
3
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
3
Screw, 10-16 x 1/2 MAY 3393258 Contact Us For Availability
4
USER INTERFACE ASSEMBLY MAY W10272644 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10153413 MAY W10153413 Contact Us For Availability
5
MAY W10326923 MAY W10326923 Contact Us For Availability
5
MAY W10246525 MAY W10246525 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
5
RETAINER, GLASS UPPER MAY W10284119 Contact Us For Availability
6
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
RETAINER, GLASS LOWER MAY W10284120 Contact Us For Availability
7
NUT, 8-18 U-TYPE MAY W10298336 Contact Us For Availability
7
MAY 8310656 MAY 8310656 Contact Us For Availability
7
MAY W10292891 MAY W10292891 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10284122 MAY W10284122 Contact Us For Availability
8
MAY W10280079 MAY W10280079 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
DOOR GLASS MAY W10284121 Contact Us For Availability
9
MAY W10096969 MAY W10096969 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
MAY W10298258 MAY W10298258 Contact Us For Availability
9
DOOR INNER MAY W10284132 Contact Us For Availability
10
SCREW, 8-18 X 3/8 MAY 3196172 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
Door Catch Assembly MAY 690081 Contact Us For Availability
11
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
SCREW, 8-18 X 5/16 MAY 693995 Contact Us For Availability
11
MAY W10354795 MAY W10354795 Contact Us For Availability
12
MAY W10268730 MAY W10268730 Contact Us For Availability
12
TOP (SILVER) MAY W10268731 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
12
MAY W10151499 MAY W10151499 Contact Us For Availability
12
Screw, 8-18 x 1/2 MAY 3357011 Contact Us For Availability
12
MAY W10330875 MAY W10330875 Contact Us For Availability
12
MAY W10330876 MAY W10330876 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY W10049370 MAY W10049370 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Illus. MAY 279318 Contact Us For Availability
14
Heater Element MAY 3387747 Contact Us For Availability
15
MAY W10286180 MAY W10286180 Contact Us For Availability
15
MAY 3390646 MAY 3390646 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
MAY W10271580 MAY W10271580 Contact Us For Availability
16
MAY W10236068 MAY W10236068 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
17
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
17
Strike, Door MAY 3403431 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
CLIP, SPRING MAY 8536939 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10287252 MAY W10287252 Contact Us For Availability
19
CLIP (2) MAY W10291934 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
MAY W10296532 MAY W10296532 Contact Us For Availability
21
TOE PANEL (WHITE) MAY 697215 Contact Us For Availability
21
TOE PANEL (SILVER) MAY W10096974 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
BADGE, MAYTAG MAY W10323735 Contact Us For Availability
22
MAY 3393657 MAY 3393657 Contact Us For Availability
22
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
23
MAY W10305134 MAY W10305134 Contact Us For Availability
23
MAY W10312811 MAY W10312811 Contact Us For Availability
23
MAY W10153423 MAY W10153423 Contact Us For Availability
24
HARNESS, USER INTERFACE MAY W10285494 Contact Us For Availability
24
COVER PLATE MAY 3394331 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
MAY 8563747 MAY 8563747 Contact Us For Availability
25
Complete Drum Assembly MAY 8318215 Contact Us For Availability
26
SCREW, 11-16 X 1/2 MAY W10219342 Contact Us For Availability
26
SOUND, ABSORBER MAY W10123956 Contact Us For Availability
26
PLUG, HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
26
MAY W10304147 MAY W10304147 Contact Us For Availability
27
MAY W10281085 MAY W10281085 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY 49026 MAY 49026 Contact Us For Availability
28
Baffle, Drum MAY 697693 Contact Us For Availability
29
MAY 3389729 MAY 3389729 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
MAY 8533971 MAY 8533971 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
31
MAY W10336128 MAY W10336128 Contact Us For Availability
31
MAY 489463 MAY 489463 Contact Us For Availability
32
BRACKET, MOTOR MAY W10242878 Contact Us For Availability
32
MAY 8066224 MAY 8066224 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 3406107 MAY 3406107 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
MAY 8563750 MAY 8563750 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
SOCKET, ASSEMBLY MAY W10214261 Contact Us For Availability
37
MAY 8563749 MAY 8563749 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 343641 MAY 343641 Contact Us For Availability
38
CLIP-SPRING MAY 8066208 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
MAY 697557 MAY 697557 Contact Us For Availability
40
MAY W10153412 MAY W10153412 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
Thermal Fuse MAY 3392519 Contact Us For Availability
42
MAY W10362983 MAY W10362983 Contact Us For Availability
42
MAY W10362984 MAY W10362984 Contact Us For Availability
42
THERMISTOR DRYER EXHAUST MAY 8577274 Contact Us For Availability
43
Retainer MAY 3388229 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
Clip, Door Hinge MAY 3390902 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
PLUG, STRIKE (WHITE) MAY 3403630 Contact Us For Availability
46
MAY W10097055 MAY W10097055 Contact Us For Availability
46
HEATER BOX, MAY 3392537 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
THERMOSTAT-HL (295 / 215 NC) MAY 3391914 Contact Us For Availability
49
MAY 697770 MAY 697770 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
MAY 697773 MAY 697773 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY W10331132 MAY W10331132 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
4` 30 AMP 3 WIRE DRYER CORD MAY PT220L Contact Us For Availability
NI
4` 30 AMP 4 WIRE DRYER CORD MAY PT400L Contact Us For Availability
NI
6` 30 AMP 4 WIRE DRYER CORD MAY PT600L Contact Us For Availability
NI
MAY W10071550A MAY W10071550A Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (SILVER) MAY W10268217 Contact Us For Availability
× ![]()
