Model Maytag MEDP576KW1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

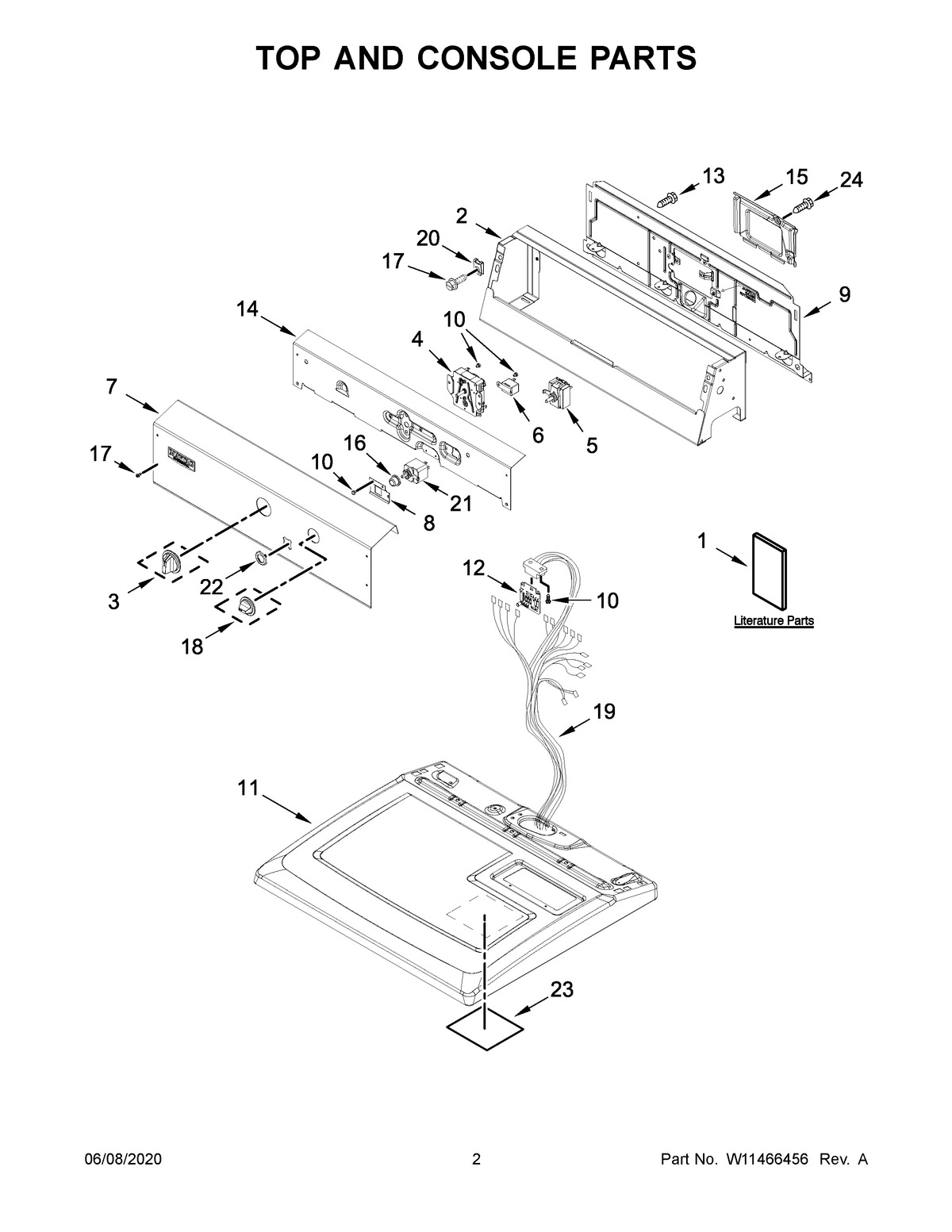

02 - TOP AND CONSOLE PARTS

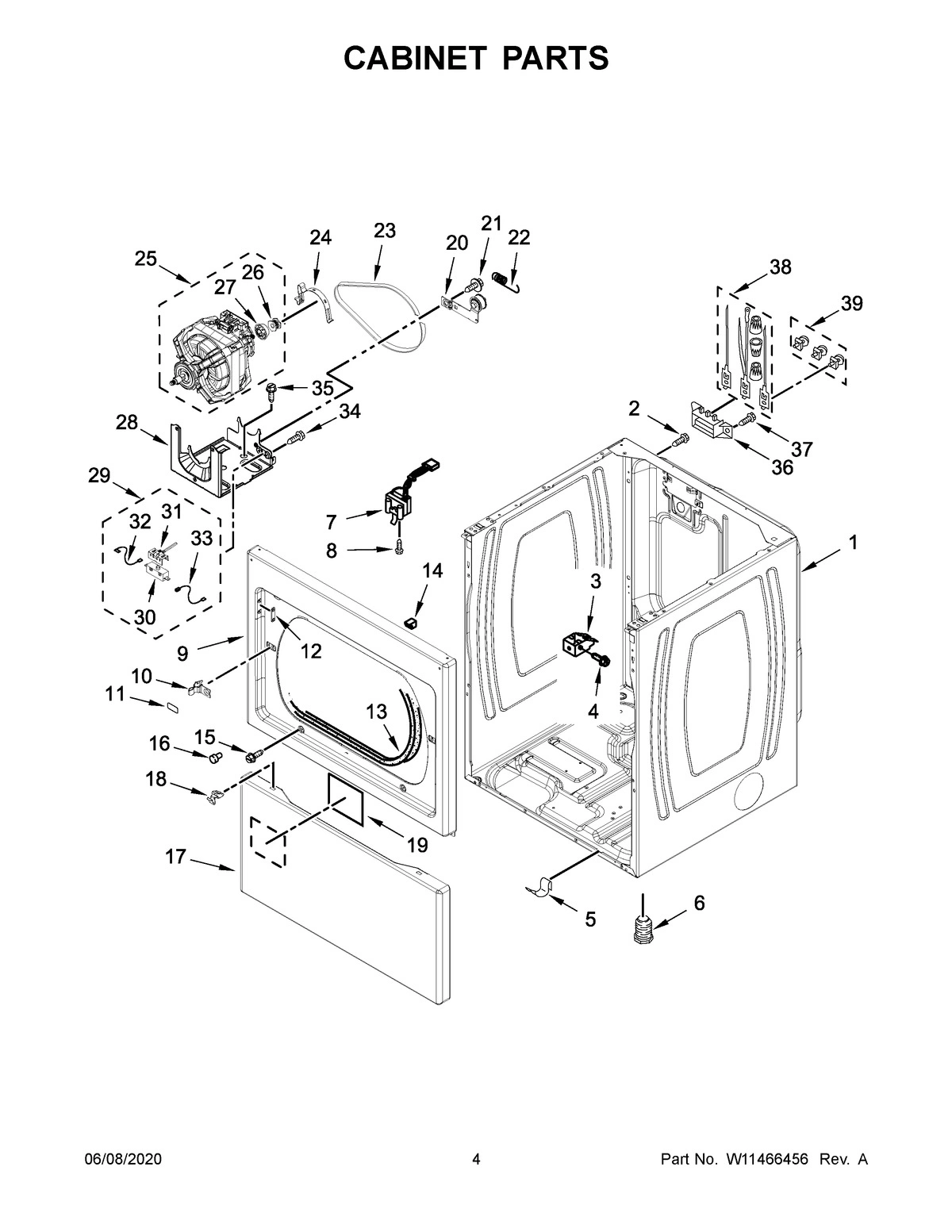

03 - CABINET PARTS

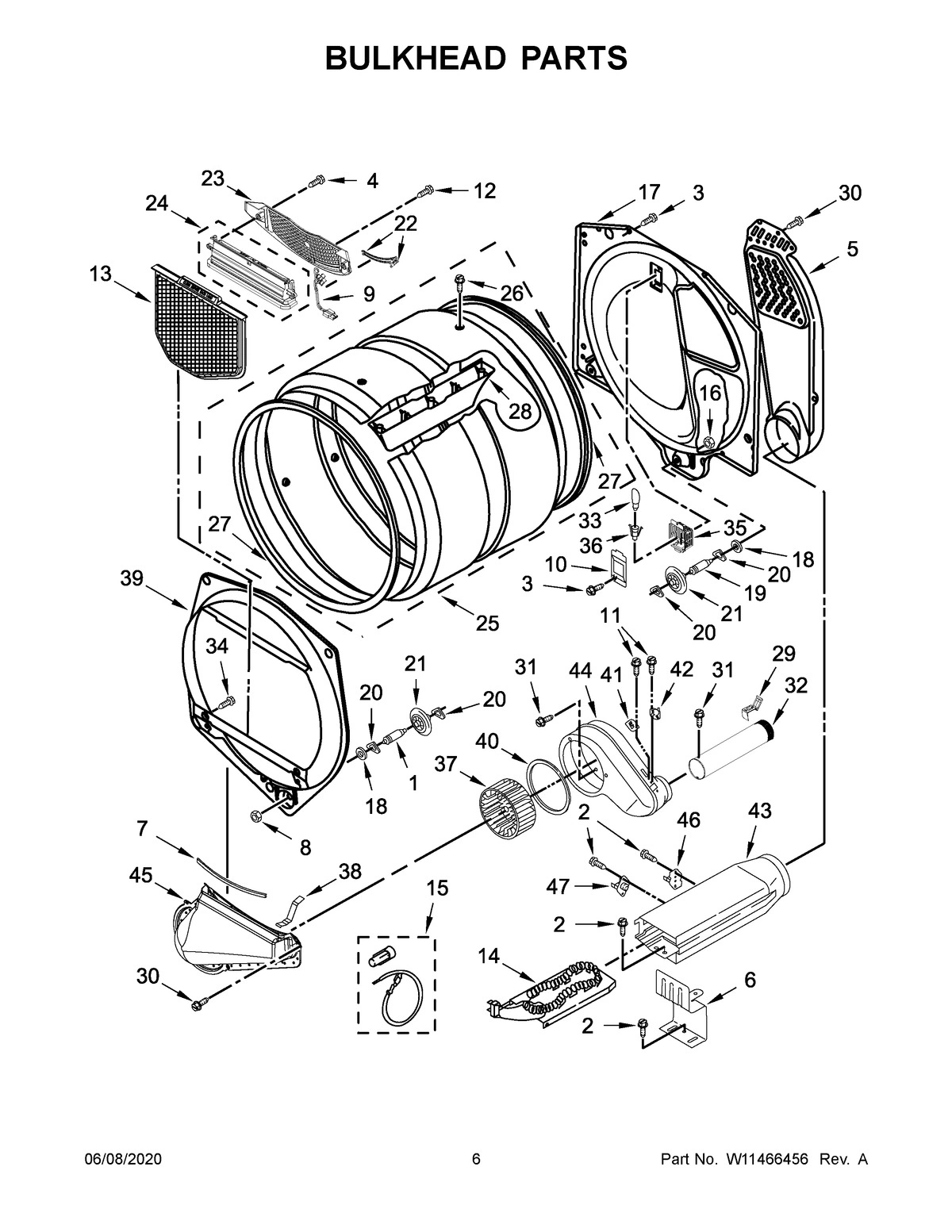

04 - BULKHEAD PARTS

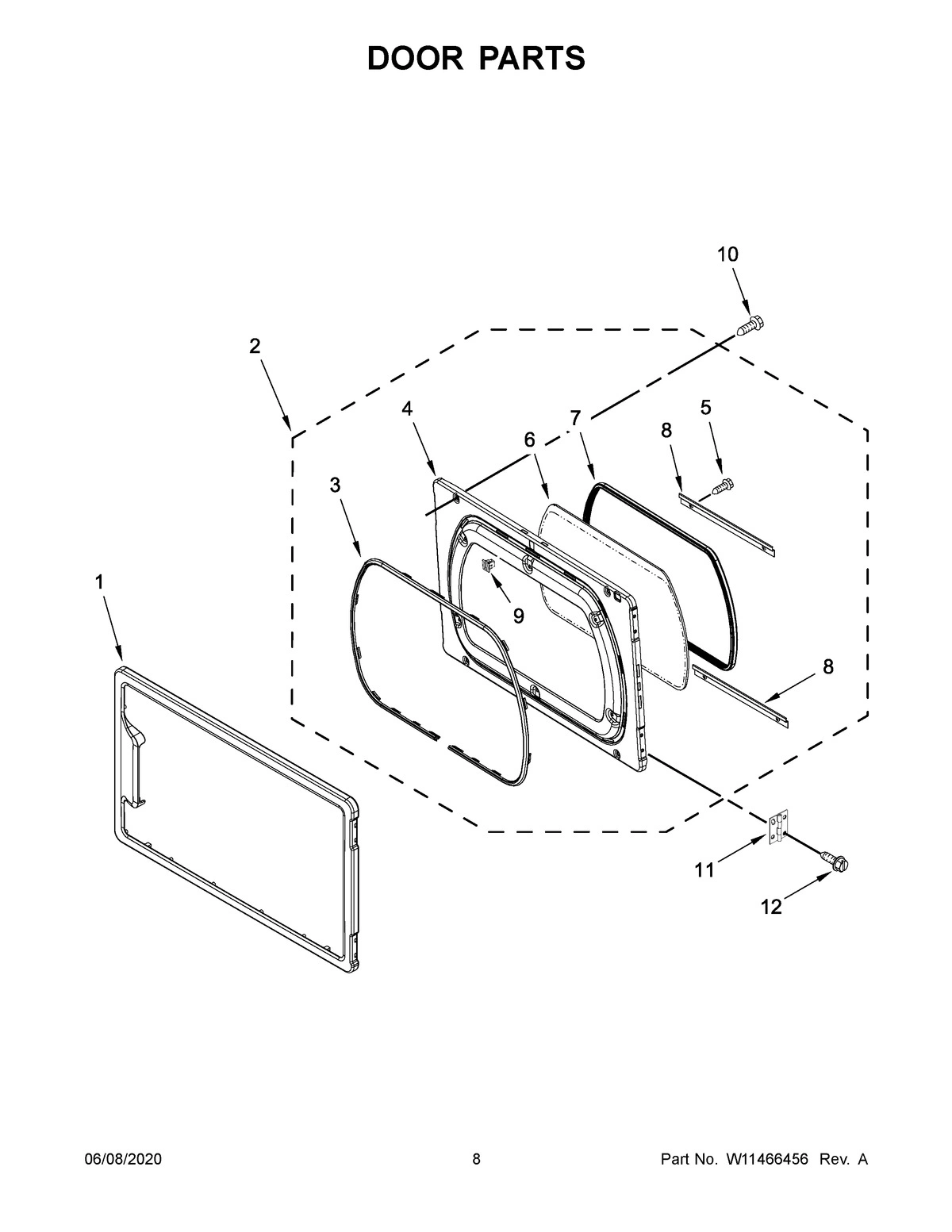

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDP576KW1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
INSTALLATION INSTRUCTIONS MAY W11407405 Contact Us For Availability
1
CABINET (WHITE) MAY W11161907 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (WHITE) MAY W10284127 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11045671 Contact Us For Availability
1B
WIRING DIAGRAM MAY W10758022 Contact Us For Availability
1C
QUICK START GUIDE MAY W11045673 Contact Us For Availability
2
CONSOLE MAY W11124005 Contact Us For Availability
2
SCREW MAY W10773242 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
2
ASSEMBLY, INNER DOOR (WHITE) MAY W10513690 Contact Us For Availability
3
KNOB (BLACK) MAY W11103227 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
3
SEAL, DOOR MAY W10354795 Contact Us For Availability
4
TIMER ASSEMBLY (60 HZ.) MAY W10185992 Contact Us For Availability
4
SCREW MAY 3391915 Contact Us For Availability
4
SCREW MAY 3357011 Contact Us For Availability
4
DOOR, INNER (WHITE) MAY W10470571 Contact Us For Availability
5
SWITCH, ROTARY (5 POS) MAY 8578352 Contact Us For Availability
5
CLIP MAY W10291934 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W11104018 Contact Us For Availability
5
SCREW MAY 3393258 Contact Us For Availability
6
BUZZER, MINI MAY 694419 Contact Us For Availability
6
FOOT, DRYER MAY W10561321 Contact Us For Availability
6
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
6
GLASS, DOOR MAY W10284121 Contact Us For Availability
7
FASCIA MAY W10918902 Contact Us For Availability
7
SWITCH, DOOR MAY 3406107 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
SEAL, WINDOW MAY W10284122 Contact Us For Availability
8
BRACKET, PUSH TO START MAY W10831297 Contact Us For Availability
8
SCREW MAY 697773 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
9
PANEL, REAR (CONSOLE) MAY W10863352 Contact Us For Availability
9
PANEL, FRONT MAY W10694688 Contact Us For Availability
9
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
9
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
10
STRIKE, DOOR MAY 3403431 Contact Us For Availability
10
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
10
SCREW MAY W10192860 Contact Us For Availability
11
TOP (WHITE) MAY W10772880 Contact Us For Availability
11
COVER, STRIKE (WHITE) MAY W10521429 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
HINGE & PIN ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
12
CONTROL, ELECTRONIC MAY W10476828 Contact Us For Availability
12
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
12
SCREW MAY 3387230 Contact Us For Availability
12
SCREW MAY 342055 Contact Us For Availability
13
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
13
SCREEN, LINT MAY W10049370 Contact Us For Availability
14
BRACKET, BACK MAY W10738304 Contact Us For Availability
14
LOCK TOP MAY 345670 Contact Us For Availability
14
ELEMENT, HEATER MAY 3387747 Contact Us For Availability
15
COVER, TERMINAL BLOCK MAY W10286180 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
16
BUTTON, PUSH TO START MAY W11112209 Contact Us For Availability
16
BUMPER MAY 693152 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
SCREW MAY W10386302 Contact Us For Availability
17
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
17
BULKHEAD, REAR MAY W11162455 Contact Us For Availability
18
KNOB (BLACK) MAY W11103226 Contact Us For Availability
18
RETAINER MAY 3388229 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
HARNESS, MAIN MAY W10762533 Contact Us For Availability
19
PANEL, DAMPENING MAY W10836097 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
NUT, "U" MAY W10131123 Contact Us For Availability
20
PULLEY-IDLER ASSEMBLY MAY W10344193 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
21
SWITCH, PUSH-TO-START MAY 3398094 Contact Us For Availability
21
SCREW MAY 3389420 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
BEZEL - PTS MAY W10510149 Contact Us For Availability
22
SPRING, IDLER MAY W10446781 Contact Us For Availability
22
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
23
BELT, DRIVE MAY W10131172 Contact Us For Availability
23
GRILL, OUTLET MAY W10692558 Contact Us For Availability
24
SCREW MAY 3390631 Contact Us For Availability
24
CLAMP, MOTOR MAY 660658 Contact Us For Availability
24
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
25
MOTOR MAY W10396031 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
BRACKET, MOTOR MAY 3387118 Contact Us For Availability
28
BAFFLE, DRUM MAY 697693 Contact Us For Availability
29
SWITCH ASSEMBLY MAY 8066134 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
SCREW MAY 8533971 Contact Us For Availability
30
SWITCH, BELT MAY 3394881 Contact Us For Availability
31
LEVER, BELT SWITCH MAY 8066120 Contact Us For Availability
31
SCREW MAY 489463 Contact Us For Availability
32
WIRE, JUMPER (BROKEN BELT SWITCH) MAY 3398948 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
WIRE, BELT SWITCH MAY W10167612 Contact Us For Availability
33
BULB, LIGHT MAY 3406124 Contact Us For Availability
34
SCREW MAY 98129 Contact Us For Availability
34
SCREW MAY 695240 Contact Us For Availability
35
SCREW MAY 343641 Contact Us For Availability
35
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
36
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
36
SOCKET, LIGHT MAY W10214261 Contact Us For Availability
37
SCREW MAY 3393008 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
38
CLIP, SPRING MAY W10345456 Contact Us For Availability
39
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
39
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
42
THERMOSTAT MAY 8318268 Contact Us For Availability
43
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
44
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
45
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
46
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 279973 Contact Us For Availability
47
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
