Model Maytag MEDC200XW1 ELECTRIC DRYER – Common Parts & Diagrams

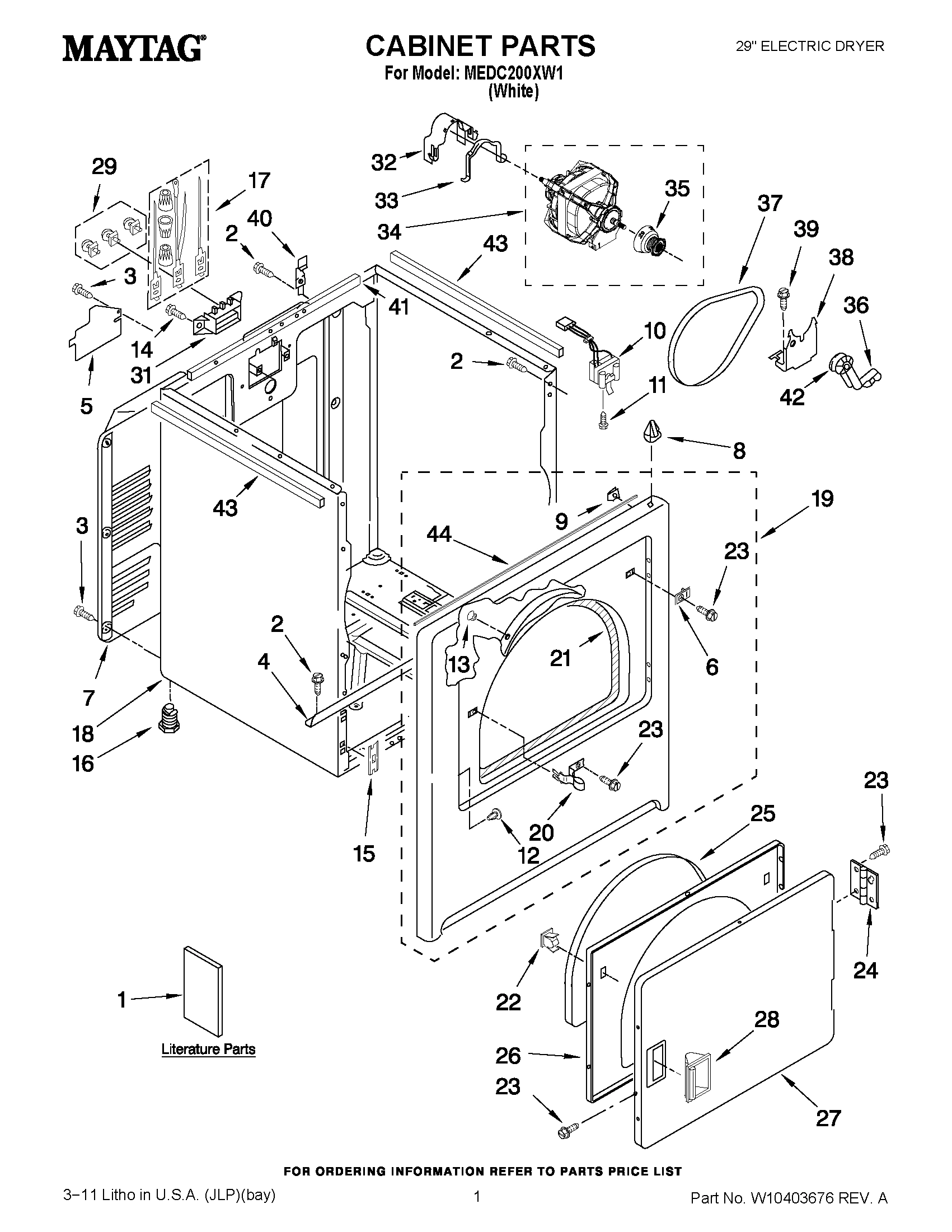

01 - CABINET PARTS

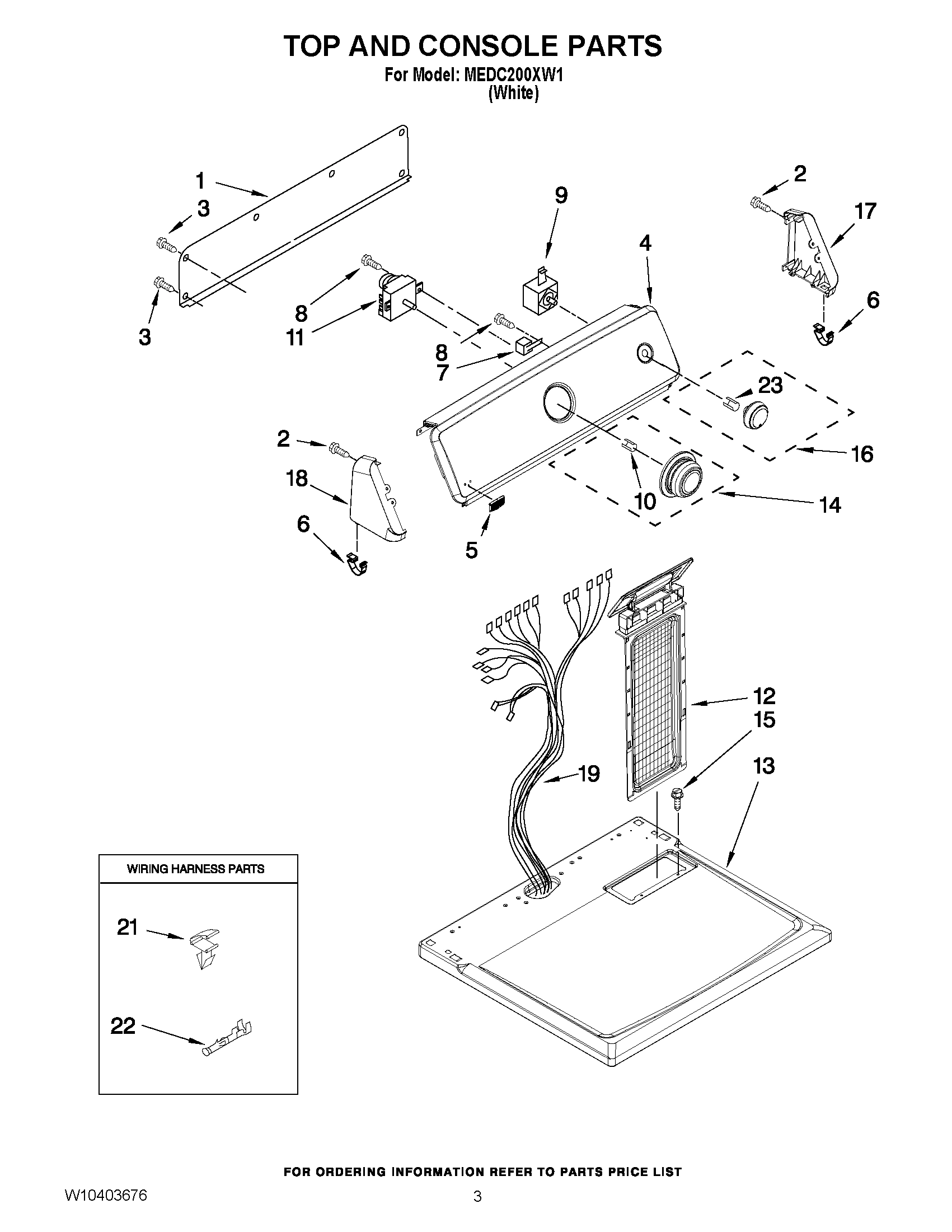

02 - TOP AND CONSOLE PARTS

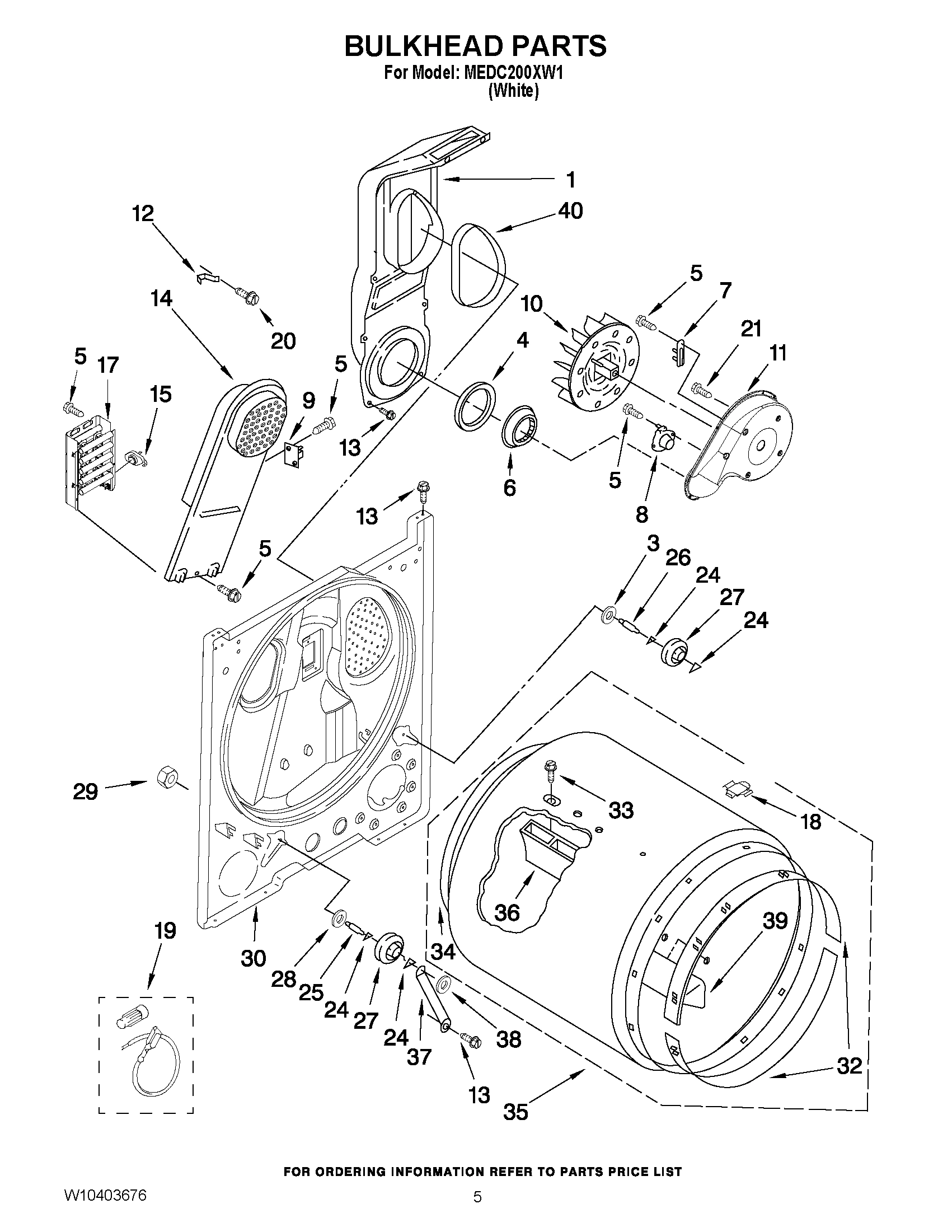

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDC200XW1 ELECTRIC DRYER
1
INSTALLATION, INSTRUCTION MAY W10096987 Contact Us For Availability
1
MAY W10096990 MAY W10096990 Contact Us For Availability
1
MAY W10185989 MAY W10185989 Contact Us For Availability
1
MAY W10103406 MAY W10103406 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
4
MAY W10236073 MAY W10236073 Contact Us For Availability
4
MAY W10115474 MAY W10115474 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
BADGE, ASSEMBLY MAY W10323734 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
PLUG-STRIKE MAY 3403630 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
MAY 694419 MAY 694419 Contact Us For Availability
7
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
8
LOCK, FRONT TOP MAY 690363 Contact Us For Availability
8
MAY 8533971 MAY 8533971 Contact Us For Availability
8
MAY 3387134 MAY 3387134 Contact Us For Availability
9
Clip, Ground MAY 98234 Contact Us For Availability
9
MAY 3404233 MAY 3404233 Contact Us For Availability
9
Thermal, Cut-Off (Includes Item 15) MAY 3977393 Contact Us For Availability
10
MAY 3406109 MAY 3406109 Contact Us For Availability
10
CLIP, SPRING MAY 688805 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY W10185988 MAY W10185988 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
Screen, Lint MAY 8565972 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
Clip, Felt Pad MAY 685203 Contact Us For Availability
13
Top (Includes Seal) MAY W10225059 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
14
MAY 3390631 MAY 3390631 Contact Us For Availability
14
KNOB ASSEMBLY, TIMER MAY W10317454 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
MAY 3394083 MAY 3394083 Contact Us For Availability
15
MAY 688983 MAY 688983 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
KNOB, CONTROL MAY W10317455 Contact Us For Availability
17
TERMINAL, TINNED & BRASS (INCLUDES ITEM 39) MAY 279318 Contact Us For Availability
17
Endcap (R.H.) MAY W10193821 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
Cabinet (Includes Item 4) MAY 8530603 Contact Us For Availability
18
Endcap (L.H.) MAY W10193824 Contact Us For Availability
18
MAY 8066086 MAY 8066086 Contact Us For Availability
19
Panel, Front (Includes Seal) MAY W10224856 Contact Us For Availability
19
MAY W10366759 MAY W10366759 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
Strike, Door MAY 3403431 Contact Us For Availability
20
MAY 489463 MAY 489463 Contact Us For Availability
21
MAY 3406129 MAY 3406129 Contact Us For Availability
21
CLIP, HARNESS MAY 3394427 Contact Us For Availability
21
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
22
MAY 3389441 MAY 3389441 Contact Us For Availability
22
Terminal MAY 94614 Contact Us For Availability
23
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
23
CLIP, SPRING MAY 8536939 Contact Us For Availability
24
HINGE, DOOR MAY W10362431 Contact Us For Availability
24
MAY 690997 MAY 690997 Contact Us For Availability
25
MAY 3405246 MAY 3405246 Contact Us For Availability
25
SHAFT, L.H. MAY W10359270 Contact Us For Availability
26
Door, Rear MAY 3402341 Contact Us For Availability
26
SHAFT, R.H. MAY W10359269 Contact Us For Availability
27
DOOR FRONT MAY 3402335 Contact Us For Availability
27
MAY W10314171 MAY W10314171 Contact Us For Availability
28
Handle, Door MAY 8565970 Contact Us For Availability
28
MAY 348197 MAY 348197 Contact Us For Availability
29
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
29
NUT, 3/8-16 MAY W10298789 Contact Us For Availability
30
MAY 3403410 MAY 3403410 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
32
MAY 3404162 MAY 3404162 Contact Us For Availability
32
MAY 692526 MAY 692526 Contact Us For Availability
33
MAY W10121316 MAY W10121316 Contact Us For Availability
33
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
34
MAY 8066206 MAY 8066206 Contact Us For Availability
34
MAY W10352407 MAY W10352407 Contact Us For Availability
35
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
35
MAY 695587 MAY 695587 Contact Us For Availability
36
MAY 691366 MAY 691366 Contact Us For Availability
36
BAFFLE, DRUM (HI) MAY 692490 Contact Us For Availability
37
MAY W10198086 MAY W10198086 Contact Us For Availability
37
MAY 3976434 MAY 3976434 Contact Us For Availability
38
MAY 348780 MAY 348780 Contact Us For Availability
38
MAY 90296 MAY 90296 Contact Us For Availability
39
MAY 3400500 MAY 3400500 Contact Us For Availability
39
BAFFLE, DRUM (LO) MAY 3403636 Contact Us For Availability
40
Hinge, Top MAY 8066217 Contact Us For Availability
40
MAY 339956 MAY 339956 Contact Us For Availability
41
SEAL-SPILL GUARD MAY W10224934 Contact Us For Availability
42
MAY 691362 MAY 691362 Contact Us For Availability
43
FOAM SEAL MAY W10316529 Contact Us For Availability
44
MAY W10316619 MAY W10316619 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Dry Rack MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
