Model Maytag MEDB955FC2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

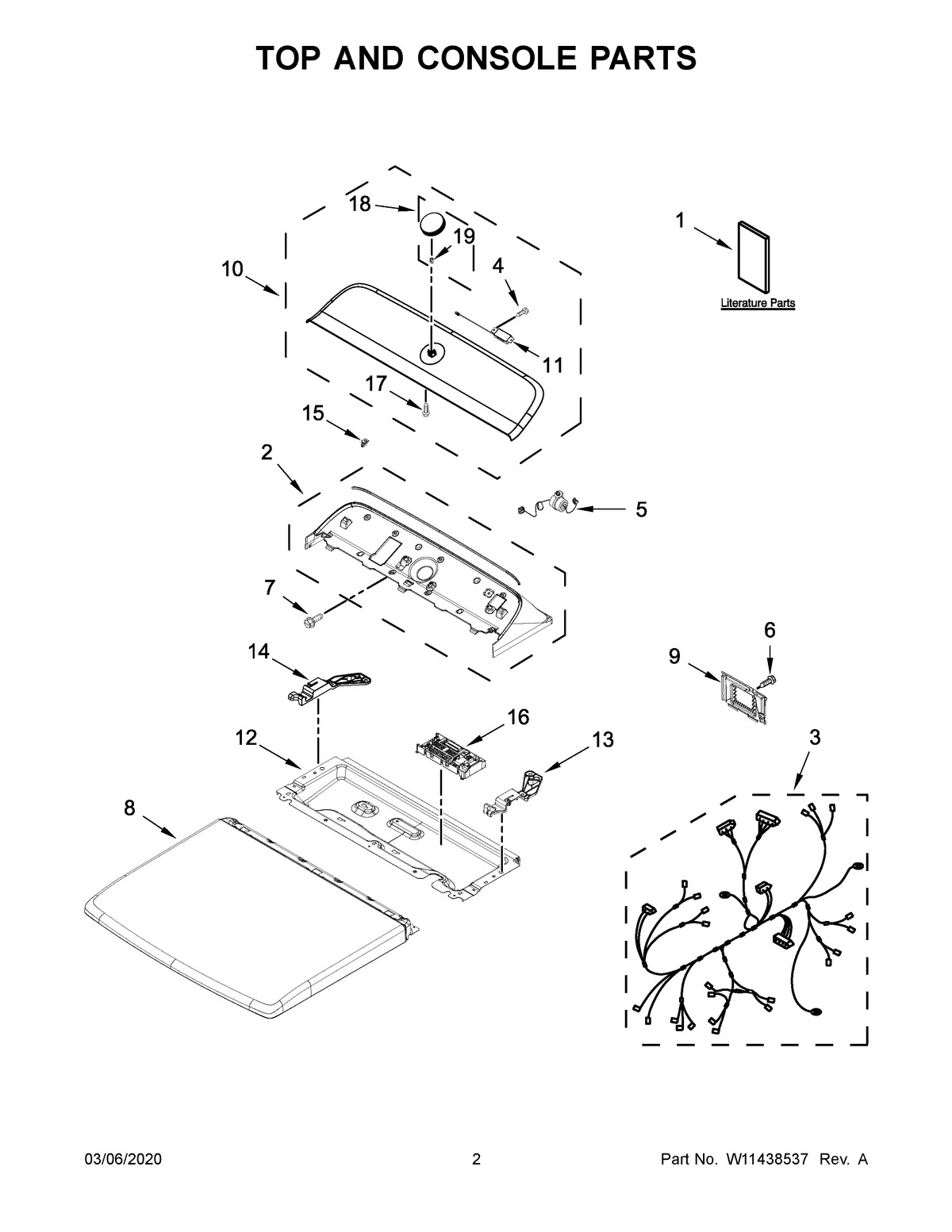

02 - TOP AND CONSOLE PARTS

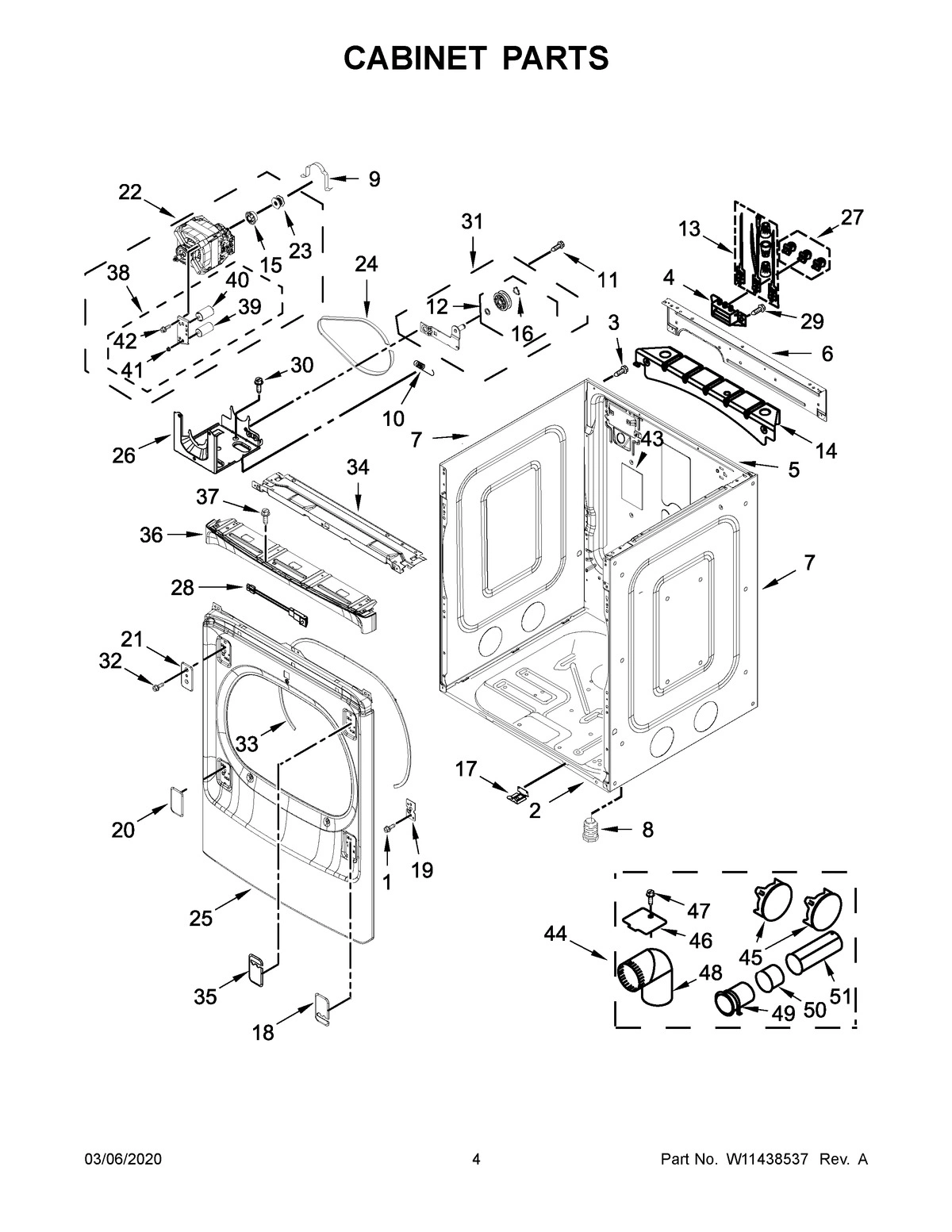

03 - CABINET PARTS

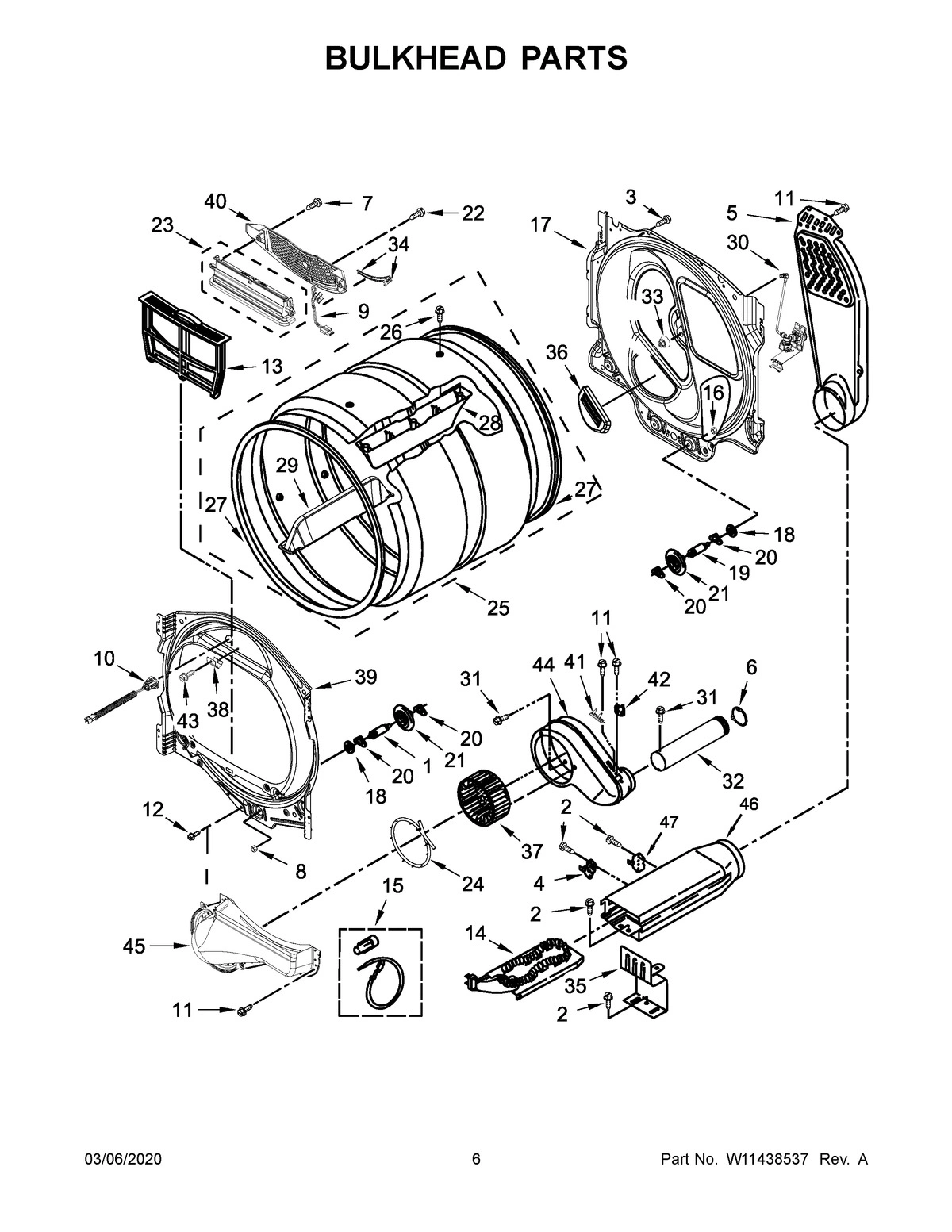

04 - BULKHEAD PARTS

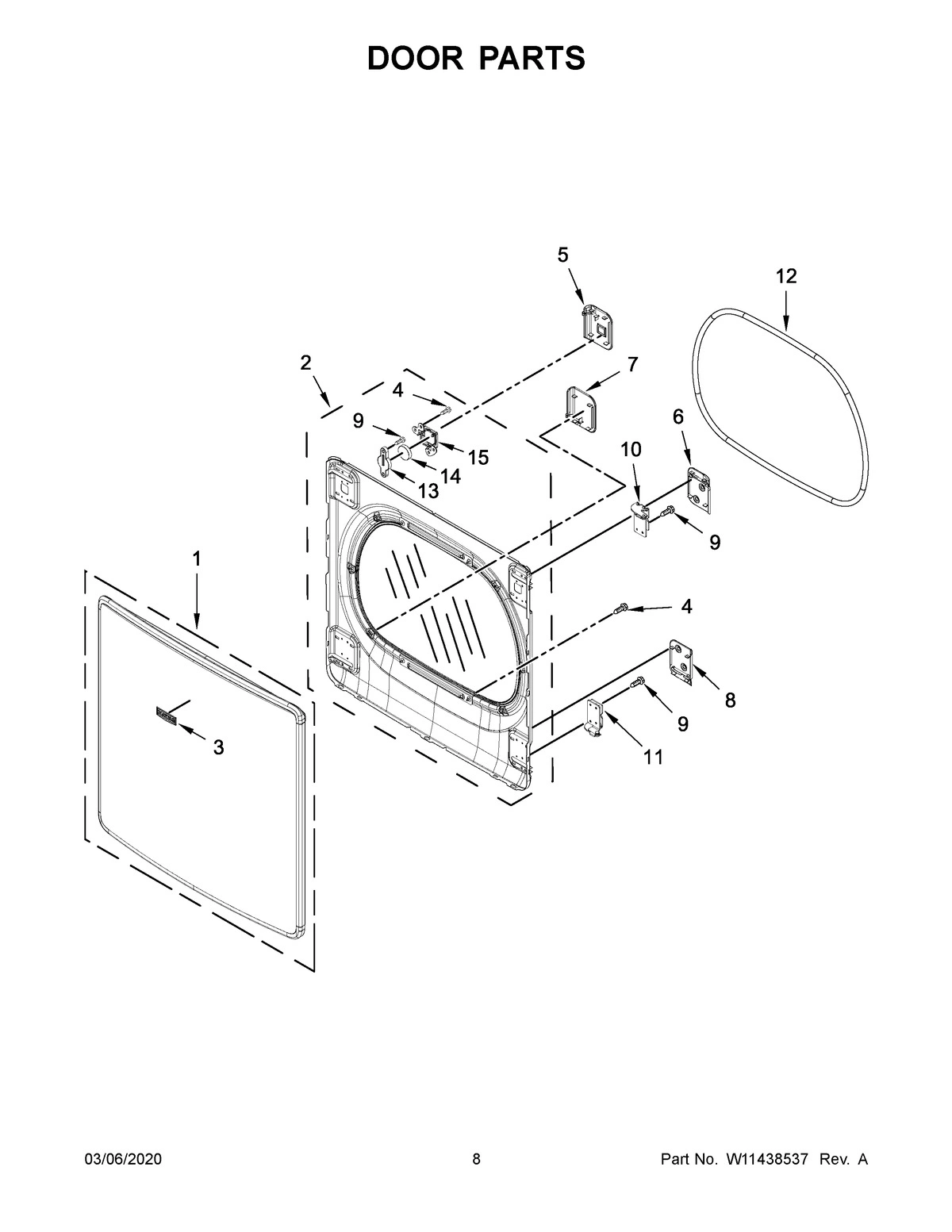

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDB955FC2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
INSTALLATION INSTRUCTIONS MAY W11101372 Contact Us For Availability
1
SCREW MAY 6-920119 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
DOOR ASSEMBLY, OUTER MAY W10652657 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10885280 Contact Us For Availability
1B
TECH SHEET MAY W10846781 Contact Us For Availability
1C
QUICKSTART GUIDE MAY W10769192 Contact Us For Availability
2
CONSOLE SHELL ASSEMBLY (WHITE) MAY W10795731 Contact Us For Availability
2
BASE, CABINET MAY W10613683 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
MAY W10914851 MAY W10914851 Contact Us For Availability
2A
CONSOLE SHELL ASSEMBLY (CHROME SHADOW) MAY W10795788 Contact Us For Availability
2A
MAY W10914852 MAY W10914852 Contact Us For Availability
3
HARNESS, MAIN MAY W10706039 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
SCREW MAY W10636208 Contact Us For Availability
3
BADGE MAY W10612926 Contact Us For Availability
4
SCREW MAY 9740849 Contact Us For Availability
4
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
4
THERMOSTAT, HIGH LIMIT MAY 8557403 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
5
HARNESS, USER INTERFACE MAY W10822560 Contact Us For Availability
5
PANEL, REAR MAY W10824896 Contact Us For Availability
5
DUCT, INLET ASSEMBLY MAY W11104017 Contact Us For Availability
5
COVER, DOOR CATCH (WHITE) MAY W10857615 Contact Us For Availability
5A
COVER, DOOR CATCH (GREY) MAY W10857616 Contact Us For Availability
6
SCREW MAY W10773242 Contact Us For Availability
6
BRACKET, UPPER REAR PANEL MAY W10622396 Contact Us For Availability
6
COLLAR, DUCT MAY W10344699 Contact Us For Availability
6
HINGE COVER, TOP (WHITE) MAY W10635117 Contact Us For Availability
6A
HINGE COVER, TOP (GREY) MAY W10661174 Contact Us For Availability
7
SCREW MAY 9740848 Contact Us For Availability
7
PANEL, SIDE (WHITE) MAY W10663407 Contact Us For Availability
7
SCREW MAY 3387230 Contact Us For Availability
7
HINGE COVER, BOTTOM LEFT (WHITE) MAY W10635118 Contact Us For Availability
7A
PANEL, SIDE (CHROME SHADOW) MAY W10681832 Contact Us For Availability
7A
HINGE COVER, BOTTOM LEFT (GREY) MAY W10661175 Contact Us For Availability
8
TOP (WHITE) MAY W10748430 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
HINGE COVER, BOTTOM RIGHT (WHITE) MAY W10635119 Contact Us For Availability
8A
TOP (CHROME SHADOW) MAY W10748431 Contact Us For Availability
8A
HINGE COVER, BOTTOM RIGHT (GREY) MAY W10661176 Contact Us For Availability
9
COVER, TERMINAL BLOCK MAY W10316167 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
SENSOR JUMPER, MOISTURE MAY W10657328 Contact Us For Availability
9
SCREW MAY 342055 Contact Us For Availability
10
MAY W11407213 MAY W11407213 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
ASSEMBLY, DRUM LIGHT MAY W10761356 Contact Us For Availability
10
HINGE ASSEMBLY, DOOR - A MAY W10635131 Contact Us For Availability
11
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
11
HINGE ASSEMBLY, DOOR - B MAY W10635137 Contact Us For Availability
12
TRAY, CONSOLE MAY W10686684 Contact Us For Availability
12
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
12
SEAL, DOOR MAY W10763835 Contact Us For Availability
13
MOUNT, CONSOLE INTERFACE - RIGHT HAND MAY W10746238 Contact Us For Availability
13
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
13
SCREEN, LINT (GREY) MAY W10608811 Contact Us For Availability
13
SHIM, METAL MAY W10850388 Contact Us For Availability
14
MOUNT, CONSOLE INTERFACE - LEFT HAND MAY W10746239 Contact Us For Availability
14
SPACER BRACKET, UPPER MAY W10632348 Contact Us For Availability
14
ELEMENT, HEATER MAY W10608823 Contact Us For Availability
14
MAGNET MAY W10850386 Contact Us For Availability
15
GROMMET, SCREW MAY W10711050 Contact Us For Availability
15
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
15
HOUSING, MAGNET (WHITE) MAY W10857617 Contact Us For Availability
15A
HOUSING, MAGNET (GREY) MAY W10857618 Contact Us For Availability
16
MAY W11430945 MAY W11430945 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
SCREW MAY 489470 Contact Us For Availability
17
SPACER BRACKET, LOWER MAY W10632347 Contact Us For Availability
17
BULKHEAD, REAR MAY W10712886 Contact Us For Availability
18
KNOB ASSEMBLY MAY W10830755 Contact Us For Availability
18
HINGE COVER, BOTTOM (WHITE) MAY W10627438 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18A
HINGE COVER, BOTTOM (GREY) MAY W10627439 Contact Us For Availability
19
CLIP, SPRING MAY 8536939 Contact Us For Availability
19
BRACKET, HINGE MAY W10596959 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
PLUG, HINGE (WHITE) MAY W10627437 Contact Us For Availability
20A
PLUG, HINGE (GREY) MAY W10627445 Contact Us For Availability
21
PLATE, FRONT PANEL (WHITE) MAY W10857673 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
21A
PLATE, FRONT PANEL (GREY) MAY W10857675 Contact Us For Availability
22
MOTOR ASSEMBLY MAY W10824899 Contact Us For Availability
22
SCREW MAY W10718190 Contact Us For Availability
23
PULLEY, MOTOR MAY W10786088 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10608812 Contact Us For Availability
24
BELT, DRIVE MAY W10597350 Contact Us For Availability
24
SEAL, LINT DUCT MAY W10868675 Contact Us For Availability
25
PANEL, FRONT (WHITE) MAY W10627425 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10626235 Contact Us For Availability
25A
PANEL, FRONT (CHROME SHADOW) MAY W10627426 Contact Us For Availability
26
BRACKET, MOTOR MOUNTING MAY W10578053 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
27
SEAL, DRUM MAY W10664120 Contact Us For Availability
28
SWITCH, DOOR MAY W10761357 Contact Us For Availability
28
BAFFLE, DRUM - LOW MAY W10842703 Contact Us For Availability
29
SCREW MAY 3393008 Contact Us For Availability
29
BAFFLE, DRUM - HIGH MAY W10842683 Contact Us For Availability
30
SCREW MAY 343641 Contact Us For Availability
30
VALVE HOSE ASSY. MAY W11136346 Contact Us For Availability
31
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
31
SCREW MAY 90767 Contact Us For Availability
32
SCREW MAY W10704731 Contact Us For Availability
32
PIPE, EXHAUST MAY W10608817 Contact Us For Availability
33
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
33
NOZZLE, CAP MAY W11100488 Contact Us For Availability
34
BRACKET, FRONT CONSOLE MAY W10627432 Contact Us For Availability
34
SENSOR, ELECTRODE MAY W10608814 Contact Us For Availability
35
HINGE COVER, TOP (WHITE) MAY W10627436 Contact Us For Availability
35
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
35A
HINGE COVER, TOP (GREY) MAY W10627444 Contact Us For Availability
36
COVER ASSEMBLY, FRONT PANEL (WHITE) MAY W10756879 Contact Us For Availability
36
SENSOR ASSEMBLY, QUAD BULKHEAD MAY W10677270 Contact Us For Availability
36A
COVER ASSEMBLY, FRONT PANEL (CHROME SHADOW) MAY W10756880 Contact Us For Availability
37
SCREW MAY 8534022 Contact Us For Availability
37
WHEEL, BLOWER MAY 697772 Contact Us For Availability
38
BRACKET ASSEMBLY MAY W10565150 Contact Us For Availability
38
BRACKET, FRONT PANEL TO BULKHEAD MAY W10627446 Contact Us For Availability
39
CAPACITOR, MOTOR RUN MAY W10442539 Contact Us For Availability
39
BULKHEAD, FRONT MAY W10861007 Contact Us For Availability
40
CAPACITOR, MOTOR START MAY W10701357 Contact Us For Availability
40
GRILLE, OUTLET MAY W10608813 Contact Us For Availability
41
NUT MAY W10604214 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
42
SCREW MAY 3390663 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
PAD, FOAM MAY W10504381 Contact Us For Availability
43
SCREW MAY 8281212 Contact Us For Availability
44
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10858320 Contact Us For Availability
44
HOUSING, BLOWER MAY W10667717 Contact Us For Availability
45
PLUG, MULTIVENT (W MAY 49252 Contact Us For Availability
45
LINT DUCT ASSEMBLY MAY W10868982 Contact Us For Availability
45A
MAY W10151499 MAY W10151499 Contact Us For Availability
46
MAY 3394331 MAY 3394331 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
47
MAY W10567155 MAY W10567155 Contact Us For Availability
47
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 280148 Contact Us For Availability
48
MAY 49026 MAY 49026 Contact Us For Availability
49
MAY 8563747 MAY 8563747 Contact Us For Availability
50
MAY 8563750 MAY 8563750 Contact Us For Availability
51
MAY 8563749 MAY 8563749 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT WASHER, IN MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT KIT, DRYER MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT WASHER, HO MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT CONNECTOR, MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT HOSE, INLE MAY W10439655 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT DRY RACK MAY W10693998 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT (WHITE) MAY W10895133 Contact Us For Availability
NI
ACCESSORY PARTS, DOOR REVERSAL KIT (CHROME SH MAY W10895250 Contact Us For Availability
× ![]()
Login and Registration Form
