Model Maytag MEDB855DW4 LAUNDRY, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

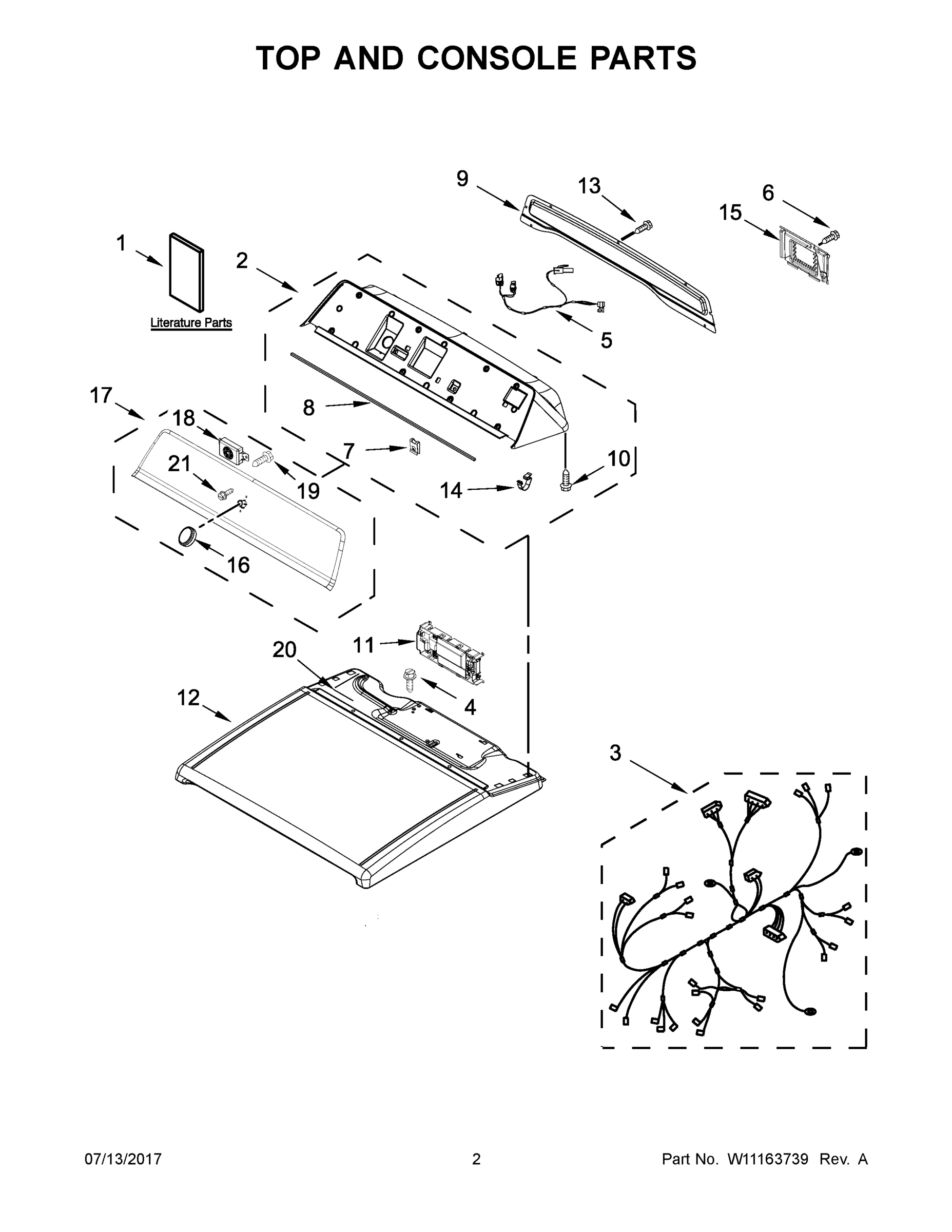

02 - TOP AND CONSOLE PARTS

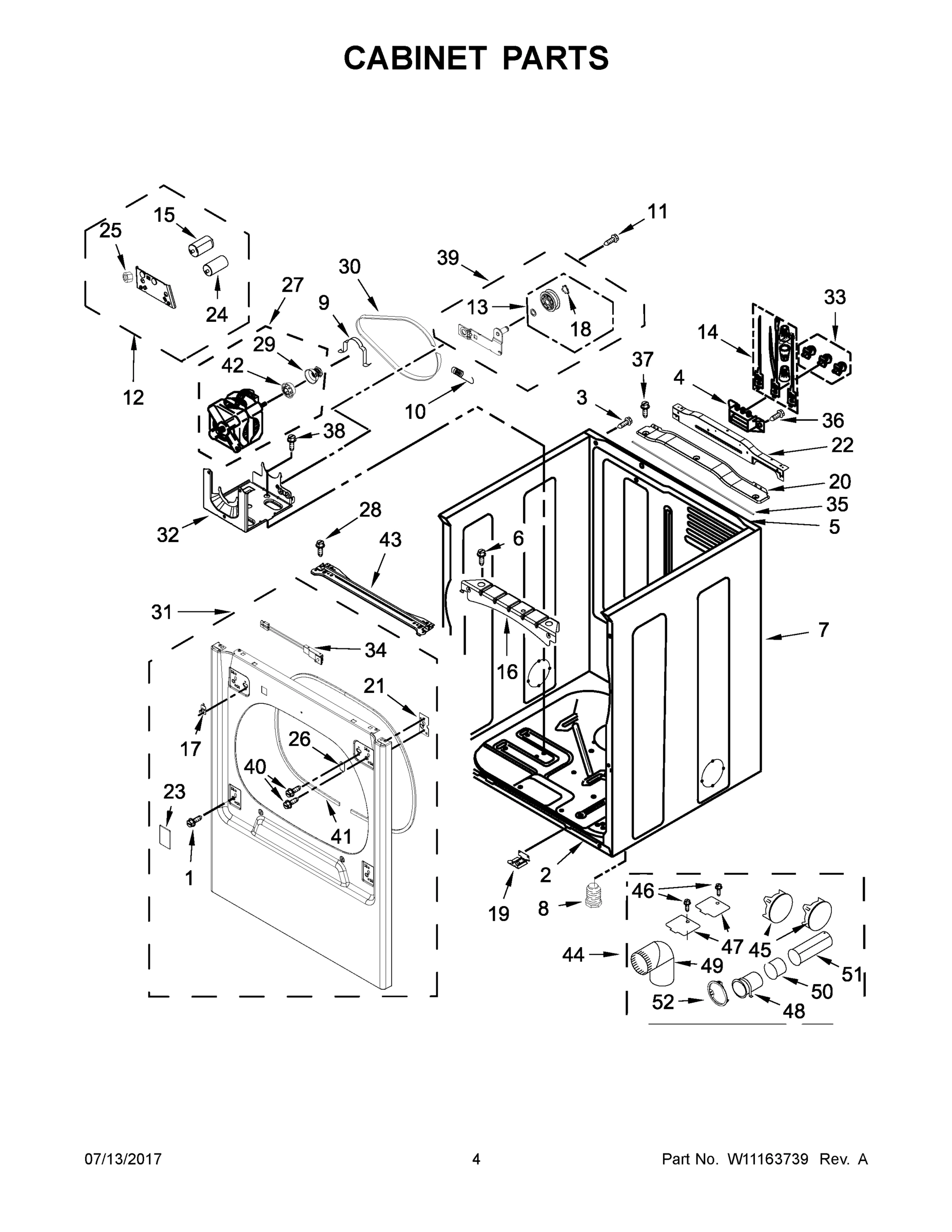

03 - CABINET PARTS

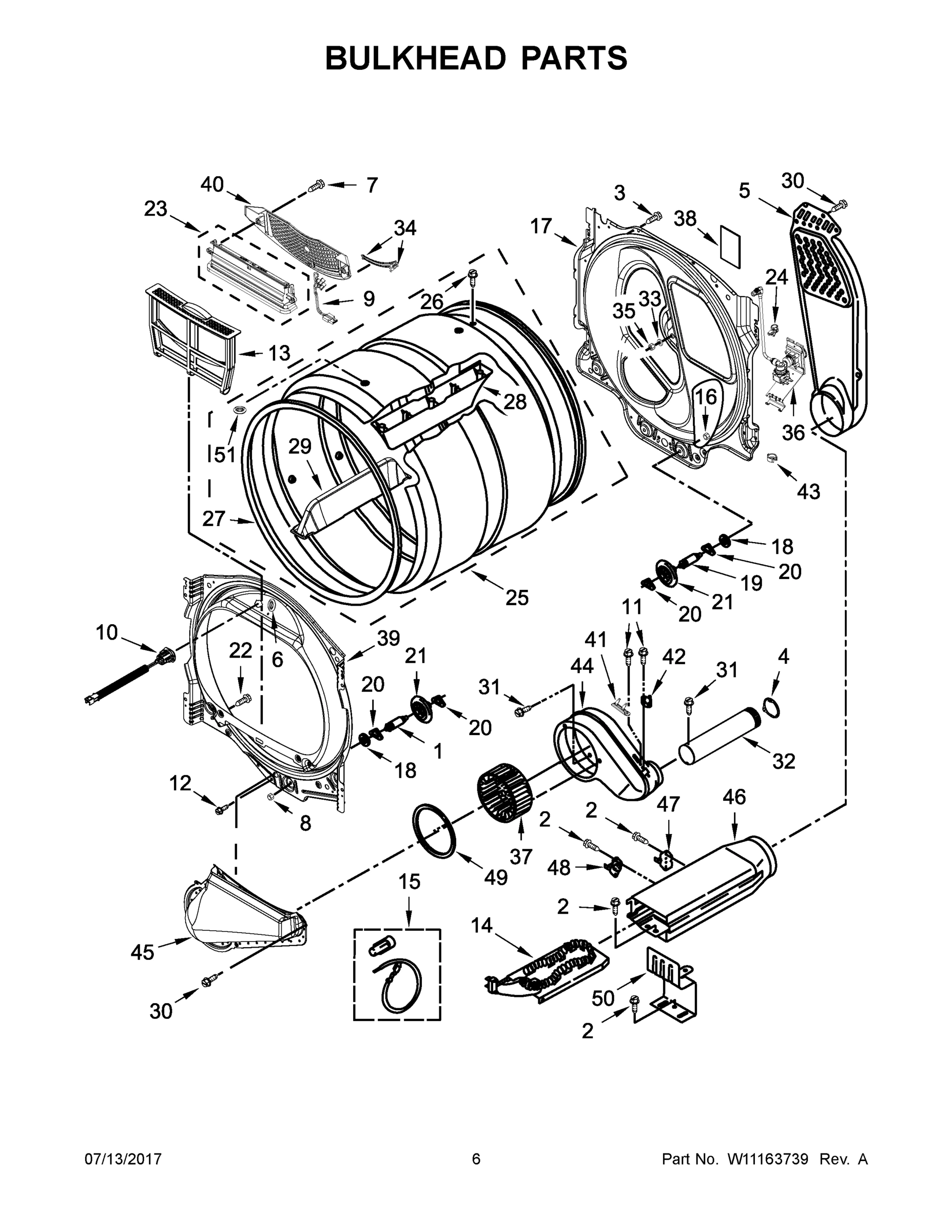

04 - BULKHEAD PARTS

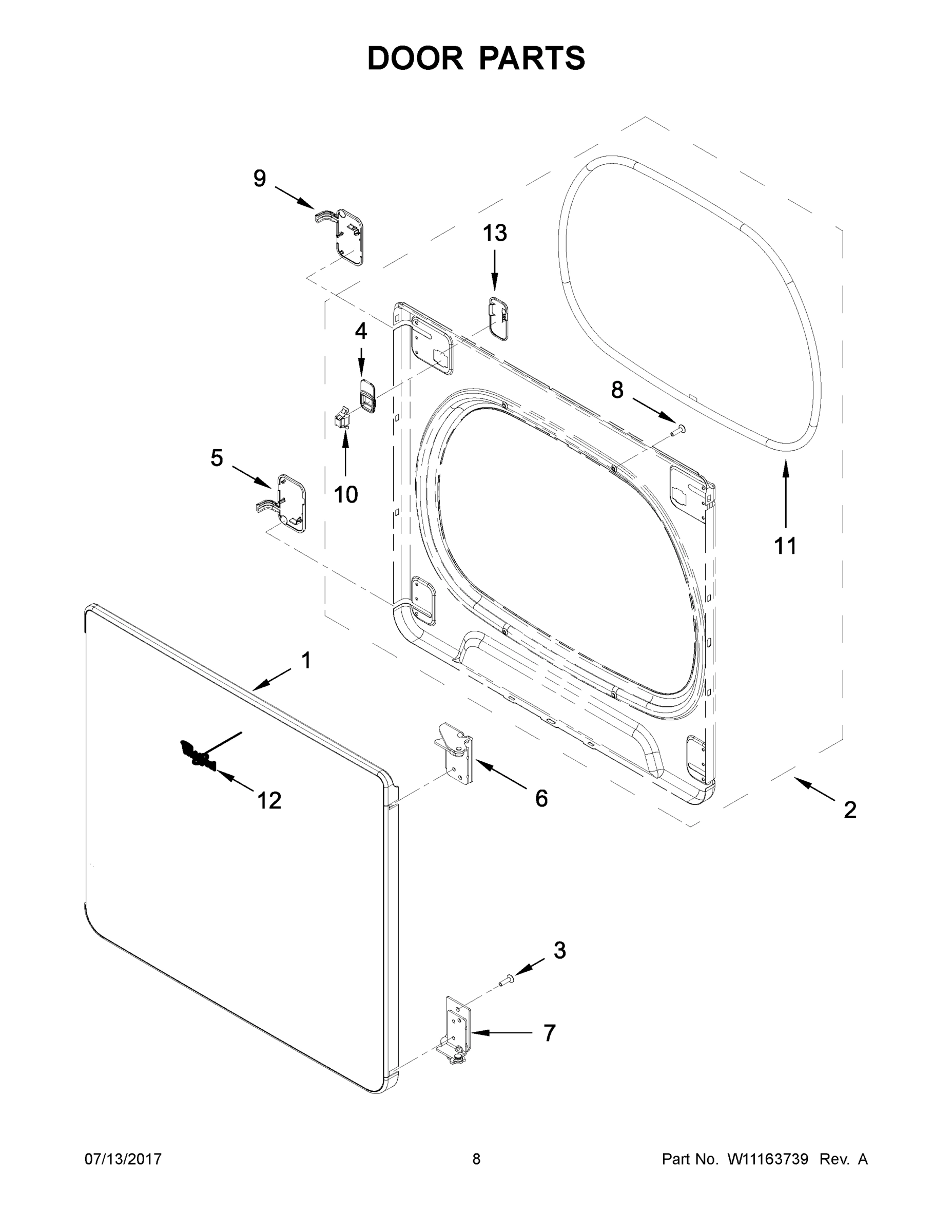

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDB855DW4 LAUNDRY, ELECTRIC DRYER
1
INSTALLATION INSTRUCTIONS MAY W10725269 Contact Us For Availability
1
SCREW MAY 6-920119 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (CHROME SHADOW) MAY W10669027 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11089272 Contact Us For Availability
1B
TECH SHEET MAY W11089260 Contact Us For Availability
2
ASSEMBLY, CONSOLE (WHITE) MAY W10622102 Contact Us For Availability
2
BASE, CABINET MAY W10613683 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
ASSEMBLY, INNER DOOR (WHITE) MAY W10915194 Contact Us For Availability
2A
ASSEMBLY, CONSOLE (CHROME SHADOW) MAY W10682013 Contact Us For Availability
2A
ASSEMBLY, INNER DOOR (CHROME SHADOW) MAY W10915195 Contact Us For Availability
3
WIRING HARNESS, MAIN MAY W10901572 Contact Us For Availability
3
SCREW MAY W10636208 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
SCREW MAY 9742177 Contact Us For Availability
4
SCREW MAY 8533974 Contact Us For Availability
4
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
4
COLLAR, DUCT MAY W10344699 Contact Us For Availability
4
BEZEL, DOOR CATCH (WHITE) MAY W10631401 Contact Us For Availability
4A
BEZEL, DOOR CATCH (CHROME SHADOW) MAY W10669023 Contact Us For Availability
5
HARNESS, USER INTERFACE MAY W10788429 Contact Us For Availability
5
PANEL, REAR MAY W10824896 Contact Us For Availability
5
DUCT, INLET ASSEMBLY MAY W11104017 Contact Us For Availability
5
HINGE COVER, BOTTOM (WHITE) MAY W10631396 Contact Us For Availability
5A
HINGE COVER, BOTTOM (CHROME SHADOW) MAY W10631413 Contact Us For Availability
6
SCREW MAY 3390631 Contact Us For Availability
6
CAP MAY 359702 Contact Us For Availability
6
DOOR, HINGE (UPPER) MAY W10783754 Contact Us For Availability
7
NUT, "U" MAY W10298336 Contact Us For Availability
7
CABINET (WHITE (WITHOUT CUTOUT)) MAY W10633648 Contact Us For Availability
7
SCREW MAY 3387230 Contact Us For Availability
7
DOOR, HINGE (LOWER) MAY W10783755 Contact Us For Availability
7A
CHROME (SHADOW (WITHOUT CUTOUT)) MAY W10681830 Contact Us For Availability
8
SEAL, CONSOLE MAY W10726632 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 342055 Contact Us For Availability
9
PANEL, REAR CONSOLE MAY W10622402 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
SENSOR JUMPER, MOISTURE MAY W10657328 Contact Us For Availability
9
HINGE COVER, TOP (WHITE) MAY W10631395 Contact Us For Availability
9A
HINGE COVER, TOP (CHROME SHADOW) MAY W10631412 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
ASSEMBLY, DRUM LIGHT MAY W10629046 Contact Us For Availability
10
ASSEMBLY, DOOR CATCH MAY W10610880 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W11098435 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SEAL, DOOR MAY W10763835 Contact Us For Availability
12
TOP (WHITE) MAY W10508981 Contact Us For Availability
12
BRACKET ASSEMBLY MAY W10565150 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
12
BADGE MAY W10612925 Contact Us For Availability
12A
TOP (CHROME SHADOW) MAY W10701018 Contact Us For Availability
13
SCREW MAY 9740848 Contact Us For Availability
13
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
13
LINT SCREEN (WHITE) MAY W10608811 Contact Us For Availability
13
COVER, DOOR CATCH (WHITE) MAY W10631410 Contact Us For Availability
13A
COVER, DOOR CATCH (CHROME SHADOW) MAY W10669024 Contact Us For Availability
14
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
14
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
14
ELEMENT, HEATER MAY 3387747 Contact Us For Availability
15
COVER, TERMINAL BLOCK MAY W10316167 Contact Us For Availability
15
CAPACITOR, MOTOR RUN MAY W10442539 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
16
KNOB, TIMER (DRYER) (CHROME) MAY W10727011 Contact Us For Availability
16
SPACER BRACKET, UPPER MAY W10632348 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
MAY W11098473 MAY W11098473 Contact Us For Availability
17
STRIKE MAY W10778071 Contact Us For Availability
17
BULKHEAD, REAR MAY W10623519 Contact Us For Availability
18
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
SCREW MAY 489470 Contact Us For Availability
19
SPACER BRACKET, LOWER MAY W10632347 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
FOAM, TOP MAY W10185554 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
BULKHEAD BRACKET, REAR PANEL (WHITE) MAY W10672088 Contact Us For Availability
20A
BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW) MAY W10672089 Contact Us For Availability
21
SCREW MAY 9740849 Contact Us For Availability
21
BRACKET, HINGE MAY W10596959 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
BRACKET, REAR PANEL UPPER MAY W10622391 Contact Us For Availability
22
SCREW MAY W10718190 Contact Us For Availability
23
PLUG, HINGE (WHITE) MAY W10590953 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10608812 Contact Us For Availability
23A
PLUG, HINGE (CHROME SHADOW) MAY W10596965 Contact Us For Availability
24
CAPACITOR, MOTOR START MAY W10701357 Contact Us For Availability
24
TIE, CABLE MAY 3391018 Contact Us For Availability
25
NUT MAY W10604214 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10646770 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
PLUG, STRIKE MAY W10111888 Contact Us For Availability
27
MOTOR ASSEMBLY MAY W10824899 Contact Us For Availability
27
SEAL, DRUM MAY W10664120 Contact Us For Availability
28
SCREW MAY 3390663 Contact Us For Availability
28
BAFFLE, DRUM LOW MAY W10767090 Contact Us For Availability
29
PULLEY, MOTOR MAY W10786088 Contact Us For Availability
29
BAFFLE, DRUM HIGH MAY W10767074 Contact Us For Availability
30
SCREW MAY 693995 Contact Us For Availability
30
BELT, DRIVE MAY W10610886 Contact Us For Availability
31
PANEL, FRONT (WHITE) MAY W10861063 Contact Us For Availability
31
SCREW MAY 90767 Contact Us For Availability
31A
PANEL, FRONT (CHROME SHADOW) MAY W10861062 Contact Us For Availability
32
BRACKET, MOTOR MOUNTING MAY W10578053 Contact Us For Availability
32
PIPE, EXHAUST MAY W10608817 Contact Us For Availability
33
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
WASHER, NOZZLE MAY W10044579 Contact Us For Availability
34
SWITCH, DOOR MAY W10459026 Contact Us For Availability
34
SENSOR, ELECTRODE MAY W10608814 Contact Us For Availability
35
SEAL, FOAM MAY W10316616 Contact Us For Availability
35
NUT, BRASS MAY W10849464 Contact Us For Availability
36
SCREW MAY 3393008 Contact Us For Availability
36
VALVE AND HOSE ASSEMBLY MAY W10638150 Contact Us For Availability
37
SCREW MAY W10704731 Contact Us For Availability
37
WHEEL, BLOWER MAY 697772 Contact Us For Availability
38
SCREW MAY 343641 Contact Us For Availability
38
PAD, FOAM MAY W10504381 Contact Us For Availability
39
BRACKET, IDLER MAY 3388674 Contact Us For Availability
39
BULKHEAD, FRONT MAY W10861007 Contact Us For Availability
40
SCREW (ZINC) MAY 3400805 Contact Us For Availability
40
GRILLE, OUTLET MAY W10608813 Contact Us For Availability
41
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
41
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
42
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
BRACE, CAB AND SEAL ASSEMBLY MAY W10722502 Contact Us For Availability
43
CLIP, PUSH TO CONNECT MAY W10044599 Contact Us For Availability
44
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10704365 Contact Us For Availability
44
HOUSING, BLOWER MAY W10667717 Contact Us For Availability
45
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
45
LINT DUCT ASSEMBLY MAY W10868982 Contact Us For Availability
46
SCREW MAY W10567155 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
47
PLATE, COVER MAY W10354249 Contact Us For Availability
47
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 280148 Contact Us For Availability
48
PIPE, EXHAUST (MEDIUM) MAY W10587890 Contact Us For Availability
48
THERMOSTAT, HIGH LIMIT MAY 8557403 Contact Us For Availability
49
ELBOW MAY W10416072 Contact Us For Availability
49
SEAL, LINT DUCT MAY W10868675 Contact Us For Availability
50
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
50
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
51
PIPE MAY 8563749 Contact Us For Availability
51
CAP, PLUG MAY W10128544 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
HOSE, INLET (2') MAY W10439655 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
NI
DRY RACK MAY W10693998 Contact Us For Availability
× ![]()
