Model Maytag MEDB835DW2 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

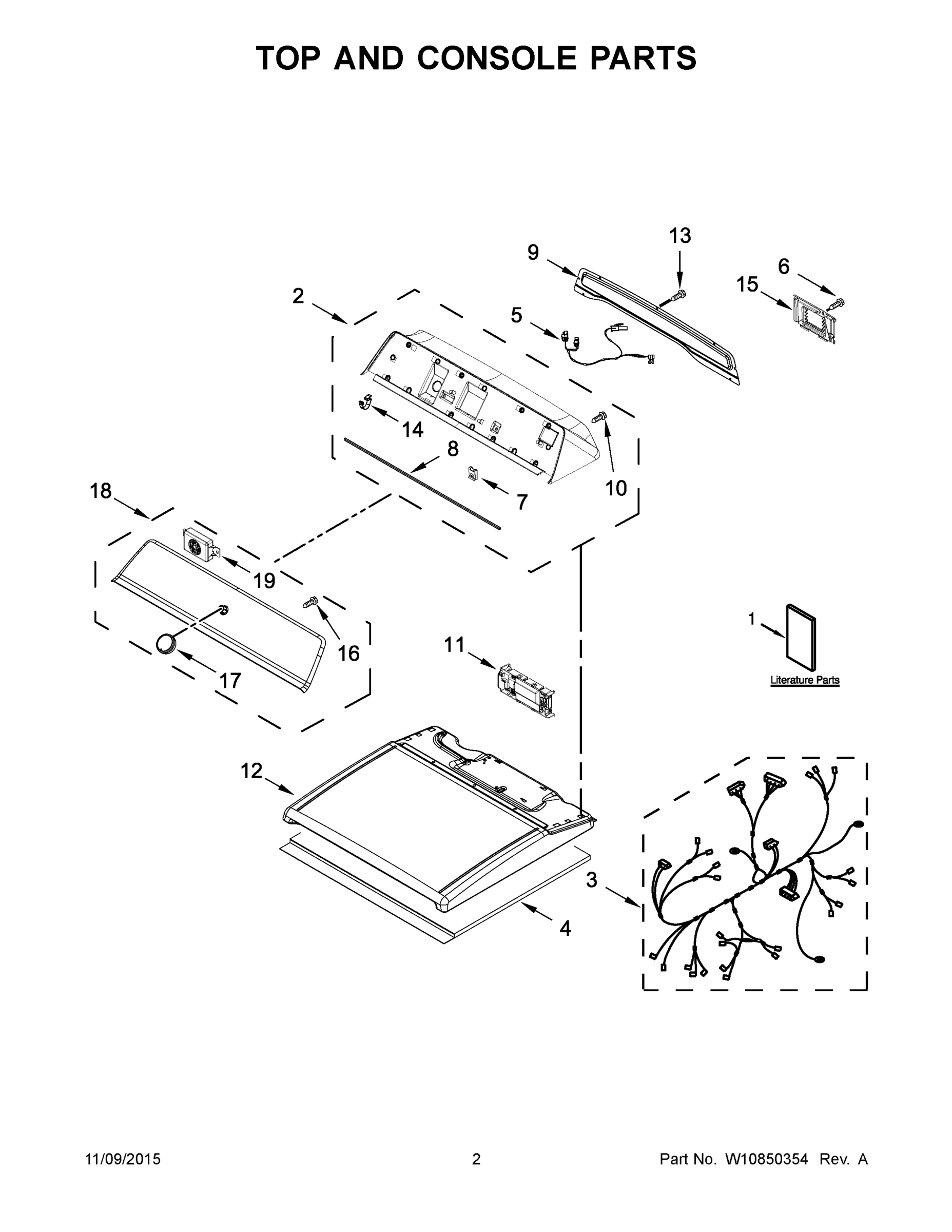

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDB835DW2 ELECTRIC DRYER
1
MAY W10725269 MAY W10725269 Contact Us For Availability
1
MAY 6-920119 MAY 6-920119 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10631405 MAY W10631405 Contact Us For Availability
1A
MAY W10680141 MAY W10680141 Contact Us For Availability
1B
MAY W10777449 MAY W10777449 Contact Us For Availability
2
MAY W10622102 MAY W10622102 Contact Us For Availability
2
MAY W10613683 MAY W10613683 Contact Us For Availability
2
MAY W10567155 MAY W10567155 Contact Us For Availability
2
MAY W10631401 MAY W10631401 Contact Us For Availability
3
MAY W10777438 MAY W10777438 Contact Us For Availability
3
MAY W10636208 MAY W10636208 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
SCREW MAY 9742177 Contact Us For Availability
4
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10608808 MAY W10608808 Contact Us For Availability
4
MAY W10614997 MAY W10614997 Contact Us For Availability
5
MAY W10788429 MAY W10788429 Contact Us For Availability
5
MAY W10824895 MAY W10824895 Contact Us For Availability
5
MAY W10834202 MAY W10834202 Contact Us For Availability
5
MAY W10621182 MAY W10621182 Contact Us For Availability
6
MAY 489470 MAY 489470 Contact Us For Availability
6
MAY W10701355 MAY W10701355 Contact Us For Availability
6
MAY W10783754 MAY W10783754 Contact Us For Availability
7
MAY W10298336 MAY W10298336 Contact Us For Availability
7
CABINET (WHITE (WITHOUT CUTOUT)) MAY W10633648 Contact Us For Availability
7
SCREW MAY 3387230 Contact Us For Availability
7
MAY W10783755 MAY W10783755 Contact Us For Availability
8
MAY W10726632 MAY W10726632 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10631396 MAY W10631396 Contact Us For Availability
9
MAY W10622402 MAY W10622402 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10657328 MAY W10657328 Contact Us For Availability
9
MAY W10614998 MAY W10614998 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10629046 MAY W10629046 Contact Us For Availability
10
MAY W10610880 MAY W10610880 Contact Us For Availability
11
MAY W10793301 MAY W10793301 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10763835 MAY W10763835 Contact Us For Availability
12
MAY W10508981 MAY W10508981 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY 49252 Contact Us For Availability
12
SCREW MAY 3357011 Contact Us For Availability
12
MAY W10612925 MAY W10612925 Contact Us For Availability
13
SCREW MAY 9740848 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
LINT SCREEN (WHITE) MAY W10608811 Contact Us For Availability
13
MAY W10631407 MAY W10631407 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY W10608823 MAY W10608823 Contact Us For Availability
14
MAY W10631408 MAY W10631408 Contact Us For Availability
15
MAY W10316167 MAY W10316167 Contact Us For Availability
15
SCREW MAY W10348409 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY W10631409 MAY W10631409 Contact Us For Availability
16
SCREW MAY 9740849 Contact Us For Availability
16
MAY W10632348 MAY W10632348 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY W10608739 MAY W10608739 Contact Us For Availability
17
MAY W10727011 MAY W10727011 Contact Us For Availability
17
MAY W10775540 MAY W10775540 Contact Us For Availability
17
MAY W10638203 MAY W10638203 Contact Us For Availability
17
MAY W10726214 MAY W10726214 Contact Us For Availability
18
MAY W10740702 MAY W10740702 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
MAY W10631410 MAY W10631410 Contact Us For Availability
19
MAY W10568405 MAY W10568405 Contact Us For Availability
19
MAY W10632347 MAY W10632347 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 342055 MAY 342055 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
BULKHEAD BRACKET, REAR PANEL (WHITE) MAY W10672088 Contact Us For Availability
20
MAY W10631395 MAY W10631395 Contact Us For Availability
21
MAY W10596959 MAY W10596959 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10622391 MAY W10622391 Contact Us For Availability
22
SCREW MAY 489463 Contact Us For Availability
23
PLUG, HINGE (WHITE) MAY W10590953 Contact Us For Availability
23
MAY W10608812 MAY W10608812 Contact Us For Availability
24
MAY 3394331 MAY 3394331 Contact Us For Availability
24
MAY W10219015 MAY W10219015 Contact Us For Availability
25
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
25
MAY W10626460 MAY W10626460 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY W10111888 MAY W10111888 Contact Us For Availability
27
MAY W10806761 MAY W10806761 Contact Us For Availability
27
MAY W10664120 MAY W10664120 Contact Us For Availability
28
ELBOW MAY 49026 Contact Us For Availability
28
MAY W10767090 MAY W10767090 Contact Us For Availability
29
MAY W10669447 MAY W10669447 Contact Us For Availability
29
MAY W10767074 MAY W10767074 Contact Us For Availability
30
SCREW MAY 693995 Contact Us For Availability
30
MAY W10610886 MAY W10610886 Contact Us For Availability
31
MAY W10777207 MAY W10777207 Contact Us For Availability
31
SCREW MAY 90767 Contact Us For Availability
32
MAY W10578053 MAY W10578053 Contact Us For Availability
32
MAY W10608817 MAY W10608817 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
34
MAY W10459026 MAY W10459026 Contact Us For Availability
34
MAY W10608814 MAY W10608814 Contact Us For Availability
35
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
35
MAY 8066099 MAY 8066099 Contact Us For Availability
36
MAY 3393008 MAY 3393008 Contact Us For Availability
36
MAY W10344699 MAY W10344699 Contact Us For Availability
37
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
SCREW MAY 343641 Contact Us For Availability
38
MAY W10608806 MAY W10608806 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
MAY W10623481 MAY W10623481 Contact Us For Availability
40
SCREW (ZINC) MAY 3400805 Contact Us For Availability
40
MAY W10608813 MAY W10608813 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
MAY W10693363 MAY W10693363 Contact Us For Availability
42
MAY W10722502 MAY W10722502 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY W10323246 MAY W10323246 Contact Us For Availability
43
MAY W10608815 MAY W10608815 Contact Us For Availability
44
MAY W10667717 MAY W10667717 Contact Us For Availability
45
MAY W10608803 MAY W10608803 Contact Us For Availability
46
MAY W10608837 MAY W10608837 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
MAY 8557403 MAY 8557403 Contact Us For Availability
49
MAY W10504381 MAY W10504381 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
MAY PT220L MAY PT220L Contact Us For Availability
NI
MAY PT400L MAY PT400L Contact Us For Availability
NI
MAY PT600L MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
MAY W10336486 MAY W10336486 Contact Us For Availability
NI
MAY W10439655 MAY W10439655 Contact Us For Availability
NI
MAY W10636192 MAY W10636192 Contact Us For Availability
× ![]()
