Model Maytag MED9600SQ0 ELECTRIC DRYER – Common Parts & Diagrams

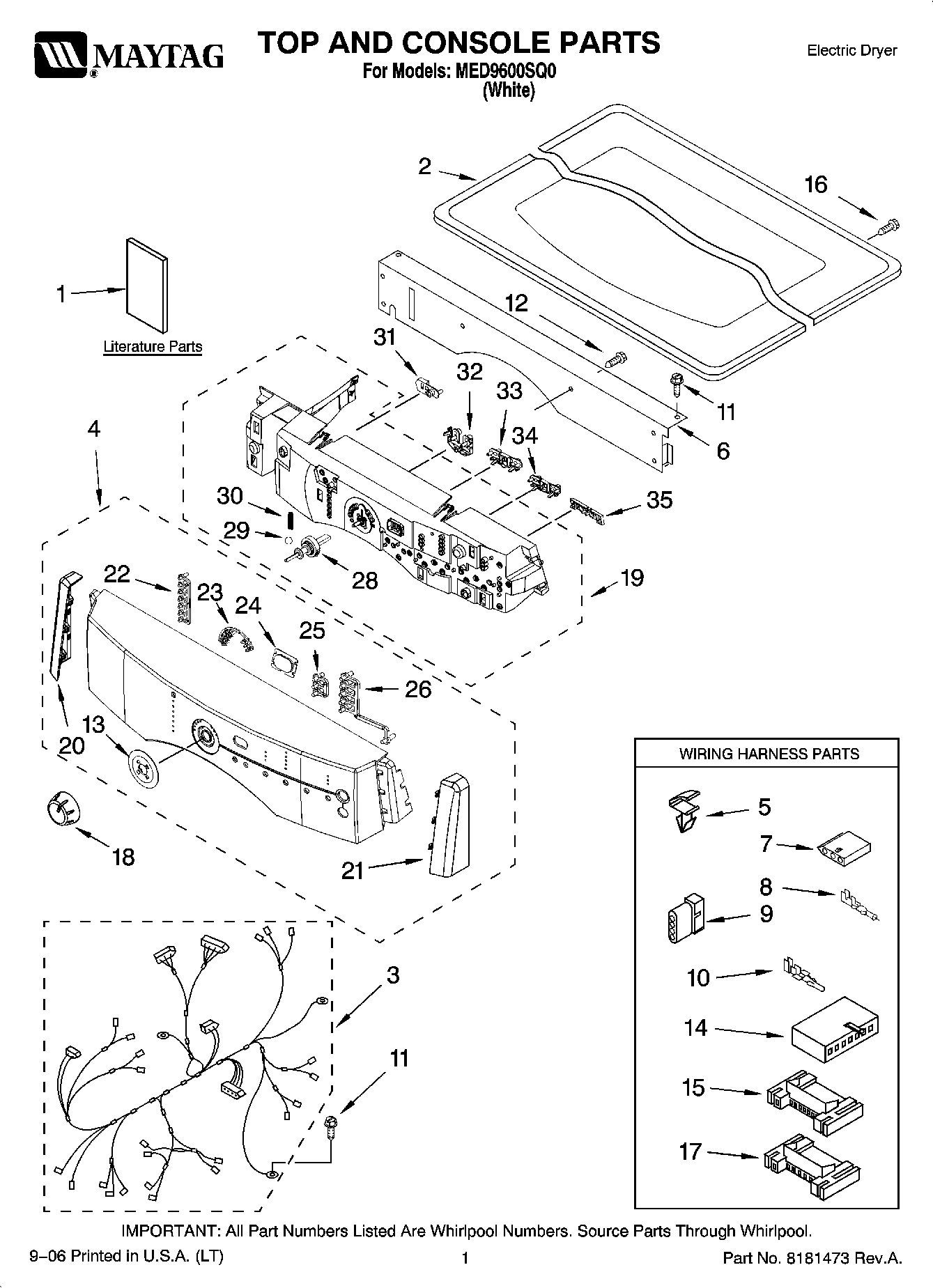

01 - TOP AND CONSOLE PARTS

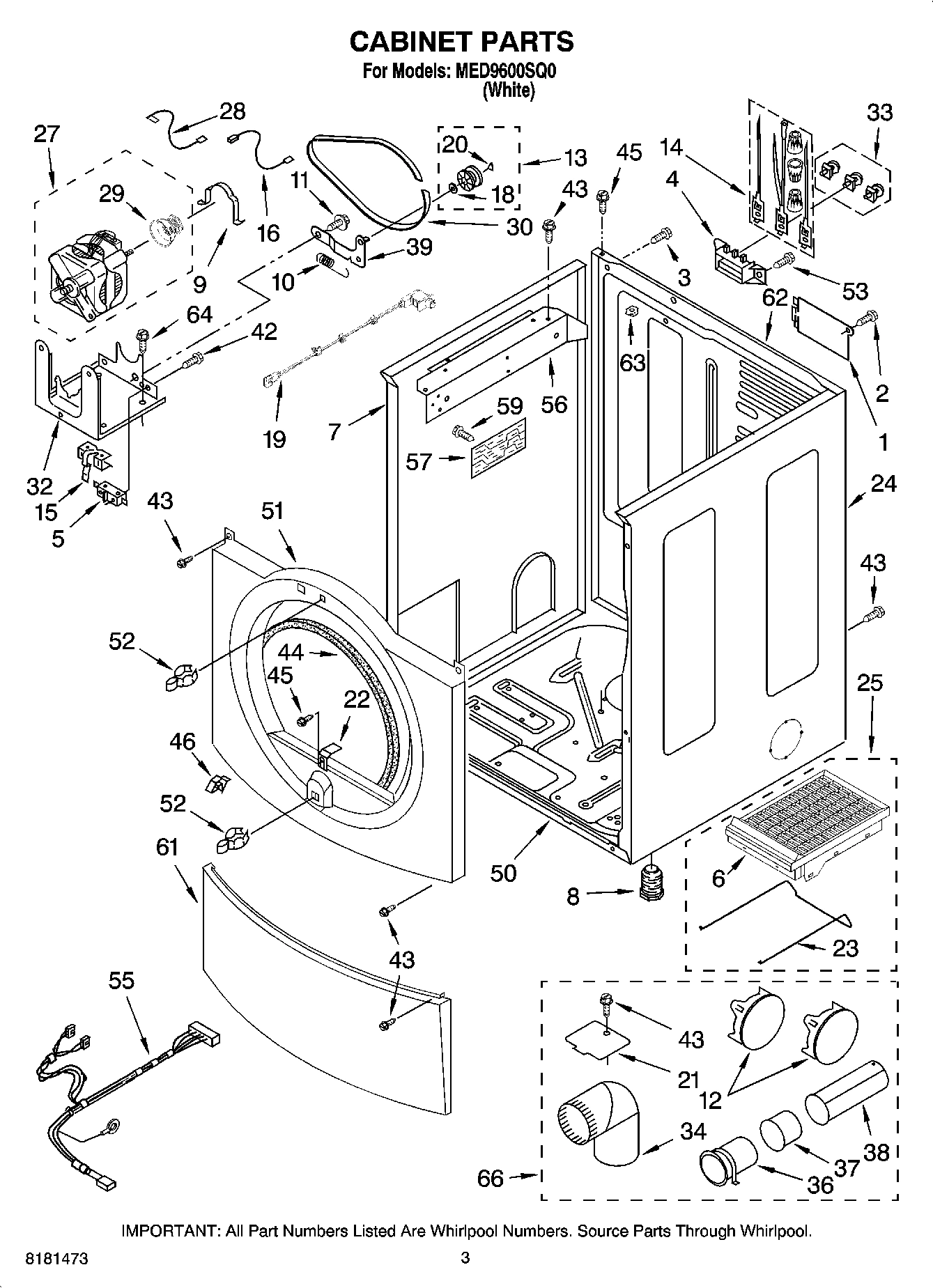

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MED9600SQ0 ELECTRIC DRYER
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
MAY 4396603 MAY 4396603 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
MAY 786020 MAY 786020 Contact Us For Availability
MAY 80047 MAY 80047 Contact Us For Availability
MAY 8522199 MAY 8522199 Contact Us For Availability
Kit, Hold Down MAY 8529894 Contact Us For Availability
MAY 8541503 MAY 8541503 Contact Us For Availability
1
MAY 8563816 MAY 8563816 Contact Us For Availability
1
MAY W10099070 MAY W10099070 Contact Us For Availability
1
MAY W10099080 MAY W10099080 Contact Us For Availability
1
MAY 8576583 MAY 8576583 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
Label, Hinge Hole MAY 8066209 Contact Us For Availability
2
Top (White) MAY 3980634 Contact Us For Availability
2
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
2
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
2
MAY W10111141 MAY W10111141 Contact Us For Availability
3
MAY 8529983 MAY 8529983 Contact Us For Availability
3
Screw, 10-32 x 5/8 (Ground) MAY 697776 Contact Us For Availability
3
MAY 3394984 MAY 3394984 Contact Us For Availability
3
Screw, 10-32 x 3/8 MAY 342043 Contact Us For Availability
4
MAY W10100388 MAY W10100388 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
CLIP, HARNESS MAY 3394427 Contact Us For Availability
5
MAY 3394881 MAY 3394881 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
5
MAY 8529539 MAY 8529539 Contact Us For Availability
6
MAY 8519271 MAY 8519271 Contact Us For Availability
6
MAY 8521959 MAY 8521959 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 8541011 MAY 8541011 Contact Us For Availability
7
Connector Sensor MAY 353424 Contact Us For Availability
7
Panel, Side (L.H.) (White) MAY 8578437 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY W10100381 MAY W10100381 Contact Us For Availability
8
Terminal MAY 94614 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
8
Nut MAY 3934666 Contact Us For Availability
9
Plug, Terminal MAY 3936144 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
Plug, Drum Hole MAY 8066086 Contact Us For Availability
9
MAY W10100383 MAY W10100383 Contact Us For Availability
10
Terminal MAY 94613 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
Inner Door Assembly (Includes Illus. 5, 8 16 MAY 8557501 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY 489463 MAY 489463 Contact Us For Availability
11
MAY 3357011 MAY 3357011 Contact Us For Availability
12
MAY 488886 MAY 488886 Contact Us For Availability
12
MAY 3388309 MAY 3388309 Contact Us For Availability
12
MAY 697750 MAY 697750 Contact Us For Availability
12
MAY 8557570 MAY 8557570 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
Screw, 8-18 x 7/32 MAY 3400859 Contact Us For Availability
13
MAY 8542690 MAY 8542690 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY 8558182 MAY 8558182 Contact Us For Availability
14
MAY 3936150 MAY 3936150 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Illus. MAY 279318 Contact Us For Availability
14
Heater Element MAY 3387747 Contact Us For Availability
14
MAY W10098820 MAY W10098820 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
MAY 8066120 MAY 8066120 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
Screw MAY 8533957 Contact Us For Availability
16
MAY 8281225 MAY 8281225 Contact Us For Availability
16
MAY 3394081 MAY 3394081 Contact Us For Availability
16
Nut MAY W10001120 Contact Us For Availability
16
Catch, Door Assembly (1) MAY 690081 Contact Us For Availability
17
MAY 2203186 MAY 2203186 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY 8566486 MAY 8566486 Contact Us For Availability
18
Knob, Assembly (Tuscan Silver) MAY 8580139 Contact Us For Availability
18
MAY 233520 MAY 233520 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
18
MAY 8547091 MAY 8547091 Contact Us For Availability
19
MAY 8558455 MAY 8558455 Contact Us For Availability
19
MAY 8574875 MAY 8574875 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
19
MAY 8562596 MAY 8562596 Contact Us For Availability
20
EndCap(LH) (White) MAY 8562598 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
Catch, Door Assembly (1) MAY 3389441 Contact Us For Availability
21
MAY 8562597 MAY 8562597 Contact Us For Availability
21
MAY 8066115 MAY 8066115 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
21
MAY W10017850 MAY W10017850 Contact Us For Availability
22
MAY 8542682 MAY 8542682 Contact Us For Availability
22
MAY 8529053 MAY 8529053 Contact Us For Availability
22
MAY 8563745 MAY 8563745 Contact Us For Availability
23
MAY 8542683 MAY 8542683 Contact Us For Availability
23
MAY 8521961 MAY 8521961 Contact Us For Availability
23
MAY 3394985 MAY 3394985 Contact Us For Availability
24
MAY 8542691 MAY 8542691 Contact Us For Availability
24
MAY 8548450 MAY 8548450 Contact Us For Availability
24
MAY 8529007 MAY 8529007 Contact Us For Availability
25
MAY 8542684 MAY 8542684 Contact Us For Availability
25
MAY 8521957 MAY 8521957 Contact Us For Availability
25
Complete Drum Assembly MAY 697282 Contact Us For Availability
26
MAY 8542685 MAY 8542685 Contact Us For Availability
26
MAY W10109200 MAY W10109200 Contact Us For Availability
27
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
27
MAY 697694 MAY 697694 Contact Us For Availability
28
MAY 8542717 MAY 8542717 Contact Us For Availability
28
Wire, Jumper (Broken Belt Switch) MAY 3398948 Contact Us For Availability
28
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
29
MAY 8542716 MAY 8542716 Contact Us For Availability
29
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
29
MAY 8533971 MAY 8533971 Contact Us For Availability
30
MAY 8542715 MAY 8542715 Contact Us For Availability
30
MAY 3387610 MAY 3387610 Contact Us For Availability
30
MAY 8519221 MAY 8519221 Contact Us For Availability
31
Pushbutton, (Control) (Silver) MAY 8580140 Contact Us For Availability
31
MAY 8571651 MAY 8571651 Contact Us For Availability
32
MAY W10100390 MAY W10100390 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
33
MAY 8562604 MAY 8562604 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 8562605 MAY 8562605 Contact Us For Availability
34
MAY 49026 MAY 49026 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
Pushbutton (Start/Cancel) (Silver) MAY 8579994 Contact Us For Availability
35
MAY 3977373 MAY 3977373 Contact Us For Availability
36
MAY 8563747 MAY 8563747 Contact Us For Availability
36
MAY 3403634 MAY 3403634 Contact Us For Availability
37
MAY 8563750 MAY 8563750 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
42
Screw, 6-20 x 1-1/16 MAY 98129 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY 8519459 MAY 8519459 Contact Us For Availability
46
HEATER BOX, MAY 3392537 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
MAY 3391914 MAY 3391914 Contact Us For Availability
49
MAY 8066099 MAY 8066099 Contact Us For Availability
50
MAY 8519207 MAY 8519207 Contact Us For Availability
51
MAY 8565907 MAY 8565907 Contact Us For Availability
51
Screw, 10-16 x 1 MAY 3387230 Contact Us For Availability
52
Strike, Door (2) MAY 696144 Contact Us For Availability
53
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
53
Baffle, Drum MAY 697693 Contact Us For Availability
54
MAY 8519245 MAY 8519245 Contact Us For Availability
55
MAY 8299925 MAY 8299925 Contact Us For Availability
56
MAY 8519273 MAY 8519273 Contact Us For Availability
57
MAY 8546219 MAY 8546219 Contact Us For Availability
58
MAY 8299979 MAY 8299979 Contact Us For Availability
59
MAY 3400826 MAY 3400826 Contact Us For Availability
59
Thermal Fuse MAY 3392519 Contact Us For Availability
60
MAY 697770 MAY 697770 Contact Us For Availability
61
Toe, Panel (White) MAY 8519233 Contact Us For Availability
62
MAY 8519219 MAY 8519219 Contact Us For Availability
63
Nut, Push-In MAY 692400 Contact Us For Availability
64
MAY 343641 MAY 343641 Contact Us For Availability
64
MAY 8066170 MAY 8066170 Contact Us For Availability
66
MAY 279818 MAY 279818 Contact Us For Availability
66
MAY 279820 MAY 279820 Contact Us For Availability
66
Dryer Exhaust Kit (For Side & Bottom Venting) MAY 280028 Contact Us For Availability
× ![]()
