Model Maytag MED9000YR0 29`` ELECTRIC DRYER – Common Parts & Diagrams

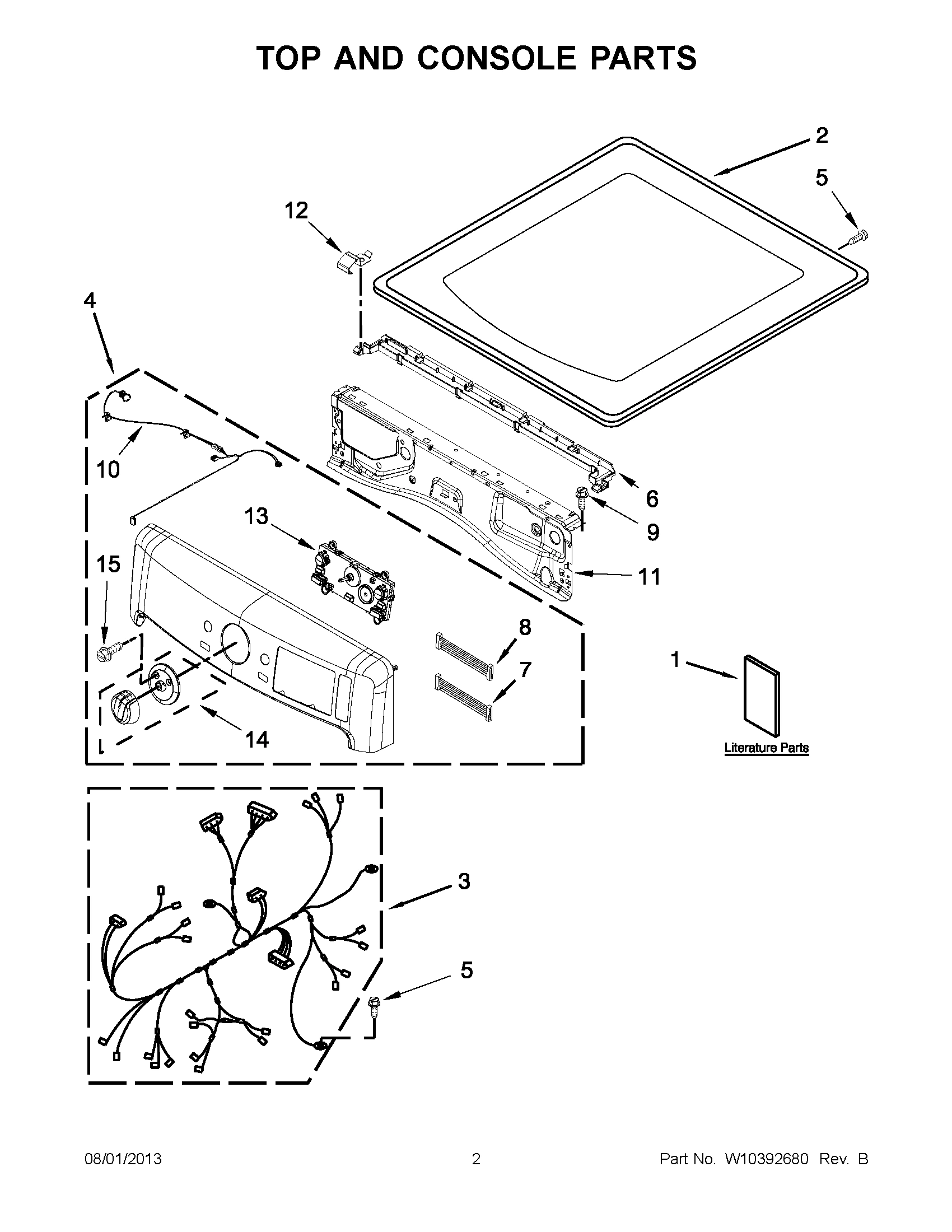

01 - TOP AND CONSOLE PARTS

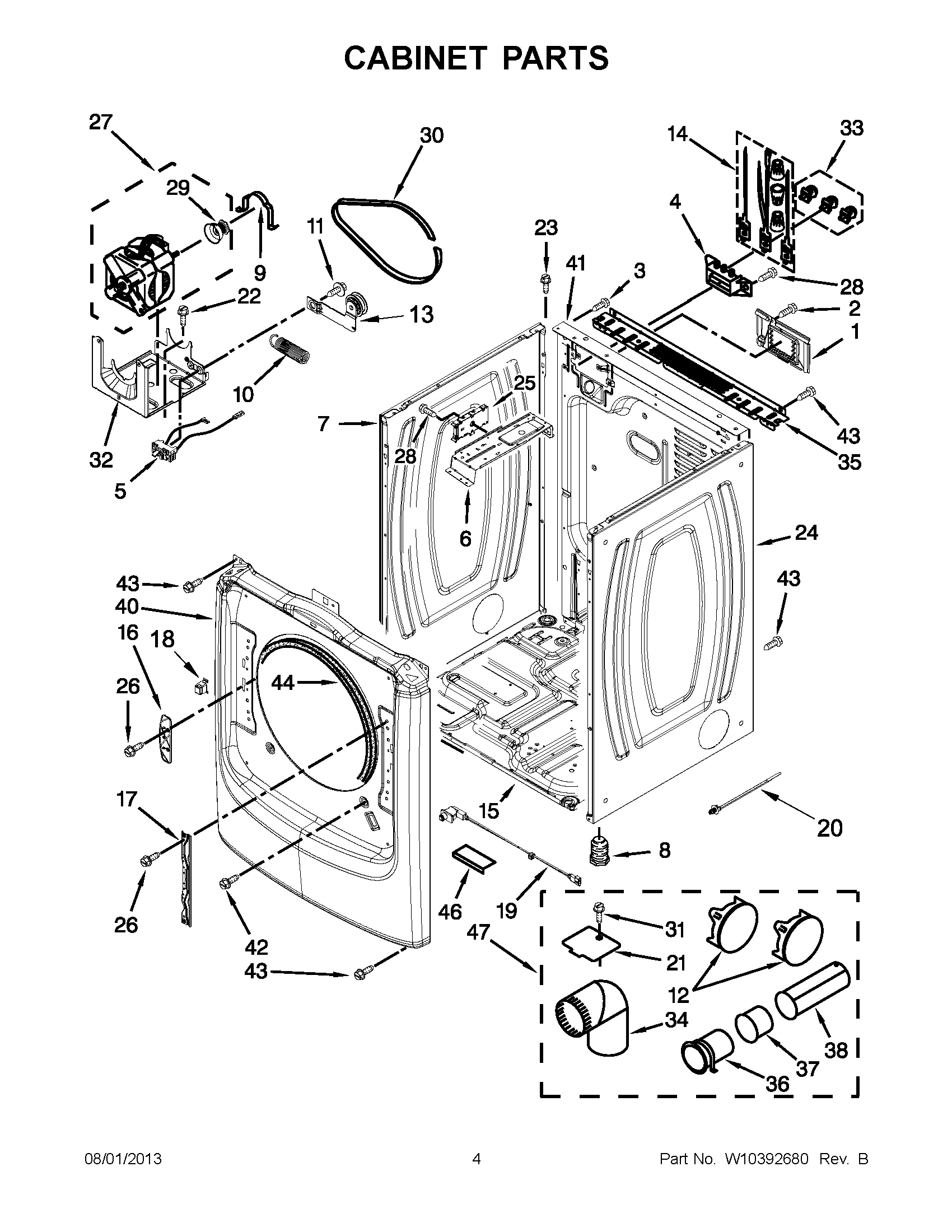

02 - CABINET PARTS

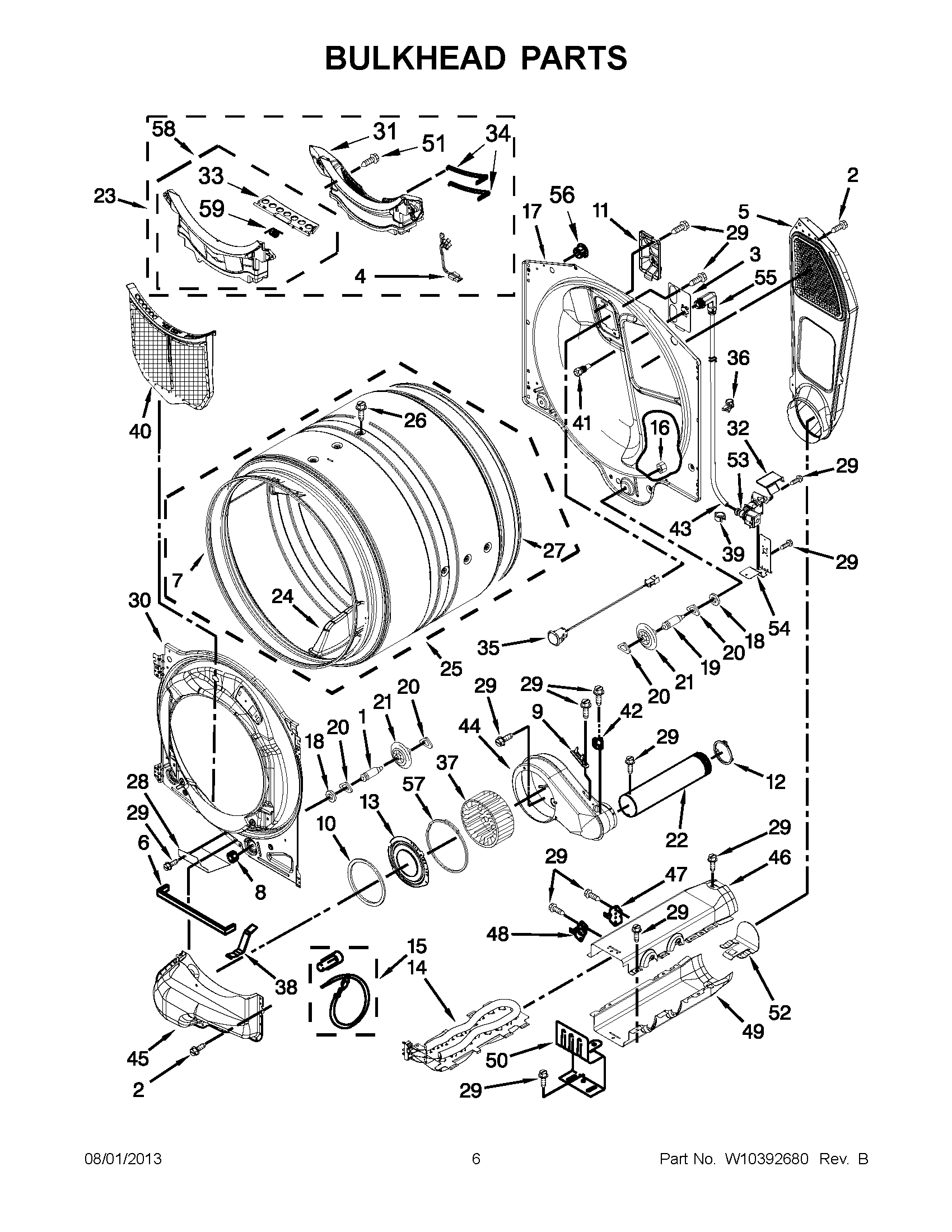

03 - BULKHEAD PARTS

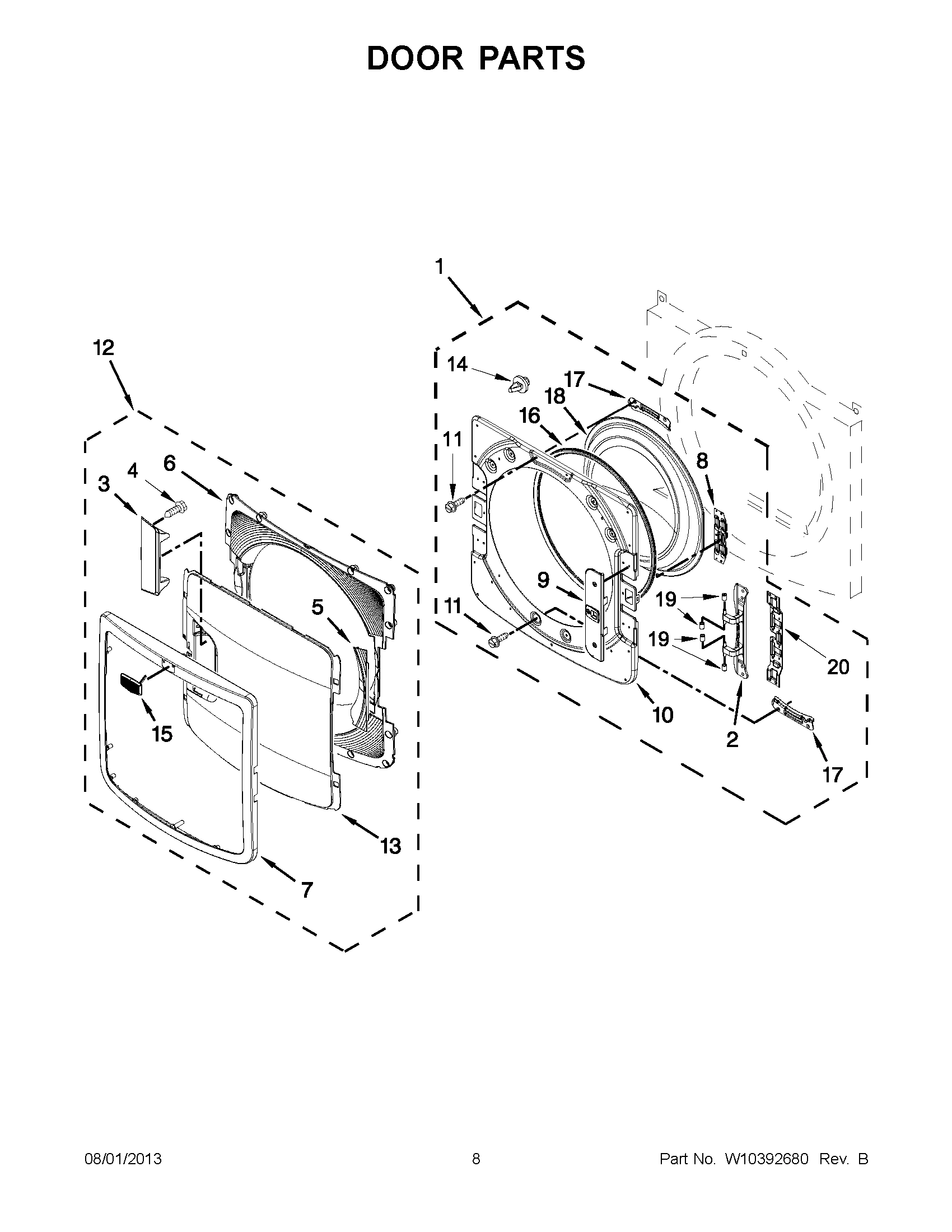

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MED9000YR0 29`` ELECTRIC DRYER
1
MAY W10057363 MAY W10057363 Contact Us For Availability
1
MAY W10297008 MAY W10297008 Contact Us For Availability
1
MAY W10312952 MAY W10312952 Contact Us For Availability
1
MAY W10315512 MAY W10315512 Contact Us For Availability
1
MAY W10316167 MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, INNER DOOR MAY W10272387 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
MAY W10301057 MAY W10301057 Contact Us For Availability
2
MAY W10337792 MAY W10337792 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
HINGE BASE MAY W10208415 Contact Us For Availability
3
MAY W10355893 MAY W10355893 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10249422 MAY W10249422 Contact Us For Availability
3
HANDLE, DOOR MAY W10272398 Contact Us For Availability
4
MAY W10392722 MAY W10392722 Contact Us For Availability
4
MAY W10392723 MAY W10392723 Contact Us For Availability
4
MAY W10392724 MAY W10392724 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
Screw MAY 9742177 Contact Us For Availability
5
MAY W10246525 MAY W10246525 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
PLUG, DOOR MAY W10272400 Contact Us For Availability
6
MAY W10317570 MAY W10317570 Contact Us For Availability
6
MAY W10259611 MAY W10259611 Contact Us For Availability
6
MAY W10211950 MAY W10211950 Contact Us For Availability
6
DOOR, INTERMEDIATE MAY W10272392 Contact Us For Availability
7
HARNESS, JUMPER MAY W10309986 Contact Us For Availability
7
Panel, Side (L.H.) (White) MAY W10192435 Contact Us For Availability
7
MAY W10301058 MAY W10301058 Contact Us For Availability
7
MAY W10337789 MAY W10337789 Contact Us For Availability
7
MAY W10273050 MAY W10273050 Contact Us For Availability
7
TRIM, DOOR MAY W10272390 Contact Us For Availability
8
HARNESS, JUMPER MAY W10309987 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10208254 MAY W10208254 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
9
MAY W10272404 MAY W10272404 Contact Us For Availability
10
MAY W10267833 MAY W10267833 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10211899 MAY W10211899 Contact Us For Availability
10
DOOR, INNER MAY W10285652 Contact Us For Availability
11
MAY W10208198 MAY W10208198 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY W10208422 MAY W10208422 Contact Us For Availability
12
MAY W10317566 MAY W10317566 Contact Us For Availability
12
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
OUTER DOOR ASSEMBLY MAY W10272389 Contact Us For Availability
13
MAY W10267956 MAY W10267956 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
13
MAY W10211901 MAY W10211901 Contact Us For Availability
13
DOOR, OUTER SCREEN MAY W10272391 Contact Us For Availability
14
MAY W10514146 MAY W10514146 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY 8544771 MAY 8544771 Contact Us For Availability
14
MAY 8572266 MAY 8572266 Contact Us For Availability
15
MAY W10146359 MAY W10146359 Contact Us For Availability
15
MAY 8565046 MAY 8565046 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
BADGE (CHROME) MAY W10316087 Contact Us For Availability
16
MAY W10208250 MAY W10208250 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY W10329710 MAY W10329710 Contact Us For Availability
17
MAY W10315109 MAY W10315109 Contact Us For Availability
17
MAY W10211946 MAY W10211946 Contact Us For Availability
17
MAY W10208252 MAY W10208252 Contact Us For Availability
18
MAY W10208401 MAY W10208401 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
MAY W10208417 MAY W10208417 Contact Us For Availability
19
MAY W10295361 MAY W10295361 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY W10208398 MAY W10208398 Contact Us For Availability
20
MAY W10267532 MAY W10267532 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY W10208419 MAY W10208419 Contact Us For Availability
21
MAY W10354249 MAY W10354249 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
SCREW MAY 343641 Contact Us For Availability
22
MAY W10342188 MAY W10342188 Contact Us For Availability
23
MAY 3393008 MAY 3393008 Contact Us For Availability
23
MAY W10219012 MAY W10219012 Contact Us For Availability
24
Panel, Side (R.H.) (White) MAY W10192446 Contact Us For Availability
24
MAY W10301059 MAY W10301059 Contact Us For Availability
24
MAY W10337790 MAY W10337790 Contact Us For Availability
24
MAY W10280771 MAY W10280771 Contact Us For Availability
25
MAY W10378252 MAY W10378252 Contact Us For Availability
25
MAY W10280782 MAY W10280782 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10396038 Contact Us For Availability
27
MAY 697694 MAY 697694 Contact Us For Availability
28
SCREW MAY 90767 Contact Us For Availability
28
MAY W10128629 MAY W10128629 Contact Us For Availability
29
Screw MAY 693995 Contact Us For Availability
29
MAY W10460106 MAY W10460106 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
MAY W10211930 MAY W10211930 Contact Us For Availability
31
MAY 488729 MAY 488729 Contact Us For Availability
31
MAY W10211903 MAY W10211903 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY W10530670 MAY W10530670 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY W10219016 MAY W10219016 Contact Us For Availability
34
MAY W10416072 MAY W10416072 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY W10208382 MAY W10208382 Contact Us For Availability
35
MAY W10236079 MAY W10236079 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY 3391018 MAY 3391018 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
37
MAY W10211915 MAY W10211915 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
MAY W10306123 MAY W10306123 Contact Us For Availability
39
MAY W10044599 MAY W10044599 Contact Us For Availability
40
MAY W10294349 MAY W10294349 Contact Us For Availability
40
MAY W10301067 MAY W10301067 Contact Us For Availability
40
MAY W10337786 MAY W10337786 Contact Us For Availability
40
MAY W10370972 MAY W10370972 Contact Us For Availability
41
MAY W10247569 MAY W10247569 Contact Us For Availability
41
MAY W10277503 MAY W10277503 Contact Us For Availability
42
SCREW MAY 3357011 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY W10348621 MAY W10348621 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10211911 MAY W10211911 Contact Us For Availability
45
MAY W10211896 MAY W10211896 Contact Us For Availability
46
MAY W10215725 MAY W10215725 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THE MAY 280148 Contact Us For Availability
48
MAY 8557403 MAY 8557403 Contact Us For Availability
49
MAY 8544770 MAY 8544770 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
SCREW MAY 3387230 Contact Us For Availability
52
MAY 8544776 MAY 8544776 Contact Us For Availability
53
MAY W10505663 MAY W10505663 Contact Us For Availability
54
MAY W10510098 MAY W10510098 Contact Us For Availability
55
MAY W10347739 MAY W10347739 Contact Us For Availability
56
MAY 8529007 MAY 8529007 Contact Us For Availability
57
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
58
MAY W10219013 MAY W10219013 Contact Us For Availability
59
MAY W10219015 MAY W10219015 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, HOSE, INLET (2` HOSE MAY 350027 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, HOSE, INLET (5` HOSE MAY 89503 Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6`, 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, WASHER, INLET HOSE MAY W10194033 Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, BAG ASSEMBLY (CONTAI MAY W10206708 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283RP Contact Us For Availability
NI
MAY W10318650 MAY W10318650 Contact Us For Availability
NI
MAY W10322470A MAY W10322470A Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -``Y MAY W10336486 Contact Us For Availability
× ![]()
