Model Maytag MED8200FC2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

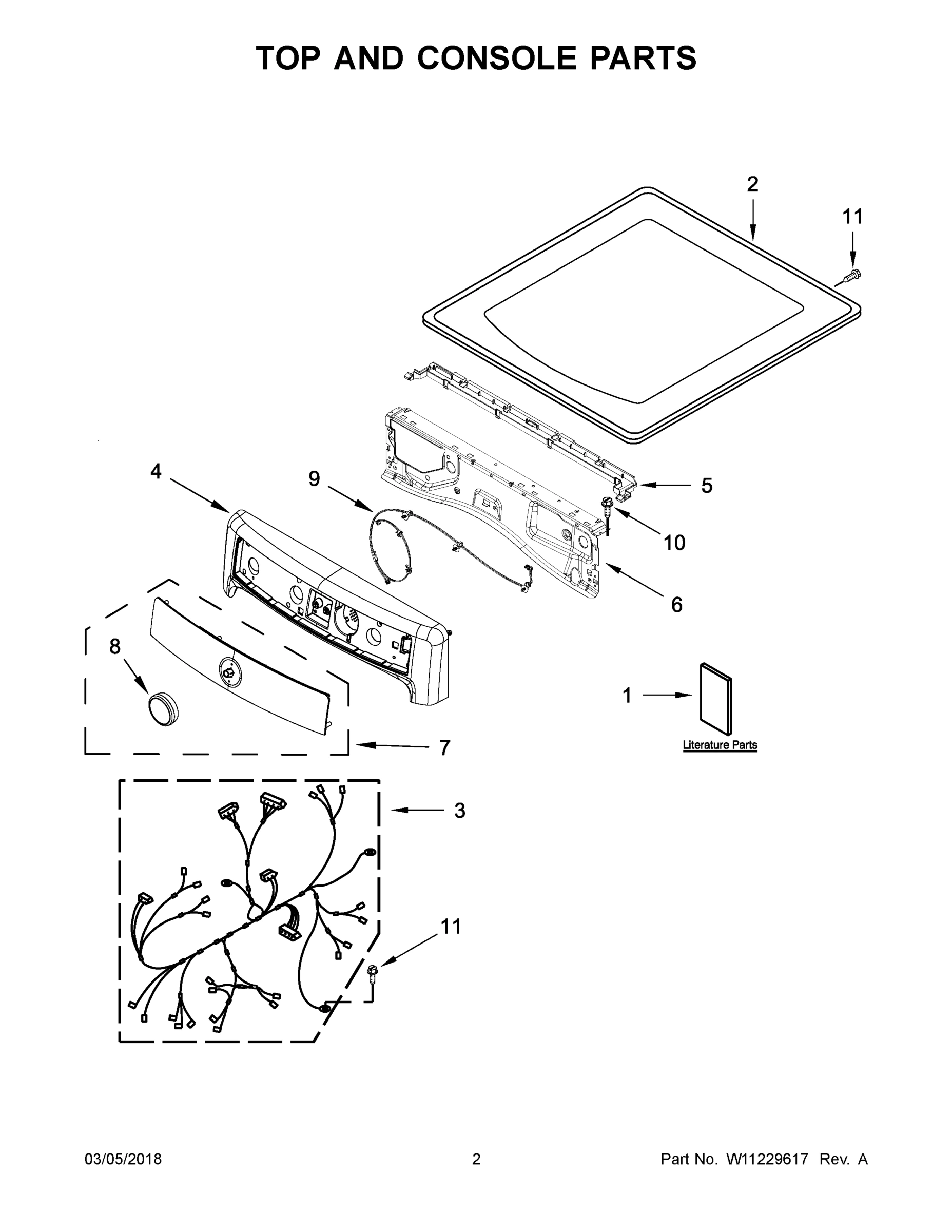

02 - TOP AND CONSOLE PARTS

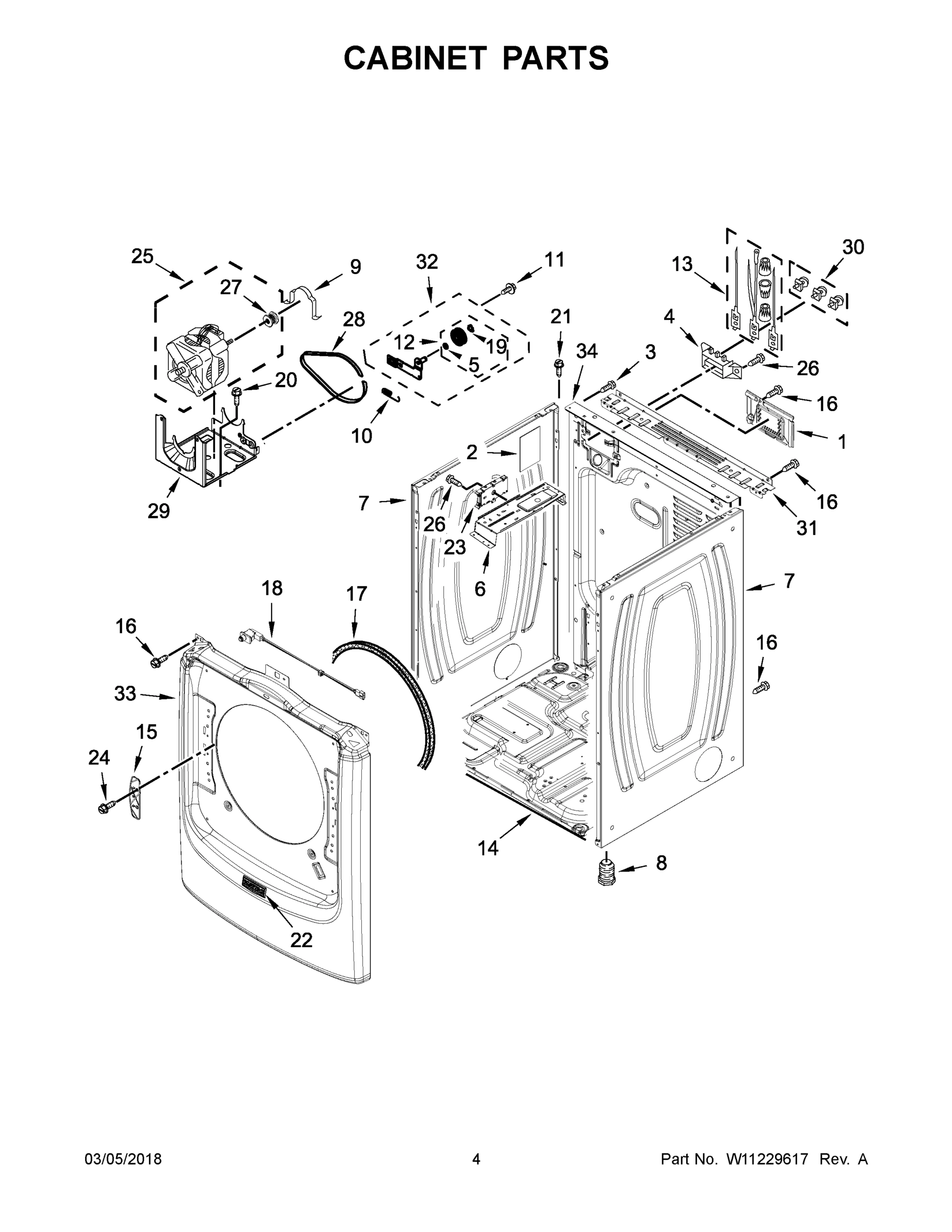

03 - CABINET PARTS

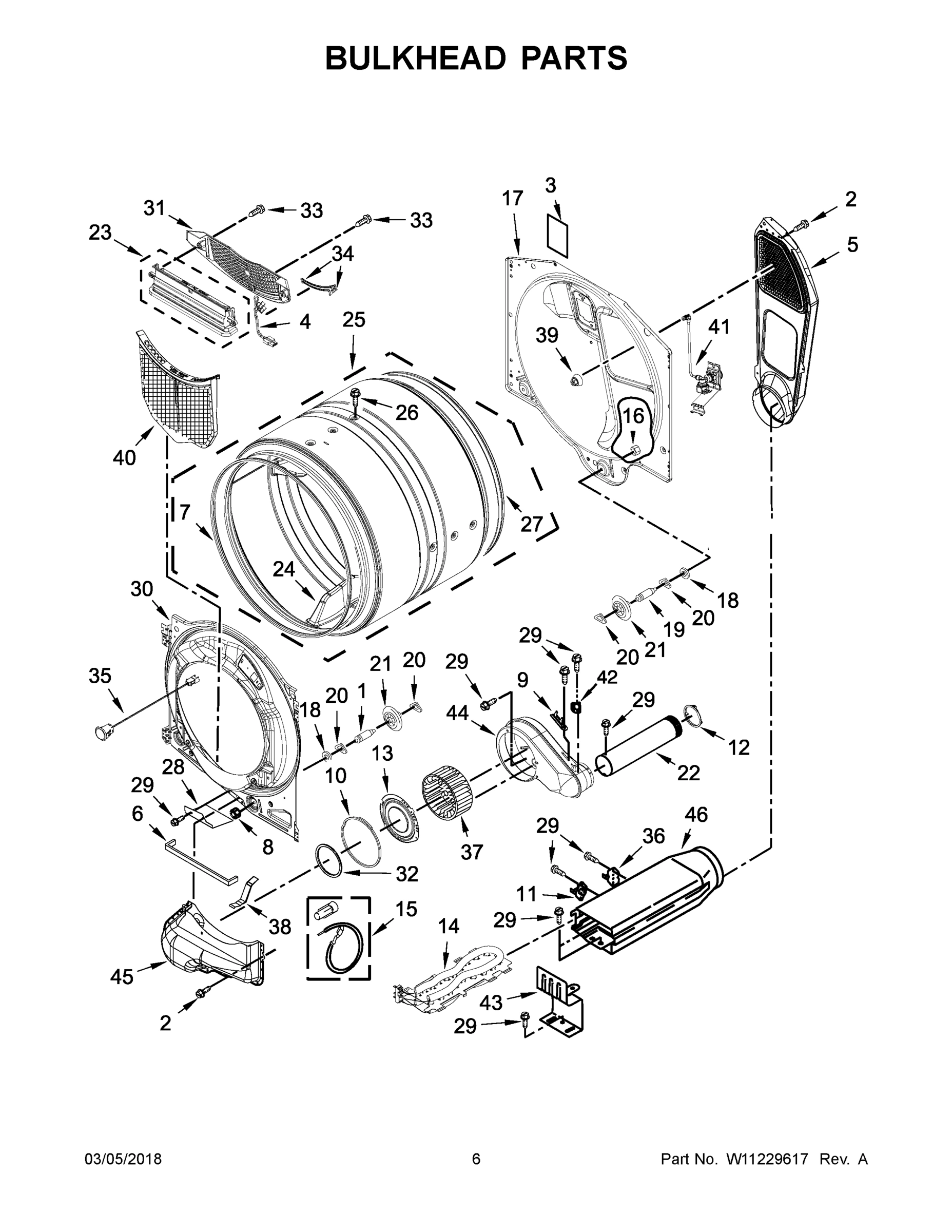

04 - BULKHEAD PARTS

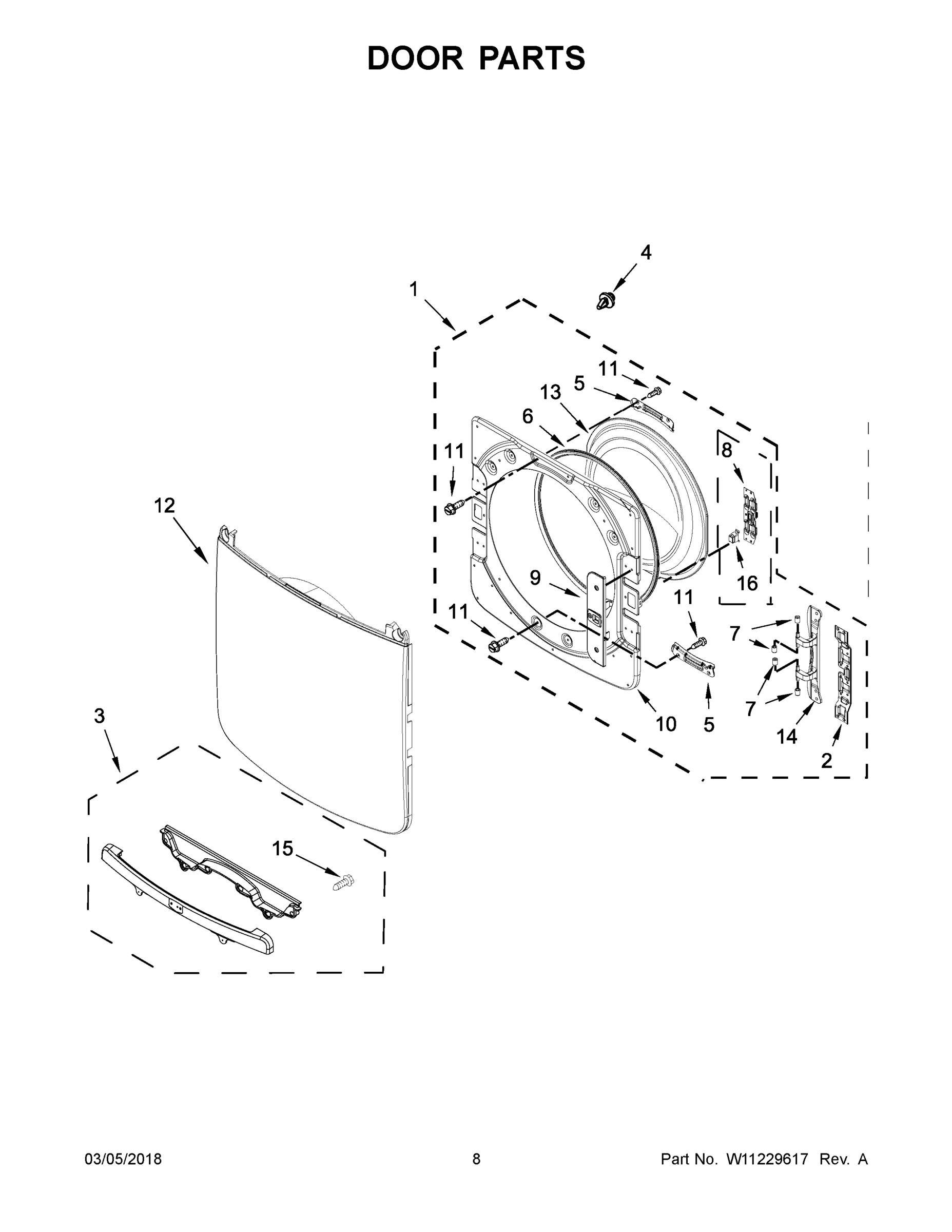

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MED8200FC2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
USE AND CARE GUIDE MAY W10804690 Contact Us For Availability
1
COVER, TERMINAL BLOCK MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, INNER DOOR MAY W10797893 Contact Us For Availability
1A
TECH SHEET MAY W10806850 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W11101374 Contact Us For Availability
1C
WIRING DIAGRAM MAY W10804377 Contact Us For Availability
1D
QUICK START GUIDE MAY W10804670 Contact Us For Availability
2
TOP (WHITE) MAY W10208383 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
PAD, FOAM MAY W10504381 Contact Us For Availability
2
PLATE, HINGE RETAINER MAY W10208419 Contact Us For Availability
2A
TOP (CHROME SHADOW) MAY W10460919 Contact Us For Availability
3
HARNESS, MAIN MAY W10637533 Contact Us For Availability
3
SCREW MAY W10773242 Contact Us For Availability
3
PAD, FOAM MAY W10653662 Contact Us For Availability
3
HANDLE ASSEMBLY (CHROME) MAY W10626038 Contact Us For Availability
4
CONSOLE ASSEMBLY (WHITE) MAY W10391555 Contact Us For Availability
4
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
4
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
4
BUMPER, DOOR MAY 8572266 Contact Us For Availability
4A
CONSOLE ASSEMBLY (CHROME SHADOW) MAY W10433206 Contact Us For Availability
5
WATER CHANNEL MAY W10636058 Contact Us For Availability
5
WASHER MAY W10121334 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W11104018 Contact Us For Availability
5
BRACKET, GLASS MAY W10208252 Contact Us For Availability
6
BRACKET, CONSOLE MAY W10208198 Contact Us For Availability
6
BRACKET, CONTROL MAY W10259611 Contact Us For Availability
6
SEAL, HOUSING OUTLET MAY W10211950 Contact Us For Availability
6
SEAL, GLASS MAY W10329710 Contact Us For Availability
7
ASSEMBLY, IML (WHITE) MAY W10825122 Contact Us For Availability
7
PANEL, SIDE (WHITE) MAY W10468495 Contact Us For Availability
7
SEAL, DRUM FRONT MAY W10521122 Contact Us For Availability
7
CAP, HINGE MAY W10208398 Contact Us For Availability
7A
ASSEMBLY, IML (CHROME SHADOW) MAY W10825124 Contact Us For Availability
7A
PANEL, SIDE (CHROME SHADOW) MAY W10468496 Contact Us For Availability
8
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10727011 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
ASSEMBLY, DOOR CATCH MAY W10208254 Contact Us For Availability
9
CABLE, USER INTERFACE MAY W10540653 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
9
COVER, DOOR CATCH MAY W10272404 Contact Us For Availability
10
SCREW MAY W10489172 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
10
DOOR, INNER MAY W10285652 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY W10288126 Contact Us For Availability
11
THERMOSTAT, HIGH LIMIT MAY 8557403 Contact Us For Availability
12
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
12
COLLAR, DUCT MAY W10344699 Contact Us For Availability
12
ASSEMBLY, OUTER DOOR MAY W10424248 Contact Us For Availability
13
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
13
ASSEMBLY, COLLAR MAY W10211901 Contact Us For Availability
13
GLASS, DOOR MAY W10749947 Contact Us For Availability
14
BASE, CABINET MAY 8565046 Contact Us For Availability
14
ELEMENT, HEATER MAY 3387747 Contact Us For Availability
14
HINGE, BASE MAY W10208415 Contact Us For Availability
15
STRIKE, DOOR MAY W10208250 Contact Us For Availability
15
SCREW MAY 9742177 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
16
SCREW MAY 3357011 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
ASSEMBLY, SPRING CATCH MAY W10208401 Contact Us For Availability
17
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
17
BULKHEAD, REAR MAY 3387809 Contact Us For Availability
18
DOOR SWITCH, SNAP IN MAY W10569114 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
SCREW MAY 343641 Contact Us For Availability
21
SCREW MAY 3393008 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
BADGE, MAYTAG MAY W10639171 Contact Us For Availability
22
EXHAUST PIPE MAY W10342188 Contact Us For Availability
23
CONTROL BOARD MAY W10847936 Contact Us For Availability
23
ASSEMBLY, OUTLET GRILL AND HOUSING MAY W10672683 Contact Us For Availability
24
BAFFLE, DRUM MAY W10280771 Contact Us For Availability
25
ASSEMBLY, MOTOR SCREW MAY W10806758 Contact Us For Availability
25
ASSEMBLY, DRUM (COMPLETE) MAY W10541657 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
BELT, DRIVE MAY W10112954 Contact Us For Availability
28
SHIELD, BLOWER MAY W10128629 Contact Us For Availability
29
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
29
SCREW MAY 693995 Contact Us For Availability
30
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
30
BULKHEAD, FRONT MAY W10673491 Contact Us For Availability
31
BRACKET, REAR MAY W10208382 Contact Us For Availability
31
GRILL, OUTLET MAY W10672682 Contact Us For Availability
32
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
32
SEAL, BLOWER COVER MAY W10211899 Contact Us For Availability
33
PANEL, FRONT (WHITE) MAY W10651060 Contact Us For Availability
33
SCREW MAY W10794806 Contact Us For Availability
33A
PANEL, FRONT (CHROME SHADOW) MAY W10637127 Contact Us For Availability
34
PANEL, REAR MAY W10487430 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
ASSEMBLY, DRUM LIGHT MAY W10460935 Contact Us For Availability
36
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 280148 Contact Us For Availability
37
WHEEL, BLOWER MAY W10211915 Contact Us For Availability
38
CLIP, LINT DUCT MAY W10414388 Contact Us For Availability
39
NOZZLE, CAP MAY W11100488 Contact Us For Availability
40
SCREEN, LINT (WHITE) MAY W10516085 Contact Us For Availability
41
VALVE AND HOSE ASSEMBLY MAY W11157054 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
44
HOUSING, BLOWER MAY W10211911 Contact Us For Availability
45
ASSEMBLY, LINT DUCT MAY W10211896 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
NI
FOOT, OPTIONAL EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, KIT, STACK MAY W10298318 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, DRYER MAY W10322470 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
× ![]()
