Model Maytag MED8150EW0 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

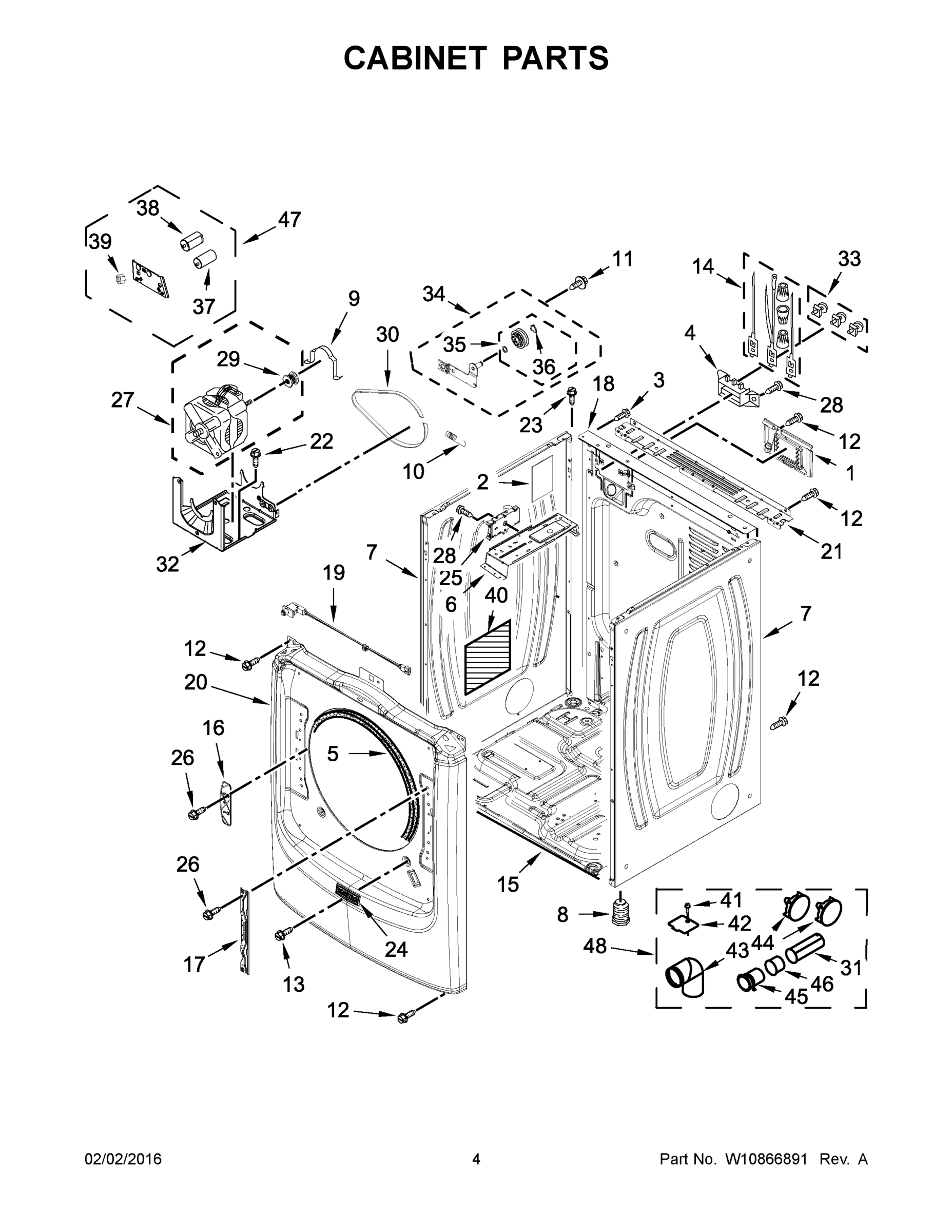

03 - CABINET PARTS

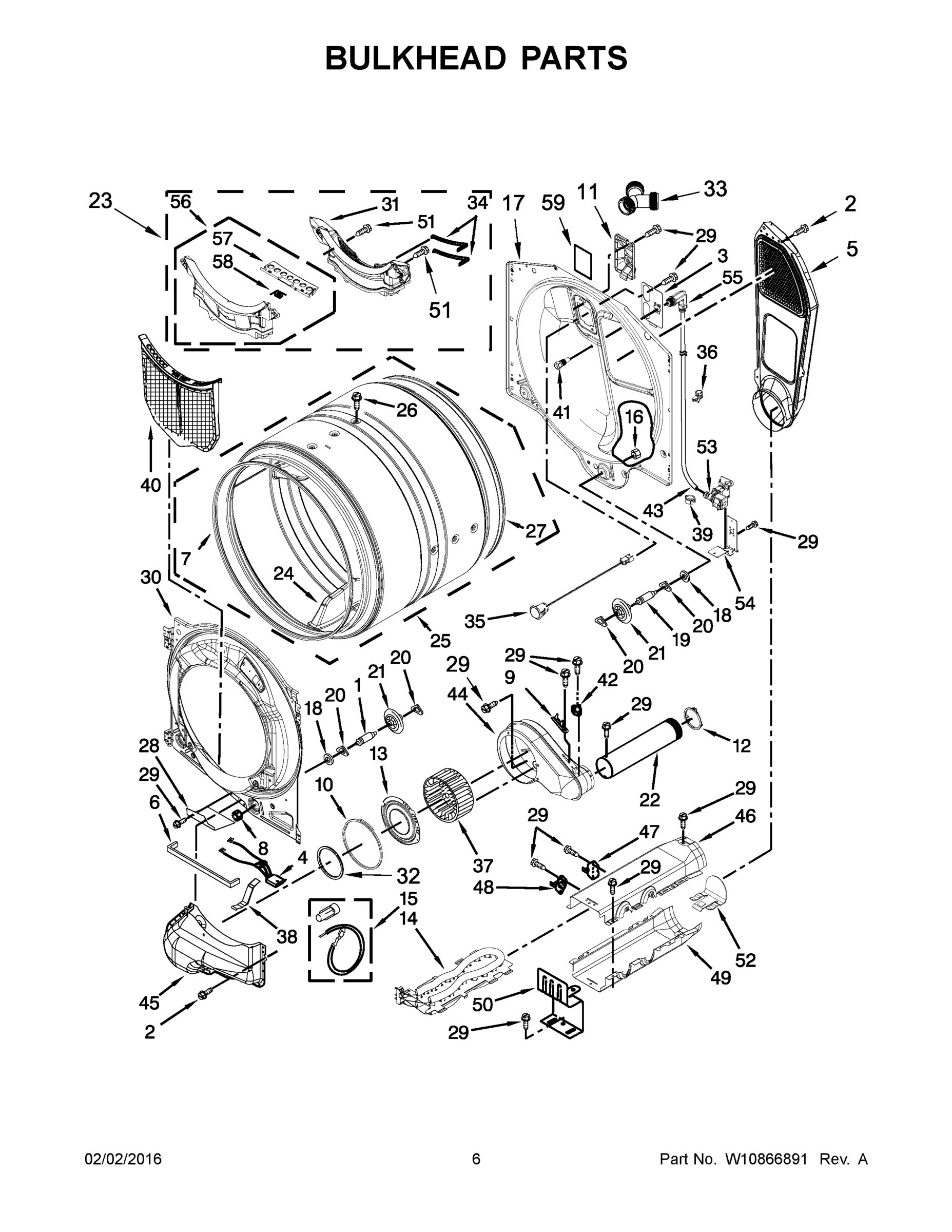

04 - BULKHEAD PARTS

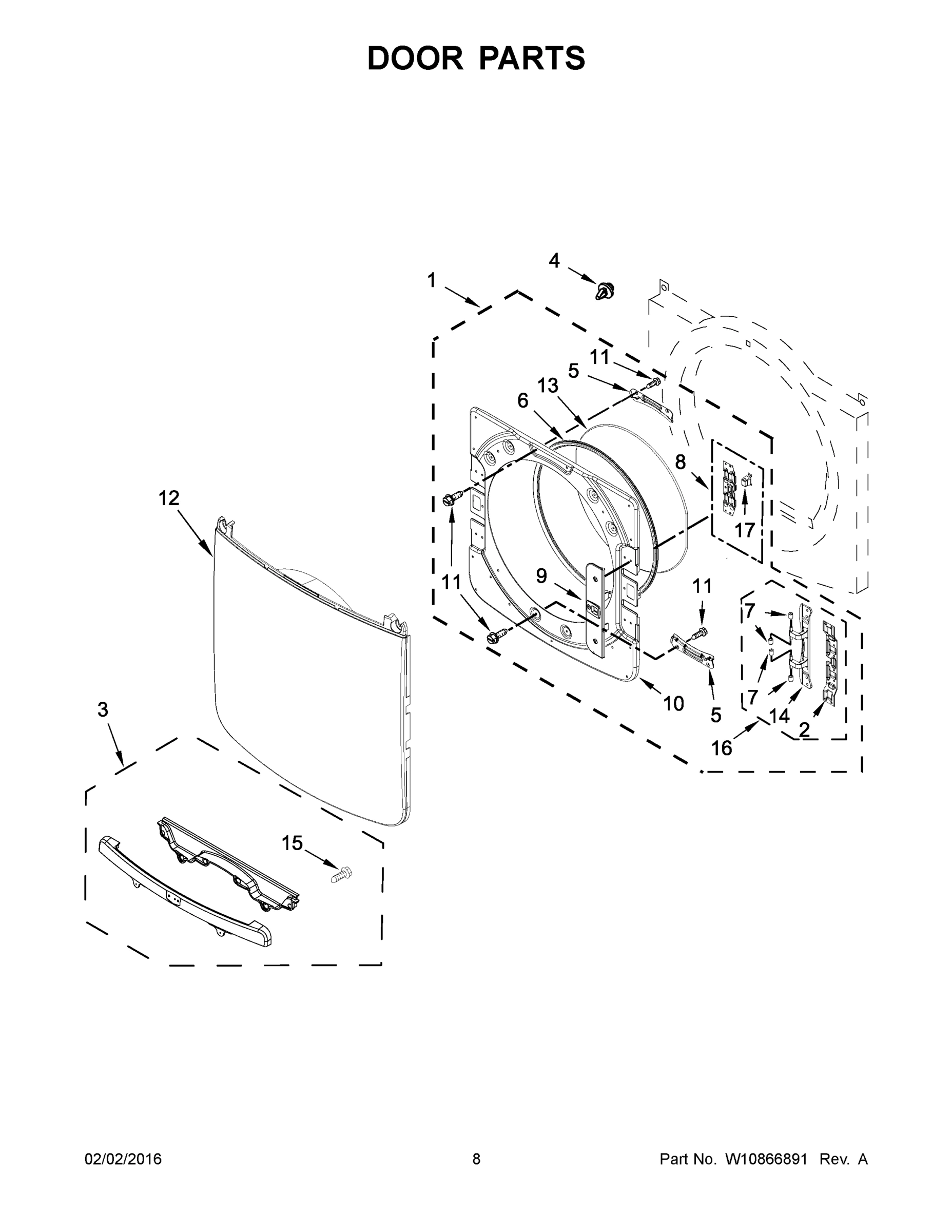

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MED8150EW0 ELECTRIC DRYER
1
MAY W10804690 MAY W10804690 Contact Us For Availability
1
MAY W10316167 MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10797893 MAY W10797893 Contact Us For Availability
1A
MAY W10806850 MAY W10806850 Contact Us For Availability
1B
MAY W10676165 MAY W10676165 Contact Us For Availability
1C
MAY W10804377 MAY W10804377 Contact Us For Availability
1D
MAY W10804670 MAY W10804670 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
MAY W10504381 MAY W10504381 Contact Us For Availability
2
MAY W10208419 MAY W10208419 Contact Us For Availability
3
MAY W10637533 MAY W10637533 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10656504 MAY W10656504 Contact Us For Availability
3
MAY W10626038 MAY W10626038 Contact Us For Availability
4
MAY W10391555 MAY W10391555 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
MAY 8572266 MAY 8572266 Contact Us For Availability
5
MAY W10636058 MAY W10636058 Contact Us For Availability
5
MAY 3387242 MAY 3387242 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
MAY W10208252 MAY W10208252 Contact Us For Availability
6
MAY W10208198 MAY W10208198 Contact Us For Availability
6
MAY W10259611 MAY W10259611 Contact Us For Availability
6
MAY W10211950 MAY W10211950 Contact Us For Availability
6
MAY W10329710 MAY W10329710 Contact Us For Availability
7
MAY W10800519 MAY W10800519 Contact Us For Availability
7
MAY W10468495 MAY W10468495 Contact Us For Availability
7
MAY W10521122 MAY W10521122 Contact Us For Availability
7
MAY W10208398 MAY W10208398 Contact Us For Availability
8
MAY W10727011 MAY W10727011 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10208254 MAY W10208254 Contact Us For Availability
9
MAY W10540653 MAY W10540653 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10693363 MAY W10693363 Contact Us For Availability
9
MAY W10272404 MAY W10272404 Contact Us For Availability
10
MAY W10489172 MAY W10489172 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
10
DOOR, INNER MAY W10285652 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY W10208422 MAY W10208422 Contact Us For Availability
12
SCREW MAY 489463 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
ASSEMBLY, OUTER DOOR MAY W10424248 Contact Us For Availability
13
SCREW MAY 3357011 Contact Us For Availability
13
MAY W10211901 MAY W10211901 Contact Us For Availability
13
MAY W10749947 MAY W10749947 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY 8544771 MAY 8544771 Contact Us For Availability
14
MAY W10208415 MAY W10208415 Contact Us For Availability
15
MAY 8565046 MAY 8565046 Contact Us For Availability
15
SCREW MAY 9742177 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
MAY W10208250 MAY W10208250 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY W10208414 MAY W10208414 Contact Us For Availability
17
MAY W10315109 MAY W10315109 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
MAY W10208401 MAY W10208401 Contact Us For Availability
18
MAY W10487430 MAY W10487430 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10688148 MAY W10688148 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10651060 MAY W10651060 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10208382 MAY W10208382 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
SCREW MAY 343641 Contact Us For Availability
22
MAY W10342188 MAY W10342188 Contact Us For Availability
23
MAY 3393008 MAY 3393008 Contact Us For Availability
23
MAY W10672683 MAY W10672683 Contact Us For Availability
24
MAY W10639171 MAY W10639171 Contact Us For Availability
24
MAY W10280771 MAY W10280771 Contact Us For Availability
25
MAY W10804446 MAY W10804446 Contact Us For Availability
25
MAY W10541656 MAY W10541656 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10577393 MAY W10577393 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10128629 MAY W10128629 Contact Us For Availability
29
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
29
SCREW MAY 693995 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
MAY W10673491 MAY W10673491 Contact Us For Availability
31
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
31
MAY W10672682 MAY W10672682 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY W10211899 MAY W10211899 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
34
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY W10468057 MAY W10468057 Contact Us For Availability
35
MAY W10460935 MAY W10460935 Contact Us For Availability
36
MAY 3391018 MAY 3391018 Contact Us For Availability
37
MAY W10442539 MAY W10442539 Contact Us For Availability
37
MAY W10211915 MAY W10211915 Contact Us For Availability
38
MAY W10701357 MAY W10701357 Contact Us For Availability
38
MAY W10414388 MAY W10414388 Contact Us For Availability
39
NUT MAY W10604214 Contact Us For Availability
39
MAY W10044599 MAY W10044599 Contact Us For Availability
40
PANEL, DAMPENING MAY W10123956 Contact Us For Availability
40
SCREEN, LINT (WHITE) MAY W10516085 Contact Us For Availability
41
MAY 488729 MAY 488729 Contact Us For Availability
41
MAY W10277503 MAY W10277503 Contact Us For Availability
42
MAY W10354249 MAY W10354249 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY W10416072 MAY W10416072 Contact Us For Availability
43
MAY W10348621 MAY W10348621 Contact Us For Availability
44
MAY W10404617 MAY W10404617 Contact Us For Availability
44
MAY W10211911 MAY W10211911 Contact Us For Availability
45
MAY W10587890 MAY W10587890 Contact Us For Availability
45
MAY W10211896 MAY W10211896 Contact Us For Availability
46
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY W10565150 MAY W10565150 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
MAY 8557403 MAY 8557403 Contact Us For Availability
49
MAY 8544770 MAY 8544770 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
MAY W10794806 MAY W10794806 Contact Us For Availability
52
MAY 8544776 MAY 8544776 Contact Us For Availability
53
MAY W10505663 MAY W10505663 Contact Us For Availability
54
MAY W10510098 MAY W10510098 Contact Us For Availability
55
MAY W10347739 MAY W10347739 Contact Us For Availability
56
MAY W10672681 MAY W10672681 Contact Us For Availability
57
MAY W10672680 MAY W10672680 Contact Us For Availability
58
MAY W10726027 MAY W10726027 Contact Us For Availability
59
MAY W10653662 MAY W10653662 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
MAY PT220L MAY PT220L Contact Us For Availability
NI
MAY PT400L MAY PT400L Contact Us For Availability
NI
MAY PT600L MAY PT600L Contact Us For Availability
NI
MAY W10298318 MAY W10298318 Contact Us For Availability
NI
MAY W10315283 MAY W10315283 Contact Us For Availability
NI
MAY W10322470 MAY W10322470 Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
× ![]()
