Model Maytag MED8000AW0 ELECTRIC DRYER – Common Parts & Diagrams

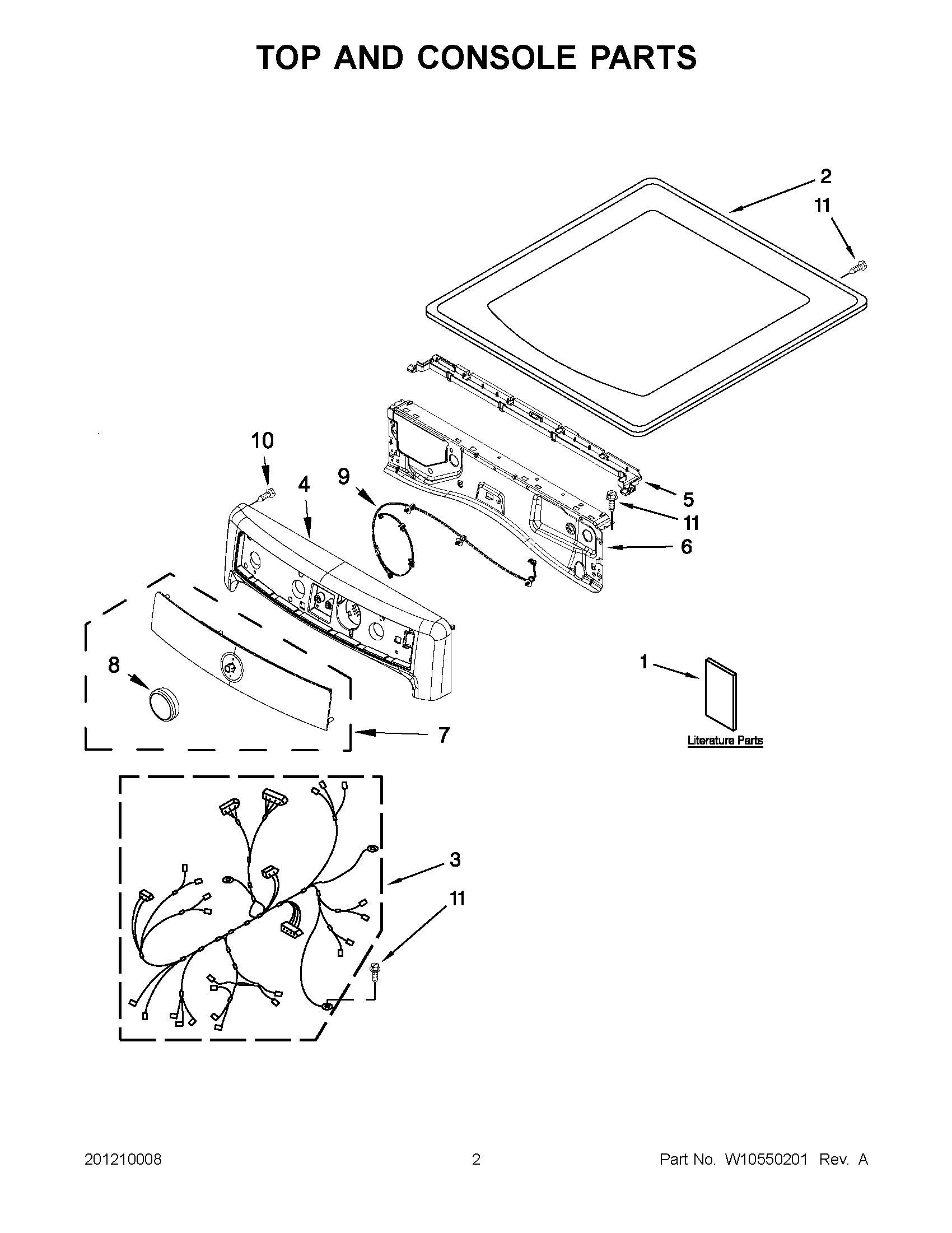

01 - TOP AND CONSOLE PARTS

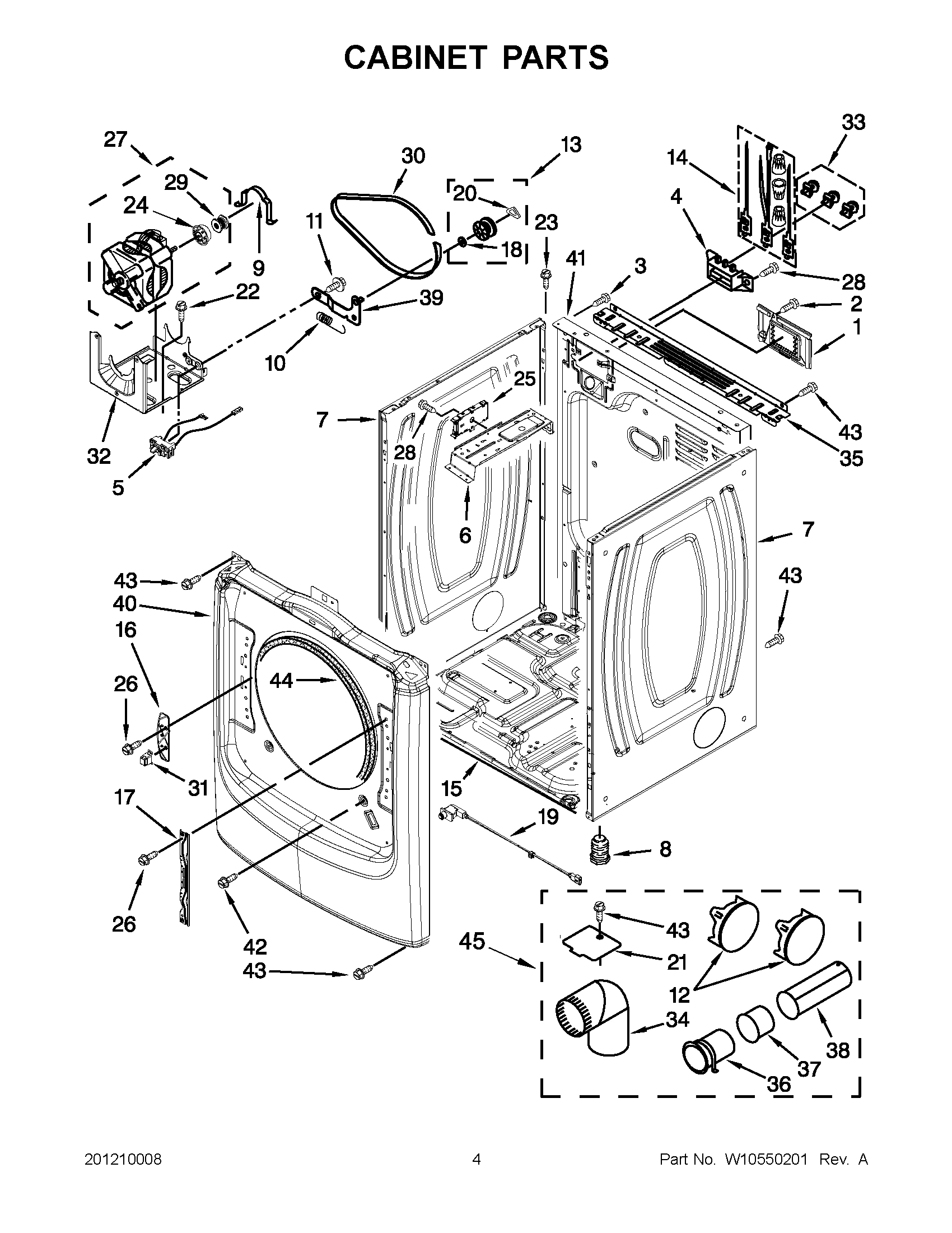

02 - CABINET PARTS

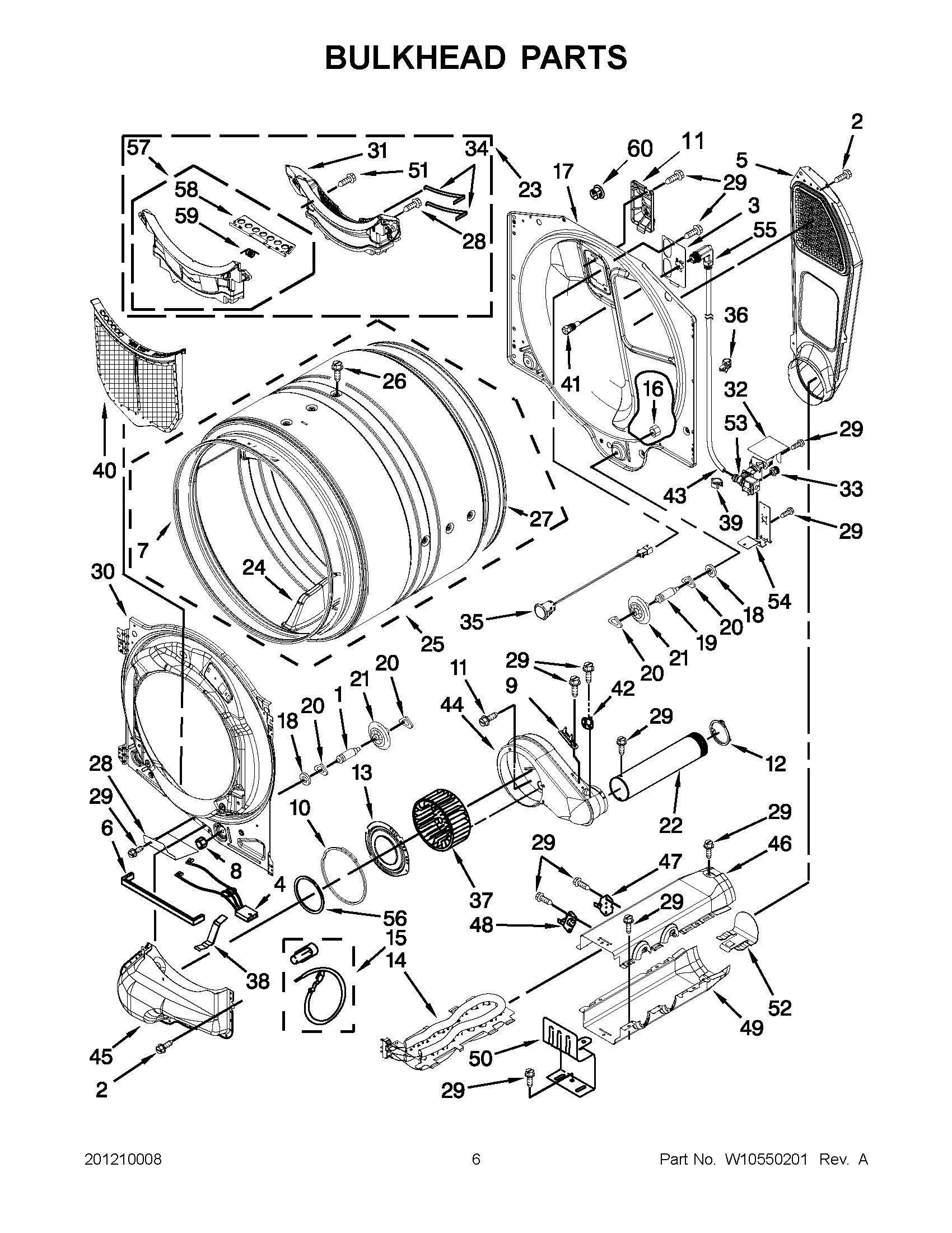

03 - BULKHEAD PARTS

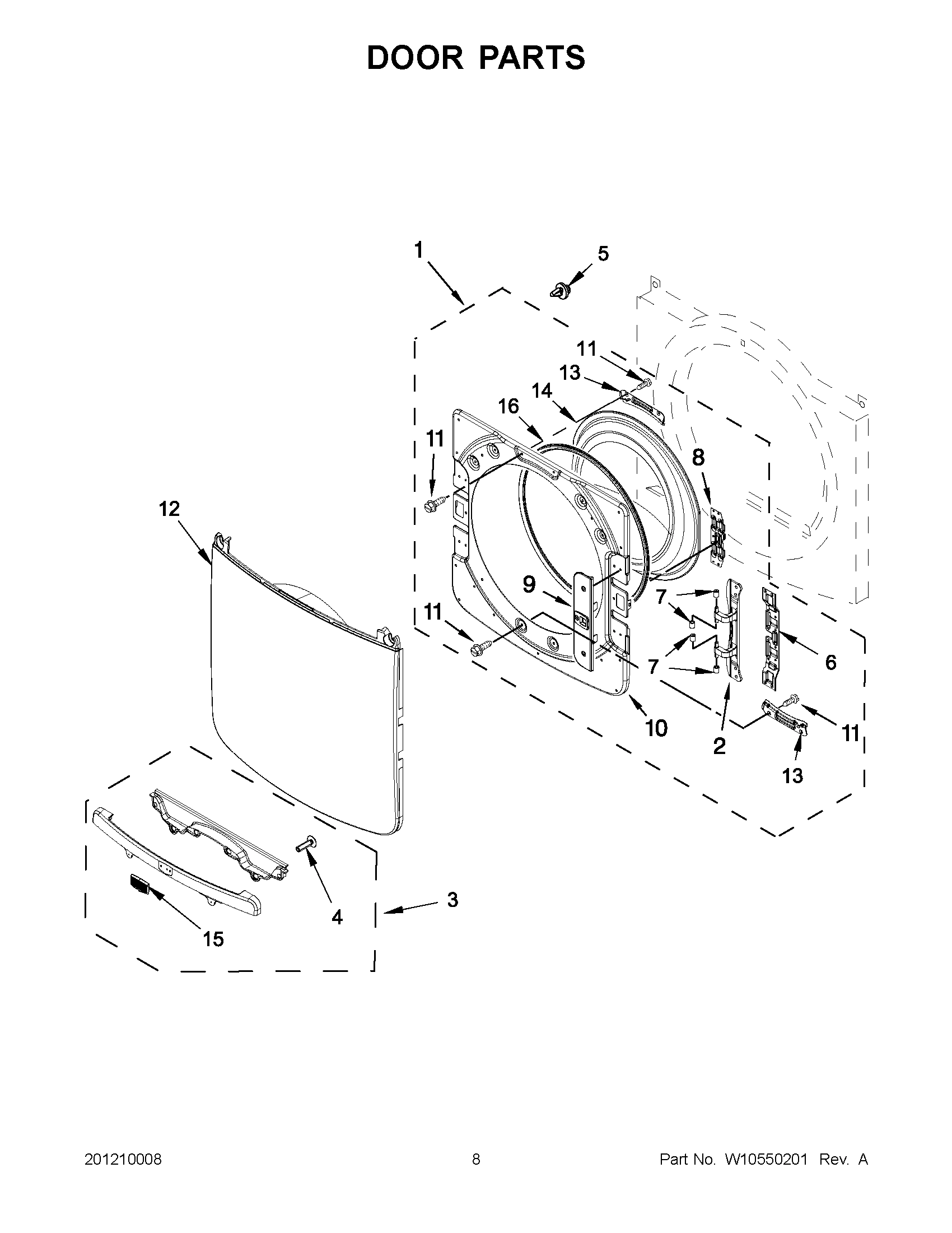

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MED8000AW0 ELECTRIC DRYER
1
MAY W10484433 MAY W10484433 Contact Us For Availability
1
MAY W10494218 MAY W10494218 Contact Us For Availability
1
MAY W10504394 MAY W10504394 Contact Us For Availability
1
MAY W10508904 MAY W10508904 Contact Us For Availability
1
MAY W10316167 MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
INNER DOOR ASSEMBLY MAY W10272387 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
TOP (GRANITE) MAY W10301057 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
SCREW MAY 3390631 Contact Us For Availability
2
HINGE BASE MAY W10208415 Contact Us For Availability
3
MAY W10526657 MAY W10526657 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10249422 MAY W10249422 Contact Us For Availability
3
MAY W10466618 MAY W10466618 Contact Us For Availability
4
MAY W10469302 MAY W10469302 Contact Us For Availability
4
MAY W10469303 MAY W10469303 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
Screw MAY 9742177 Contact Us For Availability
5
MAY W10259210 MAY W10259210 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
MAY 8572266 MAY 8572266 Contact Us For Availability
6
MAY W10208198 MAY W10208198 Contact Us For Availability
6
MAY W10259611 MAY W10259611 Contact Us For Availability
6
MAY W10211950 MAY W10211950 Contact Us For Availability
6
MAY W10208419 MAY W10208419 Contact Us For Availability
7
MAY W10469308 MAY W10469308 Contact Us For Availability
7
MAY W10469309 MAY W10469309 Contact Us For Availability
7
MAY W10468495 MAY W10468495 Contact Us For Availability
7
MAY W10468501 MAY W10468501 Contact Us For Availability
7
MAY W10273050 MAY W10273050 Contact Us For Availability
7
MAY W10208398 MAY W10208398 Contact Us For Availability
8
KNOB, CONTROL (GRANITE) MAY W10480090 Contact Us For Availability
8
KNOB, CONTROL (WHITE) MAY W10519048 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
DOOR CATCH ASSEMBLY MAY W10208254 Contact Us For Availability
9
MAY W10443062 MAY W10443062 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
9
MAY W10272404 MAY W10272404 Contact Us For Availability
10
MAY W10489172 MAY W10489172 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
10
MAY W10285652 MAY W10285652 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY W10208422 MAY W10208422 Contact Us For Availability
12
MAY W10404617 MAY W10404617 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
MAY W10424248 MAY W10424248 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
COLLAR ASSEMBLY MAY W10211901 Contact Us For Availability
13
MAY W10208252 MAY W10208252 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
Heater Element MAY 8544771 Contact Us For Availability
14
MAY W10208417 MAY W10208417 Contact Us For Availability
15
MAY 8565046 MAY 8565046 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY W10424964 MAY W10424964 Contact Us For Availability
16
MAY W10208250 MAY W10208250 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY W10329710 MAY W10329710 Contact Us For Availability
17
MAY W10315109 MAY W10315109 Contact Us For Availability
17
BULKHEAD, REAR 10-16 X 13/16 MAY 8520836 Contact Us For Availability
18
MAY W10121334 MAY W10121334 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10459029 MAY W10459029 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
21
MAY W10354249 MAY W10354249 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
SCREW MAY 343641 Contact Us For Availability
22
MAY W10342188 MAY W10342188 Contact Us For Availability
23
MAY 3393008 MAY 3393008 Contact Us For Availability
23
OUTLET GRILL & HOUSING ASSEMBLY MAY W10219012 Contact Us For Availability
24
MAY 3393657 MAY 3393657 Contact Us For Availability
24
MAY W10280771 MAY W10280771 Contact Us For Availability
25
CONTROL BOARD MAY W10542001 Contact Us For Availability
25
MAY W10280782 MAY W10280782 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10396038 MAY W10396038 Contact Us For Availability
27
MAY 697694 MAY 697694 Contact Us For Availability
28
SCREW MAY 90767 Contact Us For Availability
28
MAY W10128629 MAY W10128629 Contact Us For Availability
29
MAY 3389729 MAY 3389729 Contact Us For Availability
29
Screw MAY 693995 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
BULKHEAD, FRONT DOOR SCREEN MAY W10211930 Contact Us For Availability
31
SPRING, CATCH ASSEMBLY MAY W10208401 Contact Us For Availability
31
GRILLE, OUTLET MAY W10211903 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY W10184825 MAY W10184825 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY W10044605 MAY W10044605 Contact Us For Availability
34
4`` - 90° ELBOW MAY W10416072 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
PANEL, REAR MAY W10208382 Contact Us For Availability
35
DRUM LIGHT ASSEMBLY-LED MAY W10460935 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY 3391018 MAY 3391018 Contact Us For Availability
37
MAY W10331278 MAY W10331278 Contact Us For Availability
37
MAY W10211915 MAY W10211915 Contact Us For Availability
38
EXHAUST, PIPE MAY 8563749 Contact Us For Availability
38
MAY W10414388 MAY W10414388 Contact Us For Availability
39
MAY 3388674 MAY 3388674 Contact Us For Availability
39
MAY W10044599 MAY W10044599 Contact Us For Availability
40
MAY W10363954 MAY W10363954 Contact Us For Availability
40
MAY W10363955 MAY W10363955 Contact Us For Availability
40
MAY W10370972 MAY W10370972 Contact Us For Availability
41
MAY W10487430 MAY W10487430 Contact Us For Availability
41
NOZZLE & SCREEN ASSEMBLY MAY W10277503 Contact Us For Availability
42
SCREW MAY 3357011 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY W10348621 MAY W10348621 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10211911 MAY W10211911 Contact Us For Availability
45
LINT DUCT ASSEMBLY MAY W10211896 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
CUT-OFF, THERMAL MAY 8318314 Contact Us For Availability
48
MAY 8557403 MAY 8557403 Contact Us For Availability
49
MAY 8544770 MAY 8544770 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
SCREW MAY 3387230 Contact Us For Availability
52
MAY 8544776 MAY 8544776 Contact Us For Availability
53
VALVE, WATER INLET MAY W10346403 Contact Us For Availability
54
MAY W10346402 MAY W10346402 Contact Us For Availability
55
NOZZLE & HOSE ASSEMBLY MAY W10347739 Contact Us For Availability
56
MAY W10211899 MAY W10211899 Contact Us For Availability
57
HOUSING & DOOR ASSEMBLY MAY W10219013 Contact Us For Availability
58
MAY W10219016 MAY W10219016 Contact Us For Availability
59
MAY W10219015 MAY W10219015 Contact Us For Availability
60
MAY 8529007 MAY 8529007 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENTING MAY W10323246 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6`, 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -``Y MAY W10269488 Contact Us For Availability
NI
MAY W10298318R MAY W10298318R Contact Us For Availability
NI
MAY W10315283R MAY W10315283R Contact Us For Availability
NI
MAY W10318650 MAY W10318650 Contact Us For Availability
NI
MAY W10322470A MAY W10322470A Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, BAG ASSEMBLY MAY W10434773 Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, 5` HOSE INLET MAY W10439654 Contact Us For Availability
NI
MISCELLANEOUS PARTS BAG, 2` HOSE INLET MAY W10439655 Contact Us For Availability
NI
MAY W10446849 MAY W10446849 Contact Us For Availability
NI
MAY W10473735 MAY W10473735 Contact Us For Availability
× ![]()
