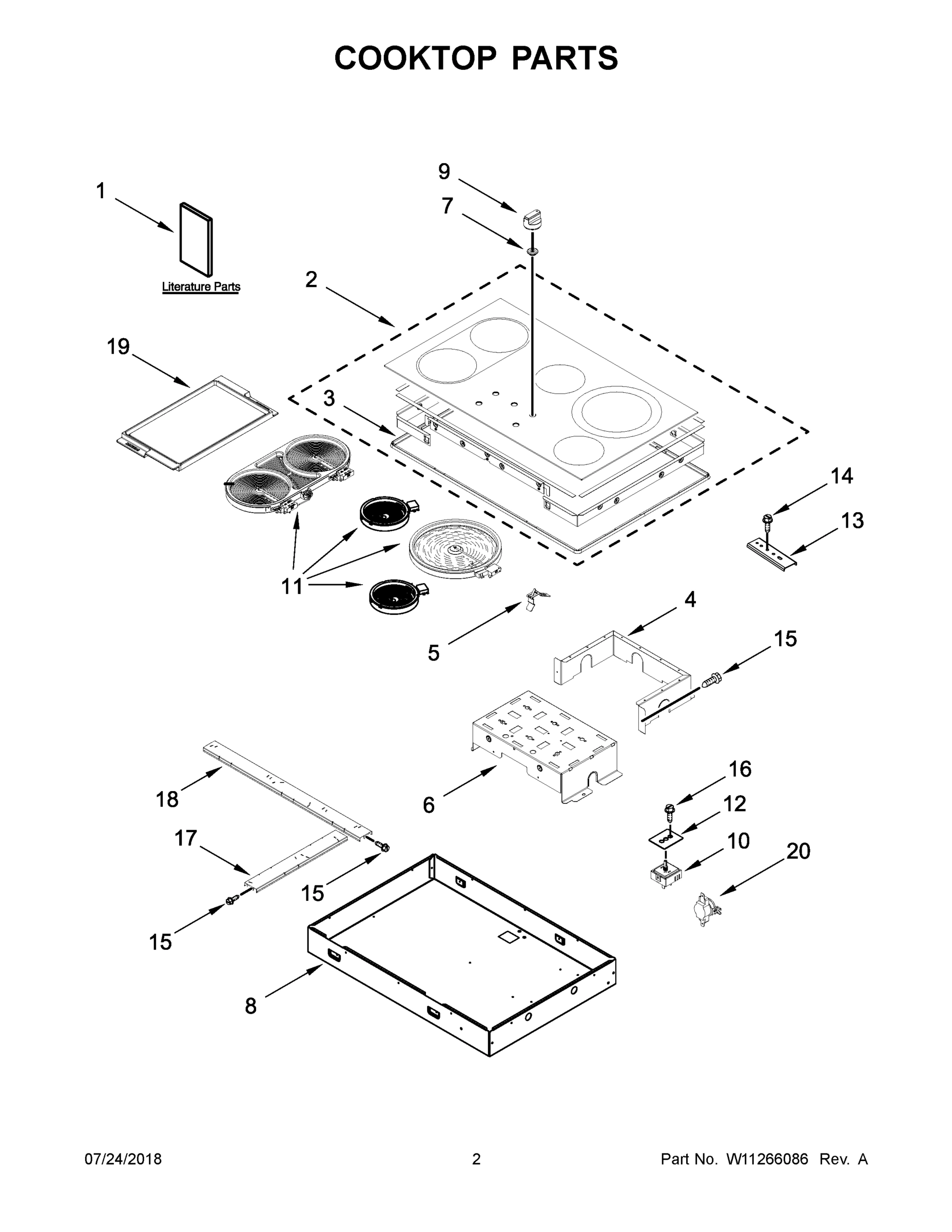

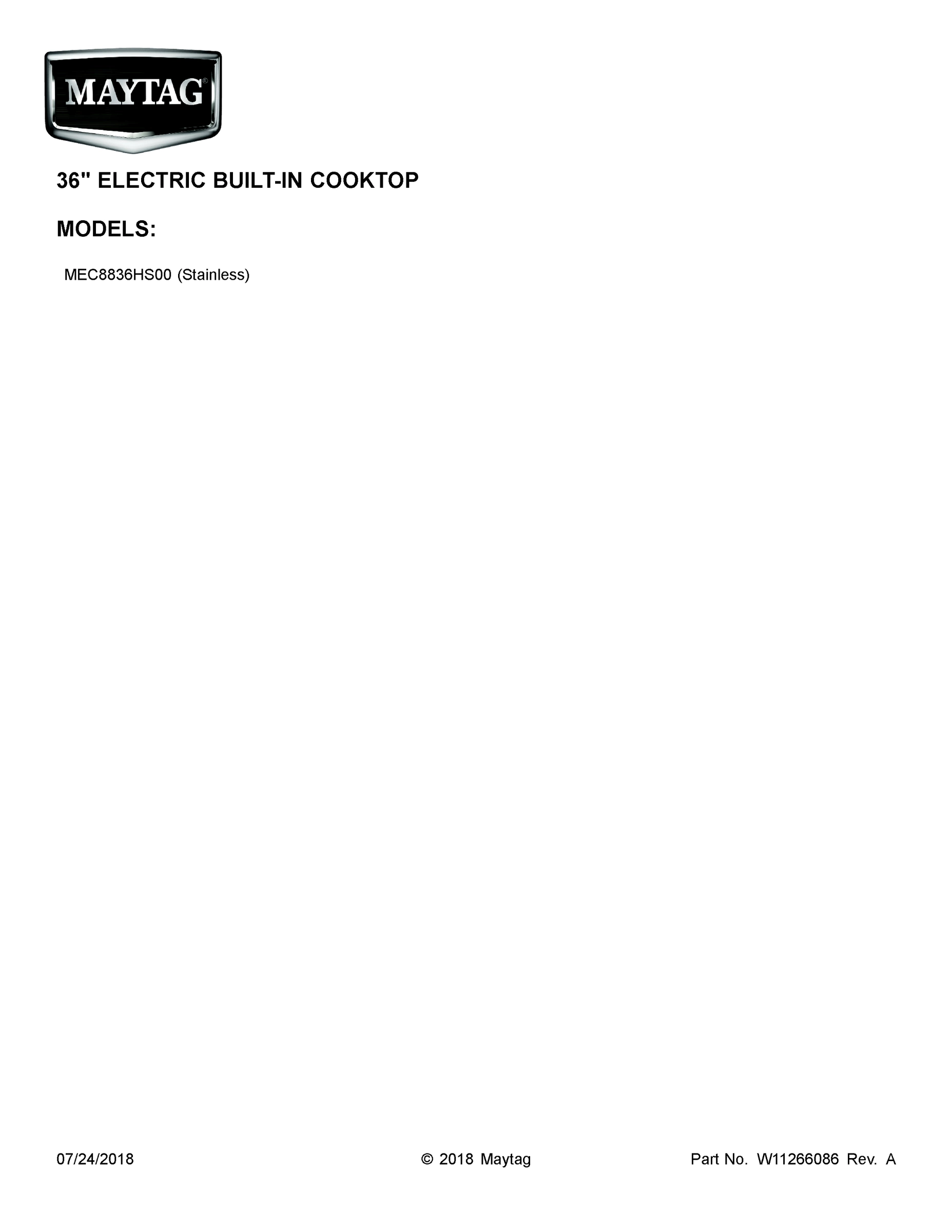

Model Maytag MEC8836HS00 COOKTOP, ELECTRIC, BUILT-IN, 36 INCH – Common Parts & Diagrams

1
INSTRUCTIONS, INSTALLATION
INSTRUCTIONS, INSTALLATION MAY W11206696 Contact Us For Availability
View on Model
1A
INSTRUCTIONS, UNDERCOUNTER INSTALLATION
INSTRUCTIONS, UNDERCOUNTER INSTALLATION MAY W11245478 Contact Us For Availability
View on Model
1B
GUIDE, USE & CARE
GUIDE, USE & CARE MAY W11161590 Contact Us For Availability
View on Model
1C
MAY W11238364
MAY W11238364 MAY W11238364 Contact Us For Availability
View on Model
2
MAY W11269300
MAY W11269300 MAY W11269300 Contact Us For Availability
View on Model
4
SHEILD, OUTER
SHEILD, OUTER MAY W10311897 Contact Us For Availability
View on Model
5
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
6
MAY W11215839
MAY W11215839 MAY W11215839 Contact Us For Availability
View on Model
7
GROMMET (BLACK)
GROMMET (BLACK) MAY W10293874 Contact Us For Availability
View on Model
9
KNOB, CONTROL (STAINLESS)
KNOB, CONTROL (STAINLESS) MAY W10859808 Contact Us For Availability
View on Model
10
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR)
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) MAY W10437092 Contact Us For Availability
View on Model
10A
SWITCH, INFINITE (LEFT REAR)
SWITCH, INFINITE (LEFT REAR) MAY W10843843 Contact Us For Availability
View on Model
10B
SWITCH, INFINITE (CENTER REAR)
SWITCH, INFINITE (CENTER REAR) MAY W10578768 Contact Us For Availability
View on Model
10C
SWITCH, INFINITE (RIGHT FRONT)
SWITCH, INFINITE (RIGHT FRONT) MAY W10437094 Contact Us For Availability
View on Model
11
ELEMENT, BRIDGE (LEFT FRONT & LEFT REAR)
ELEMENT, BRIDGE (LEFT FRONT & LEFT REAR) MAY W10248259 Contact Us For Availability
View on Model
11A
ELEMENT (1200W) (CENTER REAR)
ELEMENT (1200W) (CENTER REAR) MAY 8273994 Contact Us For Availability
View on Model
11B
ELEMENT (1300W) (RIGHT FRONT)
ELEMENT (1300W) (RIGHT FRONT) MAY W10342780 Contact Us For Availability
View on Model
11C
ELEMENT (3000W) (RIGHT REAR)
ELEMENT (3000W) (RIGHT REAR) MAY W10711900 Contact Us For Availability
View on Model
12
SEAL, SWITCH COVER
SEAL, SWITCH COVER MAY 3183956 Contact Us For Availability
View on Model
13
BRACKET, COOKTOP MOUNTING
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
View on Model
14
SCREW
SCREW MAY 3400093 Contact Us For Availability
View on Model
17
RAIL, SHORT
RAIL, SHORT MAY W11175341 Contact Us For Availability
View on Model
18
RAIL, HORIZONTAL
RAIL, HORIZONTAL MAY W11175343 Contact Us For Availability
View on Model
19
GRILL/GRIDDLE
GRILL/GRIDDLE MAY W11192139 Contact Us For Availability
View on Model
20
SWITCH, TOD HIGH LIMIT
SWITCH, TOD HIGH LIMIT MAY W10471482 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
SCREW (FOR MAIN HARNESS)
SCREW (FOR MAIN HARNESS) MAY 7101P426-60 Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
MAY W11110559
MAY W11110559 MAY W11110559 Contact Us For Availability
View on Model
NI
INSULATION, COOKTOP (KNOB)
INSULATION, COOKTOP (KNOB) MAY W11183280 Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, COOKTOP CARE
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
View on Model
NI
ACCESSORIES, SCRAPER, COOKTOP
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
View on Model
