Model Maytag MEC7430BS01 ELECTRIC COOKTOP – Common Parts & Diagrams

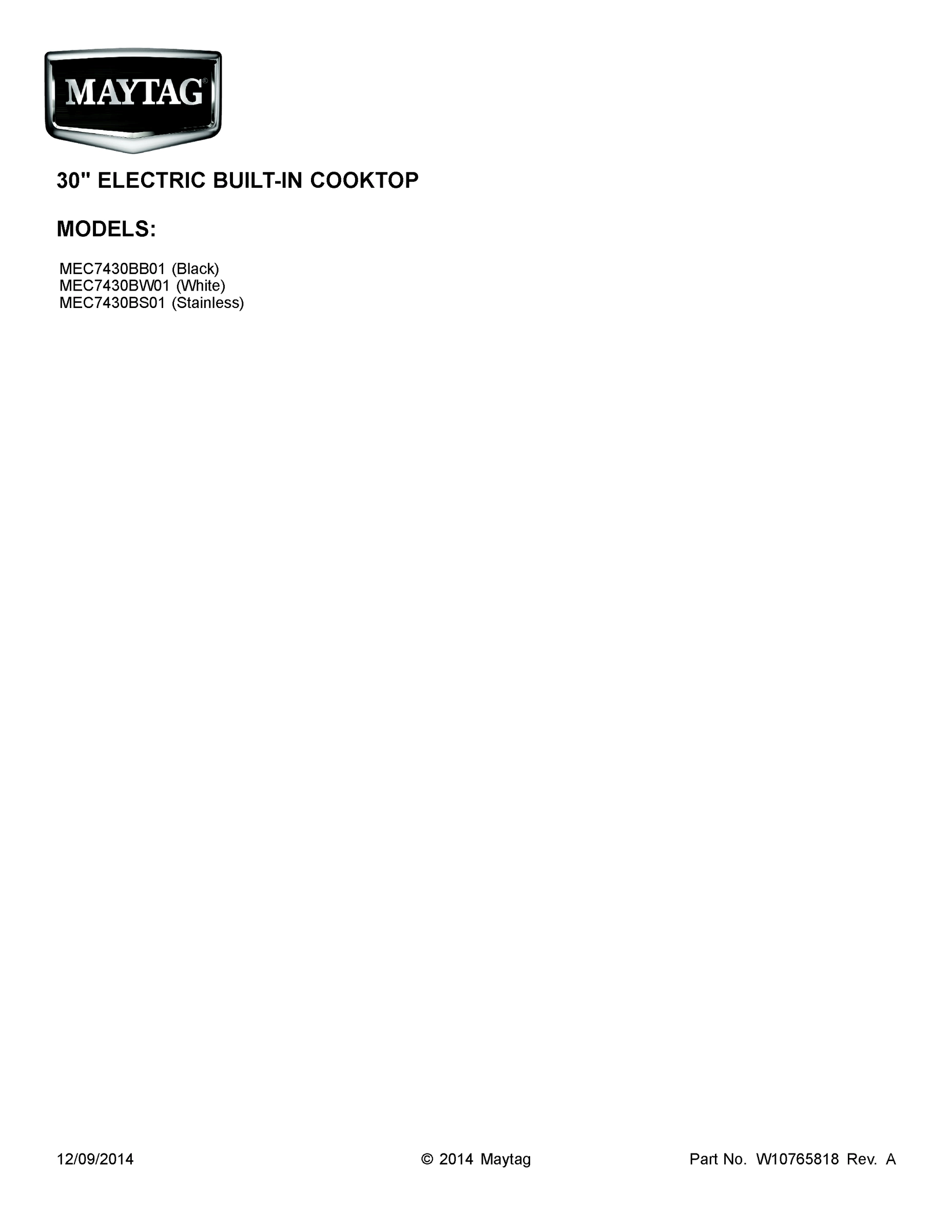

01 - COVER SHEET

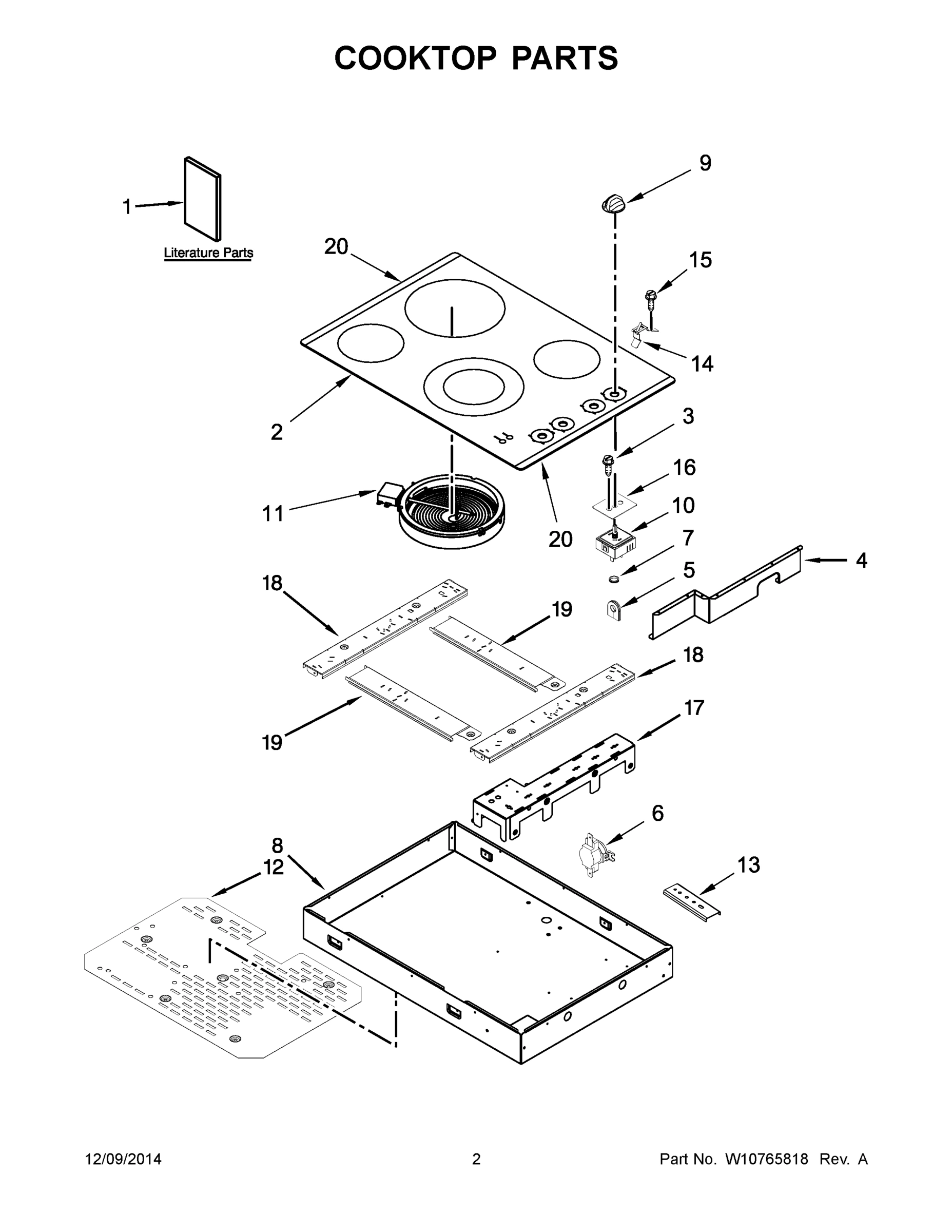

02 - COOKTOP PARTS
03 - OPTIONAL PARTS
Common parts from model Maytag MEC7430BS01 ELECTRIC COOKTOP
1
INSTRUCTIONS, INSTALLATION MAY W10574205 Contact Us For Availability
1A
MAY W10622708 MAY W10622708 Contact Us For Availability
1B
MAY W10351318 MAY W10351318 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10570699 MAY W10570699 Contact Us For Availability
2A
MAY W10570701 MAY W10570701 Contact Us For Availability
4
MAY W10311796 MAY W10311796 Contact Us For Availability
5
MAY 8008P068-60 MAY 8008P068-60 Contact Us For Availability
6
MAY W10464566 MAY W10464566 Contact Us For Availability
7
GROMMET, SWITCH (BLACK) MAY W10293874 Contact Us For Availability
7A
GROMMET, SWITCH (GREY) MAY W10372006 Contact Us For Availability
8
MAY W10410497 MAY W10410497 Contact Us For Availability
9
KNOB, CONTROL (BLACK) MAY W10480475 Contact Us For Availability
9A
MAY W10480477 MAY W10480477 Contact Us For Availability
9B
MAY W10480476 MAY W10480476 Contact Us For Availability
10
SWITCH, INFINITE (LEFT FRONT) MAY W10326246 Contact Us For Availability
10A
SWITCH, INFINITE (LEFT REAR) MAY W10462778 Contact Us For Availability
10B
SWITCH, INFINITE (RIGHT FRONT) MAY W10434447 Contact Us For Availability
10C
SWITCH, INFINITE (RIGHT REAR) MAY 7403P755-60 Contact Us For Availability
11
ELEMENT (1200W) (LEFT FRONT & RIGHT REAR) MAY 8273994 Contact Us For Availability
11A
ELEMENT (3200W) (LEFT REAR) MAY W10631481 Contact Us For Availability
11B
ELEMENT (3000/1400W) (RIGHT FRONT) MAY W10275048 Contact Us For Availability
12
MAY W10422067 MAY W10422067 Contact Us For Availability
13
MAY 4455917 MAY 4455917 Contact Us For Availability
14
MAY W10225448 MAY W10225448 Contact Us For Availability
15
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
16
MAY 3183956 MAY 3183956 Contact Us For Availability
17
MAY W10484349 MAY W10484349 Contact Us For Availability
18
MAY W10457917 MAY W10457917 Contact Us For Availability
19
MAY W10311790 MAY W10311790 Contact Us For Availability
20
MAY W10480460 MAY W10480460 Contact Us For Availability
NI
SEAL, LIMITER MAY 3192439 Contact Us For Availability
NI
MAY 7111P020-60 MAY 7111P020-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10316661 MAY W10316661 Contact Us For Availability
NI
MAY W10324729 MAY W10324729 Contact Us For Availability
NI
MAY W10464568 MAY W10464568 Contact Us For Availability
NI
MAY W10478329 MAY W10478329 Contact Us For Availability
NI
MAY W10631479 MAY W10631479 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
