Model Maytag MDG25PDAXW0 GAS DRYER – Common Parts & Diagrams

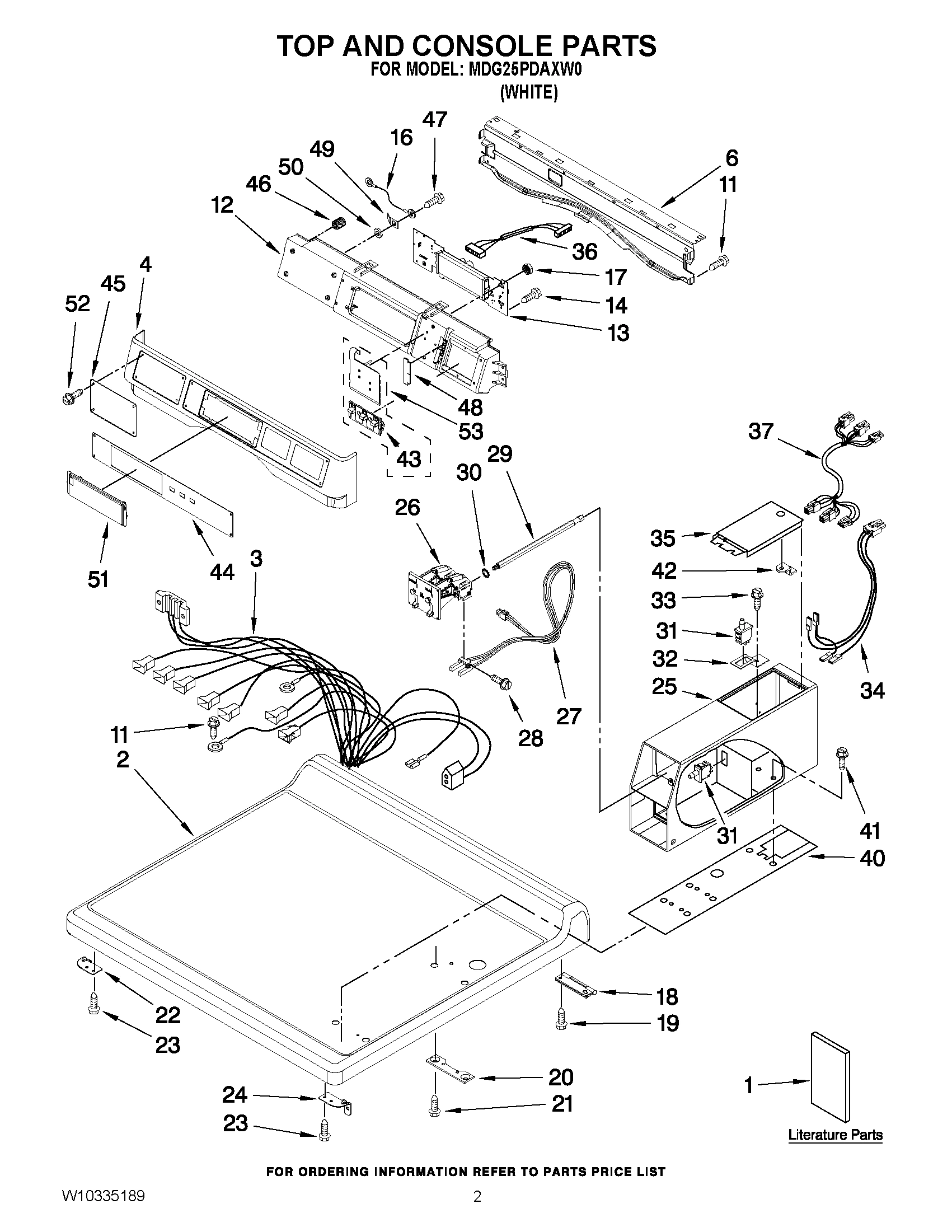

01 - TOP AND CONSOLE PARTS

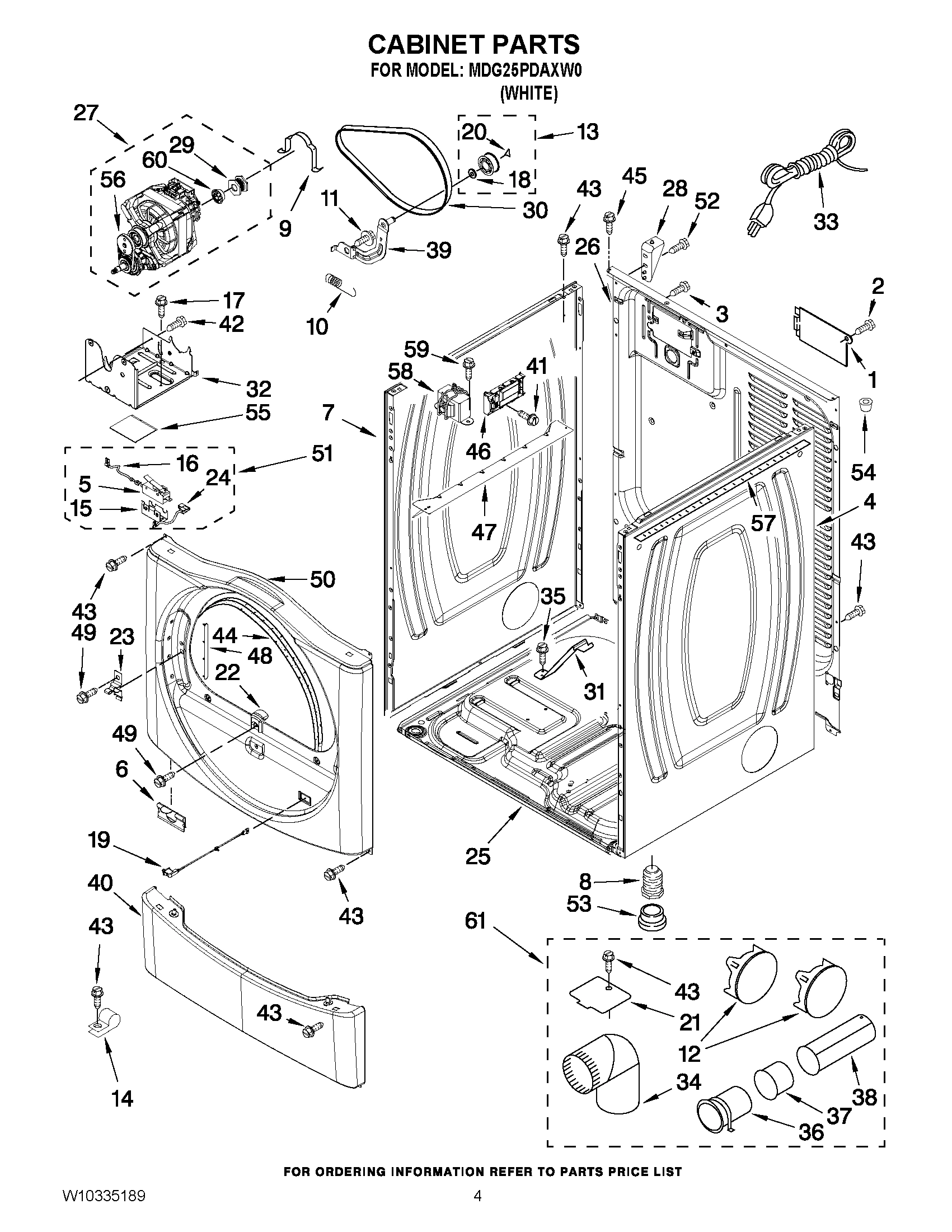

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - W10135231 BURNER ASSEMBLY
05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG25PDAXW0 GAS DRYER
1
INSTALLATION INSTRUCTION MAY W10135154 Contact Us For Availability
1
MAY W10239202 MAY W10239202 Contact Us For Availability
1
MAY W10335189 MAY W10335189 Contact Us For Availability
1
MAY 8317340 MAY 8317340 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
MAY W10135231 MAY W10135231 Contact Us For Availability
1
HINGE HOLE COVER (INNER DOOR) MAY 8565119 Contact Us For Availability
2
TOP MAY W10137411 Contact Us For Availability
2
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
2
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
DOOR HINGE ASSEMBLY MAY W10198424 Contact Us For Availability
3
MAY W10337045 MAY W10337045 Contact Us For Availability
3
SCREW GROUND MAY 8533974 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
4
MAY W10137459 MAY W10137459 Contact Us For Availability
4
MAY 8565048 MAY 8565048 Contact Us For Availability
4
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
MAY 8564010 MAY 8564010 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
MAY 3400618 MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
FOAM-SEAL MAY 697813 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
7
MAY 8565054 MAY 8565054 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
Handle, Door (Includes Illus. 20.) MAY W10117477 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3387057 Contact Us For Availability
8
MAY W10159996 MAY W10159996 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
MAY W10049370 MAY W10049370 Contact Us For Availability
9
Orifice, Burner (Type 2) MAY 234868 Contact Us For Availability
9
Orifice, Burner (Type 1) MAY 234870 Contact Us For Availability
9
Screw MAY 3393258 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
VALVE, GAS (60 HZ -COMPLETE) MAY W10141728 Contact Us For Availability
10
MAY W10164062 MAY W10164062 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
11
SCREW, 8-32 X 1/2 MAY 694421 Contact Us For Availability
11
MAY 355515 MAY 355515 Contact Us For Availability
12
MAY W10137427 MAY W10137427 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
12
DOOR, OUTER RING MAY W10198431 Contact Us For Availability
13
MAY W10166385 MAY W10166385 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY 8533971 MAY 8533971 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
Screw, 3-24 x 1/32 MAY 489136 Contact Us For Availability
14
Bracket, Gas Pipe MAY 3978776 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
14
Door Catch Assembly MAY 690081 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
15
MAY 8519354 MAY 8519354 Contact Us For Availability
16
MAY W10188087 MAY W10188087 Contact Us For Availability
16
MAY W10167613 MAY W10167613 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
16
DOOR,INTERMEDIATE MAY 8580059 Contact Us For Availability
17
NUT, 6-32 MAY W10139046 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
MAY 8565018 MAY 8565018 Contact Us For Availability
18
MAY 233520 MAY 233520 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
18
MAY 8519356 MAY 8519356 Contact Us For Availability
19
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
19
MAY W10128087 MAY W10128087 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
19
MAY W10163915 MAY W10163915 Contact Us For Availability
20
MAY 3347825 MAY 3347825 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
20
MAY W10112927 MAY W10112927 Contact Us For Availability
21
MAY 98445 MAY 98445 Contact Us For Availability
21
MAY 8066115 MAY 8066115 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY W10110395 MAY W10110395 Contact Us For Availability
22
BRACKET, TOP PANEL (LEFT) MAY W10137445 Contact Us For Availability
22
MAY 8565083 MAY 8565083 Contact Us For Availability
22
MAY 8563728 MAY 8563728 Contact Us For Availability
22
Valve & Union Shut-Off MAY 697441 Contact Us For Availability
23
MAY 8565122 MAY 8565122 Contact Us For Availability
23
Housing, Outlet Assembly MAY W10153423 Contact Us For Availability
23
MAY 3393767 MAY 3393767 Contact Us For Availability
24
BRACKET, TOP PANEL (RIGHT) MAY W10137444 Contact Us For Availability
24
MAY 8539892 MAY 8539892 Contact Us For Availability
24
MAY 489463 MAY 489463 Contact Us For Availability
24
MAY 233076 MAY 233076 Contact Us For Availability
25
MAY W10171128 MAY W10171128 Contact Us For Availability
25
MAY 8565046 MAY 8565046 Contact Us For Availability
25
MAY W10153420 MAY W10153420 Contact Us For Availability
25
MAY 3387561 MAY 3387561 Contact Us For Availability
26
Coin Drop Assy. MAY W10133245 Contact Us For Availability
26
MAY 8565059 MAY 8565059 Contact Us For Availability
26
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
26
MAY 3389889 MAY 3389889 Contact Us For Availability
27
COIN SENSOR ASSY, COIN 2 (BLACK) MAY W10247388 Contact Us For Availability
27
COIN SENSOR ASSY, COIN 1 (WHITE) MAY W10247389 Contact Us For Availability
27
MOTOR ASSEMBLY 60 HZ. MAY W10139766 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY W10142655 MAY W10142655 Contact Us For Availability
28
MAY W10137398 MAY W10137398 Contact Us For Availability
28
CLIP-SPRING MAY 8066208 Contact Us For Availability
29
MAY W10137319 MAY W10137319 Contact Us For Availability
29
PULLEY MAY 3394341 Contact Us For Availability
29
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
30
Washer (2) MAY W10068270 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
31
MAY W10131838 MAY W10131838 Contact Us For Availability
31
MAY 8529757 MAY 8529757 Contact Us For Availability
32
MAY W10133508 MAY W10133508 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
WIRE JUMPER MAY 3401707 Contact Us For Availability
33
Screw, 8-18 x 5/16 MAY W10139210 Contact Us For Availability
33
MAY 3401401 MAY 3401401 Contact Us For Availability
33
MAY W10153409 MAY W10153409 Contact Us For Availability
34
MAY W10211244 MAY W10211244 Contact Us For Availability
34
MAY 49026 MAY 49026 Contact Us For Availability
34
MAY 8565061 MAY 8565061 Contact Us For Availability
35
Service Door Assembly MAY 3351136 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY W10166307 MAY W10166307 Contact Us For Availability
36
MAY 8563747 MAY 8563747 Contact Us For Availability
36
MAY W10153412 MAY W10153412 Contact Us For Availability
37
MAY W10166308 MAY W10166308 Contact Us For Availability
37
MAY 8563750 MAY 8563750 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
MAY 8573713 MAY 8573713 Contact Us For Availability
39
MAY W10141380 MAY W10141380 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
MAY W10137448 MAY W10137448 Contact Us For Availability
40
MAY 8540621 MAY 8540621 Contact Us For Availability
40
FOAM-SEAL MAY 697770 Contact Us For Availability
41
Bolt, Meter Case Mounting (5/16-24 X 1.00) MAY 3349065 Contact Us For Availability
41
Bolt, Meter Case Mounting (5/16-18 X 2 1/2) MAY 3353994 Contact Us For Availability
41
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
42
CAM-LOCK MAY W10156125 Contact Us For Availability
42
Screw, 6-20 x 1.00 MAY W10002600 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
Push Button MAY W10131113 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
MAY W10334888 MAY W10334888 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY W10137461 MAY W10137461 Contact Us For Availability
45
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY W10189313 MAY W10189313 Contact Us For Availability
46
MAY W10166305 MAY W10166305 Contact Us For Availability
46
MAY 8573824 MAY 8573824 Contact Us For Availability
47
Screw 8-32 x 1/4 MAY 488234 Contact Us For Availability
47
MAY 8563727 MAY 8563727 Contact Us For Availability
47
THERMOSTAT, HIGH-LIMIT 255°F MAY 3391912 Contact Us For Availability
48
SEAL-CONSOLE MAY W10187276 Contact Us For Availability
48
MAY 8565043 MAY 8565043 Contact Us For Availability
48
MAY 338906 MAY 338906 Contact Us For Availability
49
MAY 3373818 MAY 3373818 Contact Us For Availability
49
MAY 3357011 MAY 3357011 Contact Us For Availability
49
Screw, 10-16 x 1 MAY 3387230 Contact Us For Availability
50
MAY W10189075 MAY W10189075 Contact Us For Availability
50
Front Panel (Includes Illus. 44) MAY W10117421 Contact Us For Availability
51
MAY W10267645 MAY W10267645 Contact Us For Availability
51
MAY W10155571 MAY W10155571 Contact Us For Availability
52
MAY W10137457 MAY W10137457 Contact Us For Availability
53
MAY W10135255 MAY W10135255 Contact Us For Availability
53
MAY 3391943 MAY 3391943 Contact Us For Availability
54
CONE WEDGE MAY 356674 Contact Us For Availability
55
MAY W10212660 MAY W10212660 Contact Us For Availability
56
MAY 3405160 MAY 3405160 Contact Us For Availability
57
Foam-Seal MAY 8318396 Contact Us For Availability
58
TRANSFORMER, 120 TO 22.5 (VAC) MAY W10131839 Contact Us For Availability
60
BELT RESTRAINER MAY 3393657 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY W10436933 MAY W10436933 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
× ![]()
