Model Maytag MDG17PDAWW1 GAS DRYER – Common Parts & Diagrams

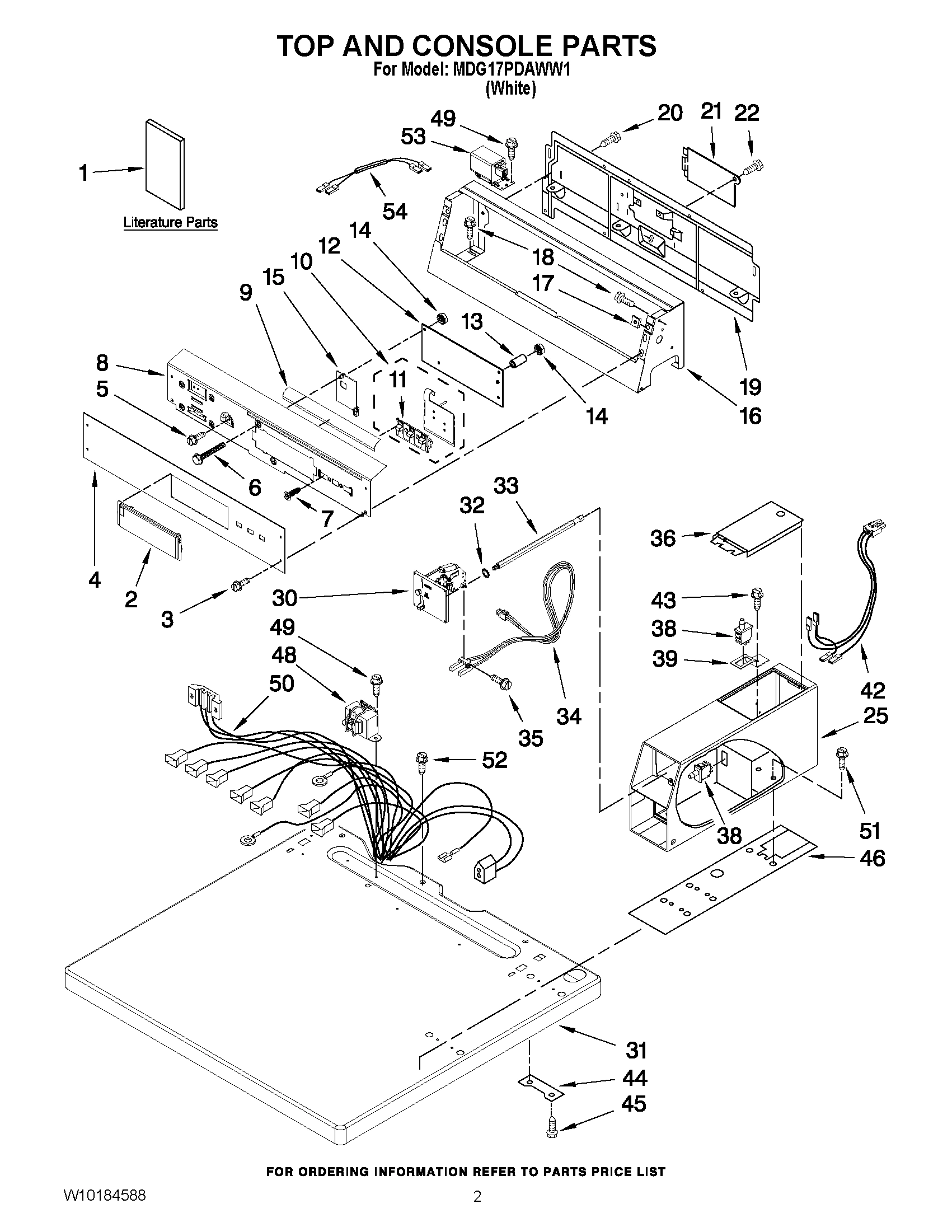

01 - TOP AND CONSOLE PARTS

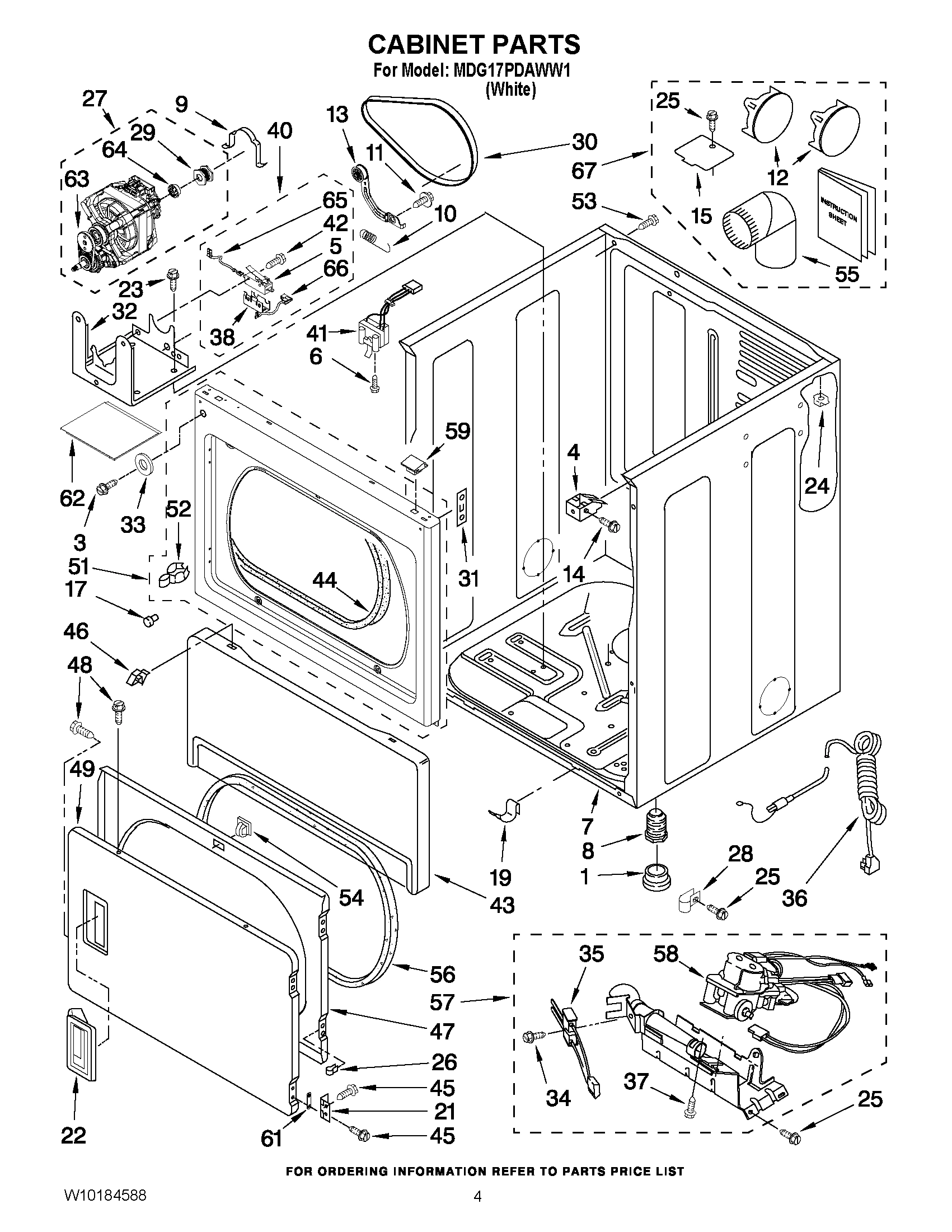

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - W10135231 BURNER ASSEMBLY
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG17PDAWW1 GAS DRYER
1
MAY W10183571 MAY W10183571 Contact Us For Availability
1
MAY W10184578 MAY W10184578 Contact Us For Availability
1
MAY W10184588 MAY W10184588 Contact Us For Availability
1
MAY 3391943 MAY 3391943 Contact Us For Availability
1
MAY W10135231 MAY W10135231 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
Cover, Display MAY W10131114 Contact Us For Availability
2
MAY 8066086 MAY 8066086 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
SCREW MAY W10131119 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
3
MAY 3400077 MAY 3400077 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10135181 MAY W10135181 Contact Us For Availability
4
Clip, Front Panel MAY 3391846 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
5
SCREW MAY W10142728 Contact Us For Availability
5
Switch, Broken Belt MAY 8564010 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
6
SCREW MAY W10137322 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
7
MAY W10140652 MAY W10140652 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
MAY W10124214 MAY W10124214 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3387057 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
MAY W10133515 MAY W10133515 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY 8066224 MAY 8066224 Contact Us For Availability
9
Orifice, Burner (Type 2) MAY 234868 Contact Us For Availability
9
Orifice, Burner (Type 1) MAY 234870 Contact Us For Availability
10
Assembly, Push Button & Switch MAY W10135233 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
VALVE, GAS (60 HZ -COMPLETE) MAY W10141728 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
Push Button MAY W10131113 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
SCREW MAY 3387230 Contact Us For Availability
11
SCREW, 8-32 X 1/2 MAY 694421 Contact Us For Availability
12
MAY W10130081 MAY W10130081 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
Spring, Lint Door MAY 3394986 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
13
MAY W10133514 MAY W10133514 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
IDLER ASSEMBLY MAY W10141380 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
14
NUT, 6-32 MAY W10139046 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
THERMOSTAT 155°F ELECTRONIC MAY W10131836 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
15
MAY W10161476 MAY W10161476 Contact Us For Availability
15
MAY 3394331 MAY 3394331 Contact Us For Availability
15
CLIP-SPRING MAY 8066208 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
16
Console MAY W10205153 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
17
NUT, No.8 U TYPE MAY W10131123 Contact Us For Availability
17
MAY 693152 MAY 693152 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10177313 MAY W10177313 Contact Us For Availability
19
CLIP MAY 297092 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
21
Cover, Terminal Box MAY 8317340 Contact Us For Availability
21
HINGE AND PIN MAY 3389247 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
21
MAY W10110395 MAY W10110395 Contact Us For Availability
22
SCREW MAY 3390814 Contact Us For Availability
22
MAY W10116360 MAY W10116360 Contact Us For Availability
22
Screen, Lint MAY W10049370 Contact Us For Availability
22
Valve & Union Shut-Off MAY 697441 Contact Us For Availability
23
SCREW MAY 3390663 Contact Us For Availability
23
Housing, Outlet MAY 8563755 Contact Us For Availability
23
MAY 3393767 MAY 3393767 Contact Us For Availability
24
Cage Nut 5/16 - 18 MAY 90406 Contact Us For Availability
24
MAY 697770 MAY 697770 Contact Us For Availability
24
MAY 233076 MAY 233076 Contact Us For Availability
25
MAY W10136645 MAY W10136645 Contact Us For Availability
25
MAY 3387561 MAY 3387561 Contact Us For Availability
25
Drum Complete MAY 8318215 Contact Us For Availability
26
NUT, ``U`` MAY 3389249 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY 3389889 MAY 3389889 Contact Us For Availability
27
MOTOR ASSEMBLY 60 HZ. MAY W10139766 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
WIRE JUMPER MAY 3401707 Contact Us For Availability
29
MAY 3394341 MAY 3394341 Contact Us For Availability
29
Thermal-Cutoff (Includes Item. 38) MAY 8573713 Contact Us For Availability
30
MAY W10133242 MAY W10133242 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY 8563758 MAY 8563758 Contact Us For Availability
31
TOP MAY W10136707 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 487909 Contact Us For Availability
32
Washer MAY W10068270 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10168564 MAY W10168564 Contact Us For Availability
33
MAY W10137319 MAY W10137319 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
THERMOSTAT MAY W10193019 Contact Us For Availability
34
Coin Optic Sensor Assembly MAY W10130178 Contact Us For Availability
34
MAY W10135254 MAY W10135254 Contact Us For Availability
35
SCREW MAY W10142655 Contact Us For Availability
35
Lint Duct Assembly MAY 8066168 Contact Us For Availability
36
Door, Service MAY 3351136 Contact Us For Availability
36
MAY 3401401 MAY 3401401 Contact Us For Availability
36
MAY 8573824 MAY 8573824 Contact Us For Availability
37
MAY 338906 MAY 338906 Contact Us For Availability
38
MAY W10131838 MAY W10131838 Contact Us For Availability
38
MAY 8564011 MAY 8564011 Contact Us For Availability
38
THERMOSTAT 255°F HIGH LIMIT MAY 3391912 Contact Us For Availability
39
Bracket, Service Door MAY W10133508 Contact Us For Availability
39
SCREW MAY 3357011 Contact Us For Availability
40
MAY W10155571 MAY W10155571 Contact Us For Availability
40
Baffle, Drum MAY 697693 Contact Us For Availability
41
MAY 3406109 MAY 3406109 Contact Us For Availability
41
MAY 697557 MAY 697557 Contact Us For Availability
42
Harness Wire Sensor Switch MAY W10139456 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
Grille, Outlet MAY 8563756 Contact Us For Availability
43
MAY W10139210 MAY W10139210 Contact Us For Availability
43
Panel, Toe (Includes, Item. 17) MAY 697215 Contact Us For Availability
43
THERMAL LIMITER MAY 3392519 Contact Us For Availability
44
MAY 3347825 MAY 3347825 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
45
SCREW MAY 98445 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
Cushion, Meter Case MAY 3954812 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY 3392563 MAY 3392563 Contact Us For Availability
48
TRANSFORMER, 120 TO 22.5 (VAC) MAY W10131839 Contact Us For Availability
48
SCREW MAY 694091 Contact Us For Availability
49
Door, Front MAY 3387872 Contact Us For Availability
50
MAY W10130190 MAY W10130190 Contact Us For Availability
51
SCREW MAY 3349065 Contact Us For Availability
51
MAY W10192882 MAY W10192882 Contact Us For Availability
52
SCREW MAY 3400000 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
53
Rfi-Filter Cpl. MAY 8540229 Contact Us For Availability
53
SCREW GROUND MAY 8533974 Contact Us For Availability
54
MAY W10175650 MAY W10175650 Contact Us For Availability
54
MAY 3392538 MAY 3392538 Contact Us For Availability
55
MAY 279731 MAY 279731 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
59
LOCK-TOP MAY 345670 Contact Us For Availability
61
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
62
MAY W10212660 MAY W10212660 Contact Us For Availability
63
MAY 3405160 MAY 3405160 Contact Us For Availability
64
BELT, RESTRAIN MAY 3393657 Contact Us For Availability
65
Wire, Belt Switch (To Protector) MAY W10167613 Contact Us For Availability
66
MAY 8539892 MAY 8539892 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY W10436933 MAY W10436933 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
