Model Maytag MDG17MNBGW2 GAS DRYER – Common Parts & Diagrams

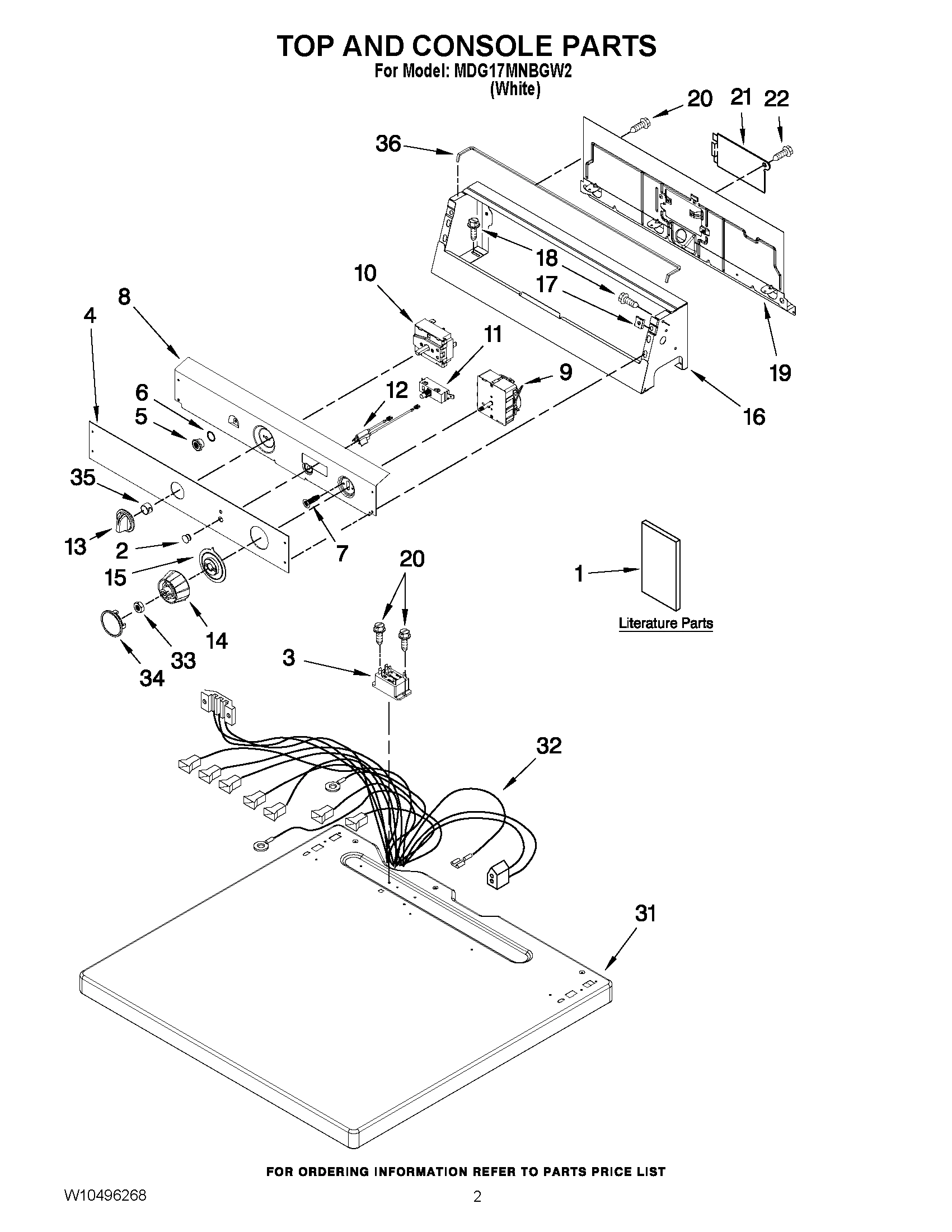

01 - TOP AND CONSOLE PARTS

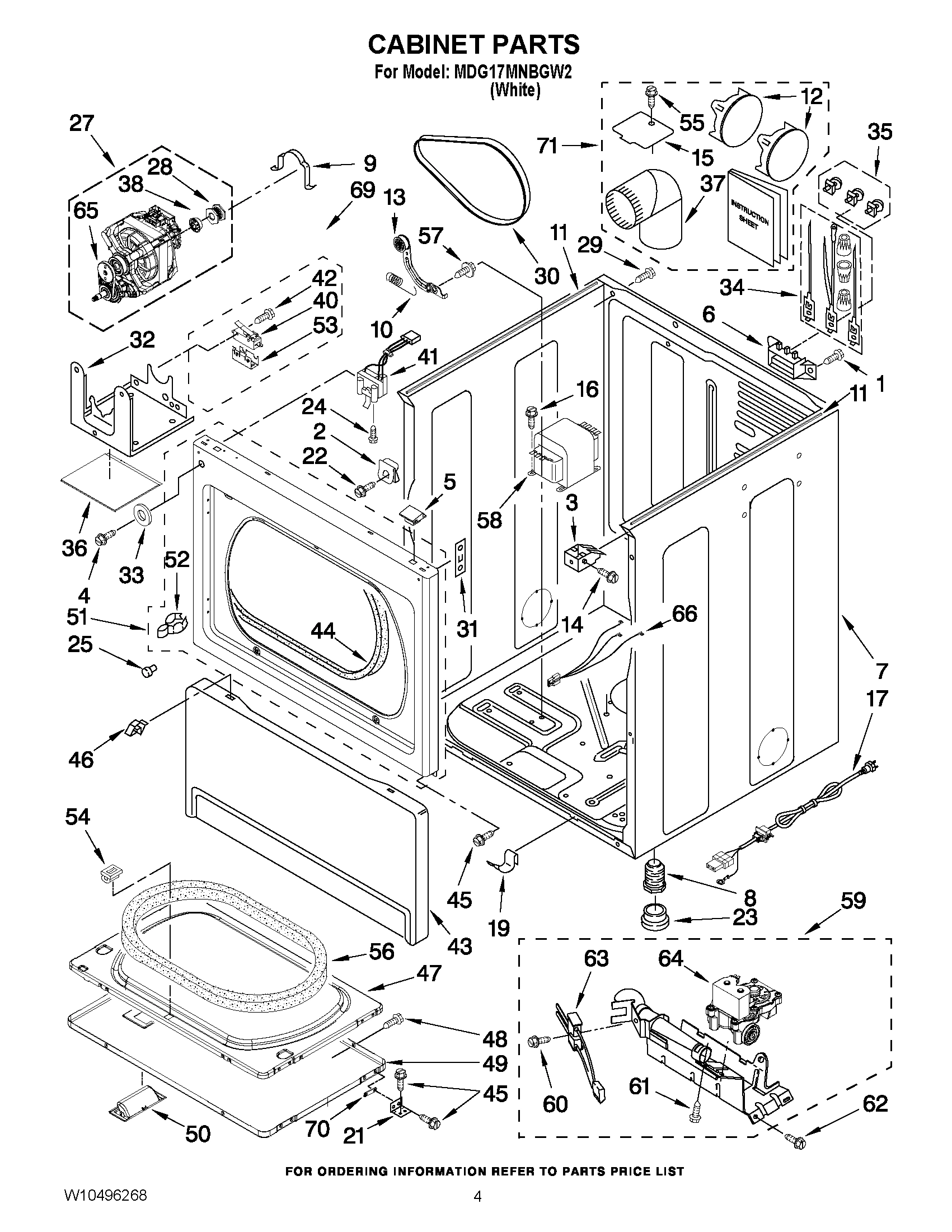

02 - CABINET PARTS

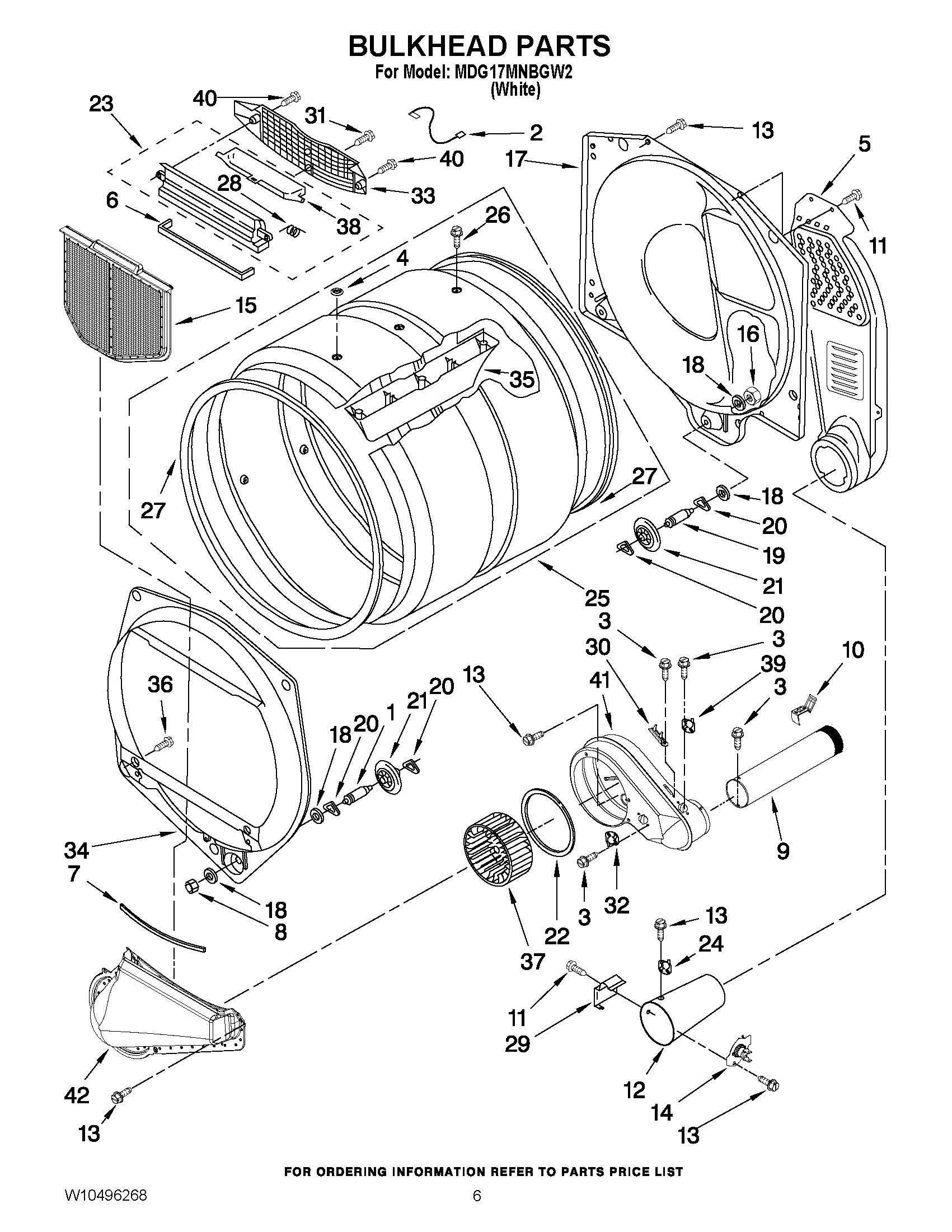

03 - BULKHEAD PARTS

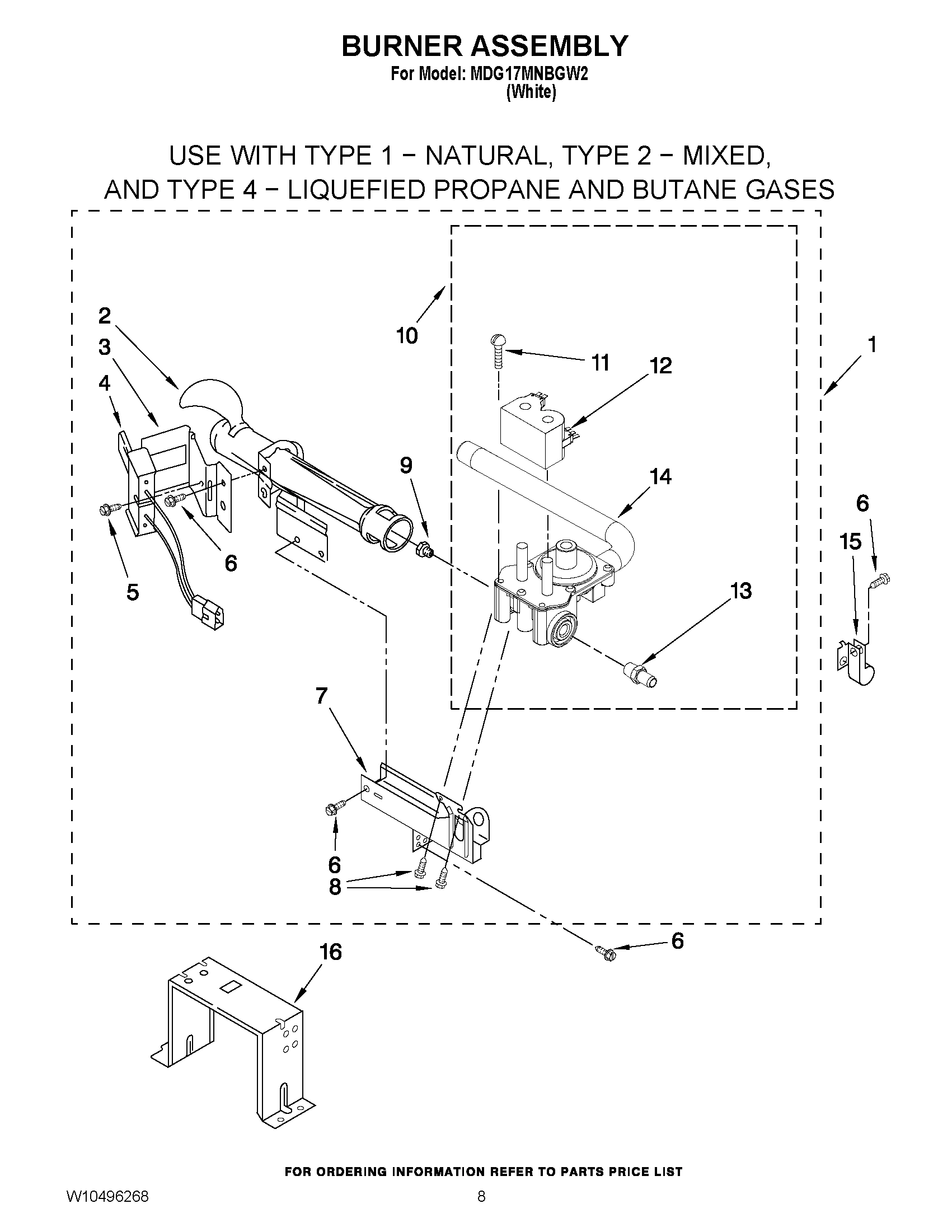

04 - BURNER ASSEMBLY
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG17MNBGW2 GAS DRYER
1
MAY W10115538 MAY W10115538 Contact Us For Availability
1
MAY W10396191 MAY W10396191 Contact Us For Availability
1
MAY 3393008 MAY 3393008 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1, 2 & 3) (COPRE MAY W10469829 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
2
Lens, Pilot Light Amber MAY W10133502 Contact Us For Availability
2
NUT, No.8 U TYPE MAY W10131123 Contact Us For Availability
2
WIRE JUMPER MAY 3401707 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 1188043 MAY 1188043 Contact Us For Availability
3
Clip, Front Panel MAY 3391846 Contact Us For Availability
3
Screw MAY 693995 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10135191 MAY W10135191 Contact Us For Availability
4
Screw, 10-16 x 1/2 MAY 3400077 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
DRUM, HOLE PLUG MAY W10128544 Contact Us For Availability
5
MAY W10146429 MAY W10146429 Contact Us For Availability
5
LOCK-TOP MAY 345670 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
6
MAY W10139799 MAY W10139799 Contact Us For Availability
6
MAY 3397659 MAY 3397659 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
7
MAY W10139100 MAY W10139100 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
MAY W10124216 MAY W10124216 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3387057 Contact Us For Availability
9
MAY W10157945 MAY W10157945 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
Exhaust Pipe MAY W10121167 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 234660 Contact Us For Availability
9
Orifice, Burner (Type 2) MAY 234868 Contact Us For Availability
10
MAY W10327100 MAY W10327100 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
VALVE, GAS 60 HZ. (COMPLETE) MAY W10304603 Contact Us For Availability
10
Clip MAY 8572105 Contact Us For Availability
11
MAY W10181931 MAY W10181931 Contact Us For Availability
11
Foam-Seal MAY 8318396 Contact Us For Availability
11
SCREW MAY 90767 Contact Us For Availability
11
SCREW, COIL MAY 326049536 Contact Us For Availability
12
Lamp-Indicator 230 V. MAY W10139459 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 8573824 MAY 8573824 Contact Us For Availability
12
MAY W10340251 MAY W10340251 Contact Us For Availability
13
MAY W10133507 MAY W10133507 Contact Us For Availability
13
MAY W10344192 MAY W10344192 Contact Us For Availability
13
Screw MAY 489463 Contact Us For Availability
13
MAY W10304608 MAY W10304608 Contact Us For Availability
14
MAY W10133505 MAY W10133505 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
MAY W10181549 MAY W10181549 Contact Us For Availability
14
MAY W10097610 MAY W10097610 Contact Us For Availability
15
MAY W10133506 MAY W10133506 Contact Us For Availability
15
MAY 3394331 MAY 3394331 Contact Us For Availability
15
Screen, Lint MAY W10049370 Contact Us For Availability
15
MAY 3387561 MAY 3387561 Contact Us For Availability
16
MAY W10205150 MAY W10205150 Contact Us For Availability
16
SCREW MAY 3400000 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
MAY 3389889 MAY 3389889 Contact Us For Availability
17
CORD-POWER MAY W10476824 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10139210 MAY W10139210 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
Panel, Rear (Upper) MAY W10121161 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
MAY W10096918 MAY W10096918 Contact Us For Availability
21
HINGE AND PIN MAY W10279703 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
SCREW MAY W10131119 Contact Us For Availability
22
MAY 697770 MAY 697770 Contact Us For Availability
23
MAY 3391943 MAY 3391943 Contact Us For Availability
23
MAY W10181927 MAY W10181927 Contact Us For Availability
24
SCREW MAY 697773 Contact Us For Availability
24
THERMOSTAT 255° F HIGH LIMIT MAY W10206703 Contact Us For Availability
25
MAY 693152 MAY 693152 Contact Us For Availability
25
Drum Complete MAY 8528998 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10289662 MAY W10289662 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY W10167237 MAY W10167237 Contact Us For Availability
28
MAY 3394986 MAY 3394986 Contact Us For Availability
29
MAY 8533974 MAY 8533974 Contact Us For Availability
29
MAY 338906 MAY 338906 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
THERMAL LIMITER MAY 3392519 Contact Us For Availability
31
MAY W10136704 MAY W10136704 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
MAY W10386328 MAY W10386328 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
THERMOSTAT 155º F ELECTRONIC MAY W10206196 Contact Us For Availability
33
Nut, 1/4-28 x MAY W10155650 Contact Us For Availability
33
MAY W10223794 MAY W10223794 Contact Us For Availability
33
Grill, Outlet MAY W10181926 Contact Us For Availability
34
MAY W10133501 MAY W10133501 Contact Us For Availability
34
Terminal, Brass & Tinned (3) (Includes Ill. 3 MAY 279318 Contact Us For Availability
34
MAY 697557 MAY 697557 Contact Us For Availability
35
MAY W10140928 MAY W10140928 Contact Us For Availability
35
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
Baffle, Drum MAY 697693 Contact Us For Availability
36
Foam Seal MAY W10157932 Contact Us For Availability
36
MAY W10212660 MAY W10212660 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
37
MAY 279731 MAY 279731 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY 3393657 MAY 3393657 Contact Us For Availability
38
MAY W10181925 MAY W10181925 Contact Us For Availability
39
THERMOSTAT, 140° F CYCLING MAY W10194158 Contact Us For Availability
40
SWITCH-BELT MAY W10410873 Contact Us For Availability
40
SCREW MAY 3387230 Contact Us For Availability
41
Door Switch Assembly MAY W10237959 Contact Us For Availability
41
MAY W10119255 MAY W10119255 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
Panel, Toe MAY 697215 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY W10323061 MAY W10323061 Contact Us For Availability
48
SCREW MAY W10080300 Contact Us For Availability
49
MAY W10322546 MAY W10322546 Contact Us For Availability
50
MAY W10116360 MAY W10116360 Contact Us For Availability
51
MAY W10192882 MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
53
MAY 8564011 MAY 8564011 Contact Us For Availability
54
MAY 3392538 MAY 3392538 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
SCREW MAY 3389420 Contact Us For Availability
58
MAY 3977633 MAY 3977633 Contact Us For Availability
61
SCREW MAY W10080630 Contact Us For Availability
62
SCREW MAY 3390647 Contact Us For Availability
65
POLY V, BELT MAY 3405160 Contact Us For Availability
66
JUMPER, TRANSFORMER MAY W10190549 Contact Us For Availability
69
MAY W10259136 MAY W10259136 Contact Us For Availability
70
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
MAY W10476818 MAY W10476818 Contact Us For Availability
NI
10A CORD ADAPTERS: (BRITISH) MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTERS: (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
MAY W10233219 MAY W10233219 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
KIT, DRYER REPA MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
